Basic Information
Model NO.: GSK RH06A3-1490
Drive Mode: Electric
Type: TIG Welding Robot
Repeatability: 0.05mm
Motion Radius: 1490mm
Payload: 6kg
DOF: 6
Weight: 185kg
Certification: ISO, CE
Product Description

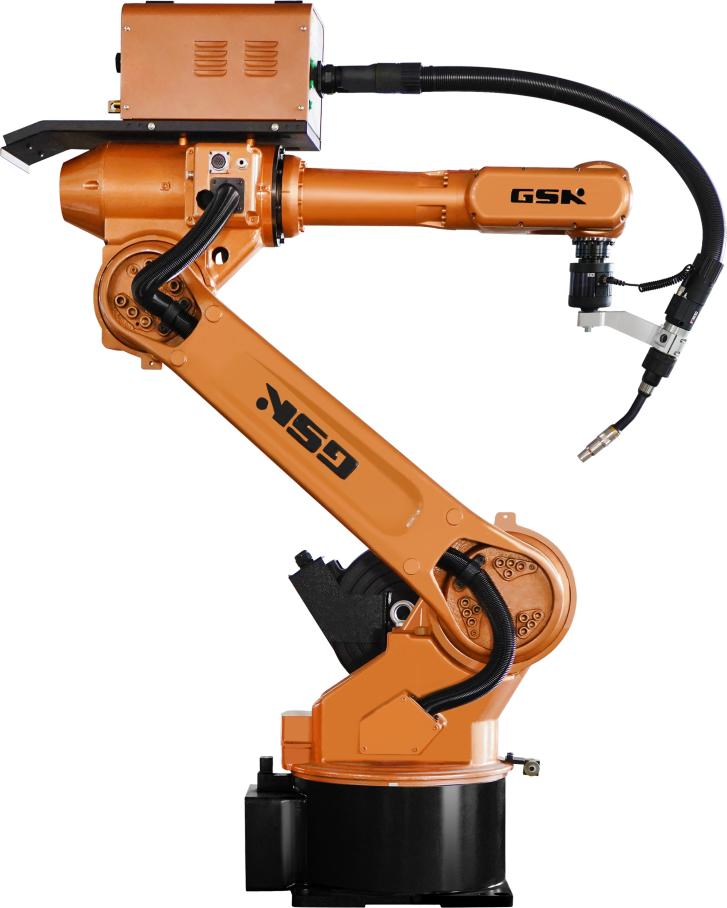

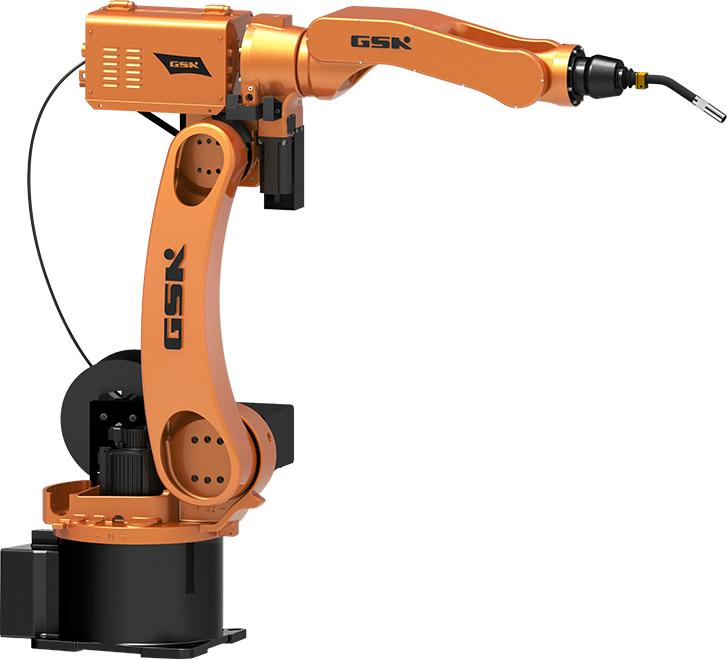

The GSK RH06A3-1490 is a high-performance 6-axis CNC industrial welding robot designed for precision and efficiency in automotive, agricultural, and hardware welding sectors.
Technical Specifications
| Type |
Dof |
Payload (kg) |
Repeatability (mm) |
Motion Radius (mm) |
| RH06A3-1490 |
6 |
6 |
±0.05 |
1490 |
| RH06A2-1490 |
6 |
6 |
±0.05 |
1490 |
Key Application Advantages
- High Efficiency: Automated loading, clamping, and welding processes ensure continuous production and consistent quality.
- Precision: Advanced pneumatic clamping and programming ensure zero deformation in sensitive welding tasks.
- Safety: Reduces human exposure to hazardous environments like high temperatures, arc light, and smoke.
- Versatility: Optimized for small appliances, automotive accessories, and structural welding.
Frequently Asked Questions (FAQ)
1. What industries is the GSK RH06 robot suitable for?
It is ideal for the automotive industry, motorcycle manufacturing, agricultural machinery, engineering machinery, and various hardware welding applications.
2. What is the repeatability accuracy of the RH06A3-1490 model?
This model offers a high-precision repeatability of ±0.05mm, ensuring consistent quality for delicate welding tasks.

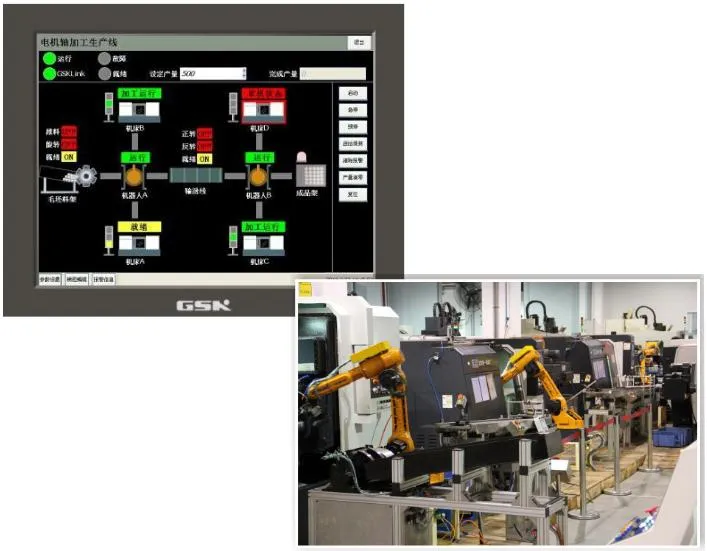

3. Does the robot support both online and offline programming?
Yes, the control system supports both online and offline programming, providing maximum flexibility for different production requirements.
4. How does the robot enhance safety in the workplace?
By automating the welding process, the robot keeps workers away from hazardous elements such as high heat, intense arc light, smoke, and dust.
5. Can this robot be integrated into existing production lines?
Yes, utilizing advanced bus technology, it ensures high-speed connectivity with other industrial robots, CNC machines, and auxiliary devices for seamless integration.
