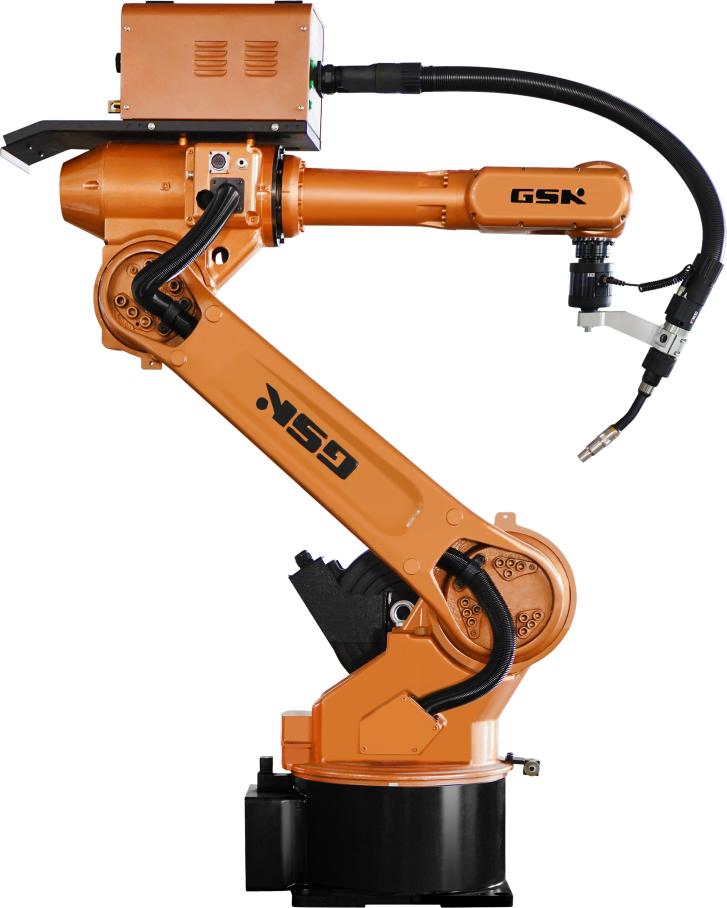

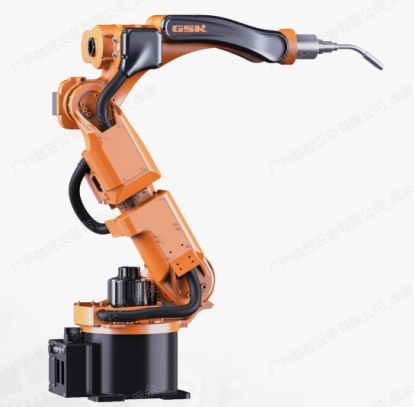

Introducing the RH06A3-1490, a top-tier 6 Axis CNC Industrial Automatic Welding Robot crafted to transform your welding operations with unparalleled precision and efficiency. This cutting-edge equipment promises to enhance your production workflow with its state-of-the-art technology and robust performance.
Application Field: This innovative welding robot showcases its versatility across a wide spectrum of industries. It is perfect for the automotive sector and its ancillary products, motorcycle manufacturing and accessories, as well as agricultural machinery, engineering machinery, and various hardware welding scenarios. Discover its adaptability to meet your diverse operational needs.
| Type |
Dof |
Drive Method |
Payload (kg) |
Repeatability (mm) |
Motion Range (°) |
Top Velocity (°/s) |
Allowed Top Torque (N.m) |
Motion Radius (mm) |
Machine Weight (kg) |
| J1 |
J2 |
E |
J3 |
J4 |
J5 |
J6 |
J1 |
J2 |
E |
J3 |
J4 |
J5 |
J6 |
J4 |
J5 |
J6 |
| RH06A2-1490 |
6 |
AC Servo Drive |
6 |
±0.05 |
±170 |
+115~-80 |
/ |
+80~-150 |
±180 |
±135 |
±360 |
200 |
200 |
/ |
200 |
282 |
370 |
630 |
14 |
12 |
6 |
1490 |
190 |
| RH06A2-2000 |
6 |
AC Servo Drive |
6 |
±0.05 |
±170 |
+140~-70 |
/ |
+75~-140 |
±180 |
±135 |
±360 |
175 |
165 |
/ |
195 |
282 |
370 |
630 |
14 |
12 |
6 |
2000 |
265 |
| RH06A3-1490 |
6 |
AC Servo Drive |
6 |
±0.05 |
±170 |
+120~-85 |
/ |
+83~-150 |
±180 |
±135 |
±360 |
200 |
200 |
/ |
200 |
400 |
356 |
600 |
14 |
12 |
7 |
1490 |
185 |
| RH06B1-1605 |
7 |
AC Servo Drive |
6 |
±0.05 |
±170 |
+110~-70 |
±90 |
+80~-150 |
±180 |
±135 |
±360 |
200 |
173 |
200 |
200 |
288 |
375 |
630 |
14 |
12 |
6 |
1605 |
215 |
Important Safety Note
Prioritize safety by avoiding environments with flammable, explosive, or corrosive gases and liquids. Prevent exposure to water, oil, and dust, and maintain a safe distance from electronic noise sources like plasma equipment to ensure optimal and secure operation.

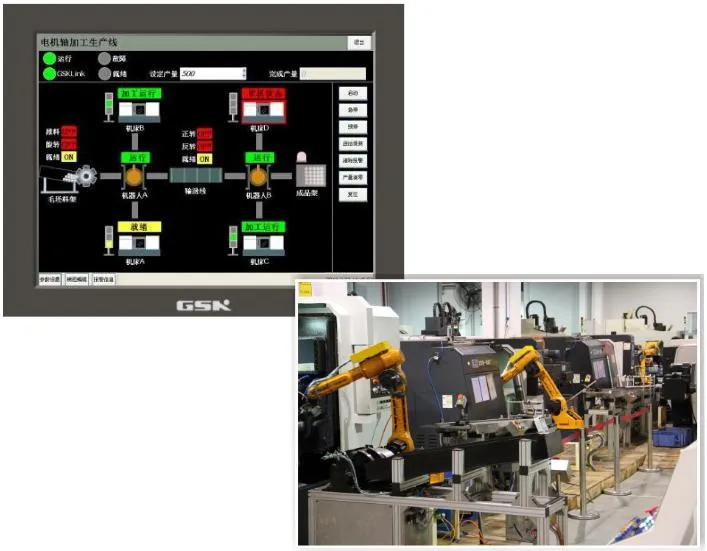

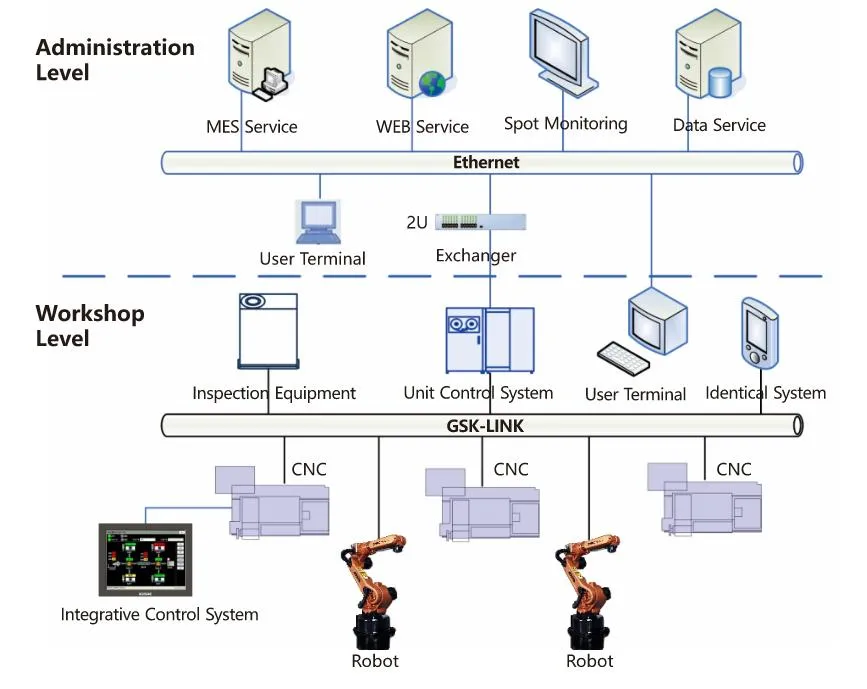

Production Line Unit Control System
Experience a sophisticated control solution tailored for the seamless integration and management of your production units, elevating your operational efficiency to new heights.
- Perfect for overseeing and managing machining environments, this system seamlessly coordinates assembly lines of production equipment, skillfully addressing diverse part machining requirements with precision.
- With the revolutionary LINK on-site bus technology, this solution empowers high-speed connectivity between CNC machines, industrial robots, and auxiliary devices within your production line, enhancing overall operational synergy.
- Supports both online and offline programming, giving you the flexibility and convenience needed for optimal robot operation, ensuring your production runs smoothly and efficiently.
- Designed with user-friendly operation in mind, ensuring simplicity and ease of use, this product promises an intuitive and streamlined user experience for all operators.
- Significantly boost production efficiency and maintain consistent product quality while cutting down on labor costs, providing exceptional value and performance that stands out in your operations.
- Refine and enhance your customer management systems to achieve superior operational control and productivity, setting new standards in operational excellence.
General Control Management System
A holistic control platform designed to facilitate advanced industrial management, pushing the boundaries of what's possible in your industrial operations.
- Engineered to realize the vision of a 'Digitalized Factory' and 'Intelligent Workshop', this system elevates manufacturing processes to unprecedented levels of intelligence and integration, transforming the future of manufacturing.
- Masterfully manages CAM and CAPP applications, streamlining both application and management processes to enhance operational efficiency and precision.
- Enables seamless and rapid flow planning, optimizing production schedules for timely and efficient manufacturing outcomes, ensuring your operations stay ahead of the curve.
- Precisely monitors and regulates production capacity, ensuring optimal utilization and output for maximum productivity, driving your business towards greater success.
- Offers in-depth statistics about equipment utilization, empowering you to make informed decisions to boost operational efficiency and productivity.
- Identifies and mitigates production flow interference, guaranteeing smooth and uninterrupted manufacturing operations, contributing to the seamless execution of all processes.
- Enhances cycle time (C/T) and beyond, driving continuous improvement in production processes and outcomes, setting a new standard for operational excellence in your industry.
Applications & Real-World Implementations

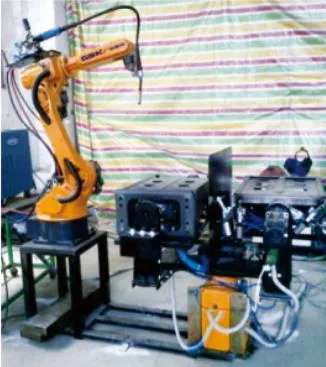

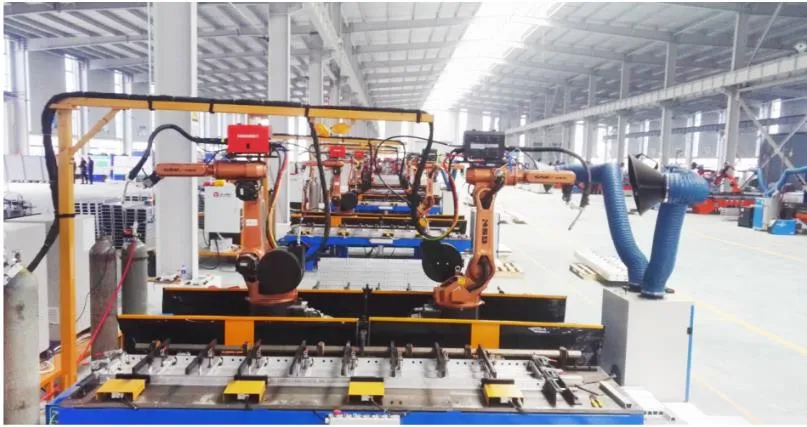

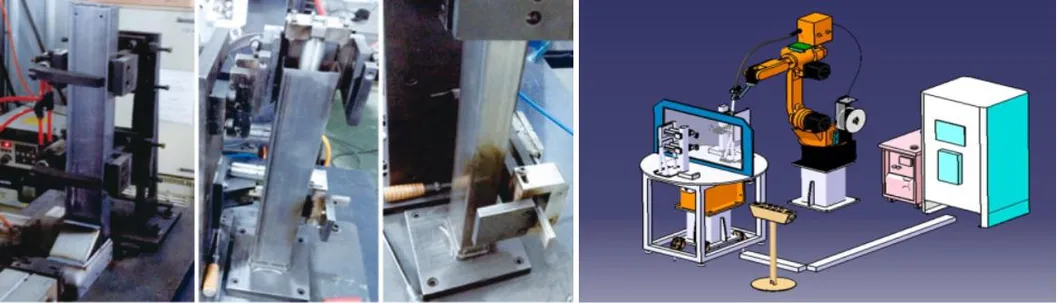

1. Transforming the Aluminum Template Industry
Customer Requirements: Powered by the latest in robotics innovation, this remarkable robot effortlessly automates tasks previously done by hand, replacing manual labor with its sophisticated dual-position welding feature, making it a brilliant choice for any production line.
Application Effect:
- Enter the future of automation: With unparalleled expertise, the robot deftly handles the loading and clamping of workpieces, executing flawless welds through advanced programming, and allowing seamless man-machine rotation operations.
- Featuring a state-of-the-art automatic torch cutting mechanism, this sophisticated system maintains an unbroken production rhythm, ensuring continuous operational flow.
- Boost efficiency by doubling the power; two robots work in tandem to conquer dual welds, providing steadfast and reliable performance over time.
- Pioneering safety in a high-risk industry, these robots significantly reduce exposure to high temperatures, smoke, and arc light, protecting workers and minimizing accident rates.
- As a cornerstone of intelligent manufacturing, the welding robot dramatically lowers production costs, greatly elevates product quality, and guarantees unwavering production stability.

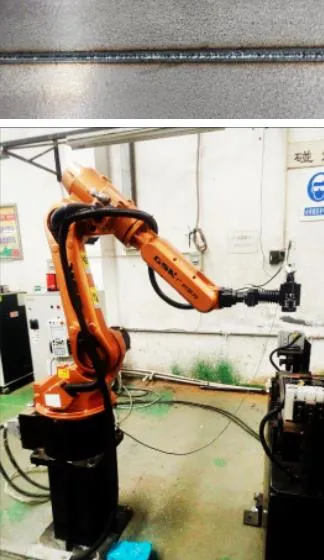

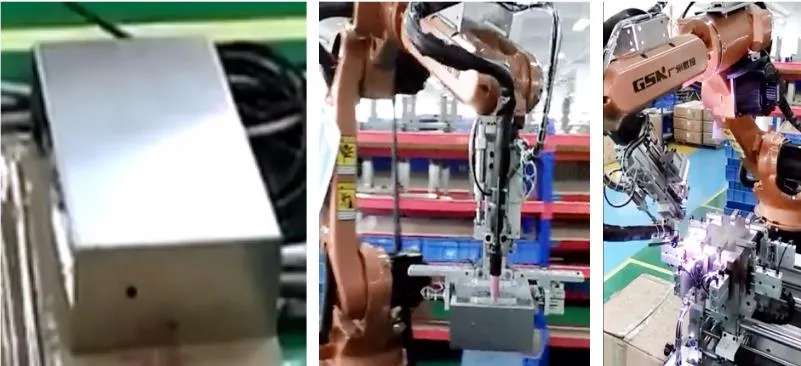

2. Precision at its Finest: Excellence in Laser Welding
Customer Requirements: A breakthrough deployment of the RH06 welding robot in the small appliance sector, setting new benchmarks for efficiency and performance.
Application Effect:
- Raising the bar for manual welding, the robot expertly welds 0.6mm stainless steel sheets with precision, avoiding any warping or deformation.
- Utilizing pneumatic clamping, the robot achieves perfect alignment, executing welding tasks precisely to program specifications with unmatched accuracy.
- With optical fiber transmission laser technology, the robot delivers unparalleled high-speed, continuous welding performance, ensuring the highest quality.
- Transition from traditional argon arc welding to state-of-the-art laser welding technology represents a significant leap forward in modern welding solutions.
- Surpassing conventional methods, the robot offers increased welding speed, reduced deformation, and superior bead consistency and appearance, setting a new industry standard.
- Enhancing operational efficiency while significantly reducing welding consumables costs compared to traditional argon arc welding; a true game-changer in cost management.

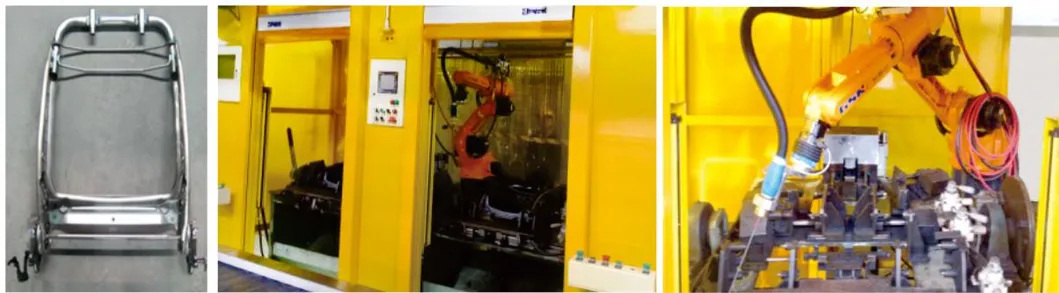

3. Transforming the Electrical Industry
Customer Requirements: A technological marvel, this robot seamlessly automates the complexities of loading, unloading, and TIG welding of stainless steel products, replacing time-consuming manual processes.
Application Effect:
- With precision handling, the robot expertly rotates and positions workpieces for flawless, program-guided welding execution that redefines accuracy.
- The harmonious integration of pneumatic clamping and argon-arc welding machines facilitates autonomous welding operations post-loading and unloading, maximizing workflow efficiency.
- Offering a fully automated welding solution, the robot eliminates the necessity for human intervention, achieving outstanding operational efficiency.
- The flexible tooling system automatically adjusts dimensions in accordance with the chosen procedure, ensuring incredible versatility and adaptability.

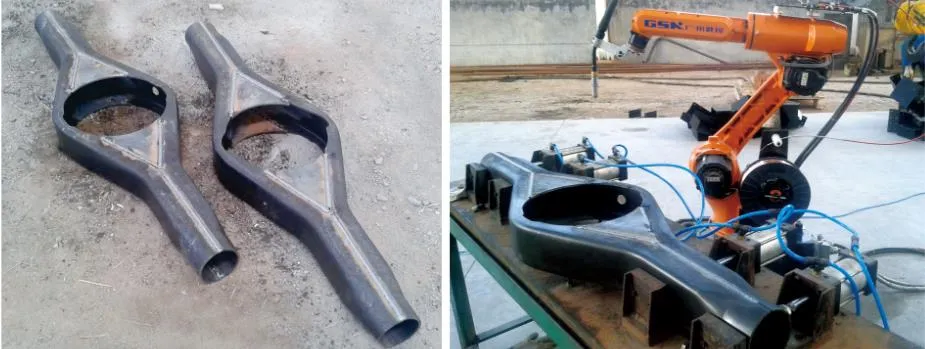

4. Unleashing Welding Robot Full Potential in Axle Manufacturing
Customer Requirements: Execute perfect full-length welding on spot-welded semi-products without any defects, maintaining simplicity in welding fixture design while ensuring top-notch quality.
5. Enhancing Innovations in Welding Fixture Design
Customer Requirements:
- Achieving impeccable full-length welding is essential, eliminating any distortion while maintaining a focus on simple yet effective welding fixture designs to enhance productivity.
- The innovative workstation is masterfully crafted to handle products with diverse specifications, effortlessly. The welding assembly can be conveniently detached during the welding process, considerably minimizing time expenditure, and boosting productivity.
- Ingeniously designed with a compact architecture, this workstation is meticulously optimized for optimal efficiency. Featuring a state-of-the-art arc light guard, it ensures superior safety during operations.
6. Application to Welding Fixtures for Precision and Efficiency
Customer Requirements:
Incorporate part elements such that no distortion or faults arise during the welding process. The capability of the weld assembly to be simultaneously dismounted during welding achieves notable time efficiency.
Application Effect:
Replacing manual welding with cutting-edge industrial robots significantly uplifts both the quality and efficiency of welds. The end result is a flawlessly exquisite welding appearance that enhances the visual allure.
7. Revolutionizing the Welding Fixture Landscape at the Transmission Project
Customer Requirements:
- Components are skillfully clipped by bespoke fixtures, executing full-length welding. This process ensures zero distortion, flawless penetration, and eliminates common welding defects such as undercuts and air vents.
- Drastically reduce manual labor within the robot's operational vicinity to enhance workflow efficiency. Strategically position workstations to optimize loading and unloading operations.
- This workstation effectively curtails arc light interference with advanced guard features. Two stations operate autonomously, maximizing device utility without any overlap or interference.
- Designed with versatility, the worktable seamlessly meets the welding needs of three distinct products, ensuring adaptability and flexibility.
8. Laser Welding Integration
Customer Requirements:
- The seamless integration of a single robot with one welding station creates an efficient, cohesive robot welding ecosystem.
- Achieve consistently impeccable welding formations with no visible weld penetration, ensuring pristine results every time.
Application Effect:
- Manual clamping is elegantly complemented by pneumatic systems for precise positioning. Complete welding is achieved in a single clamping session, enhancing efficiency.
- The resulting weld boasts a consistently beautiful appearance free from penetration marks, maintaining reliable quality with negligible deformation.
9. Application in MAG/CO₂ Welding
Customer Requirements:
- Products must rigorously meet the technical specifications, adhere to process drawings, and satisfy the demanding quality benchmarks set by clientele.
- Butt welding intervals must be meticulously maintained below 0.5mm to ensure precise execution.
- Maintain corner joint welding intervals under 1mm for optimum results, achieving seamless integration.
- Ensure conformity errors at welding joints are under 0.3mm to attain superior precision.
- Post-welding, workpieces should be pristine, devoid of welding burs and other imperfections.
- Achieve accelerated welding efficiency, targeting a swift welding time of under 30 seconds per piece.
Application Effect:
- Streamlined manual fixture arrangements with pneumatic clamping allow the revolving shaft to synchronize with overall robot welding operations, completing the process in one seamless motion.
- As one side undergoes manual fixing, concurrent robotic welding on the opposite side ensures an uninterrupted and harmonious production flow.
10. Deployed for Automotive Accessories Welding Fixtures
Customer Requirements:
- Experience the pinnacle of precision with parts and components securely held by our customized fixtures, guaranteeing flawless, full-length welding. Say goodbye to distortion, insufficient welding, undercuts, air vents, and any other welding faults.
- Maximize operational efficiency with our innovative system that reduces the manual operation range, all within the robot's exceptional reach. Artfully arrange your stations for ultimate compactness, ensuring efficient space utilization and minimal area occupation.

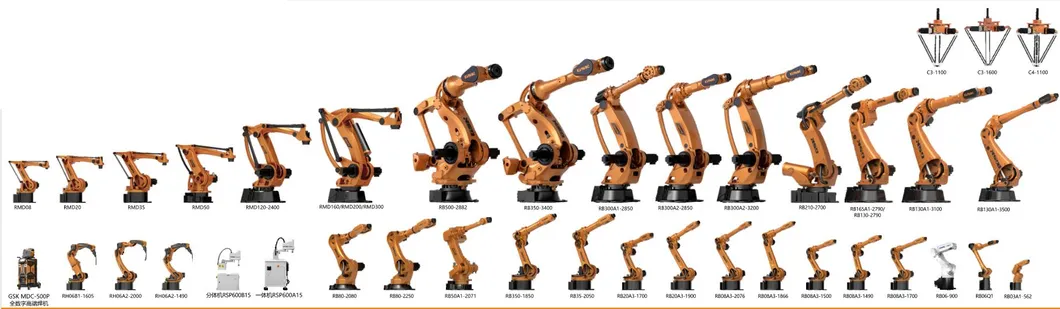

Robot Family Overview
With a rich legacy spanning over 30 glorious years in the realm of industry control technology R&D and manufacturing, our industrial robots proudly bear independent intellectual property rights. Our innovative creations include cutting-edge robot controllers, state-of-the-art servo motors, and advanced servo drivers alongside pivotal functional components. Presently, our prestigious industrial robots are artfully divided into 6 distinctive series, each meticulously designed to master a sweeping range of applications. From transportation to welding, and polishing to painting, not forgetting stacking and paralleling, we offer a diverse and expansive portfolio of up to 30 exceptional products that set the benchmark for excellence.
Embracing our role as a proud participant in advanced intelligent manufacturing equipment development initiatives, we stand at the forefront of innovation. Our commitment to excellence is showcased through independent R&D of industrial robots that seamlessly integrate robust system quality with cutting-edge technology. We meticulously tailor our robots to cater to the diverse needs of our distinguished clientele, presenting them with performance that is nothing short of unparalleled. Beyond this, our expertise extends to the expert design and manufacture of fixtures and conveyors, essential for comprehensive automation solutions. With such unwavering dedication, we continue to be a trusted and visionary leader in the industry.
Main Industrial Products
Our comprehensive packaged solutions are meticulously designed to cover every facet of modern manufacturing, including advanced machine tool CNC systems, precision servo drives, and robust servo motors. We are pioneers in the vast landscapes of industrial robotics and cutting-edge all-electric injection molding machines.
Industrial Robot Systems
Full Electric Injection Molding & CNC Machines
Frequently Asked Questions (FAQ)
Q1: What are the primary industrial applications for the RH06 series welding robots?
A1: The RH06 series welding robots are highly versatile and ideal for a wide range of industries including automotive assembly and components, motorcycle manufacturing, agricultural machinery, engineering machinery, and various hardware and steel welding applications.
Q2: What is the payload capacity and precision repeatability of these robots?
A2: The RH06 series welding robots offer a robust payload capacity of 6 kg with an exceptionally precise repeatability of ±0.05 mm, ensuring stable and consistent high-quality welds.
Q3: How does the Production Line Unit Control System enhance manufacturing operations?
A3: The Unit Control System leverages high-speed on-site bus technology to enable rapid connectivity between CNC machines, robots, and peripheral units. It supports both online and offline programming, boosts overall cycle time efficiency, and substantially reduces labor costs.
Q4: What advantages does laser welding offer over traditional TIG/Argon Arc welding?
A4: Laser welding integrated with the RH06 robot delivers significantly higher welding speeds, outstanding bead aesthetics with zero penetration marking, minimal thermal deformation (ideal for thin 0.6mm stainless steel), and greatly reduces expenditures on welding consumables.
Q5: What environmental safety precautions must be taken for optimal robot operation?
A5: The working environment must be kept free of flammable, explosive, or corrosive liquids and gases. Protection against water, heavy oil, and high dust concentrations is required, along with keeping a safe physical distance from high electronic noise sources like plasma generators.
Q6: Can these robotic systems support digital factory and automated plant integration?
A6: Yes. The General Control Management System is specifically engineered for "Digitalized Factories" and "Intelligent Workshops". It coordinates and monitors CAM/CAPP configurations, schedules process flows, and tracks overall equipment utilization metrics.
