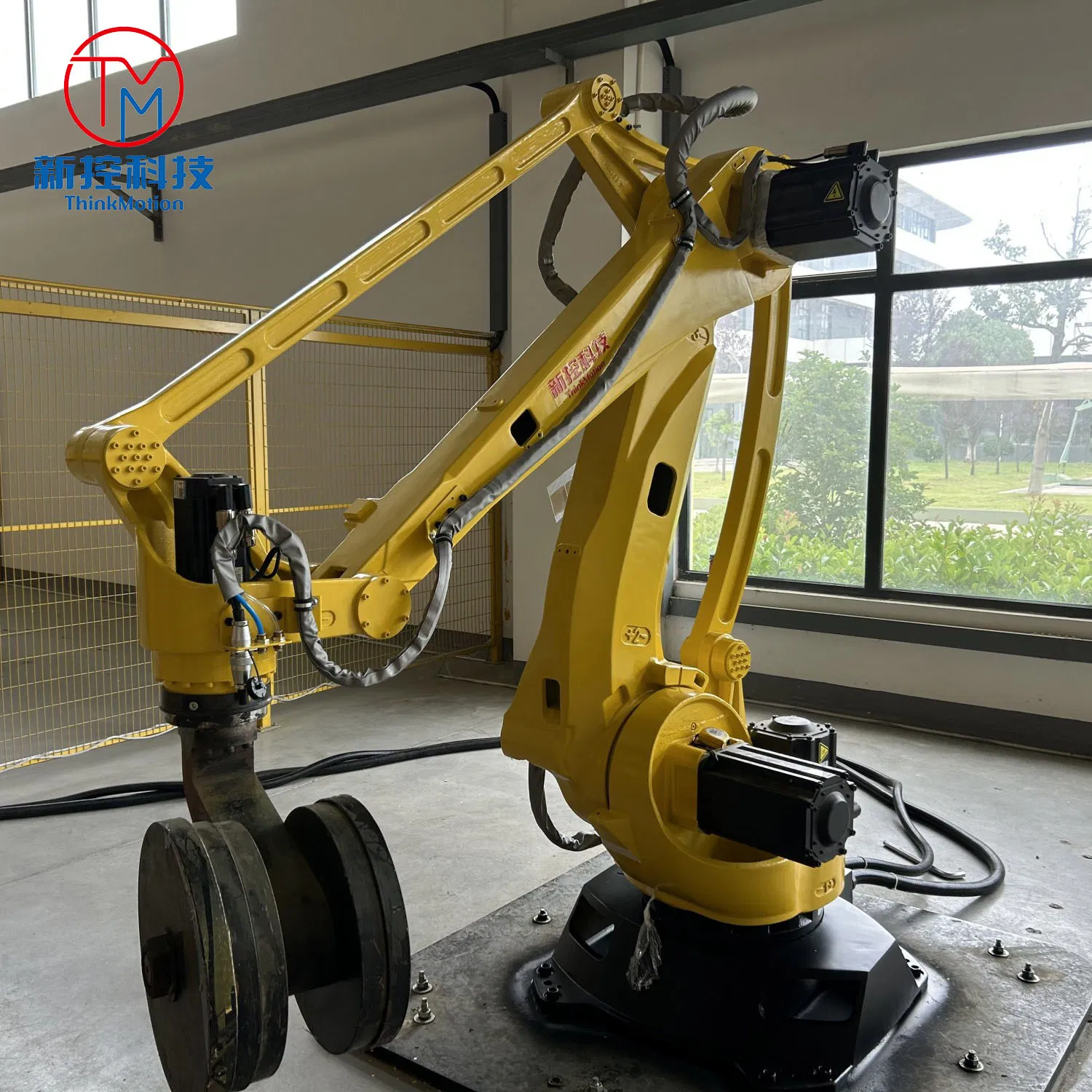

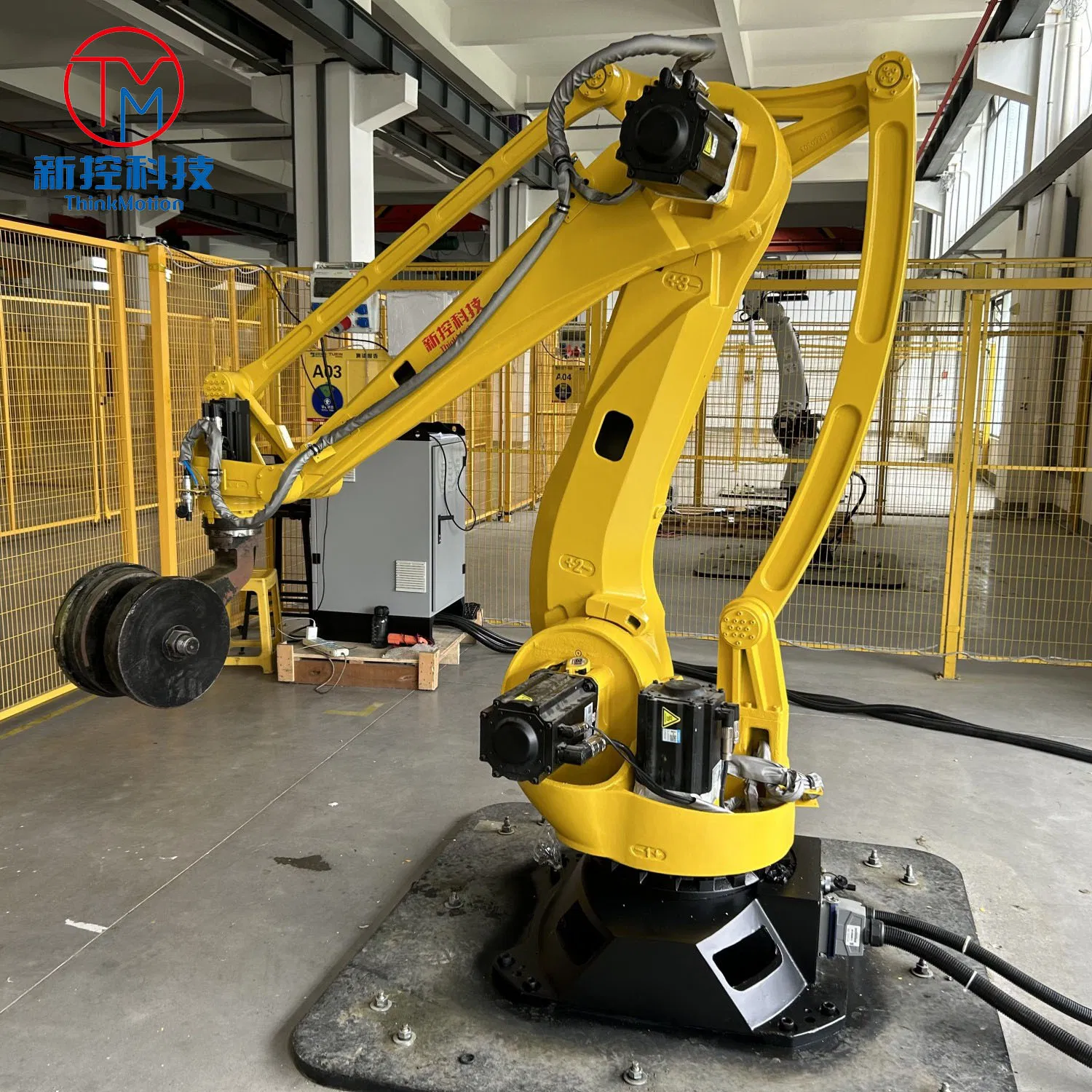

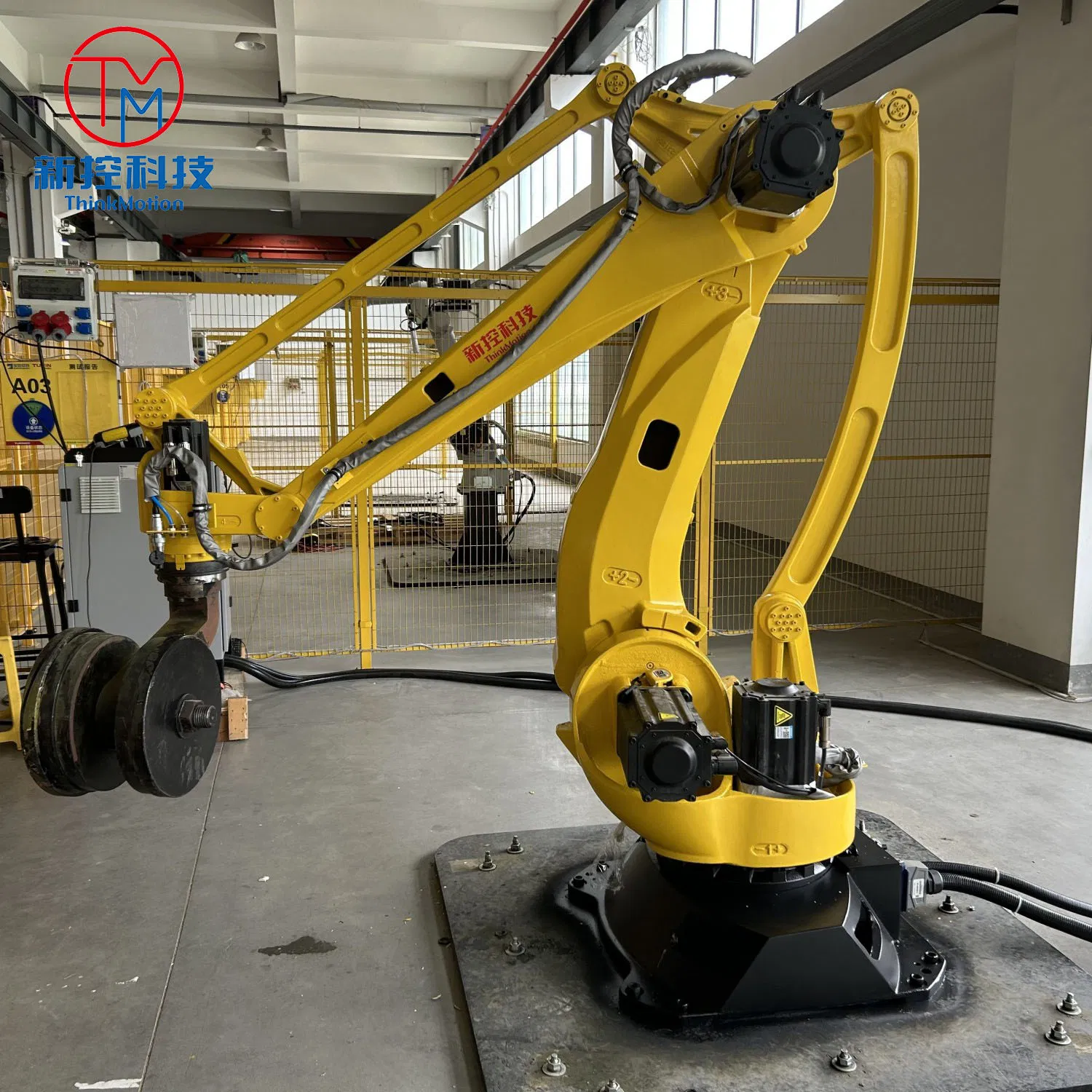

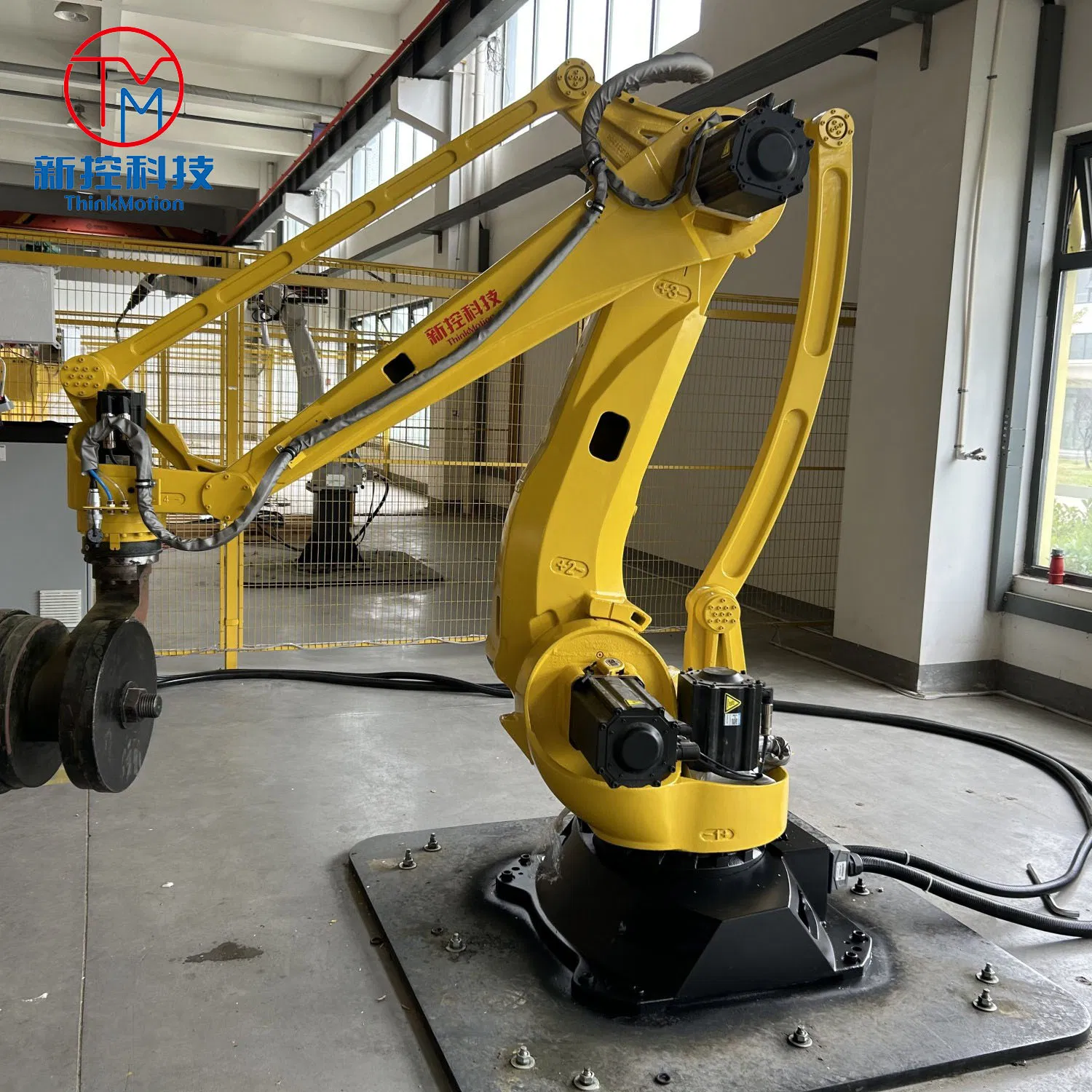

a Multi-Functional Automatic Four-Axis Robotic Arm for Efficient Metal Cutting and Welding

Basic Information

Model NO.	TR180-3200P	Control Mode	Point to Point Control
Drive Mode	Electric	Type	Arc Welding Robot
Welding Speed	1 m/min	Payload	180kg
Max Working Radius	3200mm	Dof	4 Axes
Body Weight	1193kg	Rated Power	5.5kw
Protective Specification	IP54/IP65 (4-Axis Optional)	Transport Package	Wooden Board
Specification	140150165CM	Origin	China
HS Code	8479501000	Production Capacity	100pieces/Years

Product Description

TR180-3200P

Mechanical Properties:

Load Capacity: Rated load 180kg, arm span 3200mm, suitable for operating large workpieces.
Repeat Positioning Accuracy: ±0.1mm, ensuring high-precision operation stability.
Joint Speed: Maximum speed of J1:105°/s, J4:270°/s, balancing efficiency and flexibility.
Protection Grade: Key shafts can be selected as IP54/IP65, suitable for dusty, humid or high-temperature environments.

Industry Applications:

Heavy Industry Manufacturing: Robust design for demanding environments.
Welding and Stamping: Suitable for automotive body welding and metal sheet stamping forming, supporting high-precision path planning.
Hardware Polishing: Surface treatment of large workpieces. A force control sensor can be optionally equipped to achieve constant force grinding.

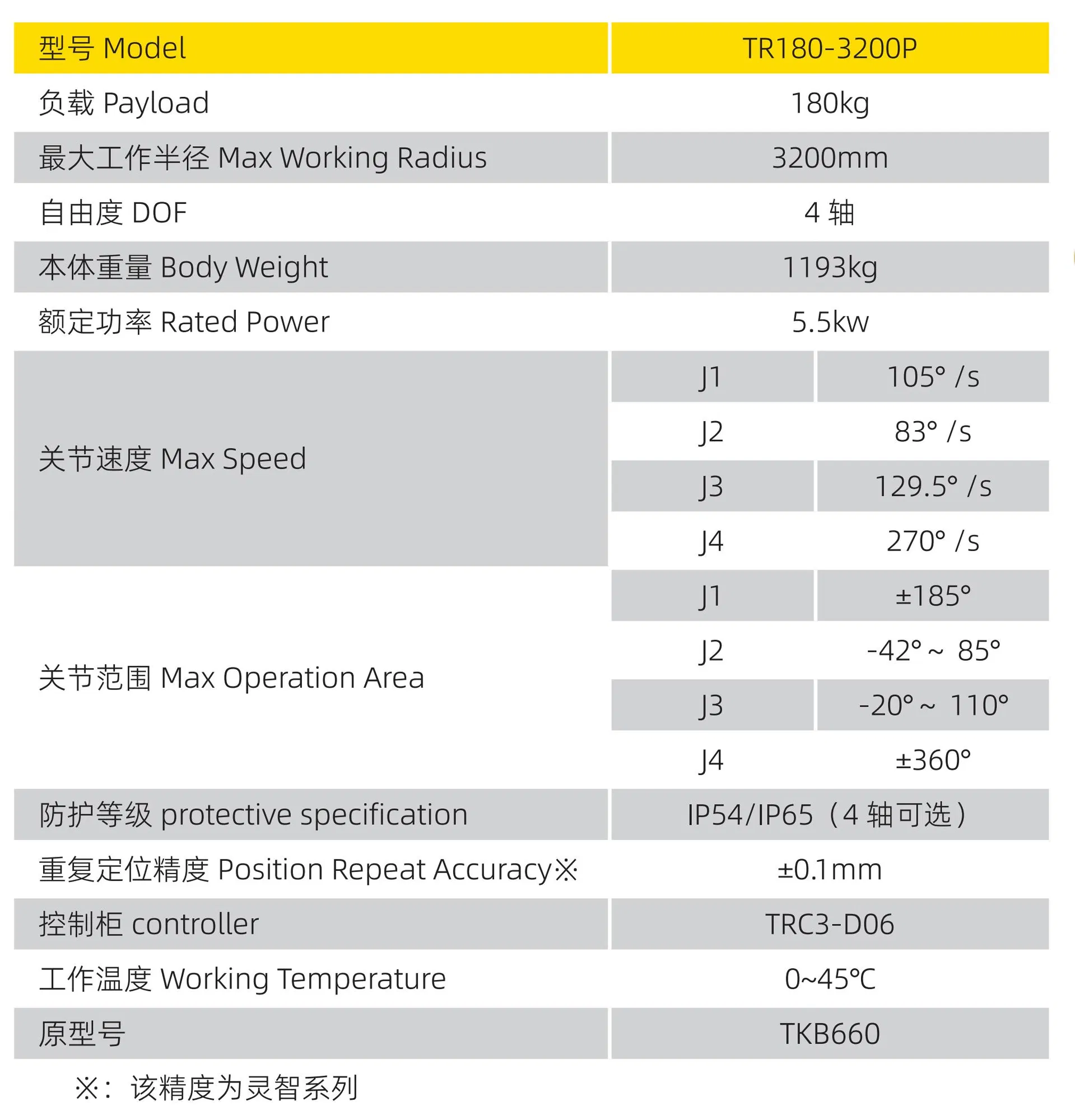

Technical Specifications

Model	TR180-3200P	Rated Power	5.5kw
Payload	180kg	Position Repeat Accuracy	±0.1mm
Max Working Radius	3200mm	Body Weight	1193kg
DOF	4 axes	Protective Specification	IP54/IP65 (4-axis optional)

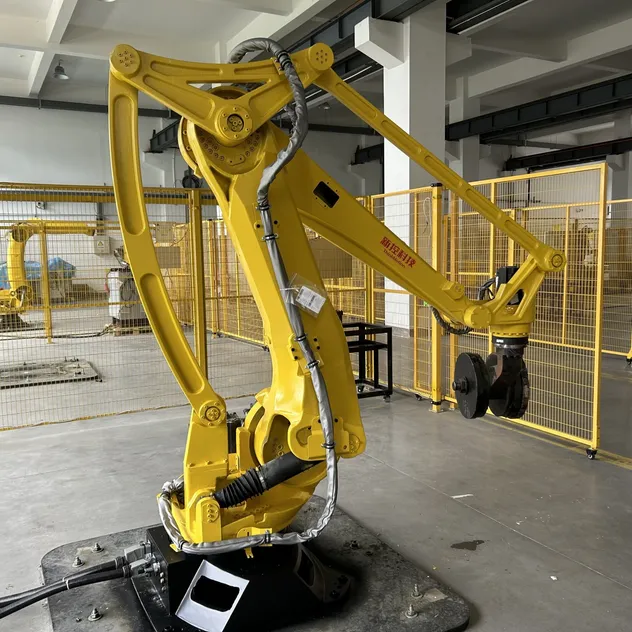

Product Gallery

Our Factory & Expertise

Specializing in industrial robots and customized robotic solutions, we possess complete capabilities in R&D and manufacturing. Our team brings over 15 years of industry experience, with experts from leading global robot manufacturers. We have managed over 1,000 robot projects and manufactured over 5,000 units, ensuring deep insight into industrial needs.

Frequently Asked Questions

1. What is the focus of your robotic solutions? We specialize in industrial robots, particularly in welding, material handling, and grinding & polishing applications, helping factories improve efficiency and reduce costs.

2. Why choose your robotic solutions? We offer deep industry expertise with over 15 years of experience, combined with a focus on high consistency, precision, and stability in all our automated systems.

3. Do you provide technical support? Yes, our professional engineering team offers comprehensive pre-sales consultation and post-sales technical support to ensure your operations run smoothly.

4. Is quality guaranteed? Absolutely. A 100% quality inspection is performed on all products and components prior to shipment to ensure reliability and performance.

5. Do you offer customized services? Yes, our engineering team is available to address specific technical inquiries and fulfill customized automation requirements tailored to your production needs.

6. What is the typical delivery timeline? Standard production and preparation times usually take about one month. Please contact our team for specific lead times based on your order volume.
