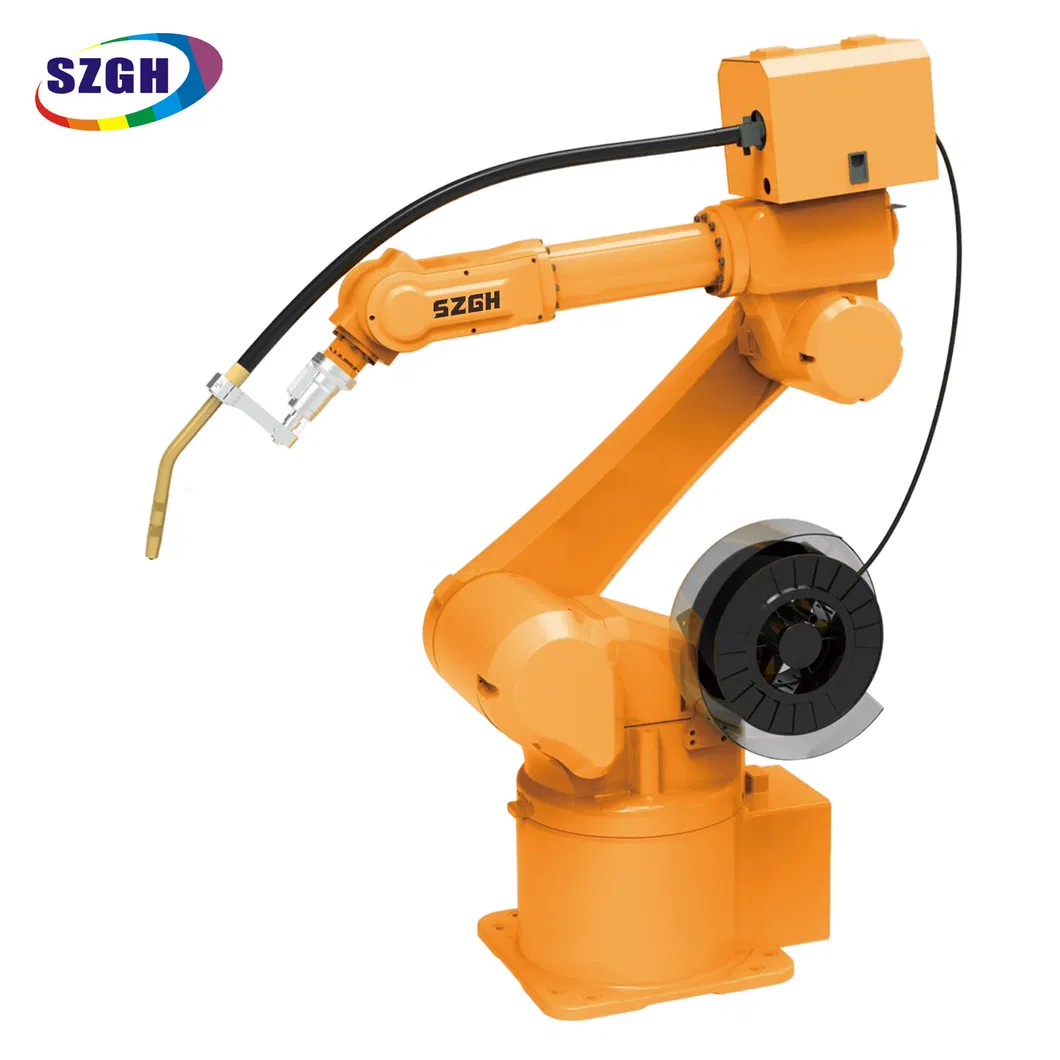

Precision Robotic Arm SZGH-H1500-B-6 for Enhanced Manufacturing Efficiency

1 / 5

Precision Robotic Arm SZGH-H1500-B-6 for Enhanced Manufacturing Efficiency

Customization:	Available
Accuracy:	0.05mm

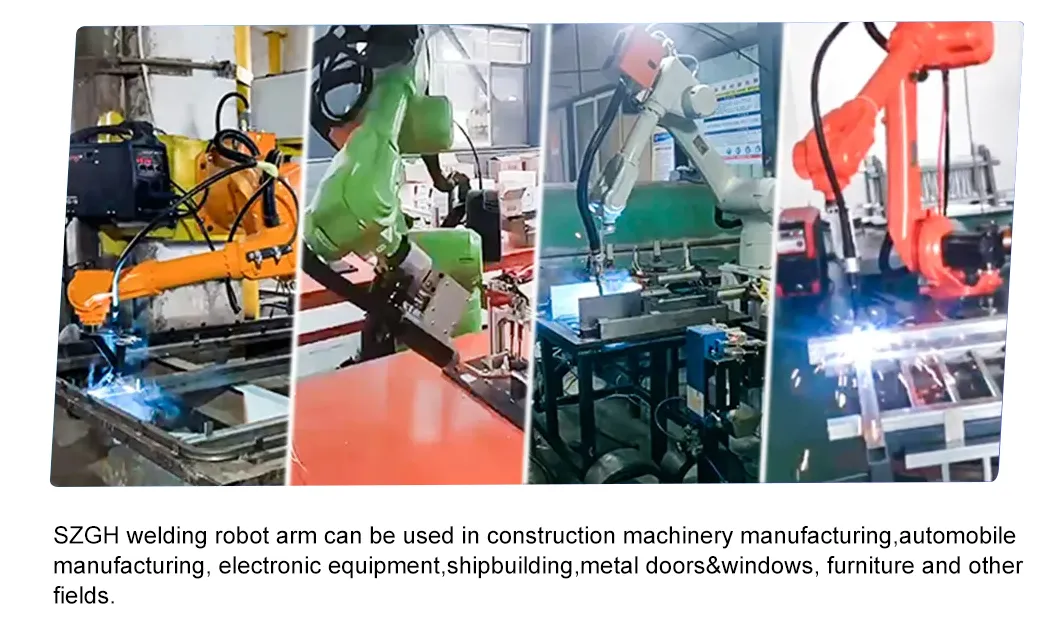

Application:	Aerospace Industry, Automotive Industry, Construction Industry, Metal Fabrication Industry, Shipbuilding Industry, Welding

Send Inquiry

Product Description

Overview
Product Description
Company Profile
Packaging & Shipping
FAQ

Overview

Basic Info.

Model NO.	H1500-B-6
Control Mode	Automatic and Manual
Drive Mode	Servo Drive

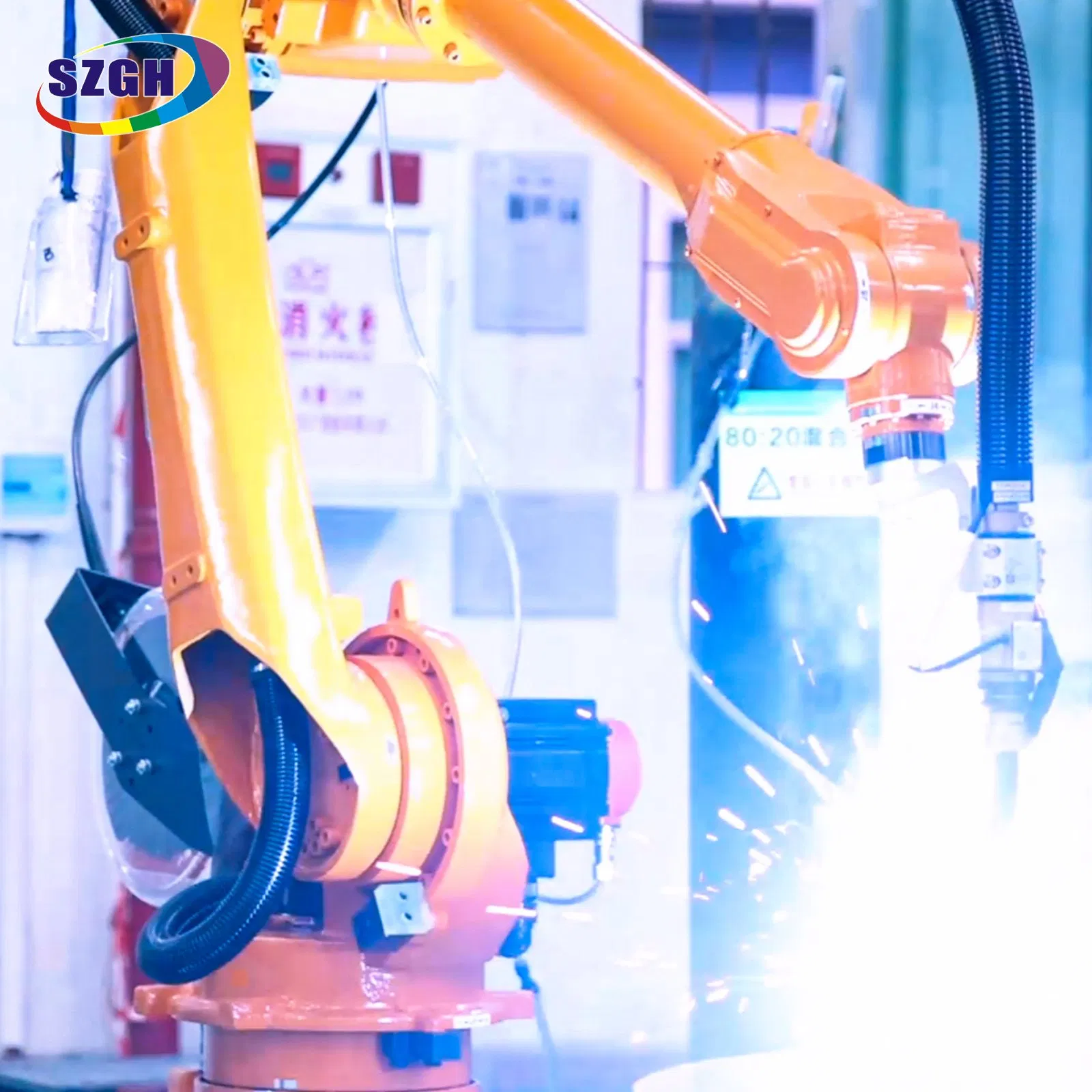

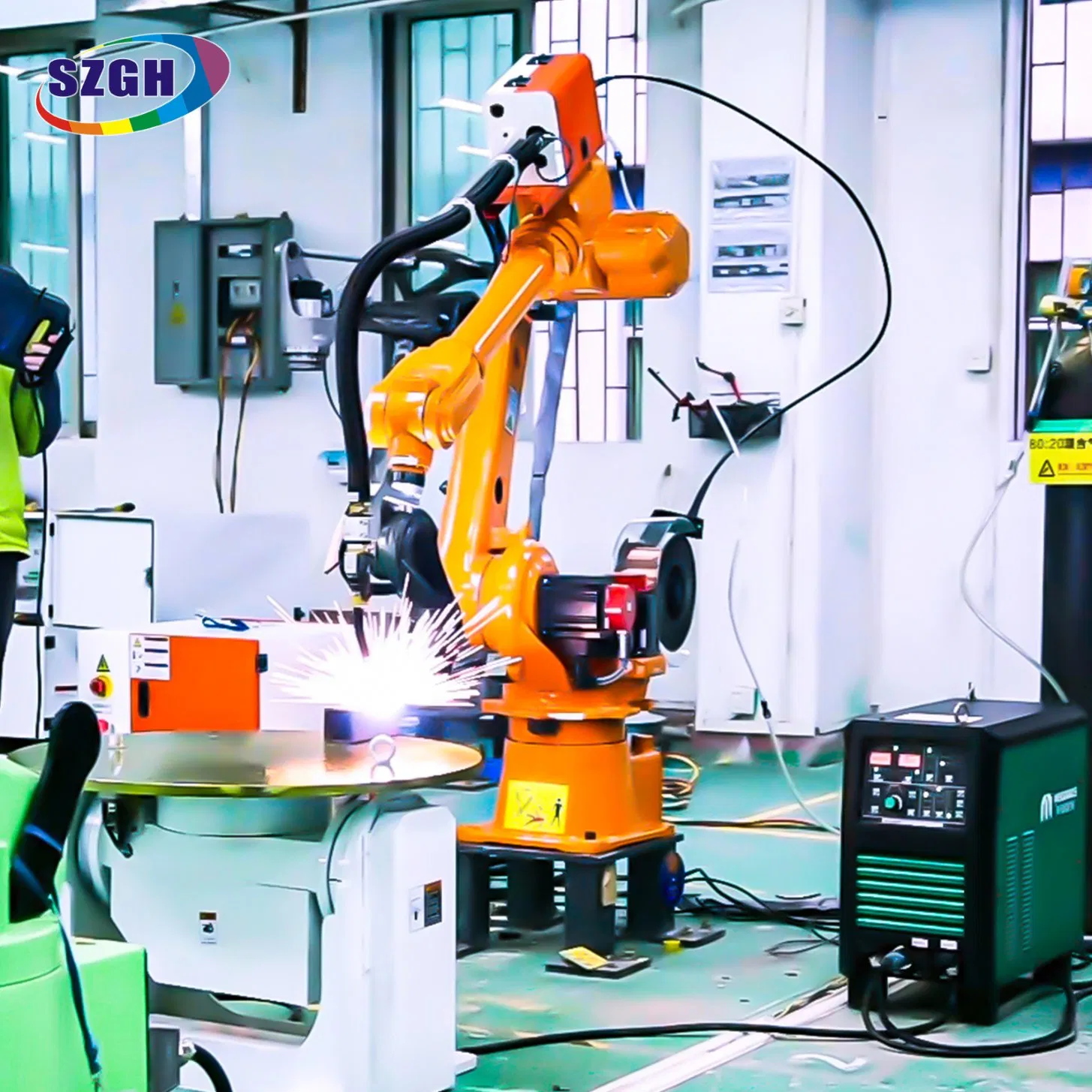

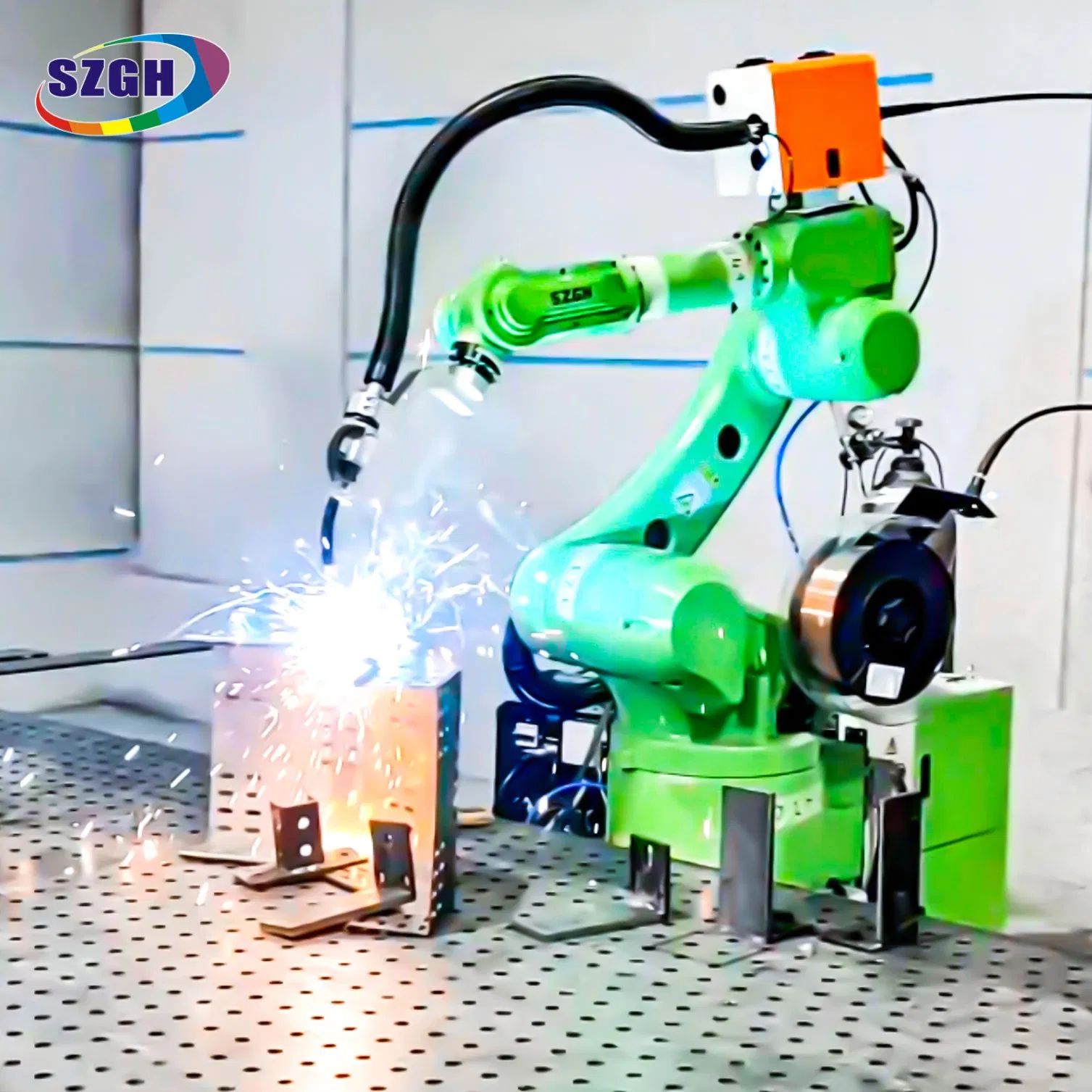

Type	MIG Welding Robot
Welding Speed	Adjustable
Reching	1500 mm
Axes	6 Axes
Payload	6 kg
Repeatability	0.05mm
Weight	150 kg
Structure	Articulated
Function	Metal Welding
Control system	Point to Point
Certification	ISO, CE, RoHS
Mechanical Test Report	Provide
Local Service Location	Romania Turkey, Mexico ...
After-sale service	Online meeting, online chat, door to door
Warranty	12 month
Transport Package	Wooden Case
Specification	1650X1150X1480mm
Origin	China
HS Code	8428700000
Production Capacity	1000 Sets /Month

Packaging & Delivery

Package Size	120.00cm * 120.00cm * 148.00cm
Package Gross Weight	380.000kg

Precision Robotic Arm H1500-B-6 for Enhanced Manufacturing Efficiency

Product Description

The company has 25 models robot arm in mass production: including general purpose, welding, spraying, palletizing, grinding and handling types. All models are equipped with an intelligent robot control system which independently developed by us. We also add other components to the six axis robots, and customize nonstandard robotic solution as customer needs. Currently, 9-axis linkage robots are also mass-produced and sold.

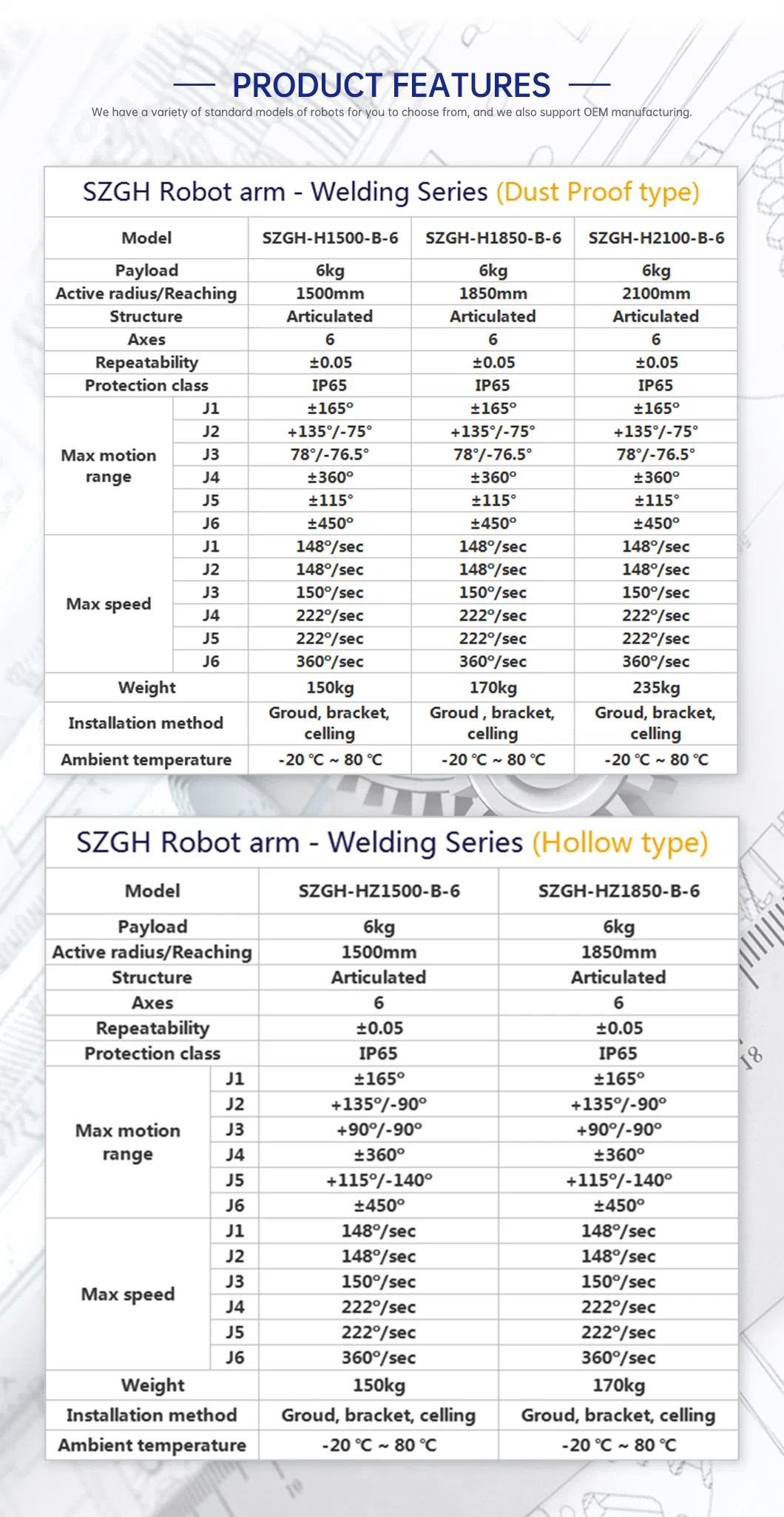

Technical Specifications
Model	H1850-B-6
Payload	6kg
Reach	1850mm
Axes	6-11 axes
Application	Welding
Special Service	1. We can customize the standard color as you need! 2. We can customize your company logo!
Warranty Period	12 months
After Warranty Support	Video technical support, Online support

Key Features

★

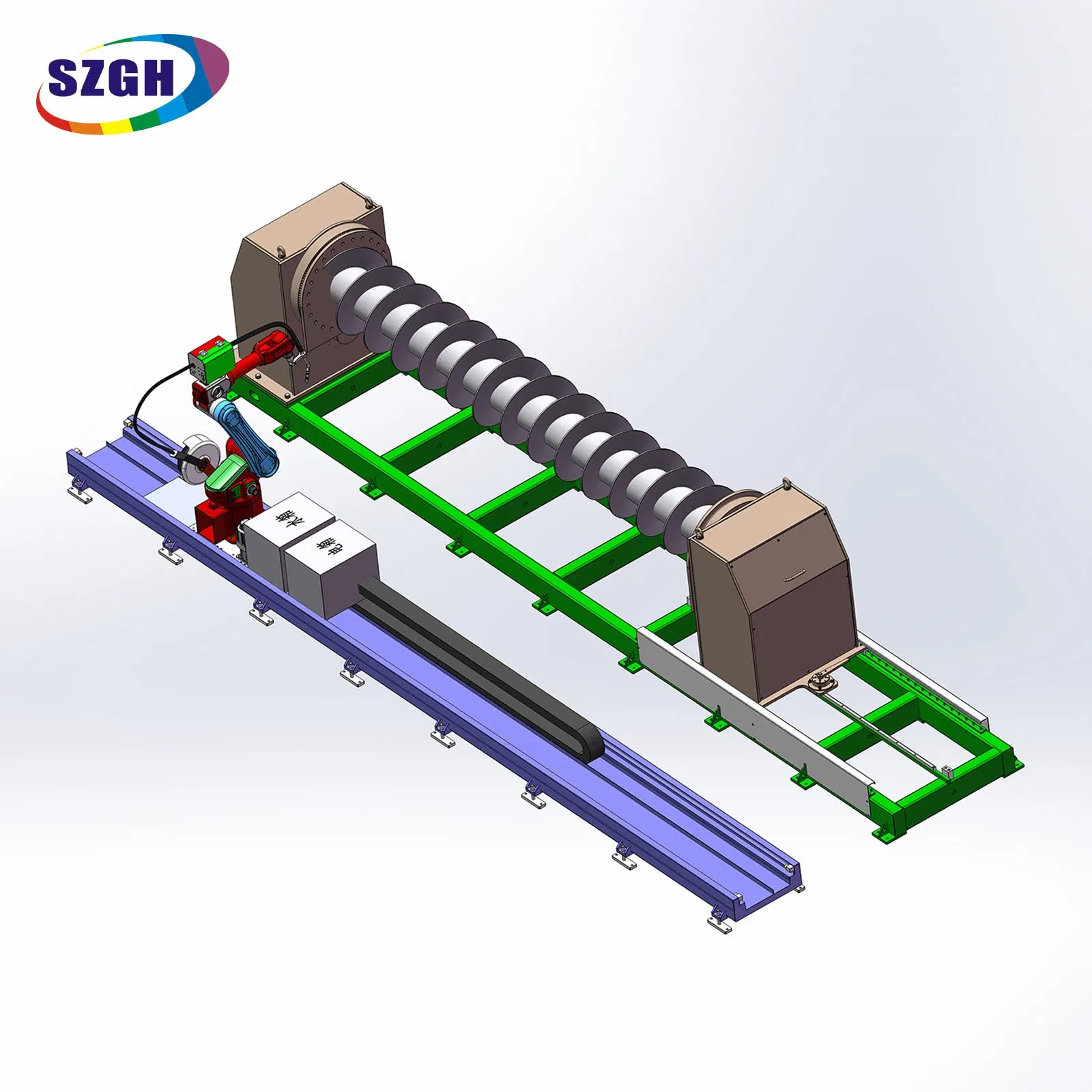

Support up to 12 axis control, realizes the control of external axes (traveling axes and positioner).

★

Structural optimization algorithm suitable for the body control of various types of structure.

★

Open structure for synchronization of international technology and extension of functions. Industrial standards & reliable stability.

★

Software PLC functions facilitate logic control. Process functions make programming easy.

★

Modular setting of functions suitable for diverse applications. Safety module ensures safe production of the robots.

★

Suitable for multiple increments; absolute servo. Improved computer bus connection ensures reliability and practicability.

Controller Specifications
Storage	2 GB
Teaching Box	Full keyboard + touch screen, mode select switch, safety switch, emergency switch
No. of Controlled Axes	6+6 axes, 6 basic axes + 6 external axes
Interface	Multiple encoder signal interfaces, dedicated interface for robot terminal, Ethernet interface, serial communication
Safety Module	The emergency and robot anomaly signals are linked to ensure rapid stop of the robot
Mode of Operation	Teaching, representation, remote control
Mode of Programming	Online teaching, process programming, teaching by dragging
Motion Function	Point-to-point, linear, circular
Command System	Motion, logic, process, computation
Mode of Control	Position control
Anomaly Detection Function	Emergency stop anomaly, servo anomaly, anti-collision, safety maintenance, arcing anomaly, user coordinate anomaly, tool coordinate anomaly

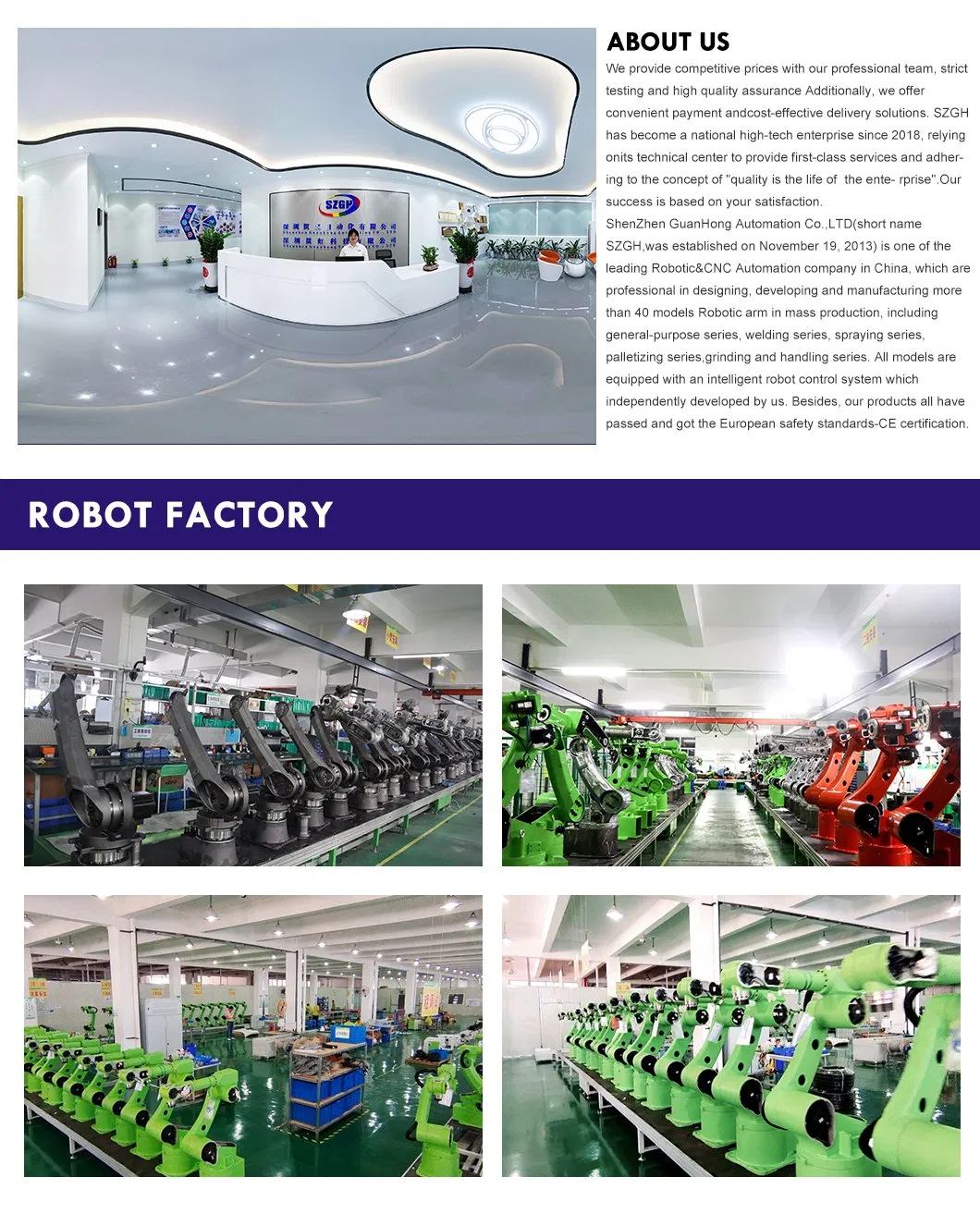

Company Profile

Packaging & Shipping

Frequently Asked Questions

Q: Who are we?

We start from 2013, providing CNC total solutions & Robot arm. We have independent technical teams and over 10 years of technical and overseas sales experience.

Q: How can we guarantee quality?

We always finish a pre full testing by our professional engineers, followed by a final 100% inspection before shipment.

Q: What can you buy from us?

Industrial Robot Arms for welding, painting & spraying, handling materials/Pick and place, grinding, or other customized solutions.

Q: Why should you buy from us not from other suppliers?

We provide suitable package solutions of robot arms along with an excellent purchase experience and outstanding technical support. We offer customized designs, high quality guarantees, competitive quotations, and build our business on honesty and reliability.

Q: What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, DDP, DDU, DAF.
Accepted Payment Currencies: USD, EUR, CAD, HKD, CNY.
Accepted Payment Types: T/T, L/C, D/P, D/A, Credit Card, PayPal, Western Union, Cash, Escrow.
Languages Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Italian, etc.

Q: What support is available under the product warranty?

We provide a 12-month warranty. After the warranty period, we offer continuous technical support, including video technical assistance and online support.
