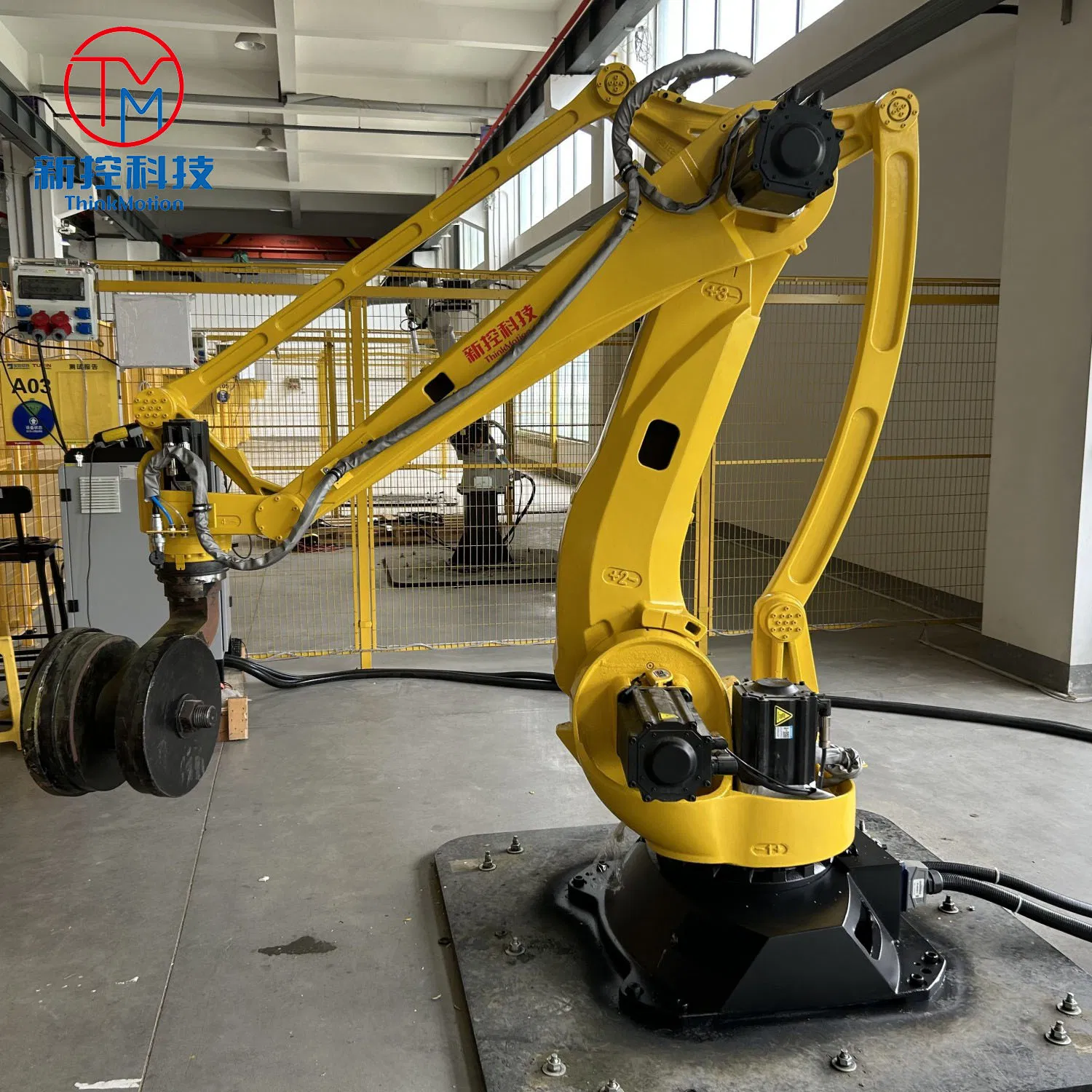

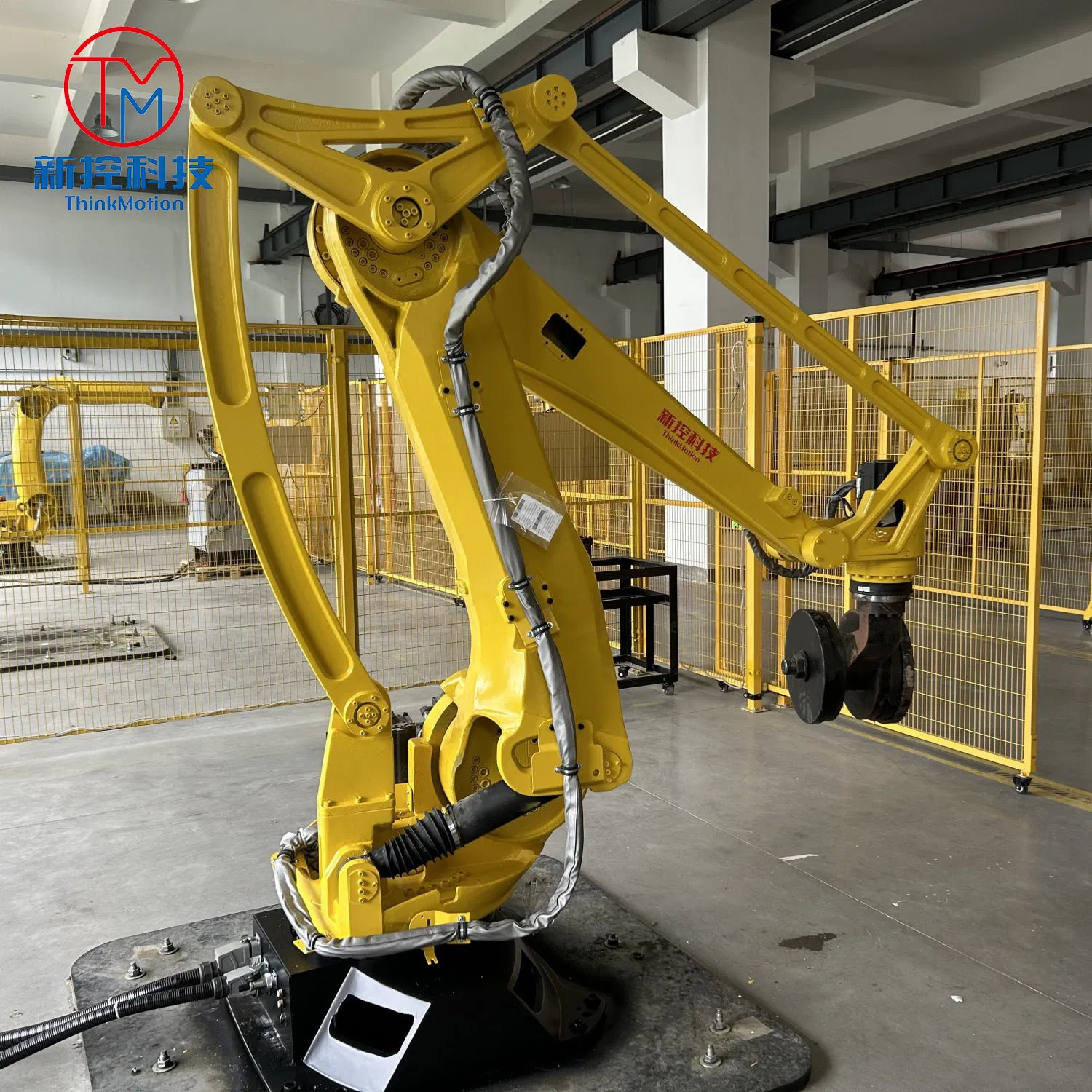

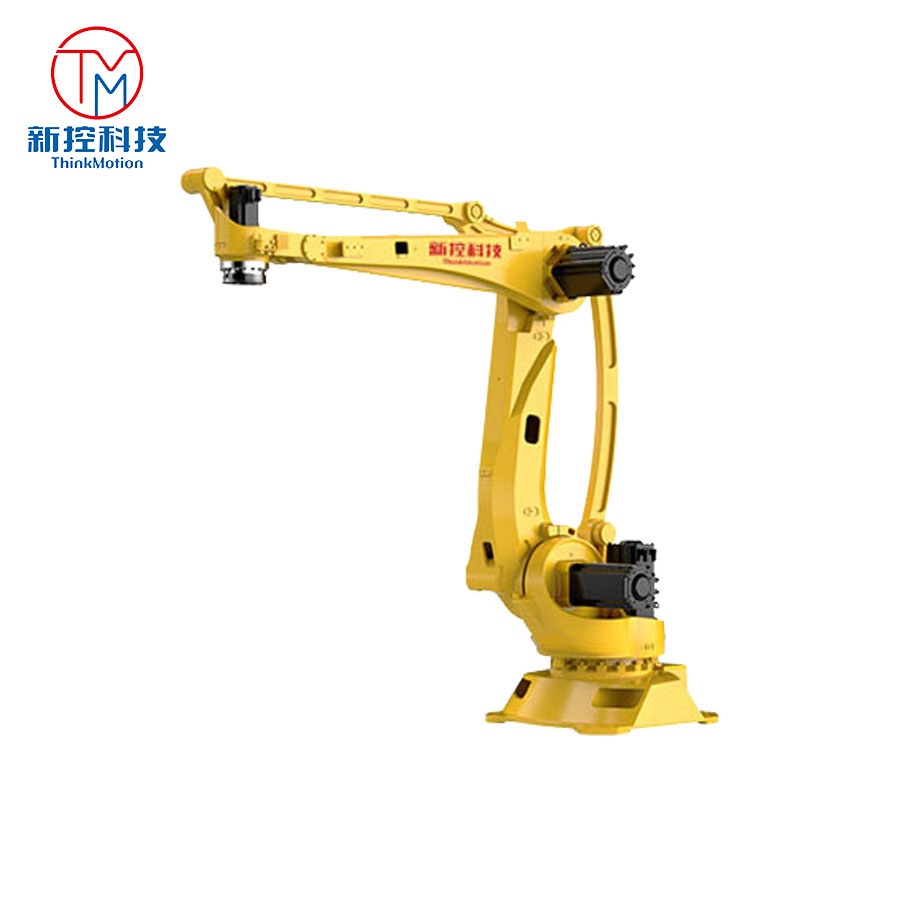

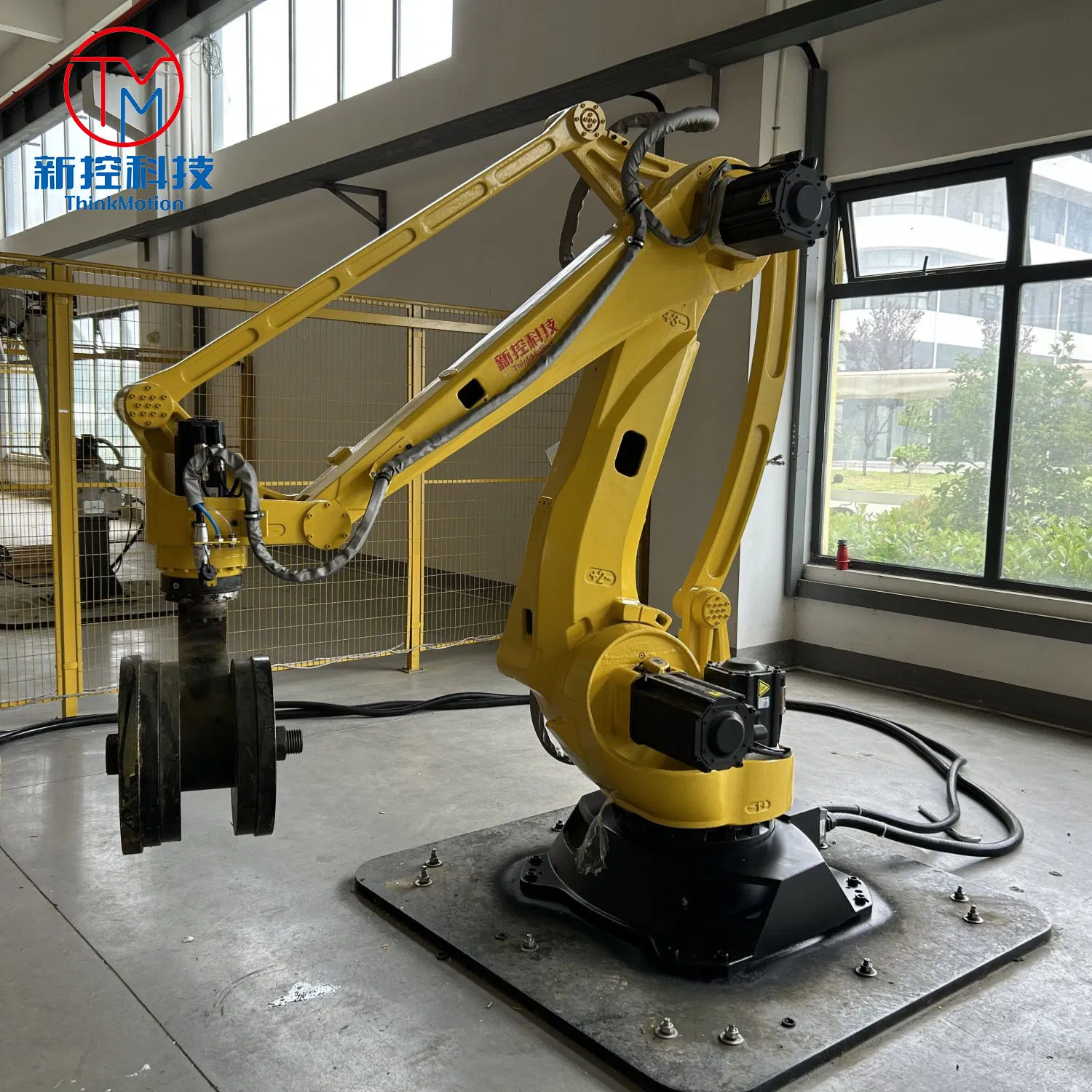

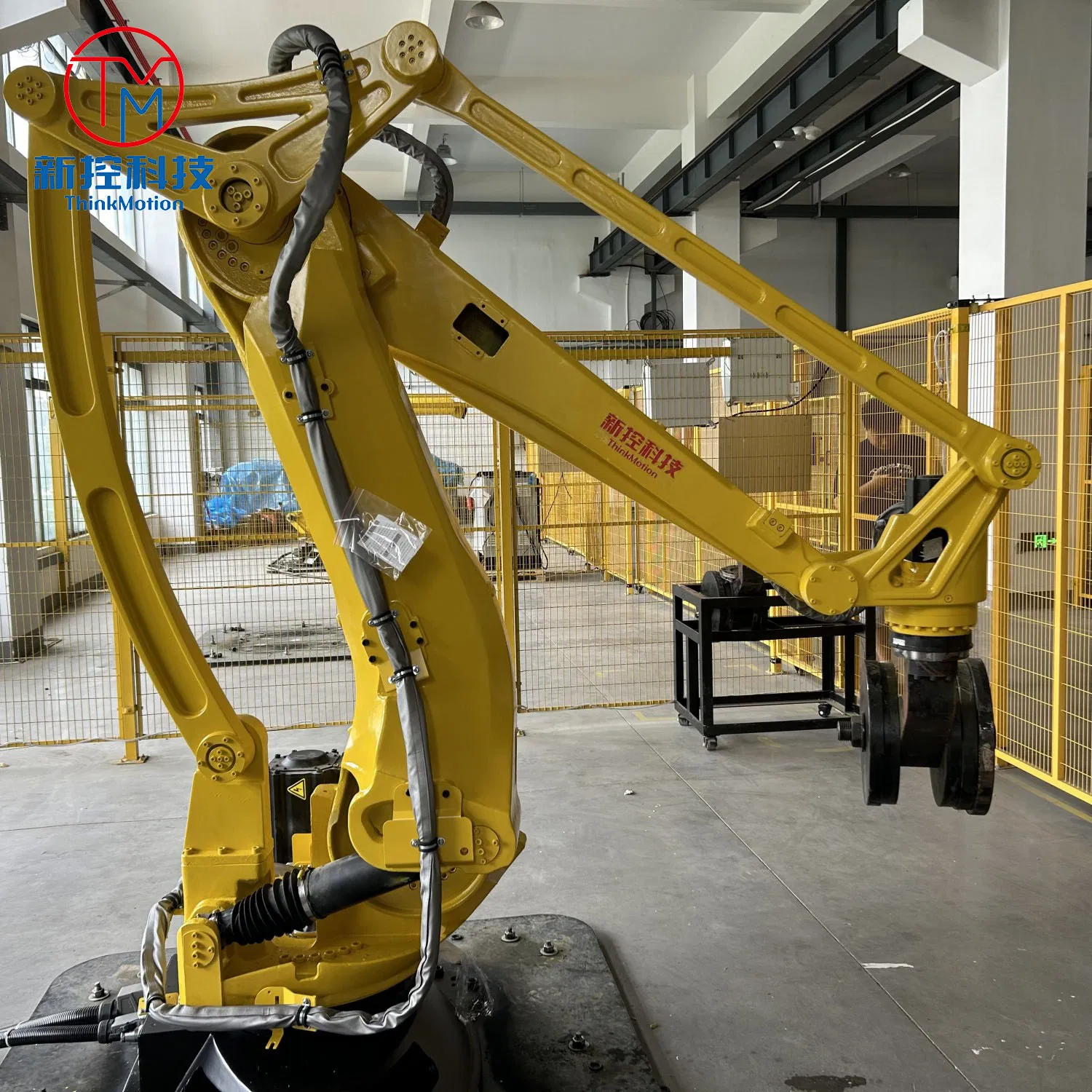

Advanced Carbon Steel Welding Robotic Arm with a Load-Bearing Capacity of 180kg

1 / 5

Advanced Carbon Steel Welding Robotic Arm with a Load-Bearing Capacity of 180kg

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

TR180-3200P

Control Mode

Point to Point Control

Drive Mode

Electric

Type

Arc Welding Robot

Welding Speed

1 m/min

Payload

180kg

Max Working Radius

3200mm

Dof

4 Axes

Body Weight

1193kg

Rated Power

5.5kw

Protection

IP54/IP65 (4-Axis Optional)

Origin

China

Product Description

Mechanical Properties
• Load capacity: Rated load 180kg, arm span 3200mm, suitable for operating large workpieces.
• Repeat positioning accuracy: ±0.1mm, ensuring high-precision operation stability.
• Joint speed: Maximum speed of J1:105°/s, J4:270°/s, both efficiency and flexibility.
• Protection grade: Key shafts can be selected as IP54/IP65, suitable for dusty, humid or high-temperature environments.

Heavy Industry Manufacturing
• Welding and stamping: Suitable for automotive body welding and metal sheet stamping forming.
• Hardware polishing: Surface treatment of large workpieces. A force control sensor can be optionally equipped to achieve constant force grinding.

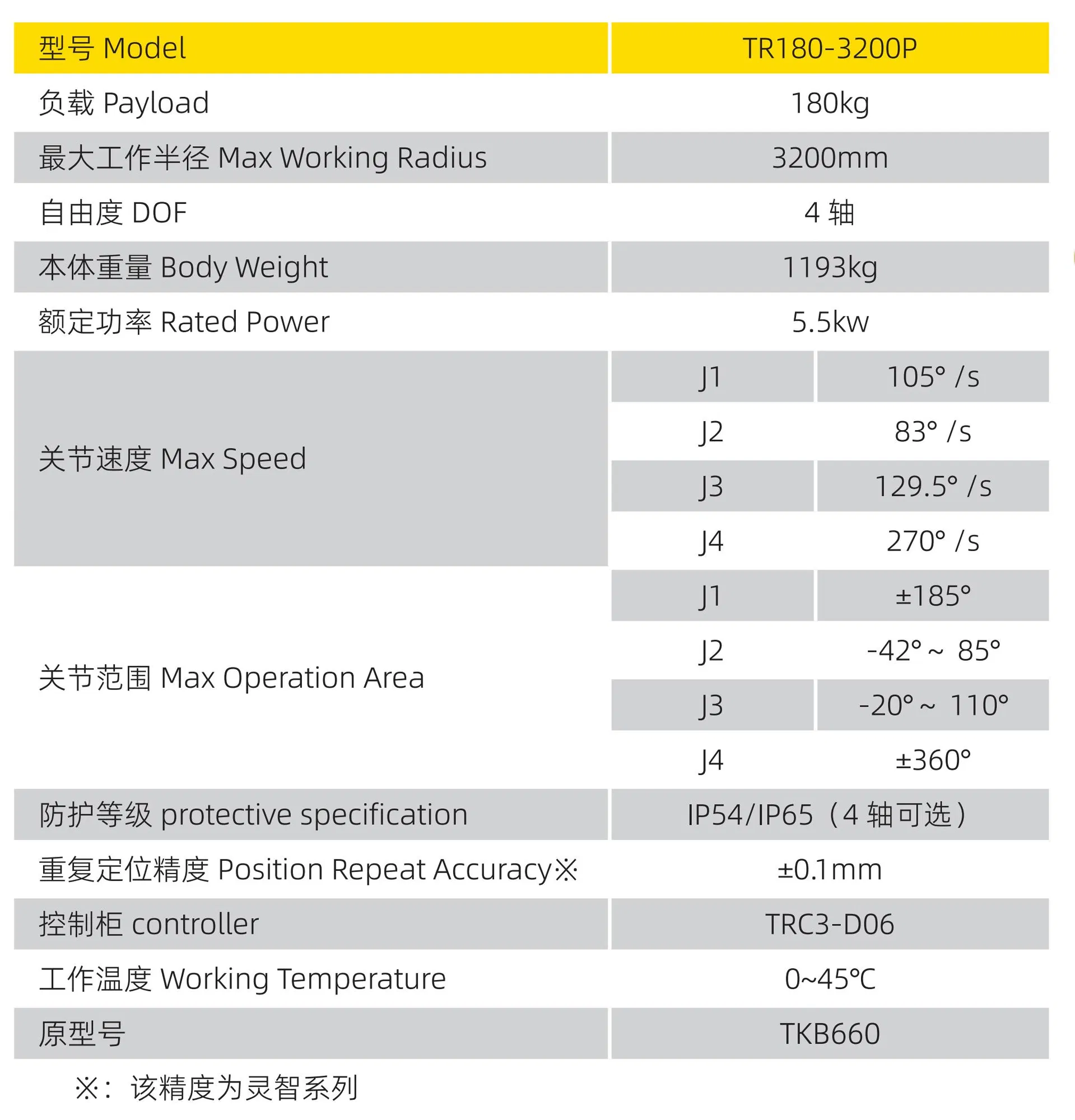

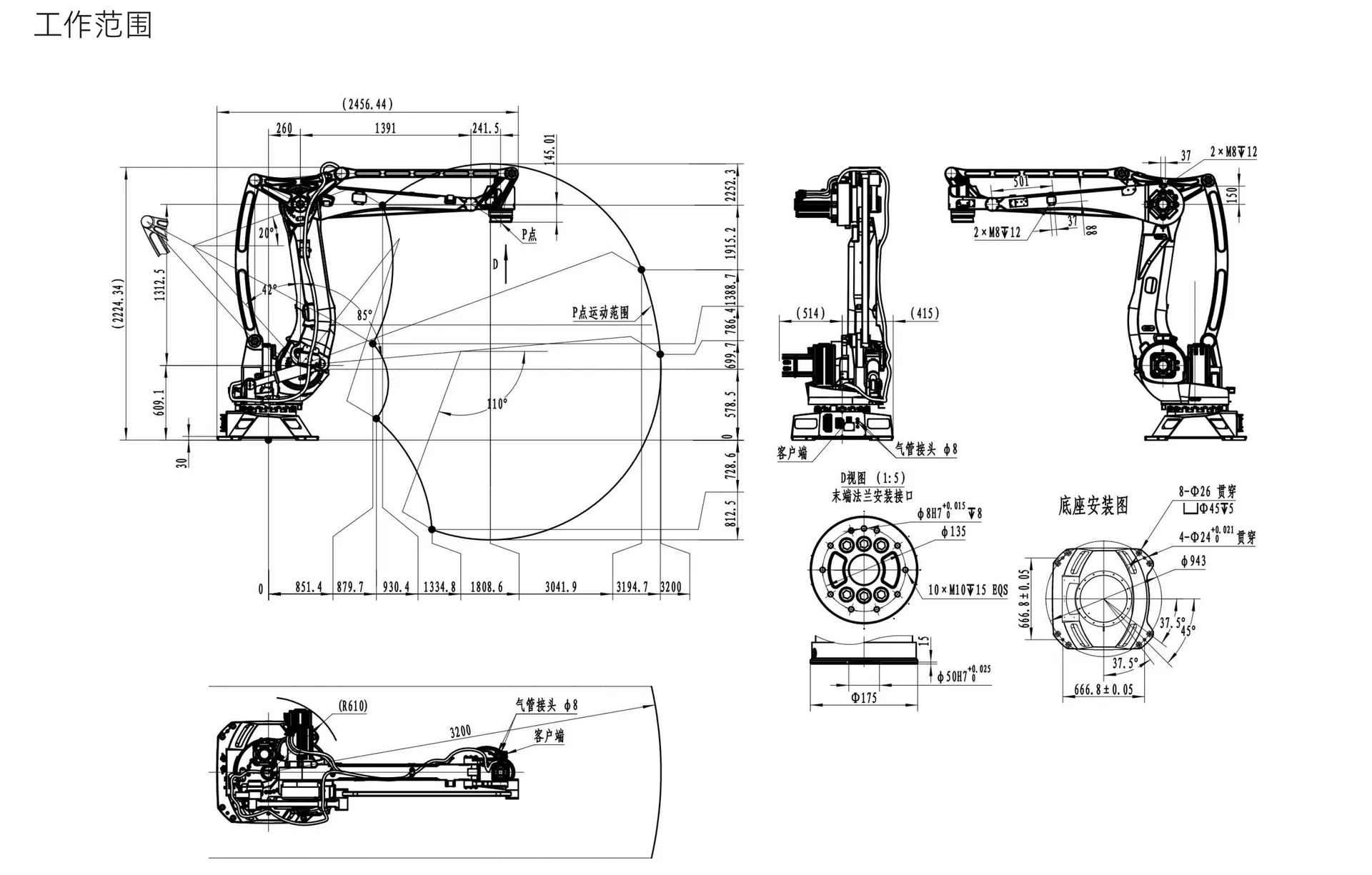

Specification

Model	TR180-3200P	Rated Power	5.5kw
Payload	180kg	Position Repeat Accuracy	±0.1mm
Max Working Radius	3200mm	Body Weight	1193kg
DOF	4 axes	Protective Specification	IP54/IP65 (4-axis optional)

Manufacturing Capacity

Our team specializes in industrial robots and customized robotic solutions with over 15 years of industry experience. With core members from globally recognized robot manufacturers, we possess extensive experience in project management and robot production.

Our core application areas include welding, material handling, and grinding & polishing, emphasizing consistency, precision, and stability.

Related Solutions

Packing & Certifications

Frequently Asked Questions

What is the payload capacity of the TR180-3200P?

The robot features a rated payload capacity of 180kg, making it ideal for heavy-duty industrial tasks and handling large workpieces.

What is the maximum working radius?

This model has an impressive arm span of 3200mm, allowing for a wide range of motion and coverage in large manufacturing cells.

How accurate is the robot for precision welding?

The repeat positioning accuracy is ±0.1mm, ensuring high-precision stability for complex welding and path-dependent operations.

Can the robot operate in harsh environments?

Yes, the robot offers protective specifications of IP54 or IP65 (optional for the 4th axis), making it suitable for dusty or humid industrial conditions.

What control system does the robot use?

It utilizes an advanced independent industrial intelligent operating system designed for high-end automated scenarios and simplified task management.

What kind of technical support is provided?

We offer comprehensive pre-sales and post-sales technical services, including project evaluation and customized engineering solutions to meet specific production needs.
