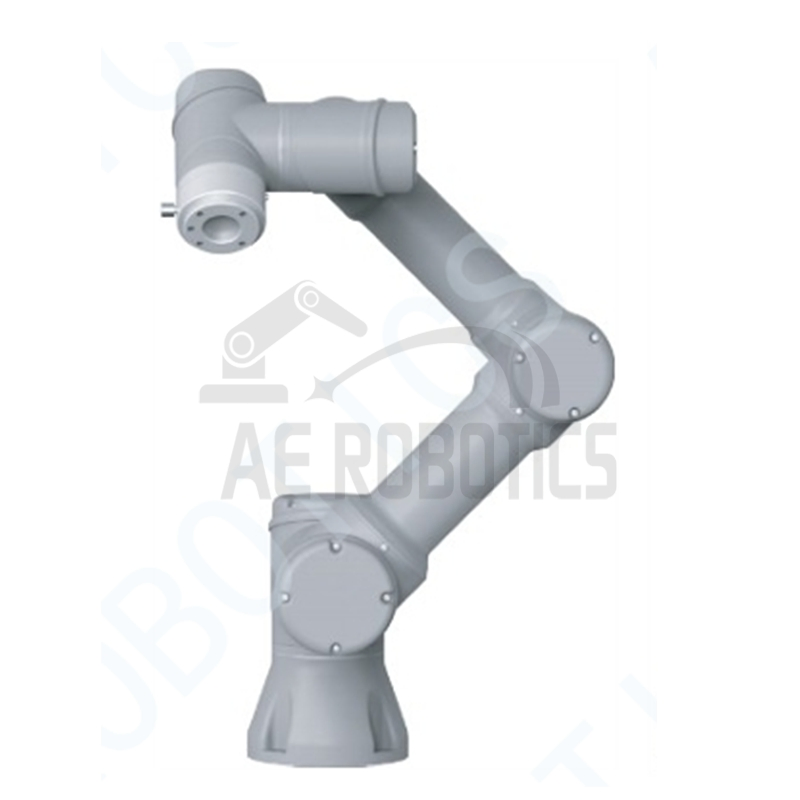

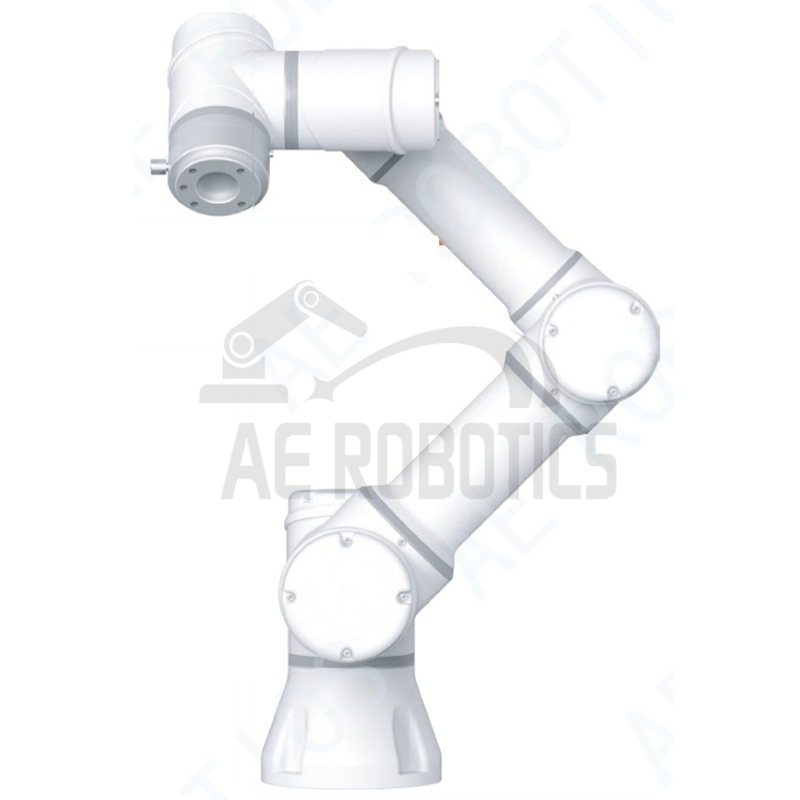

Sandai Robot
1 / 5
The robot body occupies minimal space and can be deployed quickly. The control cabinet features high integration and supports both front and side mounting, enabling effortless integration.
Simple yet sophisticated, the control cabinet features multiple interfaces; tool tips support universal IO, analog IO, and 0/12/24V power supply.
Offers excellent cost-effectiveness and rapid investment returns, typically recovering costs within 3-9 months on average. Optional accessories like tablets and power supplies are available.
With 3kg load capacity and repeat positioning accuracy of ±0.05mm, effectively meeting the product performance requirements for commercial scenarios integration.
Supports ARCS wireless teaching software via tablet for quick operation. Control cabinet audio-visual information display provides rapid indication of robot operating status.
Allows customization of robot body colors and logos. The software provides multi-level interfaces, enabling users to develop applications or customize projects according to their needs.
| Item | Parameter |
|---|---|
| Free degree | 6 |

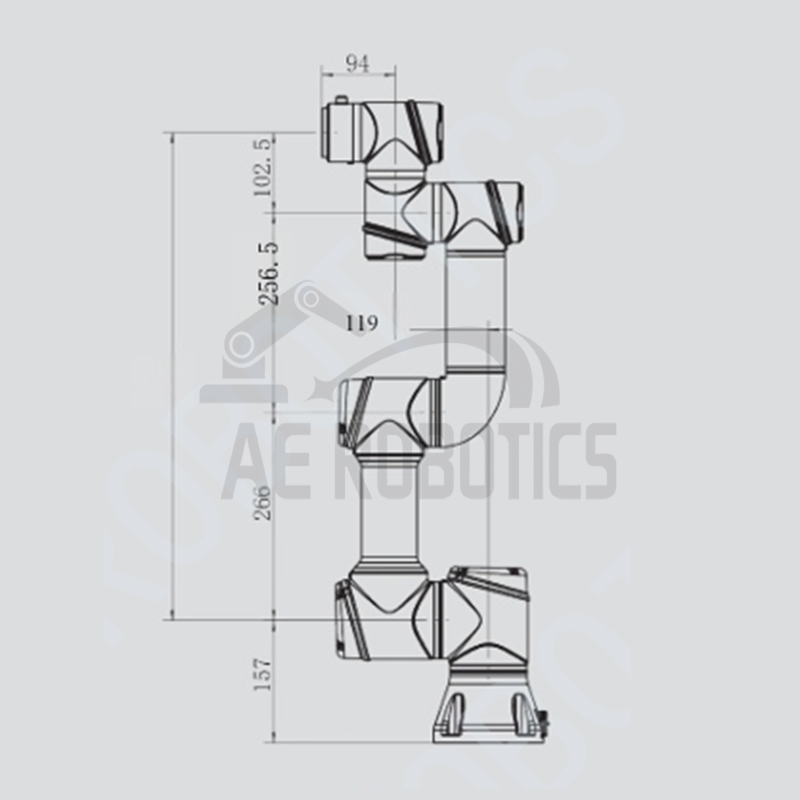

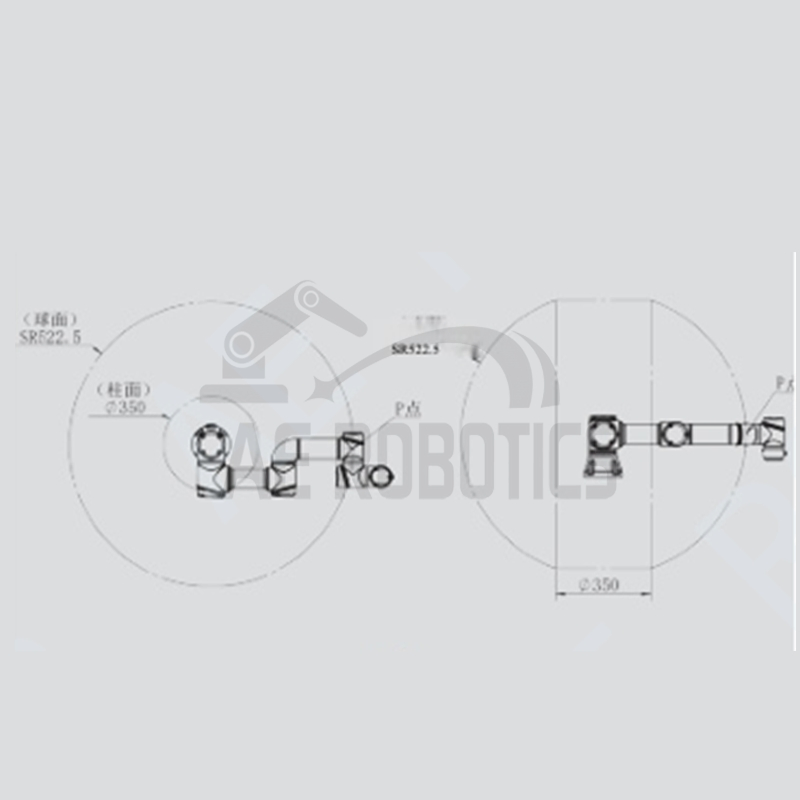

| Maximum working radius (mm) | 625 |
| Load (kg) | 3 |
| Weight (kg) | 16 |
| Installation surface diameter (mm) | Ø140 |
| Duplicate positioning accuracy (mm) | ±0.05 |
| Tool speed (m/s) | ≤1.9 |
| Mean power (W) | 150 |
| Peak power (W) | 600 |
| Working environment temperature | 0-50°C |
| Workplace humidity | 90% (non-condensing) |
| Installation | Any angle |
| Protection level | IP54 |

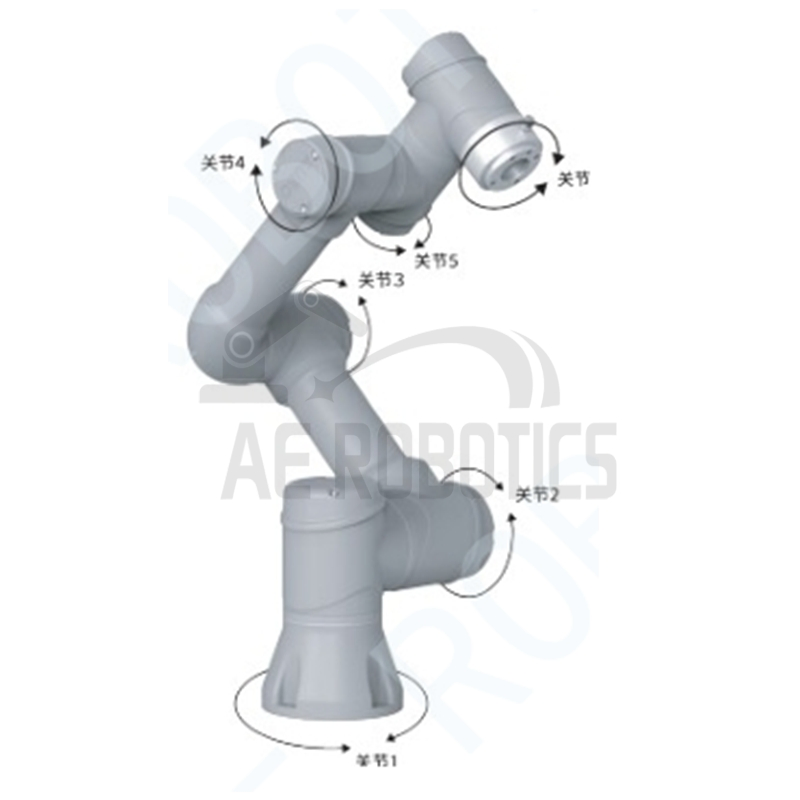

| Joint | Range of movement (°) | Maximum speed (°/s) |
|---|---|---|
| Joint 1 | ±360 | 185 |
| Joint 2 | ±175 | 185 |
| Joint 3 | ±175 | 185 |
| Joint 4 | ±175 | 185 |
| Joint 5 | ±175 | 185 |
| Joint 6 | ±360 | 185 |
Note: Each joint has a ±360° range of motion. Due to application scenarios, the actual range may vary.
