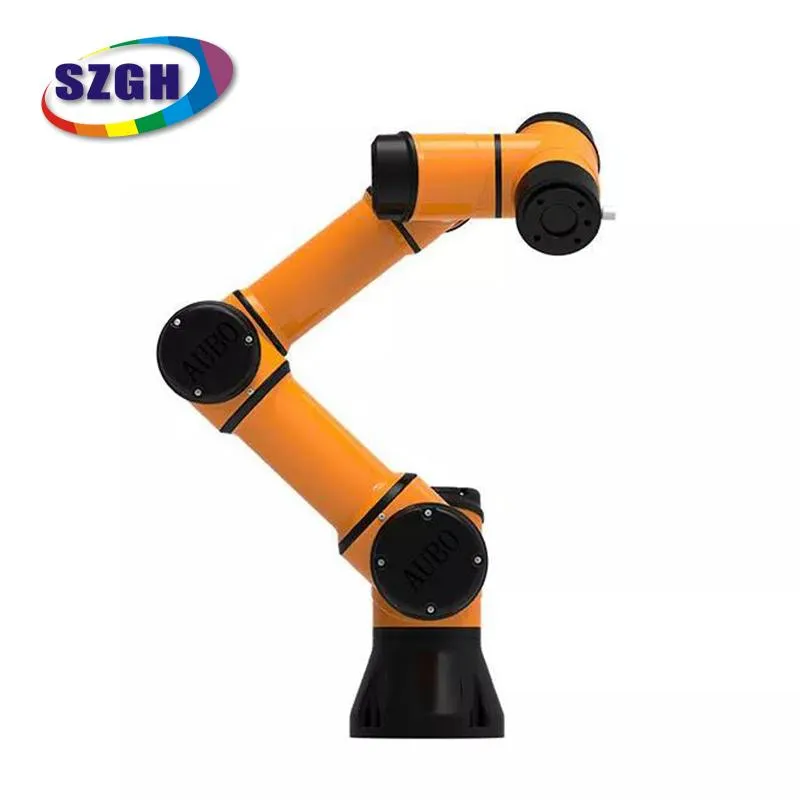

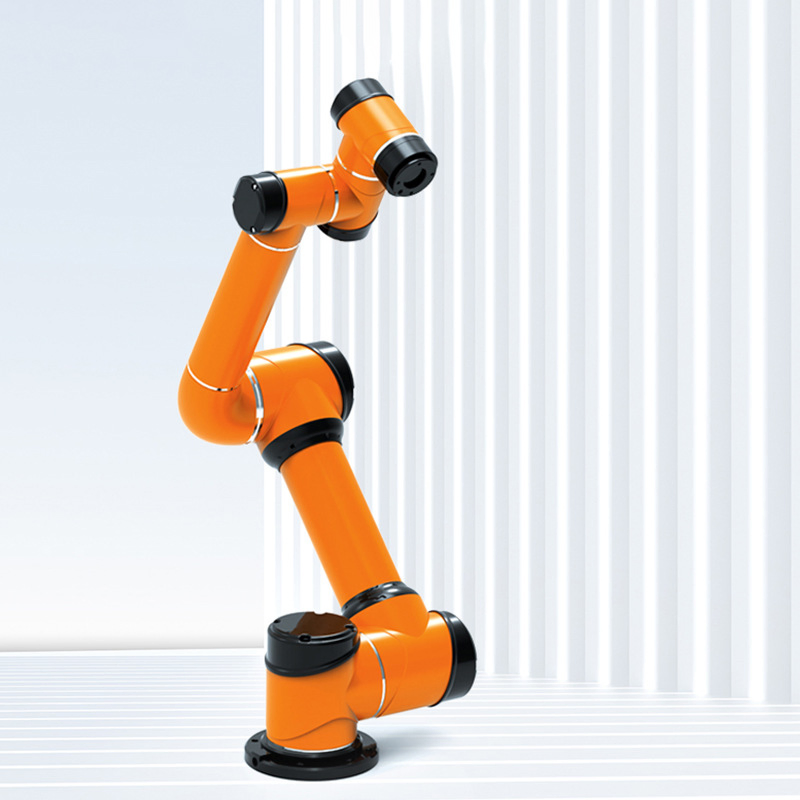

SZGH-I10 is our cobot series robot arm. The family includes models from 3kg to 16kg payload (SZGH-I3, SZGH-I5, SZGH-I10, SZGH-I16, SZGH-C3, SZGH-C5). Cobots are easy to program and safer than traditional industrial robots, offering a one-stop solution for automation needs.
| Model NO. | SZGH-I10 | Drive Mode | Electric |
|---|---|---|---|
| Axes | 6 Axes | Reaching | 1350 mm |
| Payload | 10kg | Structure | Articulated |
| Repeatability | 0.03mm | Weight | 38.5kg |
| Certification | ISO, CE, RoHS | Mounting | Ground, Bracket, Ceiling |
Easy Programming: Program without coding skills. Simply drag and drop the arm to the desired position or use graphical blocks in the APP. The intuitive process takes only minutes.

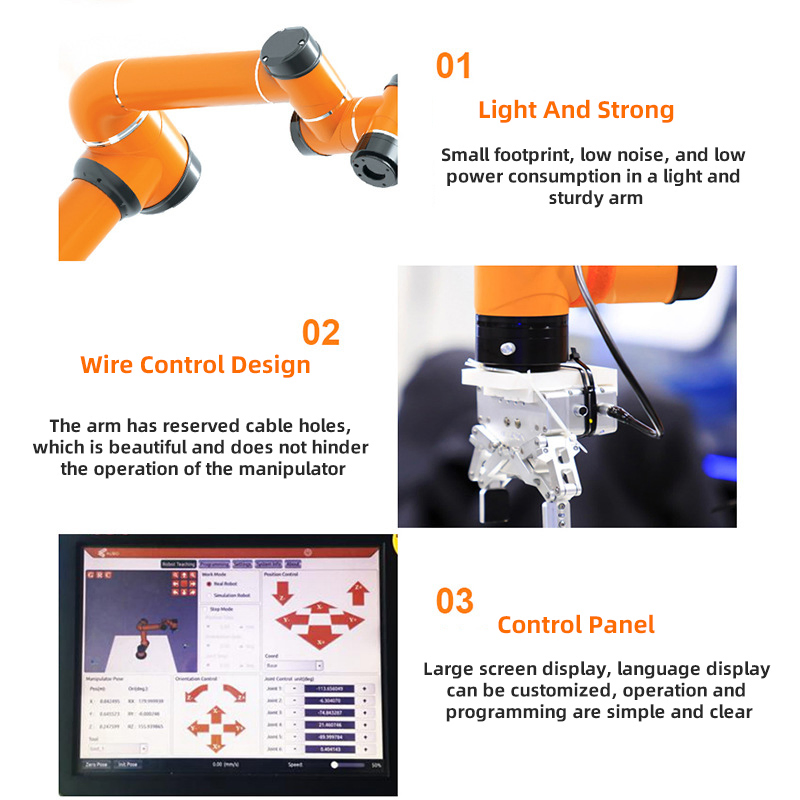

Quick Deployment: Compact and light, featuring integrated reducer, motor, encoder, and drive controller for high convenience.

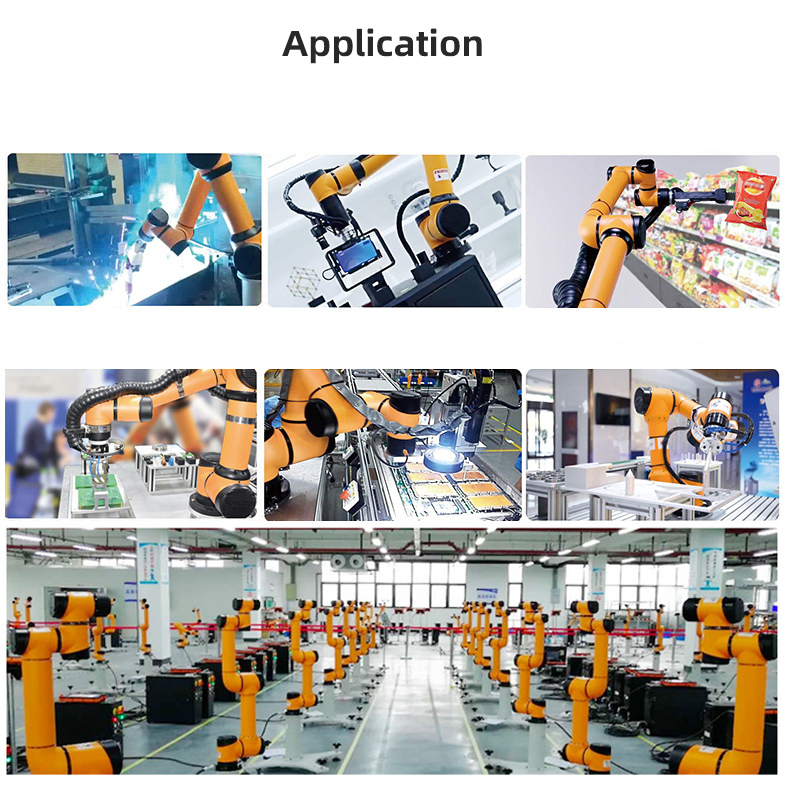

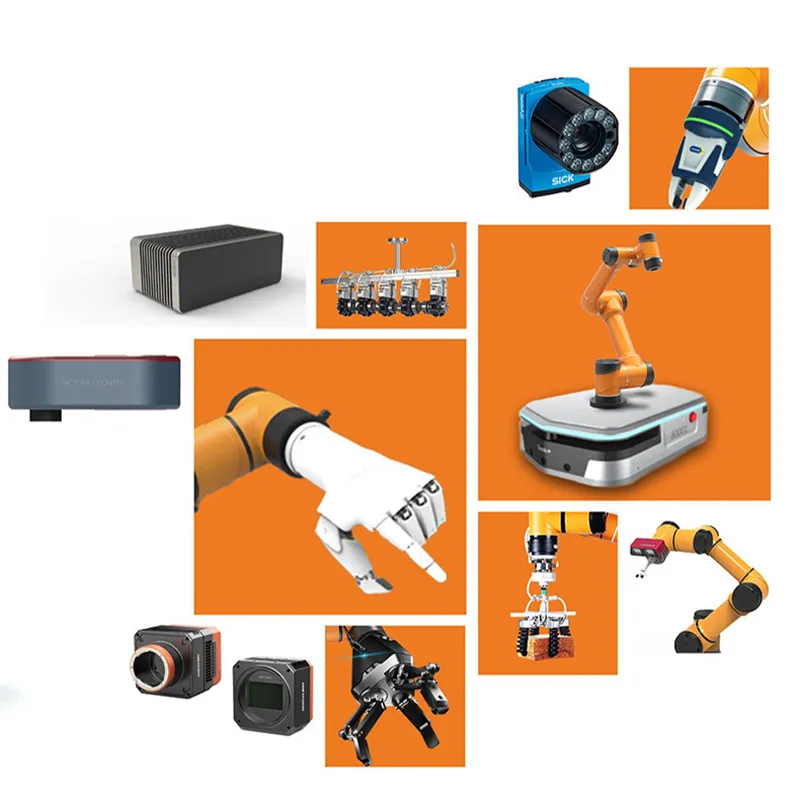

Flexible Application: Handles up to 10KG payloads for automotive, electronics, food, and healthcare industries (assembly, pick and place, dispensing, etc).

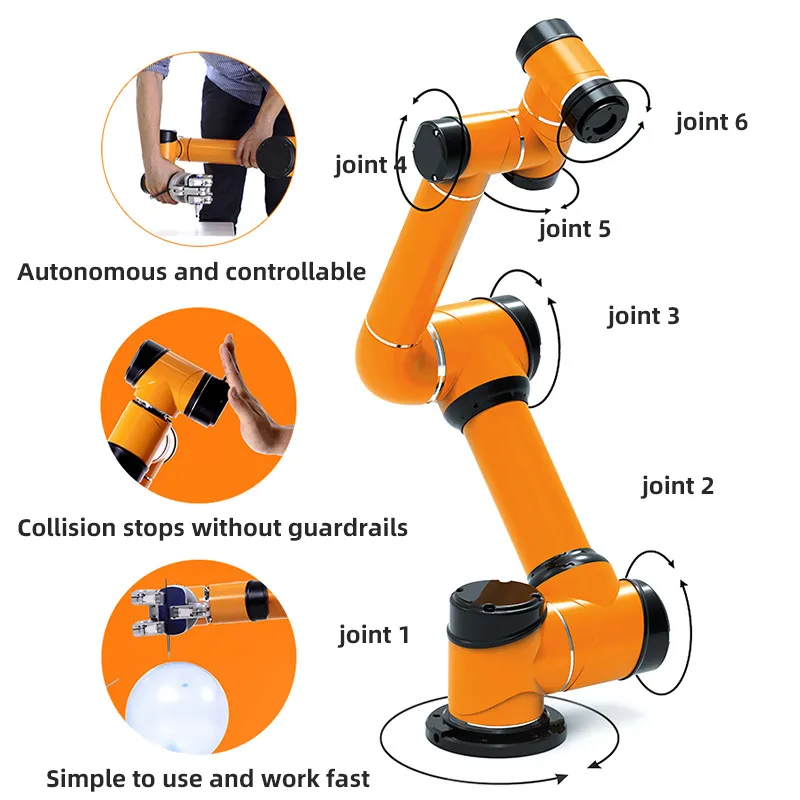

Trusted Safety: Supports collision detection control, allowing operators to work alongside the robot without safety fences.
| Robot Arm Specifications | |
|---|---|
| Maximum Reach | 1350 mm |
| Maximum Payload | 10kg |
| Pose Repeatability | ± 0.03 mm |
| Protection Rating | IP54 |
| Lifetime | 30,000h |
| Power Consumption | 500W |
| Power Supply | DC 48V |
Strict quality control measures guarantee excellent reliability. 100 percent inspection is made before packaging and shipment using advanced machinery.
1. Industrial packing: plastic bag + foam boxes + carton + wooden pallets
2. Commercial packing: plastic bag + foam boxes + carton
