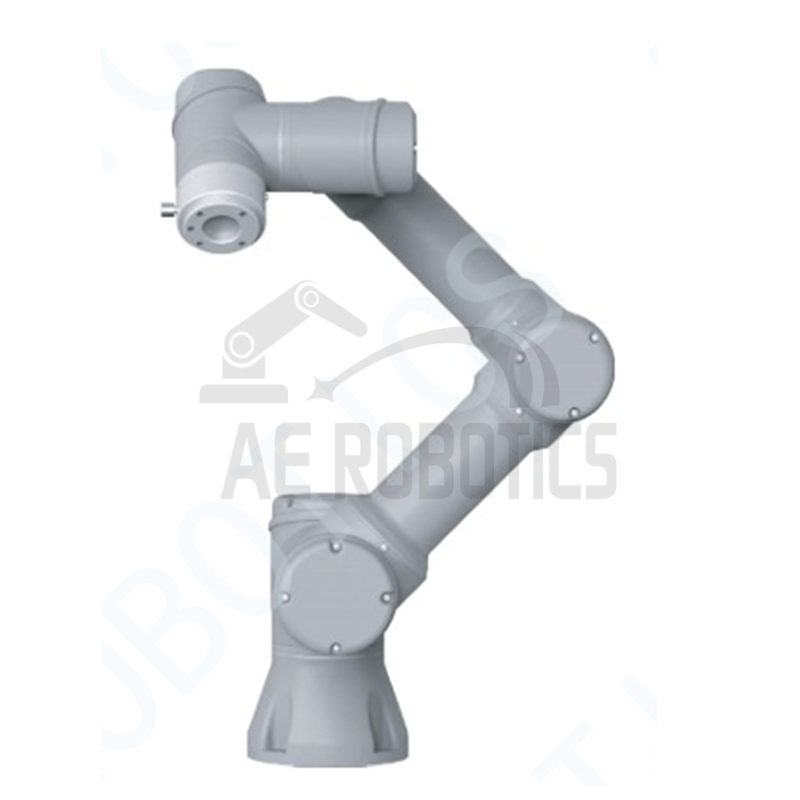

Aubo C3 Customizable 6dof Collaborative Robot Arm OEM Service for Commercial Scenarios
Aubo C3 Customizable 6dof Collaborative Robot Arm OEM Service for Commercial Scenarios
Aubo C3 Customizable 6dof Collaborative Robot Arm OEM Service for Commercial Scenarios
Aubo C3 Customizable 6dof Collaborative Robot Arm OEM Service for Commercial Scenarios
Aubo C3 Customizable 6dof Collaborative Robot Arm OEM Service for Commercial Scenarios
1 / 5
Aubo C3 Customizable 6dof Collaborative Robot Arm OEM Service for Commercial Scenarios
Aubo C3 Customizable 6dof Collaborative Robot Arm OEM Service for Commercial Scenarios
Aubo C3 Customizable 6dof Collaborative Robot Arm OEM Service for Commercial Scenarios
Aubo C3 Customizable 6dof Collaborative Robot Arm OEM Service for Commercial Scenarios
Aubo C3 Customizable 6dof Collaborative Robot Arm OEM Service for Commercial Scenarios

Aubo C3 Customizable 6dof Collaborative Robot Arm OEM Service for Commercial Scenarios

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

i

Basic Specifications

Model
AUBO C3
Application
Metal-Cutting, CNC Tending
Axes
6
Robot Payload
3kg
Precision
0.01~0.02(mm)
Repeatability
+/-0.05mm
Workbench Size
900*700mm
Certification
CE
Control
CNC/MNC
Condition
New
★

Features and Advantages

1. Compact and Easy to Deploy The robot body occupies minimal space and can be deployed quickly. The control cabinet supports both front and side mounting.
2. Rich Interfaces Features multiple interfaces; tool tips support universal IO, analog IO, and 0/12/24V power supply for easy integration.
3. High Returns Excellent cost-effectiveness with rapid investment returns, typically recovering costs within 3-9 months on average.
4. Commercial Performance 3kg load capacity and repeat positioning accuracy of ±0.05mm meet strict commercial scenario requirements.
5. Simple Operation Supports ARCS wireless teaching software via tablet. Audio-visual information display provides rapid indication of status.
6. Quick Customization Supports customization of robot body colors and logos, plus multi-level interfaces for deep OEM project development.

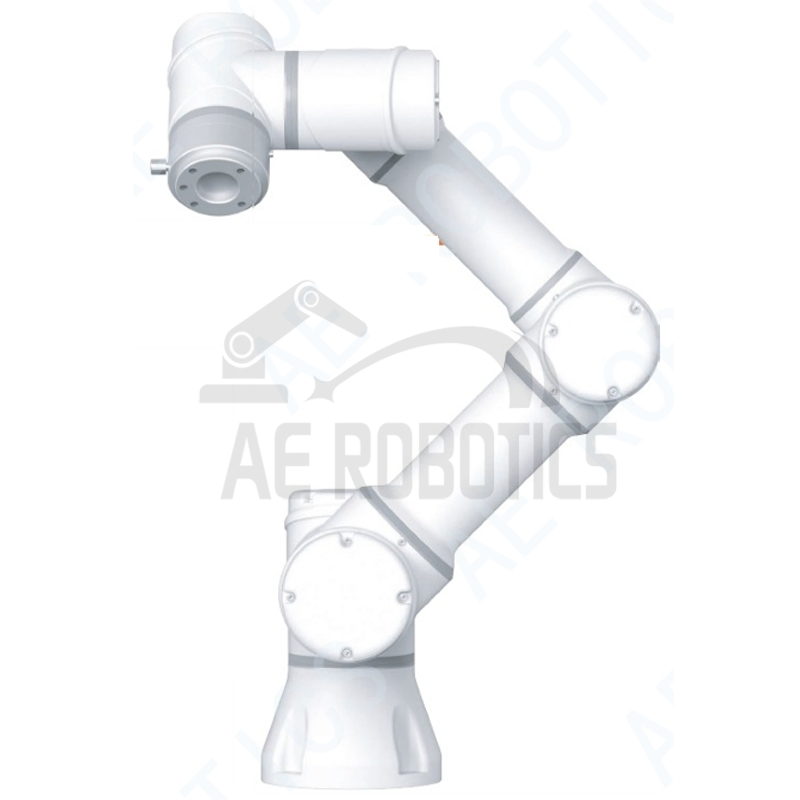

Aubo C3 Collaborative Robot
⚙

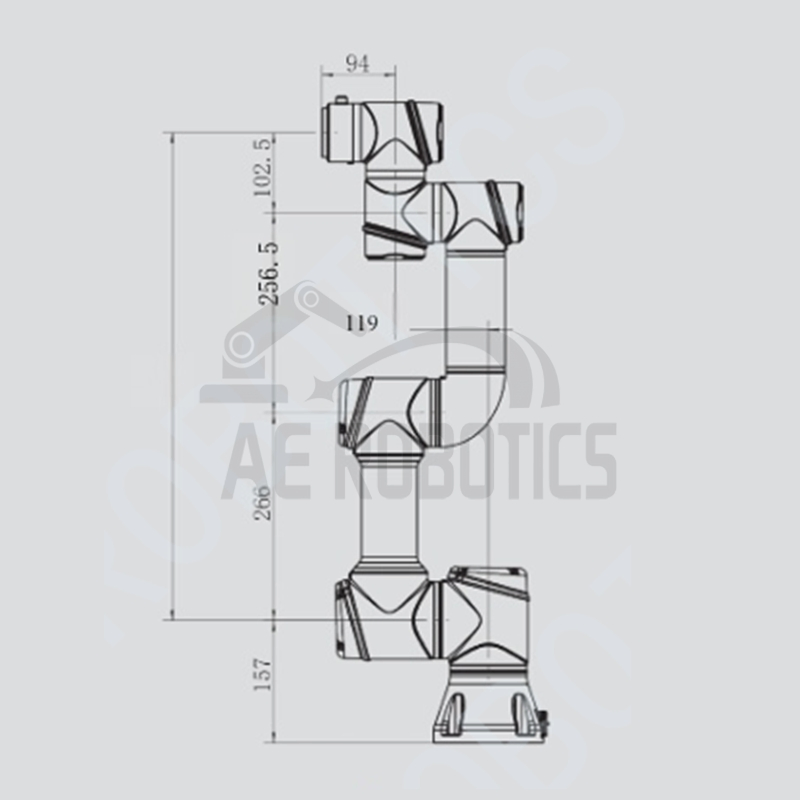

Robot Specifications

ItemParameter
Degrees of Freedom6

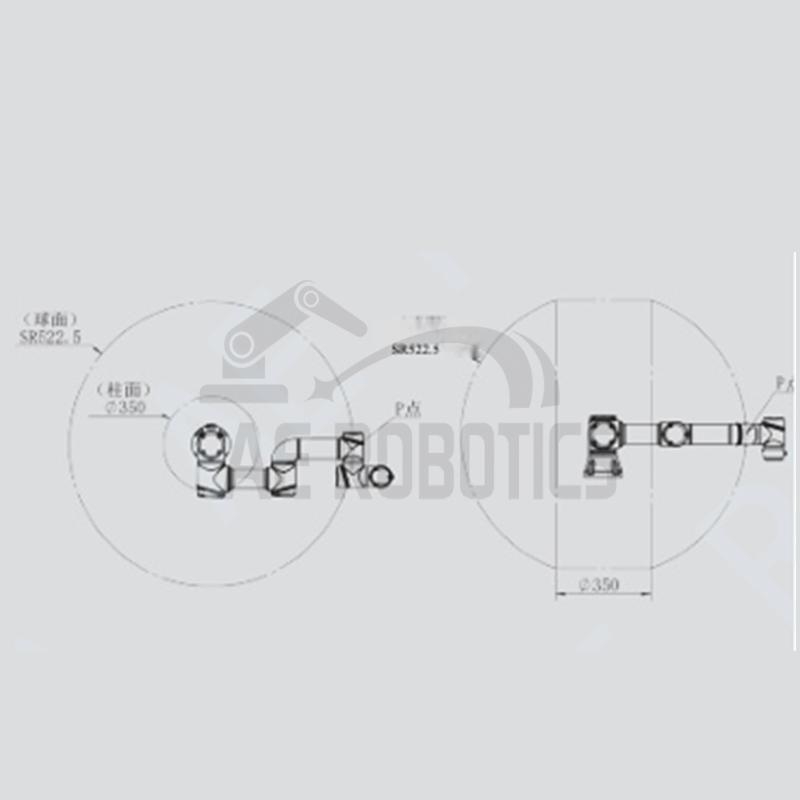

Maximum Working Radius (mm)625
Load (kg)3
Weight (kg)16
Installation Surface Diameter (mm)Ø140
Duplicate Positioning Accuracy (mm)±0.05
Tool Speed (m/s)≤1.9
Mean Power (W)150
Peak Power (W)600
Protection LevelsIP54
↻

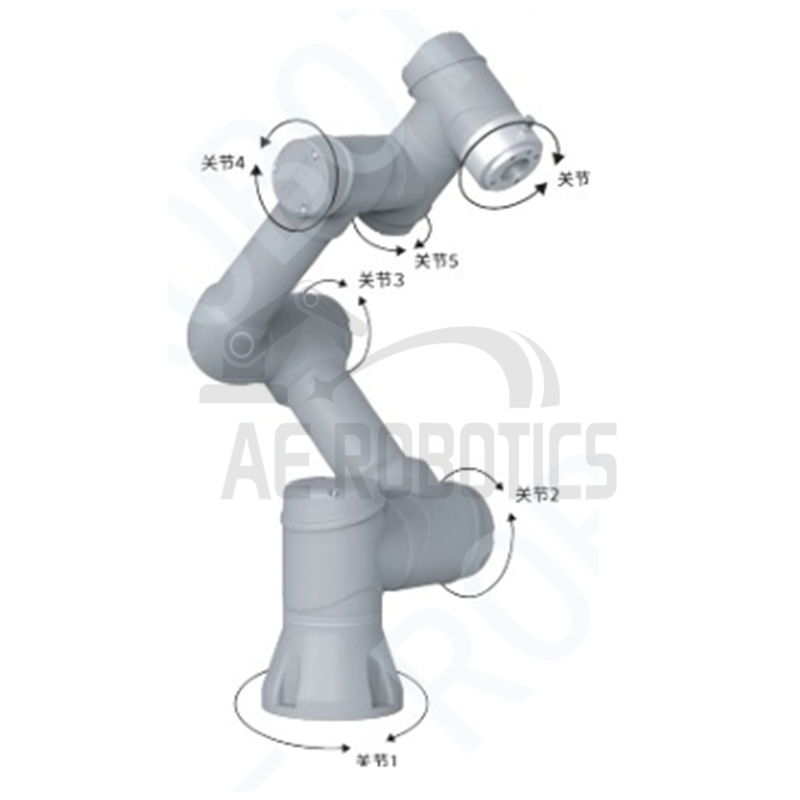

Joint Movement Range

JointRange of Movement (°)Maximum Speed (°/s)
Joint 1±360185
Joint 2±175185
Joint 3±175185
Joint 4±175185
Joint 5±175185
Joint 6±360185

Note: Each joint has a ±360° mechanical range of motion, but actual range may vary by application.

📦

Packing & Delivery

Package Gross Weight
420.000kg
Transport Package
Wood Box

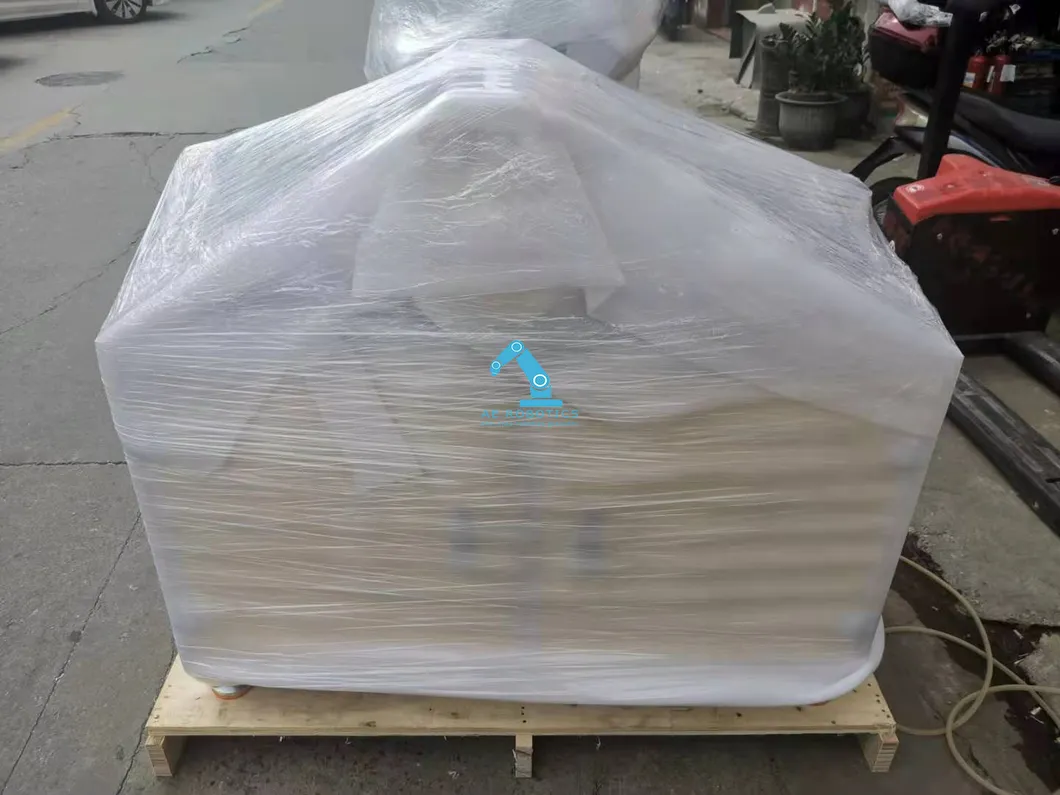

Packing 1
Packing 2
Robot Detail 1 Robot Detail 2 Robot Detail 3
?

Frequently Asked Questions

What is the maximum payload for the AUBO C3?
The AUBO C3 has a payload capacity of 3kg, making it ideal for lightweight commercial and industrial tasks.
How accurate is the AUBO C3 in repetitive tasks?
It offers a duplicate positioning accuracy of ±0.05mm, ensuring high precision for metal-cutting and CNC tending applications.
Can the robot be programmed without industrial teaching devices?
Yes, it supports ARCS wireless teaching software, allowing you to operate and program the robot using a standard tablet.
What is the typical return on investment (ROI) period?
Due to its low cost and high efficiency, users typically recover their investment within an average of 3 to 9 months.
Is the AUBO C3 customizable for specific branding?
Yes, the robot supports quick customization of body colors, logos, and offers in-depth OEM project customization options.
What is the protection level of this robot?
The robot is rated at IP54, providing protection against dust and water splashes suitable for various work environments.
