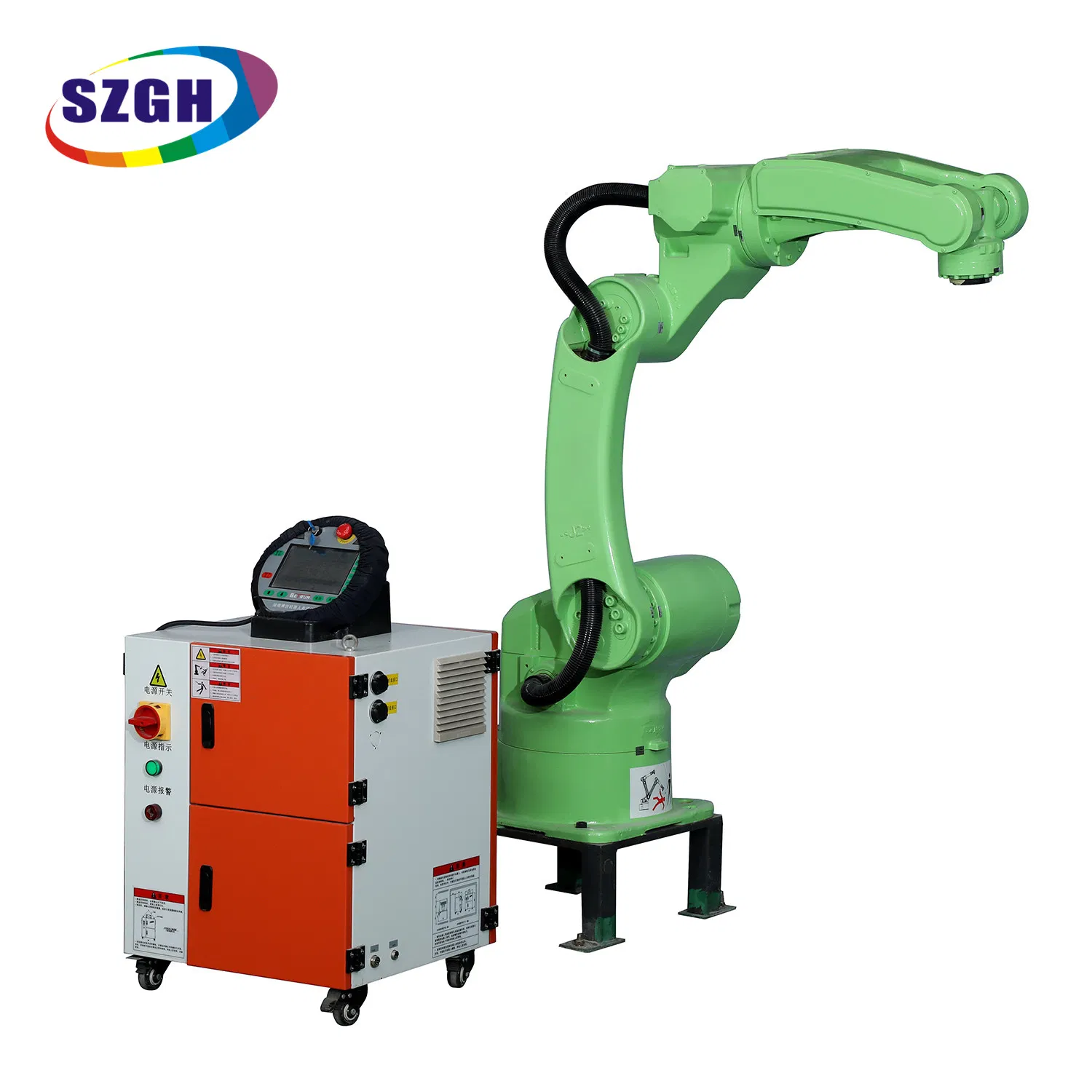

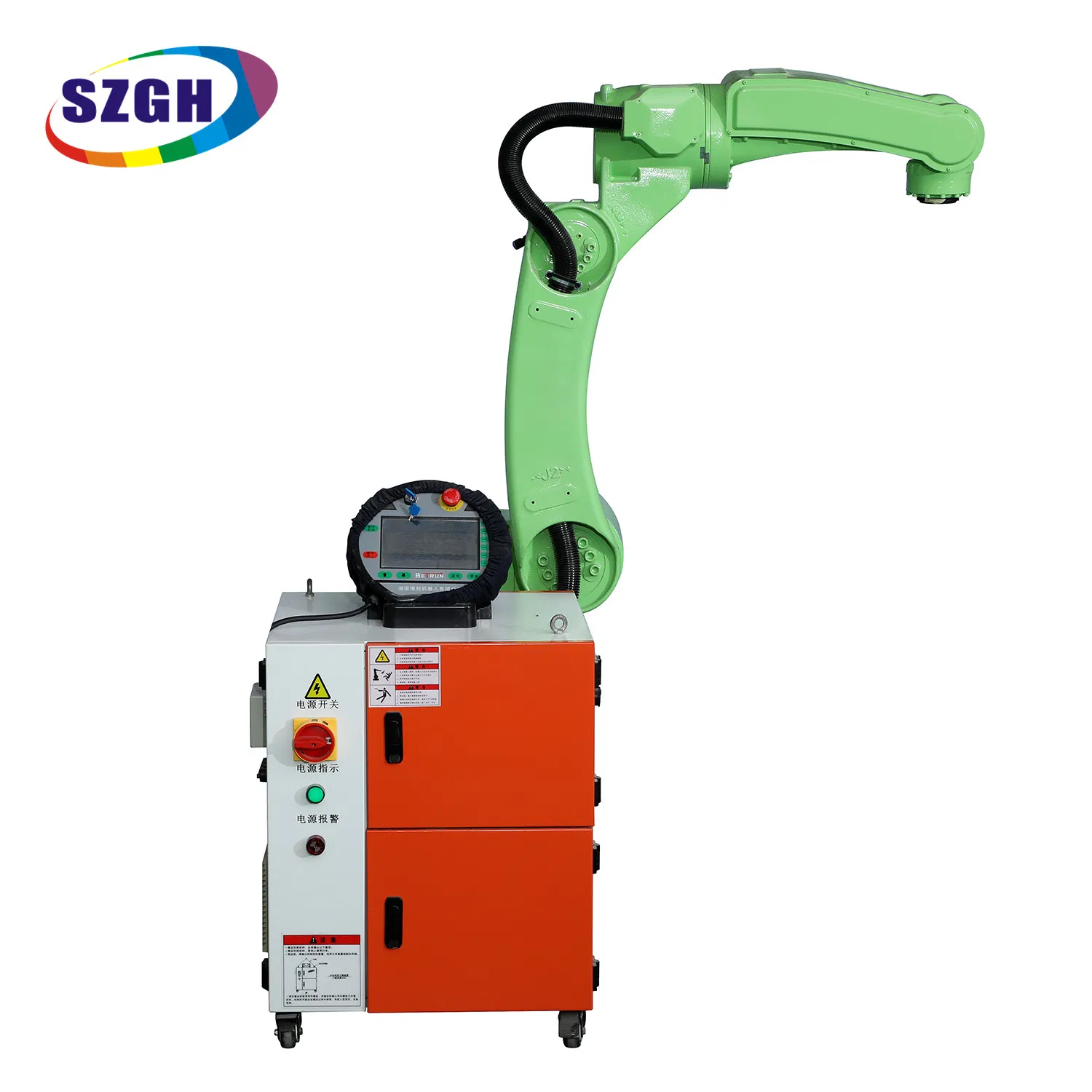

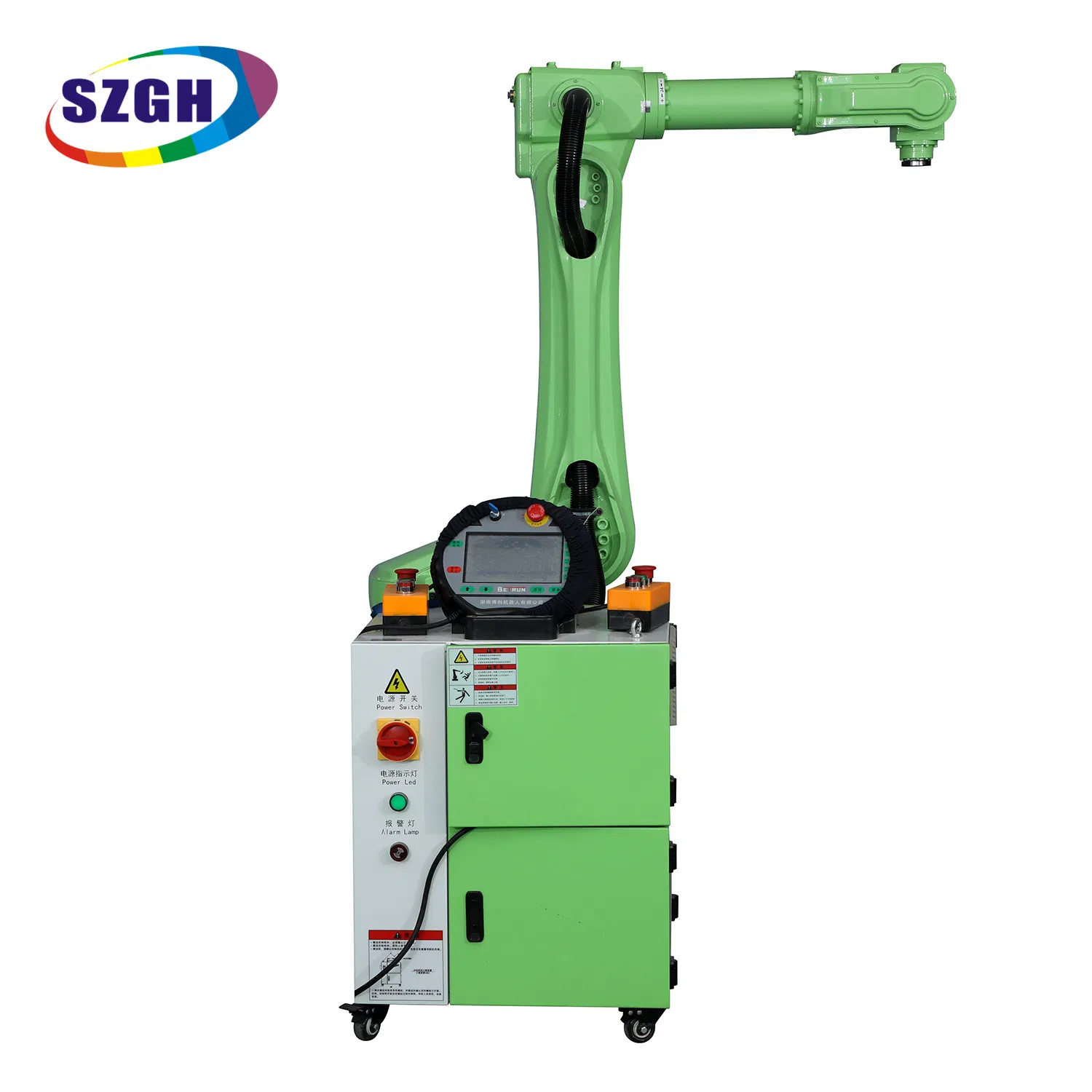

China Low Cost Artificial Intelligence 9 Axis Manipulator Arm Payload 6kg Industrial Spraying Robot Arm for Weld
China Low Cost Artificial Intelligence 9 Axis Manipulator Arm Payload 6kg Industrial Spraying Robot Arm for Weld
China Low Cost Artificial Intelligence 9 Axis Manipulator Arm Payload 6kg Industrial Spraying Robot Arm for Weld
China Low Cost Artificial Intelligence 9 Axis Manipulator Arm Payload 6kg Industrial Spraying Robot Arm for Weld
China Low Cost Artificial Intelligence 9 Axis Manipulator Arm Payload 6kg Industrial Spraying Robot Arm for Weld
1 / 5
China Low Cost Artificial Intelligence 9 Axis Manipulator Arm Payload 6kg Industrial Spraying Robot Arm for Weld
China Low Cost Artificial Intelligence 9 Axis Manipulator Arm Payload 6kg Industrial Spraying Robot Arm for Weld
China Low Cost Artificial Intelligence 9 Axis Manipulator Arm Payload 6kg Industrial Spraying Robot Arm for Weld
China Low Cost Artificial Intelligence 9 Axis Manipulator Arm Payload 6kg Industrial Spraying Robot Arm for Weld
China Low Cost Artificial Intelligence 9 Axis Manipulator Arm Payload 6kg Industrial Spraying Robot Arm for Weld

China Low Cost Artificial Intelligence 9 Axis Manipulator Arm Payload 6kg Industrial Spraying Robot Arm for Weld

Customization: Available
Application: Welding
Control Mode: Point to Point Control
Send Inquiry

Product Description

Overview & Basic Specifications
Model
P1950-B-6
Axes
6 Axes
Reach
1950mm
Payload
6kg
Structure
Articulated
Repeatability
0.08mm
Weight
170kg
Mounting
Ground, Bracket, Ceiling
Capacity
1000 Sets / Month
Industrial Spraying & Welding Robot

The P1950-B-6 is a high-efficiency industrial painting and spraying robot, designed to provide economical automation solutions. It features a robust 6-axis design suitable for various applications including welding, handling, and grinding.

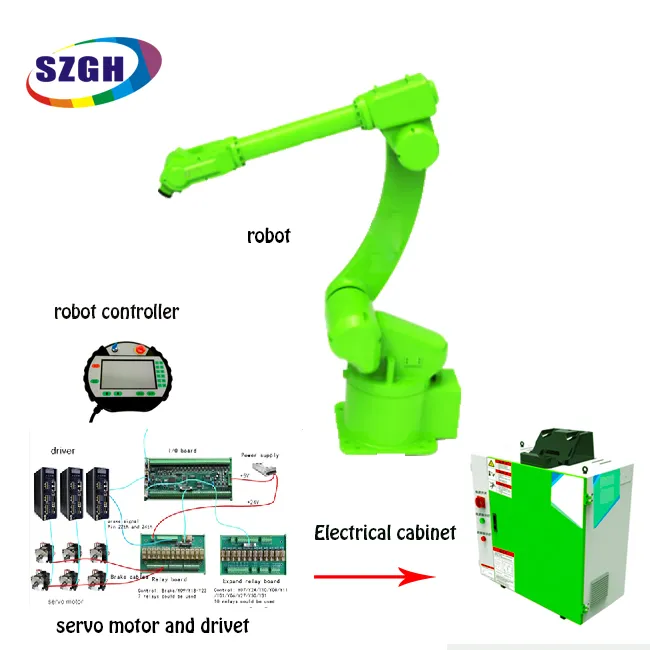

Industrial Robot Arm
Payload6kg
Reach1950mm
Axes6
ApplicationPainting and Spraying
CustomizationColor and Logo Support

Key Solutions:

  • Hanging line tracking: Integrated with turntables or hanging equipment for efficient work stations.
  • Rotary painting: Specialized for injection molded parts with dust-proof and waterproof capabilities.
  • Advanced Control: Support for 4 to 11 axes, covering plasma cutting and high-precision grinding.
Intelligent Controller System

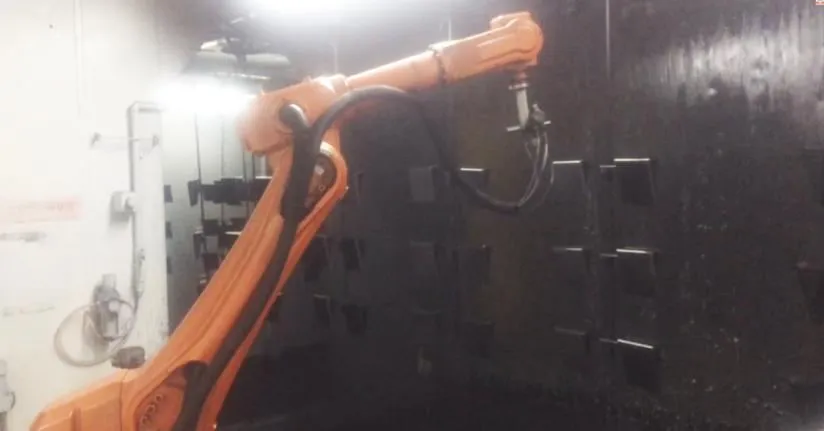

Robot Controller

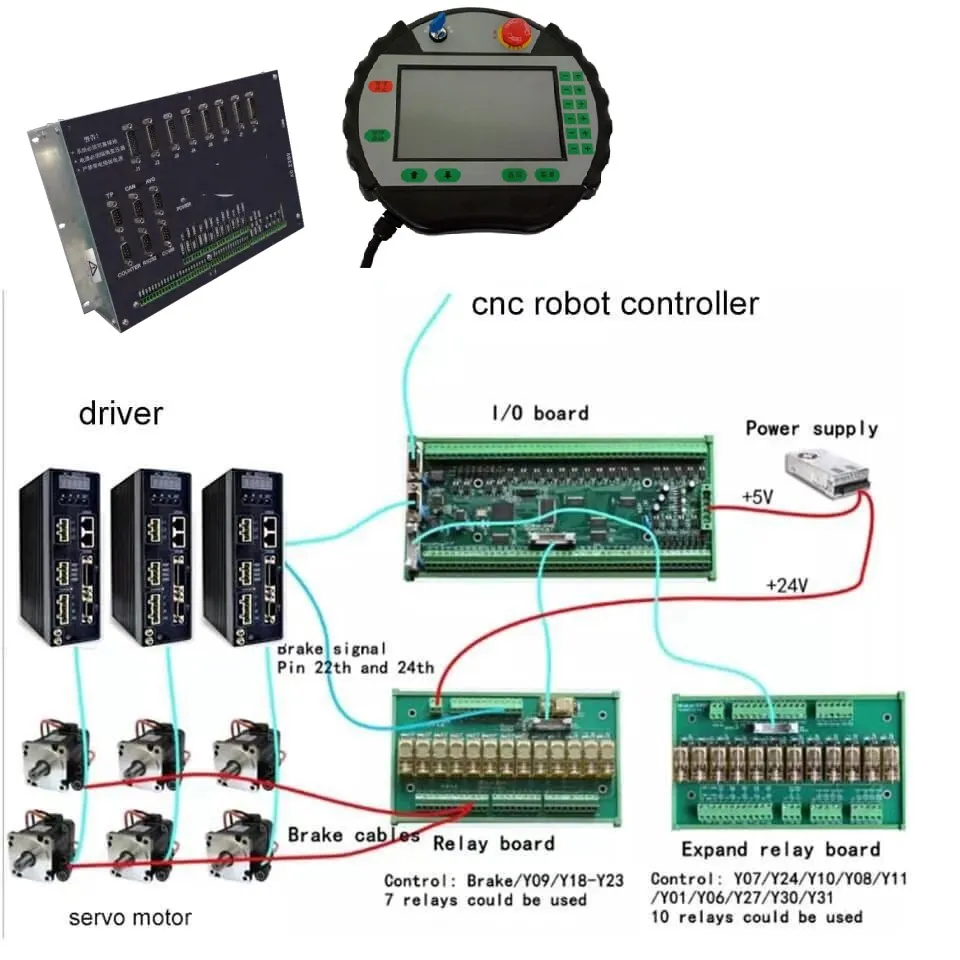

Control Interface
  • Modular settings for diverse industrial applications.
  • 8-axis control capability for external axes like traveling positioners.
  • Software PLC functions for advanced logic control and easy programming.
  • Absolute servo system with improved computer bus connection for stability.

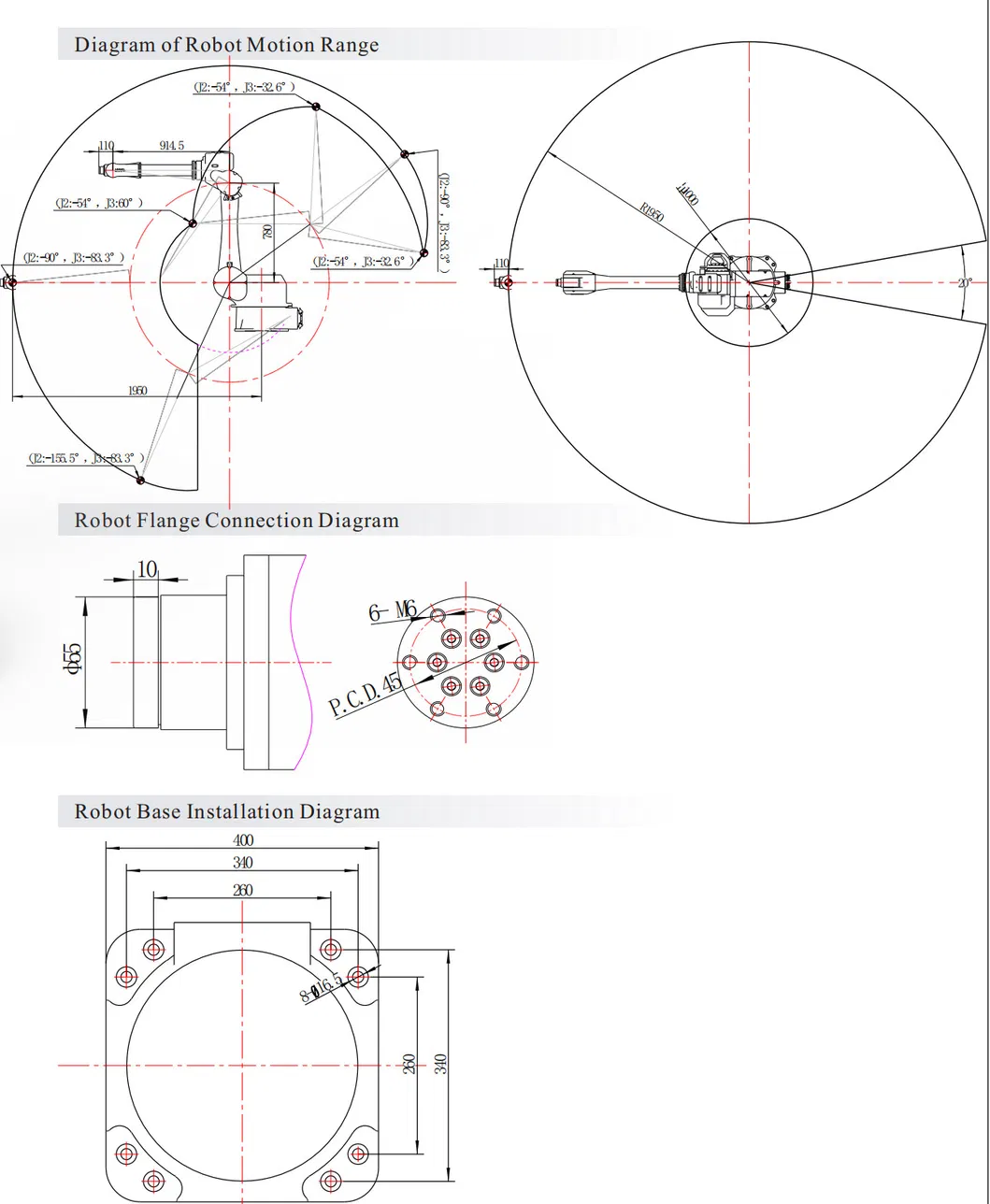

Technical Specifications & Dimensions

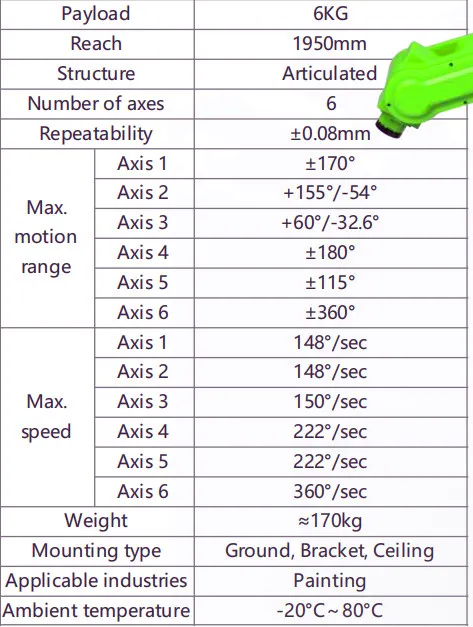

Technical Drawing 1
Technical Drawing 2
Quality Assurance & Certification

Our products undergo strict quality control measures to guarantee reliability. 100% inspection is conducted before packaging and shipment, ensuring every unit meets international standards.

CE Certification
Applications & Advantages
Application 1
Application 2
Application 3
Advantages
Professional After-Sales Support

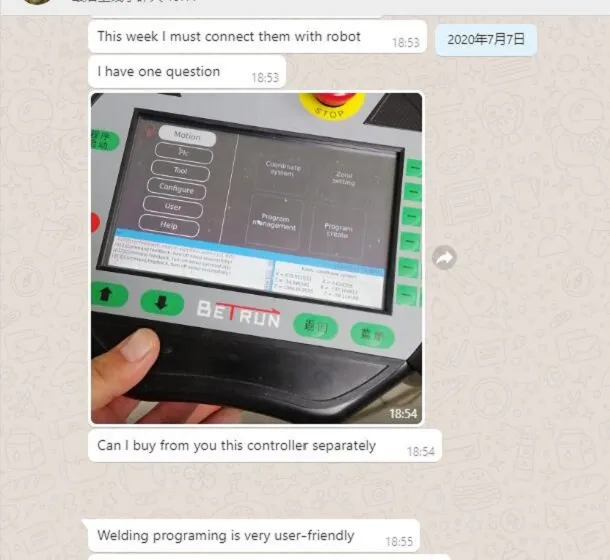

After Sales

Comprehensive Technical Support:

  • Professional engineer teams for global support.
  • Quick response times for troubleshooting.
  • Video technical and online assistance.

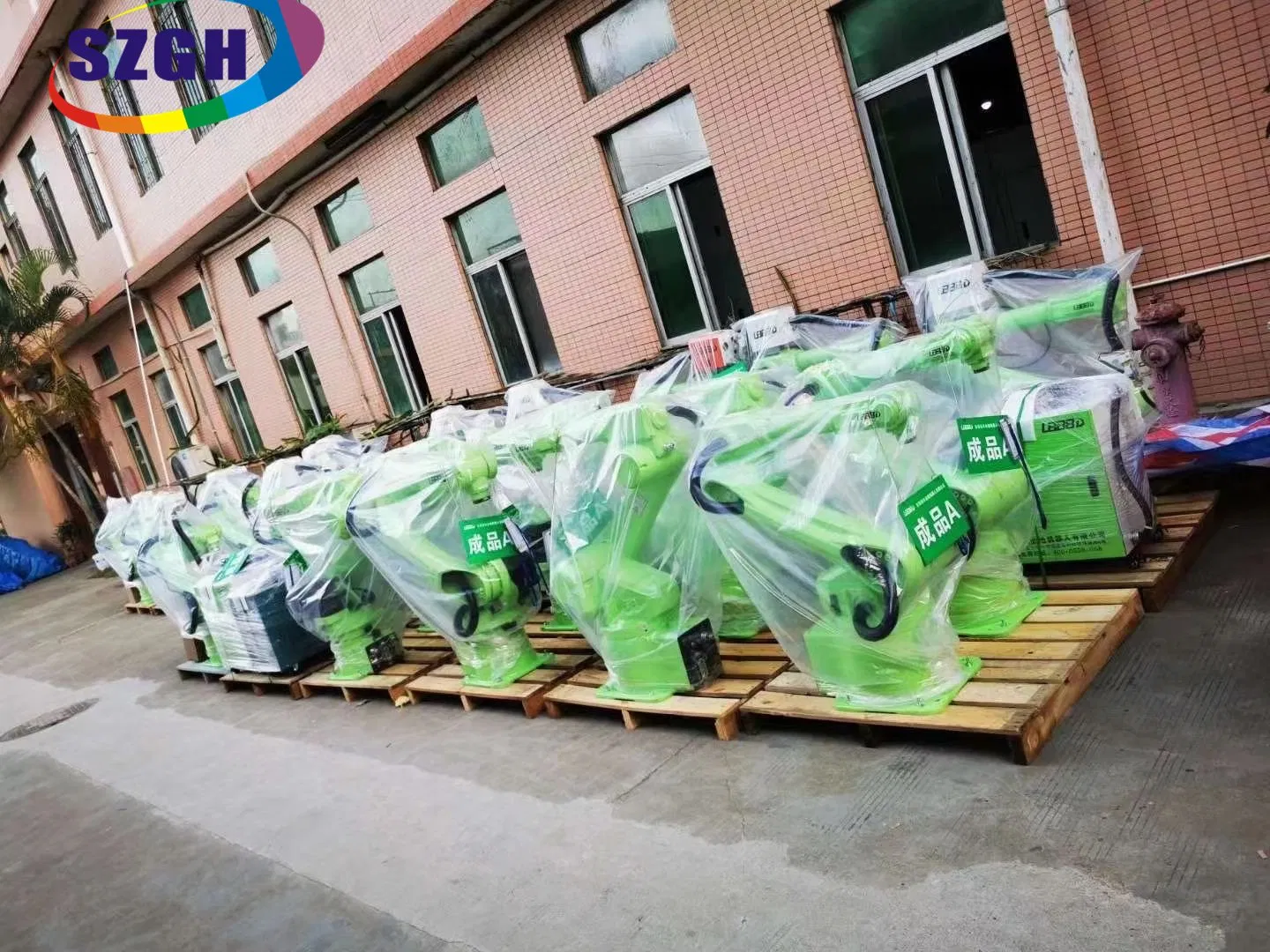

  • Safe and reliable wooden box packaging for transport.
Frequently Asked Questions
What are the primary applications for this robot arm?
The P1950-B-6 is versatile and can be used for painting, spraying, welding, handling, grinding, and loading/unloading tasks across various industries.
Can the robot arm and controller be customized?
Yes, we support customized manufacturing according to requirements, including custom body colors, company logos, and display interfaces.
What is the payload and reach of this model?
This model features a 6kg payload capacity and a maximum reaching distance of 1950mm.
What languages does the robot system support?
The system currently supports multiple languages, including English, Russian, and Vietnamese.
What is the standard delivery time?
Standard items in stock take 3-5 days. If not in stock, it usually takes 5-10 days, while customized manufacturing requires 10-20 days.
How many axes can the controller handle?
The standard robot has 6 axes, but the controller system supports from 4 up to 11 axes to manage external traveling axes or positioners.
