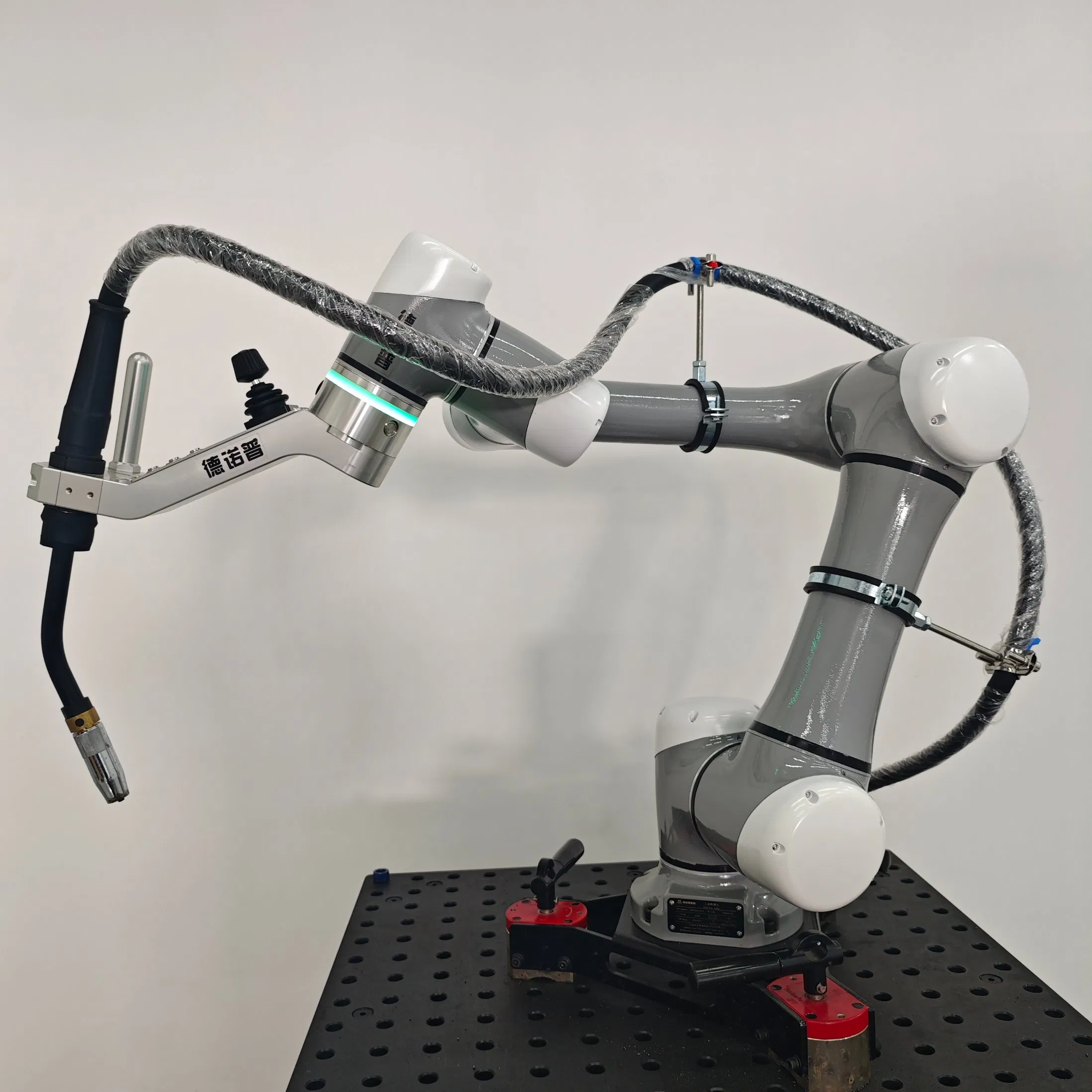

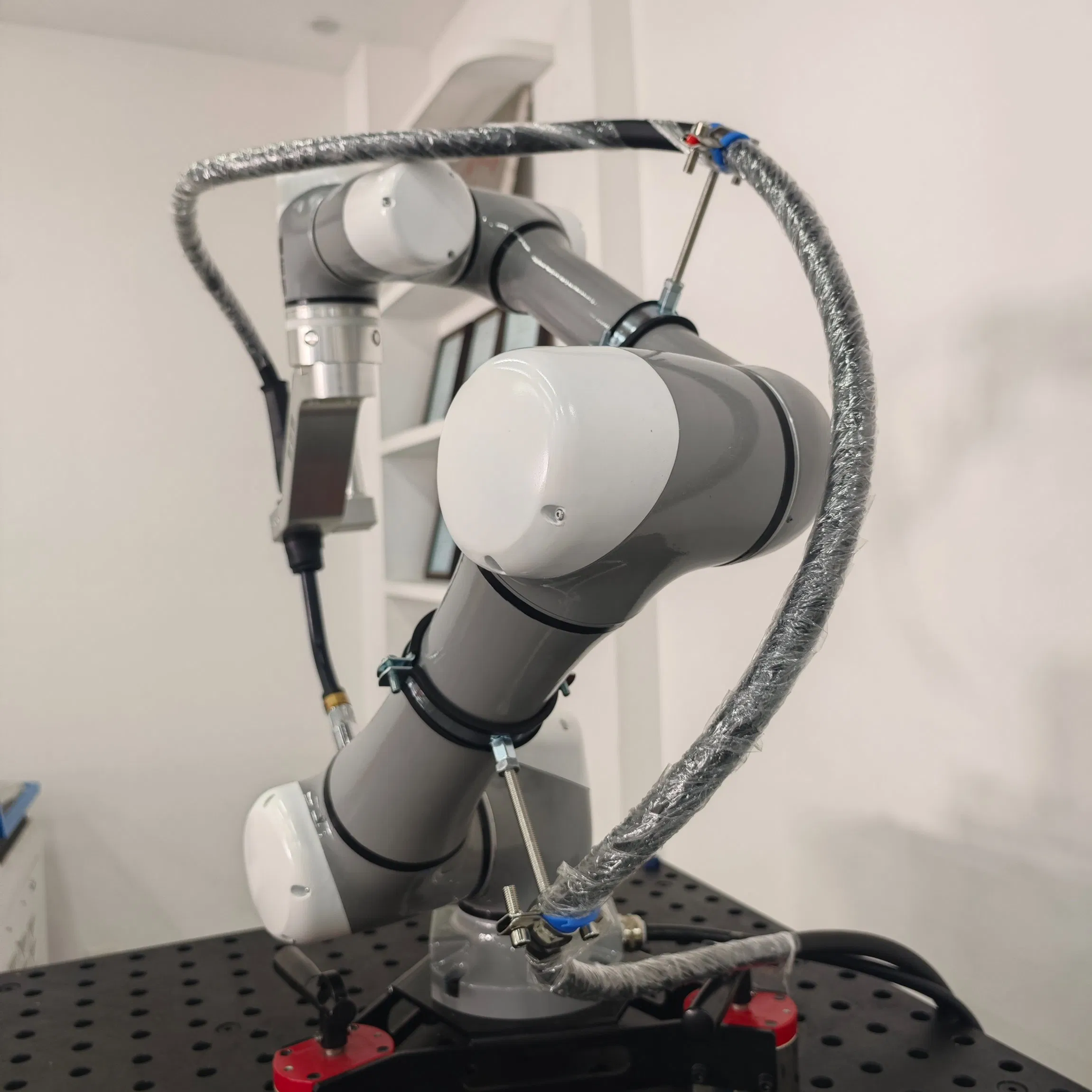

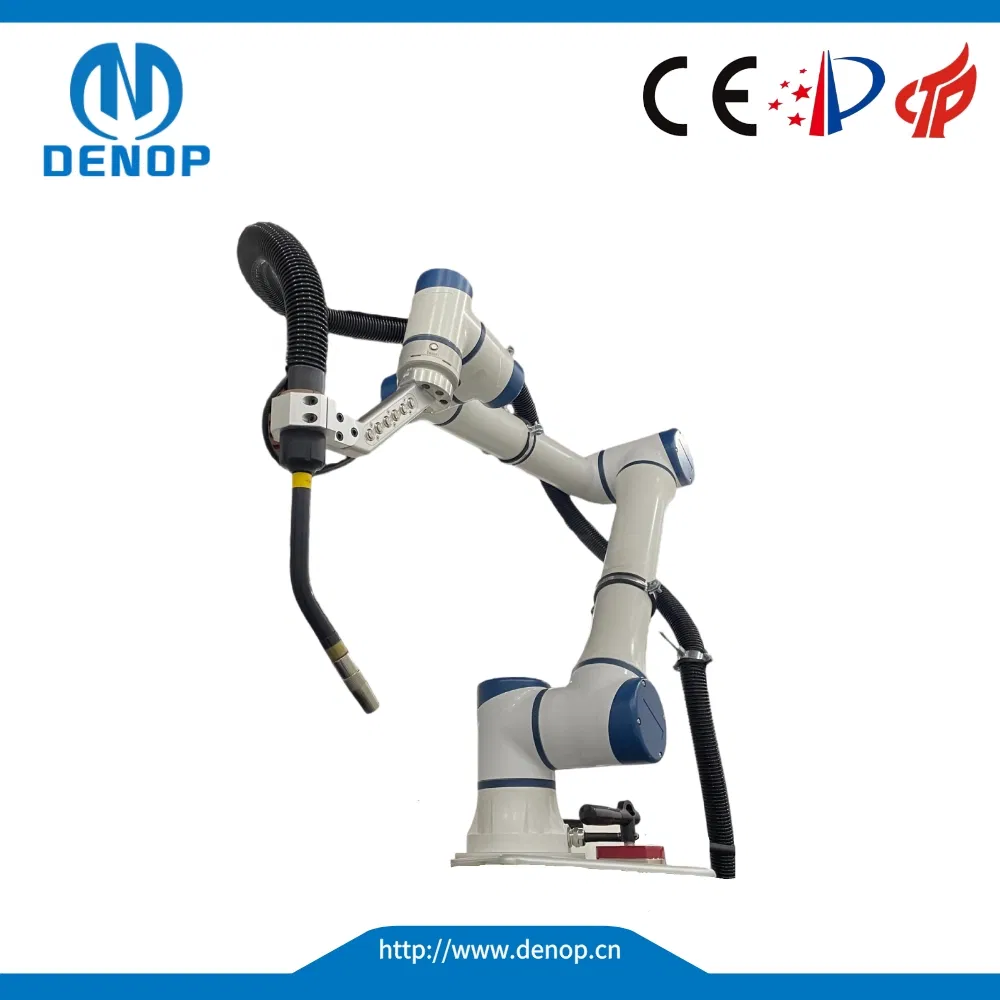

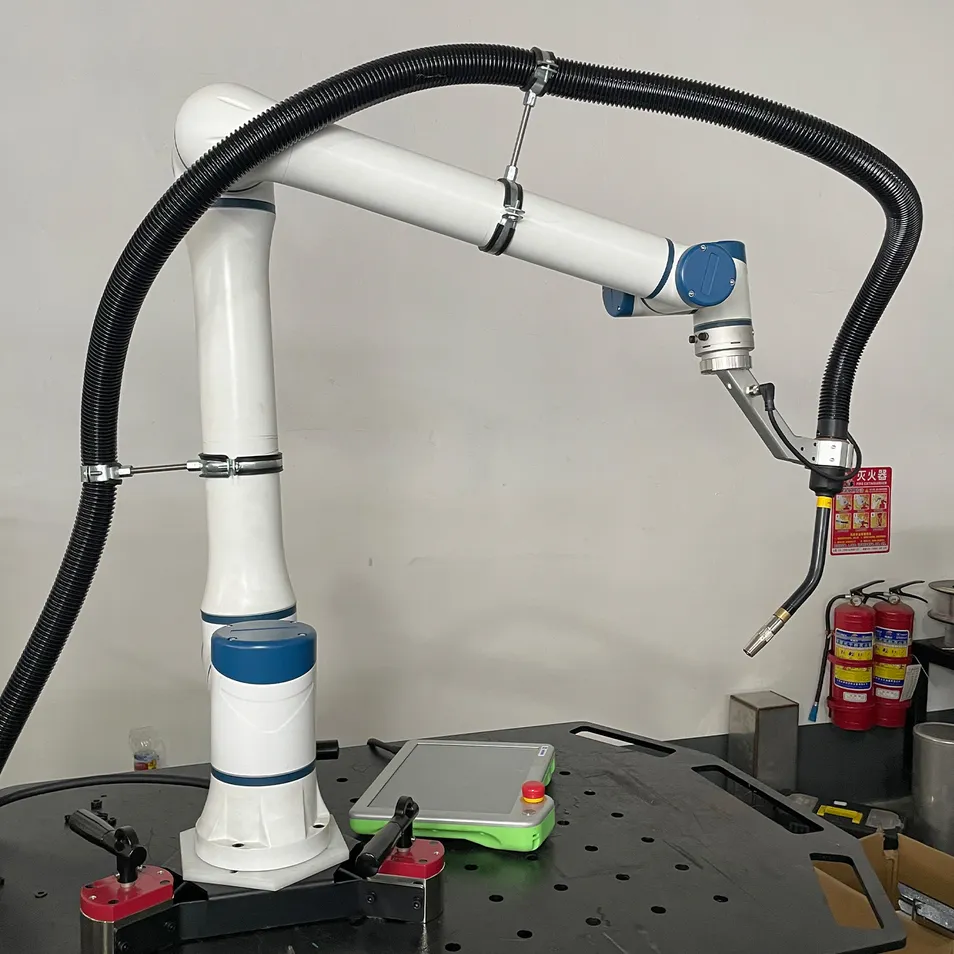

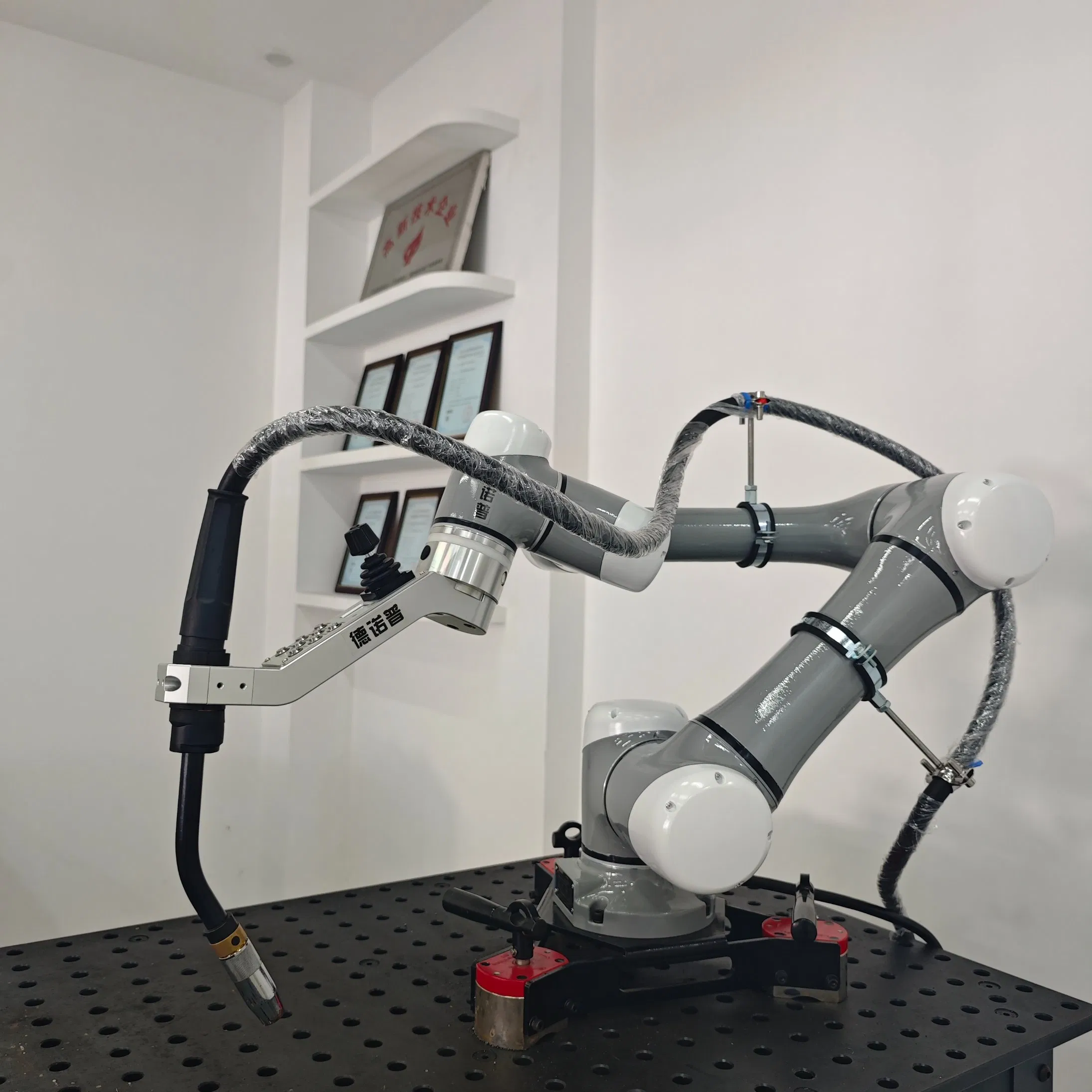

Our STANDARD series collaborative welding robots are designed for simplicity and efficiency. Featuring a no-teaching-device interface, operators can manually move the robot to record points and initiate the welding process immediately. These robots are fast, highly accurate, and offer flexible installation—ideal for small batches, diverse product types, and long-term industrial operations.
Automotive: EV components, traditional car manufacturing, and aerospace industry.
Metal Products: Hardware furniture, kitchen equipment, and fitness gear.
Electronics: Distribution boxes, electronic cabinets, and cases.
Construction: Control platforms and building prefabricated components.
Key Configurations
Robot Body: Optional load 5-20KG, arm Extension 900mm-1821mm. Control System: Intelligent monitoring panel with fault diagnostics and PLC control. Wire Feeder: Automatic feeder compatible with 0.8/1.0/1.2 welding wire. Cooling: Choice of water cooler or wind cooler systems.

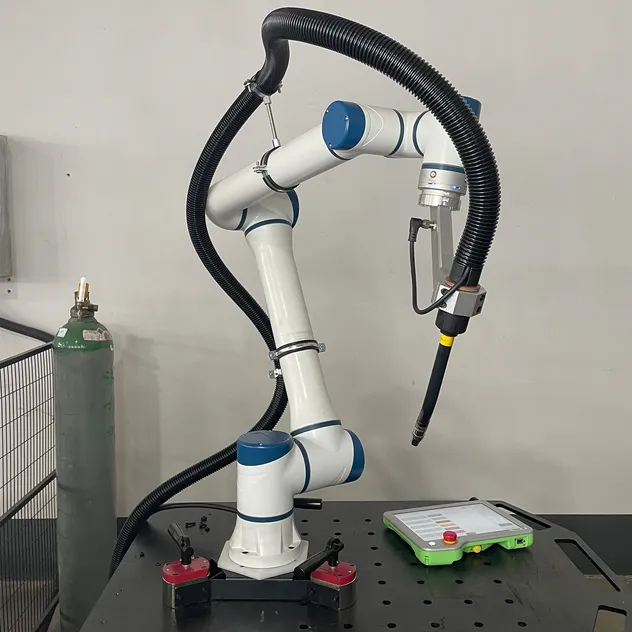

Right Elevation

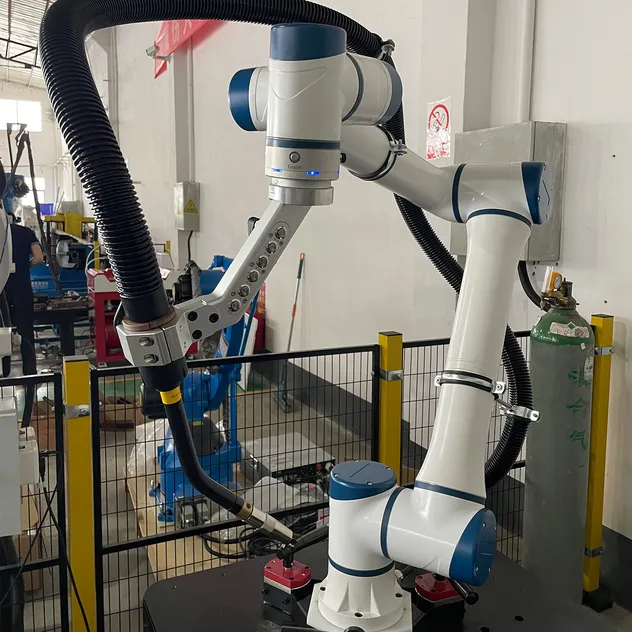

Left Elevation

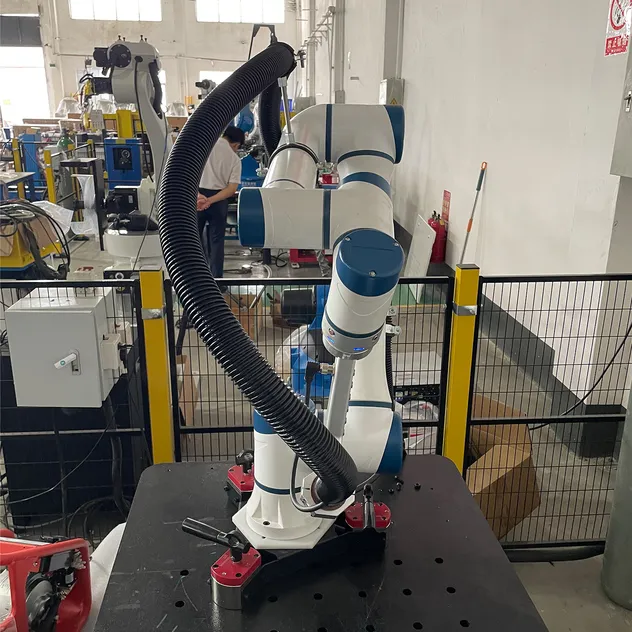

Front Elevation
Technical Specifications
Model
DNP-CR1007-WB
DNP-CR1406-WB
DNP-CR1415-WB
DNP-CR2020-WB
Load (kg)
7
6
15
20
Maximum Radius (mm)
1077
1460
1464
2027
Maximum Speed (mm/s)
3000
3000
3000
4000
Power (W)
260
260
550
1500
Weight (kg)
21
22
36
68
Welding Performance

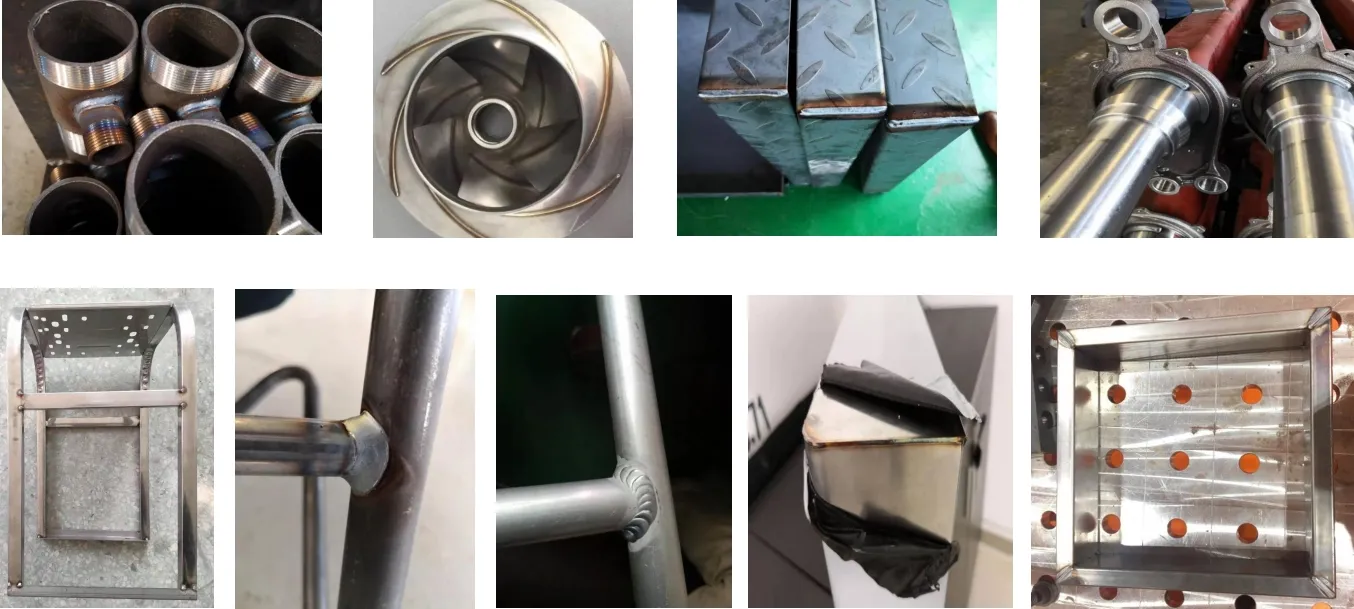

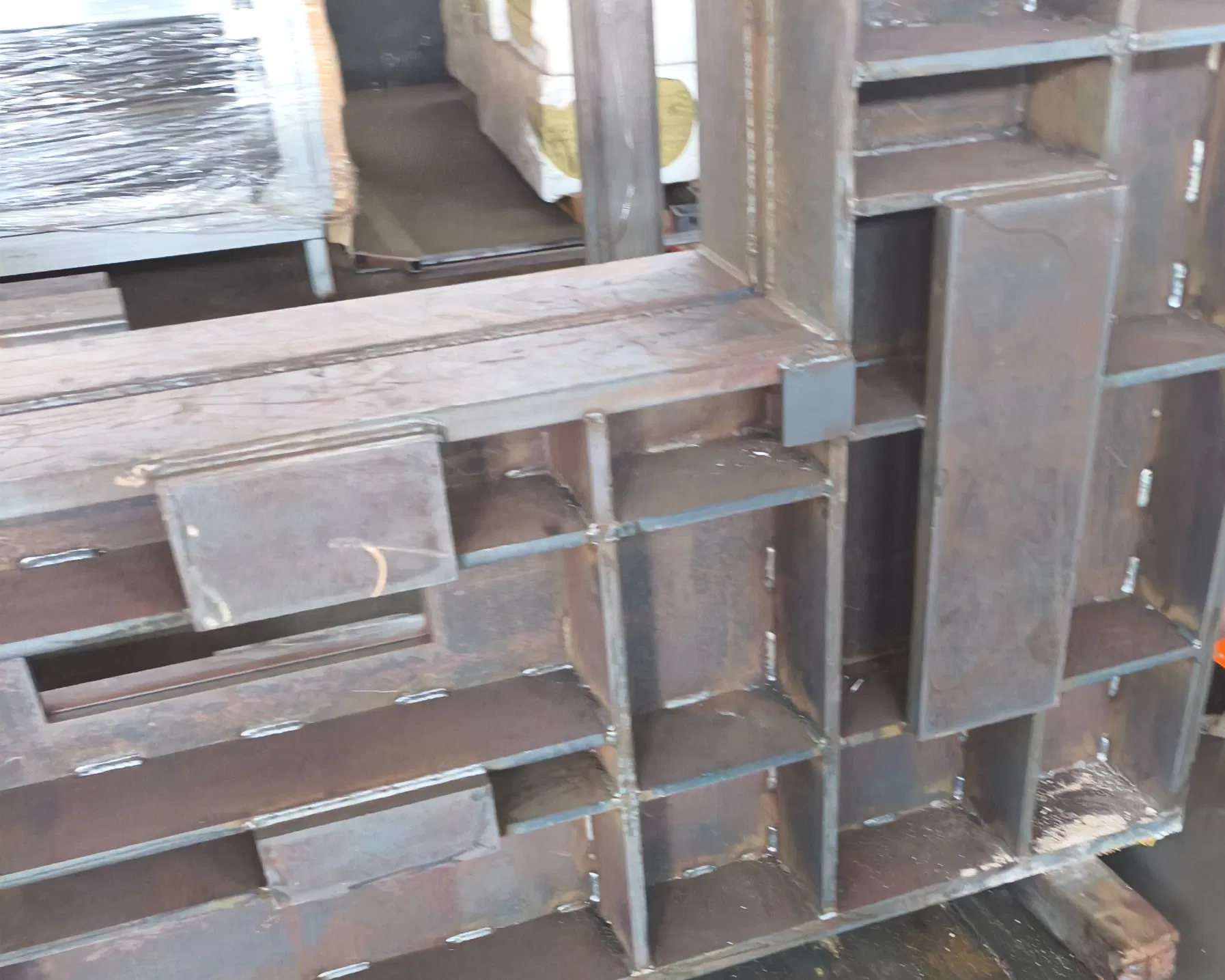

High Quality & Full Welding Effects
After-Sales Service & Solutions
Standard Warranty: 12 months or 2,000 operating hours.
Extended Warranty: Optional coverage up to 36 months available.
Global Support: 24/7 technical assistance and spare parts supply.

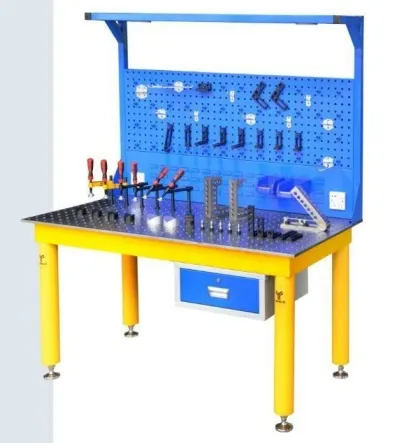

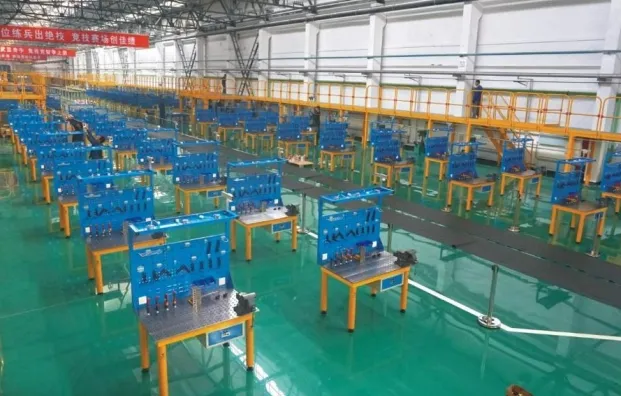

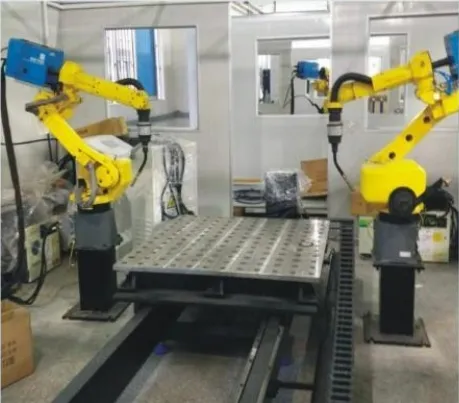

Custom Solutions: Tailored fixtures and table designs for your specific projects.
Frequently Asked Questions
Q: What is the lead time for standard orders?
A: Delivery usually takes 30 days after the deposit is received.
Q: Is a professional programmer required to operate the robot?
A: No, our collaborative robots feature manual point recording, which is intuitive and requires minimal programming knowledge.
Q: Do you provide support for international customers?
A: Yes, we offer 24/7 remote technical assistance to support our global clients.
Q: Can I request a customized project solution for my factory?
A: Absolutely. We recommend specific solutions based on your materials, factory layout, and project requirements.
Q: What documents are provided for international shipping?
A: We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and COC.
Q: What welding wire sizes are compatible with the automatic feeder?
A: The system is compatible with 0.8mm, 1.0mm, and 1.2mm welding wires.
