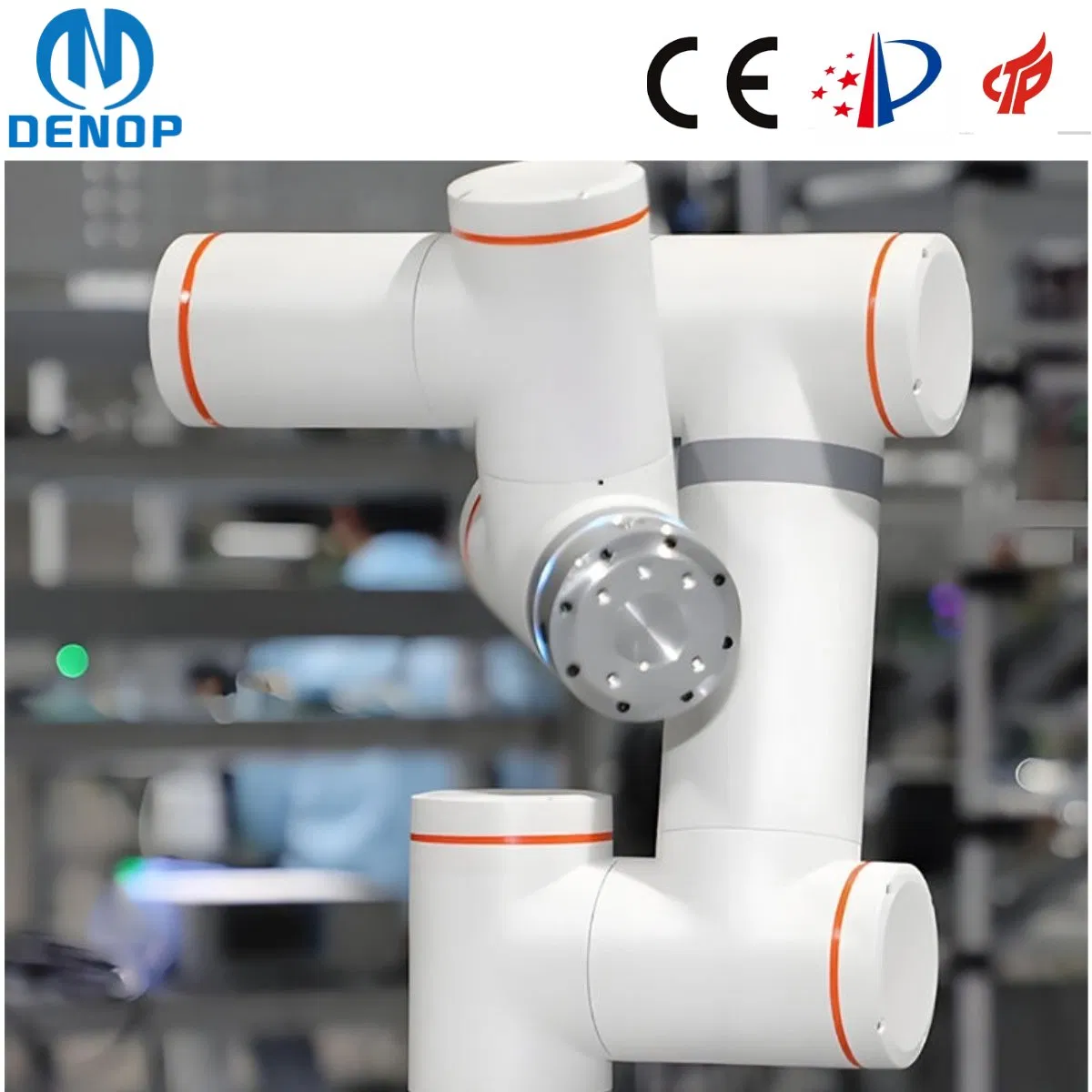

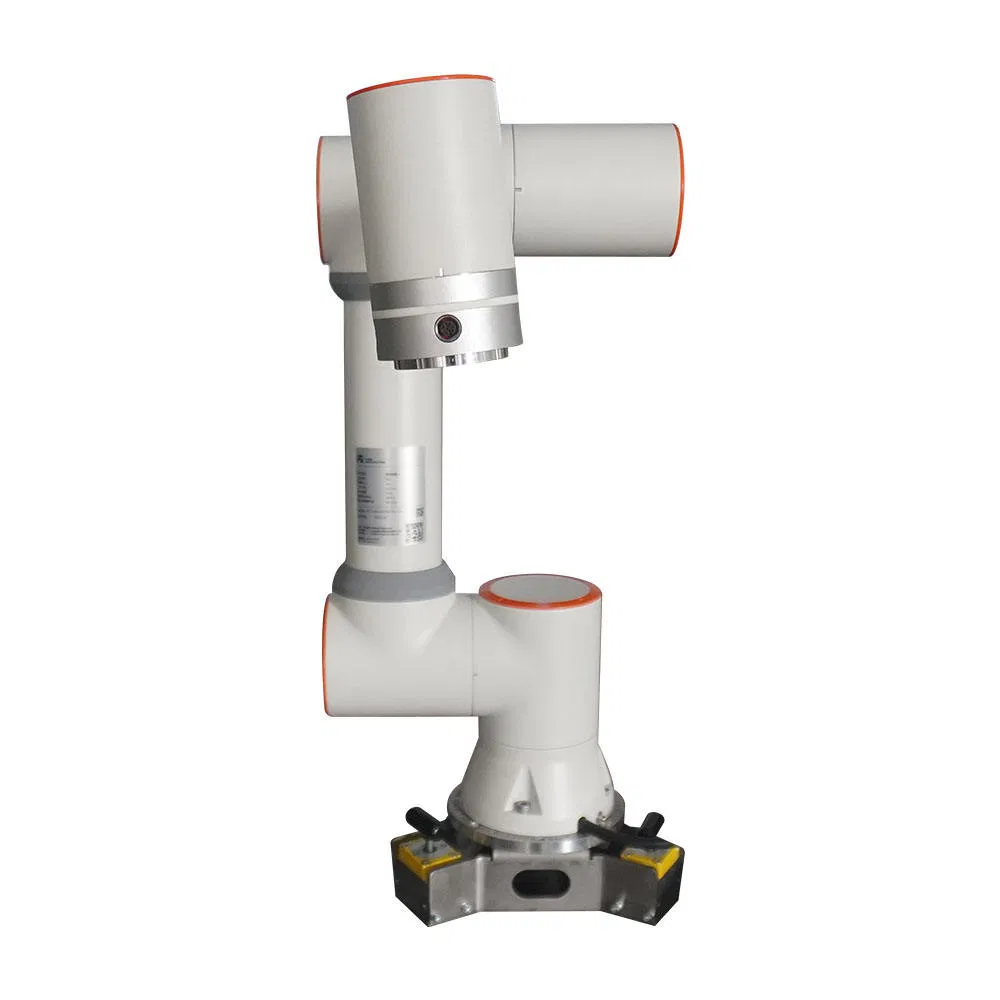

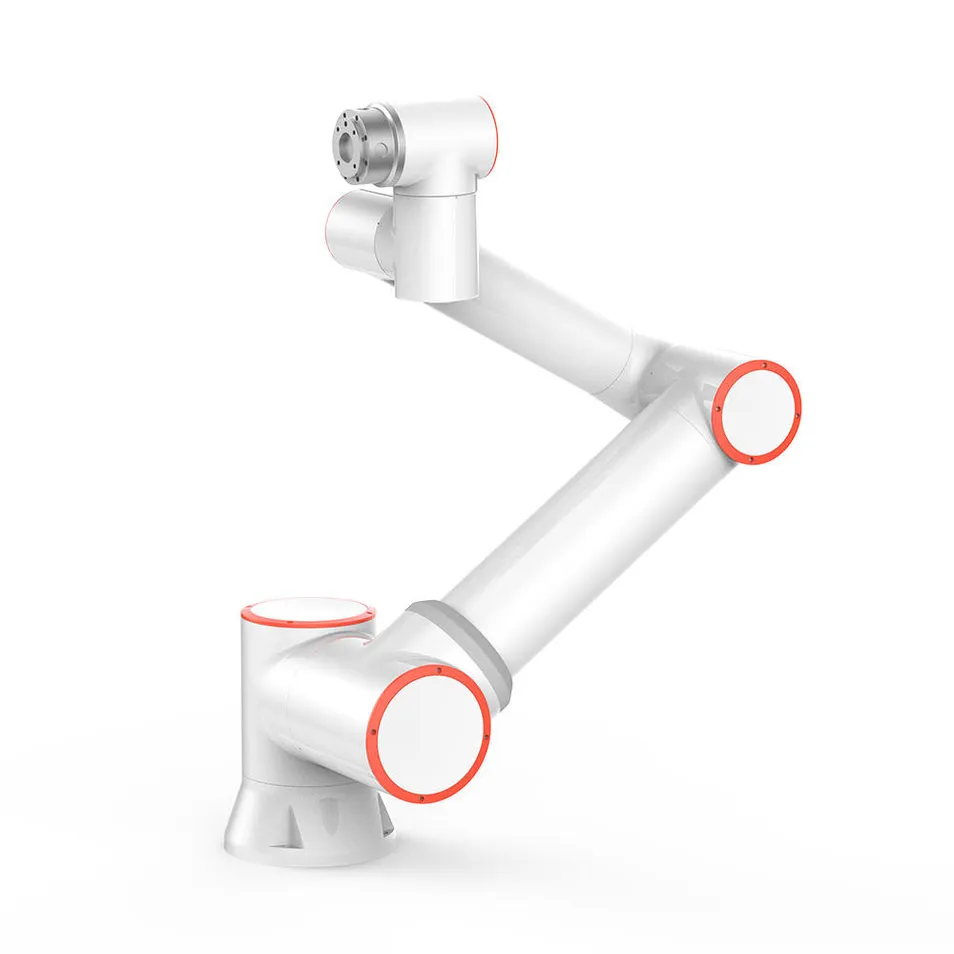

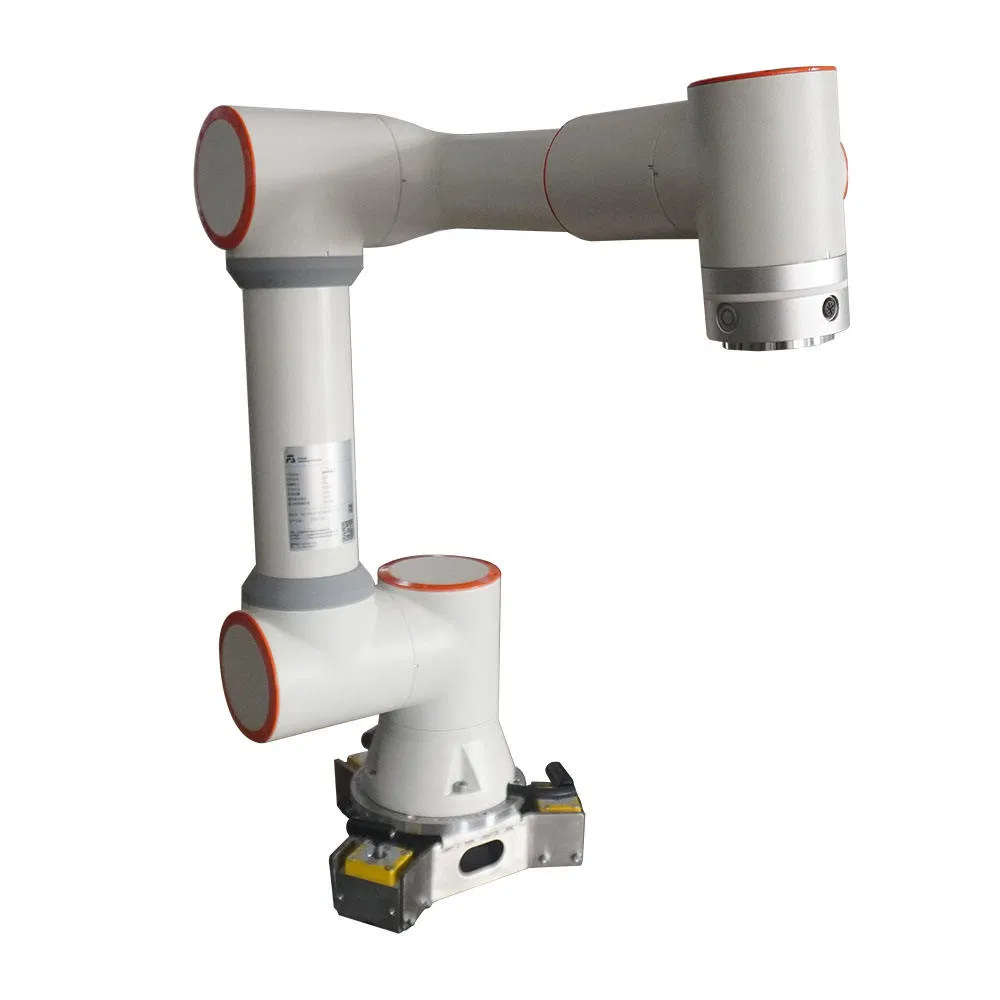

Industrial Welding Robot Welder 6 Axis Small Cobot Industrial Robot Arm

1 / 5

Industrial Welding Robot Welder 6 Axis Small Cobot Industrial Robot Arm

Customization:	Available
Accuracy:	±0.02mm
Application:	Aerospace Industry, Automotive Industry, Construction Industry, Metal Fabrication Industry, Shipbuilding Industry

Send Inquiry

Product Description

Basic Information

Model NO.

DNP FAIR-20

Control Mode

Point to Point Control

Drive Mode

Electric

Type

Arc Welding Robot

Welding Speed

3000mm/S

Load

10kg

Temperature

-5-55ºC

IP Grade

IP58

Noise

<60dB

Transport Package

Wooden Package

Product Description

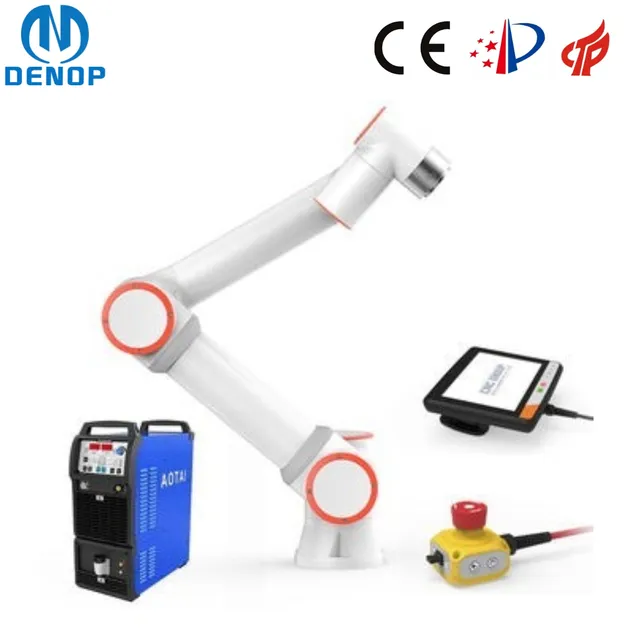

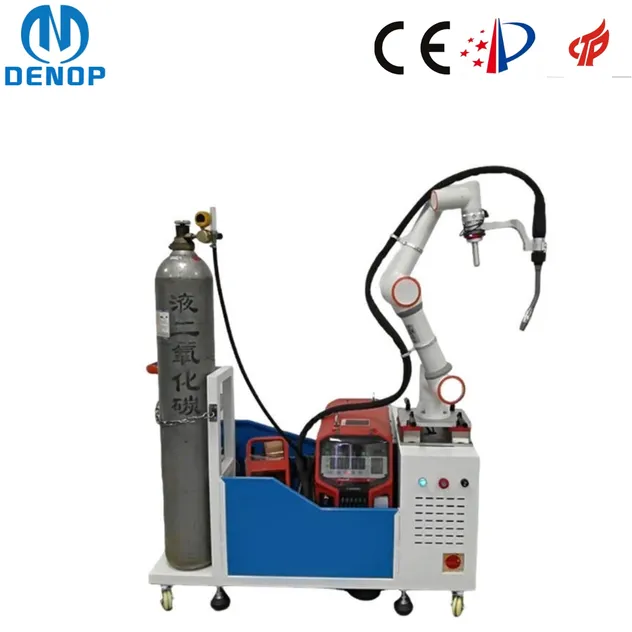

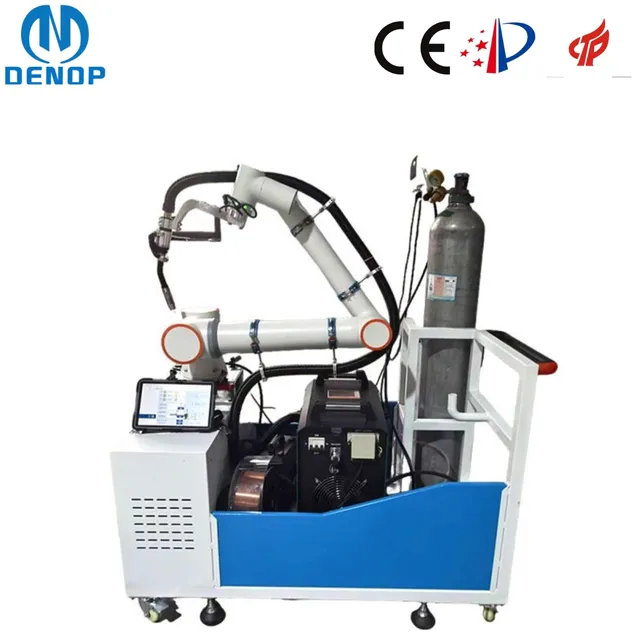

An Easy to Operate Collaborative Welding Robot or Welding Machine

Our collaborative robots are designed for simplicity and efficiency. Operators can manually move the robot arm to record points and initiate the welding process instantly, eliminating the need for complex teaching devices. These systems are fast, highly accurate, and offer flexible installation options. They are easily movable and perfectly suited for small batches, multiple product types, and long-term industrial operations.

Technical Specifications

Parameter	DNP-FR5	DNP-FR10
Maximum Working Radius	922mm	1400mm
Load Capacity	5KG	20kg
Accuracy	±0.02mm	±0.05mm
Maximum Speed	3000mm/s	3000mm/s
Control Bus / Frequency	EtherCAT / 1KHz	EtherCAT / 1KHz
Power Rating	260W	260W
Temperature Range	0-45°C	0-45°C
Humidity	20%~80%RH	20%~80%RH
Protection Level	IP54	IP54
Net Weight	22kg	40kg
Range of Motion J1-J6	Full 6-Axis control	Full 6-Axis control
