| Parameter Name | Specifications & Ranges | |
|---|---|---|

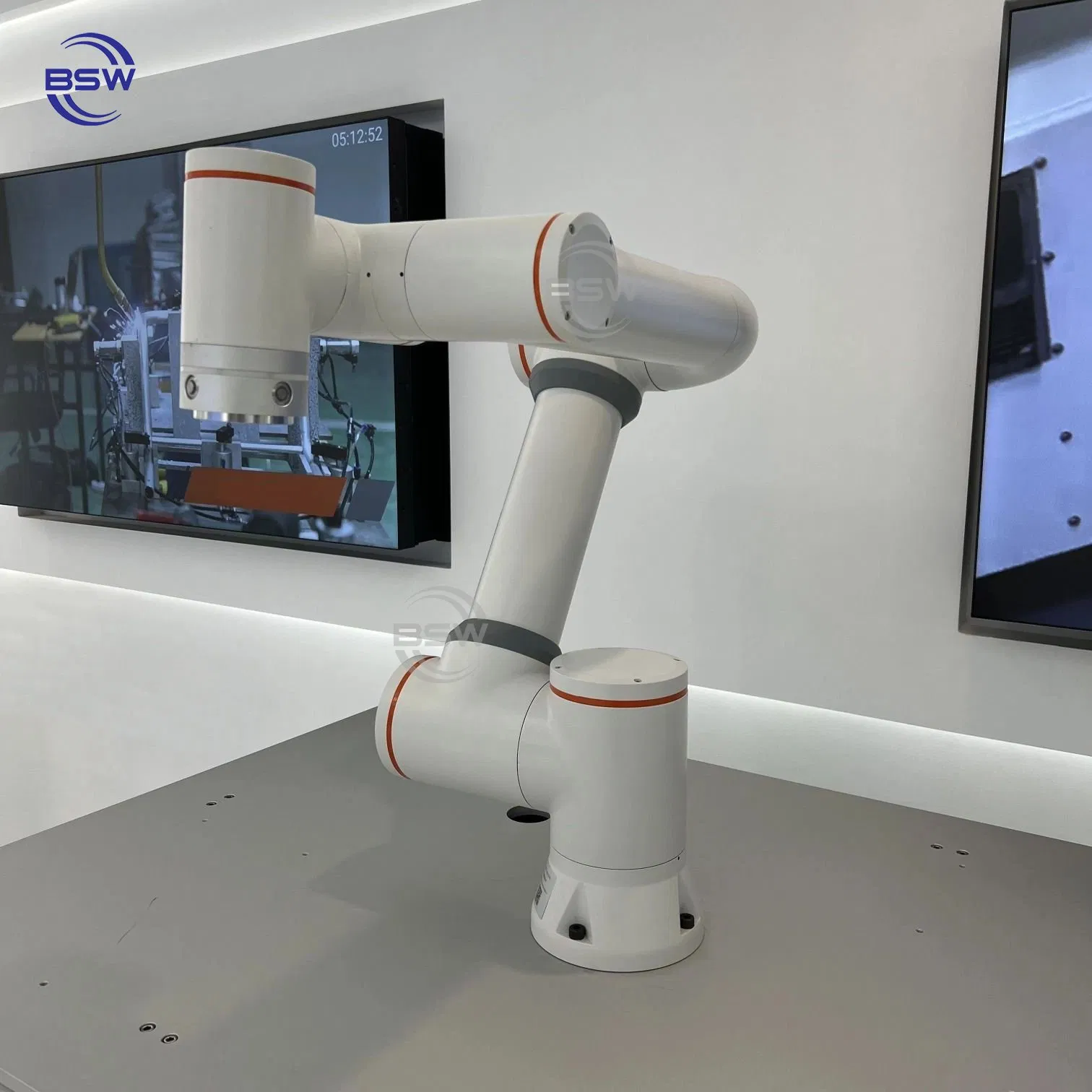

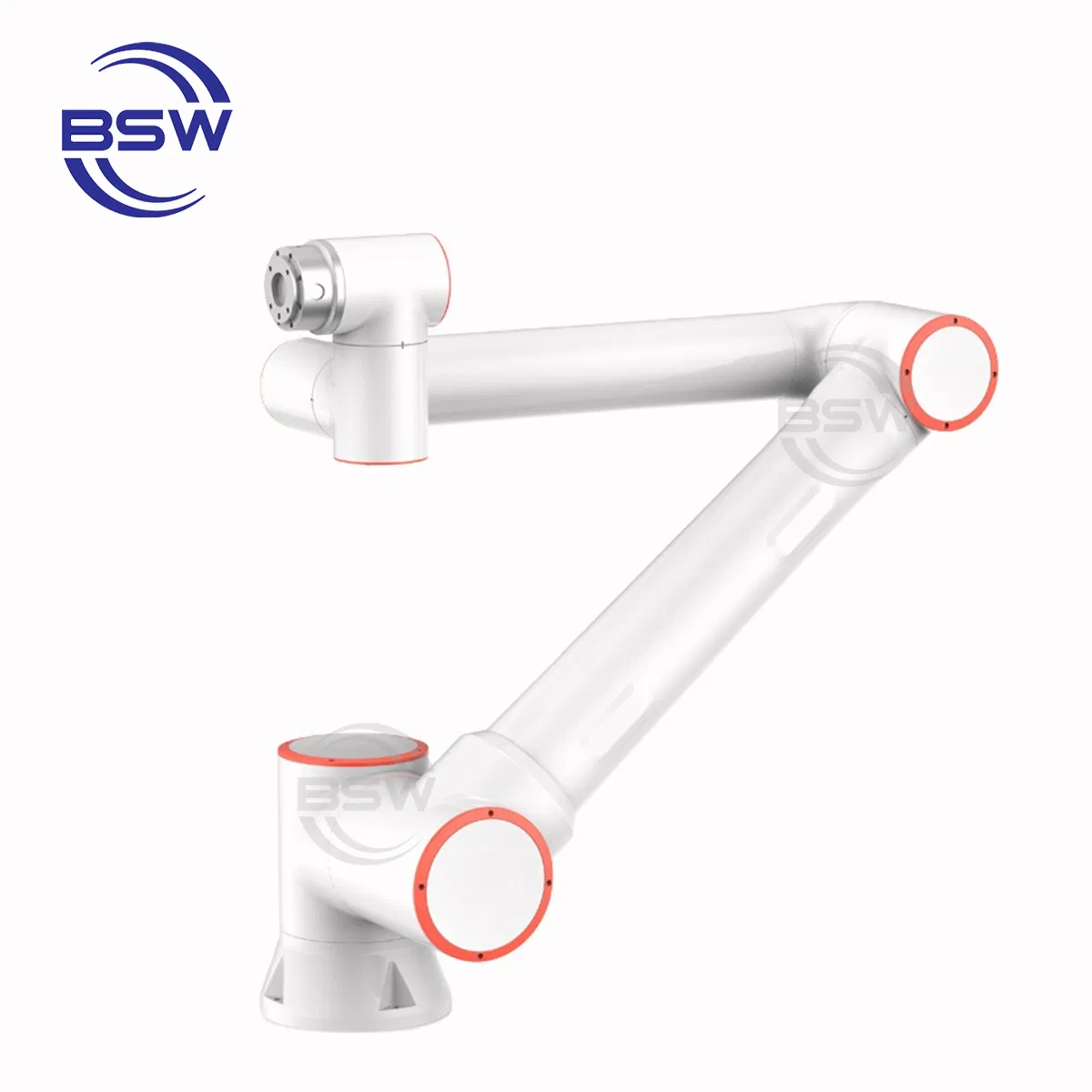

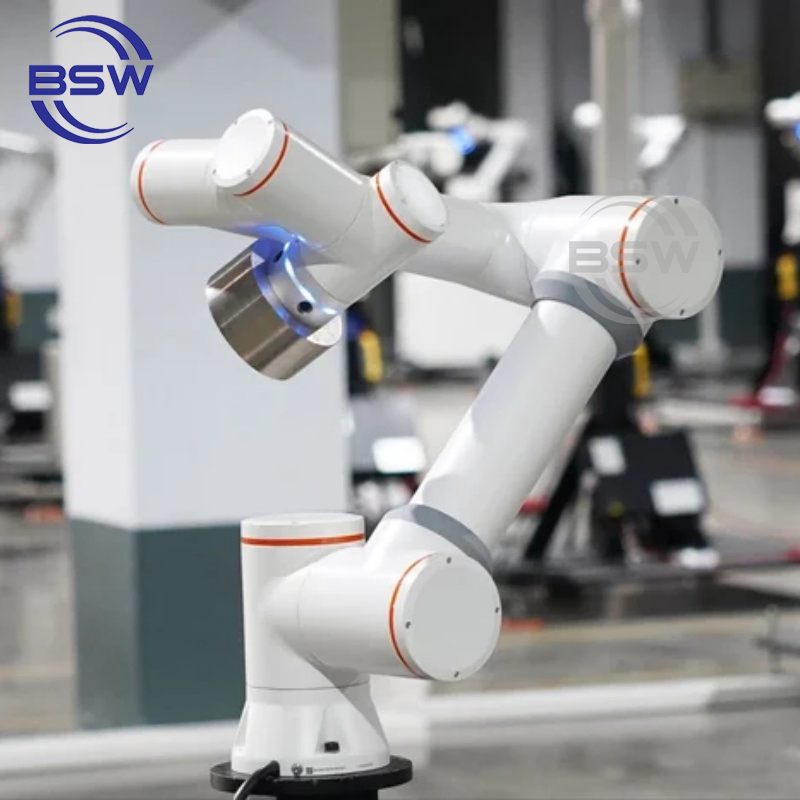

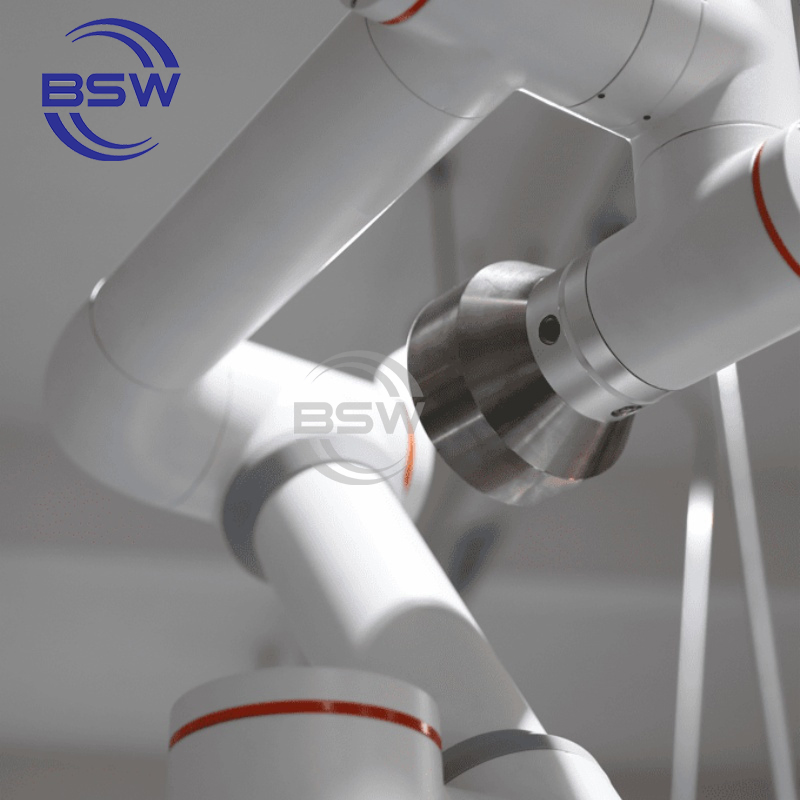

| Model number | FR5 | |
| Payload | 5kg | |

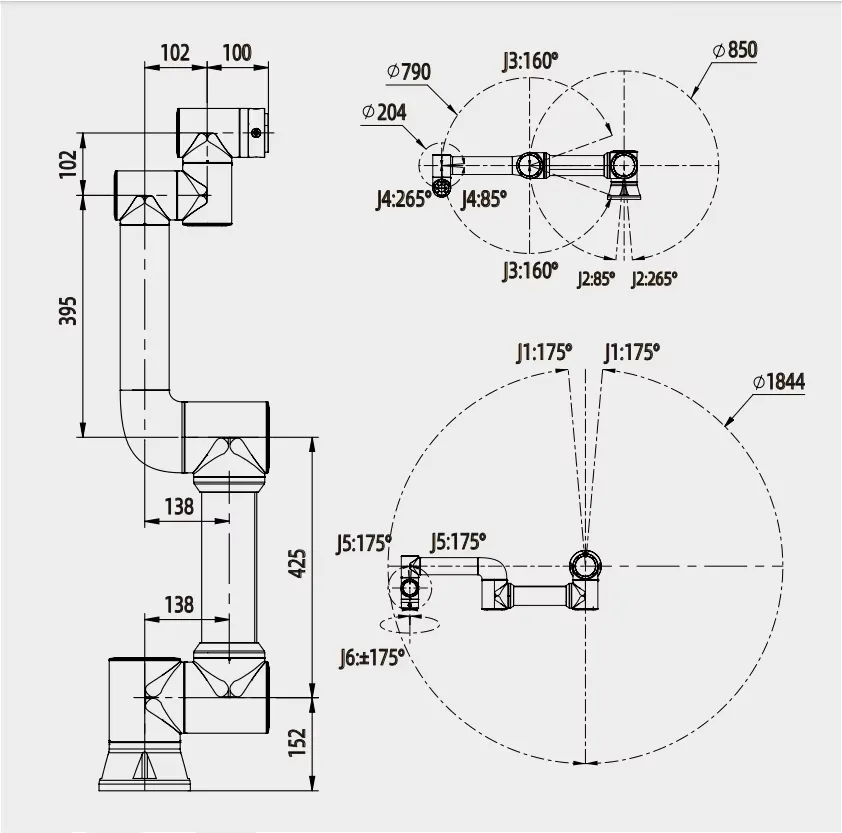

| Reach | 922mm | |
| Degrees of freedom | 6 rotating joints | |
| HMI | 10.1 inch teach pendant or mobile terminal Web App | |
| Axis movement | Working range | Maximum speed |
| 1 Axis | ±175° | ±180°/s |
| 2 Axis | +85°/ -265° | ±180°/s |
| 3 Axis | ±160° | ±180°/s |
| 4 Axis | +85°/ -265° | ±180°/s |
| 5 Axis | ±175° | ±180°/s |
| 6 Axis | ±175° | ±180°/s |
| Typical TCP speed | 1m/s | |
| IP classification | IP54 | |
| Noise | <65db | |
| Robot mounting | Any orientation | |
| I/O Ports | Inputs | Outputs |
| Digital I/O | (DI) 2 | (DO) 2 |
| Analog I/O | (AI) 1 | (AO) 1 |
| Power supply | 24V/1.5A | |
| Communication | I/O, TCP/IP, Modbus_TCP/RTU, Profinet | |
| Development environment | C#/C++/Python/Java/ROS | |

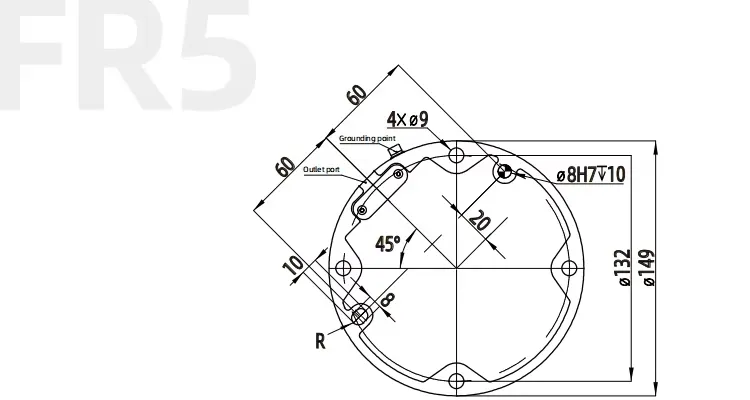

| Footprint | 149mm | |
| Weight | ≈22kg | |
| Operating temperature | 0-45ºC | |
| Operating humidity | 90%RH (non-condensing) | |
| Materials | Aluminium, Steel | |
