Explore the intricate details of this motor by visiting the detailed image page. Delve deep into its specifications and marvel at its innovative design.

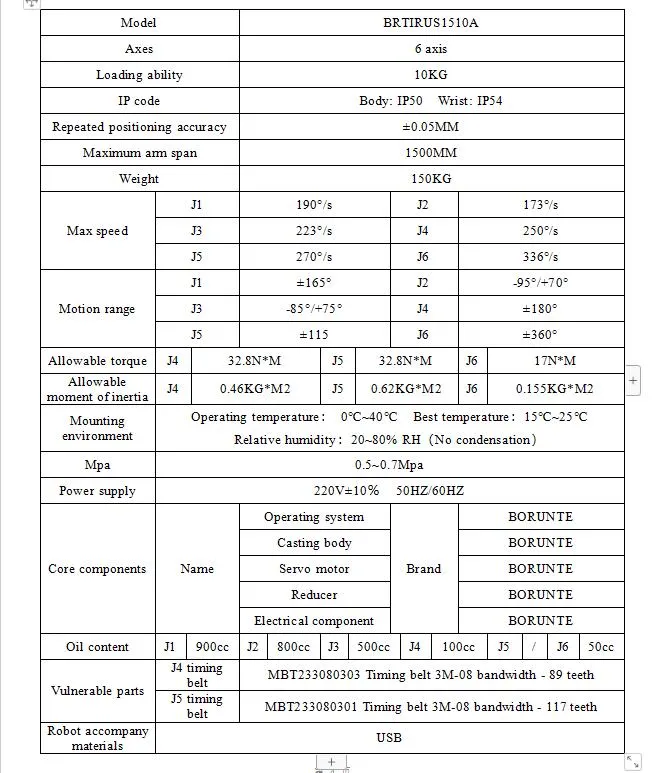

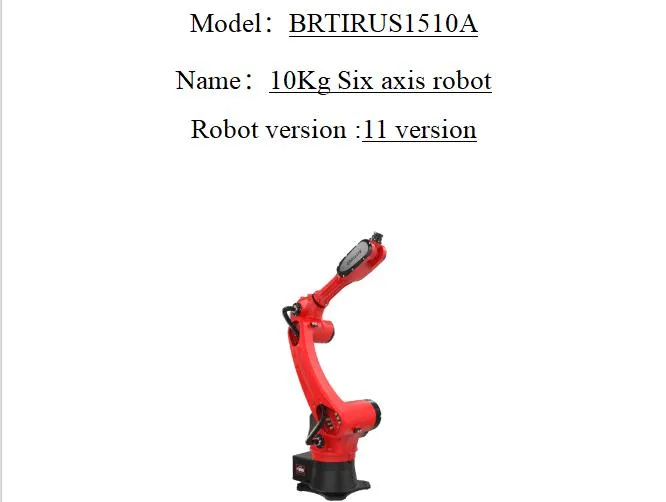

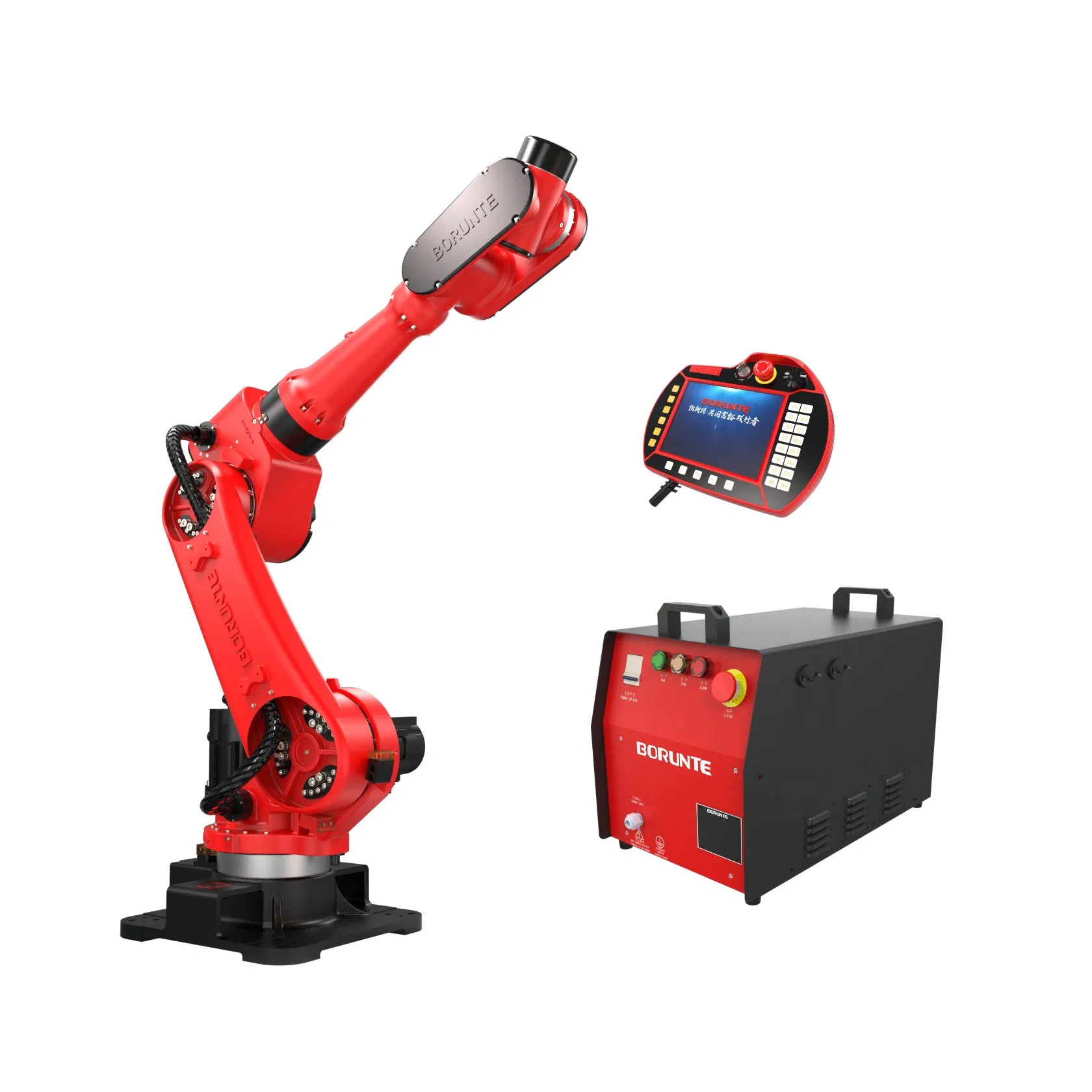

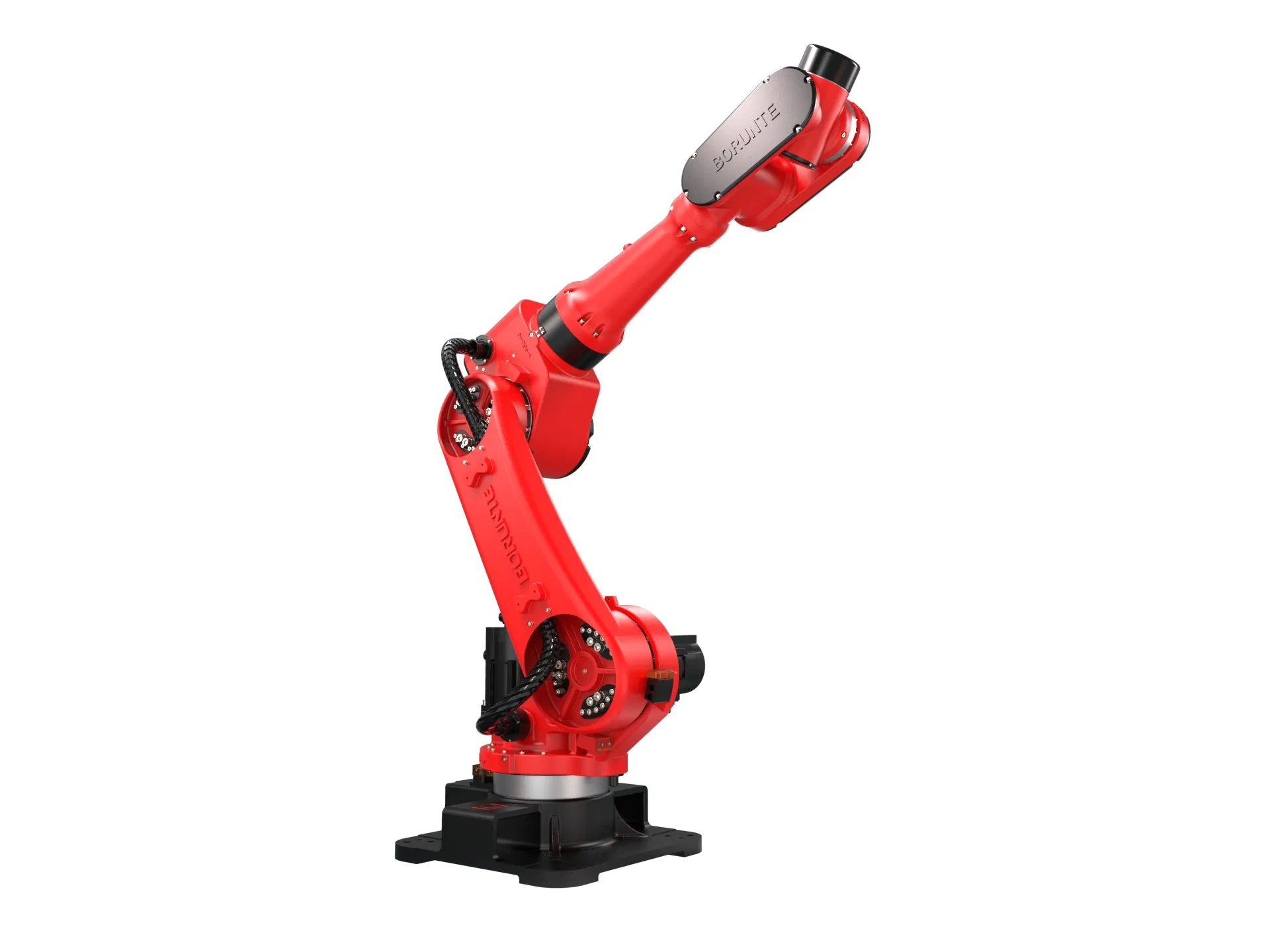

Introducing the BRTIRUS1510A: a state-of-the-art six-axis robot meticulously developed to excel in complex, multifaceted applications. With a commanding maximum load capacity of 10kg and an impressive 1500mm arm span, this robot boasts a lightweight yet robust arm design, ensuring a compact and streamlined mechanical structure. Its unparalleled agility allows it to perform flexible operations seamlessly within confined workspaces, even at high speeds. The six degrees of freedom elevate its versatility, enabling it to adeptly manage tasks such as loading and unloading, injection molding, die-casting, assembling, gluing, polishing, and rigorous testing. Effortless operation is guaranteed with the intuitive control system. Ideal for injection molding machines ranging from 200T to 600T, the BRTIRUS1510A is your ultimate solution for precision and efficiency.
Exceptional IP Code Ratings: Wrist: IP54 | Body: IP50
Unmatched Precision: Repeated positioning accuracy of ±0.05mm
Our Advantages
Frequently Asked Questions
What is the payload capacity and arm span range for this 6-axis robot series?
This versatile series supports a wide array of options, with payload capacities ranging from 5kg up to 100kg, and maximum arm spans ranging from 715mm up to 3500mm, allowing you to select the precise model designed for your specific application requirements.
What level of positioning accuracy do these robotic arms offer?
These robotic arms are engineered for extreme precision, delivering a repeated positioning accuracy of ±0.05mm, which ensures consistency and quality in delicate tasks.
What are the protection ratings (IP Ratings) of the robotic arm?
The system features exceptional protection ratings: IP54 for the wrist assembly and IP50 for the main body, safeguarding critical mechanical parts from dust ingress and environmental factors.

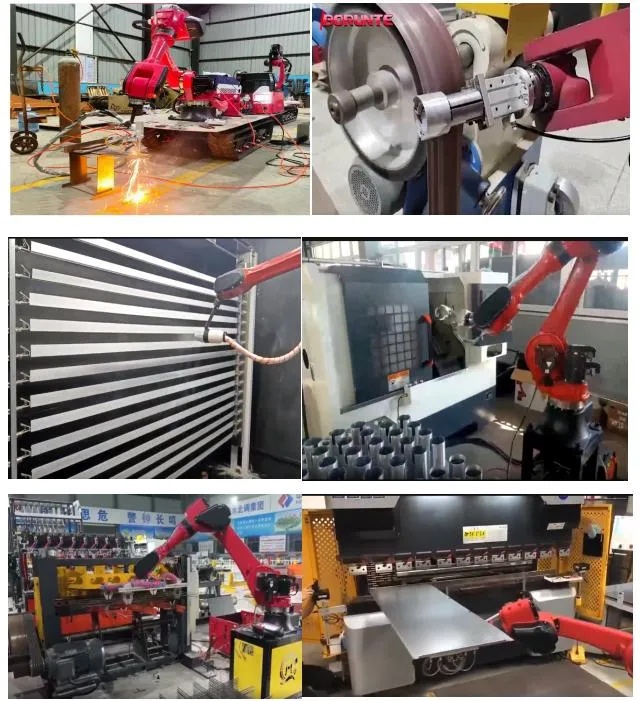

What industrial applications are these 6-axis robots suitable for?
Due to their highly flexible 6-axis configuration, these robots are exceptionally suited for a variety of tasks including loading and unloading, injection molding, die-casting, component assembly, gluing, surface polishing, and rigorous testing.

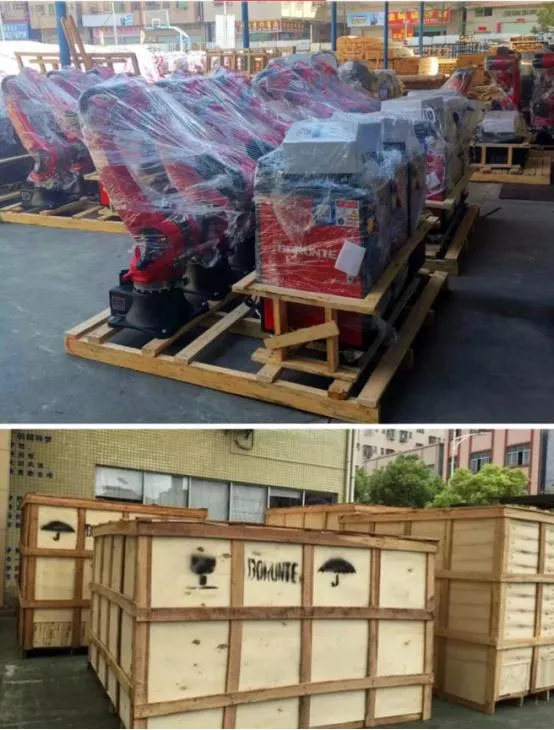

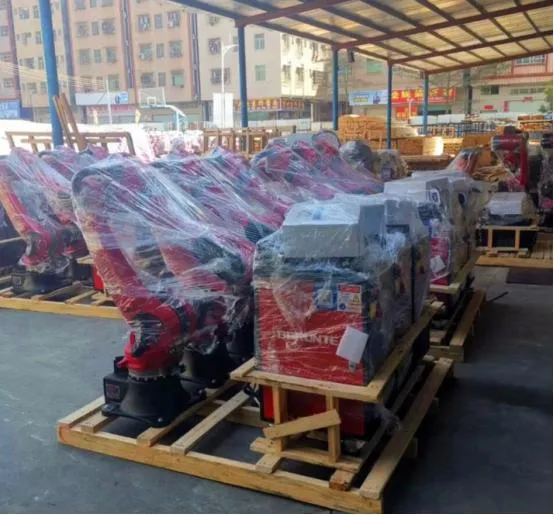

What are the shipping details and logistics specifications?
The product is securely prepared for standard logistics transportation. The standard package dimensions are approximately 1500.00cm * 1400.00cm * 1500.00cm, with a gross weight of 300.000kg.
