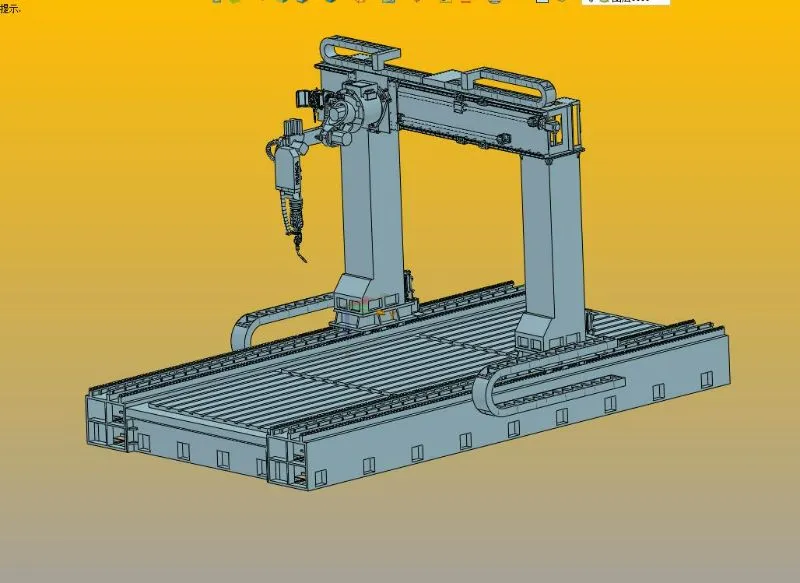

The main components of the upside-down dual-axis mobile device include an X-axis sliding platform, a Y-axis sliding platform, an upside-down arm, a servo drive mechanism and a control system. The robotic arm is installed upside down and expanded in both the X-axis and Y-axis directions, which greatly increases the reach of the robot. It is often used for welding workpieces with large space dimensions and multi-station workpieces for welding and handling.
| Category | Feature Details |
|---|---|
| Model | GR-LM500 |
| Gantry upside down welding robot | Arm span: 2000mm (customizable) |
| Camera: 3D, High/low viewing distance functions | |
| Welding function: Dual-machine collaborative welding | |
| Repeatable positioning accuracy: ±0.05mm | |
| Voltage: 3 phase 380V | |
| Control System | Support TCP and camera hand-eye automatic calibration |
| Control servo: EtherCAT bus servo | |
| Operating mode: Teaching, online, remote | |
| Programmatically: Online teaching, process programming | |
| Welding wire diameter: 0.8mm, 1.0mm, 1.2mm, 1.6 mm | |
| Gas flow: 15-20L/min |
We are an integrating stock group company specializing in researching, developing, manufacturing, and trading within the metal processing industry. Our product line includes CNC metal drilling and milling machines, angle steel making machines, fiber laser cutting machines, laser robots, and ultra-high power 10,000-watt laser cutting solutions.
These systems are widely utilized for processing angle steel, metal plates, H-beams, channel steel, and other structural components in power towers, steel structures, automobiles, and the construction industry. With exports reaching more than 100 countries including Southeast Asia, North America, and the Middle East, our technology remains at the forefront of the industry.
📍 Equipment is packed in reinforced wooden boxes or vacuum-sealed packaging. Every shipment is treated to be moisture-proof, rust-proof, and shock-proof, ensuring safe transit for sea and multi-modal transportation.
