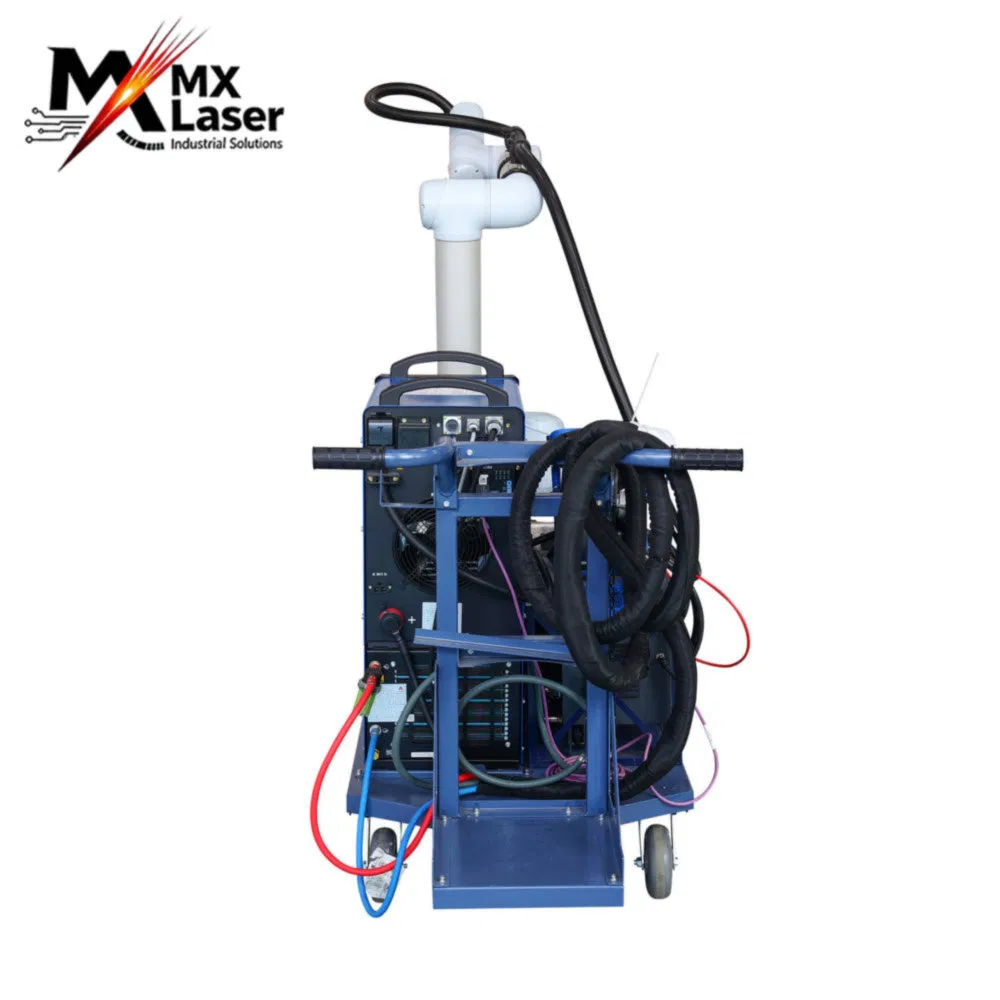

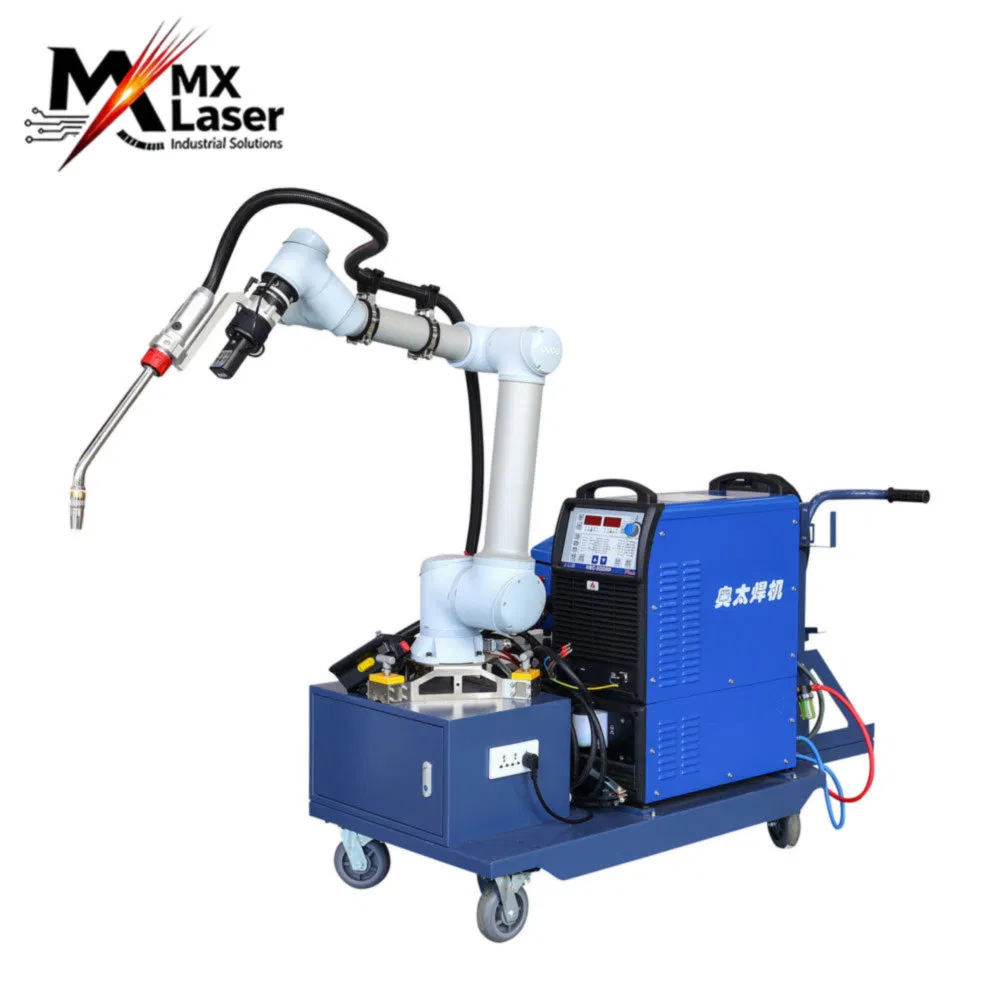

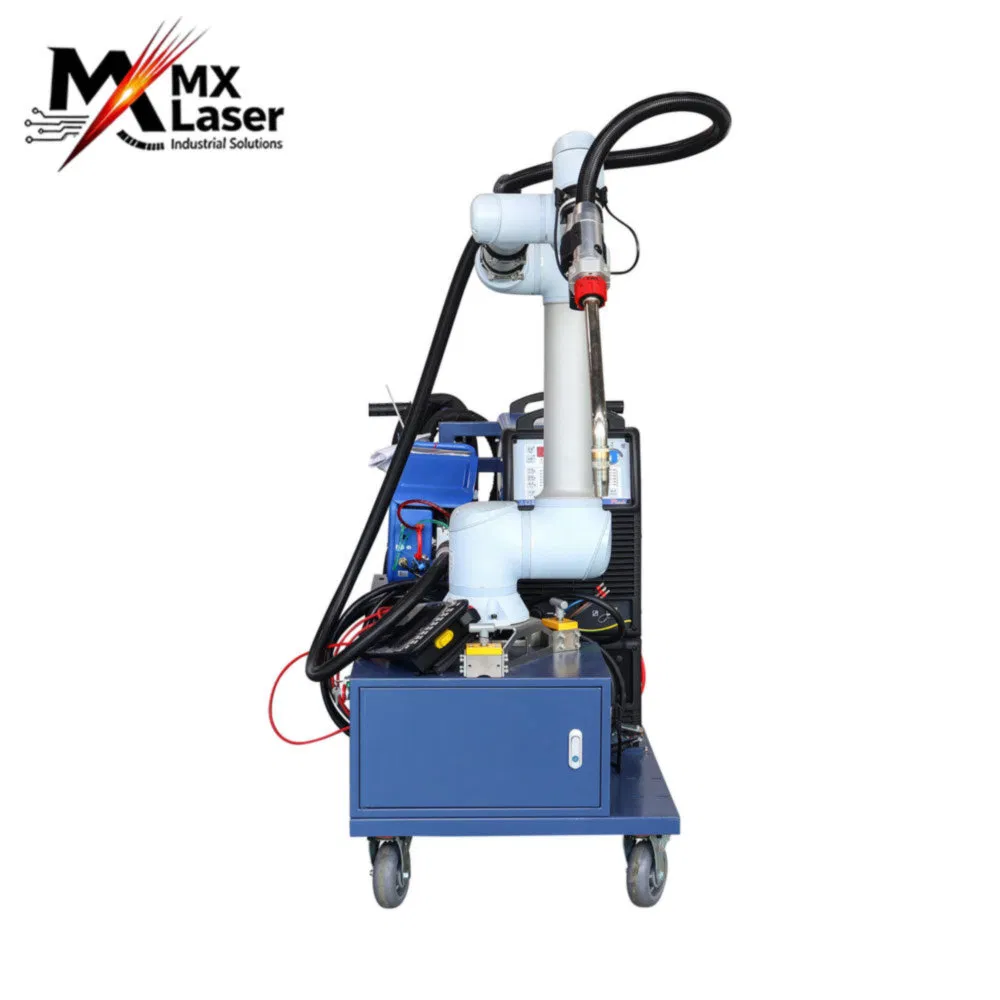

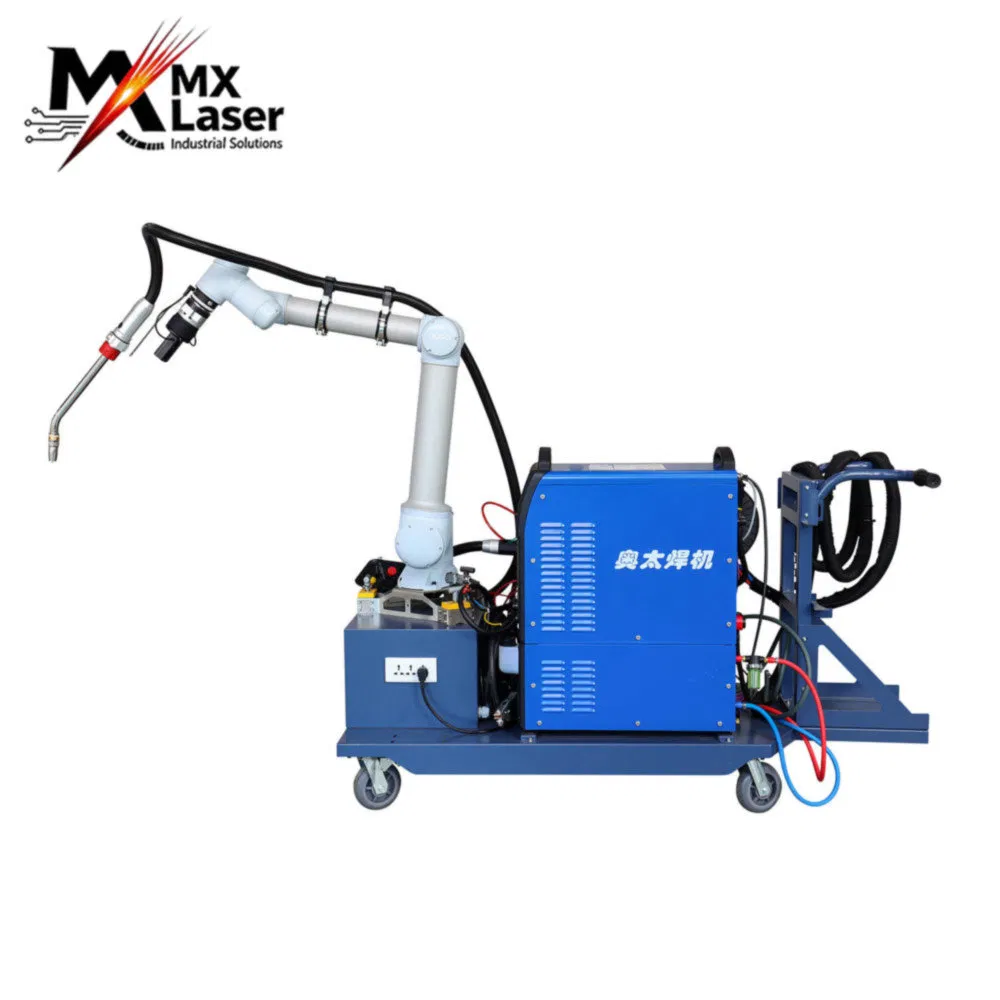

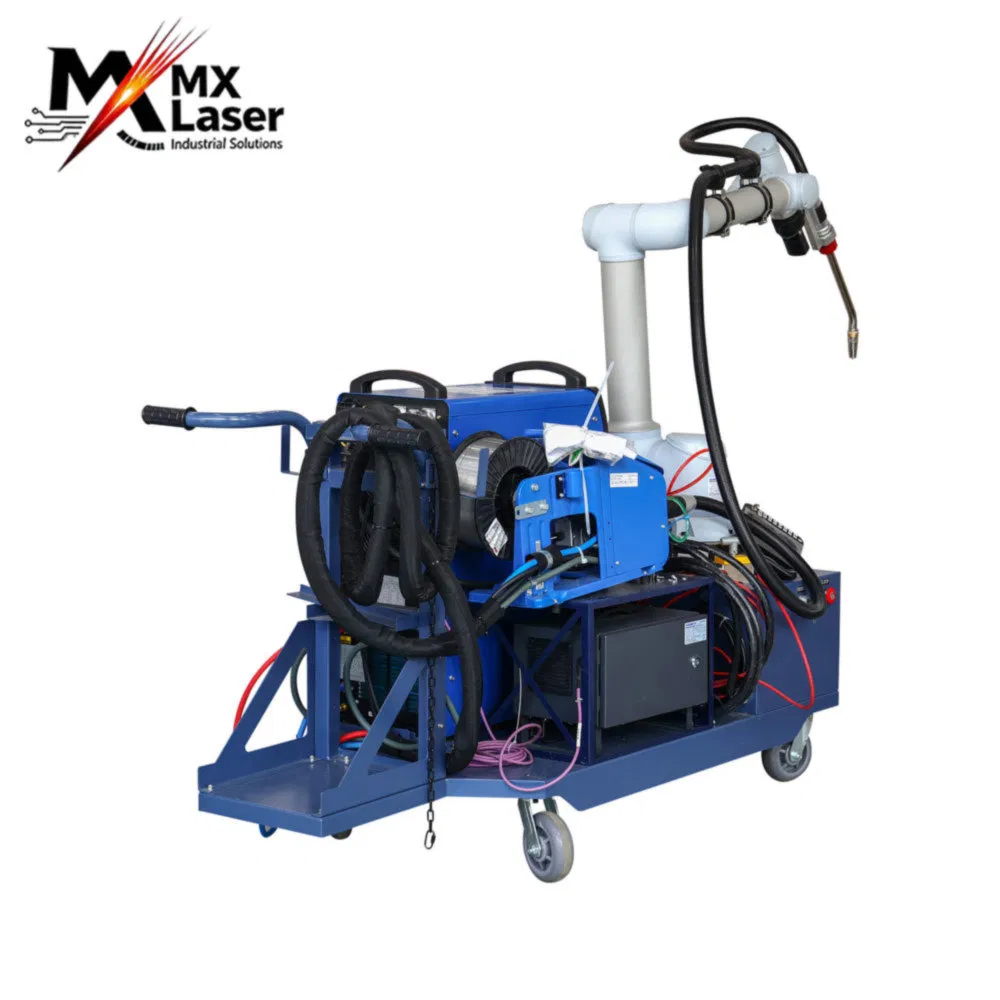

Offline Programming Industrial Collaborative Welding Cobot for Railing Welding

1 / 5

Offline Programming Industrial Collaborative Welding Cobot for Railing Welding

Customization:	Available
Accuracy:	�0.1 mm
Application:	Aerospace Industry, Automotive Industry, Construction Industry, Metal Fabrication Industry, Shipbuilding Industry

Send Inquiry

Product Description

Basic Information

Model NO.

Industrial Robot

Control Mode

Continuous Path Control

Drive Mode

Electric

Type

Laser Welding Robot

Welding Speed

0.5 m/min

Number of Axis

6-Axis

Max Payload

20kg

Repeatability

±0.05mm

Max Working Range

1760mm

Ingress Protection

IP65

Production Capacity

100pieces/Month

Product Description

⚙

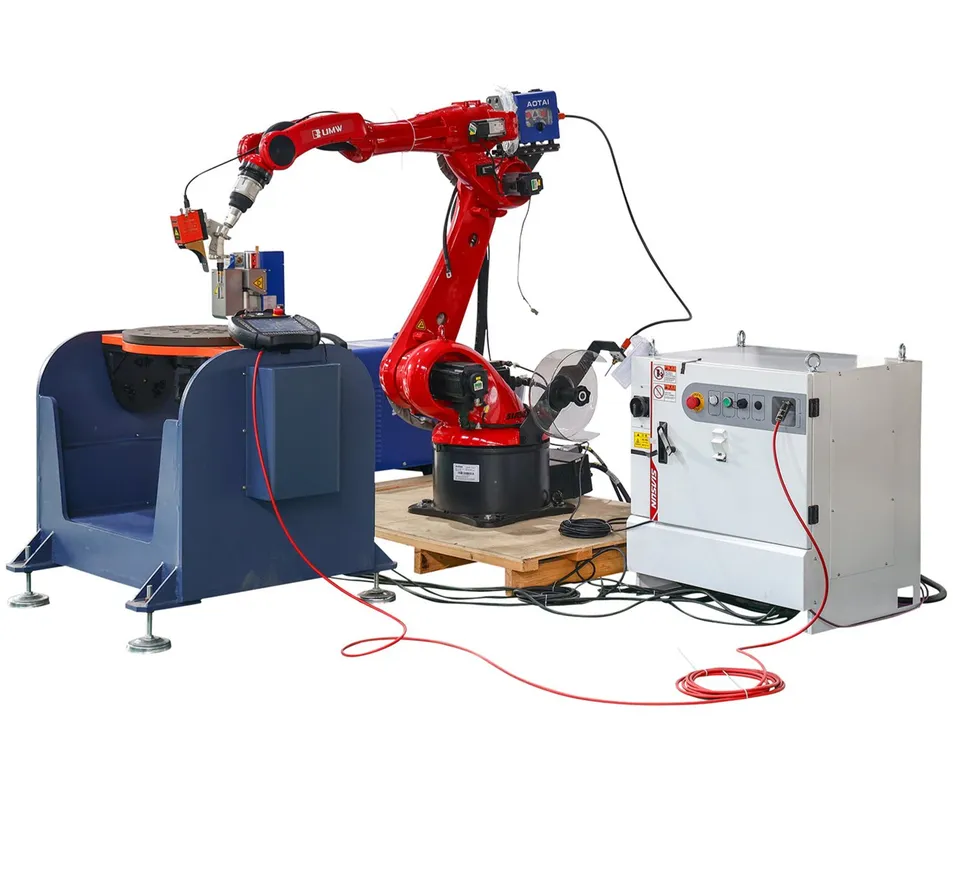

PREMIUM 6-AXIS ARTICULATED ROBOTIC WELDING SYSTEM

Our Industrial Robotic Welding Automation Solution delivers unmatched precision and flexibility for modern manufacturing environments. Featuring a 6-axis articulated robot arm with ±0.05mm repeatability and 20kg payload capacity, this servo-electric driven system excels in laser welding, MIG/MAG/TIG welding, and plasma cutting applications.

Engineered with IP65 ingress protection and smart IoT-ready controllers, the robot seamlessly integrates into existing production lines for welding, palletizing, polishing, and material handling tasks.

Technical Parameters

Product Name	Industrial Robot
Robot Type	Articulated Robot
Number Of Axis	6-Axis
Max Payload	20kg
Repeatability	±0.05mm
Max Working Range	1760mm
Ingress Protection	IP65
Core Components	PLC, Motor, Engine
Voltage	380V, 220V
Dimensions (L×W×H)	1070×830×1350mm

Functional Advantages

🎯

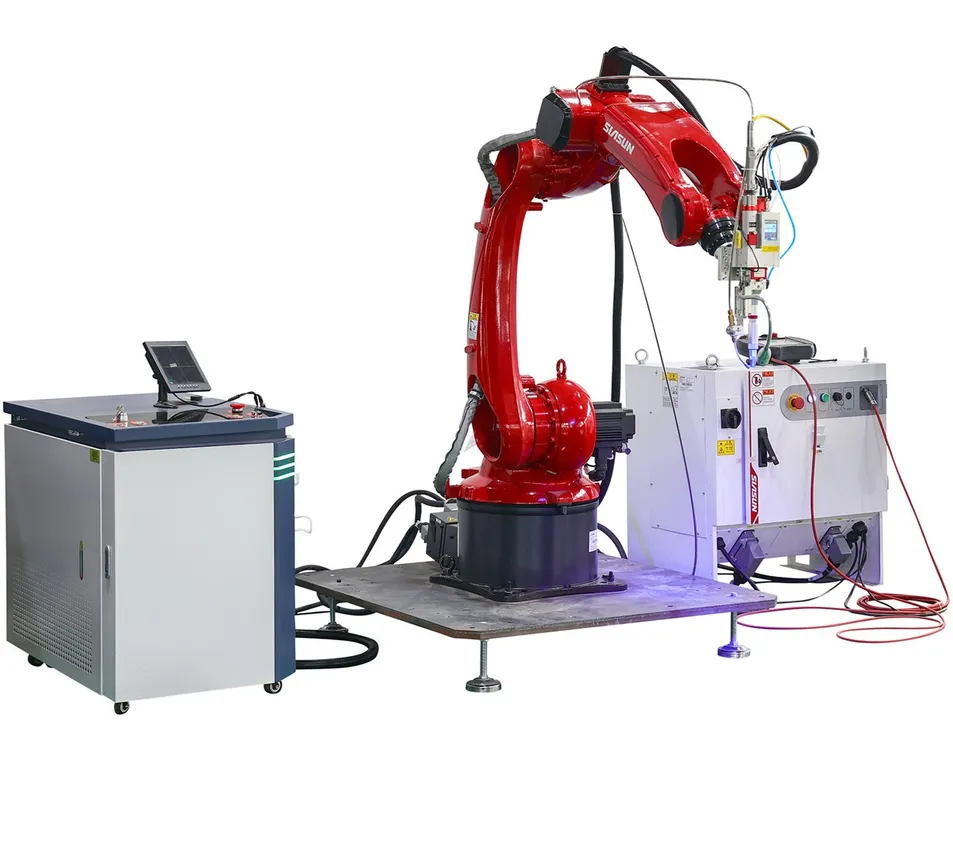

PRECISION-ENGINEERED PERFORMANCE

Achieve micro-level accuracy with ±0.05mm repeatability and 1760mm maximum working range. The 6-axis articulated design enables complex 3D trajectory welding with error margins under ±0.05mm.

🛡

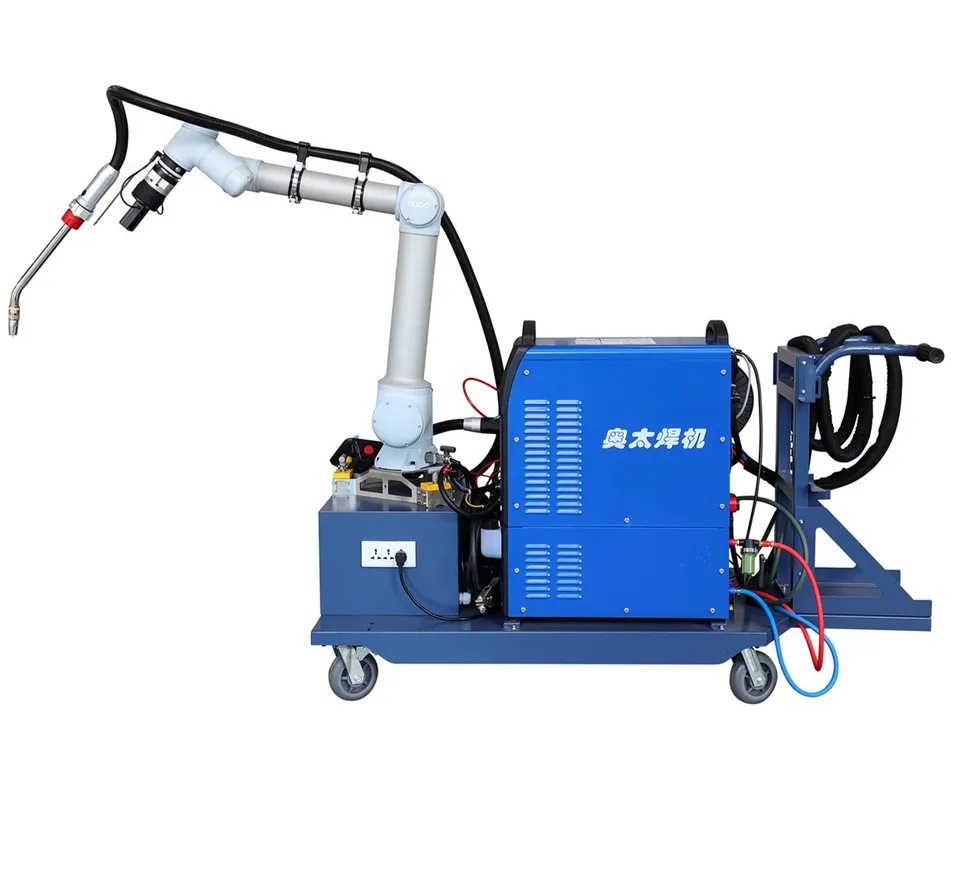

INDUSTRIAL-GRADE DURABILITY

Built with IP65 ingress protection for harsh manufacturing environments. Servo-electric drive system ensures 24/7 continuous operation with high stability over 10 years.

Core Applications

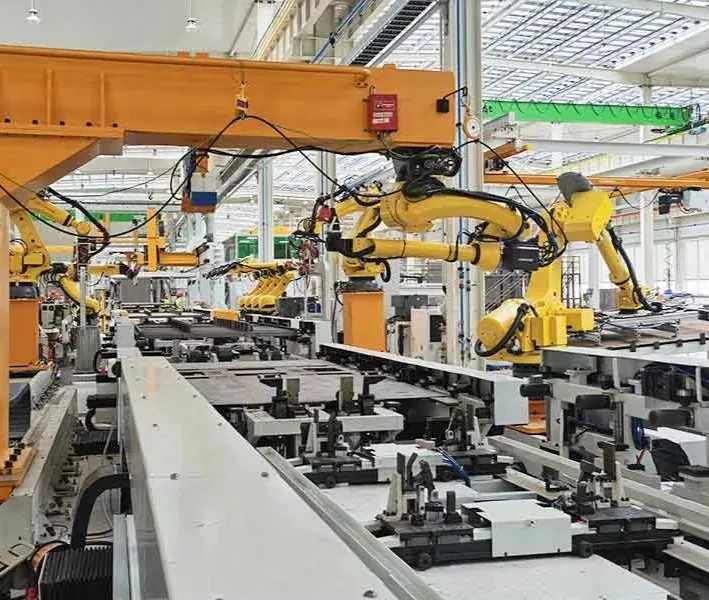

AUTOMOTIVE MANUFACTURING EXCELLENCE
Revolutionize automotive production with 15-minute tooling changeover systems for mixed-model assembly lines. Achieve ±0.2mm weld precision on vehicle body structures.

HEAVY MACHINERY & CONSTRUCTION EQUIPMENT
Automate excavator arm, crane boom, and bulldozer frame welding with 6-axis cobots featuring 3D vision systems.

LOGISTICS & TRANSPORTATION EQUIPMENT
Optimize van logistics vehicle production with high-stability arc welding at 1.2m/min on thin-gauge corrugated sheets.

ELECTRONICS & PRECISION ASSEMBLY
Execute micro-scale chip wire bonding on 300μm pads and precision circuit board assembly in cleanroom environments.

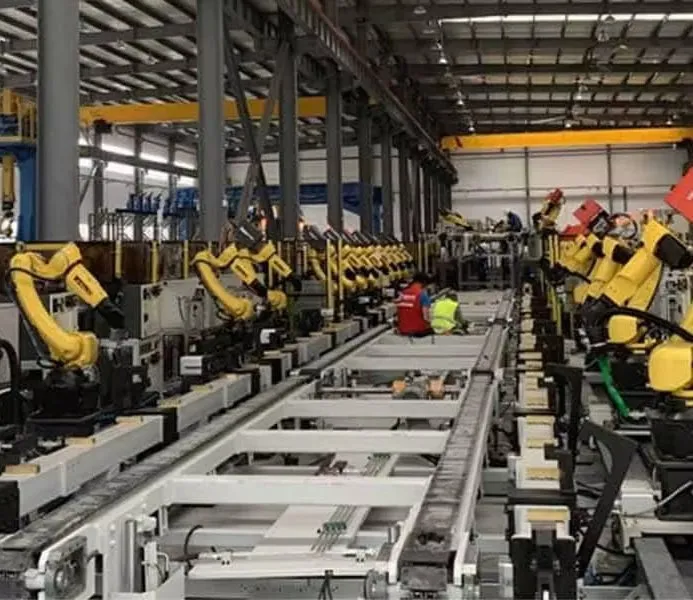

Production Showcase

Frequently Asked Questions

Q1: How can I place an order for the robotic system? A: Inquire with us, provide your usage scenario or drawings, and we will offer product design recommendations. Following detail discussions and contract signing, we proceed with production and delivery.

Q2: Do you support sample orders or prototyping? A: Yes, we support customers sending samples to our facility for prototyping and testing to ensure the robotic solution meets your specific requirements.

Q3: What shipping methods are available for the industrial robot? A: We offer sea freight, air freight, and international express delivery options depending on the urgency and destination of the equipment.

Q4: What is the typical lead time for production and delivery? A: Production and delivery time depends on the specific quantity and customization requirements. Generally, it takes between 14 to 20 working days.

Q5: What are the accepted payment methods? A: We primarily accept wire transfers. Typically, a 30% deposit is required to start production, with the remaining balance due before shipment.

Q6: What should I do if my package is missing components upon arrival? A: Please contact our support team immediately. We will verify the order contents with our packaging logs and arrange for appropriate compensation or replacement parts.
