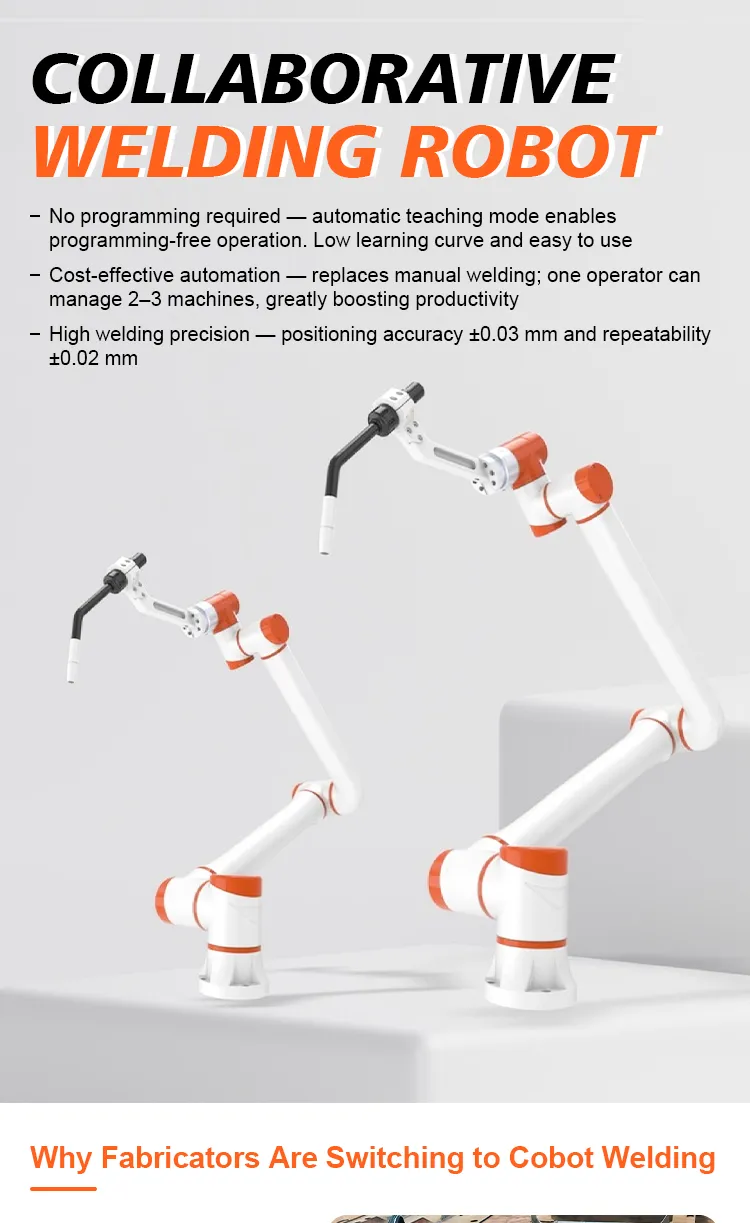

No programming expertise is required. With its automatic teaching mode and programming-free demonstration, the system is designed for effortless setup and operation, significantly reducing the learning curve.
It effectively replaces manual welding, enabling a single operator to manage 2-3 units simultaneously. This dramatically boosts production efficiency and delivers a rapid return on investment.

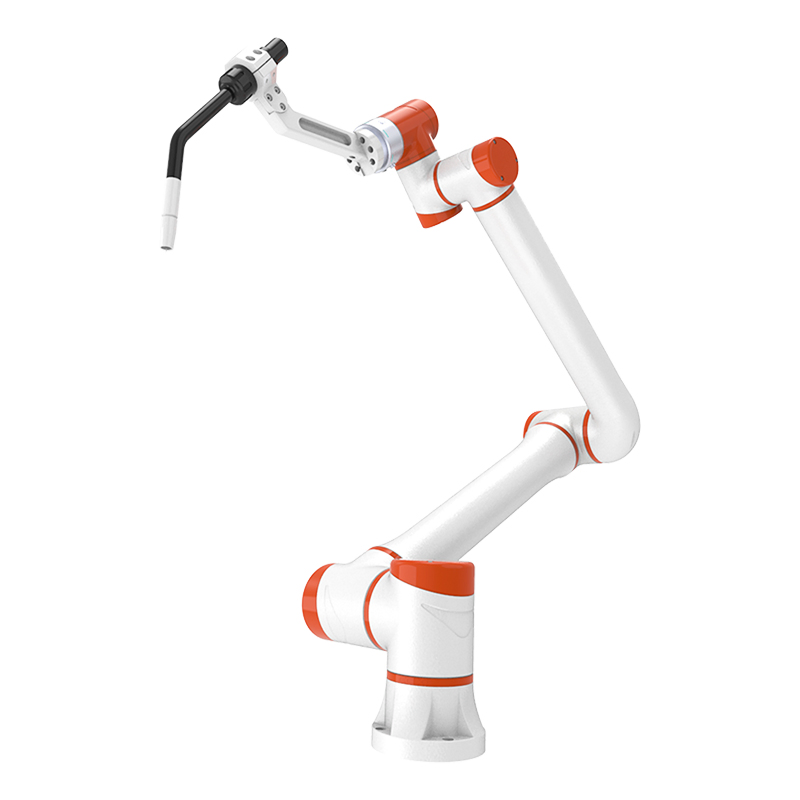

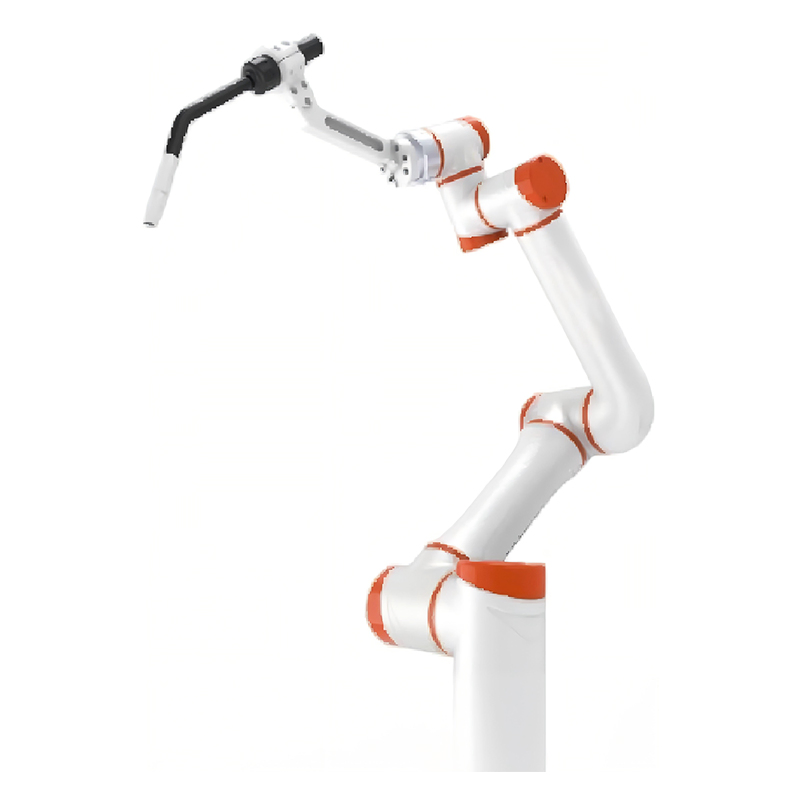

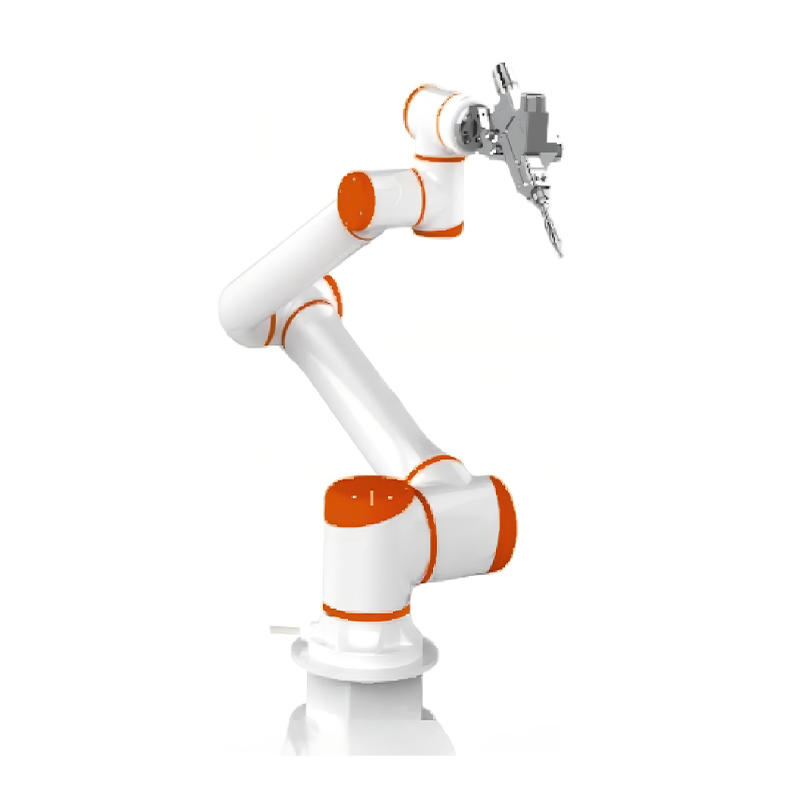

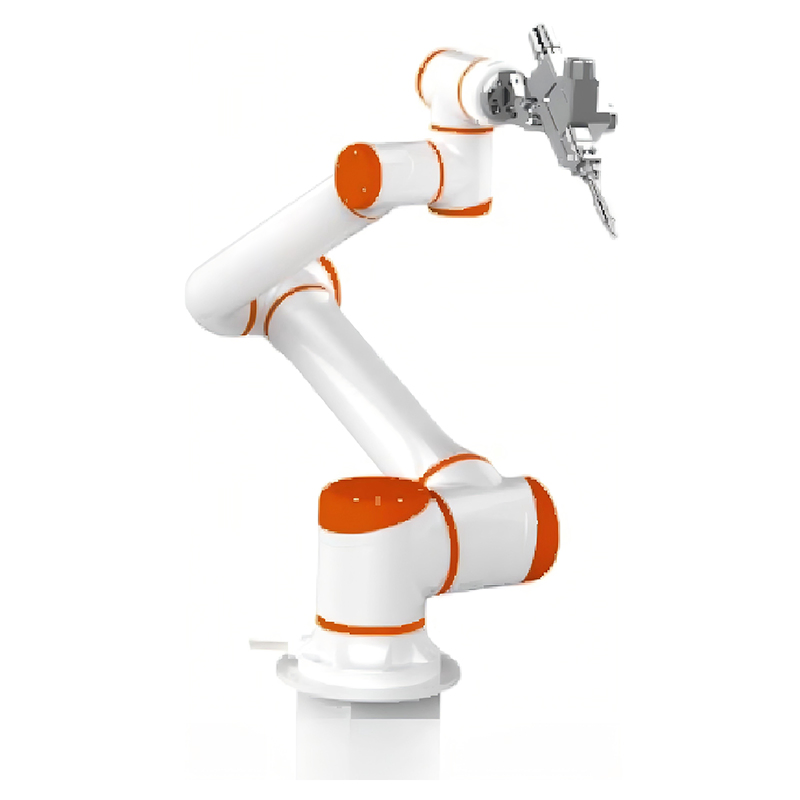

The robotic arm, constructed from industrial-grade aluminum, is exceptionally lightweight and easy to maneuver. It allows for smooth manual guidance for path teaching and ensures rapid, agile movement during operation.
Guarantees superior welding quality with a positioning accuracy of +0.03mm and a repeat positioning accuracy of ±0.02mm, ensuring consistency and high precision in every task.
Equipped with advanced safety protection that instantly stops operation upon collision with operators or obstacles. This built-in safety allows for operation without traditional fencing, saving valuable floor space.
Manufactured in compliance with international automotive quality management standards, it offers outstanding reliability and an extended service life for long-term, dependable performance.
| Model | SC7-1460 | SC6-1460 | SC15-1464 | SC20-2027 |
|---|---|---|---|---|
| Weight | 21Kg | 22Kg | 36Kg | 68Kg |
| Max. Payload | 7Kg | 6Kg | 15Kg | 20Kg |

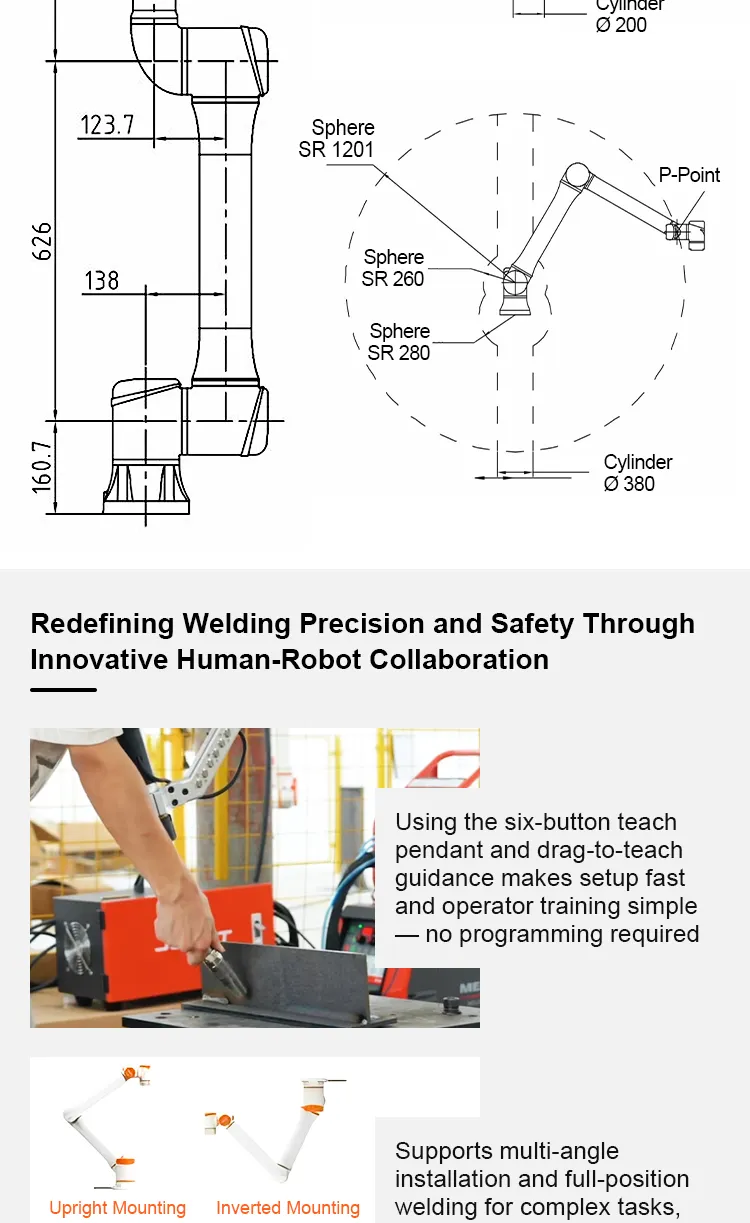

| Max. Radius | 1077mm | 1460.7mm | 1464.3mm | 2027mm |
| Repeatability | ±0.02mm | ±0.05mm | ±0.03mm | ±0.05mm |
| Tool Speed | 3m/s | 3m/s | 3m/s | 4m/s |
| Rated Power | 260W | 260W | 550W | 1500W |

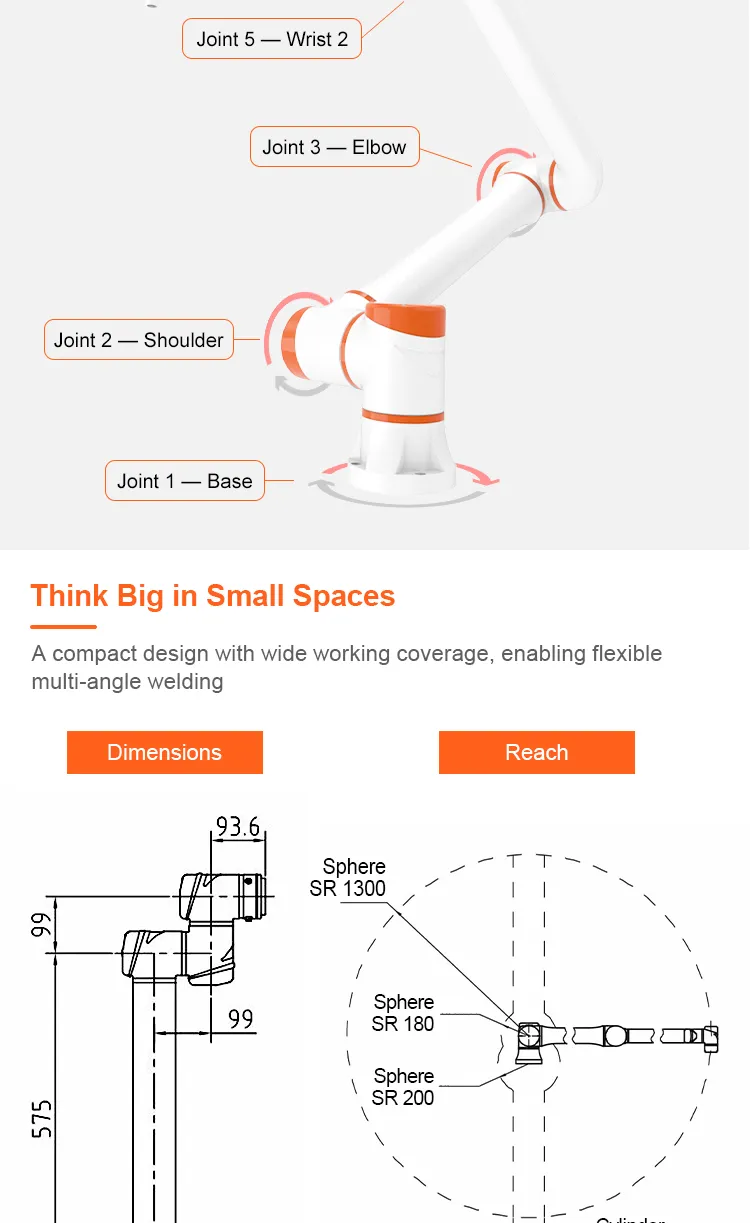

| Degrees of Freedom | 6 rotational degrees of freedom | |||

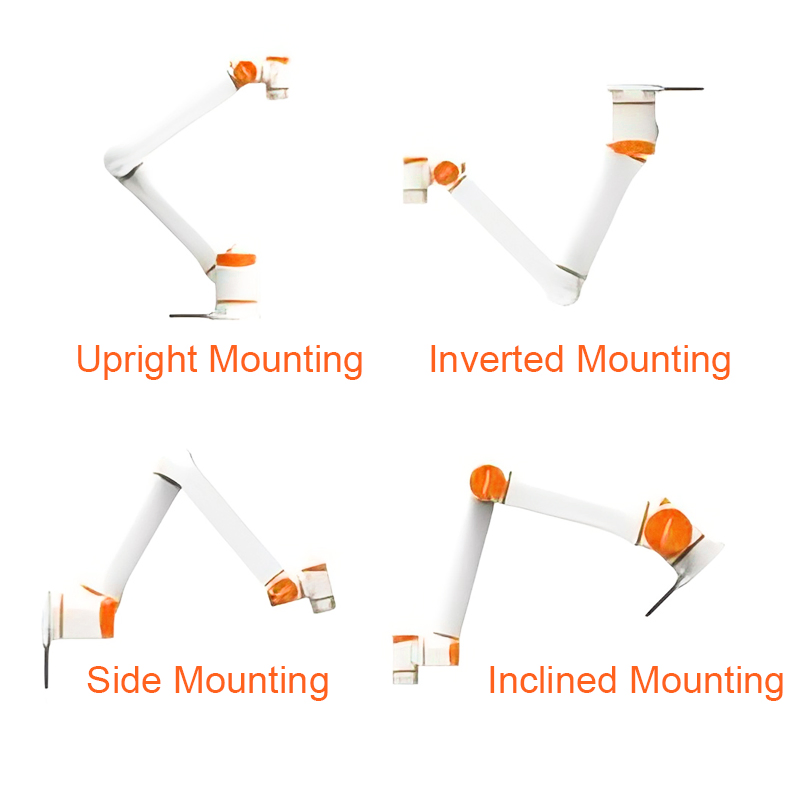

| Installation | Mountable at any angle | |||
| Material | Aluminum alloy | |||
| IP Rating | IP54 | IP54 | IP54 | IP54 |
Our group specializes in the R&D and manufacturing of advanced machinery including laser processing, bending, riveting, and automation solutions. With production bases totaling 100,000 square meters, we provide customized intelligent production lines to clients in over 80 countries.
We hold over 130 patents, and our equipment is widely utilized in high-speed rail, new energy vehicles, medical devices, and engineering machinery. We maintain a "24-hour response + lifelong maintenance" service standard through a global network of experts, ensuring local support and technical excellence for all sheet metal processing needs.
