A Shield Tunnel Segment Making Machine (also referred to as a shield tunnel segment prefabrication production line) is a high-automation integrated production system dedicated to manufacturing precast concrete segments – the core lining components that form the structural support, waterproofing, and load-bearing framework of shield-driven tunnels.
Integrated Automated Processes

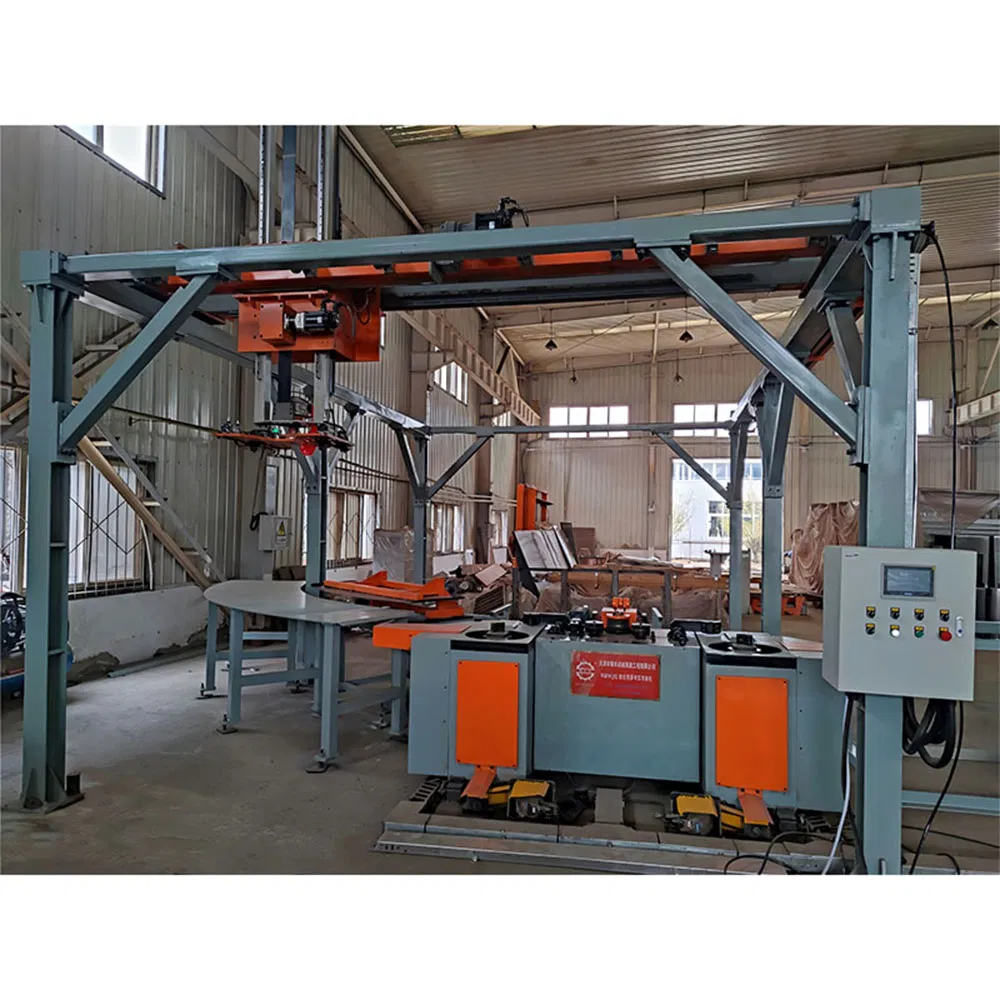

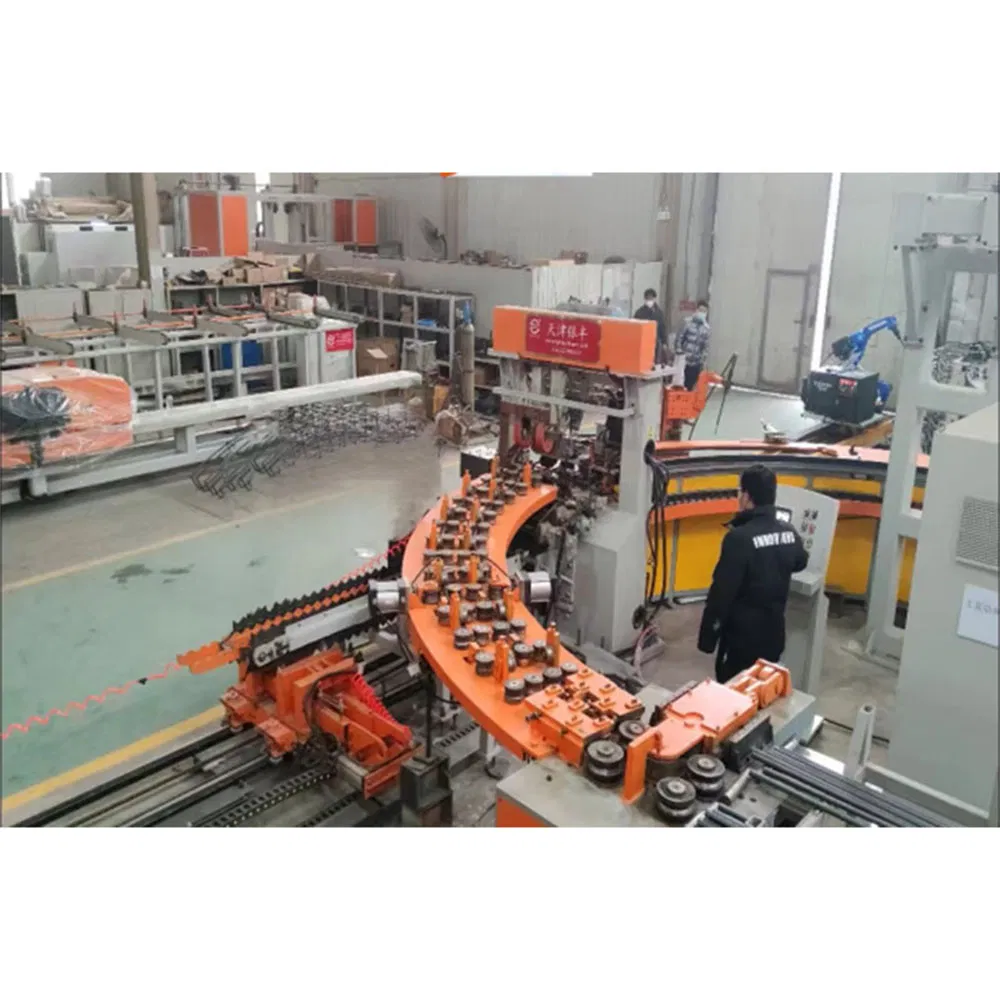

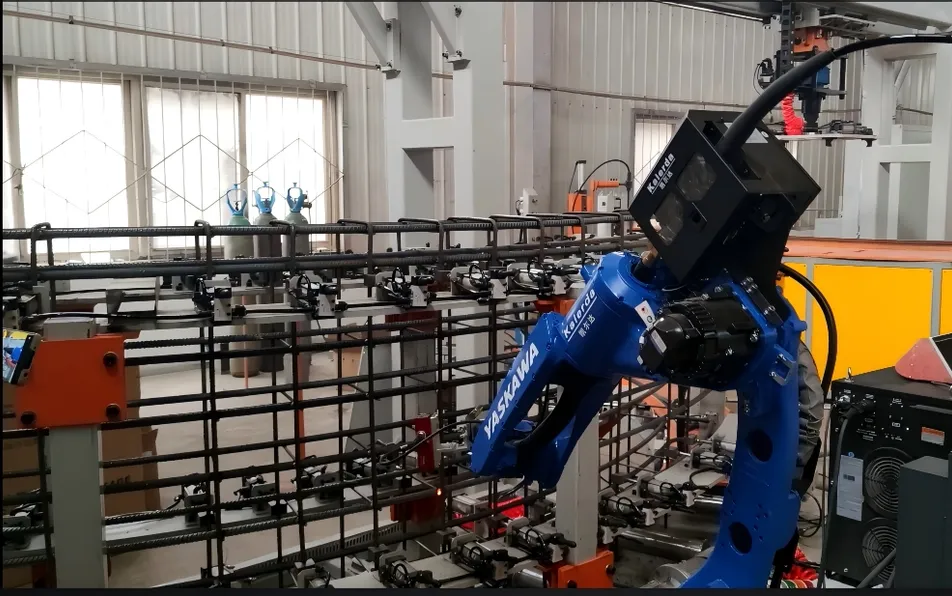

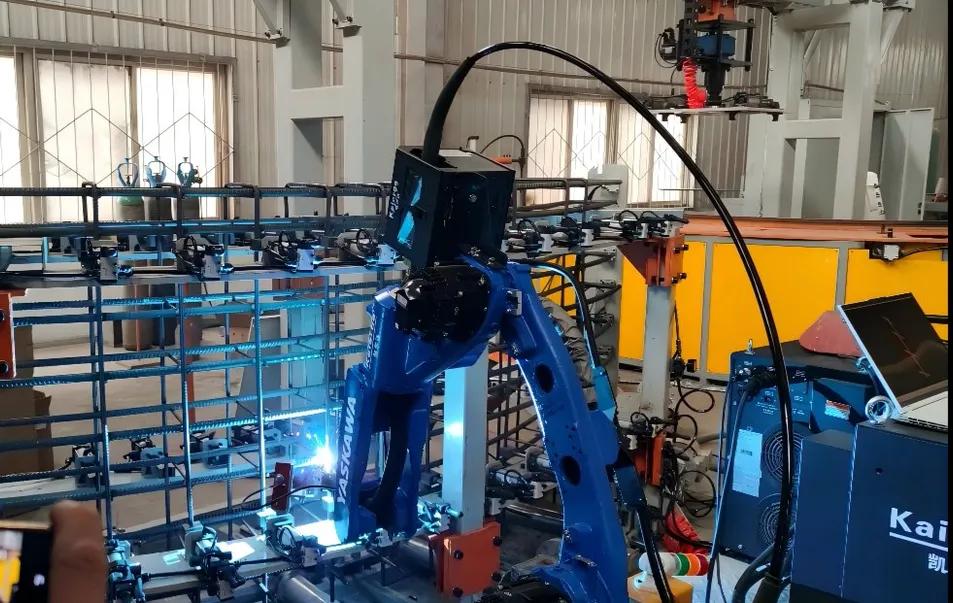

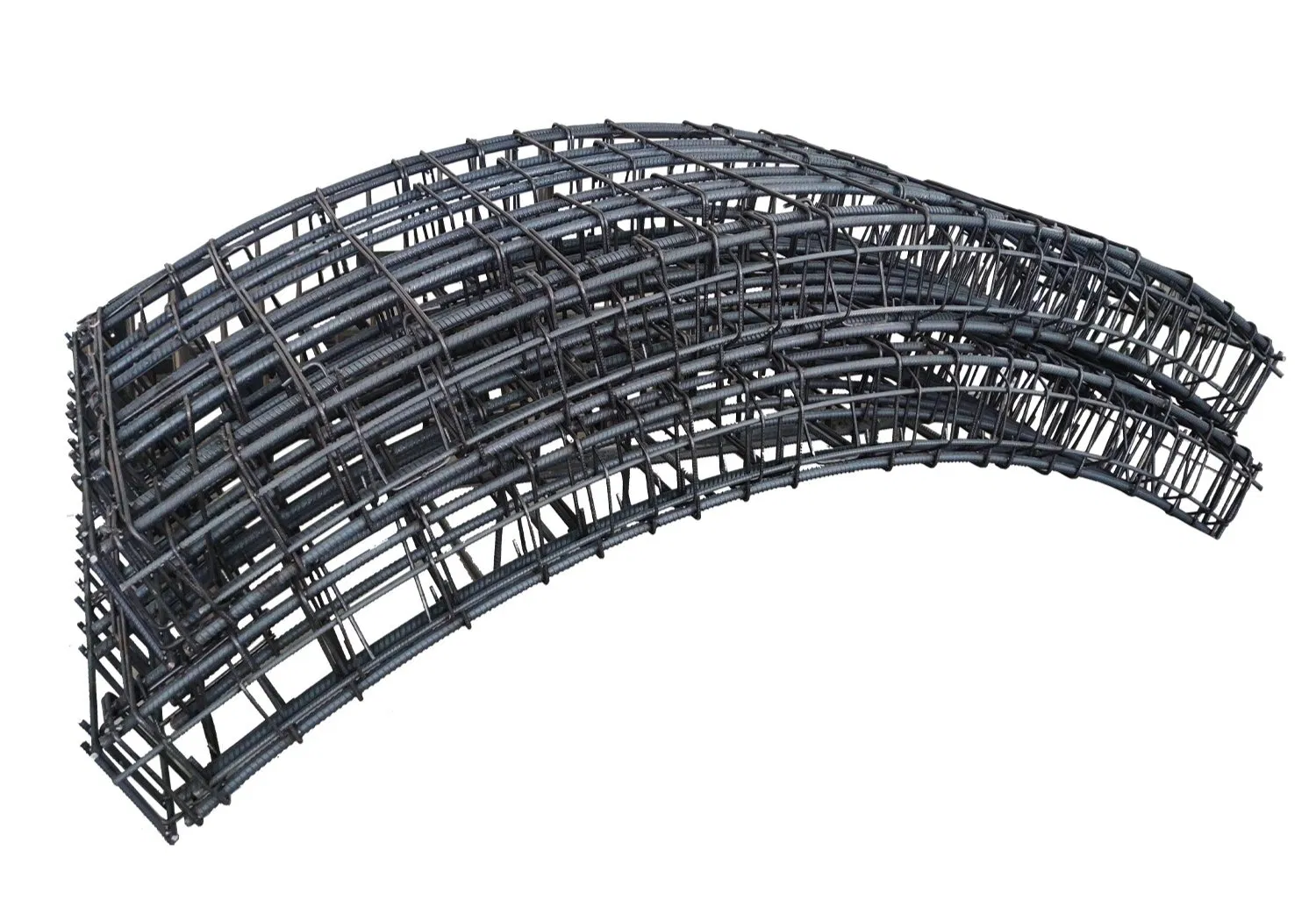

Reinforcement Welding: Automated welding of segment reinforcement cages for precise skeleton formation.

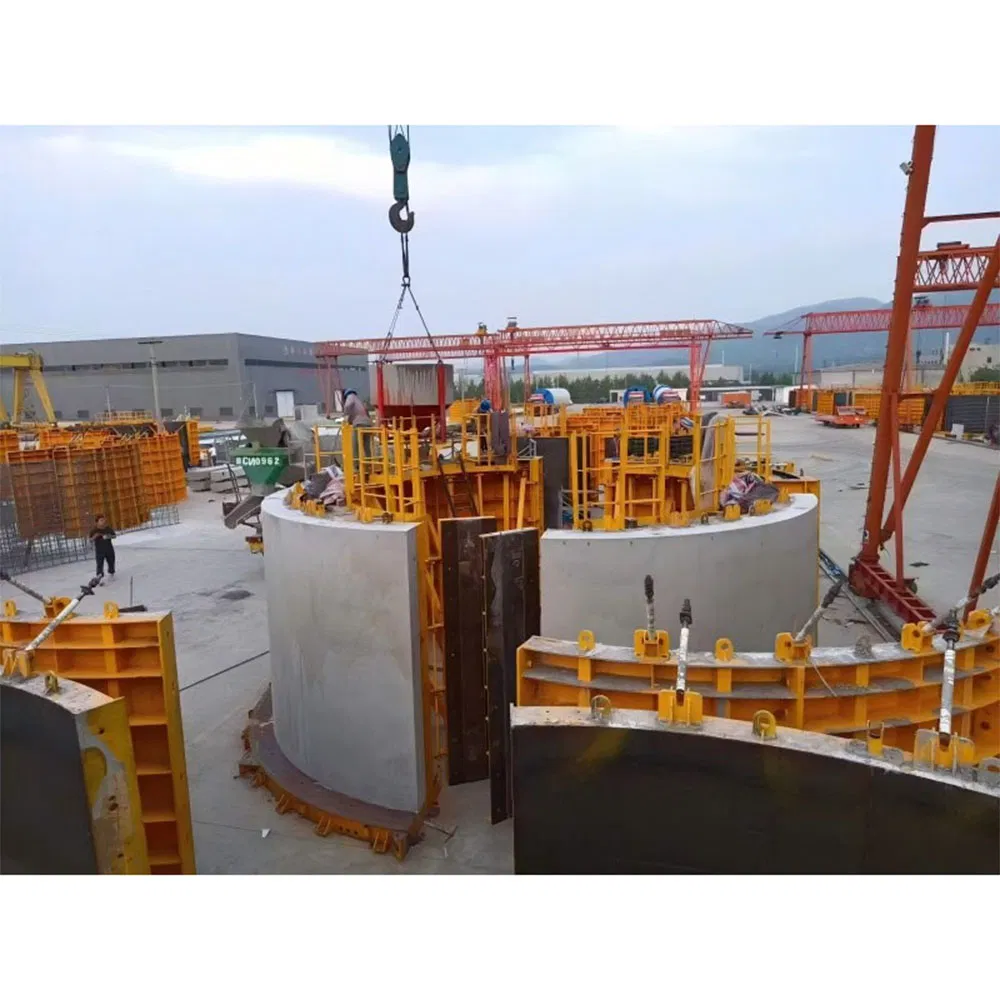

Mold Management: Intelligent positioning & clamping of segment molds adaptable to different tunnel diameters.
Concrete Pouring: Automated pouring, vibration, and leveling ensuring uniform material distribution.

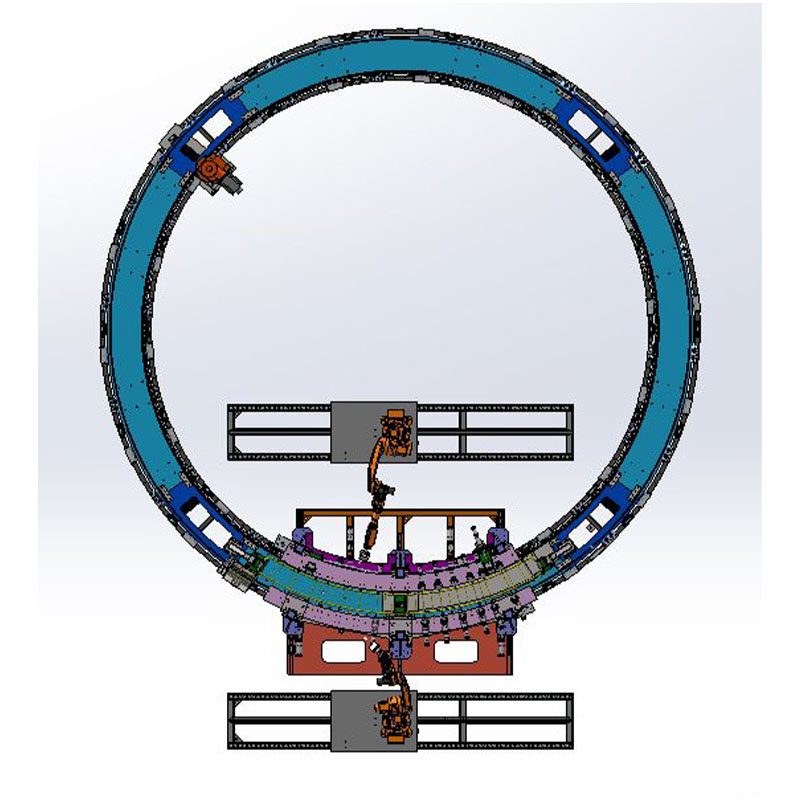

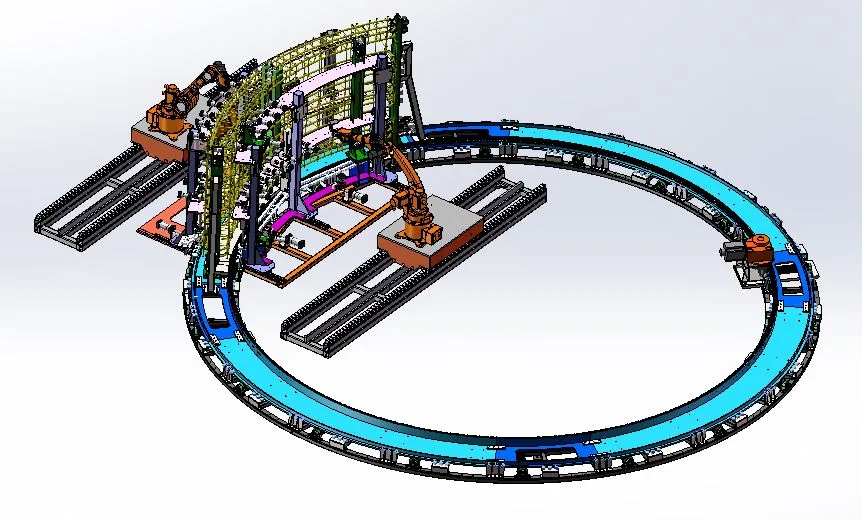

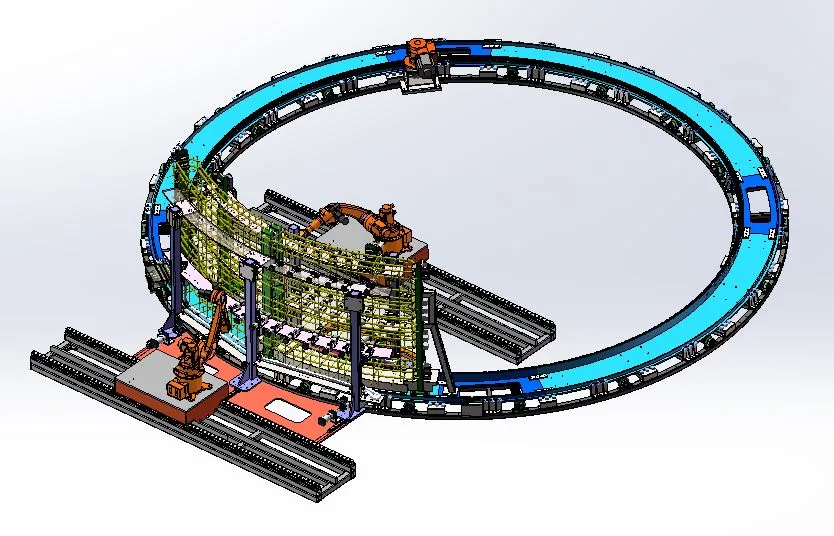

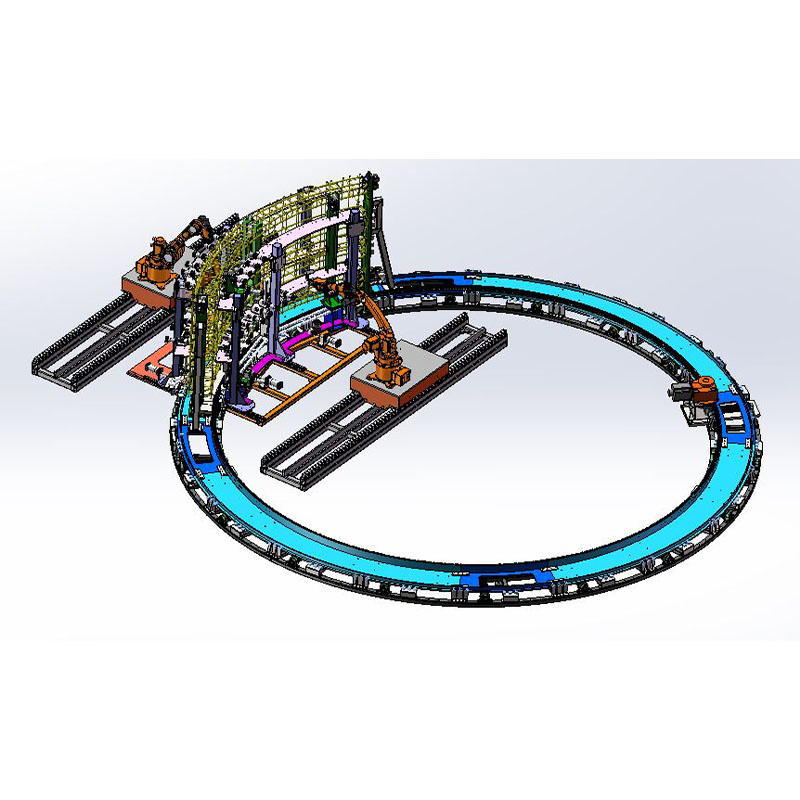

Conveying System: Continuous conveying of molds via circular or linear track systems.
Technical Specifications
Key Machines
PLC, Motor, Decelerator, Sprocket, Gear Rack
Product Name
Shield Tunnel Segment Making Machine
Voltage
380 V
Usage
Automatic Control Operation
Automatic Grade
Automatic
Type
Pile Cage Making
Capacity
Can Be Customized
Function
Stable Production
Weight (KG)
36000
Power
150KW
Main Products & Equipment
Primary products include: Reinforcing truss girder production lines, reinforcing mesh welding machines, CNC steel bar stirrup bending machines, reinforcing cage production lines, and various smart manufacturing industrial robots with digital twin management systems.
Corporate Advantages
The equipment is widely used by major construction groups for infrastructure projects globally. Products have been exported to over 100 overseas projects including the United States, Japan, Russia, and Argentina.
Packaging & Shipping
Frequently Asked Questions
What should we do if there is a problem with the product?
Our engineers will analyze the problem and find the best solution. If a problem occurs within the guarantee time, we can replace components free of charge.
What is the delivery time of your products?
We do our best to meet promised deadlines. Special procedures like emergency stocking are used to maintain an uninterrupted supply.
Is there a guarantee for your products?
Most of our products come with a one-year warranty for main parts.
How do you control the quality of your products?
Quality is the most important part of our process. All products undergo strict control from raw material inspection to final random checks before delivery.
What is your machine advantage?
The equipment features high efficiency, stable performance, and high accuracy, making it ideal for the construction industry and steel processing.
How to choose the machine model?
Provide us with your rebar information (diameter, strength, and required shape), and we will recommend the most suitable model for your needs.
