| Model NO. | ZMD-2010A-GG-12DG | Control Mode | Continuous Path Control |
|---|---|---|---|
| Drive Mode | Electric | Type | MIG Welding Robot |
| Certification | ISO, CE | Condition | New |
| Warranty | 1 Year | HS Code | 8468800000 |
| Robot Body Parameters | |||
|---|---|---|---|
| Type | Vertical joint 6 degrees of freedom | Max Reach | 1598mm |
| Position Repeatability | ±0.08mm | Protection Class | IP65 Equivalent |
| Max Load Capacity | 6KG | Power Capacity | 2KVA |
| Conditions of Use | 0-45ºC, 20-80%RH | ||
| Axis | Range of Action | Maximum Speed |
|---|---|---|
| J1 (Basic Axis) | ±170° | 259.3°/S |
| J2 (Basic Axis) | +64° -130° | 160°/S |
| J3 (Basic Axis) | ±75° | 296.3°/S |
| J4 (Arm Axle) | ±150° | 294.1°/S |
| J5 (Arm Axle) | +130° -105° | 294.1°/S |
| J6 (Arm Axle) | ±220° | 426.7°/S |

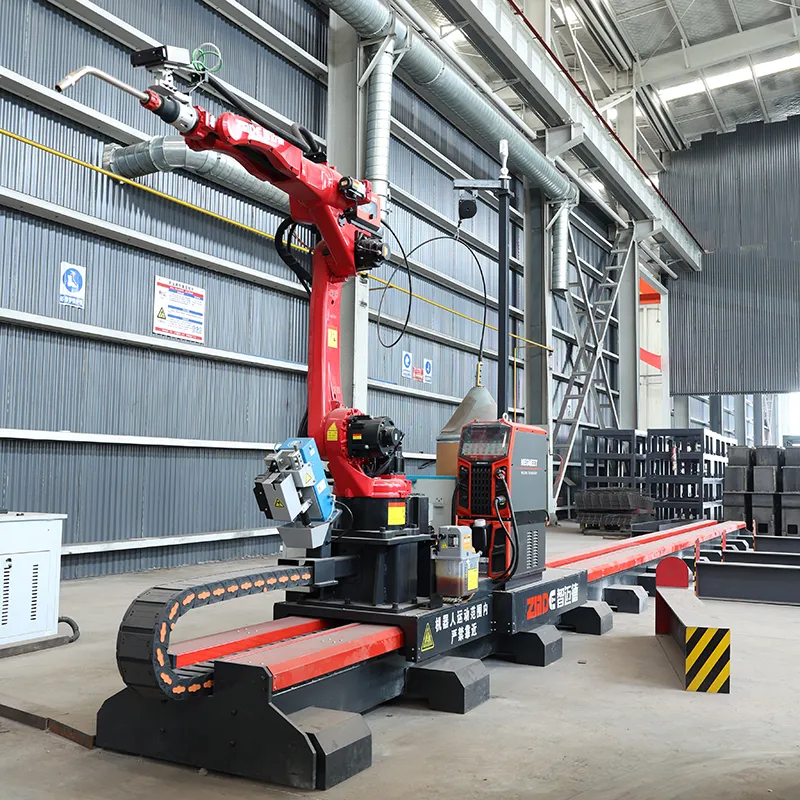

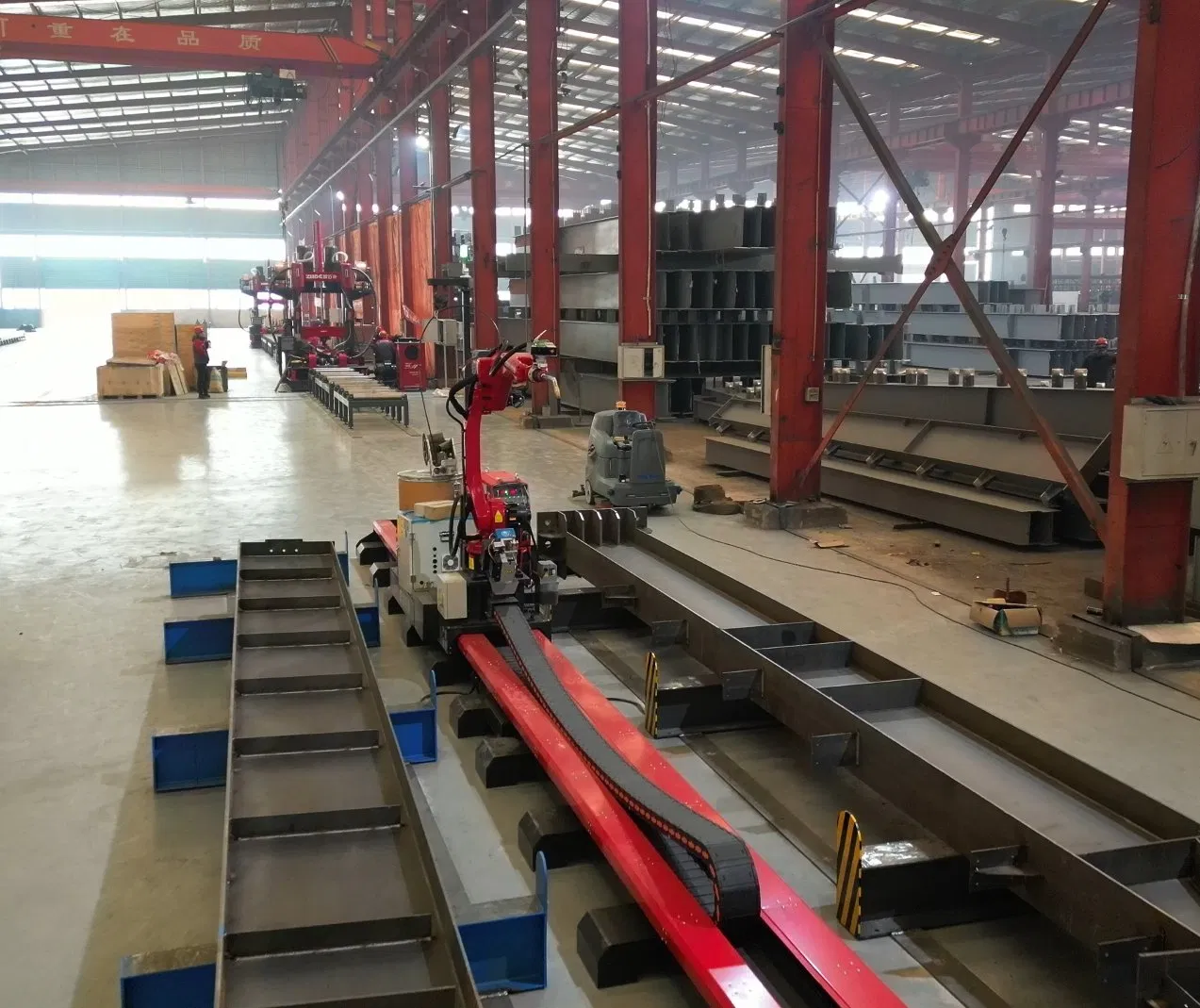

• Weld identification and welding of H/T beam accessory plates.
• Built-in welding cables with hollow structure arms for narrow space operations.
• Steel structure industry
• Assembly building & Bridge engineering
• Shipyards and heavy metal manufacturing

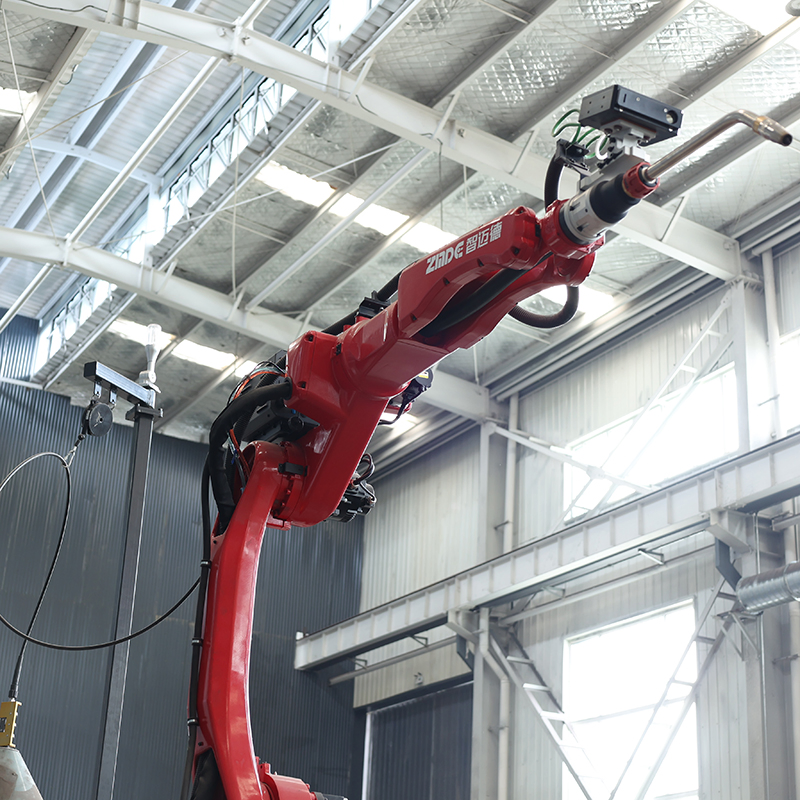

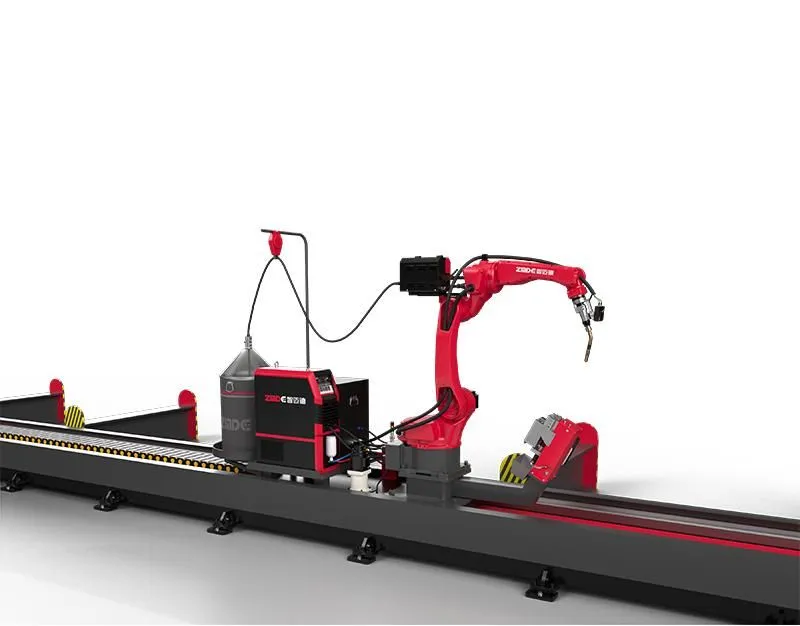

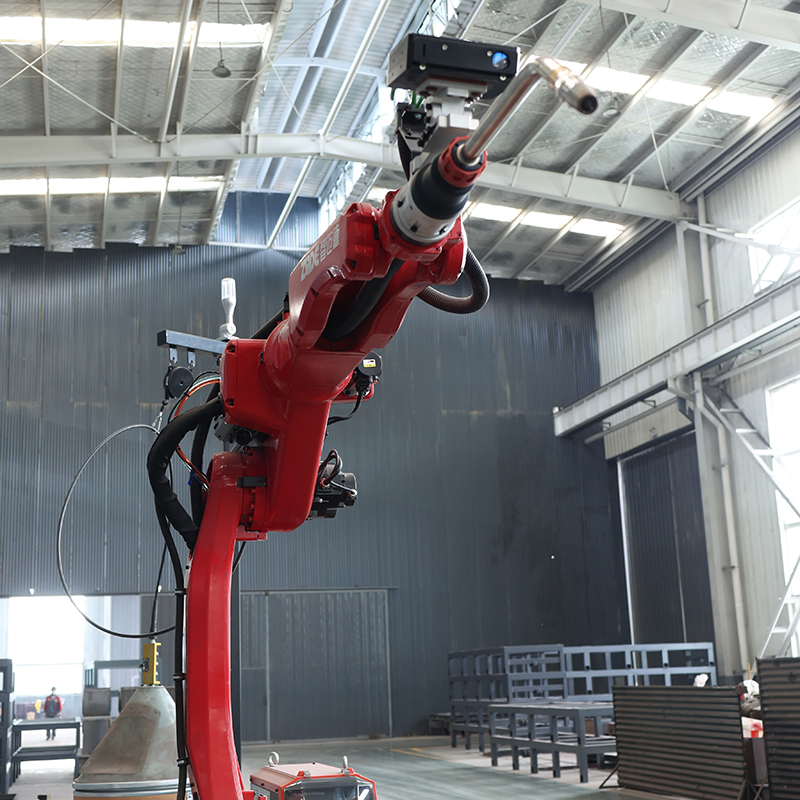

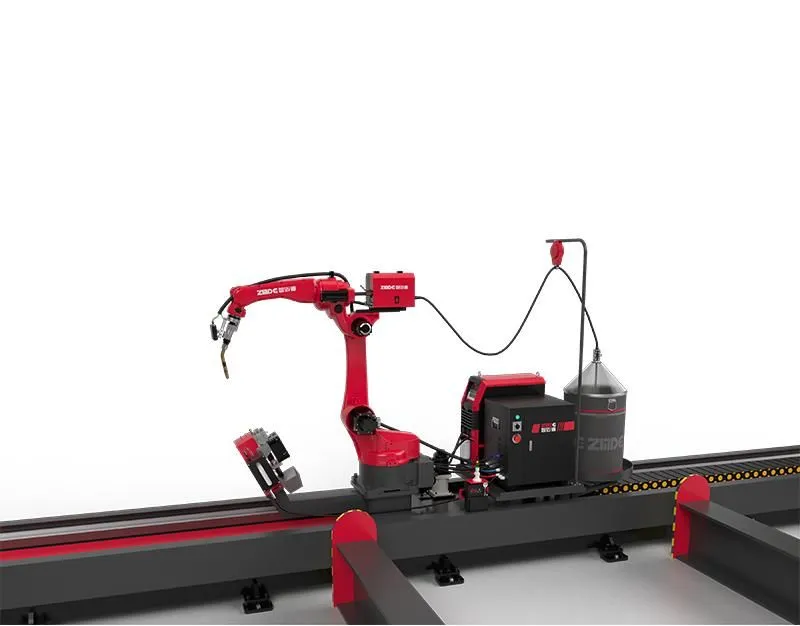

The welding robot boasts a unique appearance with hollow structure arms and wrists, featuring built-in welding cables. Its compact design allows it to perform welding operations in narrow spaces with ease. Lightweight, dust-proof, and drip-proof, this robot ensures high safety standards and is equipped with a protective body cover, making it reliable in harsh environments.
It offers a large working space and fast running speeds, with high repeat positioning accuracy, making it ideal for welding applications that demand exceptional weld quality. This versatile robot excels in various challenging conditions, providing consistent, high-quality results while maintaining efficiency and safety.
