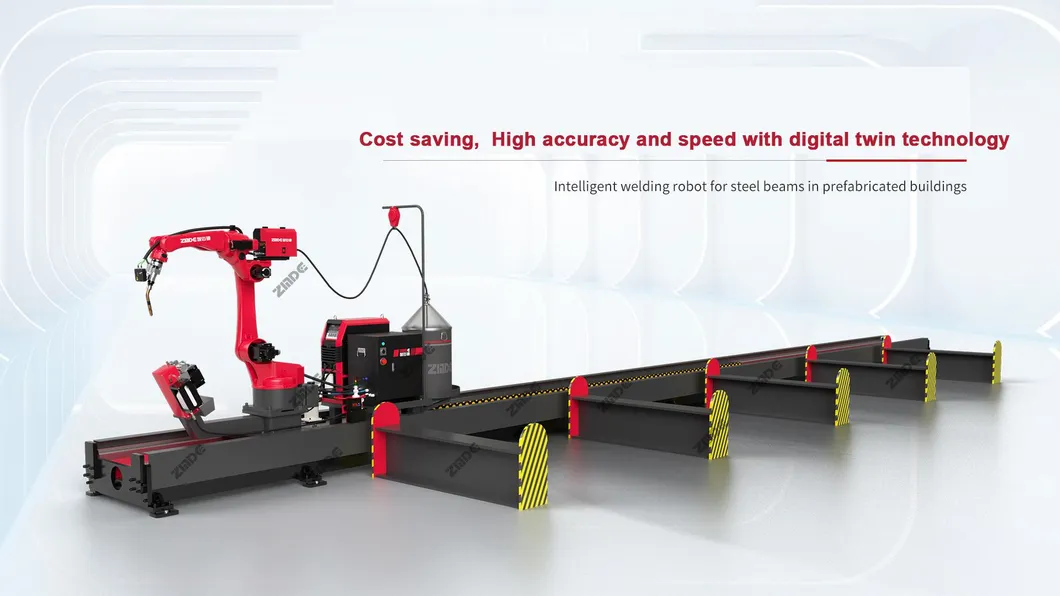

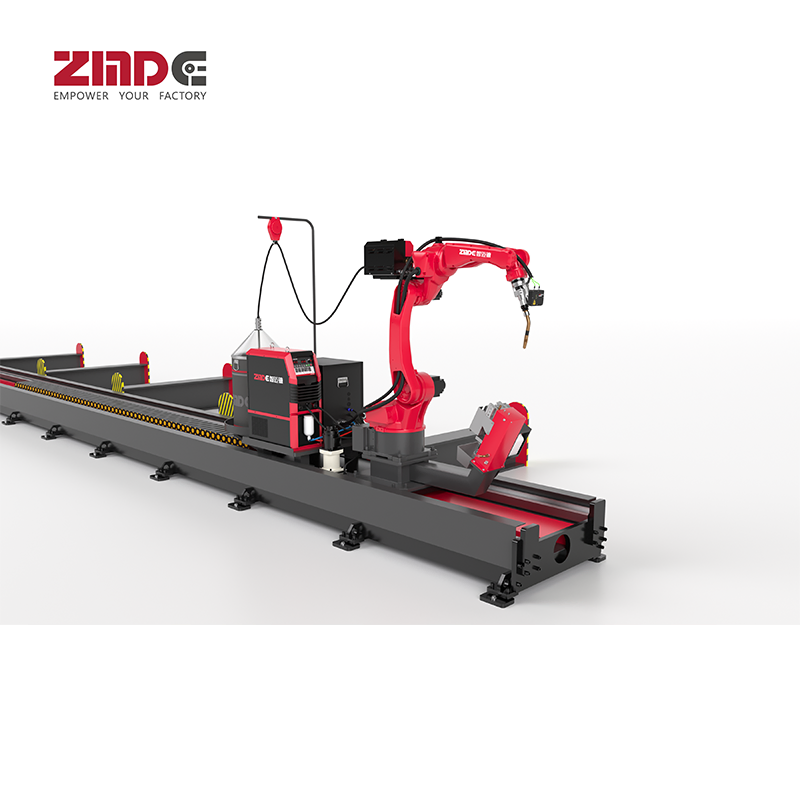

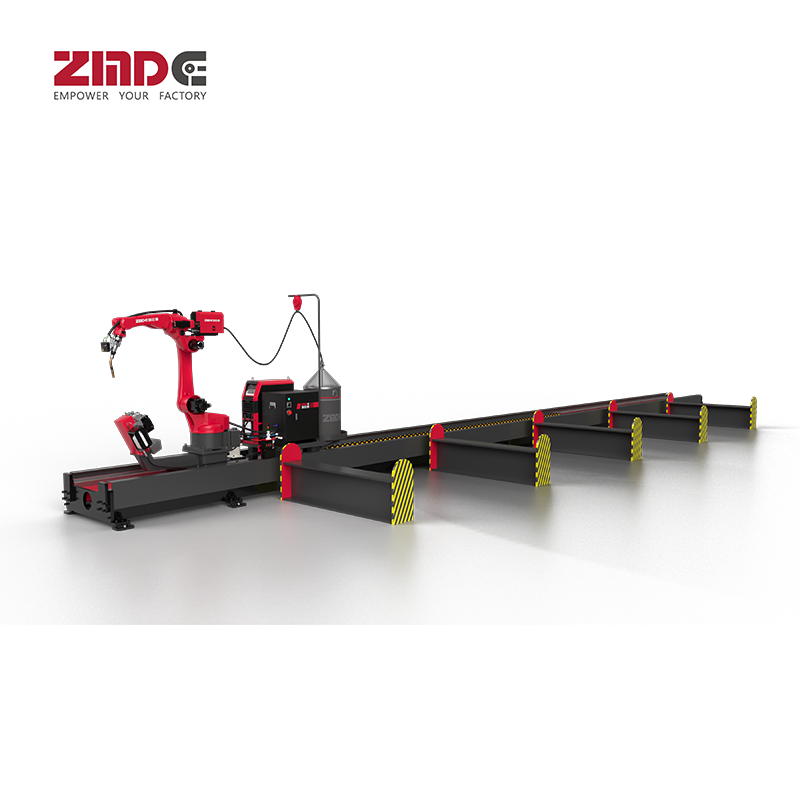

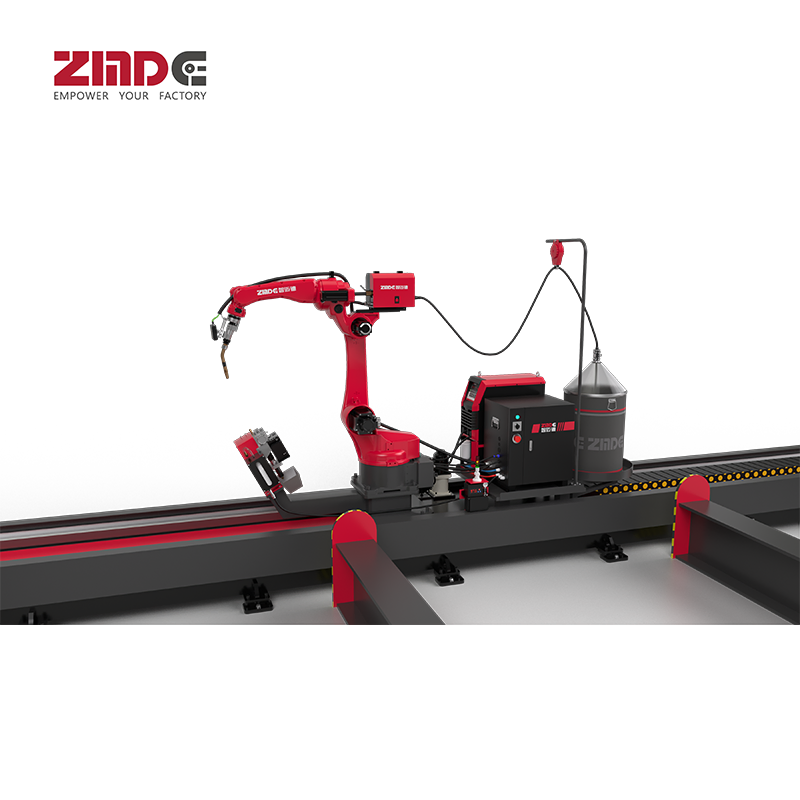

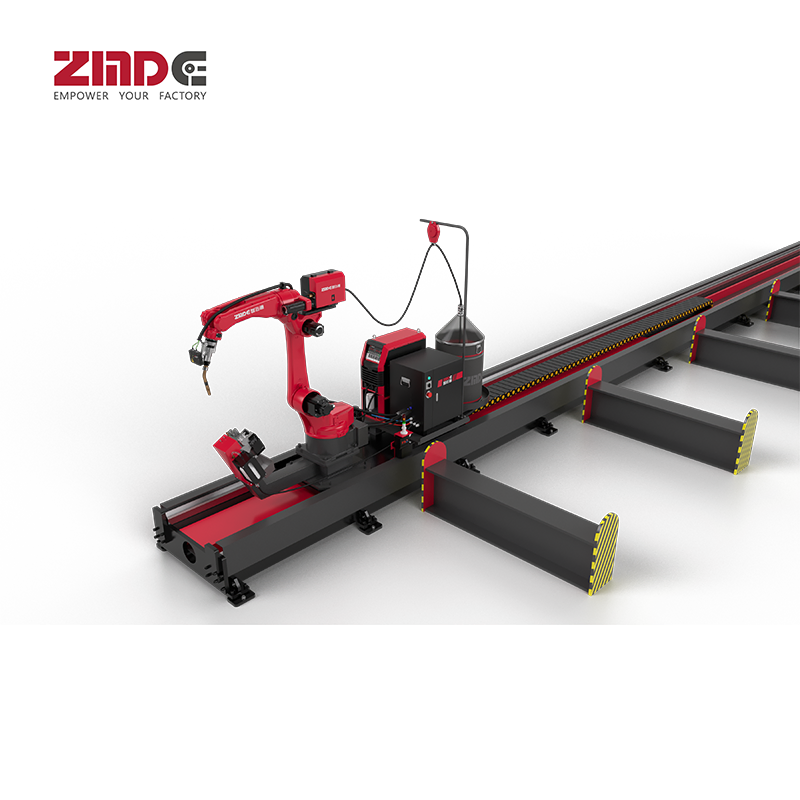

Zmde Precision 6 Axis Welding Robot Arm for Steel Projects

1 / 5

Zmde Precision 6 Axis Welding Robot Arm for Steel Projects

Customization:	Available
Accuracy:	-
Application:	Construction Industry, Metal Fabrication Industry, Welding

Send Inquiry

Product Description

📊Overview

Model NO.	ZMD-2010A-GG-12DG	Type	MIG Welding Robot
Control Mode	Continuous Path Control	Drive Mode	Electric
Certification	ISO, CE	Warranty	1 Year
Package Size	3000.00cm * 3000.00cm * 3000.00cm	Gross Weight	6000.000kg

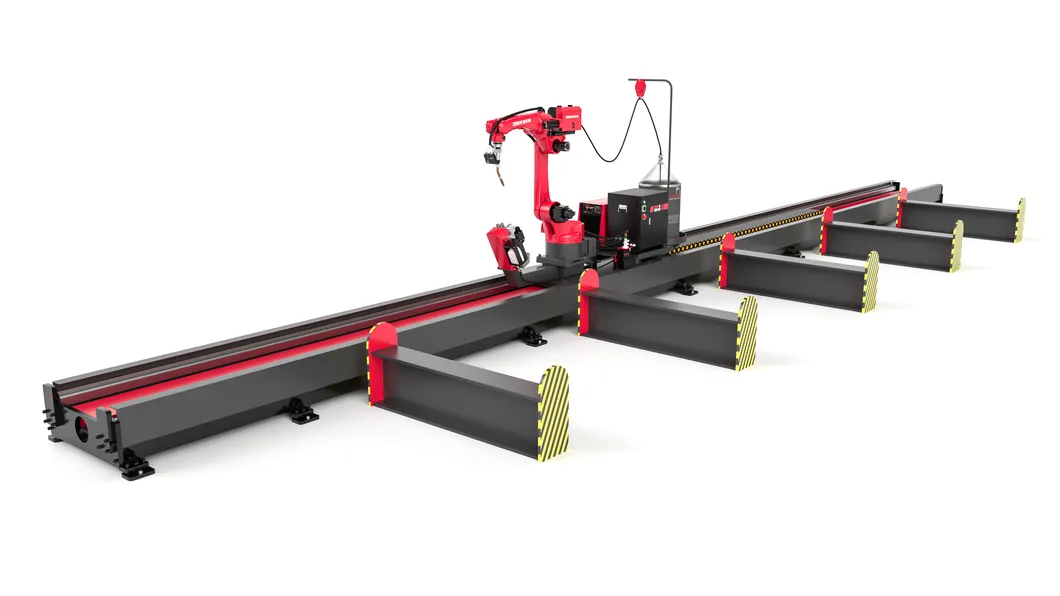

⚙️Technical Parameters

Model: ZMD-2010A-GG-12DG
Conditions of use	0-45ºC, 20-80%RH	Type	Vertical joint 6 degrees of freedom
Max reachable range	1598mm	Protection class	IP65 Comparable
Installation	Ground level	Positional repeatability	±0.08
Maximum load	6KG	Body weight	168KG

Axis	Range of Action	Maximum Speed
J1 (Basic Axis)	±170°	259.3°/S
J2 (Basic Axis)	+64° -130°	160°/S
J3 (Basic Axis)	±75°	296.3°/S
J4 (Arm Axle)	±150°	294.1°/S
J5 (Arm Axle)	+130° -105°	294.1°/S
J6 (Arm Axle)	±220°	426.7°/S

🚀Product Advantages

🔹 Highly Adaptable & Intelligent 1. Teach-free programming: Calculated by software, reducing manual processes.
2. Model import: Compatible with Tekla, SolidWorks, and mainstream 3D software.
3. Digital twin technology: Real-time synchronization of movements.
4. Remote monitoring: Real-time progress tracking via mobile app.

🔹 High Precision & Speed 1. BAYKAL composite vision sensor for dual localization.
2. Automatic obstacle avoidance and optimal path generation.

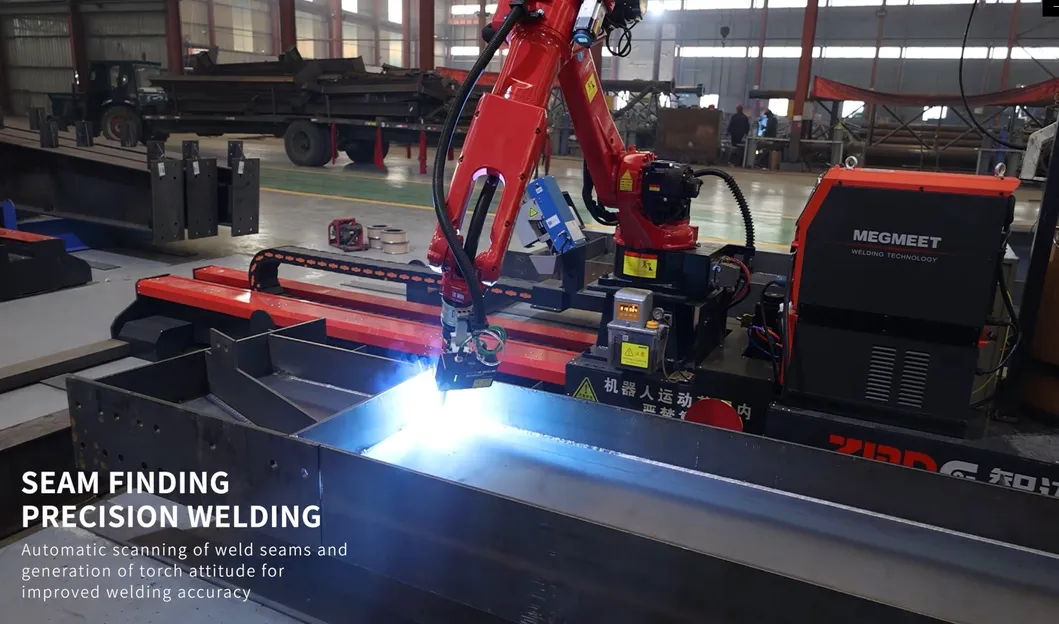

3. Advanced seam tracking with feed-forward and feedback mechanisms.
4. Real-time modification of torch attitude for convenient operations.

🔹 Long Life & Easy Maintenance 1. Pipeline integrated within the robot body to avoid cable damage.
2. Independent air duct design for high dust and temperature environments.
3. Fully enclosed floor track with multi-point lubrication system.
4. Collision detection and singularity avoidance for equipment protection.

🔹 Cost Savings & Quality 1. Reduces manual welding costs and personnel dependency.
2. Minimizes size errors and scrap rates.
3. Ensures robust weld joints through breakpoint positioning and custom arc starts.

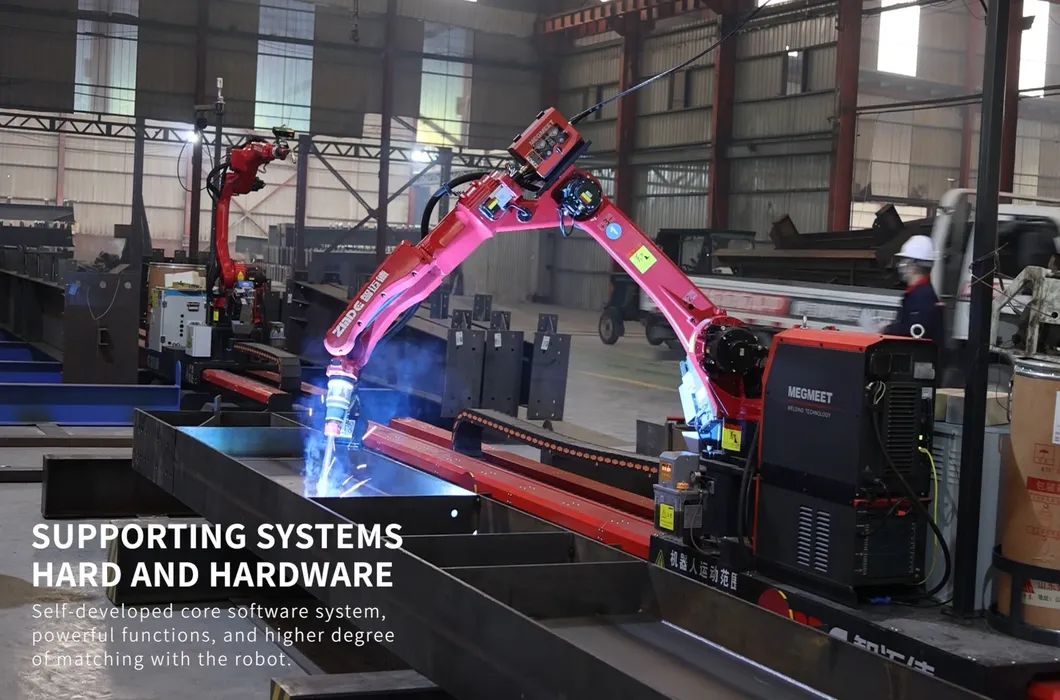

💎System Integration

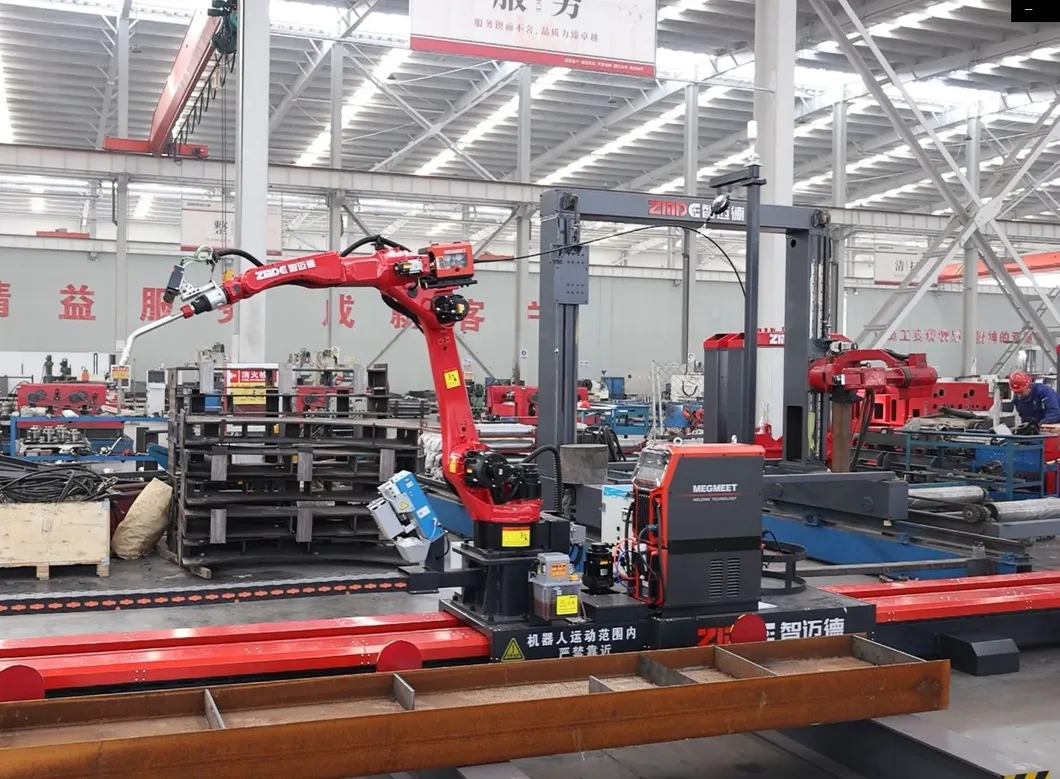

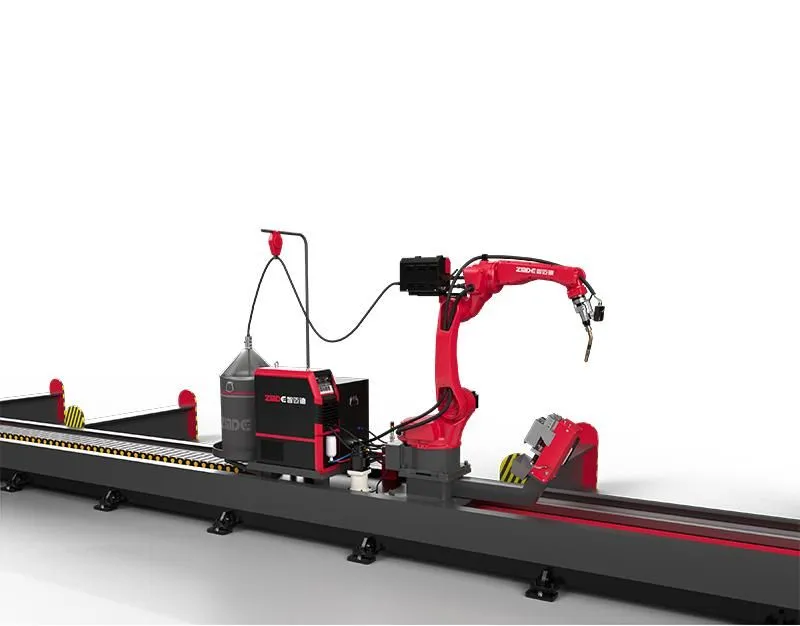

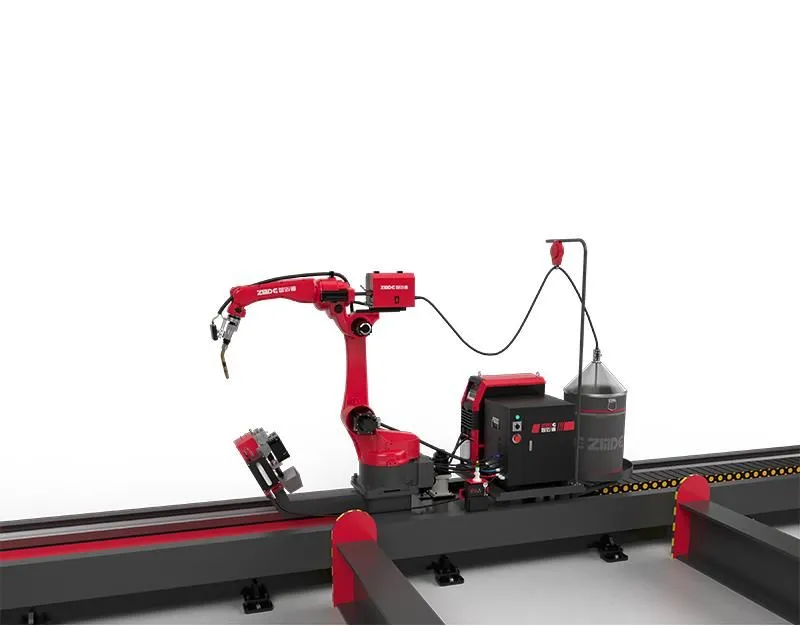

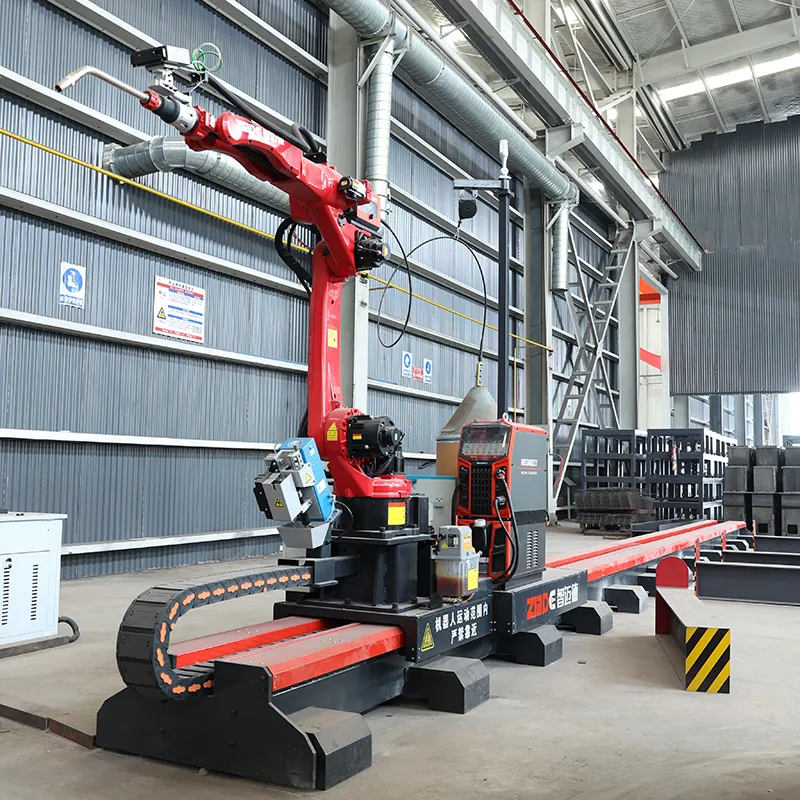

This welding robot features a distinct design with hollow structure arms and wrists, integrating welding cables within. Its compact form factor allows for seamless operation in confined spaces. The robot is lightweight, dust-proof, and drip-proof, ensuring durability and safety in demanding environments.

🏢About Our Expertise

Founded in 2013, the company has swiftly become a leading force in the realm of intelligent equipment assembly. Recognized as a national 'Small Giant' enterprise, we specialize in research, development, manufacturing, sales, and service. Our core industries focus on the steel structure assembly of intelligent industrial mother machines and the Internet of Things (IoT).
