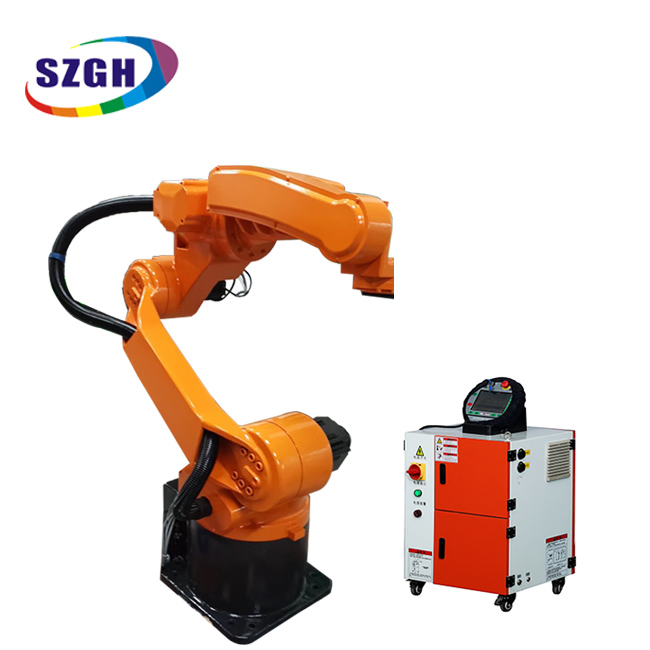

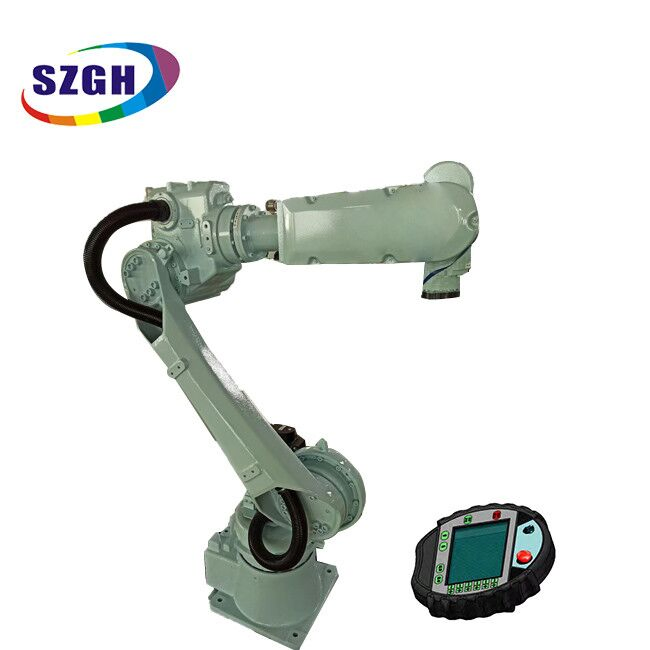

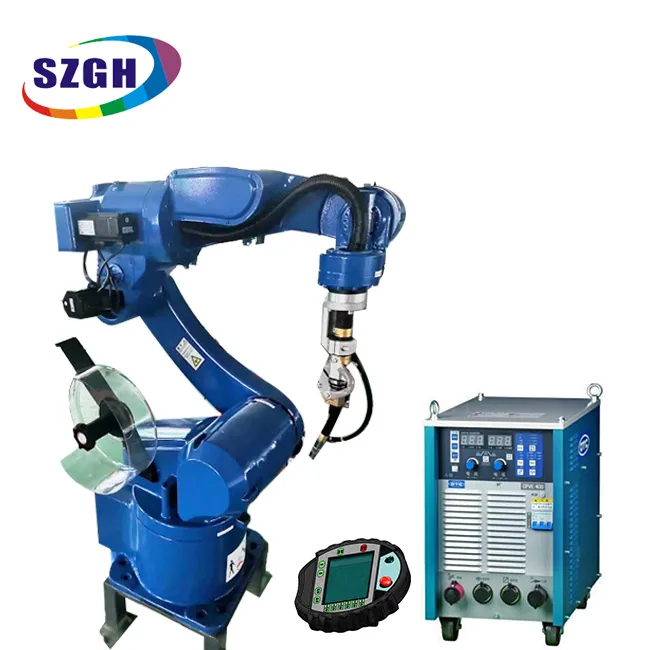

This professional series robot is highly optimized for complex welding routines. Engineered to deliver streamlined operations, maximum efficiency, and class-leading safety.

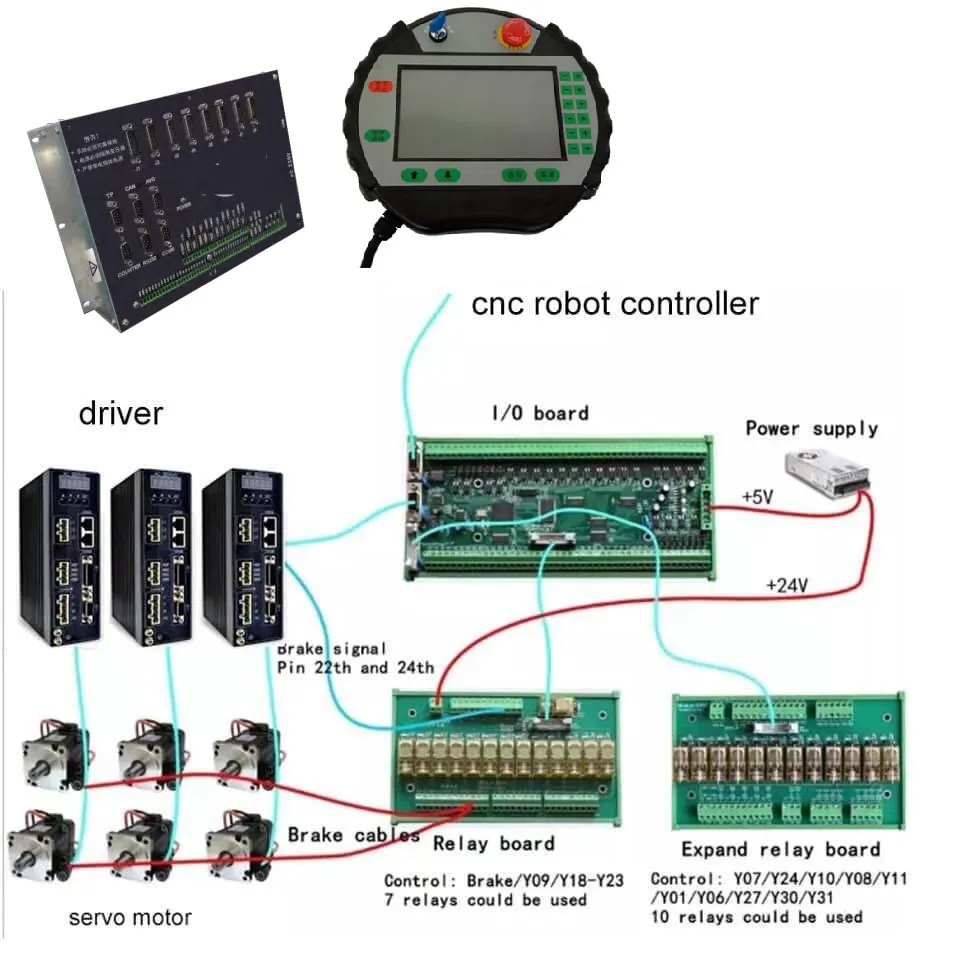

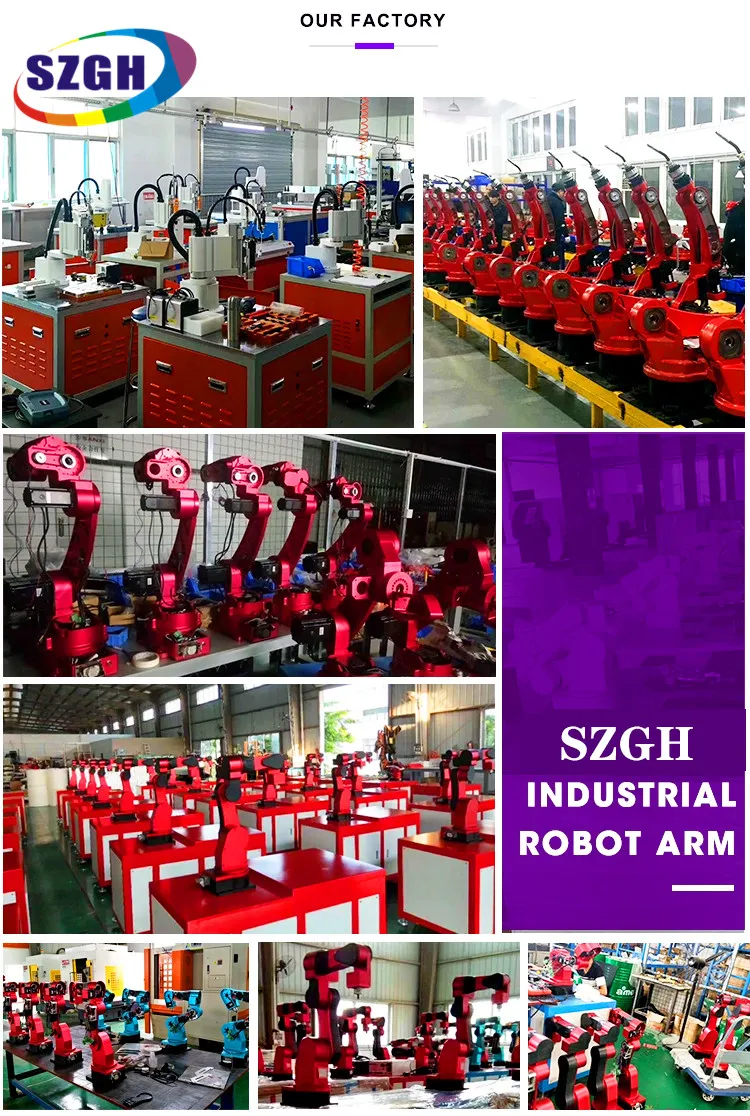

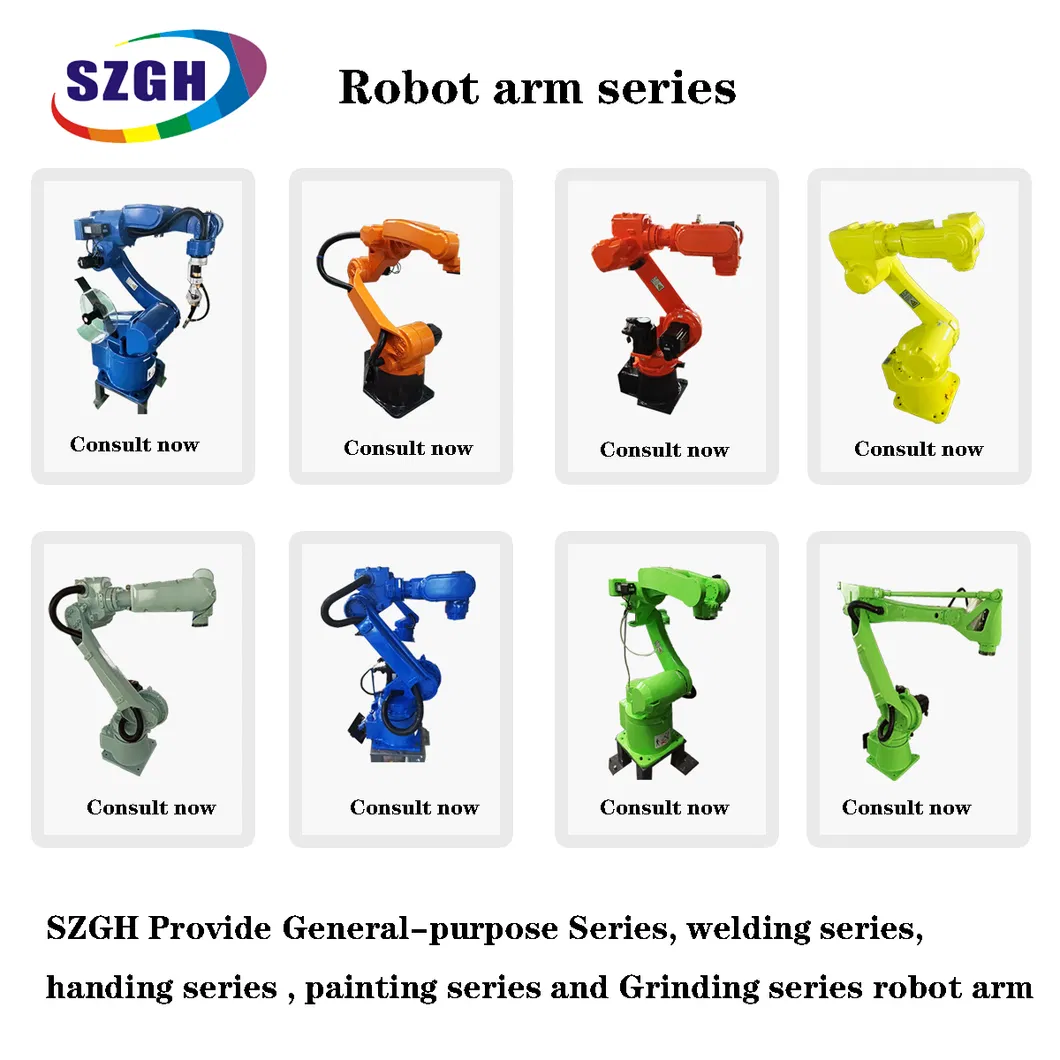

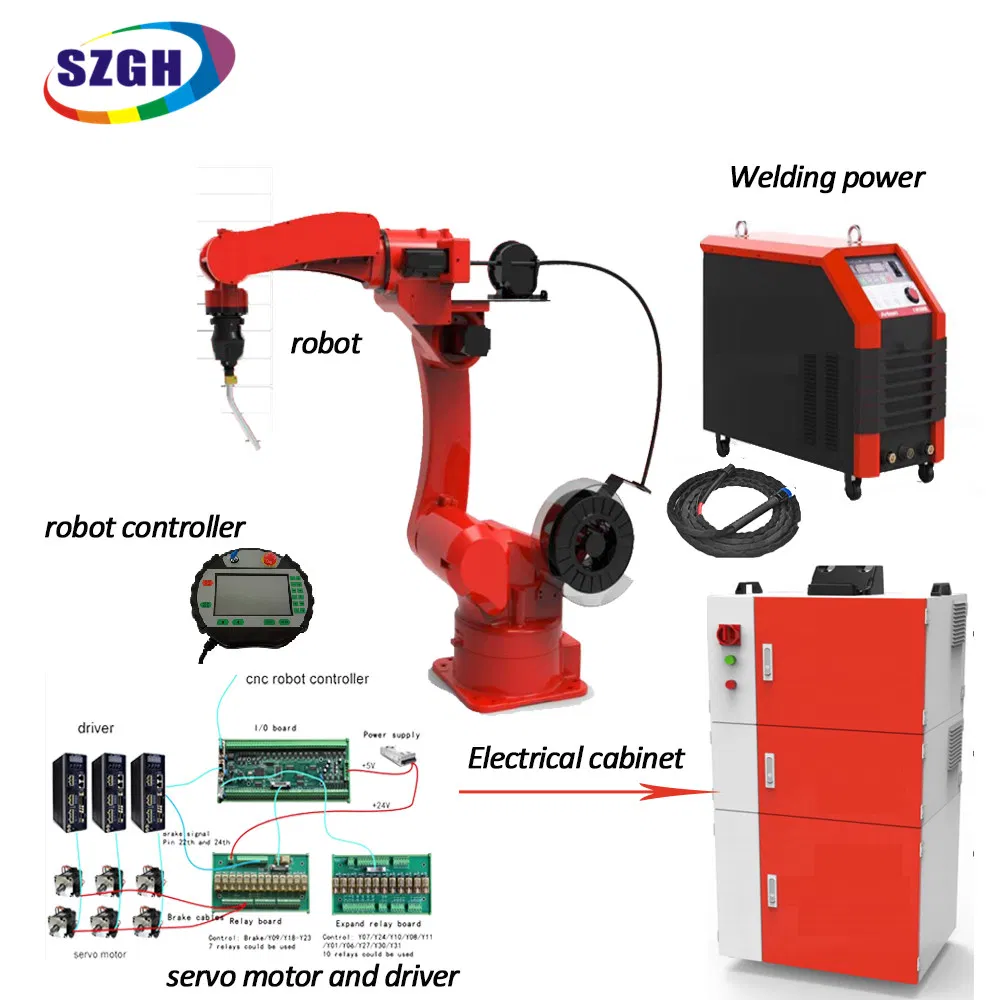

Our production features 25 core models of robot arms currently in mass production, spanning general-purpose functions, welding, spraying, palletizing, grinding, and logistics handling. All systems come equipped with our independently developed smart controller units. Auxiliary external axes integration is readily supported to customize complex robotic tasks according to specifications.
| Specification | Details |
|---|---|
| Model | Z1500-B-6 |
| Payload | 6kg |
| Reach Radius | 1500mm |
| Standard Axes | 6-11 Axes Supported |
| Primary Application | Industrial Precision Welding |
| Customization Support | Optional Colorways & Logo Schemes |
| Warranty Protection | 12 Months Standard Coverage |
| After-sales Backing | Guided Technical Video Support & Online Diagnostics |

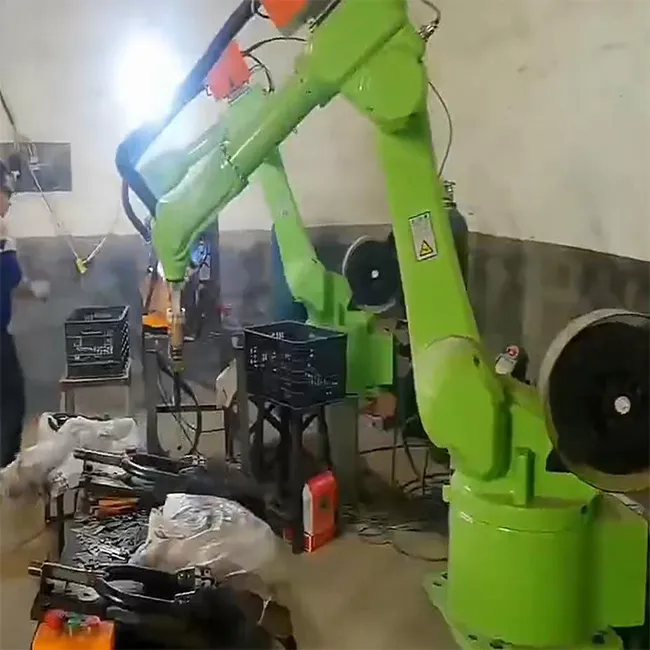

Highly recommended for automotive manufacturing, structural metal doors and windows, heavy engineering machinery, mining setups, locomotives, household appliances, structural furniture, and other heavy manufacturing applications.
Specifically developed for harsh field environments. Features enhanced structural stabilization, robust spatial adaptability, and a fully enclosed axis layout to prevent hot welding spatters from contacting internal system wiring.
| Parameter Component | Axis Position | Performance Value |
|---|---|---|
| System Architecture | Model Designation | Z1500-B-6 |
| Active Axes | 6 Axis Structure | |
| Repeatability | Operational Tolerance | ±0.05 mm |
| Ingress Protection | IP Rating standard | IP65 Enclosure |
| Maximum Motion Range | Axis 1 (J1) | ±165º |
| Axis 2 (J2) | +135º / -90º | |
| Axis 3 (J3) | +90º / -90º | |
| Axis 4 (J4) | ±360º | |
| Axis 5 (J5) | +115º / -140º | |
| Axis 6 (J6) | ±450º | |
| Maximum Motion Speed | Axis 1 (J1) | 148º/sec |
| Axis 2 (J2) | 148º/sec | |
| Axis 3 (J3) | 150º/sec | |
| Axis 4 (J4) | 222º/sec | |
| Axis 5 (J5) | 222º/sec | |
| Axis 6 (J6) | 360º/sec | |
| System Weight | Net Mass | 120 kg |
| Mounting Adaptability | Surface Installation | Ground, Bracket, Ceiling configurations |
| Application Methods | Processing Compatibility | TIG / MAG welding, laser processing, precise cutting |
| Environmental Range | Ambient Temperatures | -20 ºC to 80 ºC |
We are recognized as a premier automation and mechanical design provider. Specializing in systems integration, global engineering consultancies, and custom controller deployments, we leverage extensive field expertise in high-grade CNC packages, industrial articulated robot setups, milling and routing frameworks, as well as specialized high-performance servo motor control technologies.
Our automated systems exhibit consistent, high-accuracy operation across a broad range of production applications. With structured design processes managed by experienced engineering departments, we can build custom automation lines shaped around practical productivity targets. Comprehensive QA validation ensures all parts undergo 100% operation checks before packing and transport. We support clients globally across key regions including Asia, the Middle East, Europe, and the Americas.

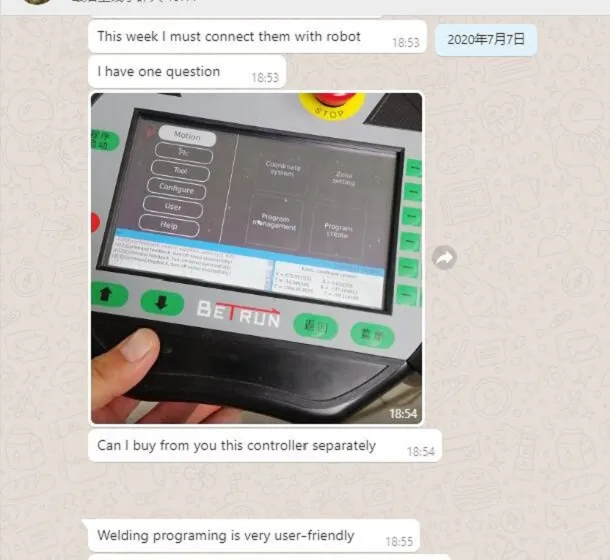

We operate structured after-sales departments comprised of skilled mechanics, system software designers, and electrical integration engineers to assist clients with setup operations.
