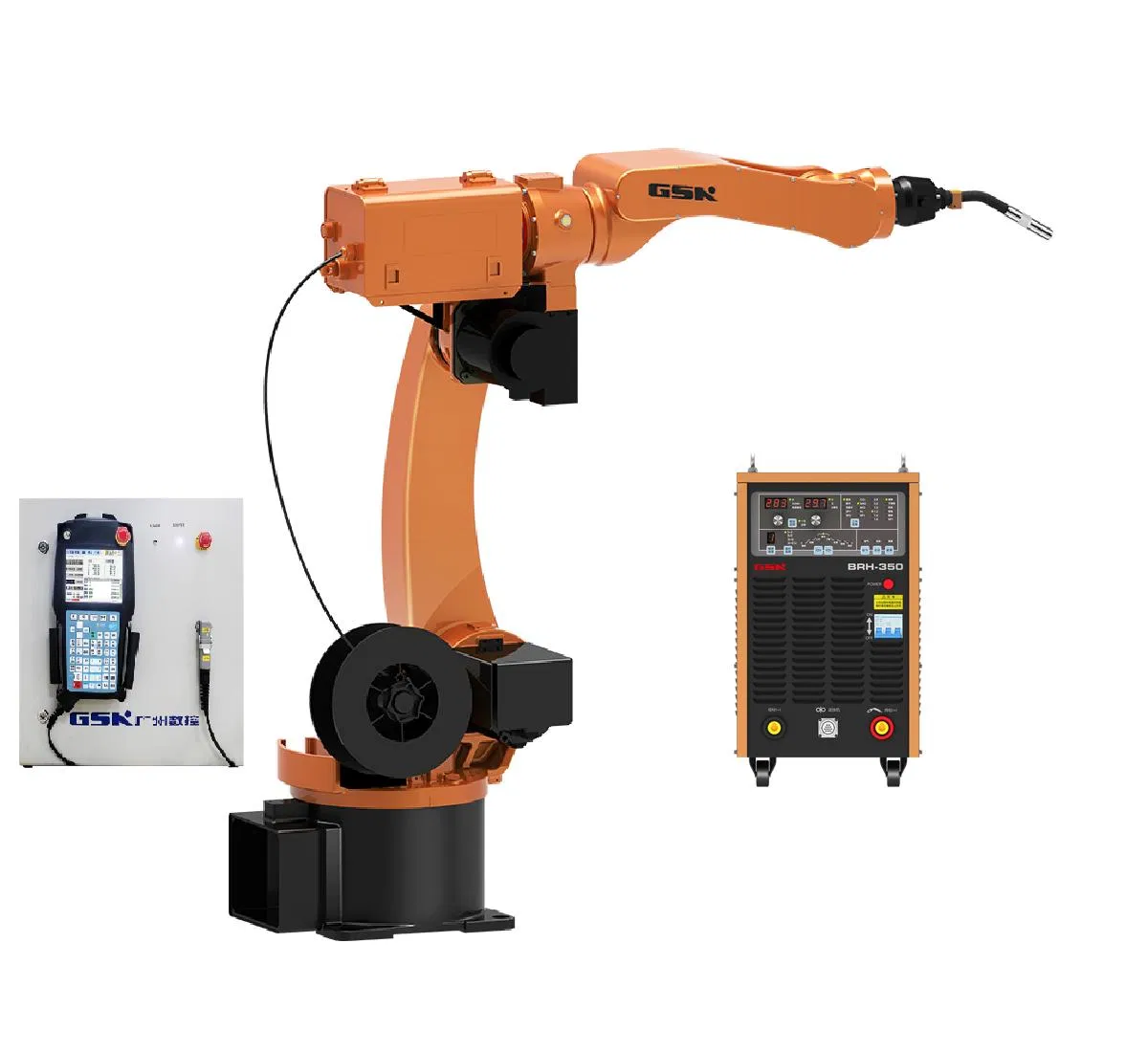

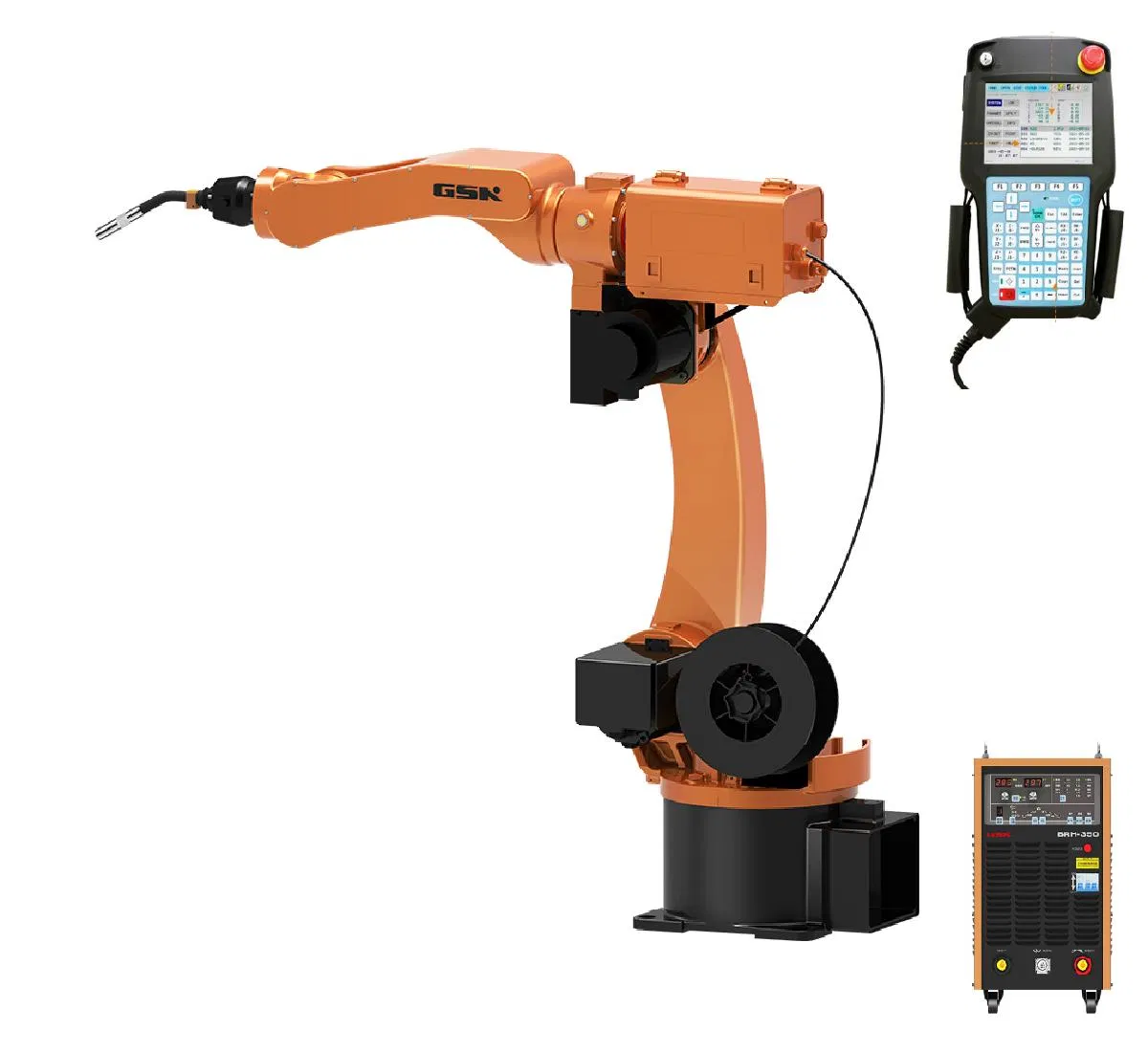

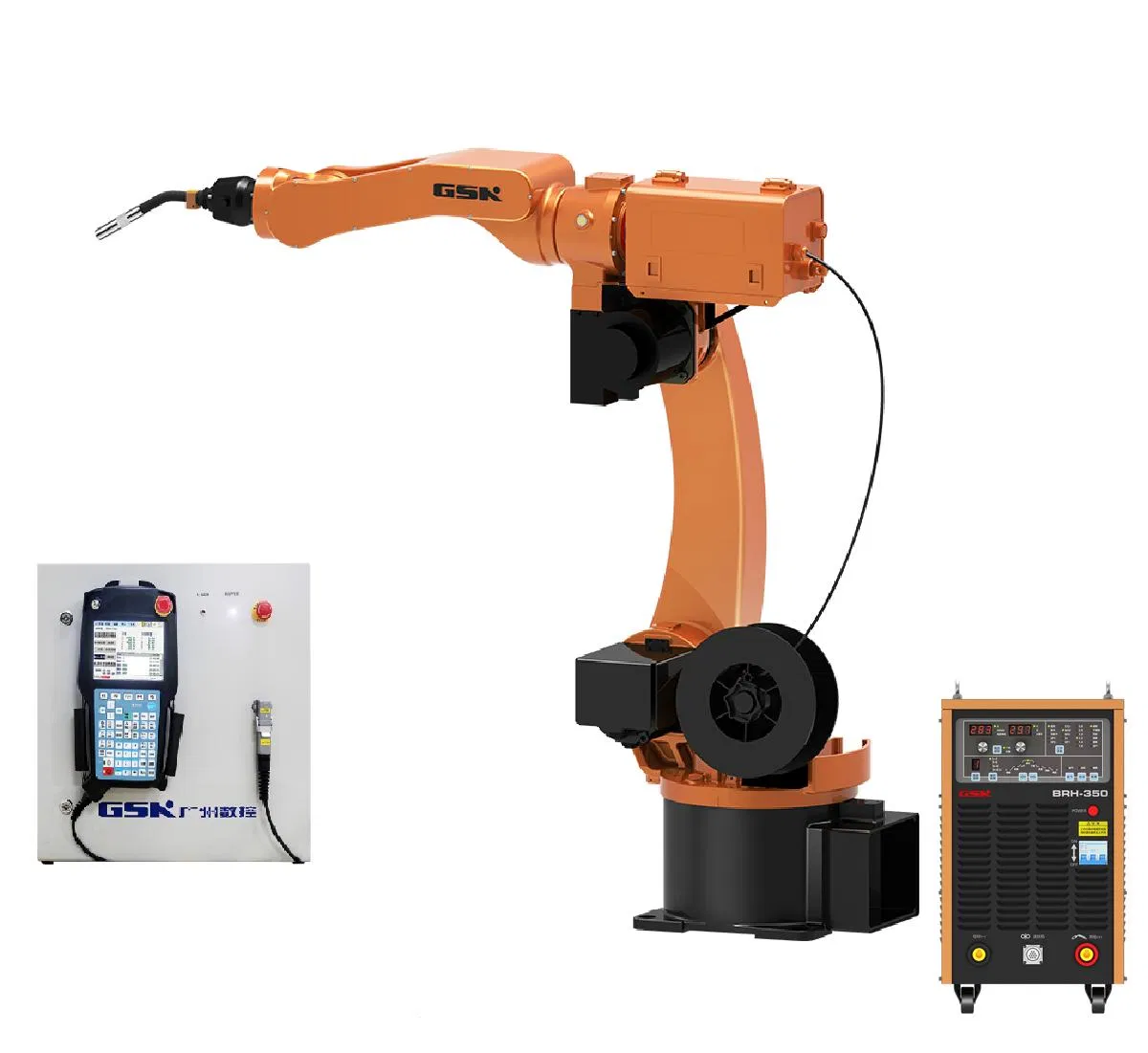

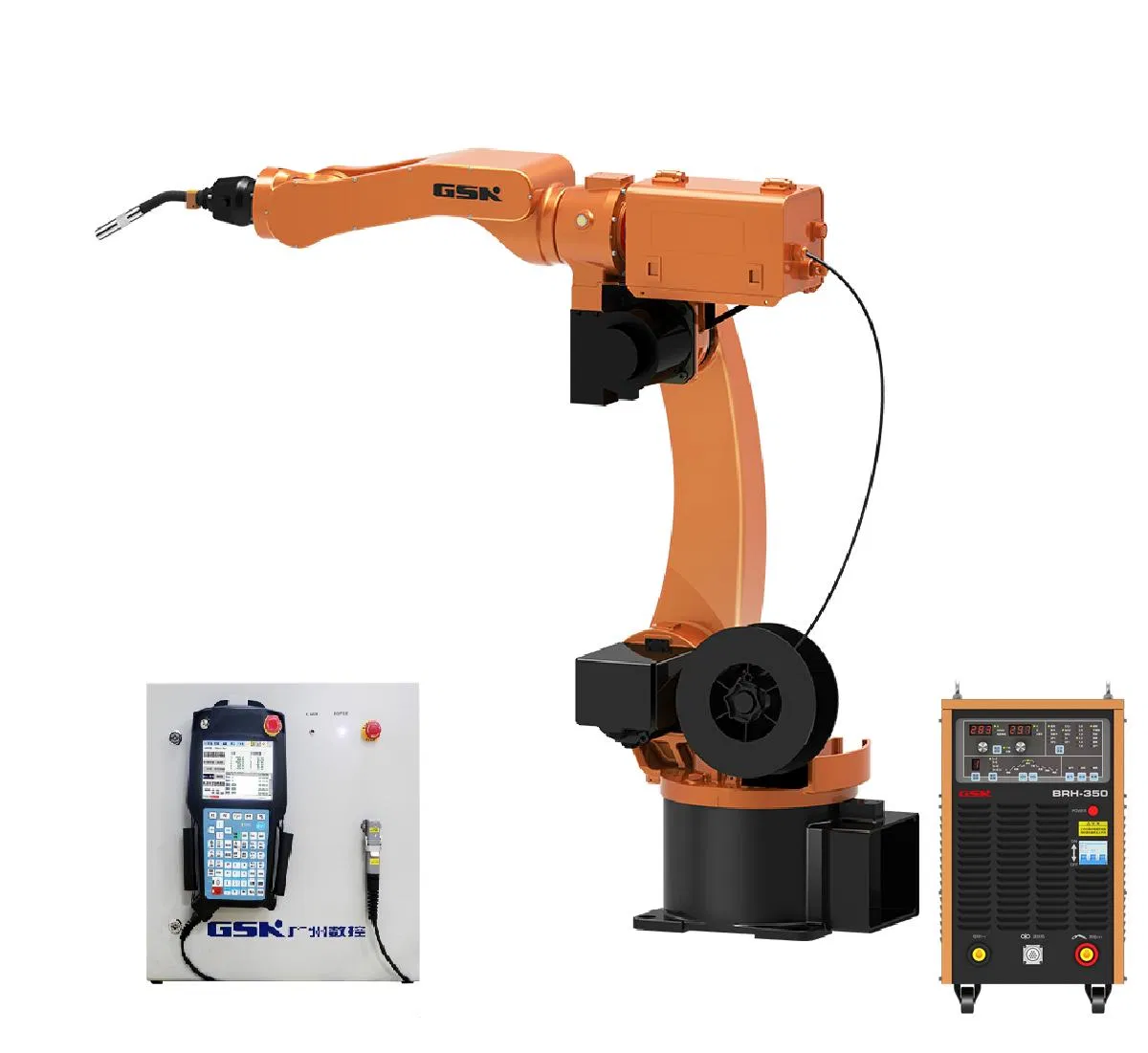

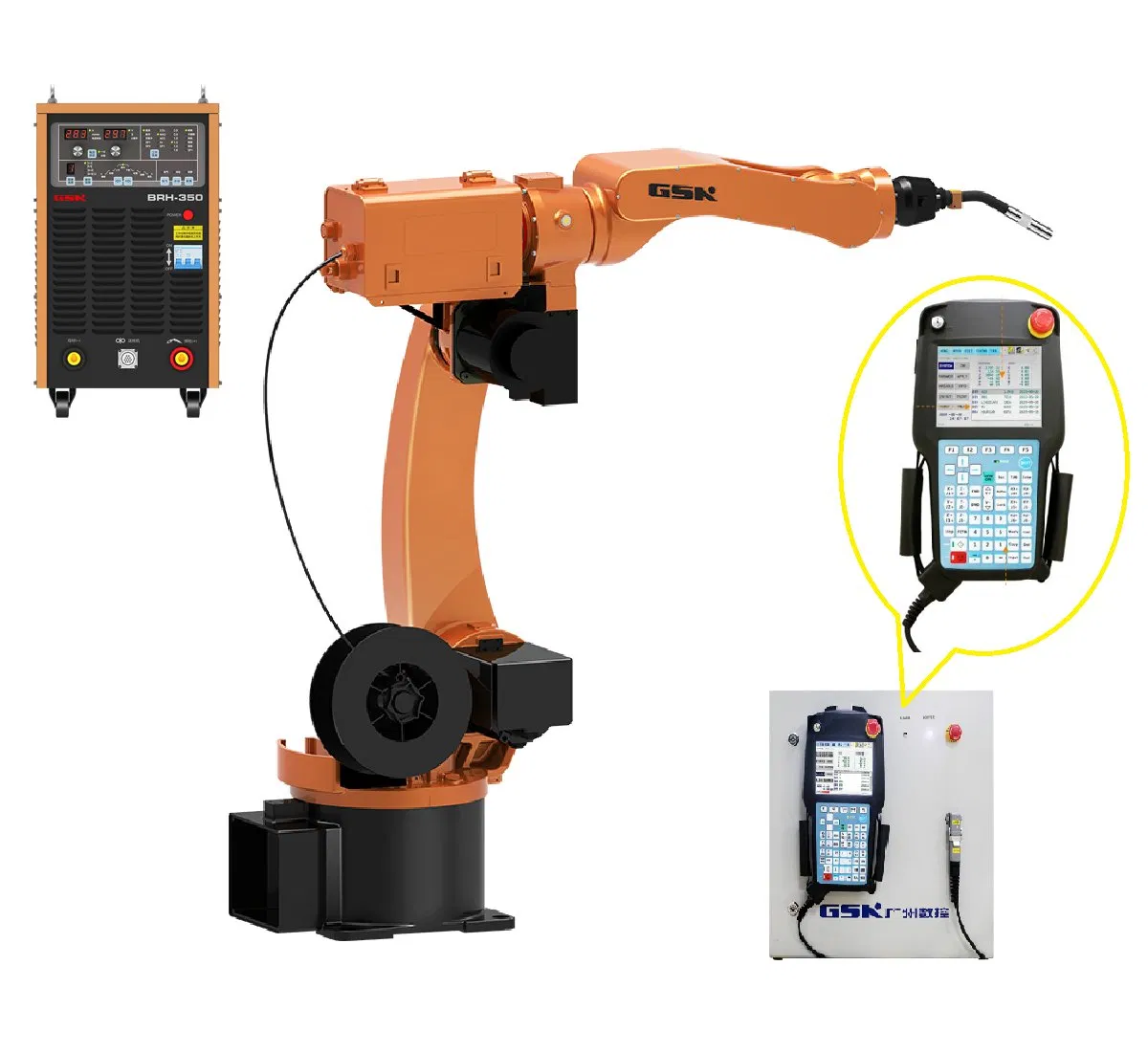

Application field: It is widely used in automobiles and their accessories, motorcycles and their accessories, agricultural machines, engineering machines, and other hardware welding fields.

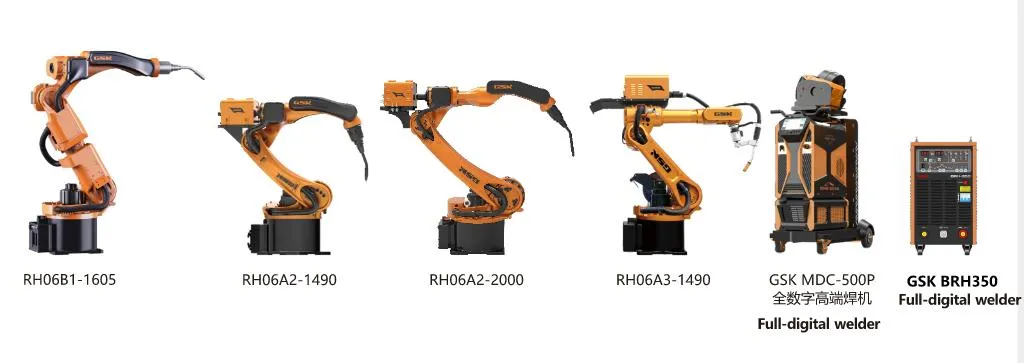

| Type | Dof | Payload (kg) | Repeatability (mm) | Motion Radius (mm) | Machine Weight (kg) |
|---|---|---|---|---|---|
| RH06A2 | 6 | 6 | ±0.05 | 1490 | 185 |
| RH06A3-1490 | 6 | 6 | ±0.05 | 1490 | 185 |
| RH06A3-1700 | 6 | 6 | ±0.05 | 1700 | 187 |
| RH06A3-1850 | 6 | 6 | ±0.05 | 1850 | 280 |
| RH06A3-2060 | 6 | 6 | ±0.05 | 2060 | 285 |
Note: Avoid contact with flammable, explosive, and corrosive gas/liquid. Keep away from noise resources such as plasma equipment.

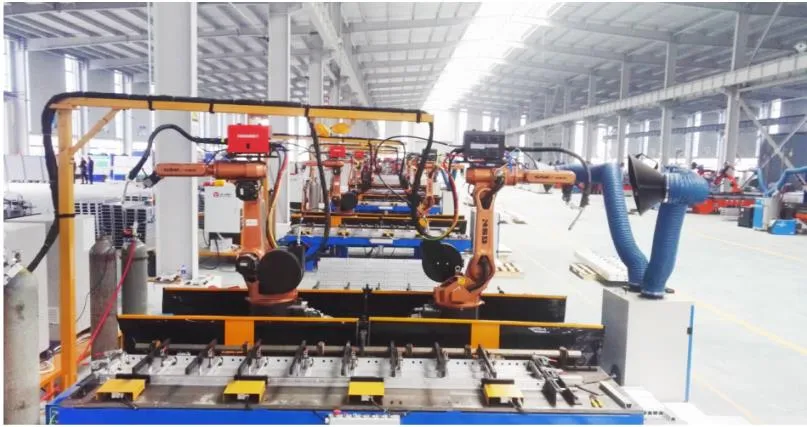

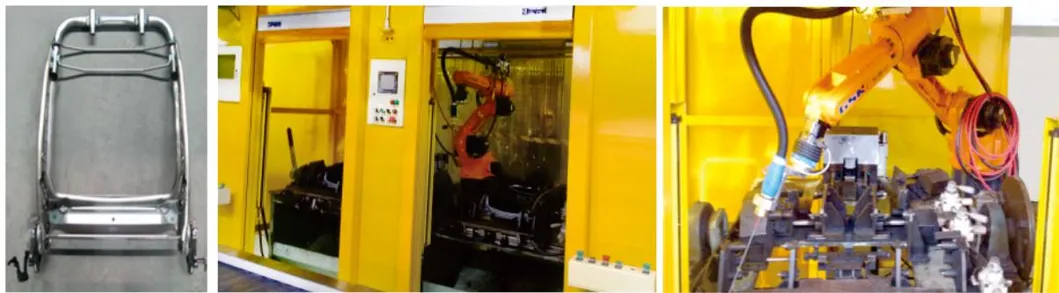

Robot replaces manual work with double-position alternative welding. Equipped with automatic torch cutting mechanism to guarantee production continuity. Ensures product stability and worker safety from smoke, dust, and arc light.

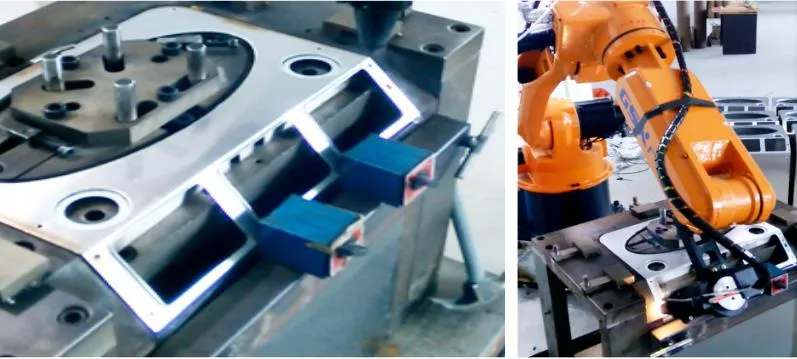

Used for stainless steel sheets (0.6mm) without deformation. Features fiber transmission laser welding for high-speed continuous operation, providing better forming consistency than traditional argon arc welding.

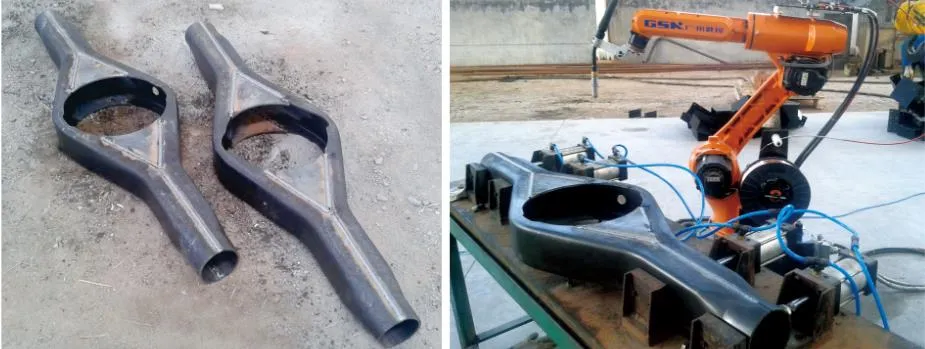

Full-length welding for axle semi-products. The workstation features arc light protection and compact layouts to maximize space utilization. Ensures zero welding faults like undercut or air vents.

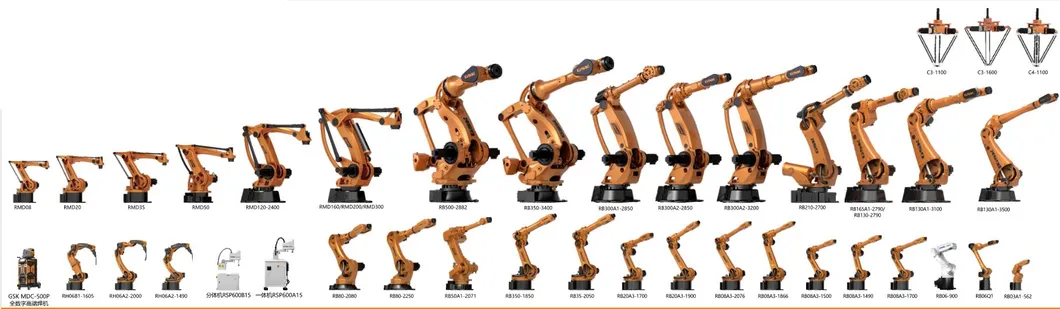

With over 30 years of R&D experience, these industrial robots feature independent intellectual property rights. The family includes 6 series covering transportation, welding, polishing, painting, stacking, and paralleling.
