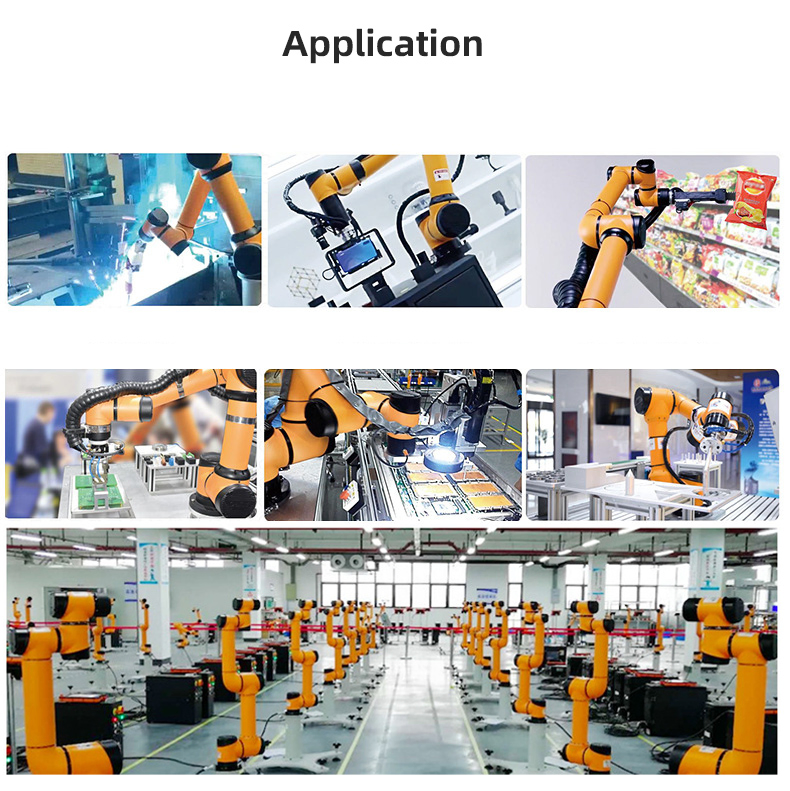

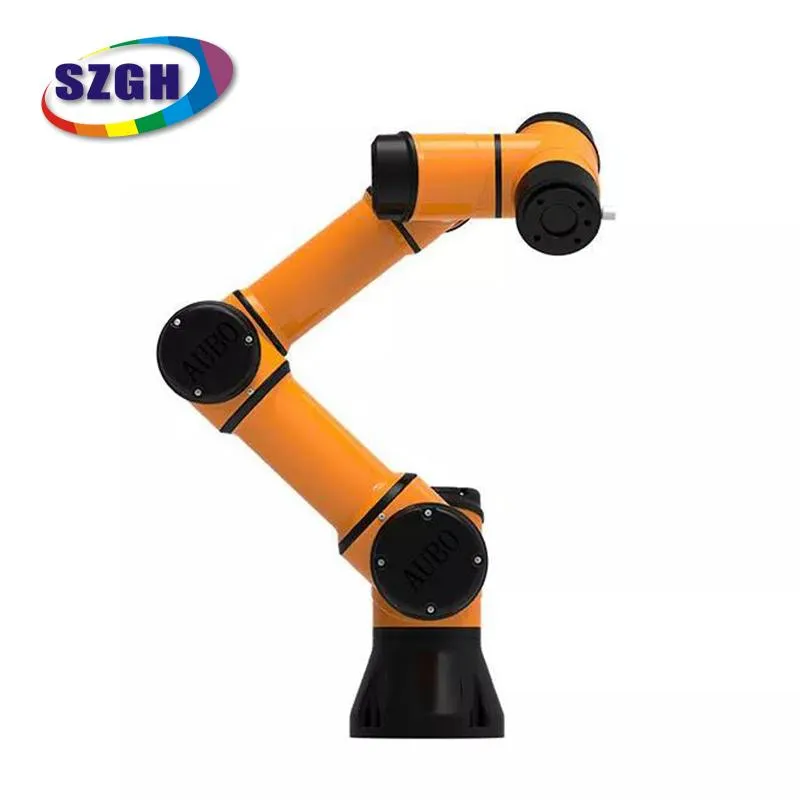

Widely used Mini man-machine collaborative 6 axis industrial robot arm for welding, spraying, and loading-unloading. The cobot series is easy to program and safer than traditional industrial robots.
Program the robot without coding skills. Simply drag and drop the arm to desired positions or use graphical blocks in the APP. The intuitive process takes only minutes.

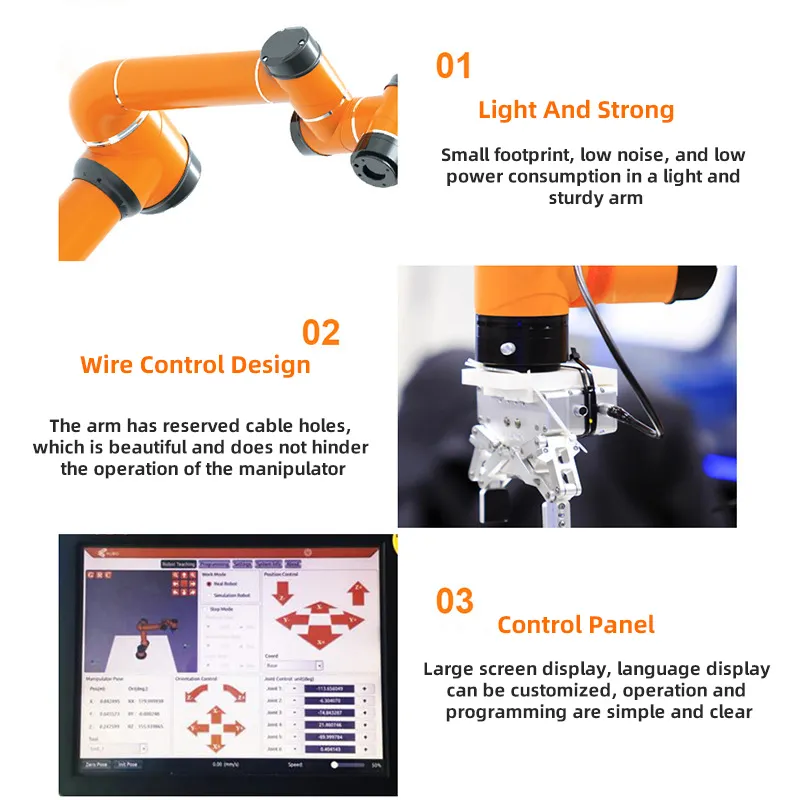

Compact and light design with integrated reducer, motor, encoder, and drive controller. Greatly improves installation and redeployment convenience.

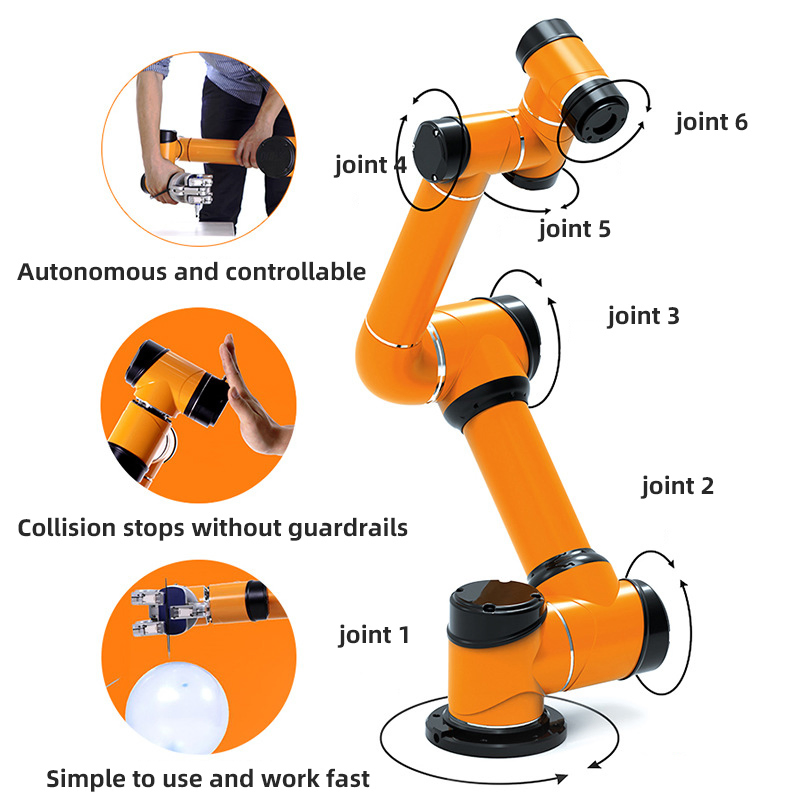

Human-friendly operation. Collision detection control allows the robot to work alongside people without safety fences, ensuring a safe working environment.
| Robot Specifications (SZGH-I10) | |
|---|---|
| Maximum Reach | 1350 mm |
| Maximum Payload | 10 kg |
| Pose Repeatability | ± 0.03 mm |
| Protection Rating | IP54 |
| Power Consumption | 500W |
| Material | Aluminum alloy |
| Power Supply | DC 48V |
| Communication Protocol | CAN bus |
| Controller Size | 727mm * 623mm * 235mm |
| Teach Pendant Screen | 12 inch Resistive LCD touch screen |
| Model Comparison | SZGH-i3 | SZGH-i5 | SZGH-i10 | SZGH-i16 |
|---|---|---|---|---|
| Load | 3kg | 5kg | 10kg | 16kg |
| Reach | 625mm | 886.5mm | 1350mm | 967.5mm |
| Repeatability | ±0.02mm | ±0.02mm | ±0.03mm | ±0.03mm |
| Weight | 16kg | 24kg | 38.5kg | 38kg |
