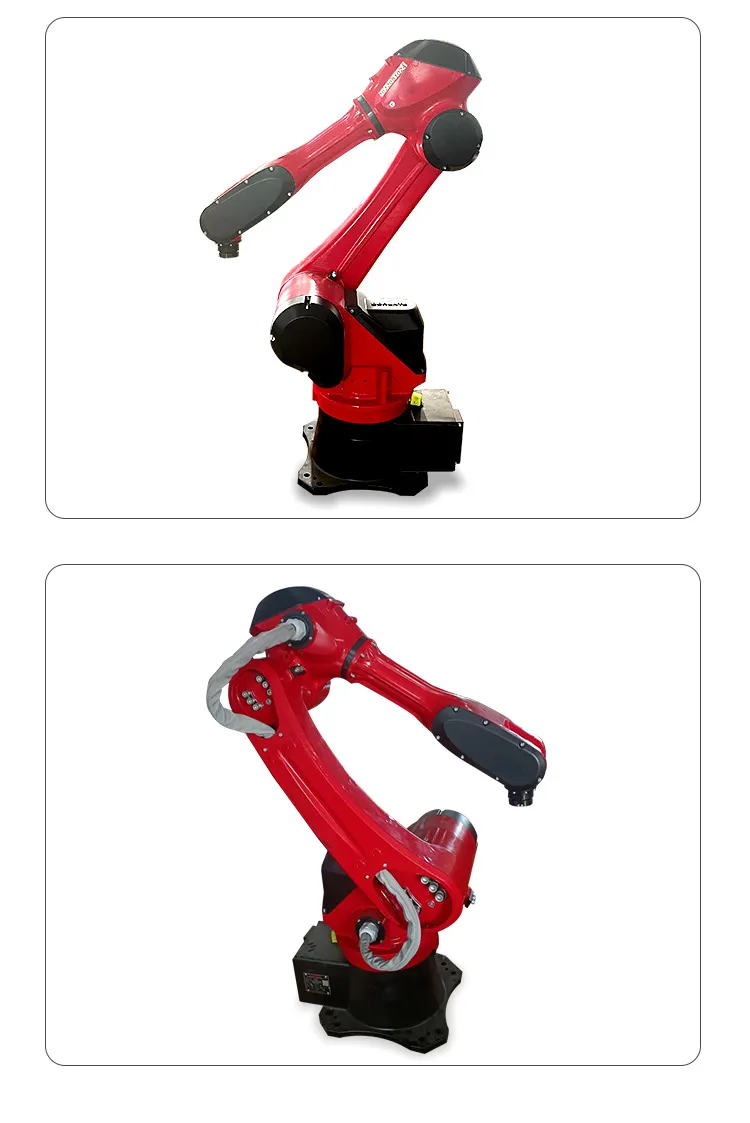

Industrial robots are multi-joint manipulators or multi-degree-of-freedom robots oriented to the industrial field. An industrial robot is a machine device that automatically performs work. It is a machine that realizes various functions by its own power and control capabilities. It can be commanded by humans, or it can run in accordance with a pre-arranged program. Typical applications of industrial robots include welding, painting, assembly, collection and placement, product inspection and testing, etc.; all tasks are completed with high efficiency, durability, speed and accuracy.
| Parameter Specification | Details |
|---|---|
| Model No. | JX10-1440 |
| Controlled Axis | 6-DOF |
| Max Payload | 10 kg |

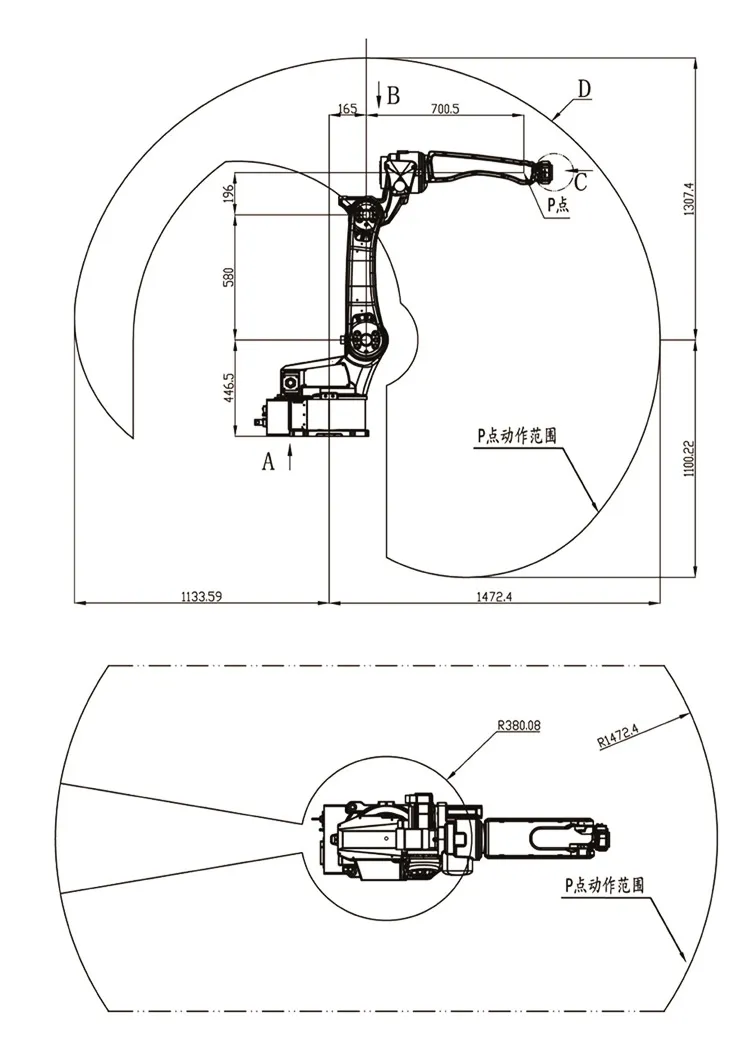

| Max Stroke | 1440mm |
| IP Level | J1, J2-IP56; J3, J4, J5, J6-- IP67 |
| Installation Mode | Floor type, ceiling type |
| Robot Mass | 172 kg |
| Repeatability | ±0.05 mm |
| Welding Machines | Standard: Aotai NBC-350R (MIG/MAG/CO2) Optional: Aotai NBC-350RL (low spatter) |
| Welding Current | 350A/500A |
| Welding Torch | Standard air-cooling torch with built-in anti-collision protection |
| Travel Range | |
| J1 axis S | ±160° |
| J2 axis L | +80°~-145° |
| J3 axis U | +145°~-75° |
| J4 axis R | ±190° |
| J5 axis B | +50°~-210° |
| J6 axis T | ±230° | Travel Speed |
| J1 axis S | 199.5 ˚/s |
| J2 axis L | 159.3 ˚/s |
| J3 axis U | 199.5 ˚/s |
| J4 axis R | 392 ˚/s |
| J5 axis B | 272 ˚/s |
| J6 axis T | 1000 ˚/s |
