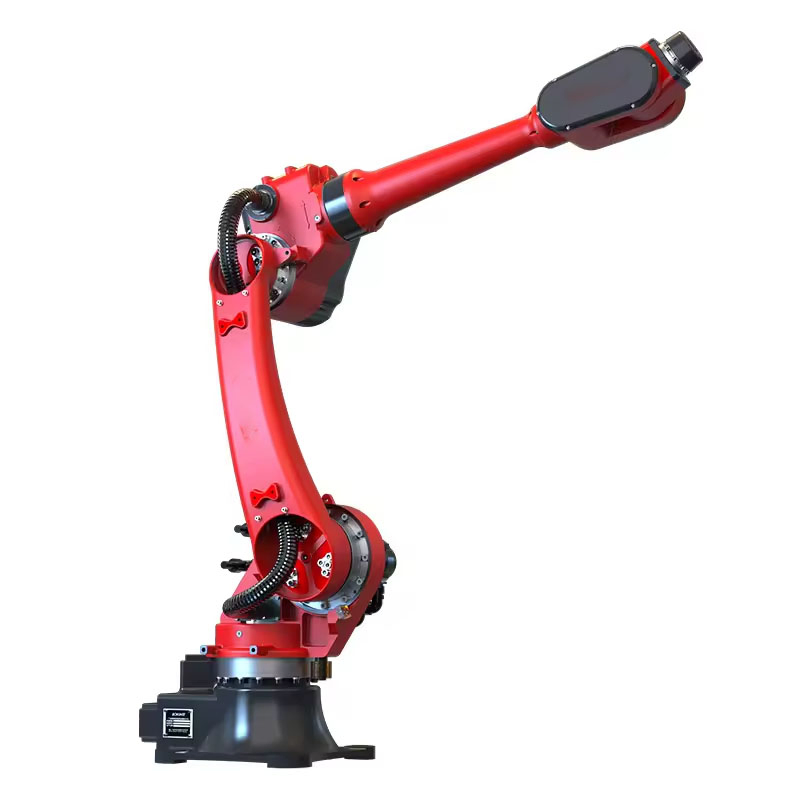

Welding Loading Unloading Spraying Six Axis Industrial Robot Arm

1 / 5

Welding Loading Unloading Spraying Six Axis Industrial Robot Arm

Send Inquiry

Product Description

⚙️ Product Description

6-Axis Articulated Robot Arm with Smart Welding System

The Articulated Robotic Welding System revolutionizes industrial manufacturing with precision-engineered automation. Our 6-axis jointed-arm robots deliver exceptional flexibility and repeatability (±0.02mm), ideal for complex welding tasks in demanding environments. Integrated with smart vision systems and IoT-ready controllers, this solution ensures seamless integration into existing production lines.

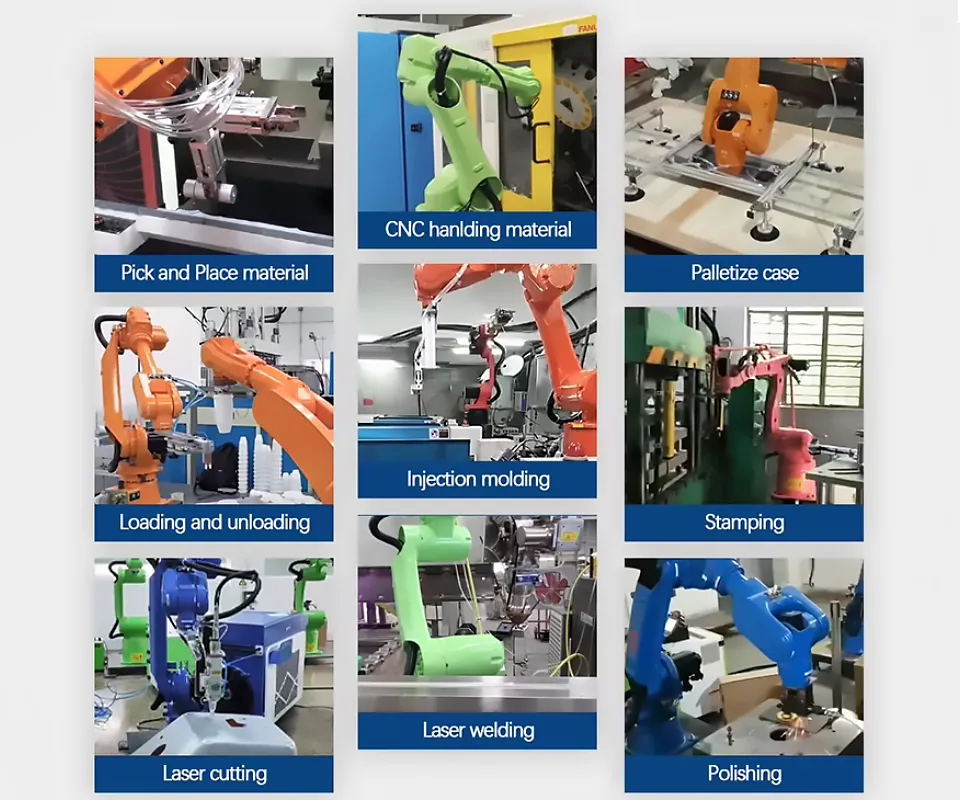

Collaborative robots combined with end-to-end integration have formed a complete product matrix. Successfully utilized in various application scenarios: welding, cutting, screw locking, gluing, spraying, warehousing, and sorting across industrial automation, medical care, smart agriculture, and retail sectors.

🛡️ Extremely Safe
Stable and reliable performance

🔄 Flexible Deployment
No usage threshold for setup

💎 Efficient Protection
Perfect fit for various tasks

🚀 Ecosystem Ready
Full empowerment for automation

📊 Technical Specifications

Application	Pick and place / welding / polishing / gluing / other
Condition	New
Warranty	1 Year
Style	Collaborative 6-Axis
Core Advantages	Safer work, flexible deployment, easier operation, ROS support
Storage / Memory	2GB
Teaching Box	Full keyboard + touch screen, mode select, safety/emergency switches
Controlled Axes	6 basic axes + 6 external axes (Total 12 axes support)
Interface	Multiple encoder signals, terminal interface, Ethernet, serial communication
Safety Module	Emergency and anomaly linkage for rapid stop
Operation Modes	Teaching, representation, remote control, drag-to-teach
Motion Functions	Point-to-point, linear, circular
Anomaly Detection	Emergency stop, servo anomaly, anti-collision, arcing anomaly, coordinate anomaly

🧠 Advanced Control System

Support up to 4-12 Axis Control

🔹 Optimization: Algorithms suitable for various body structure controls.
🔹 Open Structure: Synchronization of international technology and function extension.
🔹 Software PLC: Facilitates logic control and easy process programming.
🔹 Modular Design: Suitable for diverse applications with integrated safety modules.
🔹 Bus Connection: Absolute servo support via high-speed computer bus for reliability.

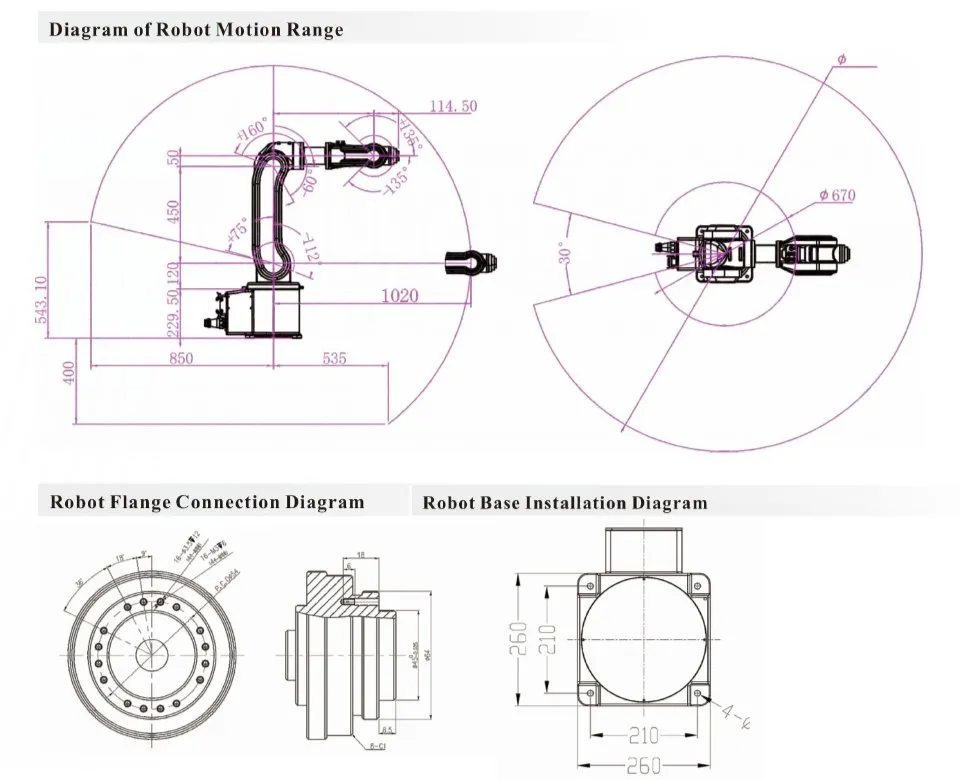

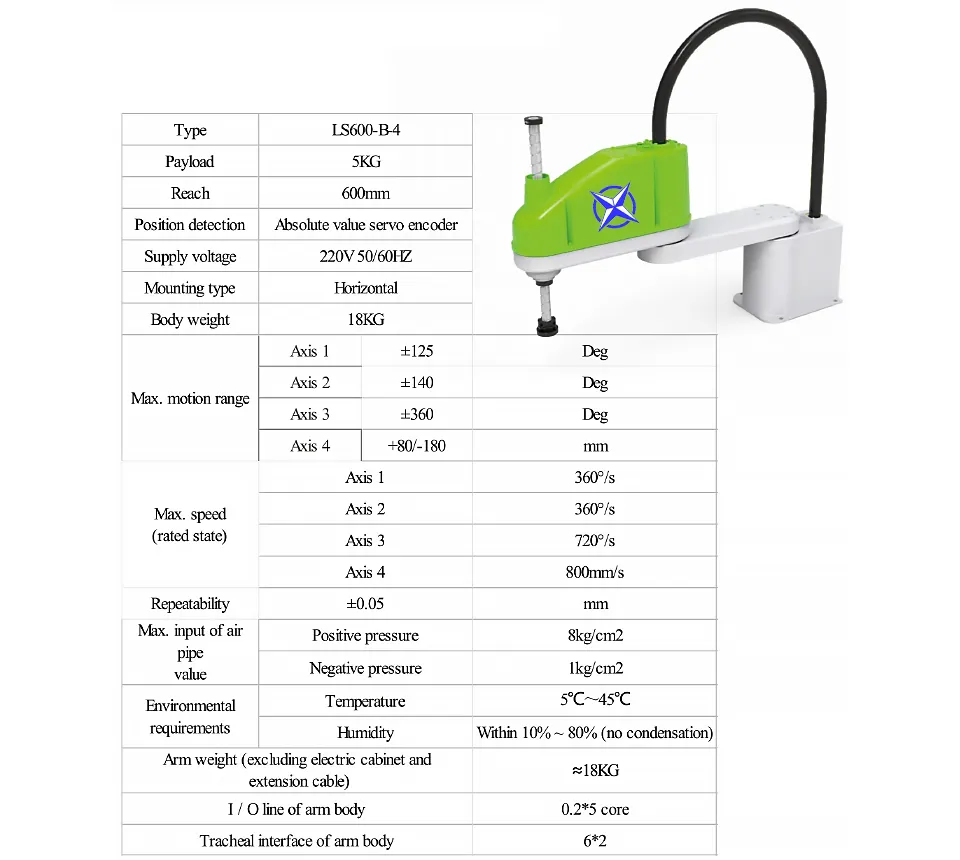

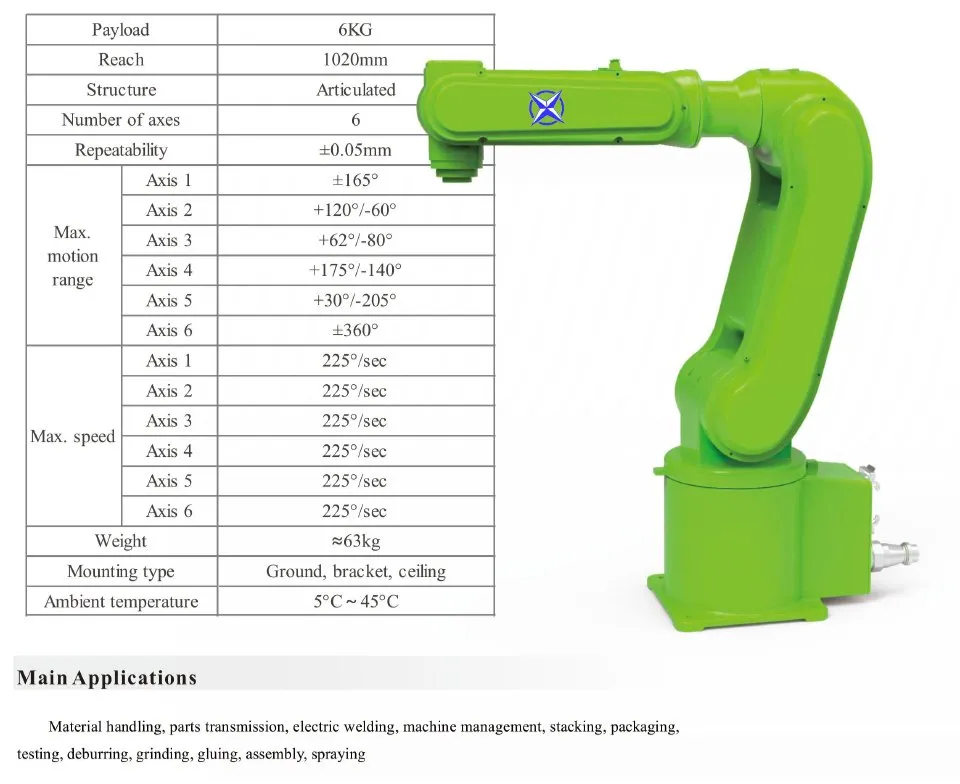

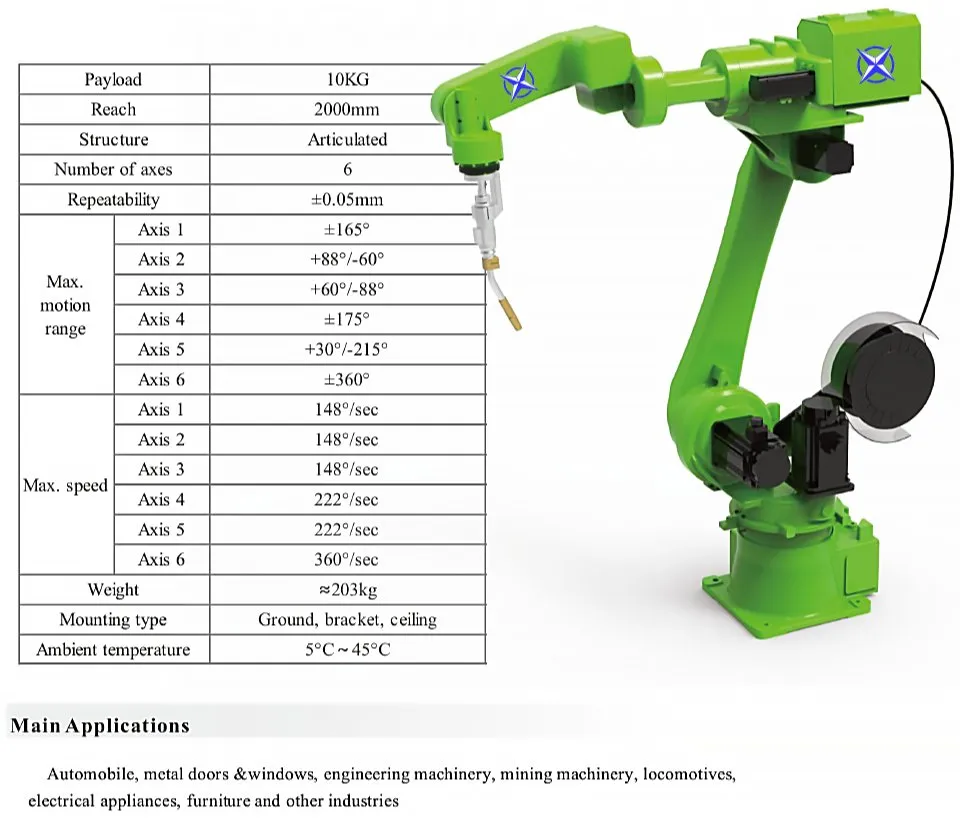

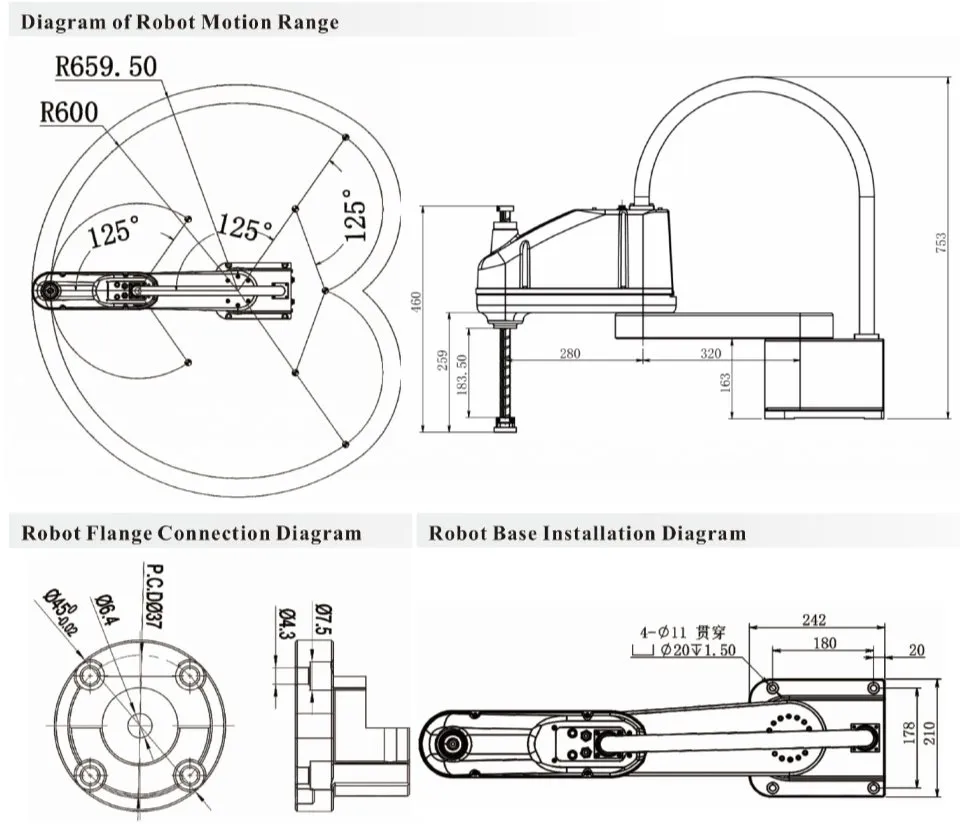

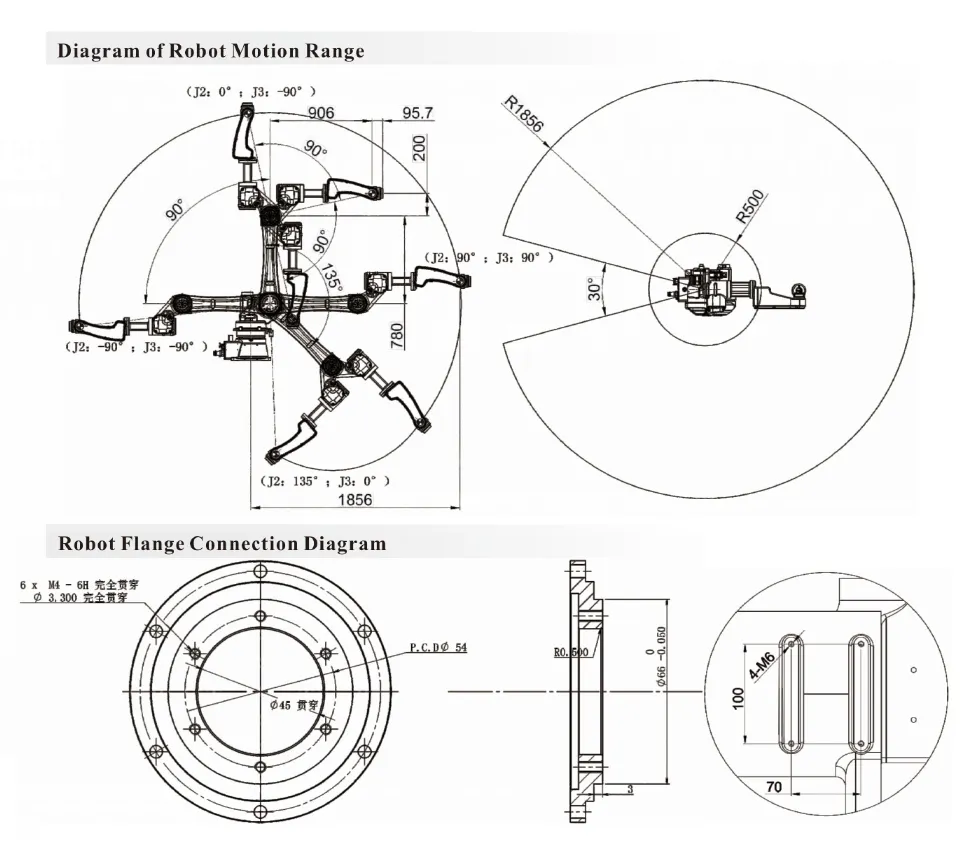

📂 Product Series Gallery

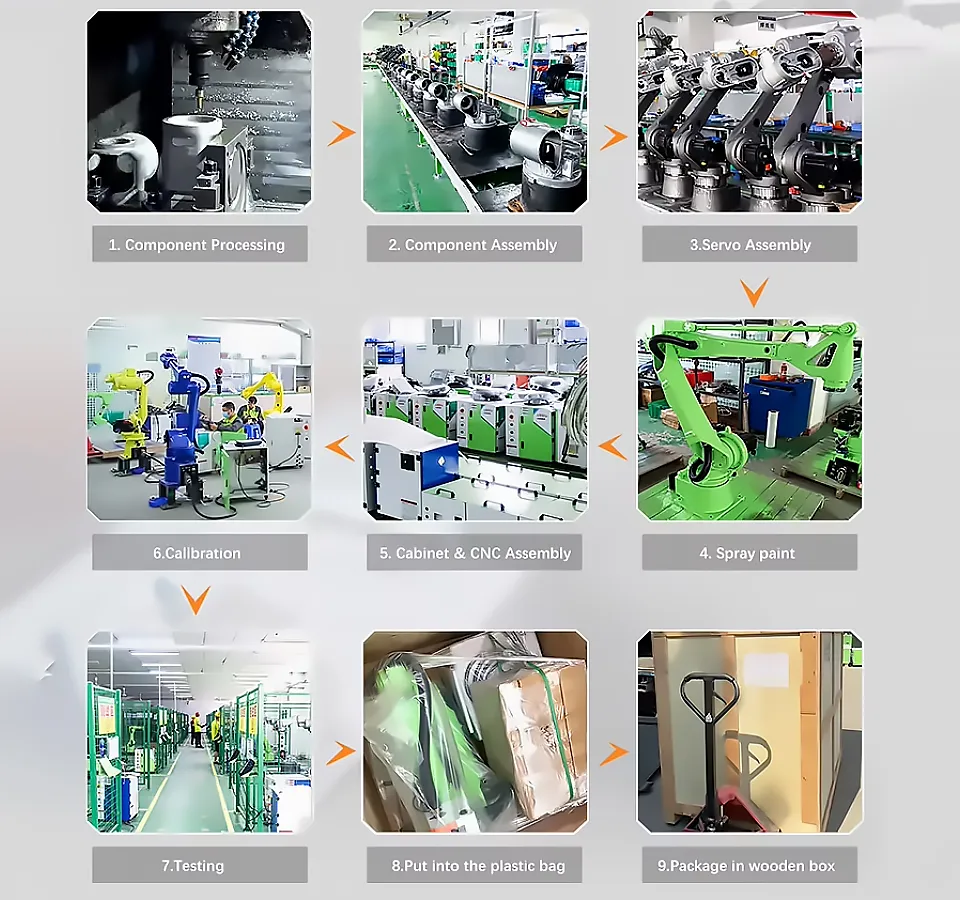

🔧 Components & Production

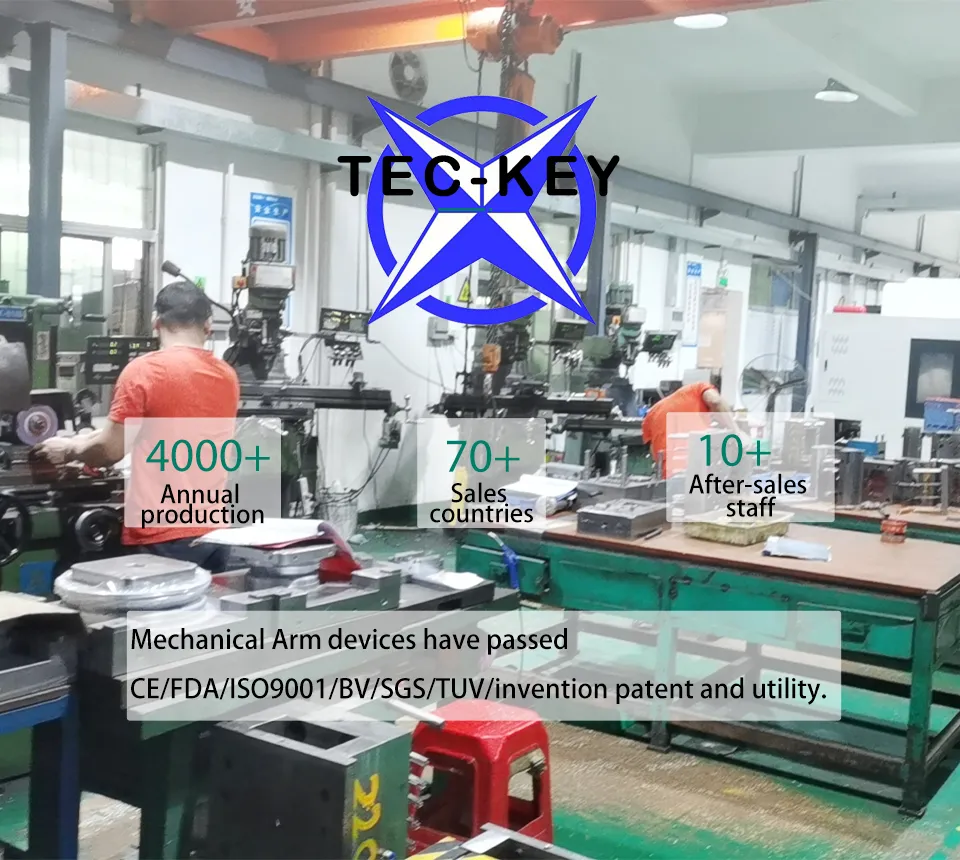

🏭 Manufacturing Capabilities

Our production range covers high-precision metal and plastic parts, serving diverse global requirements. Capabilities include Metal Stamping, Sheet Metal Fabrication, Die Casting, CNC Machining, and Plastic Injection Molding. We provide comprehensive services from R&D and Prototyping to Assembly and complete production line operation testing.

📦 Packaging & Shipping

❓ Frequently Asked Questions

1. How is the product quality guaranteed?

Quality is ensured through full pre-testing by professional engineers and a final 100% inspection process before every shipment.

2. What types of robotic solutions do you offer?

We provide industrial robot arms for welding, painting, spraying, material handling, pick and place, grinding, and other customized automation solutions.

3. Can the system control external axes?

Yes, our system supports up to 4-12 axis control, allowing seamless synchronization with traveling axes and positioners.

4. What programming methods are supported?

The system supports online teaching, process programming, and intuitive teaching by dragging for rapid deployment.

5. Is technical support available after purchase?

We offer 24-hour online technical problem solving, as well as on-site installation and production line operation testing services.

6. What safety features are integrated into the robot?

The robot includes a dedicated safety module that links emergency stop and anomaly signals, plus anti-collision detection to protect both operators and equipment.
