Advanced 6 Axis Gantry TIG Welding Robot Arm with AGV

Send Inquiry

Product Description

6 Axis CNC Industrial Automatic Arm Robot Welding Robot

Application field: It is widely used in automobiles and their accessories, motorcycles and their accessories, agricultural machines, engineering machines, and other hardware welding fields.

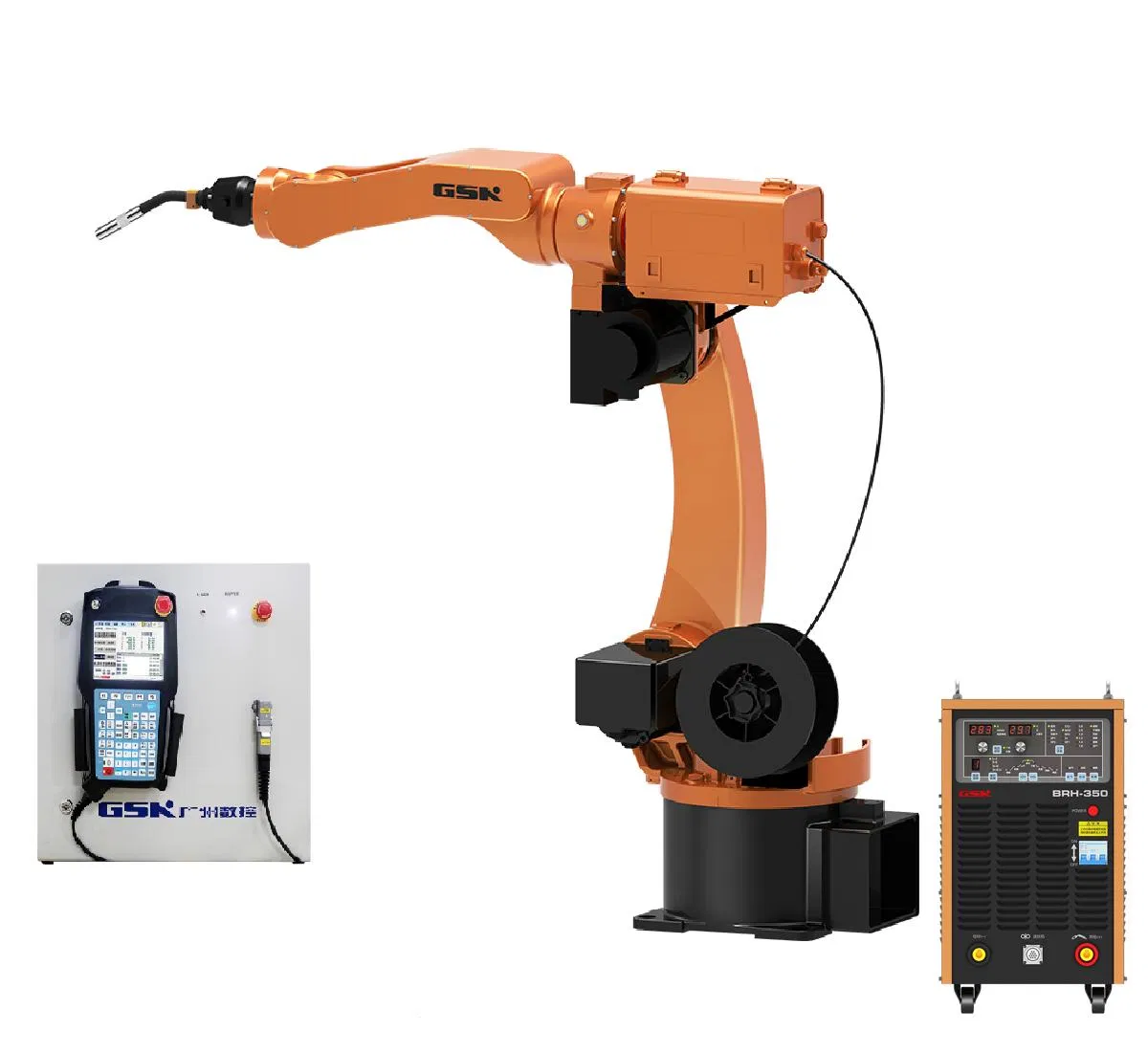

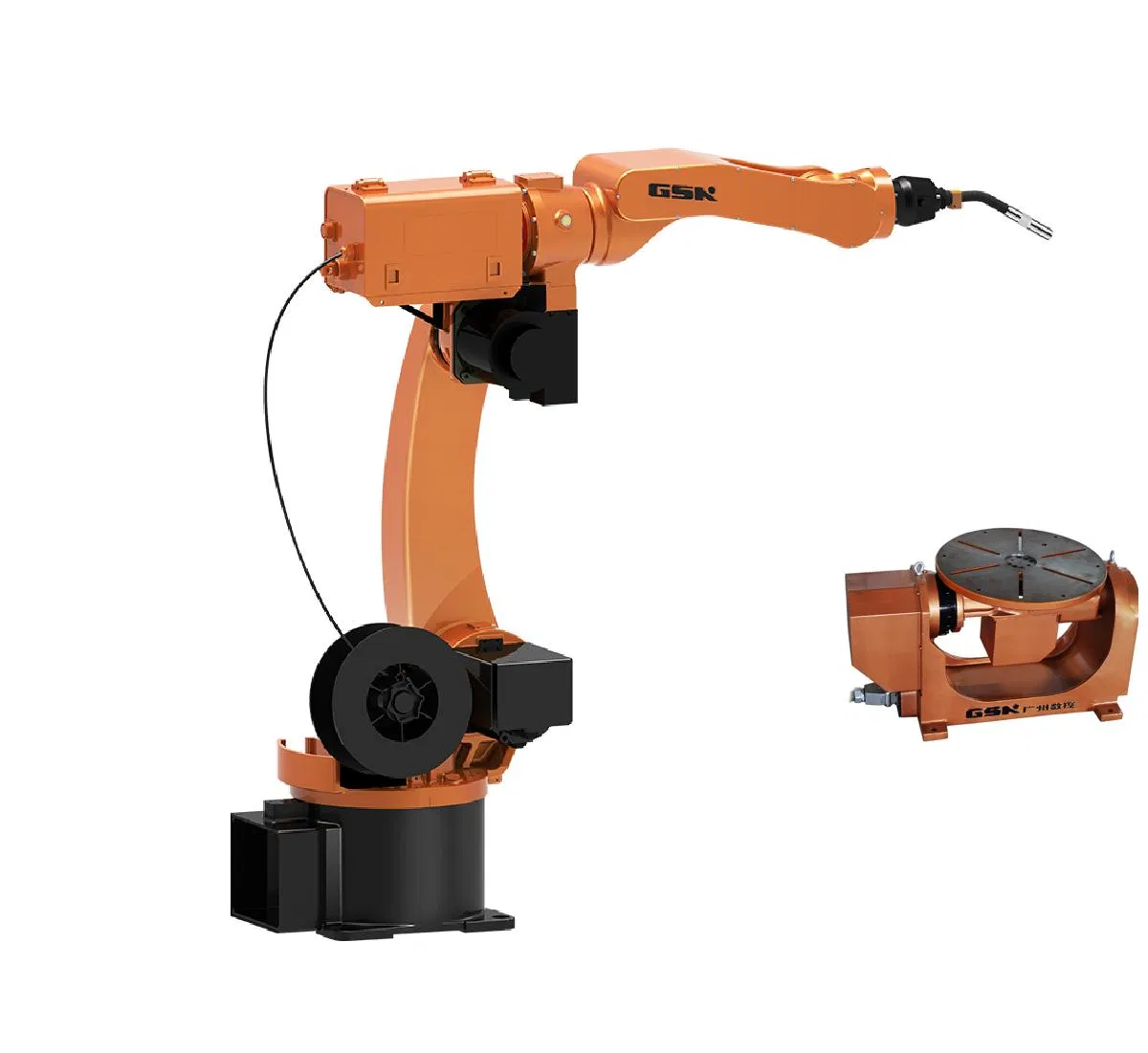

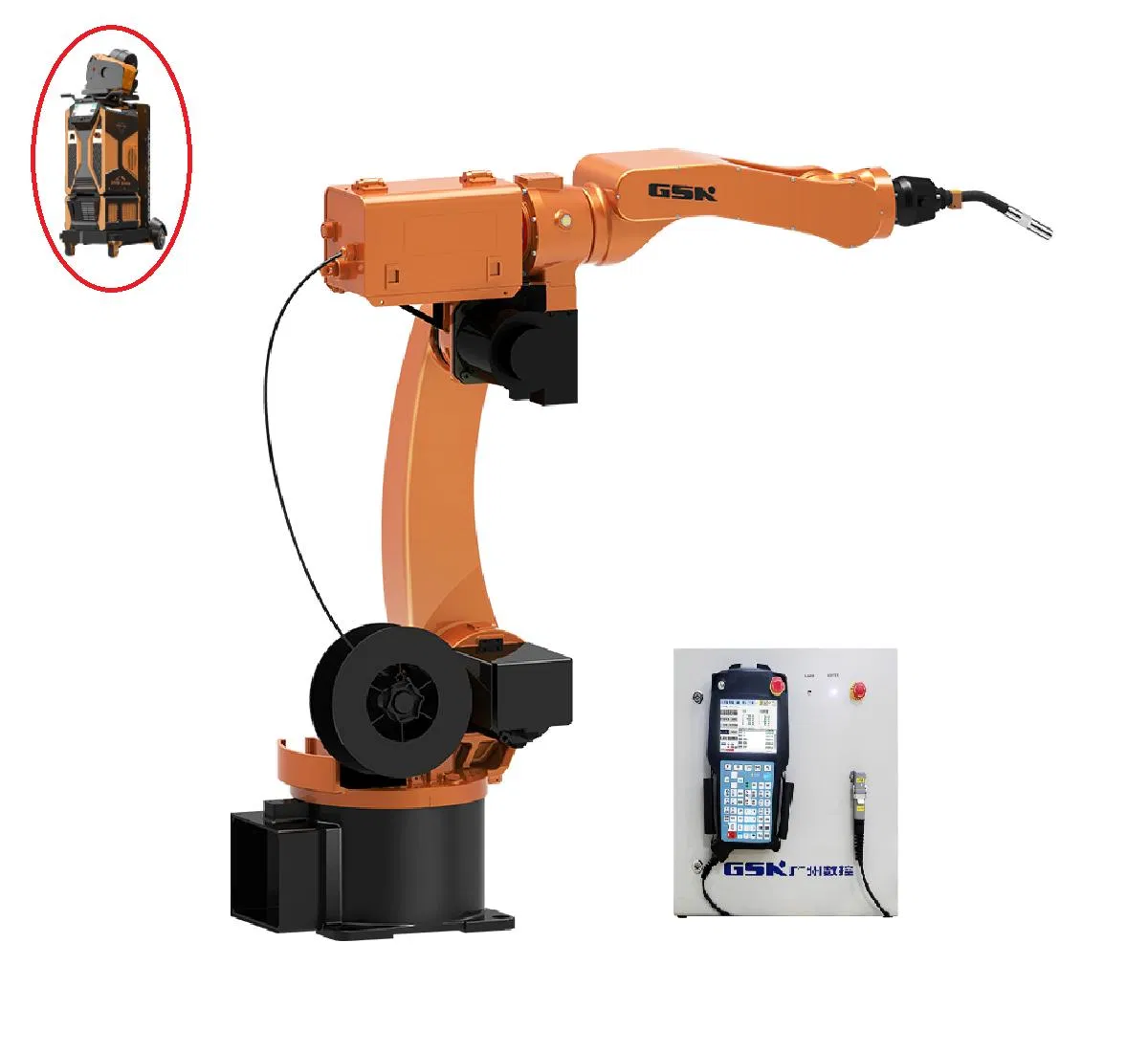

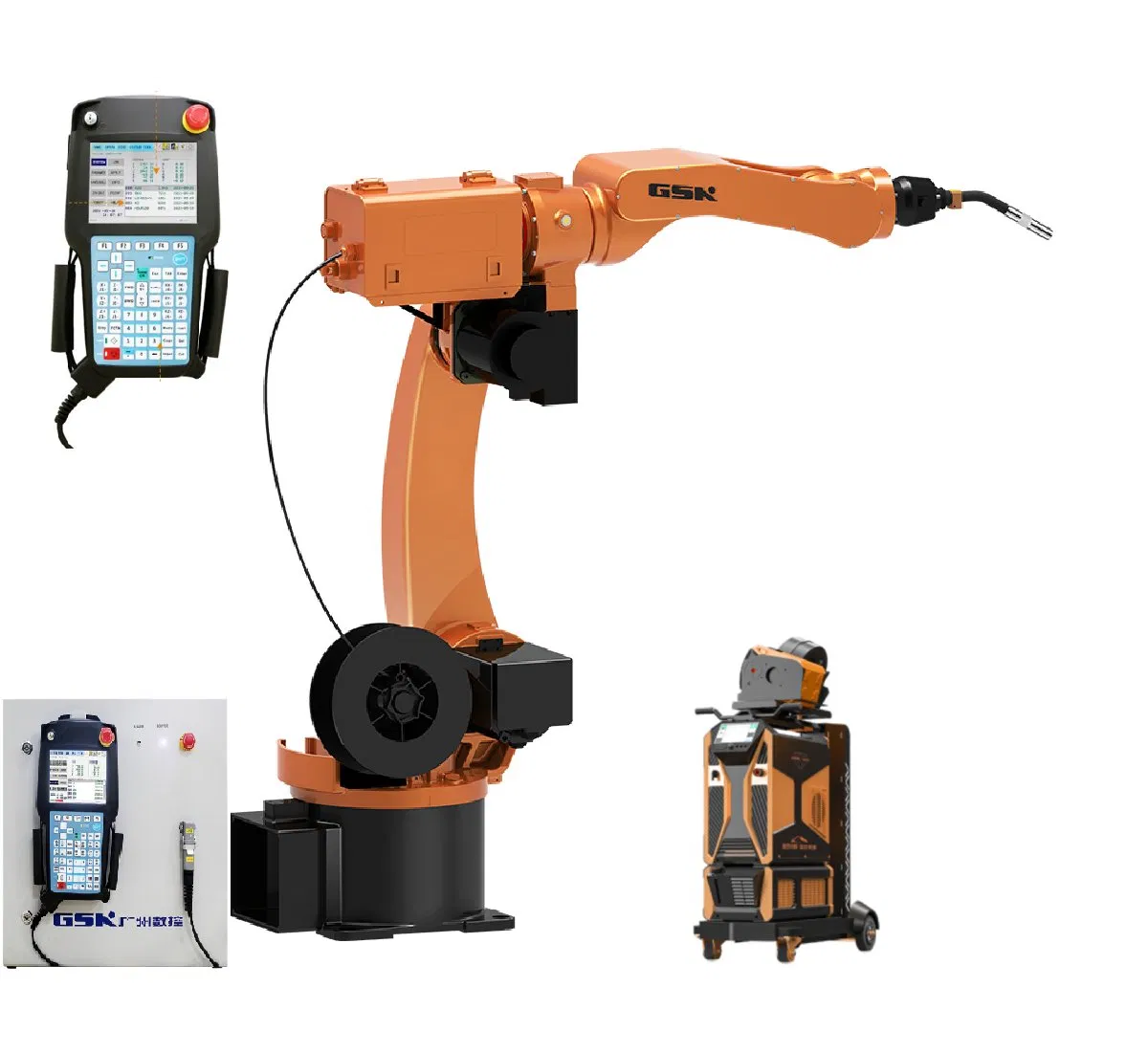

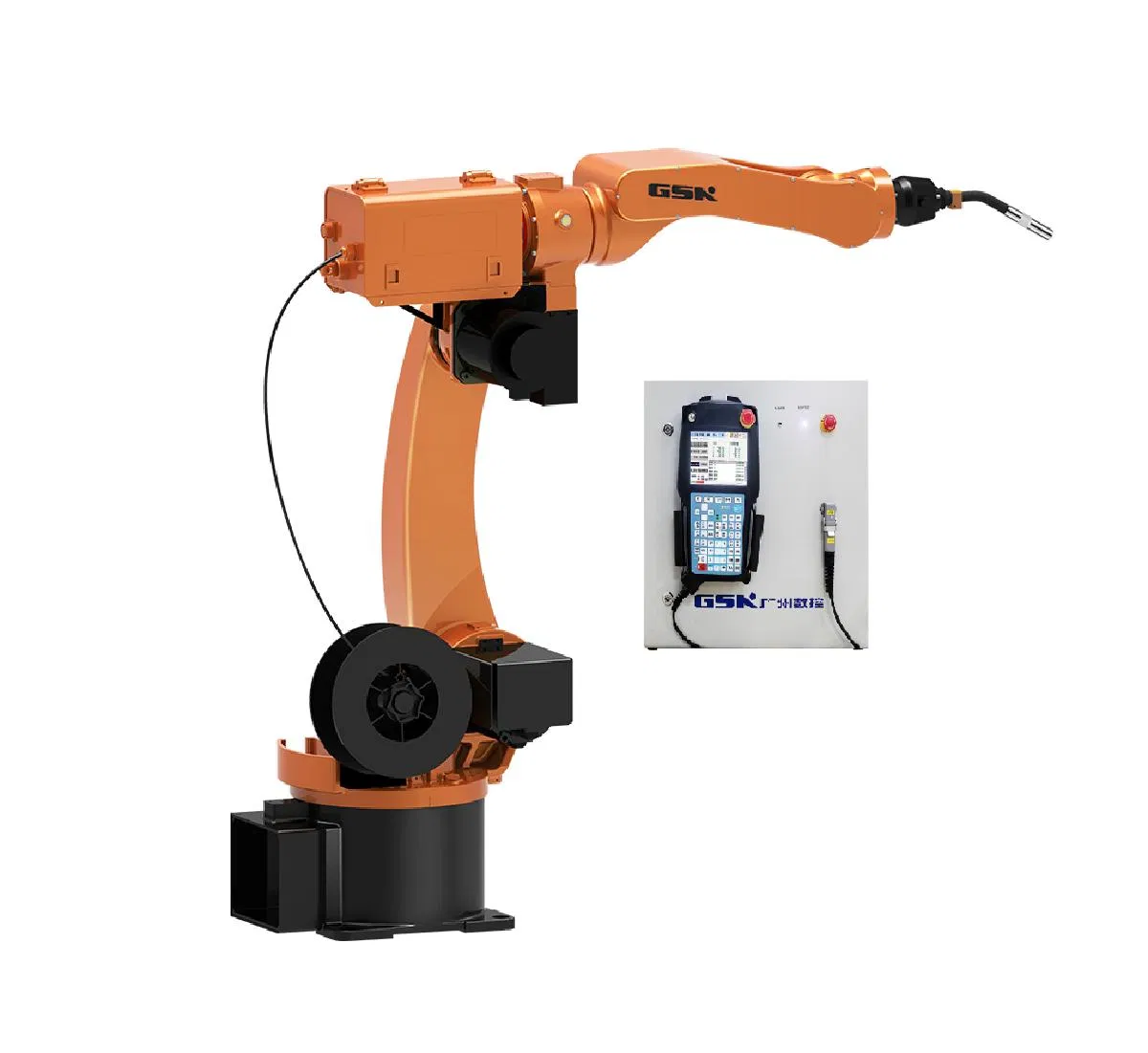

Advanced 6 Axis Gantry TIG Welding Robot Arm

Type	Dof	Drive Method	Payload (kg)	Repeatability (mm)	Motion Range (°)						Top Velocity (°/s)						Motion Radius (mm)	Weight (kg)
Type	Dof	Drive Method	Payload (kg)	Repeatability (mm)	J1	J2	J3	J4	J5	J6	J1	J2	J3	J4	J5	J6	Motion Radius (mm)	Weight (kg)
RH06A2	6	AC Servo	6	±0.05	±170	+115/-80	+80/-150	±180	±135	±360	200	200	200	305	370	630	1490	185
RH06A3-1490	6	AC Servo	6	±0.05	±170	+120/-85	+83/-150	±180	±135	±360	200	200	200	400	356	600	1490	185
RH06A3-1700	6	AC Servo	6	±0.05	±170	+120/-85	+83/-150	±180	±135	±360	180	180	180	400	356	600	1700	187
RH06A3-2060	6	AC Servo	6	±0.05	±170	+145/-100	+75/-165	±180	±135	±360	165	165	170	300	356	600	2060	285

Note: Avoid contact with flammable, explosive, and corrosive gas/liquid. Keep away from noise resources such as plasma.

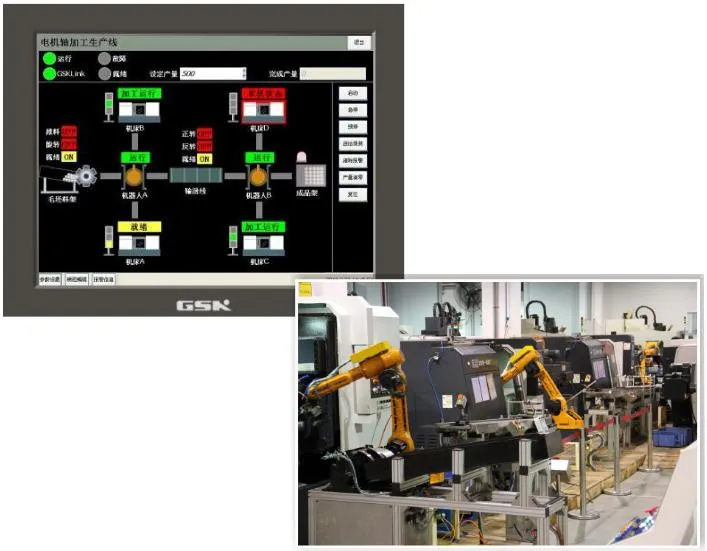

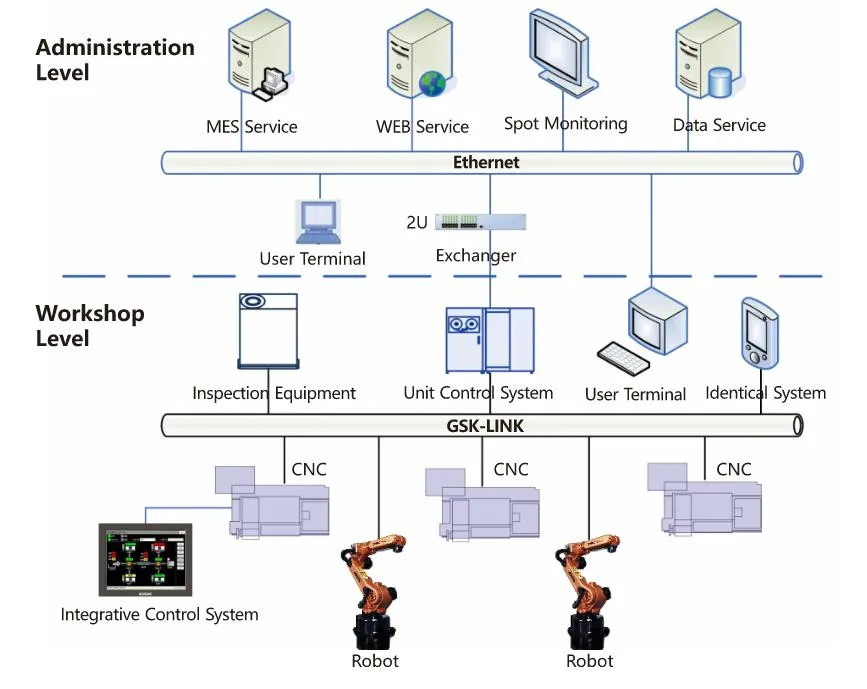

Production Line Unit Control System

✔ Monitor management system for assembling production lines used for machining all kinds of parts.

✔ Realizes high-speed connection between CNC machines, industrial robots, and auxiliary devices via on-site bus.

✔ On-line and off-line programming support.

✔ Maximally improves production efficiency and stability of quality while reducing labor costs.

Industrial Applications & Case Studies

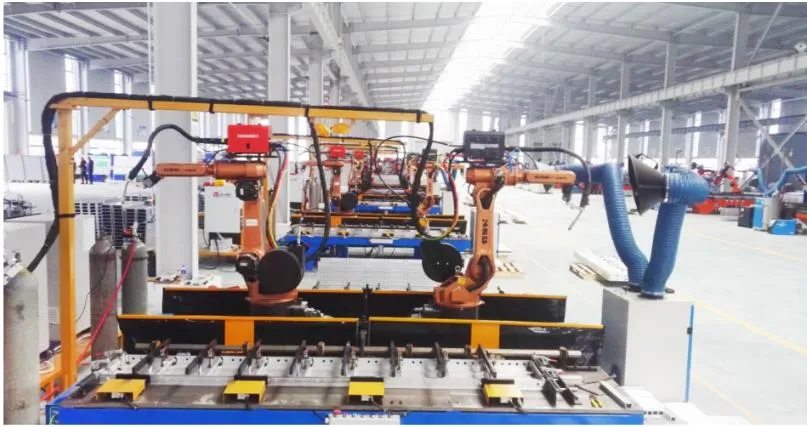

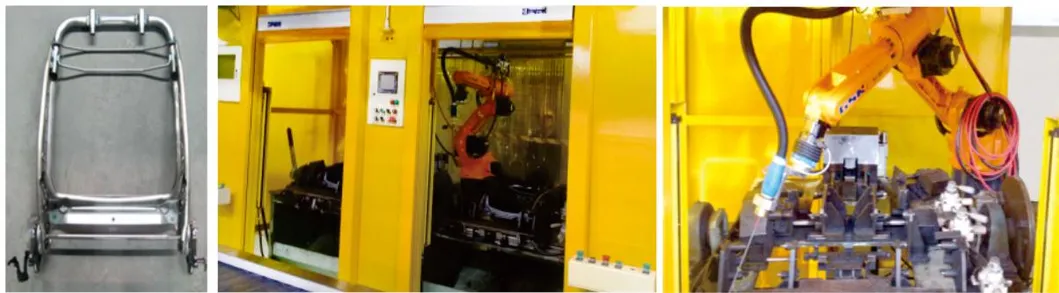

Aluminum Template Industry Welding

Robot replaces manual work with double-position alternative welding. Equipped with an automatic torch cutting mechanism to guarantee production continuity. It effectively ensures product stability and transforms labor-intensive manufacturing into intelligent production.

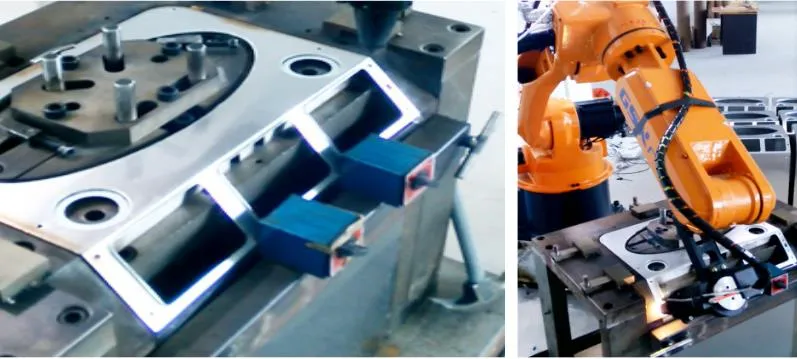

Laser Welding for Small Appliances

Supports 0.6mm stainless steel sheet welding with no obvious deformation. Utilizing optical fiber transmission, the system achieves high-speed continuous welding with better consistency and color than traditional argon arc welding.

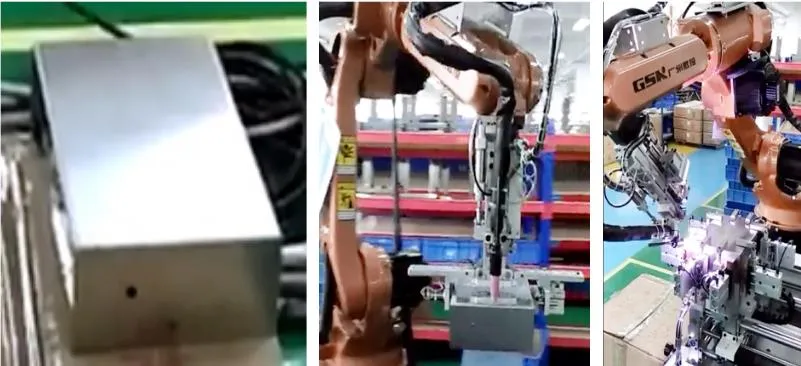

Electrical Industry TIG Welding

Automated loading, unloading, and welding of stainless steel products. Tooling is flexible, allowing automatic adjustments to length and width based on selected procedures.

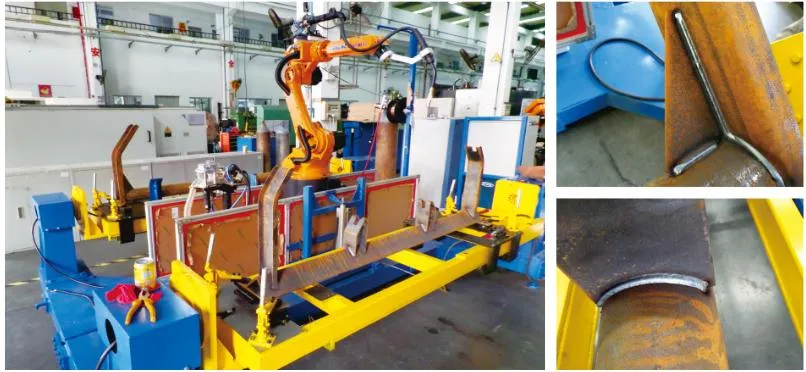

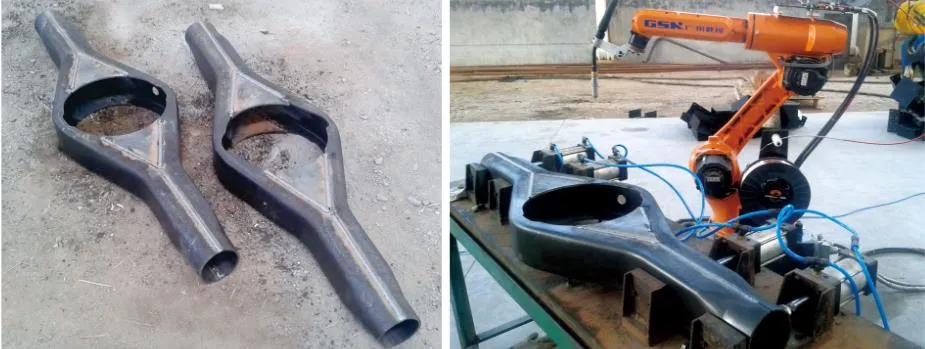

Automobile & Axle Welding

Ensures full-length welding without distortion or faults like undercutting and air vents. The workstation is compact, featuring arc light guards and safety light curtains for high-risk environments.

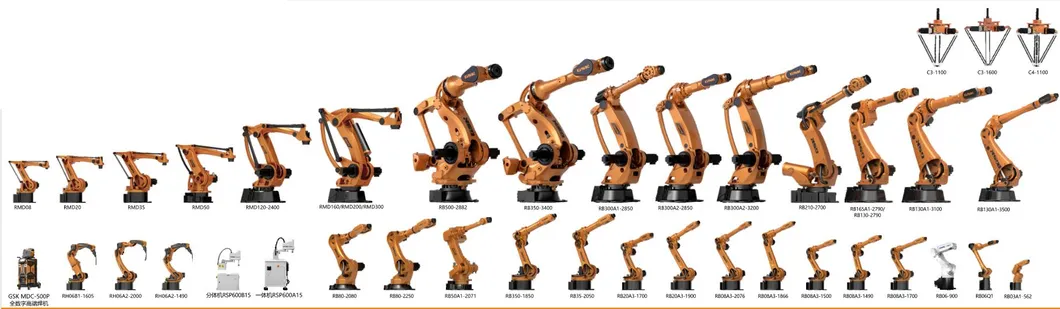

Robot Family & Capabilities

With over 30 years of R&D experience, the industrial robot series covers transportation, welding, polishing, painting, stacking, and paralleling. These systems include independent intellectual property for controllers, servo motors, and drivers.

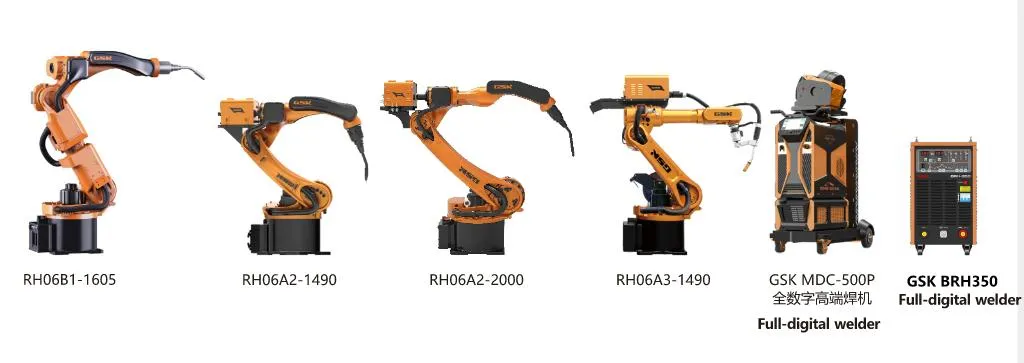

Main Product Portfolio

Frequently Asked Questions (FAQ)

1. What industries are these 6-axis welding robots best suited for?

These robots are ideal for the automobile, motorcycle, agricultural machinery, engineering machinery, and small appliance industries, specifically for precision hardware welding.

2. Can the robot handle different types of welding?

Yes, the 6-axis arm is versatile and supports various welding methods including TIG, MAG, CO2, and high-speed Laser welding.

3. What is the repeatability precision of the welding robot?

The robots feature a high repeatability precision of ±0.05mm, ensuring consistent and high-quality weld beads across mass production.

4. How does the robot improve production safety?

By replacing manual labor in high-risk environments, robots protect workers from high temperatures, smoke, dust, and harmful arc light. Workstations are also equipped with safety curtains and arc guards.

5. Does the system support automated production lines?

Yes, the control system utilizes high-speed on-site bus connections to integrate seamlessly with CNC machines and auxiliary conveyor devices for full-process automation.

6. Is the robot capable of welding thin materials?

Absolutely. Case studies show successful application on 0.6mm stainless steel sheets with minimal deformation and excellent aesthetic forming results.
