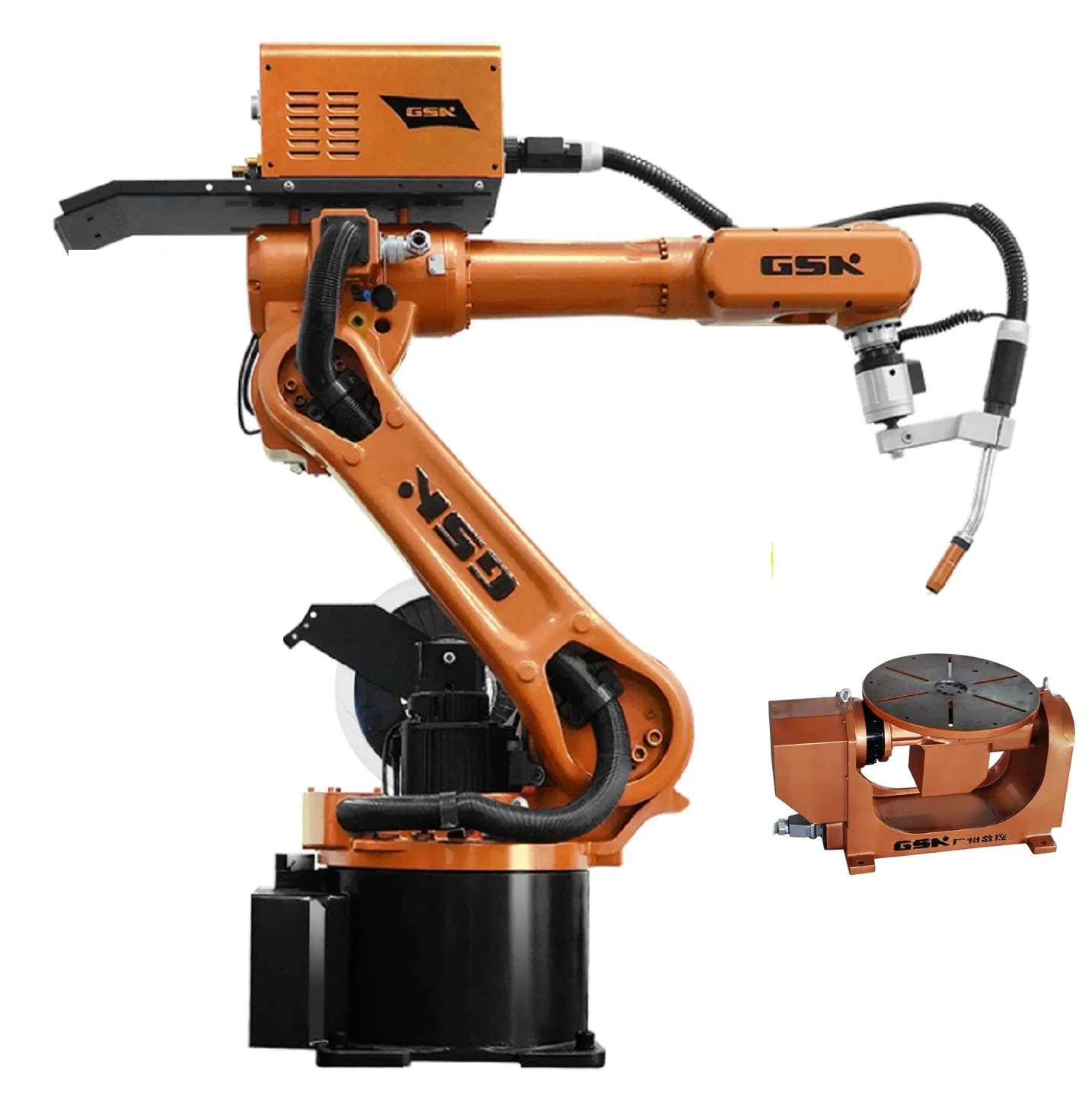

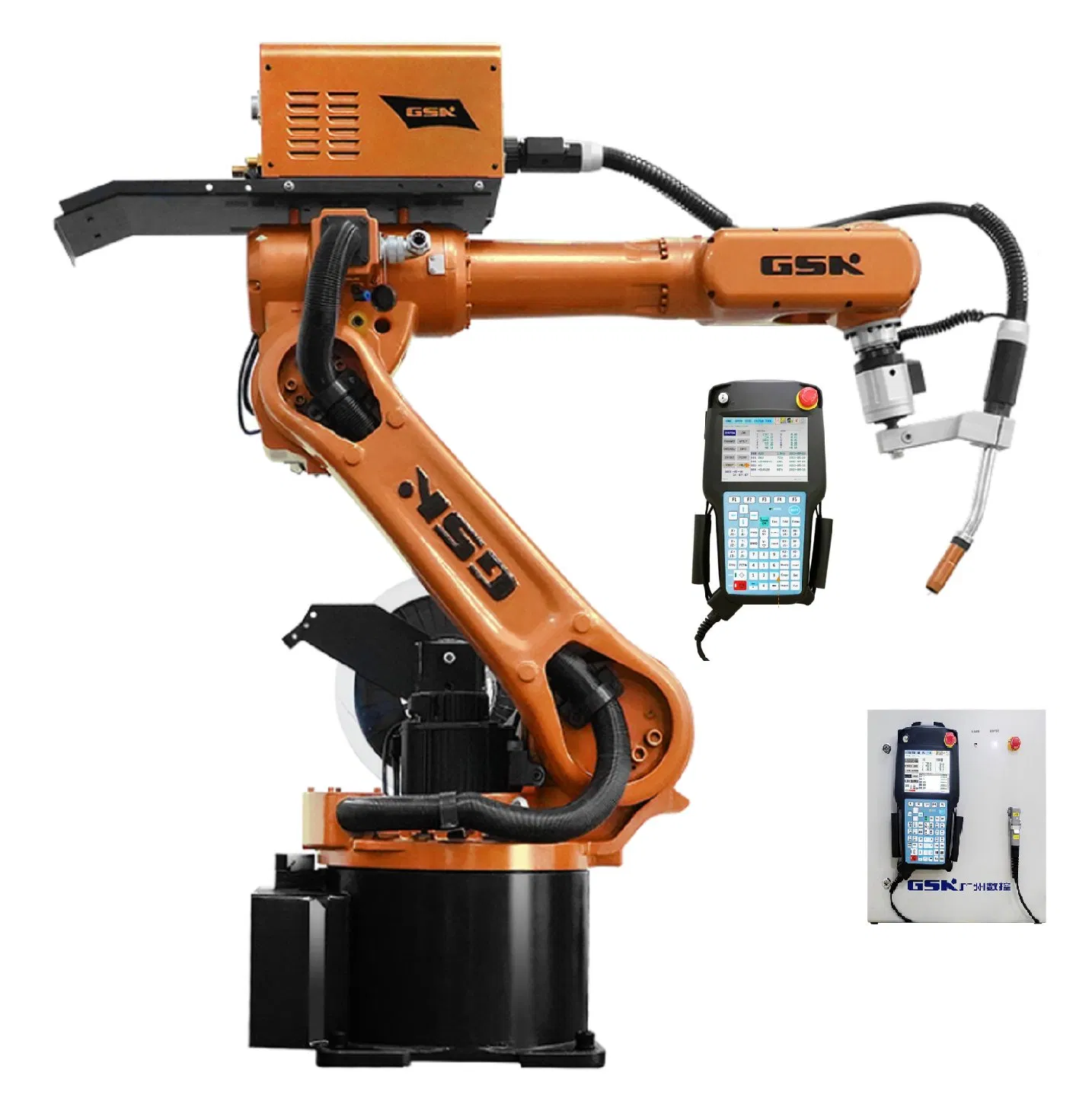

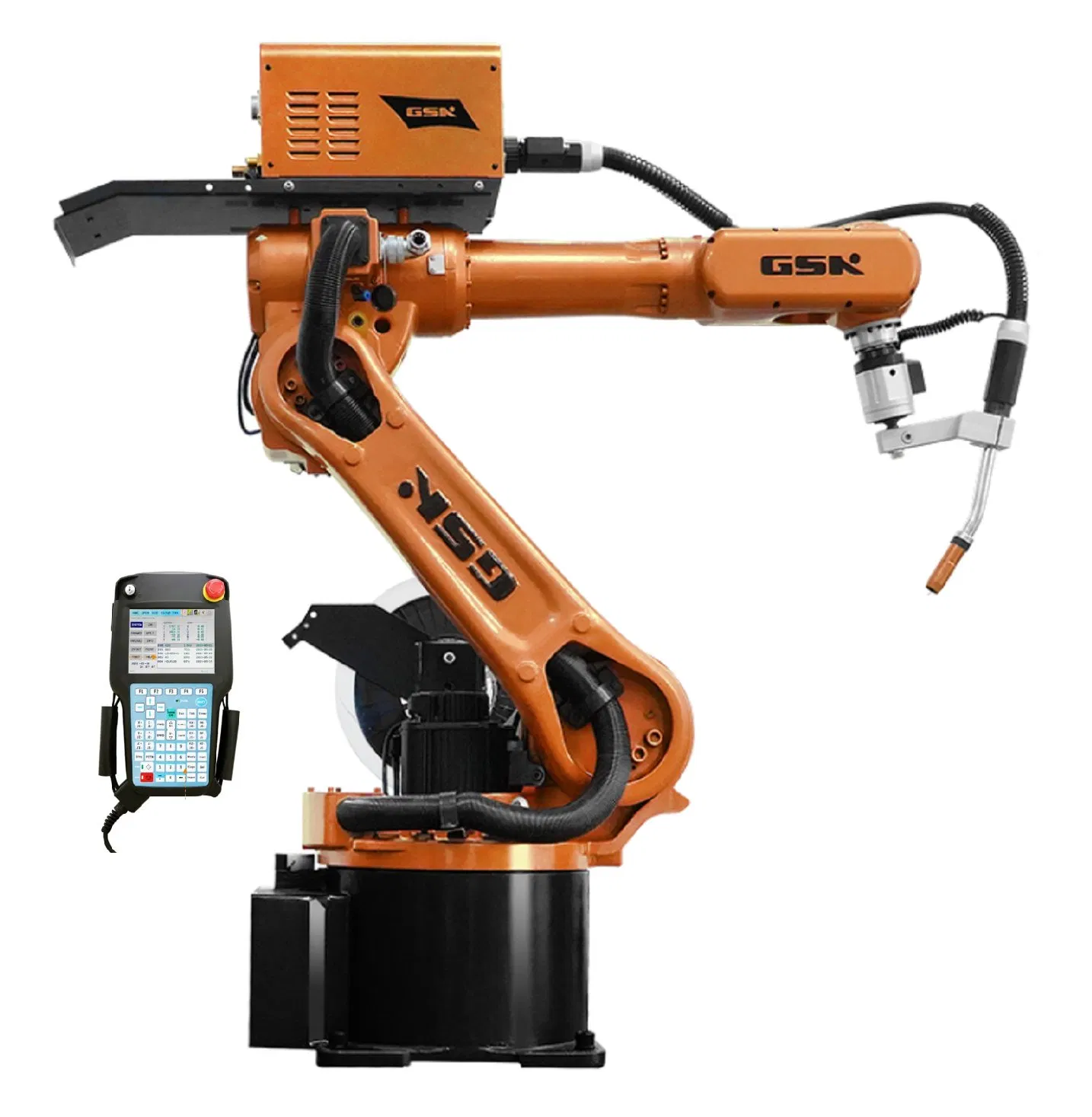

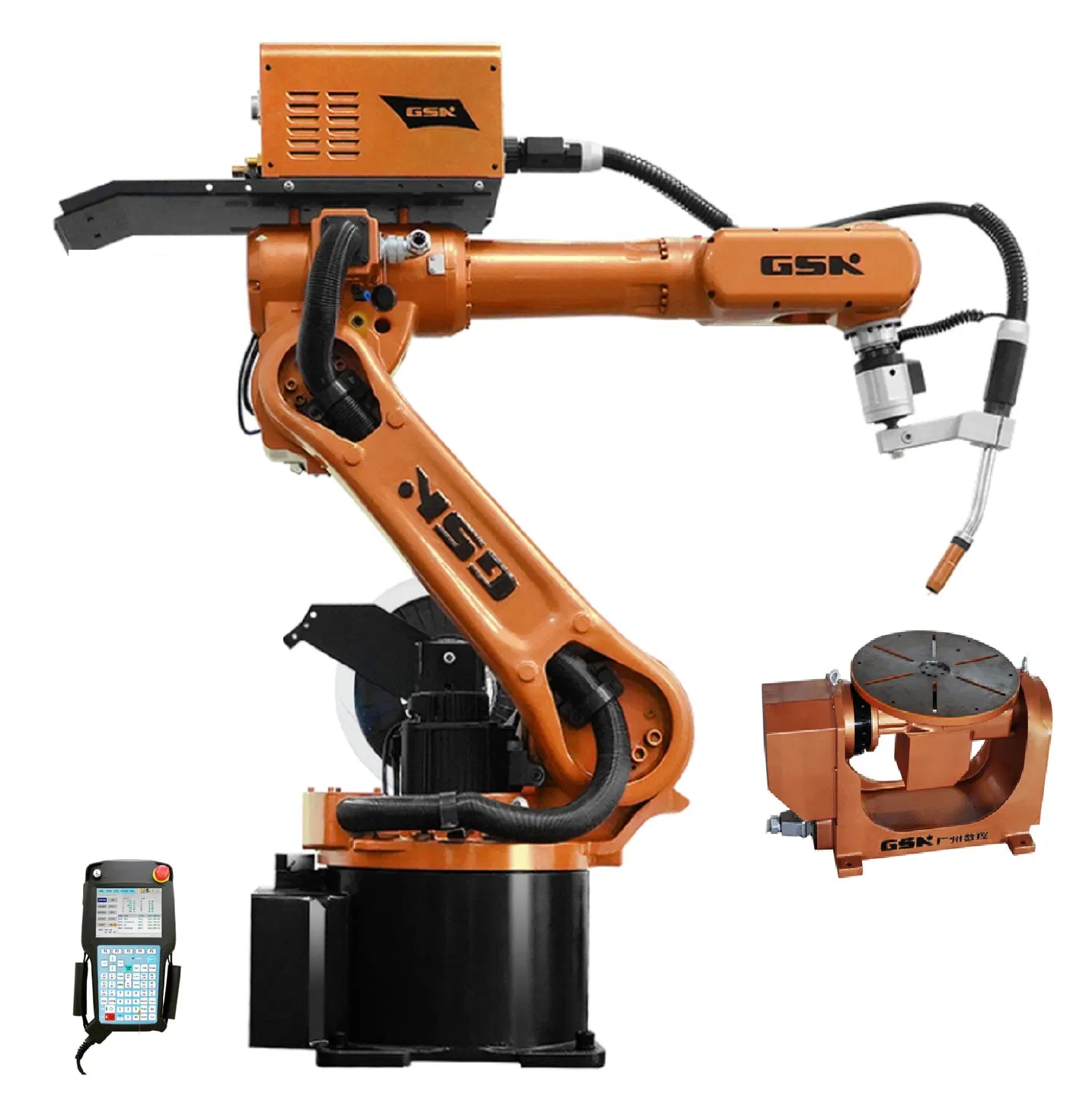

Fully automatic high-quality six-axis robot arm laser weld same as gsk for welding industrial manipulator

Customization: Available
Application: Welding, Loading, Forging, Burnishing, Polishing, machine
Control Mode: Continuous Path Control

Product Description

Basic Specifications
Model NO.
RH06A3-1490
Drive Mode
Electric
Repeatability
0.05mm
Motion Radius
1490mm
Structure
Articulated
Mounting Type
Ground, Bracket, Ceiling
Payload
6kg
DOF
6
Weight
185kg
Certification
ISO, CE
6 Axis CNC Industrial Automatic Welding Robot

Application field: It is widely used in automobiles and their accessories, motorcycles and their accessories, and agricultural machines, engineering machines and other hardware welding fields.

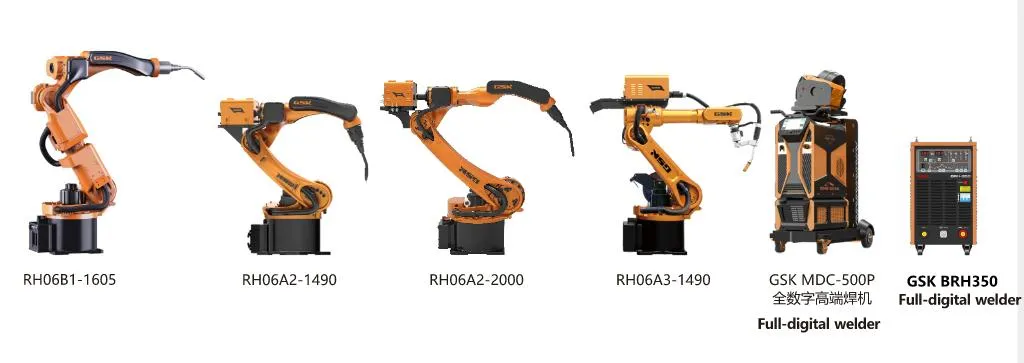

Industrial Welding Robot
Type DOF Drive Method Payload (kg) Repeatability (mm) Motion Radius (mm) Weight (kg)
RH06A2-1490 6 AC Servo Drive 6 ±0.05 1490 190
RH06A2-2000 6 AC Servo Drive 6 ±0.05 2000 265
RH06A3-1490 6 AC Servo Drive 6 ±0.05 1490 185
RH06B1-1605 7 AC Servo Drive 6 ±0.05 1605 215

Note: Avoid contact with flammable, explosive and corrosive gas or liquid. Keep away from noise resources such as plasma cutters.

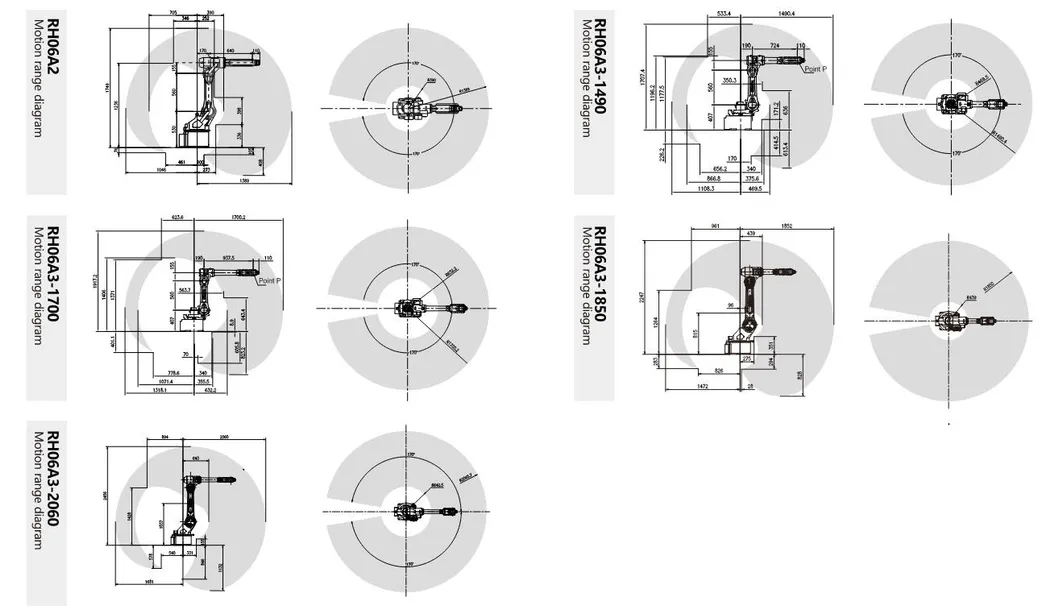

Technical Drawing
Production Line Unit Control System
  • Monitor management system for production lines and machining equipment.
  • Realizes high-speed connection between CNC machines and industrial robots via field bus.
  • Supports both on-line and off-line programming.
  • Humanized operation to improve efficiency and reduce labor costs.

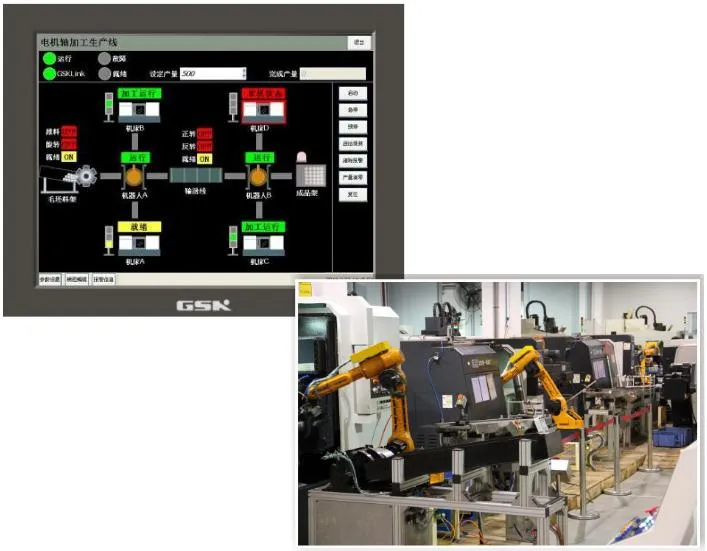

Control System
General Control Management System
  • Used for achieving "Digitalized factory" and "Intelligent workshop" management.
  • CAM and CAPP application management.
  • Equipment utilization statistics and production capacity regulation.

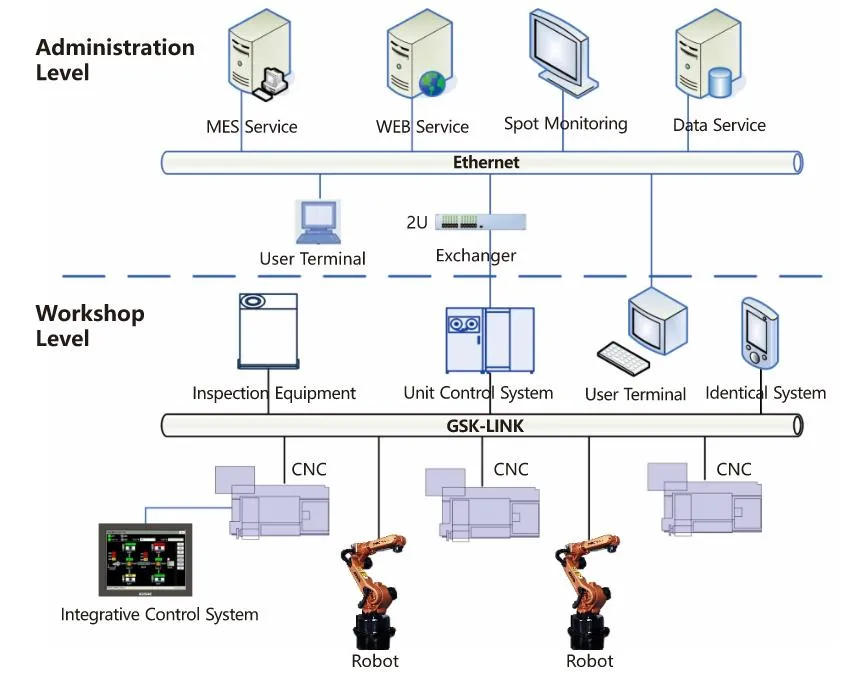

Management System
Applications & Case Studies
1. Aluminum Template Industry

Replaces manual work with double-position alternative welding. Equipped with automatic torch cutting mechanism to guarantee production continuity.

Application 1

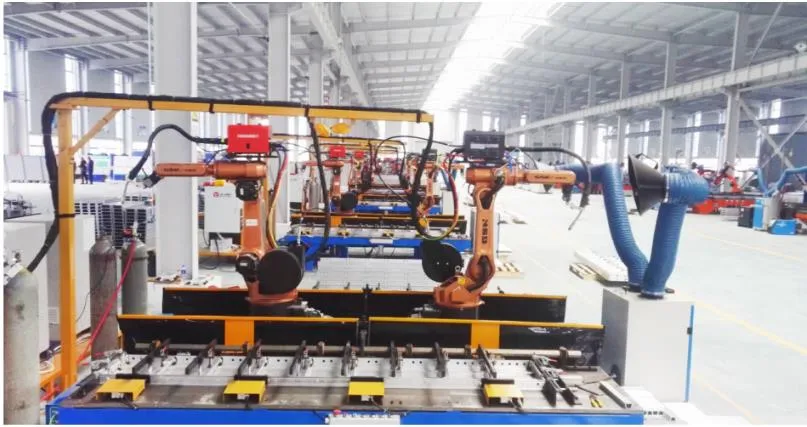

Application 2

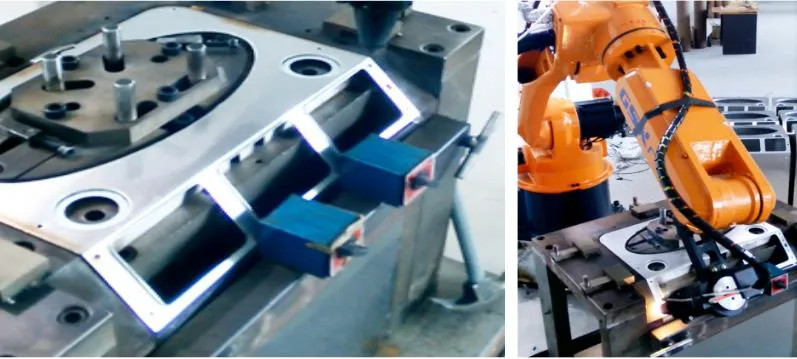

2. Laser Welding in Small Appliances

Welds 0.6mm stainless steel sheets without deformation. High-speed continuous welding using optical fiber transmission laser technology.

Laser Welding

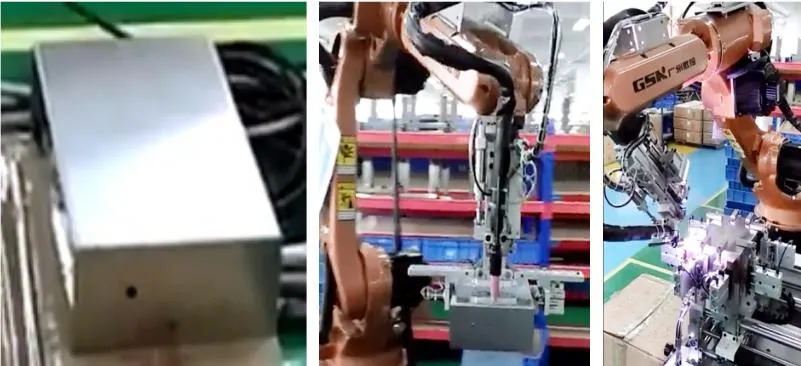

3. Electrical Industry TIG Welding

Automated loading, unloading, and welding of stainless steel products with pneumatic clamping tools.

Electrical Welding

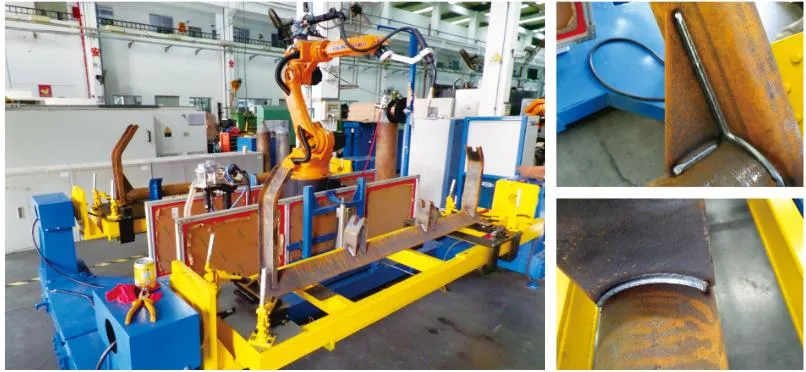

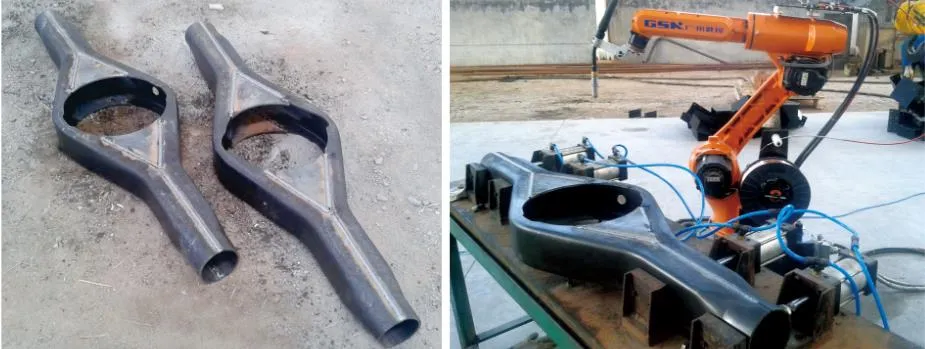

4. Axle Welding & Fixtures

Full-length welding for axles without distortion, undercut, or air vents. Utilizes compact workstations with arc light guards.

Axle Welding
Welding Fixture
Industrial Robot Series

With over 30 years of R&D experience, the product line covers transportation, welding, polishing, painting, stacking, and paralleling, featuring up to 30 different product types.

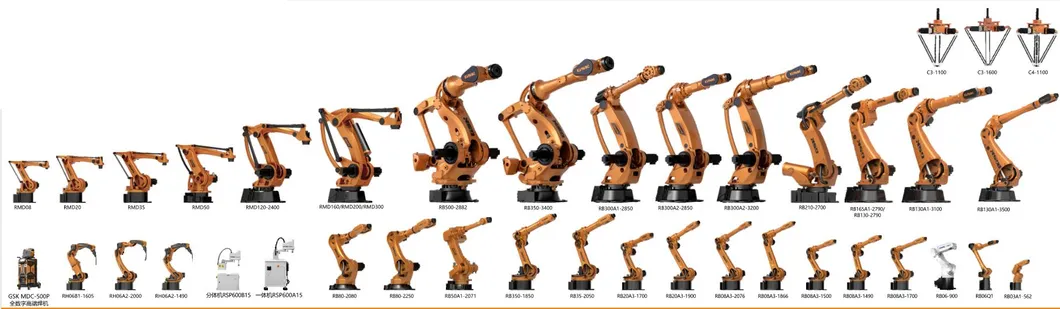

Robot Family
Comprehensive Solutions
CNC System
Industrial Robot
Injection Machine
Frequently Asked Questions
Q1: What is the payload capacity of the RH06A3-1490 robot? A1: This model has a payload capacity of 6kg, making it ideal for standard welding and handling tasks.
Q2: What is the repeatability of the welding robot? A2: The robot offers high precision with a repeatability of ±0.05mm.
Q3: Can the robot be mounted in different orientations? A3: Yes, it supports ground, bracket, and ceiling mounting to suit various factory layouts.
Q4: Which industries benefit most from this 6-axis robot? A4: It is widely used in automobile manufacturing, electrical industry, hardware welding, and agricultural machinery sectors.
Q5: Does the system support off-line programming? A5: Yes, the control system supports both on-line and off-line programming for maximum flexibility.
Q6: What is the maximum motion radius of the RH06A3-1490? A6: The motion radius is 1490mm, providing a wide working area for various welding operations.
