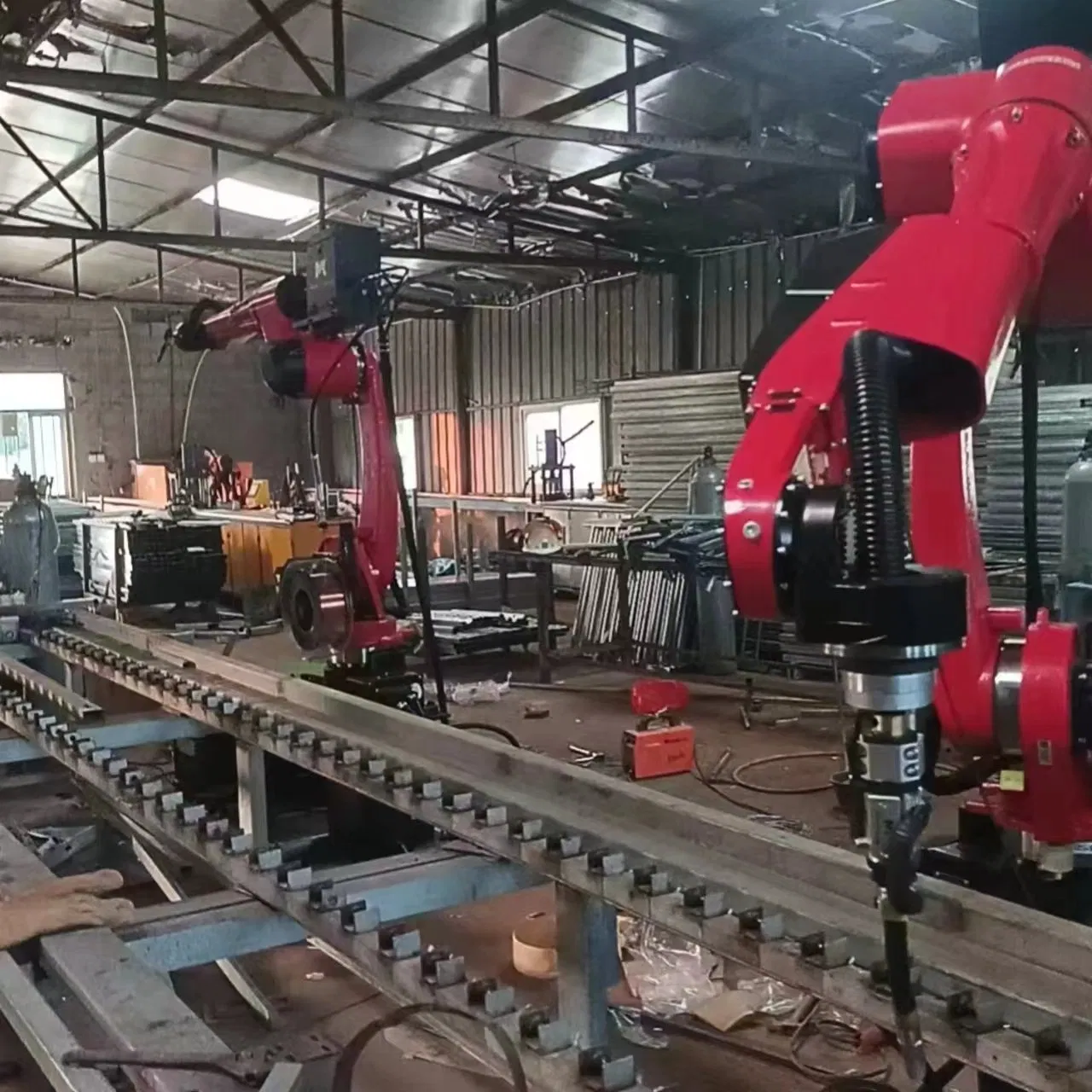

Advanced Era Supergroup Brtirus3511A Six-Axis Robot Arm for Handling and Welding
Advanced Era Supergroup Brtirus3511A Six-Axis Robot Arm for Handling and Welding
Advanced Era Supergroup Brtirus3511A Six-Axis Robot Arm for Handling and Welding
Advanced Era Supergroup Brtirus3511A Six-Axis Robot Arm for Handling and Welding
Advanced Era Supergroup Brtirus3511A Six-Axis Robot Arm for Handling and Welding
1 / 5
Advanced Era Supergroup Brtirus3511A Six-Axis Robot Arm for Handling and Welding
Advanced Era Supergroup Brtirus3511A Six-Axis Robot Arm for Handling and Welding
Advanced Era Supergroup Brtirus3511A Six-Axis Robot Arm for Handling and Welding
Advanced Era Supergroup Brtirus3511A Six-Axis Robot Arm for Handling and Welding
Advanced Era Supergroup Brtirus3511A Six-Axis Robot Arm for Handling and Welding

Advanced Era Supergroup Brtirus3511A Six-Axis Robot Arm for Handling and Welding

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
BRTIRUS351A
Control Mode
Continuous Path Control
Drive Mode
Electric
Type
Arc Welding Robot
Welding Speed
0.5 m/min
Axes
6 Axis
Loading Ability
100kg
Max Arm Span
3500mm
Accuracy
±0.05mm
Condition
New
Warranty
1 Year
Origin
China
P

Packaging & Delivery

Package Size
150.00cm * 150.00cm * 180.00cm
Gross Weight
500.000kg
D

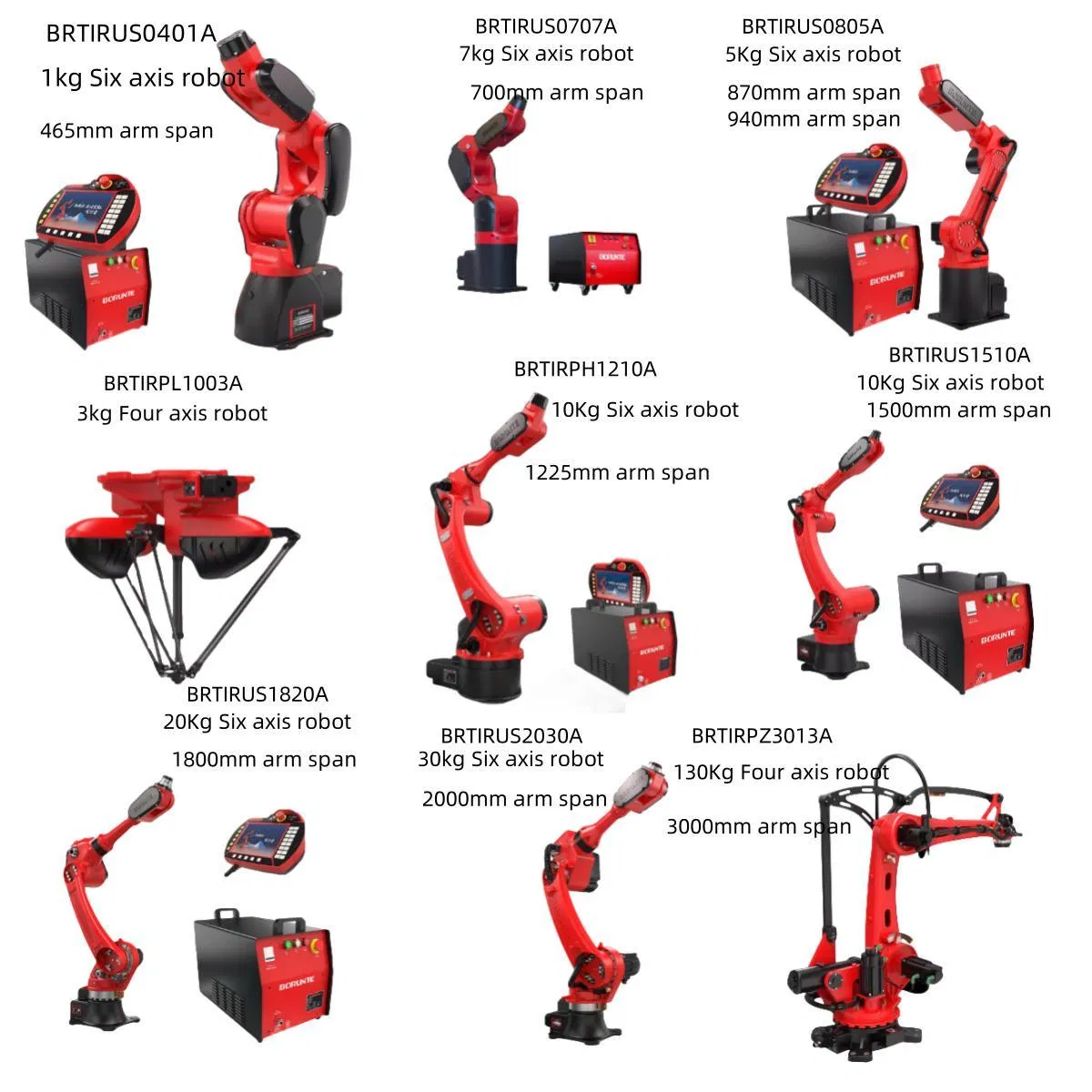

Product Overview

MODEL NAME Max Arm Span WEIGHT Loading Ability

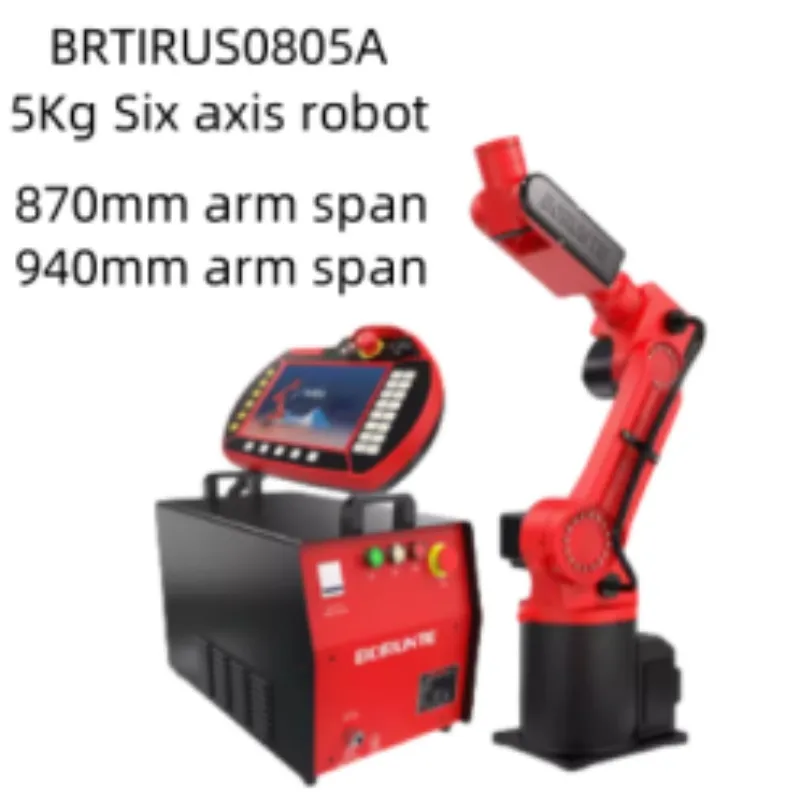

BRTIRUS0805A5kg Six axis robot715MM75KG5KG
BRTIRUS1510A10kg Six axis robot1500MM150KG10KG
BRTIRUS1820A20kg Six axis robot1800MM230KG20KG
BRTIRWD1506A6kg Six axis robot1500MM166KG6KG
BRTIRWD2206A6kg Six axis robot2200MM237KG6KG
BRTIRUS2550A50Kg Six axis robot2500MM725KG50KG
BRTIRUS3511A100Kg Six axis robot3500MM1350KG100KG
Robot Arm
Robot Arm View 2
Robot Arm View 3
Robot Arm View 4
Robot Arm View 5
Robot Arm View 6
⚙️
BRTIRUS3511A is a six-axis robot developed for monotonous, frequent, and repetitive long-term operations, or for use in dangerous and harsh workplaces.
📏
It features a 3500mm arm span and a substantial 100kg loading capacity.
🔄
With multiple degrees of flexibility, it excels in scenarios such as loading, unloading, handling, and stacking.
🛡️
High IP code: IP50 Dust-proof protection.
🎯
High accuracy: Repeated positioning accuracy of ±0.2mm.

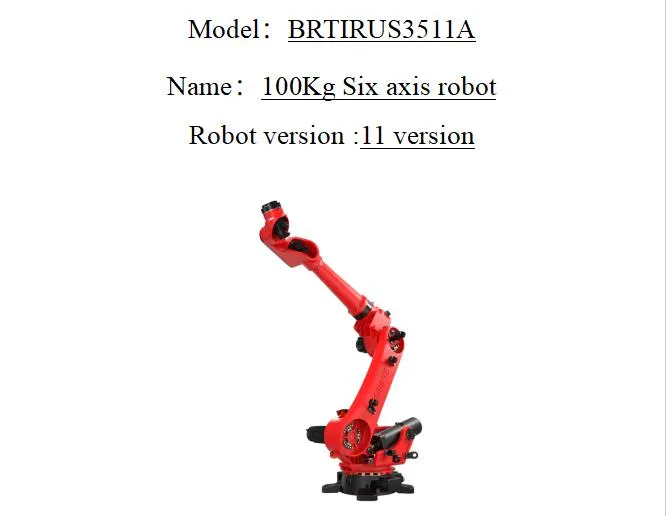

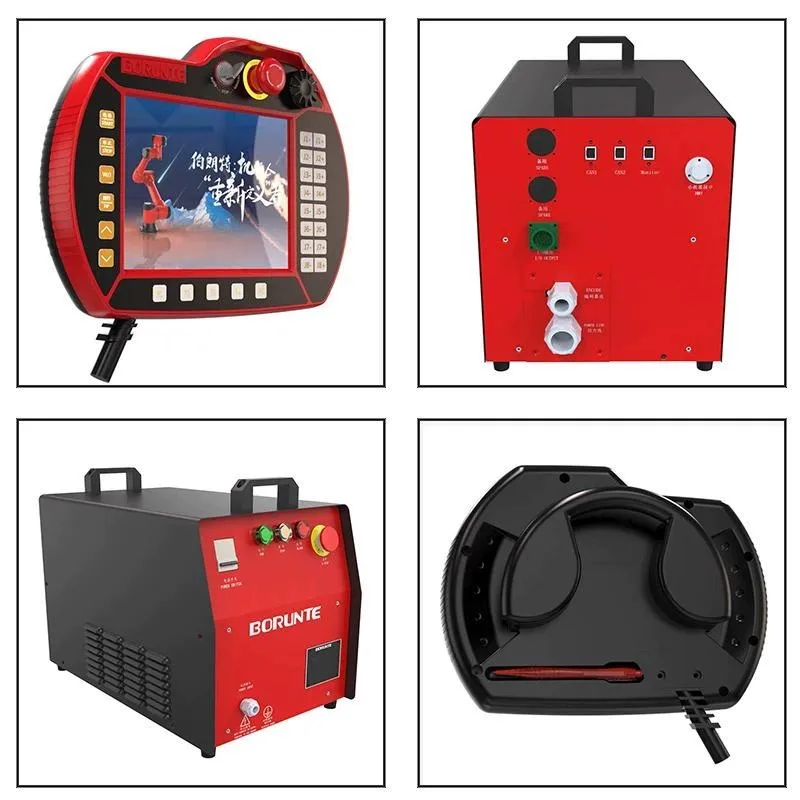

Product Detail
Product Detail 2

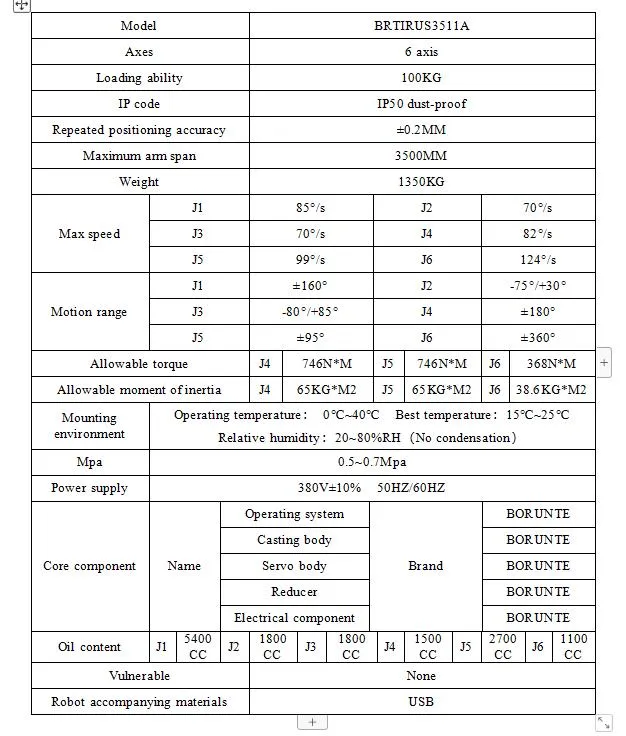

Product Detail 3
V

Our Advantages

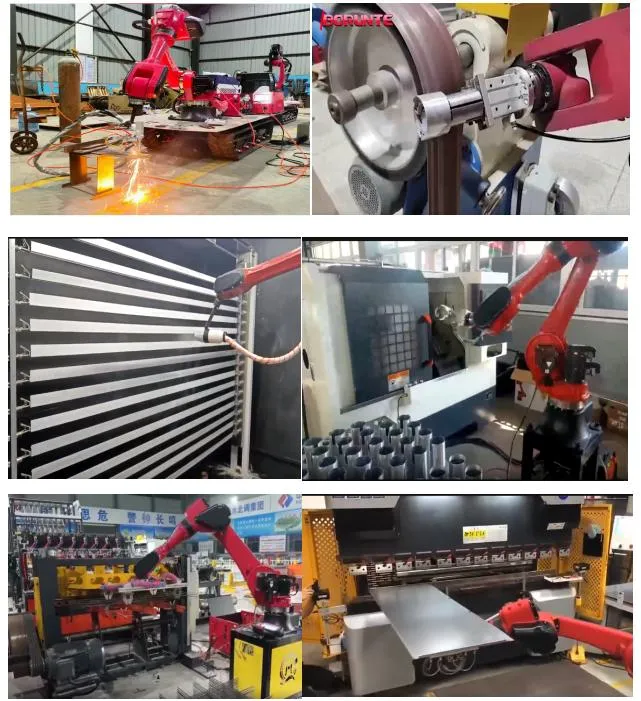

Advantage Graphics
Advantage 1

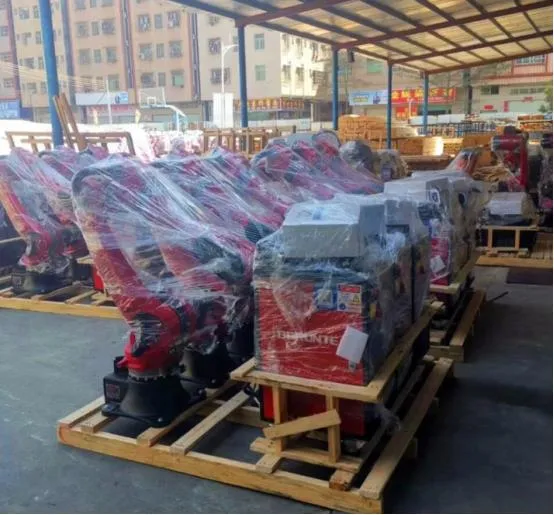

Advantage 2
Advantage 3

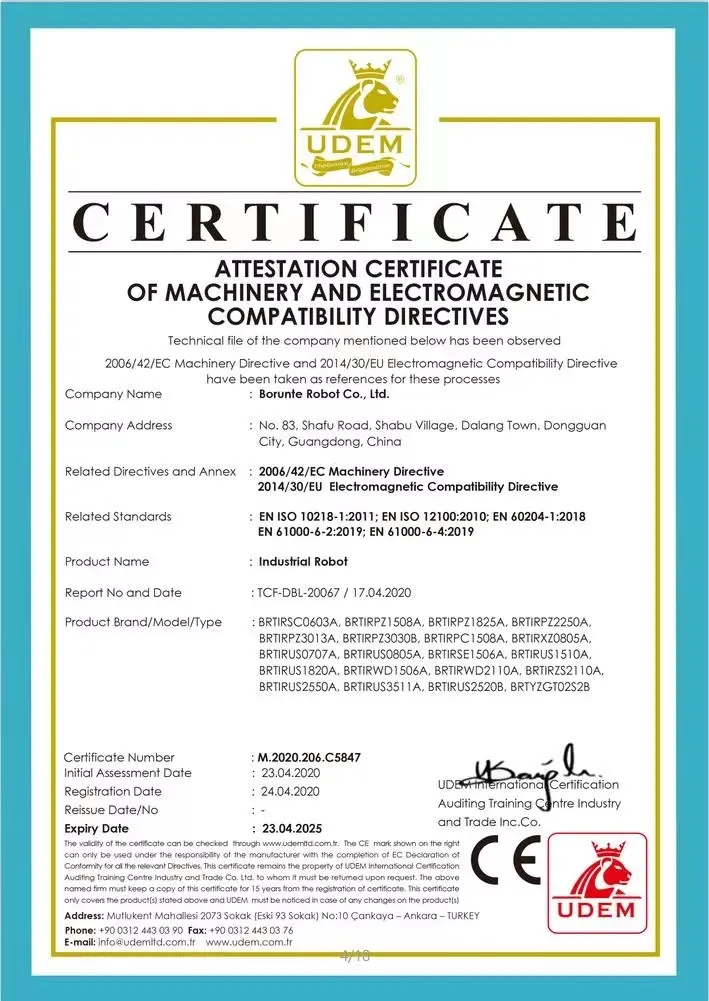

Advantage 4
Advantage 5
Advantage 6
?

Frequently Asked Questions

What is the maximum load capacity of the BRTIRUS3511A?
The BRTIRUS3511A is designed with a high loading capacity of 100kg, making it suitable for heavy-duty industrial tasks.
What is the reach or arm span of this robot?
This model features an impressive maximum arm span of 3500mm, allowing for a wide working range.
What is the positioning accuracy of the robot?
The robot offers a repeated positioning accuracy of ±0.2mm, ensuring high precision for repetitive operations.
In which environments can this robot be used?
With an IP50 dust-proof rating, it is specifically built for monotonous, frequent, and dangerous or harsh industrial workplaces.
What are the primary applications for this six-axis robot?
It is highly flexible and ideal for applications such as loading and unloading, material handling, stacking, and arc welding.
Does the robot come with a warranty?
Yes, the product includes a 1-year warranty period for reliable industrial operation.
