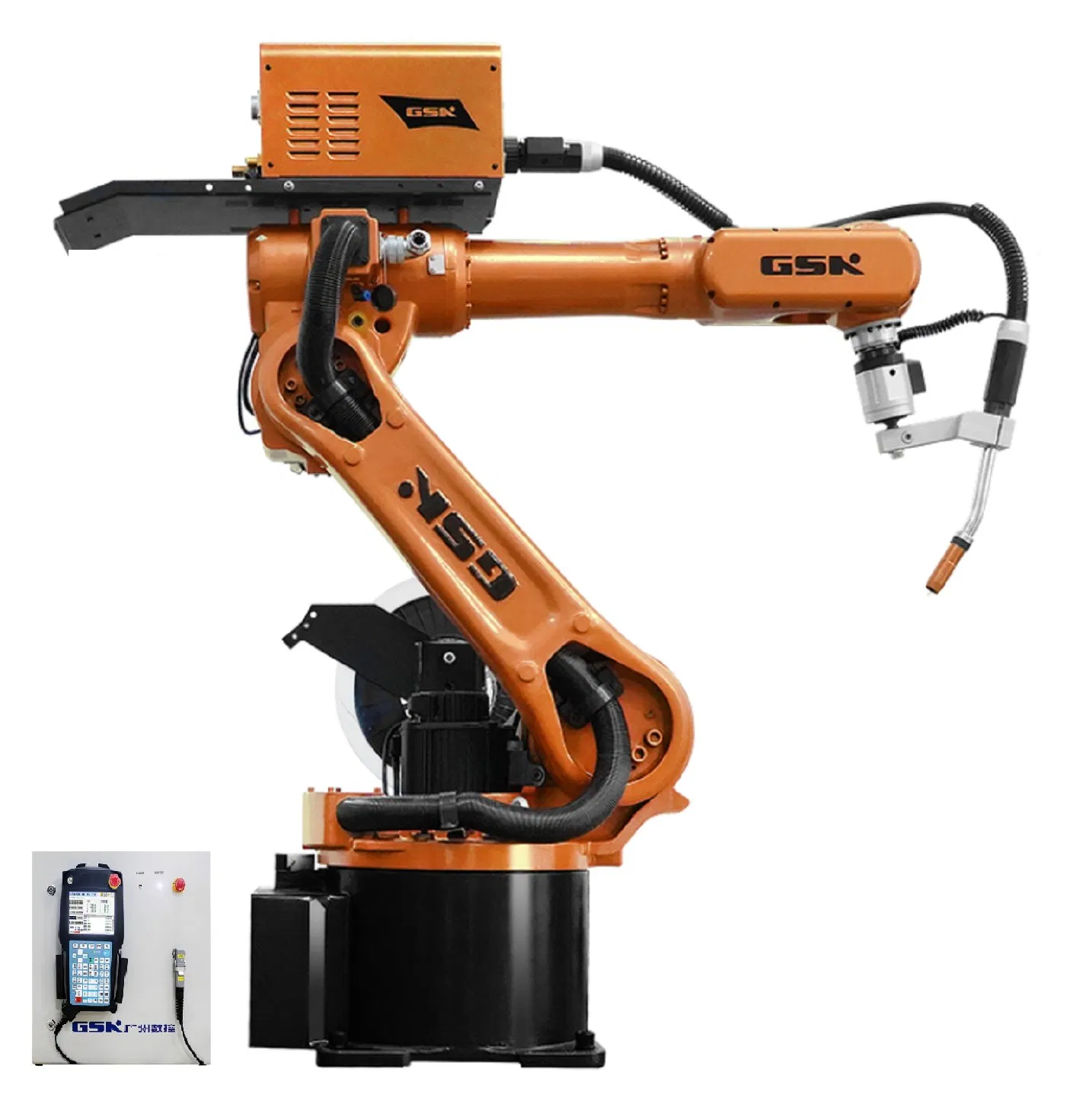

Sandai Robot
1 / 5

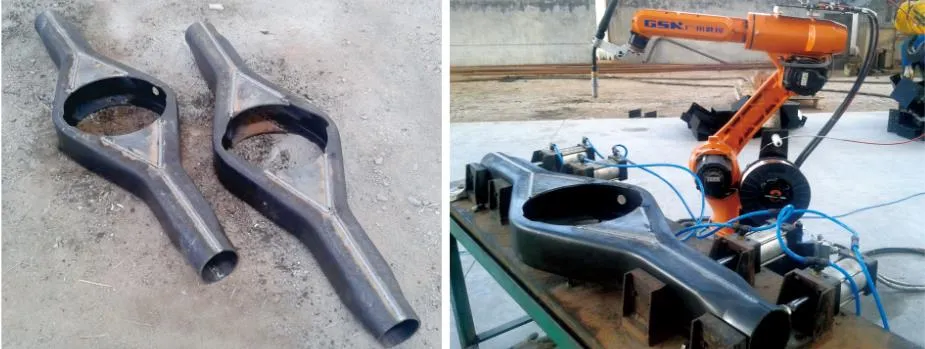

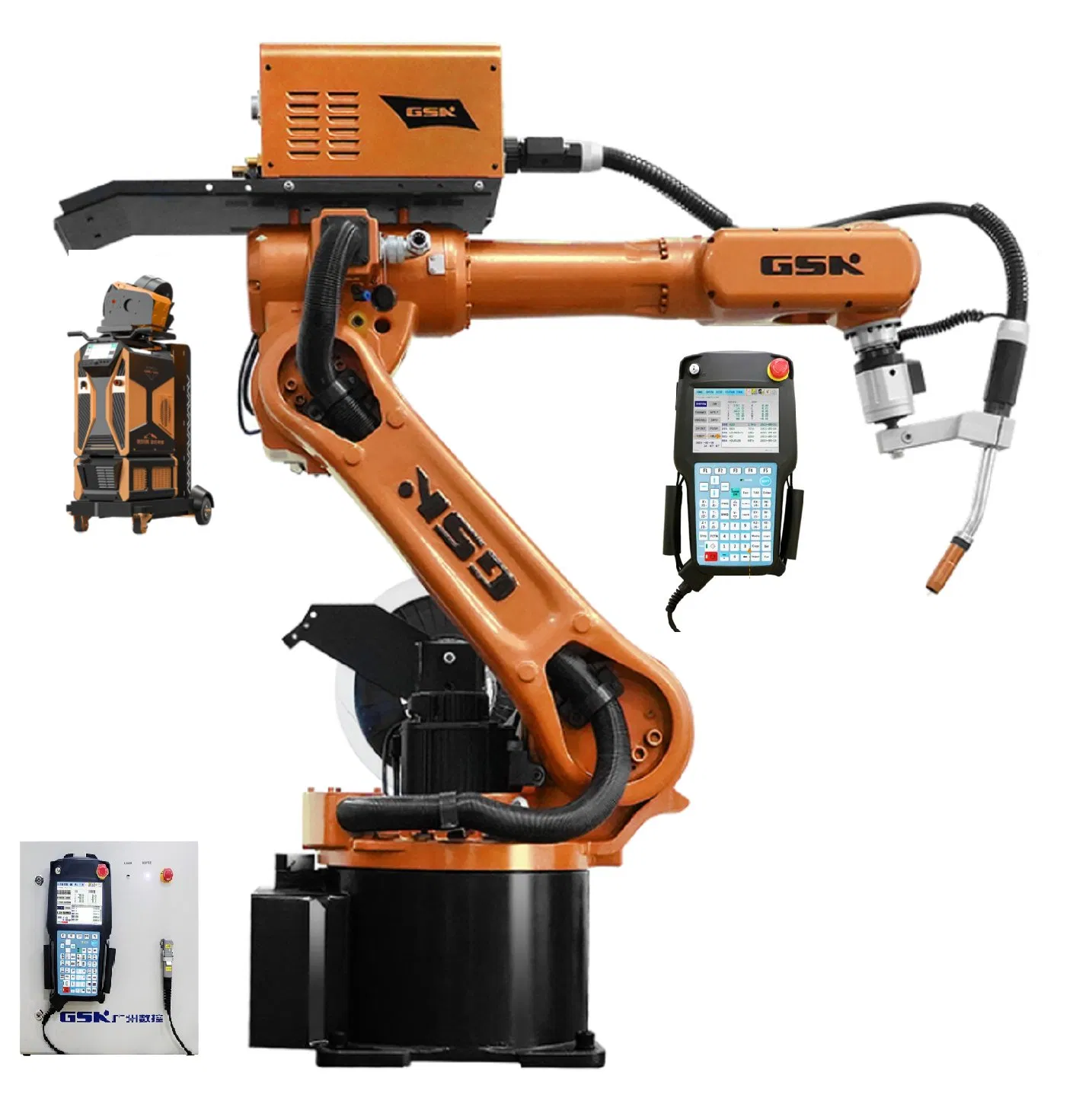

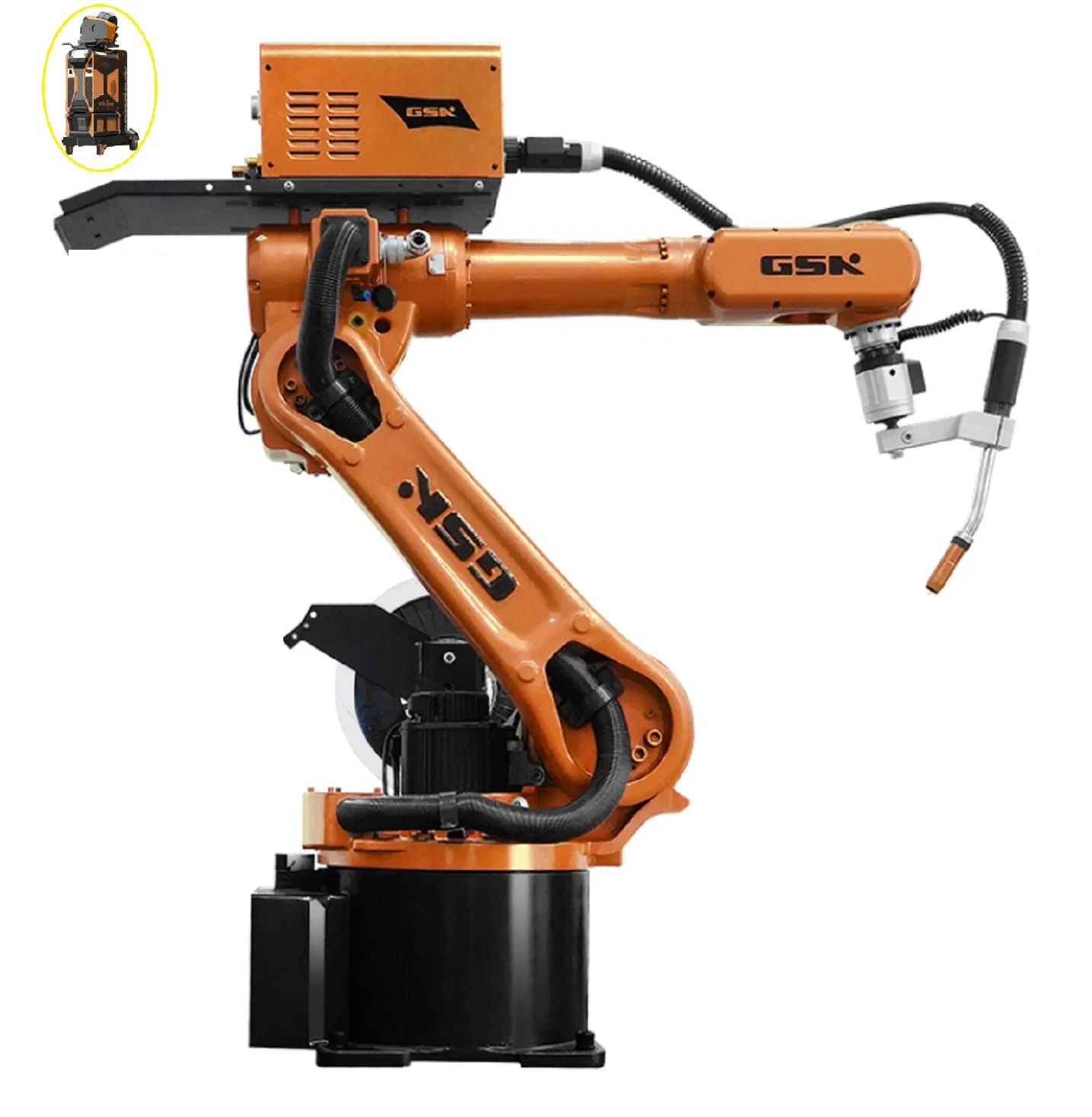

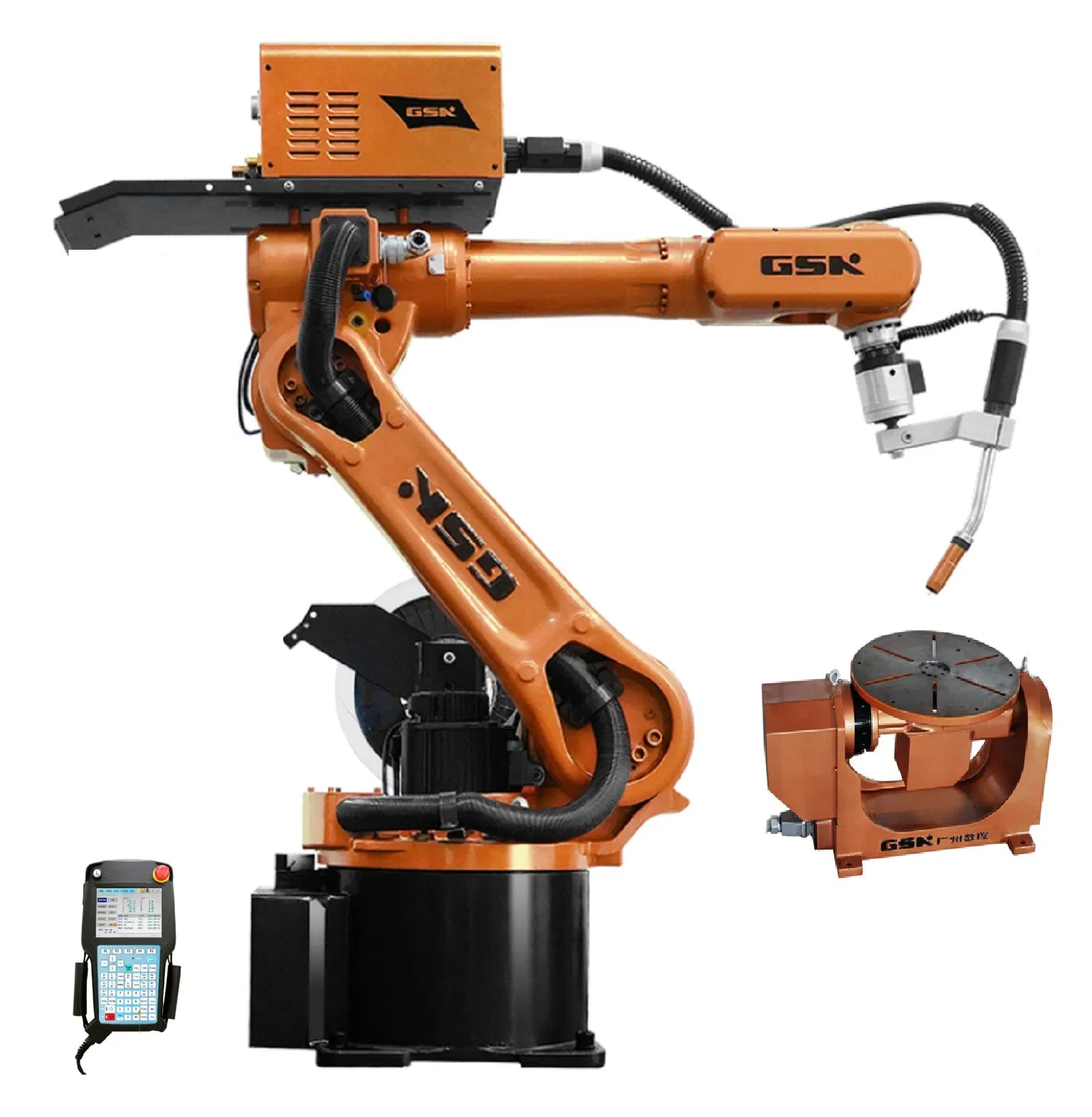

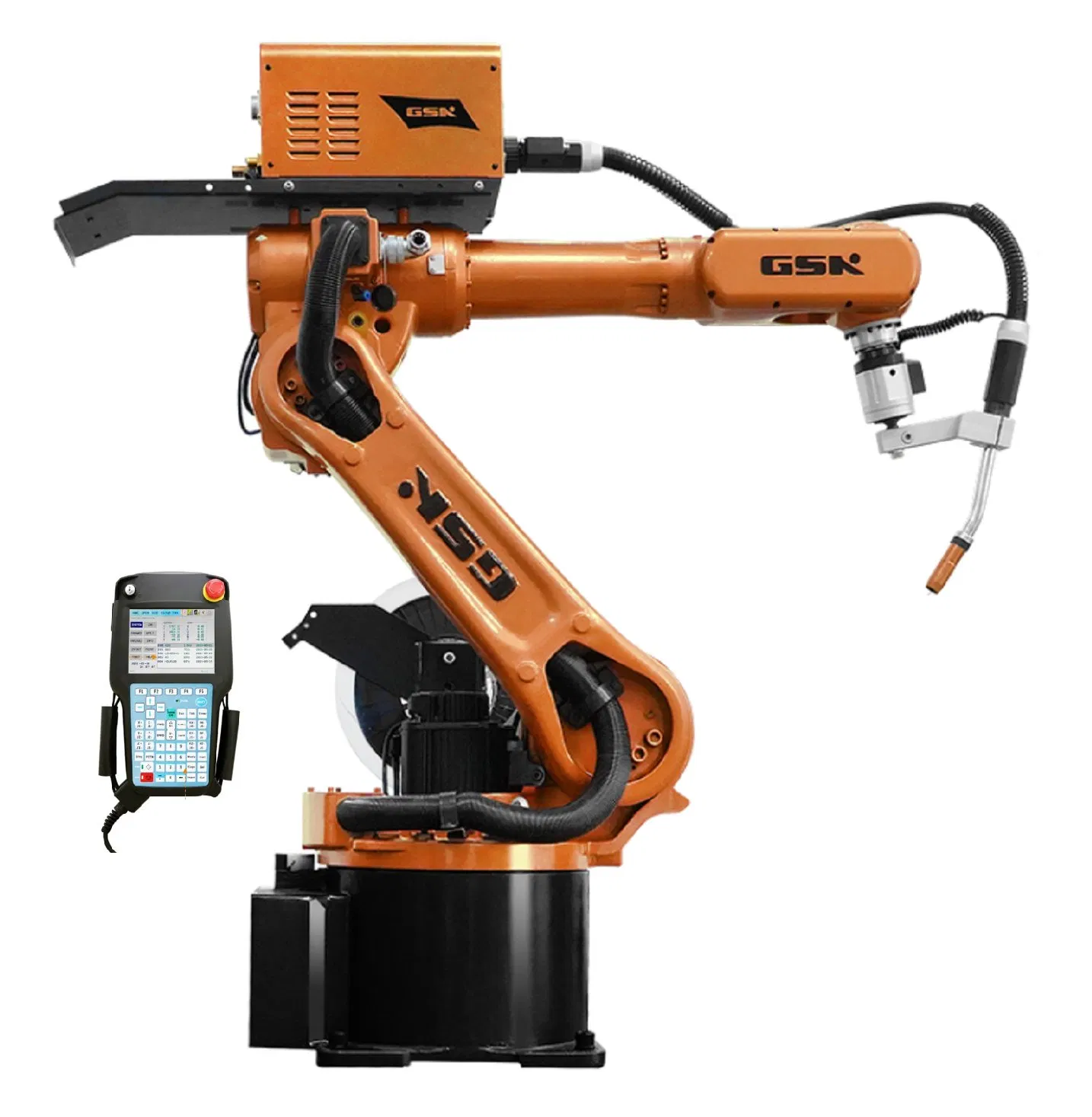

Application field: It is widely used in automobiles and their accessories, motorcycles and their accessories, agricultural machines, engineering machines, and other hardware welding fields.

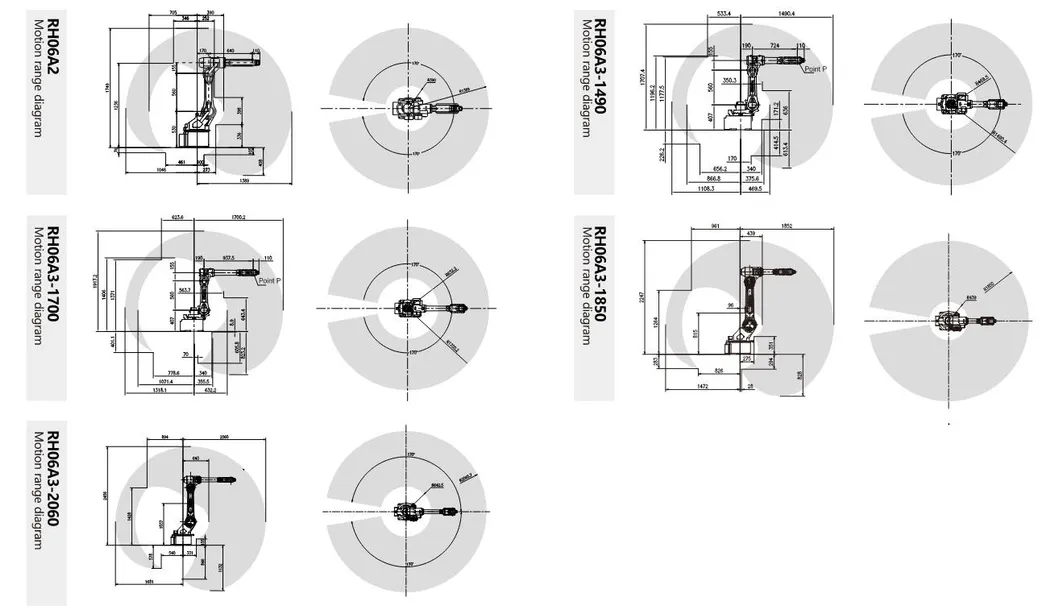

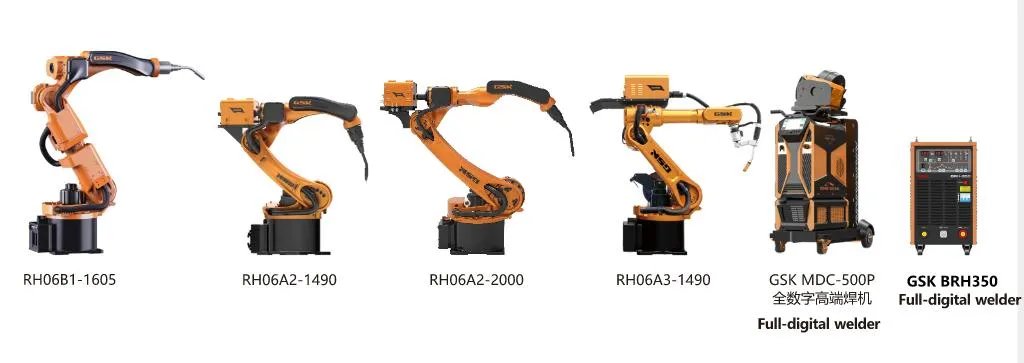

| Type | Dof | Drive Method | Payload (kg) | Repeatability (mm) | Motion Range (°) | Allowed Top Torque (N.m) | Radius (mm) | Weight (kg) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J1 | J2 | J3 | J4 | J5 | J6 | J4 | J5 | J6 | |||||||
| RH06A2-1490 | 6 | AC Servo | 6 | ±0.05 | ±170 | +115/-80 | +80/-150 | ±180 | ±135 | ±360 | 14 | 12 | 6 | 1490 | 190 |
| RH06A2-2000 | 6 | AC Servo | 6 | ±0.05 | ±170 | +140/-70 | +75/-140 | ±180 | ±135 | ±360 | 14 | 12 | 6 | 2000 | 265 |
| RH06A3-1490 | 6 | AC Servo | 6 | ±0.05 | ±170 | +120/-85 | +83/-150 | ±180 | ±135 | ±360 | 14 | 12 | 7 | 1490 | 185 |

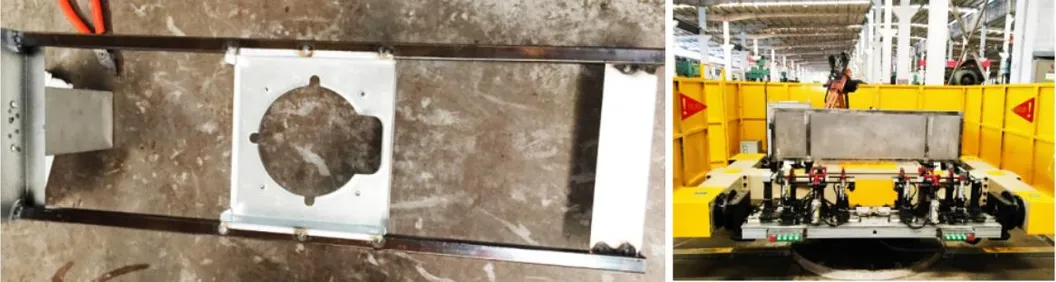

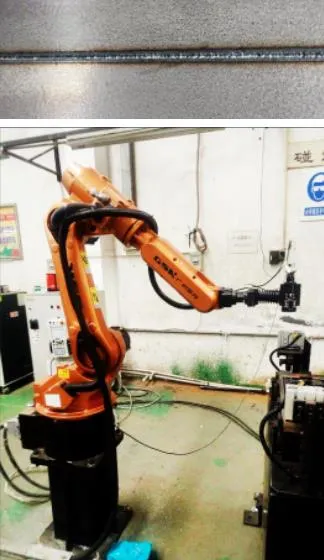

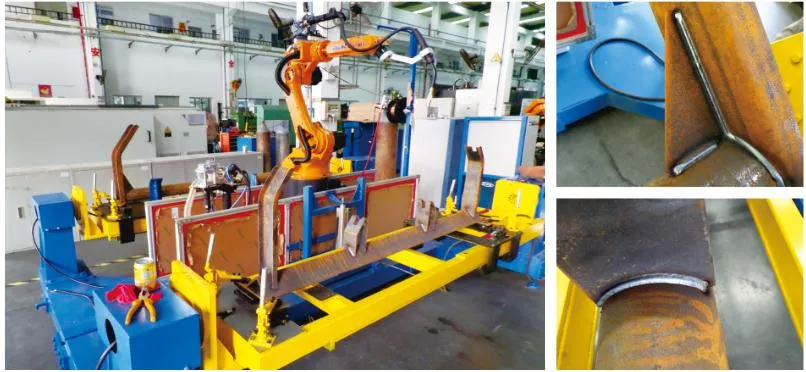

Customer Requirements: Robot replaces manual work with double-position alternative welding.

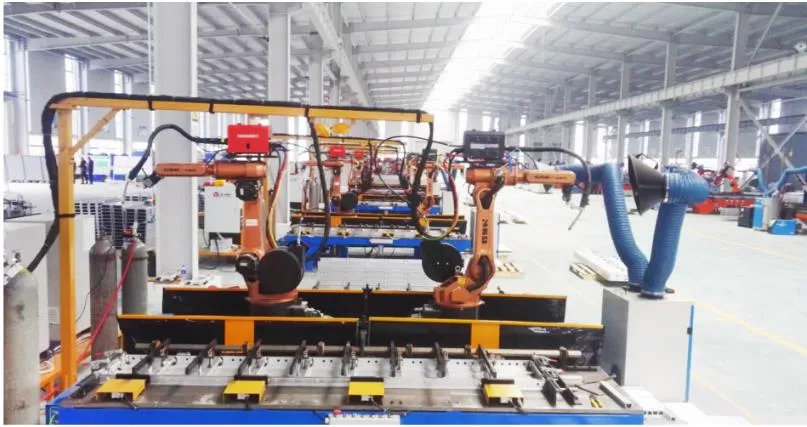

Effect: Stable long-term operation, improved quality consistency, and reduced worker exposure to high-risk environments (heat, smoke, arc light).

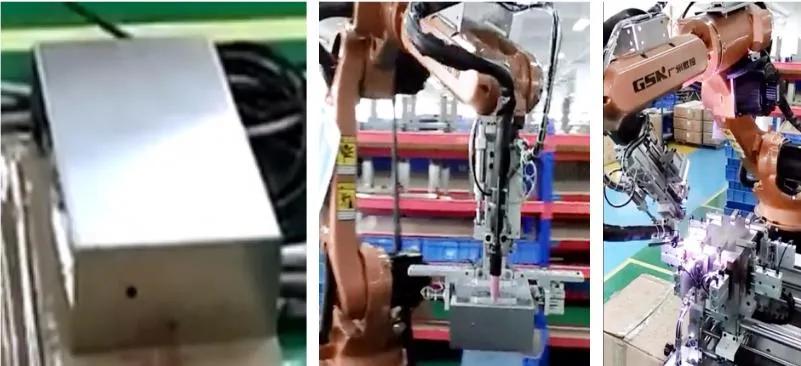

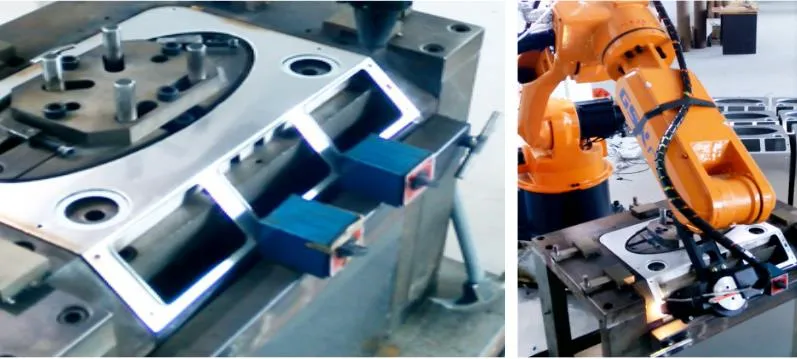

Effect: Welding of 0.6mm stainless steel sheets without deformation. High-speed continuous welding with fiber transmission laser.

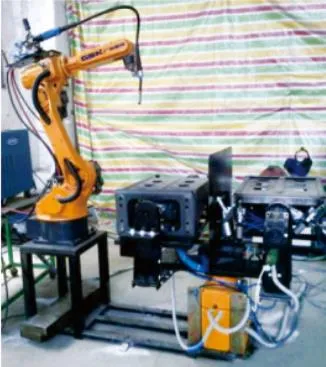

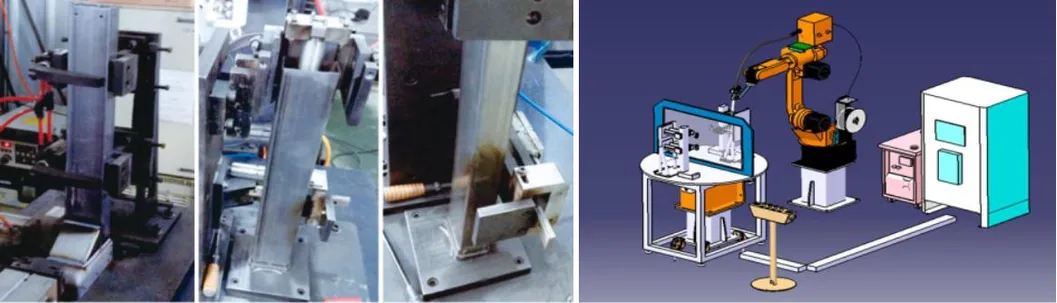

Requirements: Automatic loading, unloading, and TIG welding for stainless steel products.
Focus: Full-length welding without distortion, ensuring zero insufficient welding, undercuts, or air vents.
Features: Compact workstation structure with arc light guards and flexible tools for different product specifications.
Setup: Two independent workstations to improve device utilization without mutual interference.
Technical Standards: Butt welding interval < 0.5mm; Corner joint < 1mm; Welding time < 30S/PC.

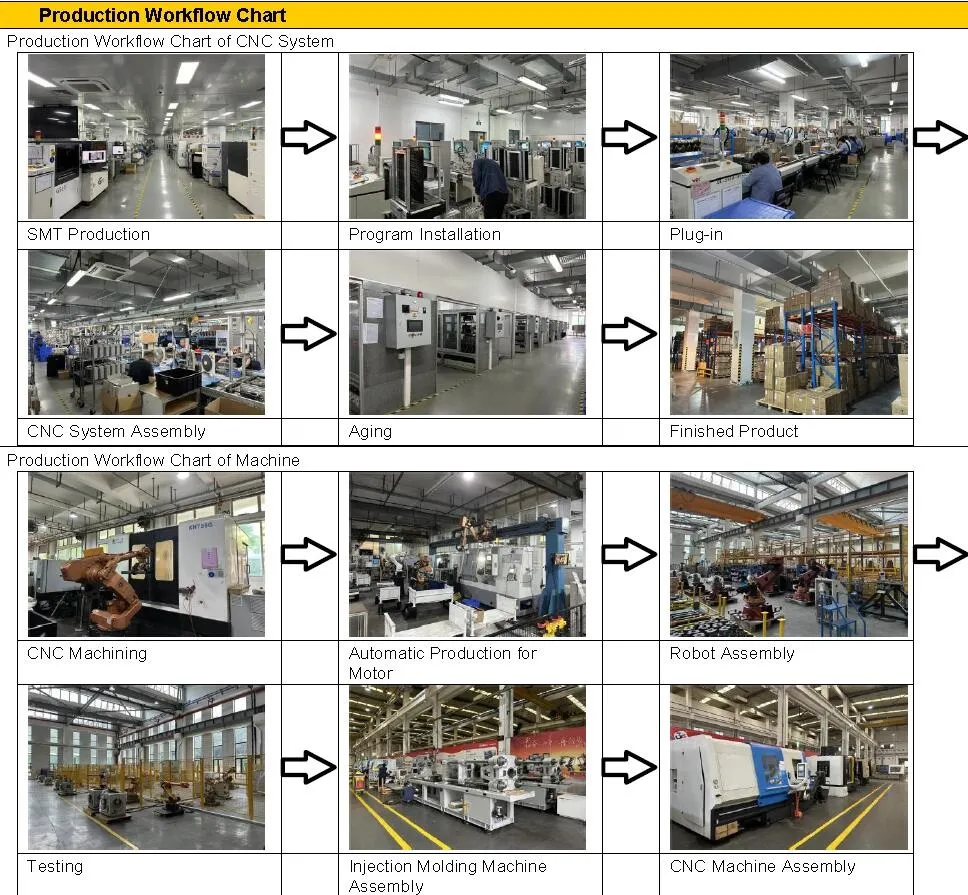

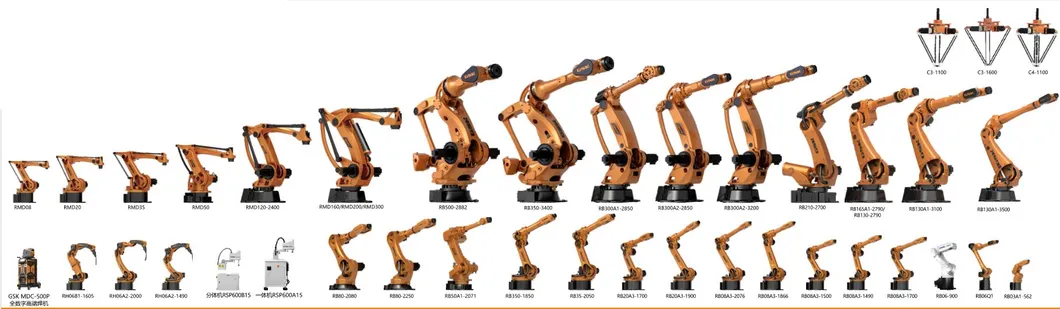

With over 30 years of R&D and manufacturing experience in industry control technology, the robot series includes controllers, servo motors, and drivers with independent intellectual property. The product line covers 6 major series: Transportation, Welding, Polishing, Painting, Stacking, and Paralleling, with over 30 types of products.
Dedicated to basic equipment industrial development, providing machine tool CNC systems, servo drives, industrial robots, and all-electric injection molding solutions. We promote the integration of production and high-tech equipment manufacturing.
A1: It is widely used in the automotive industry, motorcycle accessories, agricultural machinery, and various hardware welding fields requiring high precision and automation.
A2: Yes, the robot is compatible with TIG, MAG, CO2, and Laser welding systems, making it highly versatile for different material thicknesses and types.
A3: The RH06 series offers a high repeatability of ±0.05mm, ensuring consistent welding quality across mass production lines.

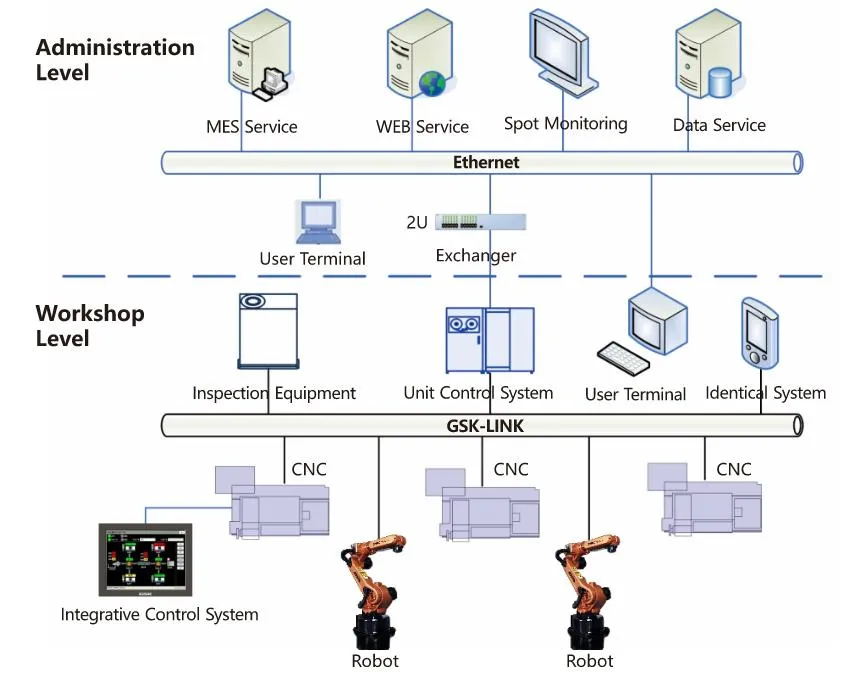

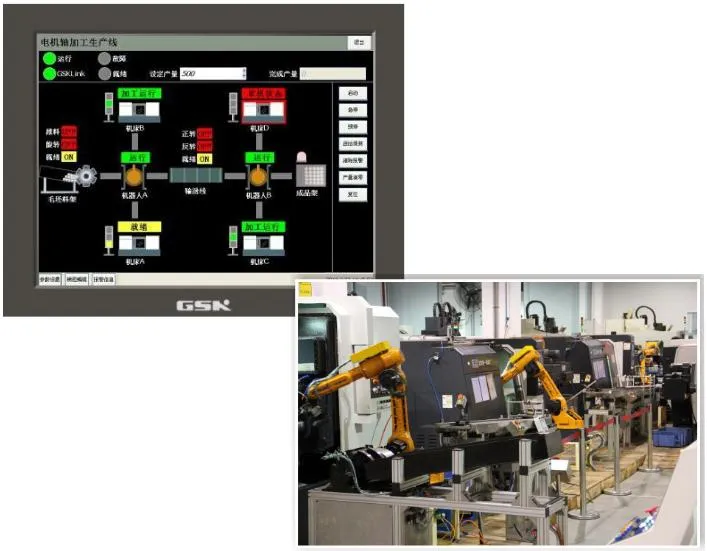

A4: Absolutely. The unit control system supports high-speed bus connections and can be integrated with General Control Management Systems for real-time monitoring and equipment utilization statistics.
A5: Robots handle high-risk tasks involving high temperatures, toxic smoke, and intense arc light, protecting human workers from industrial accidents and long-term health issues.
A6: Yes, as demonstrated in our laser welding case studies, the robot can weld 0.6mm stainless steel sheets with minimal deformation and excellent aesthetic results.
