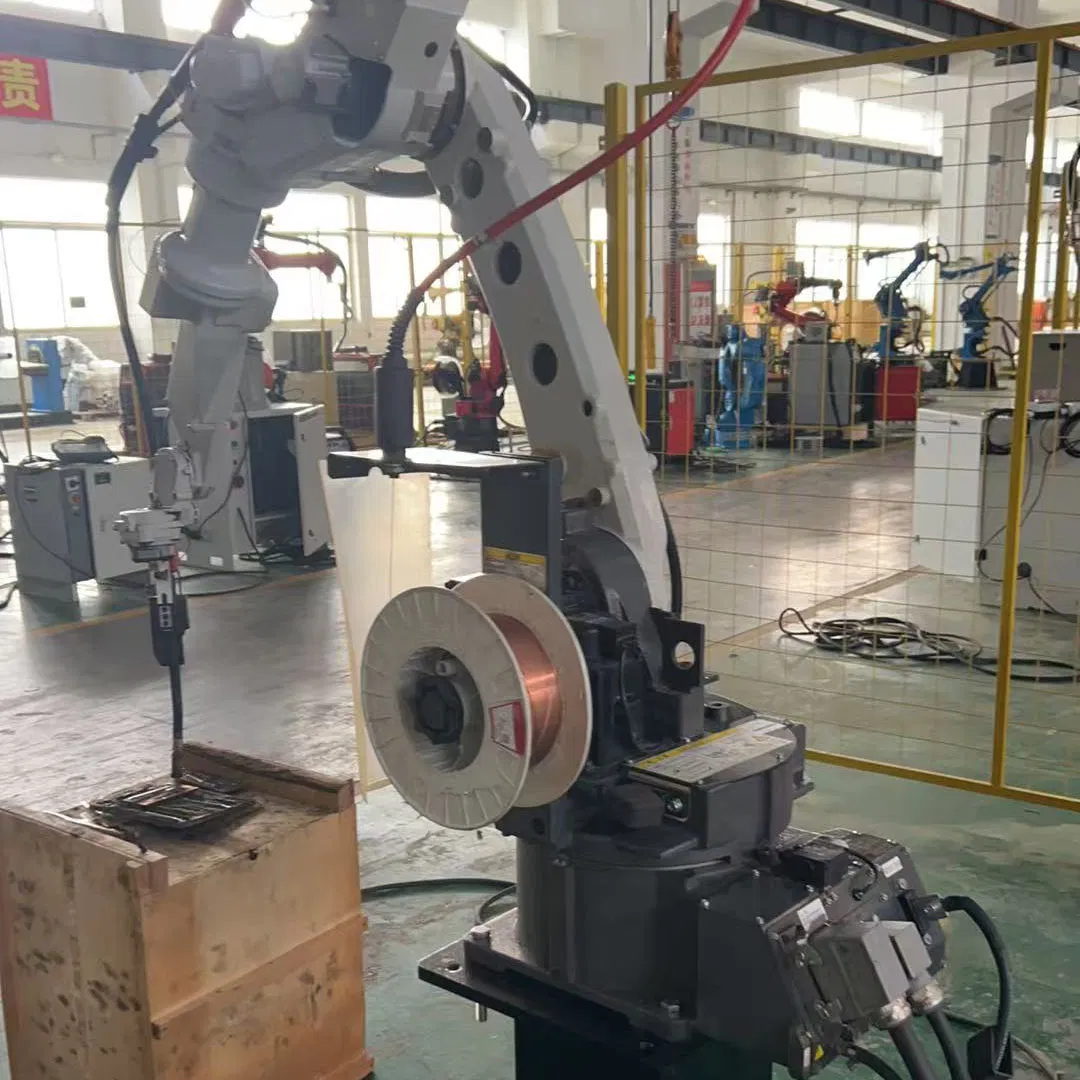

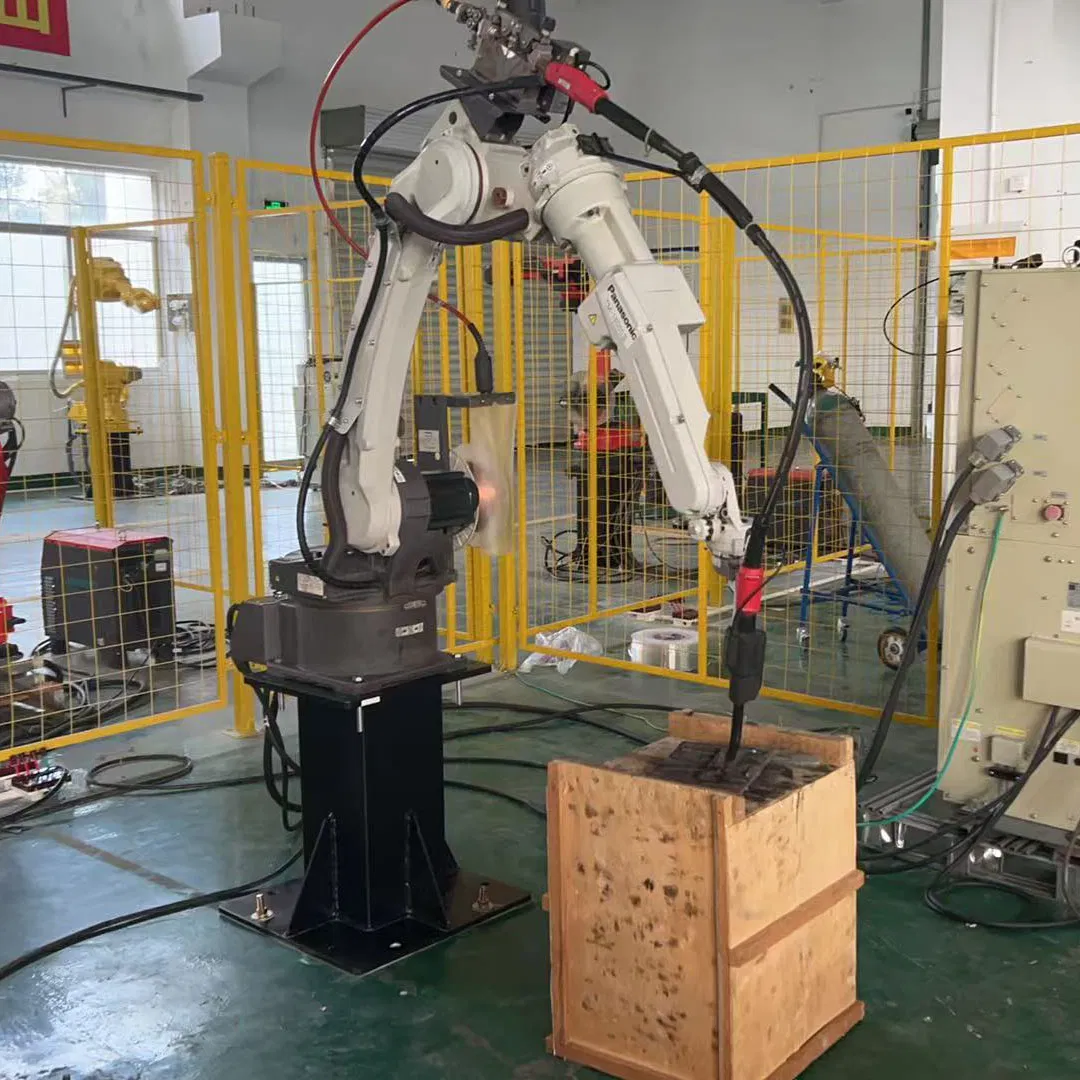

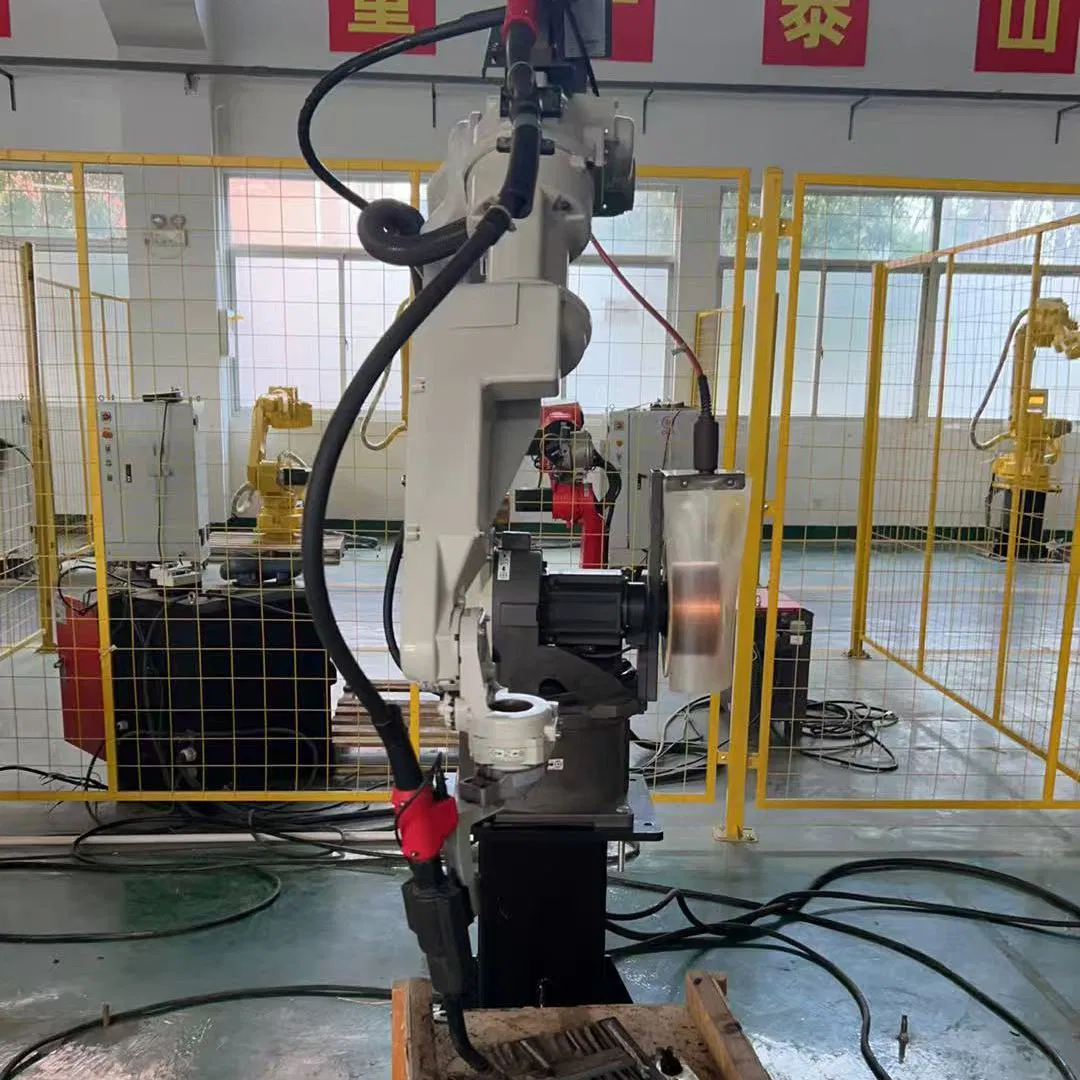

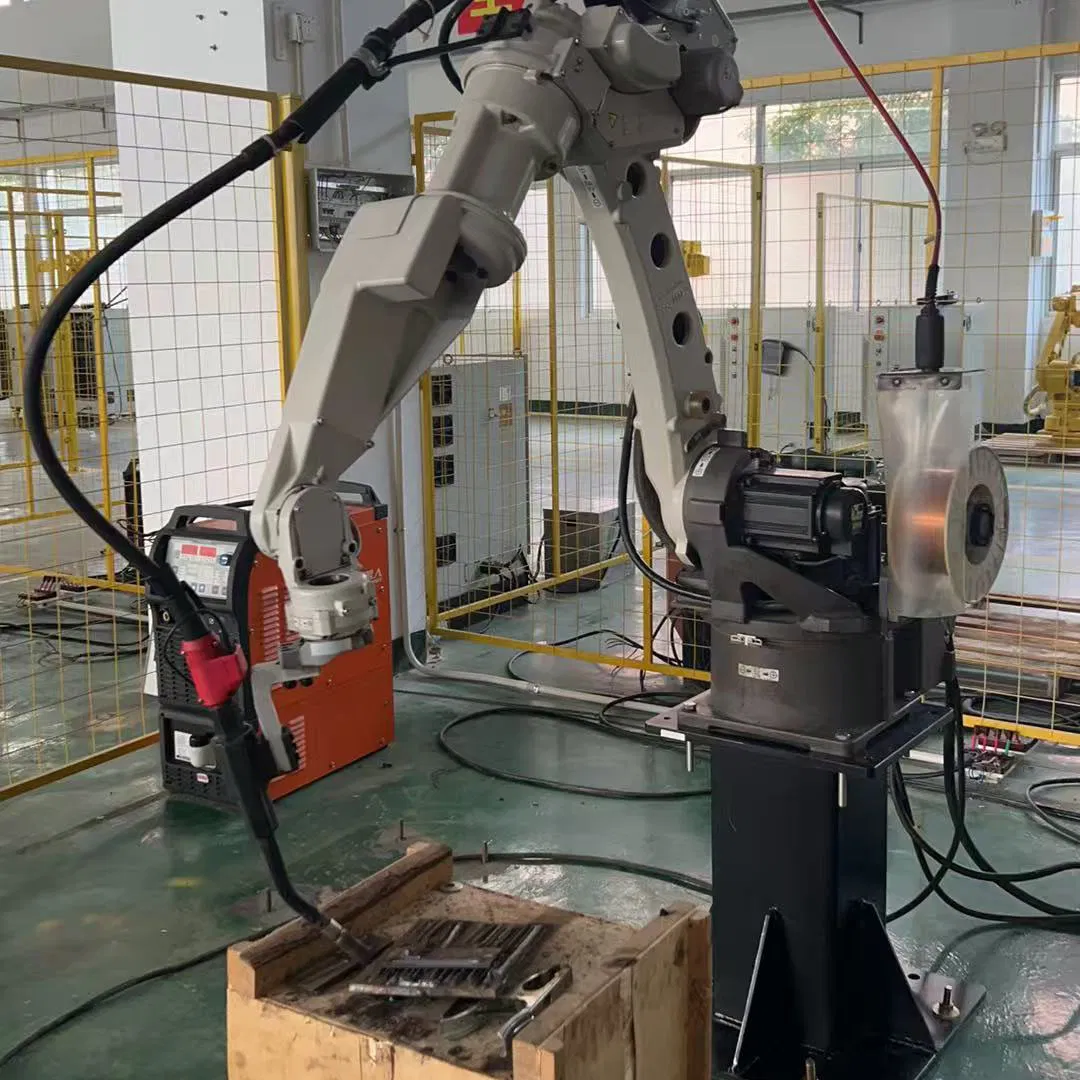

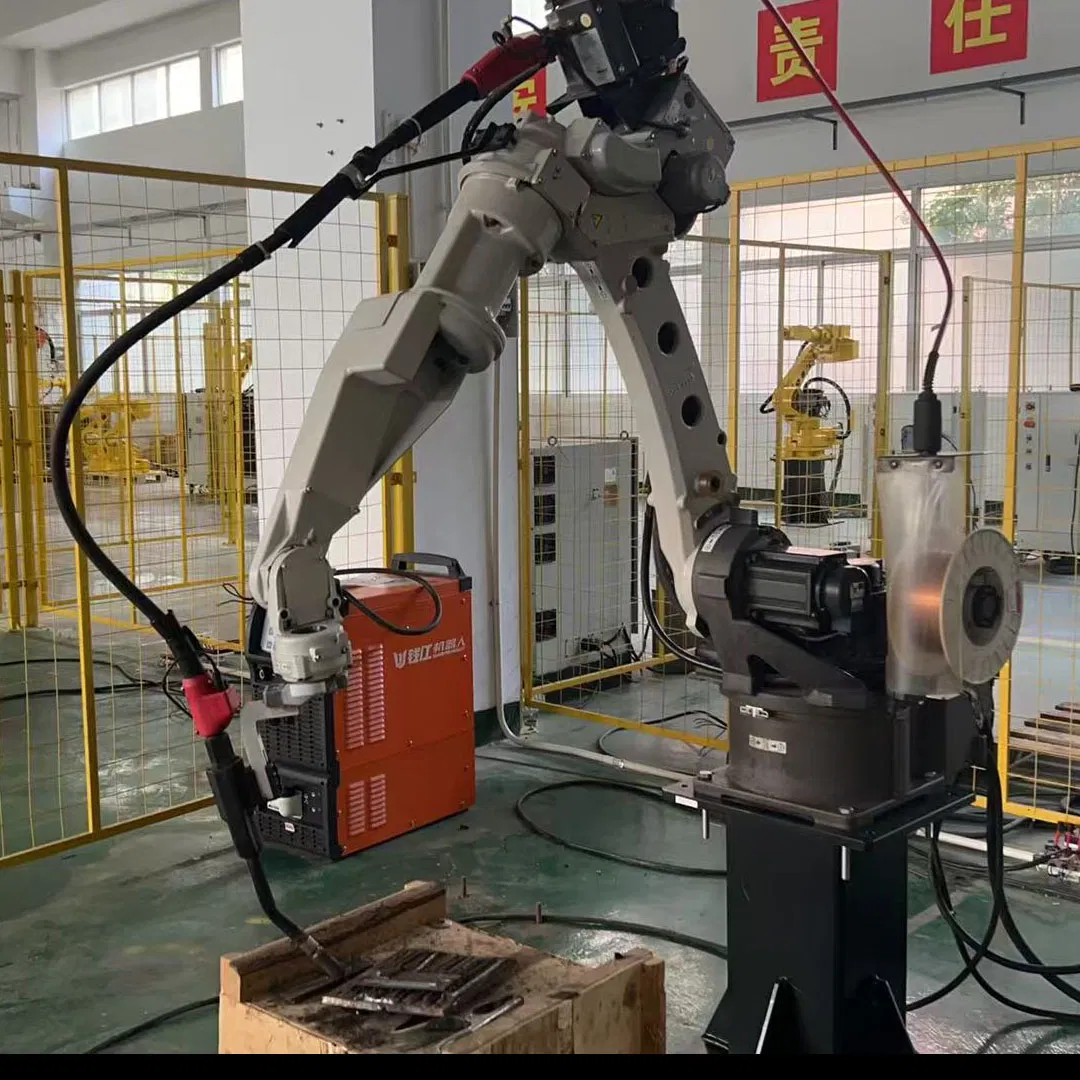

Ussecond-Hand Panasonic TM1800 Long-Arm Type Six-Axis MIG Welding Robot Arm

Basic Information

Model NO.	YA-1XAR81H00
Control Mode	Point to Point Control
Drive Mode	Electric
Type	MIG Welding Robot
Welding Speed	0.5 m/min
Axes	6 Axes
Rated Wrist Payload	6-8kg
Maximum Reach	1809 mm
Mounting Options	Floor, Ceiling, Tilted, Wall
Protection Rating	IP40

Product Description

The YA-1XAR81H00 (Main Unit: TM-1800) is a high-performance 6-axis articulated robot designed for precise industrial welding tasks. With a payload capacity of 6–8 kg, it is ideal for medium-sized welding torches and auxiliary equipment. The robot features a maximum reach of 1809 mm, ensuring excellent coverage for various workpieces, and a repeatability of ±0.08 mm for consistent quality.

Packaging & Delivery

Package Size	3200.00cm * 1500.00cm * 1800.00cm
Package Gross Weight	2500.000kg

Certifications

Frequently Asked Questions (FAQ)

1. What materials is this robot suitable for?

The robot is primarily designed for MIG welding, making it highly effective for steel and various other common industrial metals.

2. Does the robot support different installation positions?

Yes, this model supports flexible mounting options, including floor, ceiling, tilted, and wall-mounted configurations to suit your factory layout.

3. What is the precision/repeatability of the robotic arm?

The robot offers a repeat positioning accuracy of ±0.08 mm, ensuring high-quality and consistent welding results for complex manufacturing tasks.

4. Is the robot protected against industrial environments?

It has an IP40 protection rating, which effectively prevents small foreign objects from entering the internal mechanism, making it suitable for general industrial workshops.

5. What kind of technical support is provided?

We offer comprehensive technical support, including guidance on system integration, pre-sales advice, and troubleshooting assistance.
