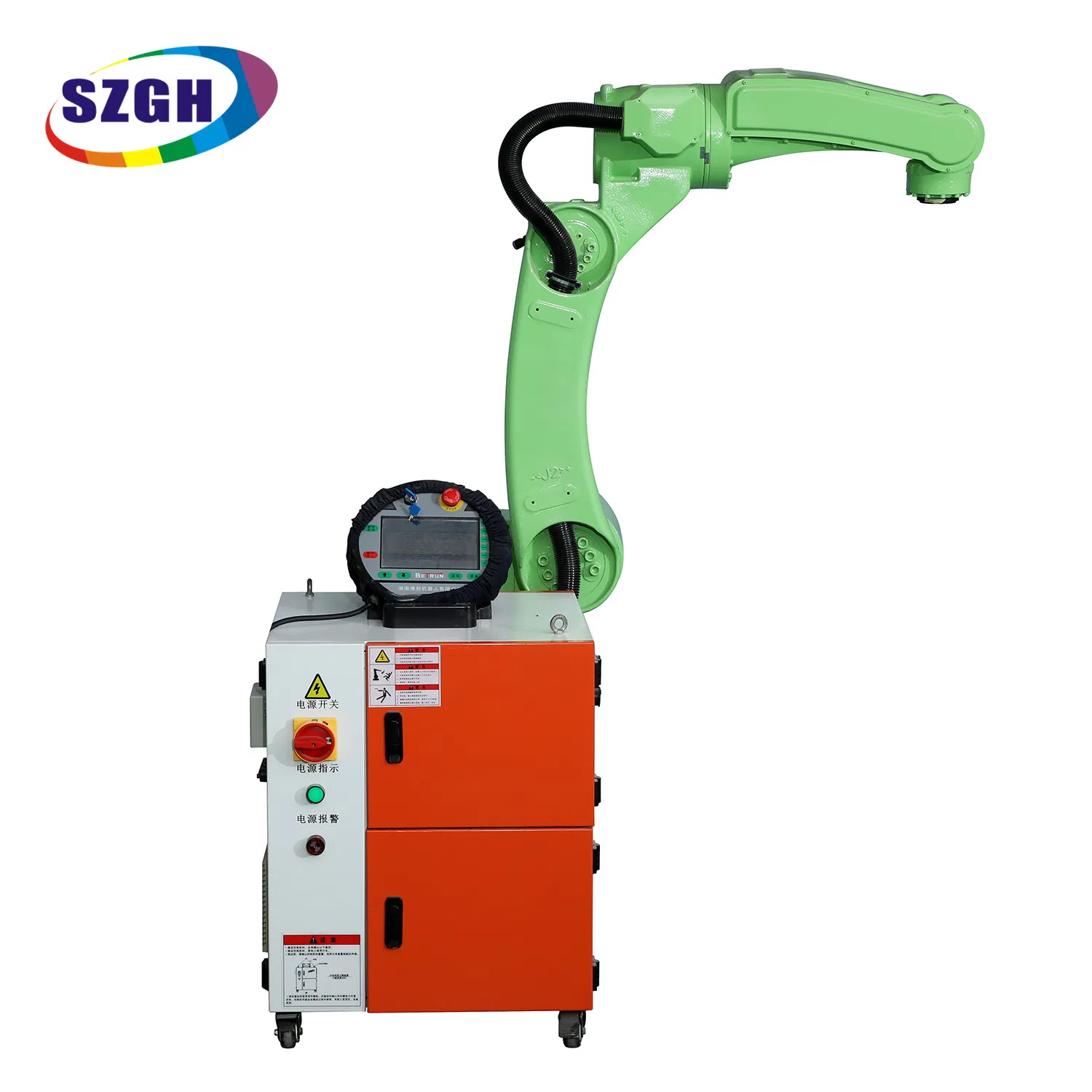

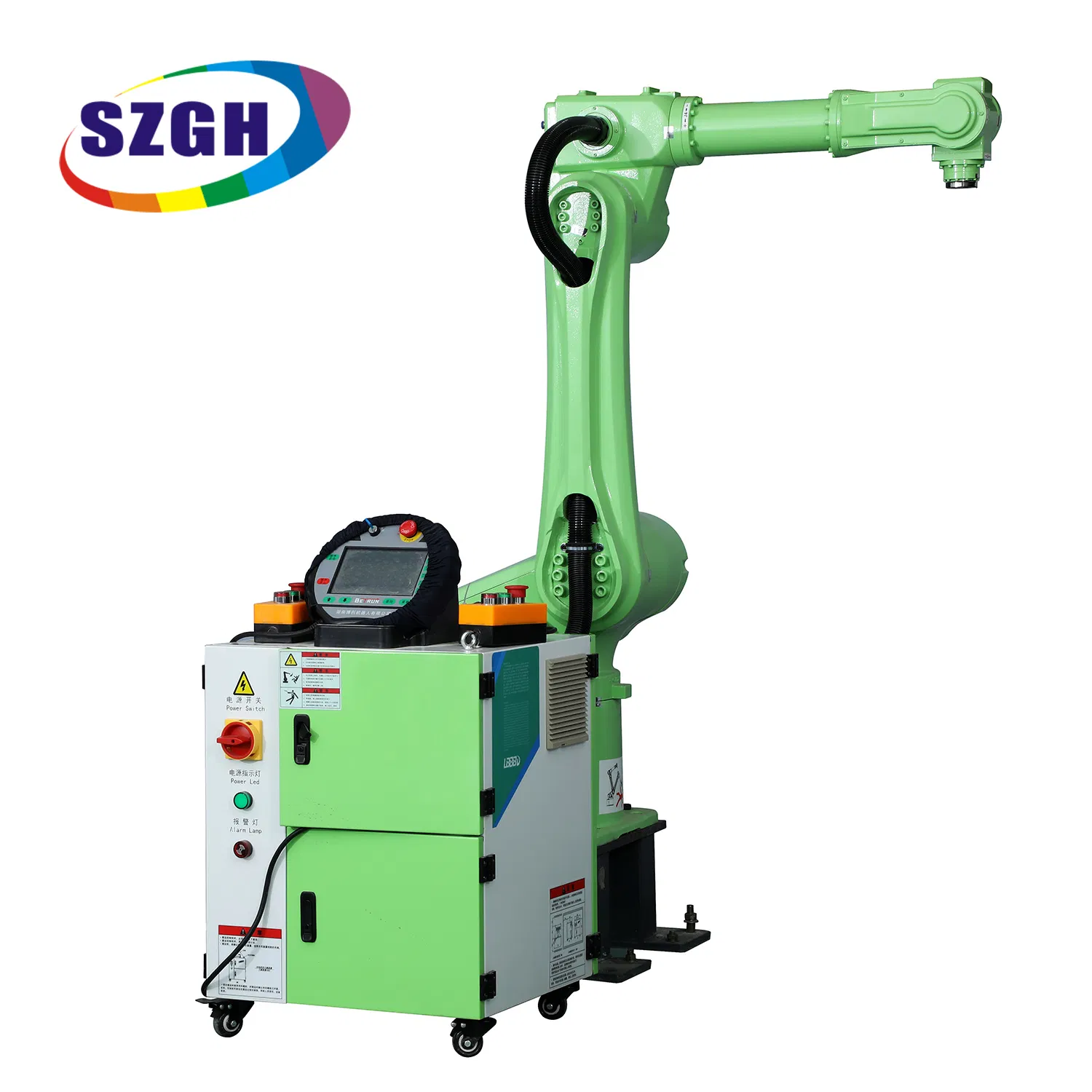

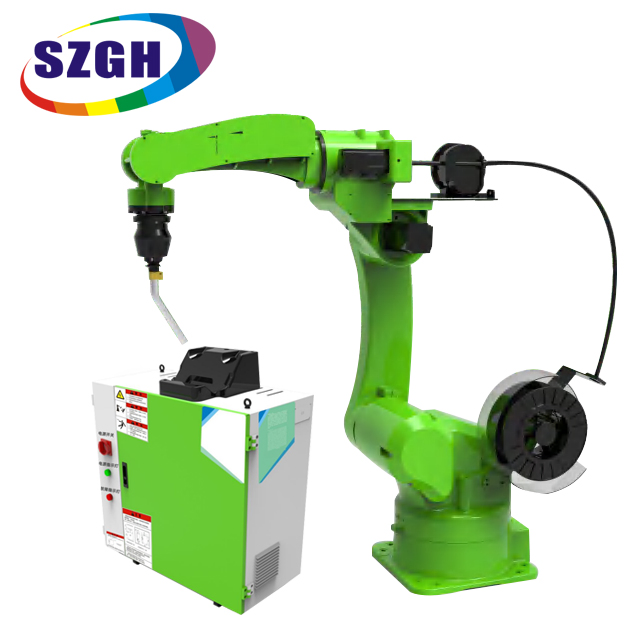

Szgh Industrial Six-Axis Welding Robot Arm Welding Machine Servo Motor 6-Axis Elfin Robot Arm

1 / 5

Szgh Industrial Six-Axis Welding Robot Arm Welding Machine Servo Motor 6-Axis Elfin Robot Arm

Customization:	Available
Application:	Welding
Control Mode:	Point to Point Control

Send Inquiry

Product Description

Technical Specifications

ModelH1500-B-6

Drive ModeElectric

Name TypeWelding Robot Arm

Axes6 Axes

Reaching1500mm

Payload6kg

StructureArticulated

Repeatability±0.05mm

Weight150kg

Mounting TypeGround, Bracket, Ceiling

ConditionNew

CertificationCE

Warranty12 Months

Transport PackageWooden Box

Specification115*115*134

Production Capacity1000 Sets /Month

Product Description

Industrial Six-Axis Welding Robot Arm Welding Machine Servo Motor 6-Axis Elfin Robot Arm

This professional robot is highly dedicated to specialized welding operations, offering exceptionally easy operation, high efficiency, and comprehensive safety parameters.

Mass Production & High Customization Capability

We have 25 standard models of robot arms in active mass production, including general-purpose, welding, spraying, palletizing, grinding, and handling categories. All systems are equipped with an intelligent robot control system developed internally. 9-axis linkage robots are also mass-produced and commercially available.

Model Parameter	Specification Details
Model	H1500-B-6
Payload	6kg
Reach	1500mm
Axes	6-11 axes
Application	Welding
Special Service	1. Custom standard colors upon request 2. Support custom client logos
Warranty Period	12 Months
After Warranty Support	Video technical support, Online assistance

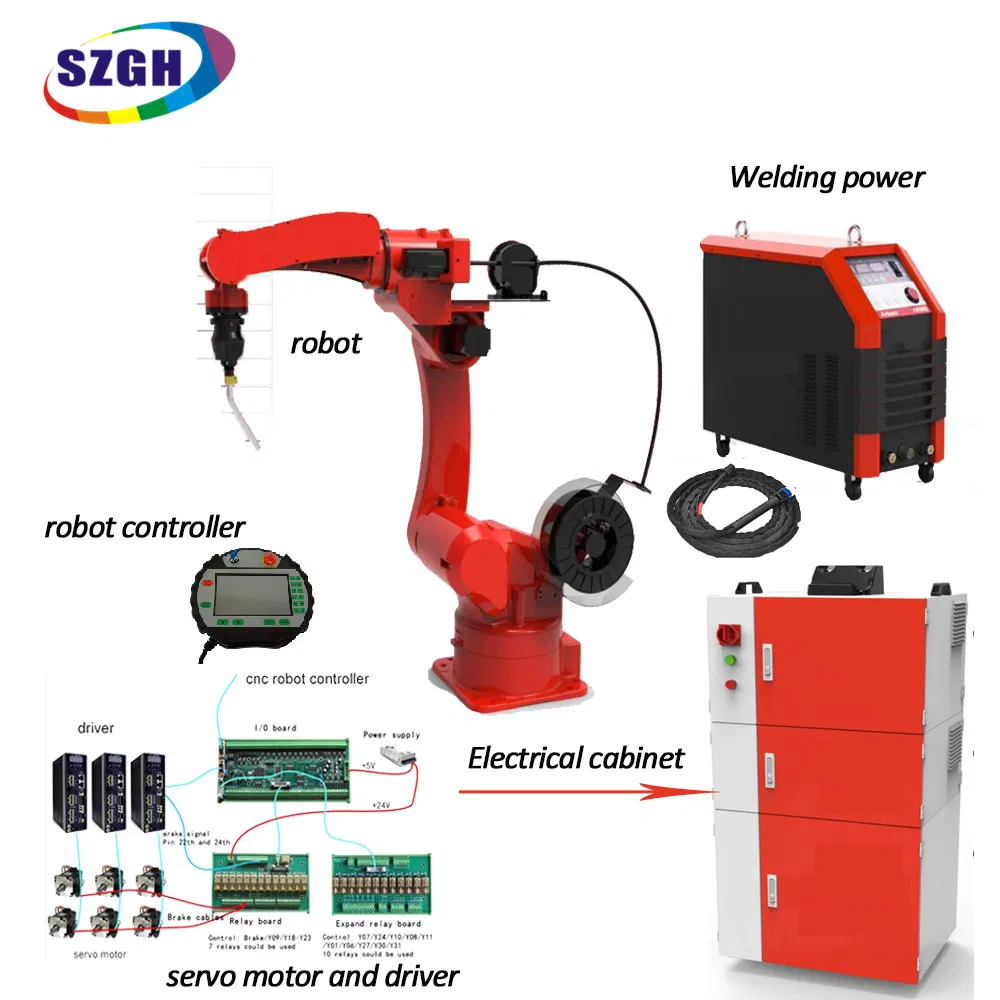

Standard Packing List

Robot Body - 1 Set
Robot Teach Pendant - 1 Set
Servo Motor - 6 Pcs
Servo Driver - 6 Pcs
RV Gear Box / Harmonic Gear Box - 6 Pcs
Electrical Cabinet - 1 Pcs
Welding Machine & Torch Gun - 1 Set
Isolation Transformer & Wire Feeding - 1 Set

Packaging & Delivery Details

Industrial Packaging: Plastic bag + Foam boxes + Strong cartons + Solid wooden pallets.

Commercial Packaging: Plastic bag + Protective foam boxes + Heavy-duty carton.

Delivery Lead Time: Standard stock items are ready to ship within 2 to 5 working days.

Welding Series Specifications

Model	H1500-B-6	H1850-B-6	H2100-B-6	HZ1500-B-6	HZ1850-B-6
Payload	6kg	6kg	6kg	6kg	6kg
Active Reach	1500mm	1850mm	2100mm	1500mm	1500mm
Structure	Articulated	Articulated	Articulated	Articulated	Articulated
Axes	6	6	6	6	6
Repeatability	±0.05mm	±0.05mm	±0.05mm	±0.05mm	±0.05mm
Protection Class	IP65	IP65	IP65	IP65	IP65
J1 Motion Range	±165º	±165º	±165º	±165º	±165º
J2 Motion Range	+135°/-75°	+135°/-75°	+135°/-75°	+135º/-90º	+135º/-90º
J3 Motion Range	78°/-76.5°	78°/-76.5°	78°/-76.5°	+90º/-90º	+90º/-90º
J4 Motion Range	±360º	±360º	±360º	±360º	±360º
J5 Motion Range	±115°	±115°	±115°	+115º/-140º	+115º/-140º
J6 Motion Range	±450º	±450º	±450º	±450º	±450º
Weight	150kg	170kg	235kg	150kg	170kg
Amb. Temperature	-20 ºC ~ 80 ºC	-20 ºC ~ 80 ºC	-20 ºC ~ 80 ºC	-20 ºC ~ 80 ºC	-20 ºC ~ 80 ºC

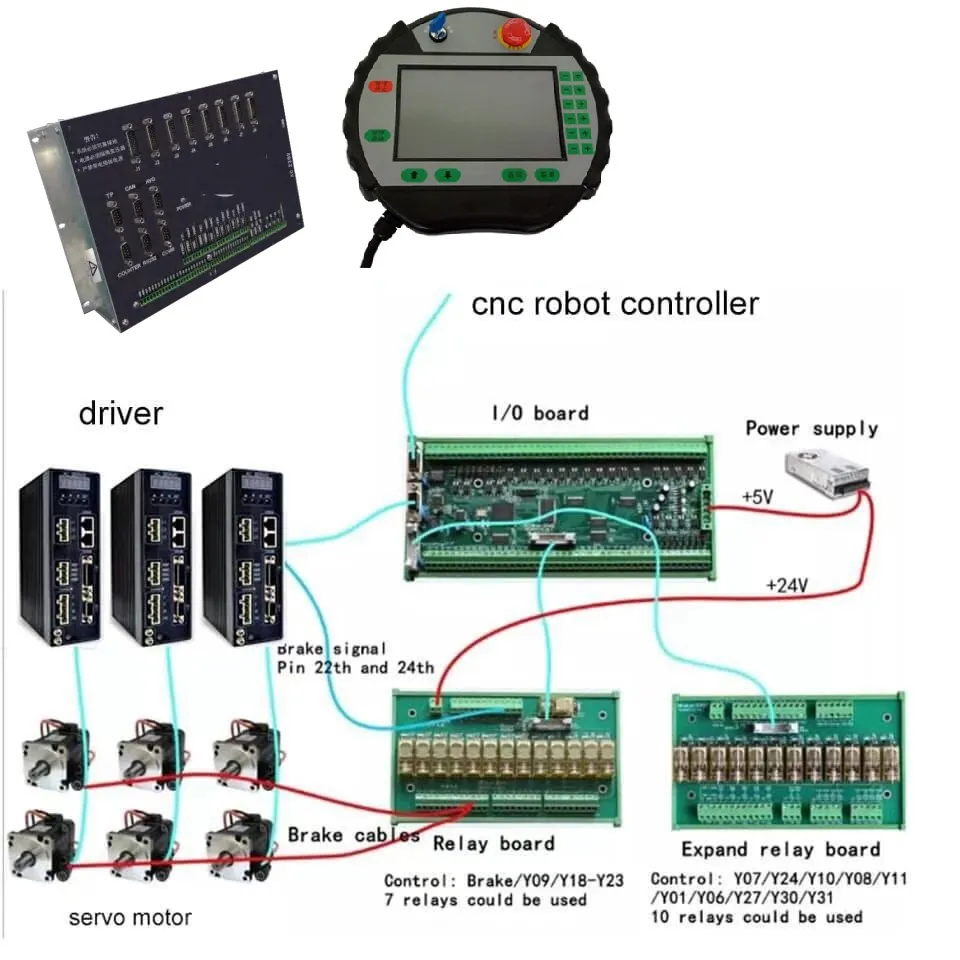

Robot Controller Systems

Optimal Structural Algorithm: Specifically designed to handle robust control across distinct mechanical profiles.
Modular Implementation: Scalable settings tailored for diverse field operations, extending easily up to 8-axis synchronization to support external positioners and travel tracks.
Broad compatibility: Optimized for multiple increments and absolute servo systems. Open system layout guarantees consistent syncing with global technology parameters.
Built-in PLC Logic: Native software PLC modules simplify standard industrial logic procedures.
Industrial Bus Integration: Improved computer bus links guarantee reliable performance and stability in severe conditions.

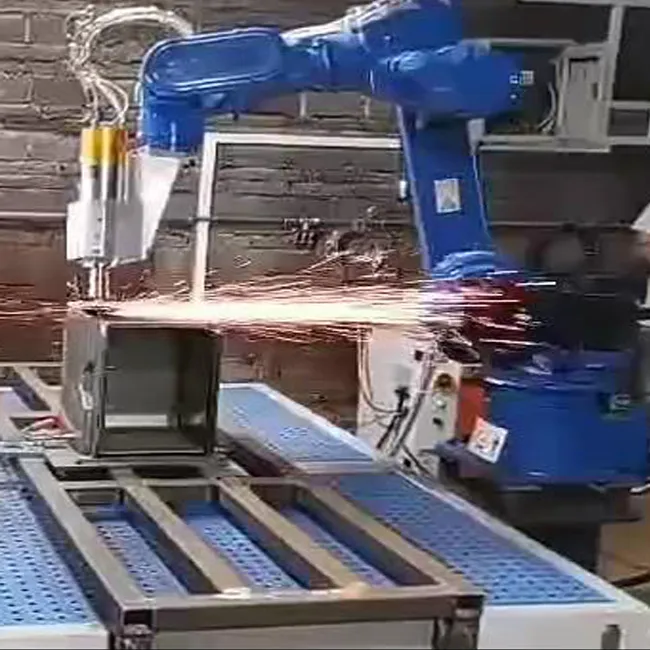

Main Applications

Optimized for diverse sectors including automotive production, metal window and door fabrication, heavy engineering machinery, mining operations, locomotives, electrical hardware, home furniture, and overall manufacturing automation.

Targeted Design Features

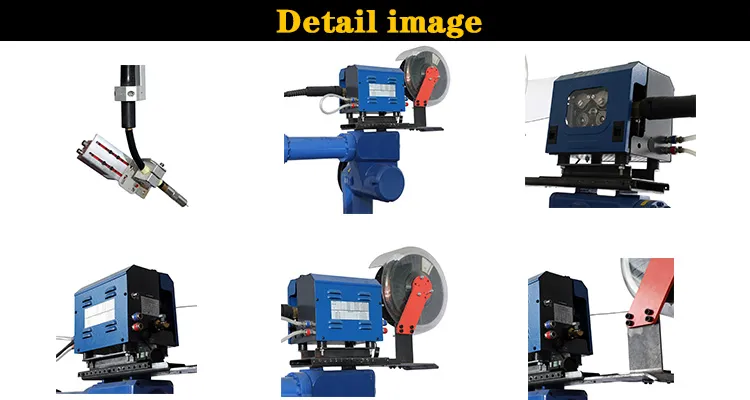

This high-performance model is built purposefully for tough factory environments. Its completely enclosed axis design successfully prevents welding sparks and spatters from damaging external cables, securing higher stability and a smaller operational footprint.

Production Excellence & Certifications

Every system goes through strict, advanced multi-point inspections and tests before packaging, ensuring optimal operation and accuracy. We consistently support standard quality guidelines to provide first-rate mechanical reliability.

Safety Certifications and CE Verification

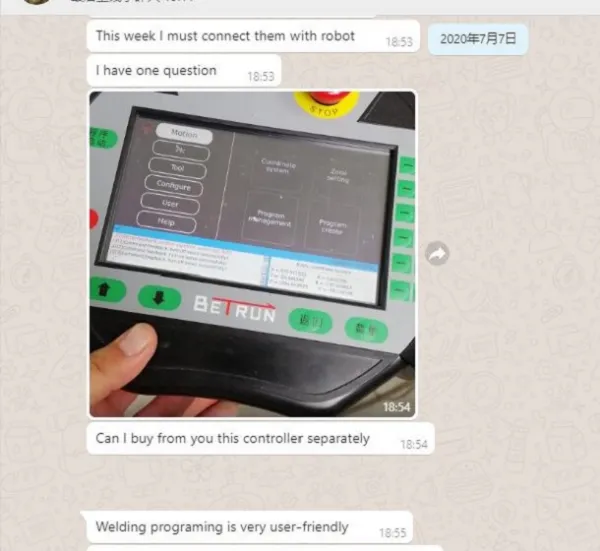

Professional After-Sales Support

Our expert engineering divisions supply quick feedback, standard training structures, and online technical assistance to secure continuous performance in high-speed manufacturing environments.

Frequently Asked Questions

Do you support customized manufacturing?

Yes, we provide highly flexible customized manufacturing solutions according to specific customer requirements. We also offer customization options for dedicated user interfaces and logos to suit your operations.

How long is the standard delivery time?

Generally, standard in-stock products are shipped within 3 to 5 business days. For non-stock items, the shipping timeframe is 5 to 10 days, depending heavily on quantity. Customized industrial orders typically require 10 to 20 days.

Do you provide product samples?

Yes, sample items are available to order and can be provided according to the designated sample pricing structure.

What are the standard terms of payment?

For total invoice value under or equal to 2,000 USD, 100% advance payment is required. For payments over 1,000 USD, terms are 70% T/T in advance with the remaining balance settled before final shipment.

Which industries are these welding robot arms suitable for?

These multi-axis robotic arms are ideally suited for automated welding tasks in automotive components manufacturing, sheet metal windows and doors, mining machinery, agricultural equipment, electrical appliances, and metallic furniture production.

What is included in the standard mechanical packing list?

The full industrial set comes with the core Robot Body (1 set), high-performance Robot Teach Pendant (1 set), 6 pieces of digital Servo Motors and matching Servo Drivers, precision RV/Harmonic Gear Box, a specialized Electrical Control Cabinet, and the integrated Welding Machine with its corresponding torch gun.
