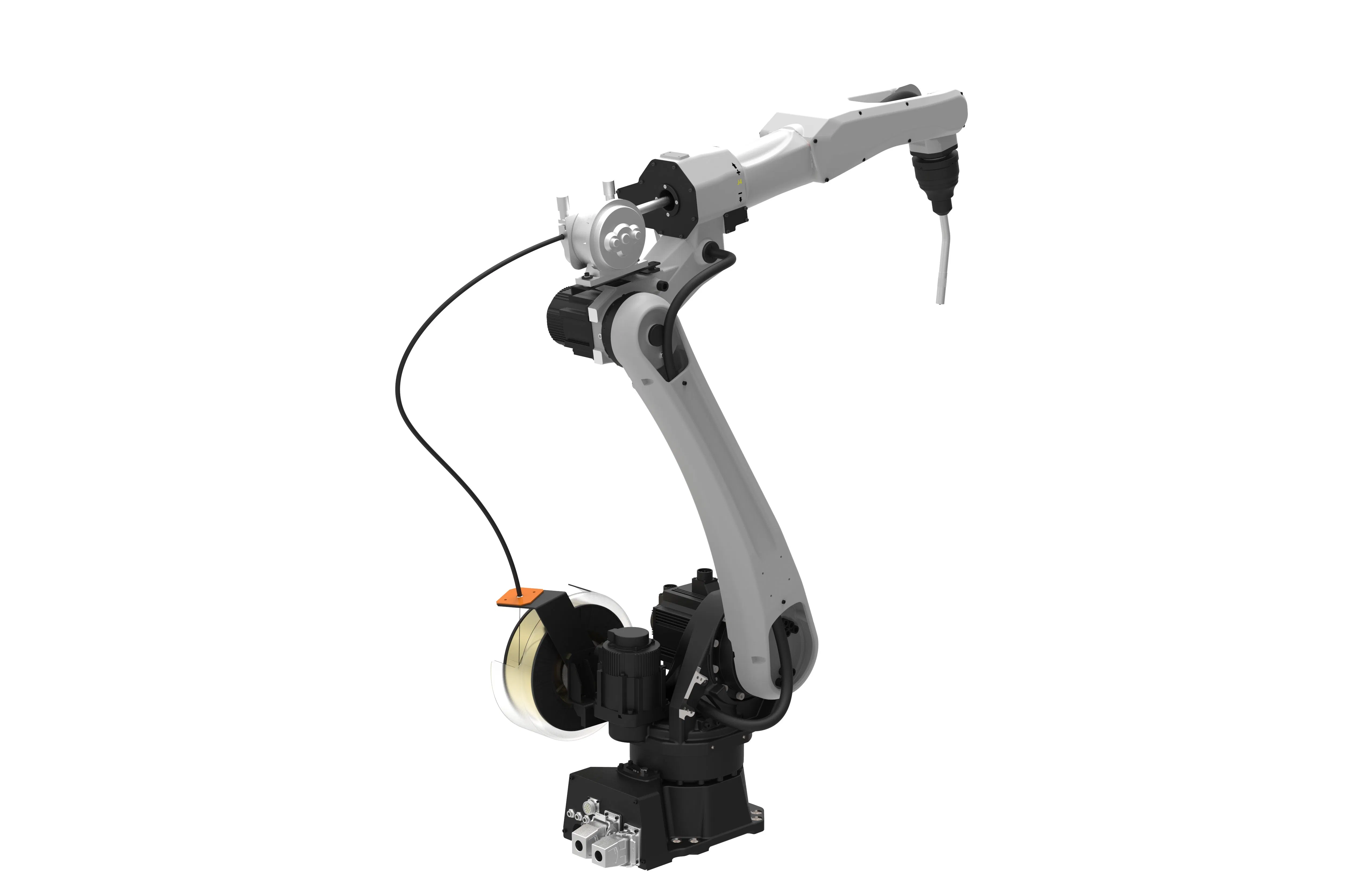

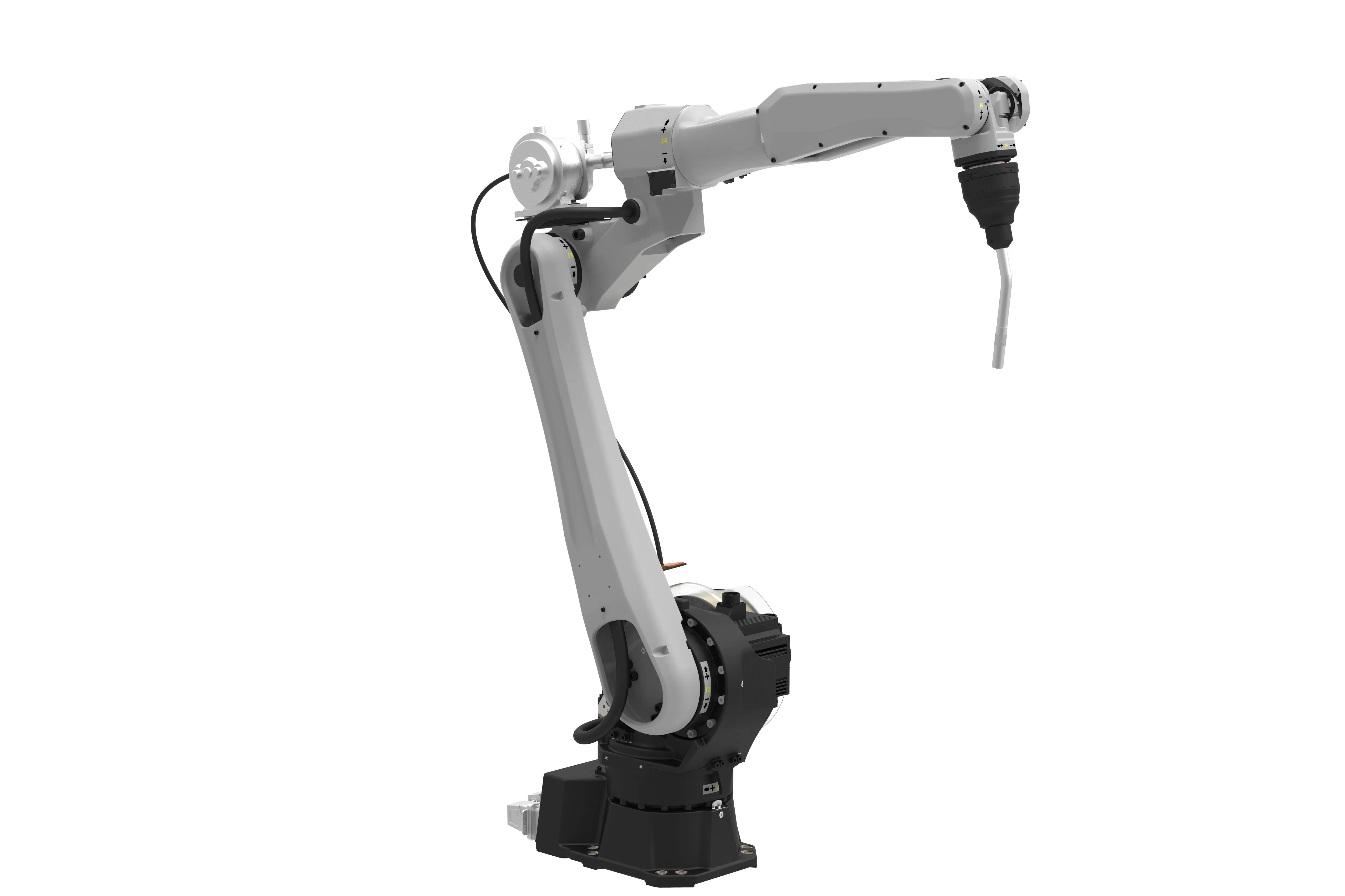

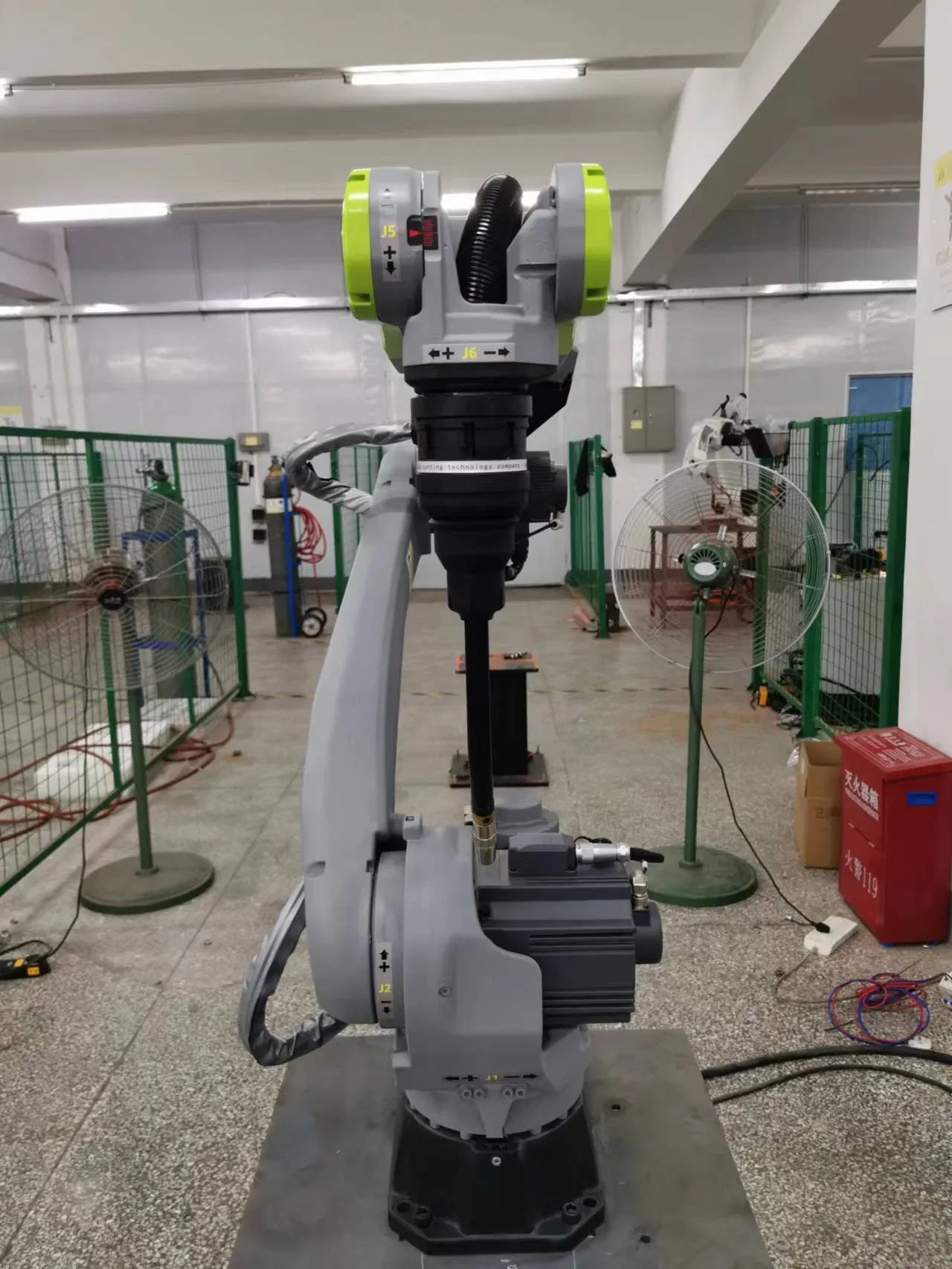

1500mm 6 Axis Robot Arm MIG Mag Welding
1500mm 6 Axis Robot Arm MIG Mag Welding
1500mm 6 Axis Robot Arm MIG Mag Welding
1500mm 6 Axis Robot Arm MIG Mag Welding
1500mm 6 Axis Robot Arm MIG Mag Welding
1 / 5
1500mm 6 Axis Robot Arm MIG Mag Welding
1500mm 6 Axis Robot Arm MIG Mag Welding
1500mm 6 Axis Robot Arm MIG Mag Welding
1500mm 6 Axis Robot Arm MIG Mag Welding
1500mm 6 Axis Robot Arm MIG Mag Welding

1500mm 6 Axis Robot Arm MIG Mag Welding

Customization: Available
Application: Welding
Control Mode: Teach Pendant
Send Inquiry

Product Description

Basic Info.
Model NO. TC-06-1500
Drive Mode Electric
Range 1500mm
Payload 6kg
Axis 6
Color White
Condition New
Certification CE
Warranty One Year
Specification 1350*1280*1250mm
Trademark TC
HS Code 8515312000
Product Description
  • The arm span is 1.4 meters. The design is highly compact and can be flexibly installed on the ground or upside down.
  • With large working space, fast running speed and high repeated positioning accuracy, it is suitable for wide range of welding applications.
  • The safety emergency stop board independent of the control system is equipped with, and the safety relay circuit is adopted to provide double-circuit emergency stop.
  • The robot body adopts highly flexible special cable.
  • Built-in three-phase transformer makes 380V and 220V isolated; built-in three-phase filter improves EMC and EMI performance.
  • The robot body is with dual-circuit gas pipe to meet the welding demand.

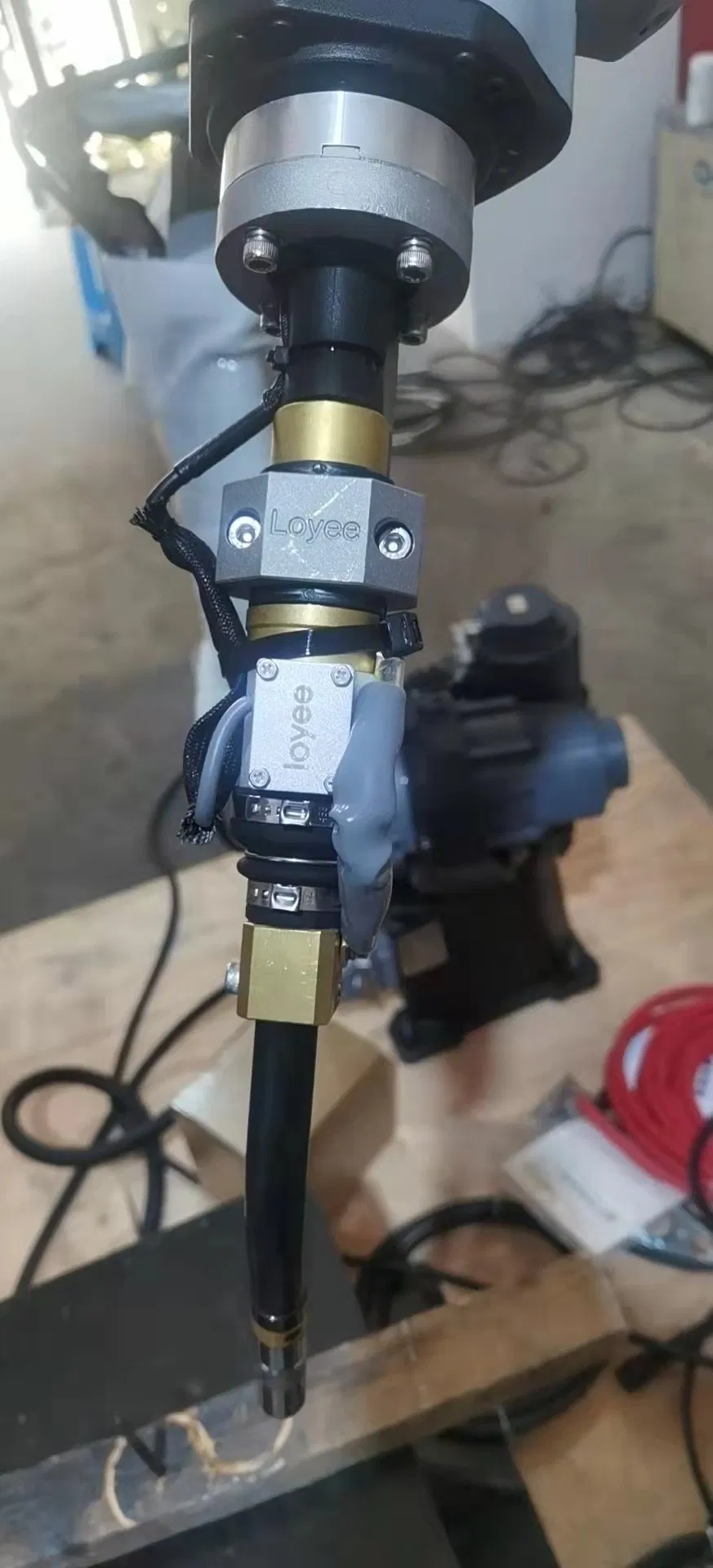

  • The inner diameter of 6-axis middle hole is 44mm, it can meet the installation requirements of water-cooling torch and bellows torch.
  • Highly flexible welding cable is built-in.

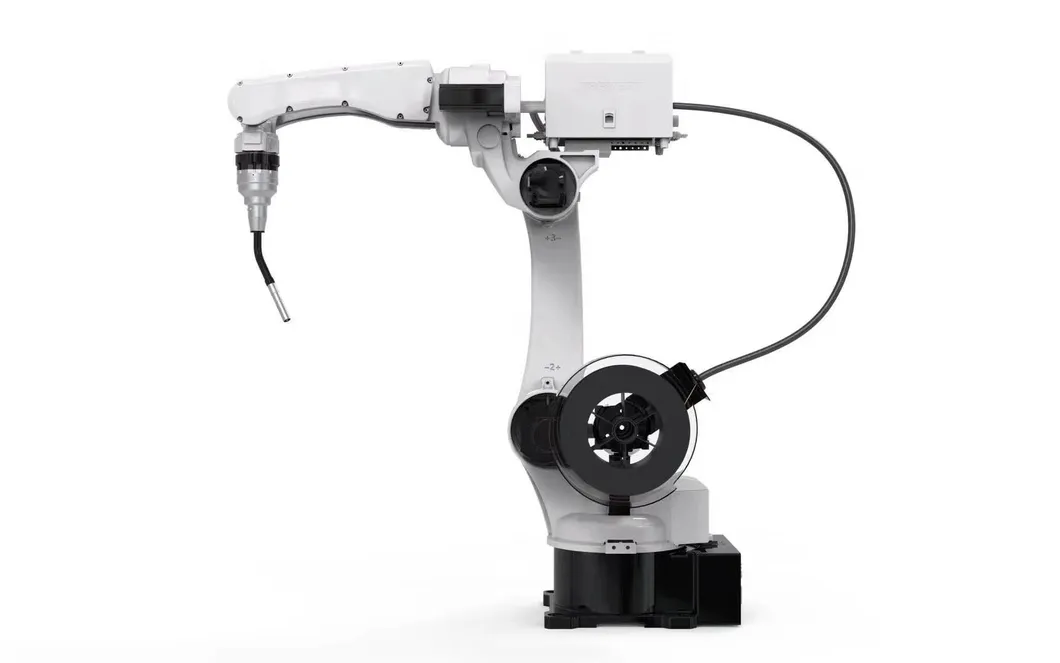

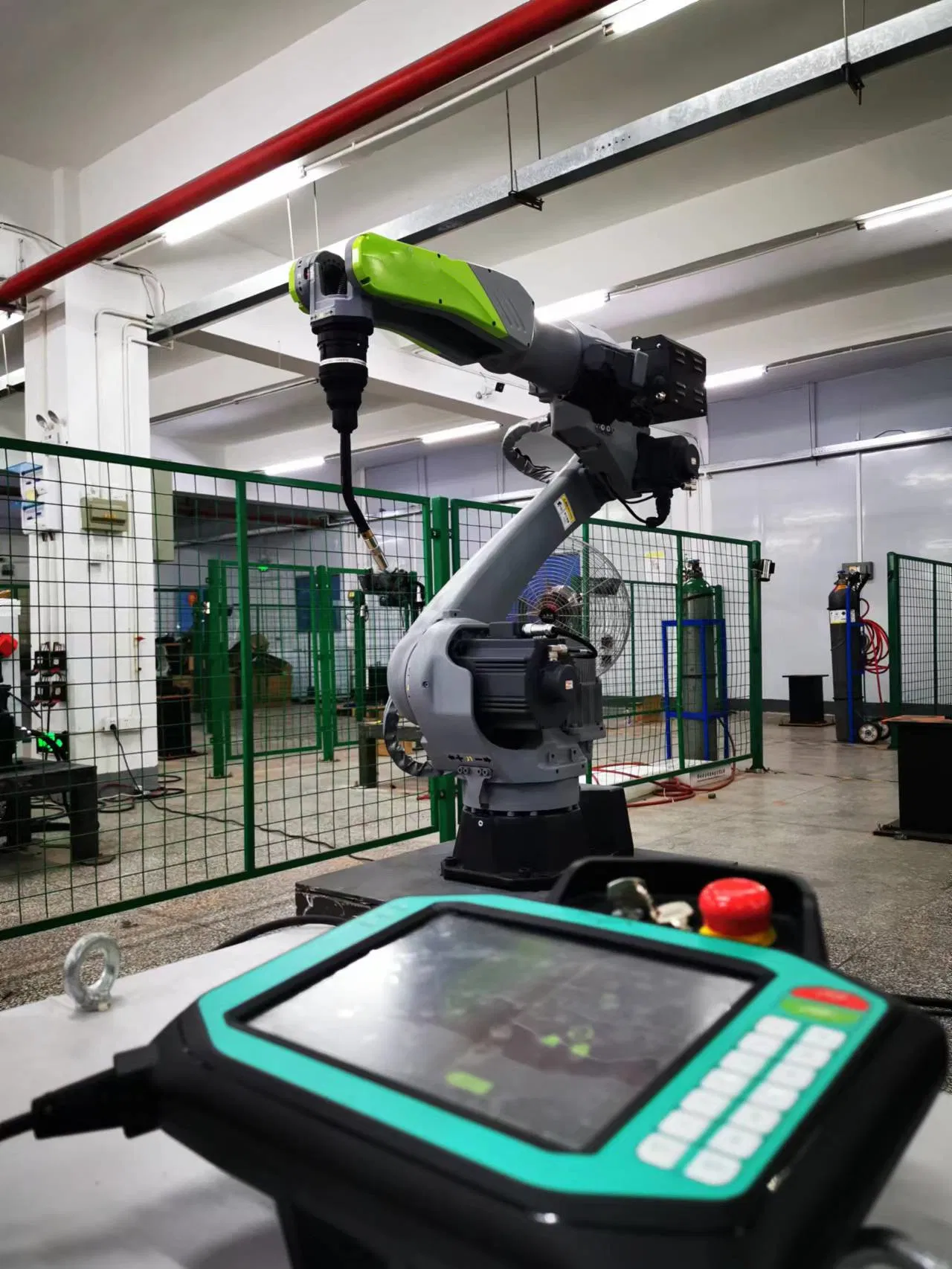

1500mm 6 Axis Robot Arm
1500mm 6 Axis Robot Arm

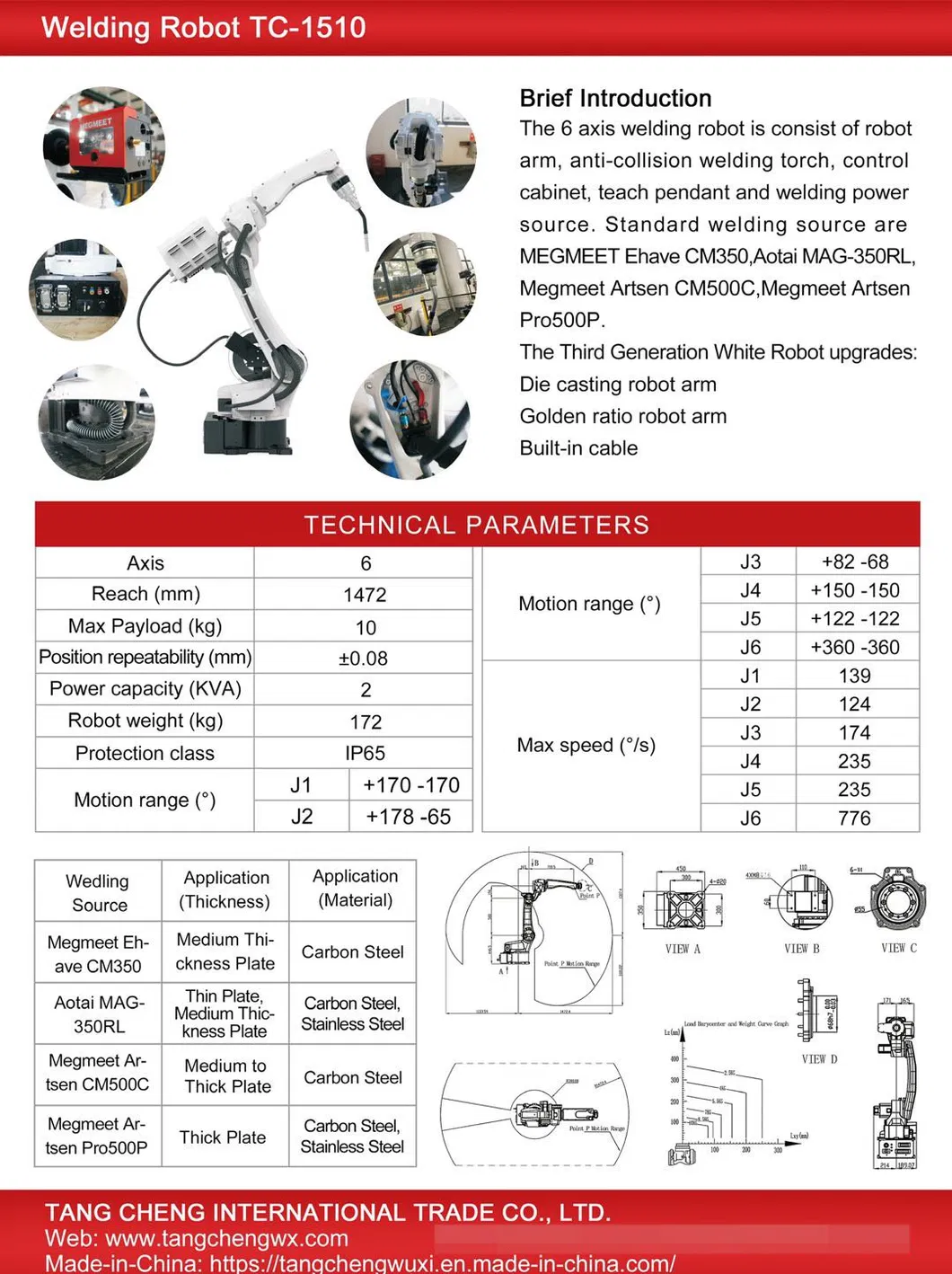

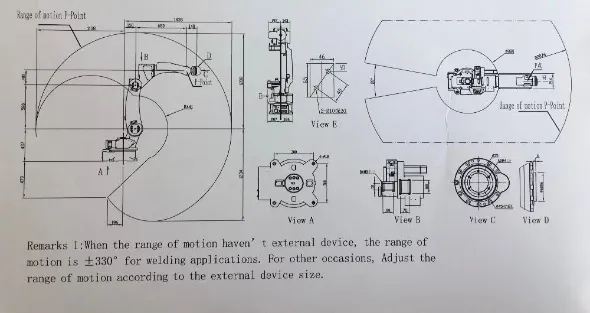

Working Range

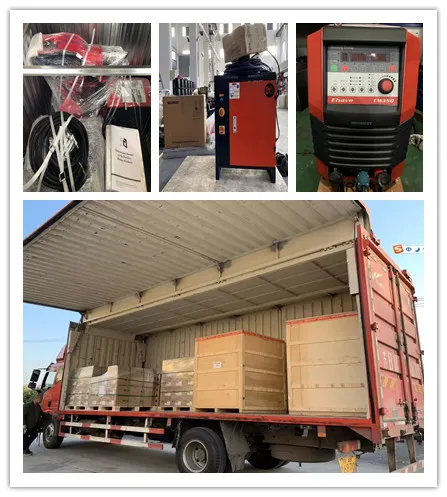

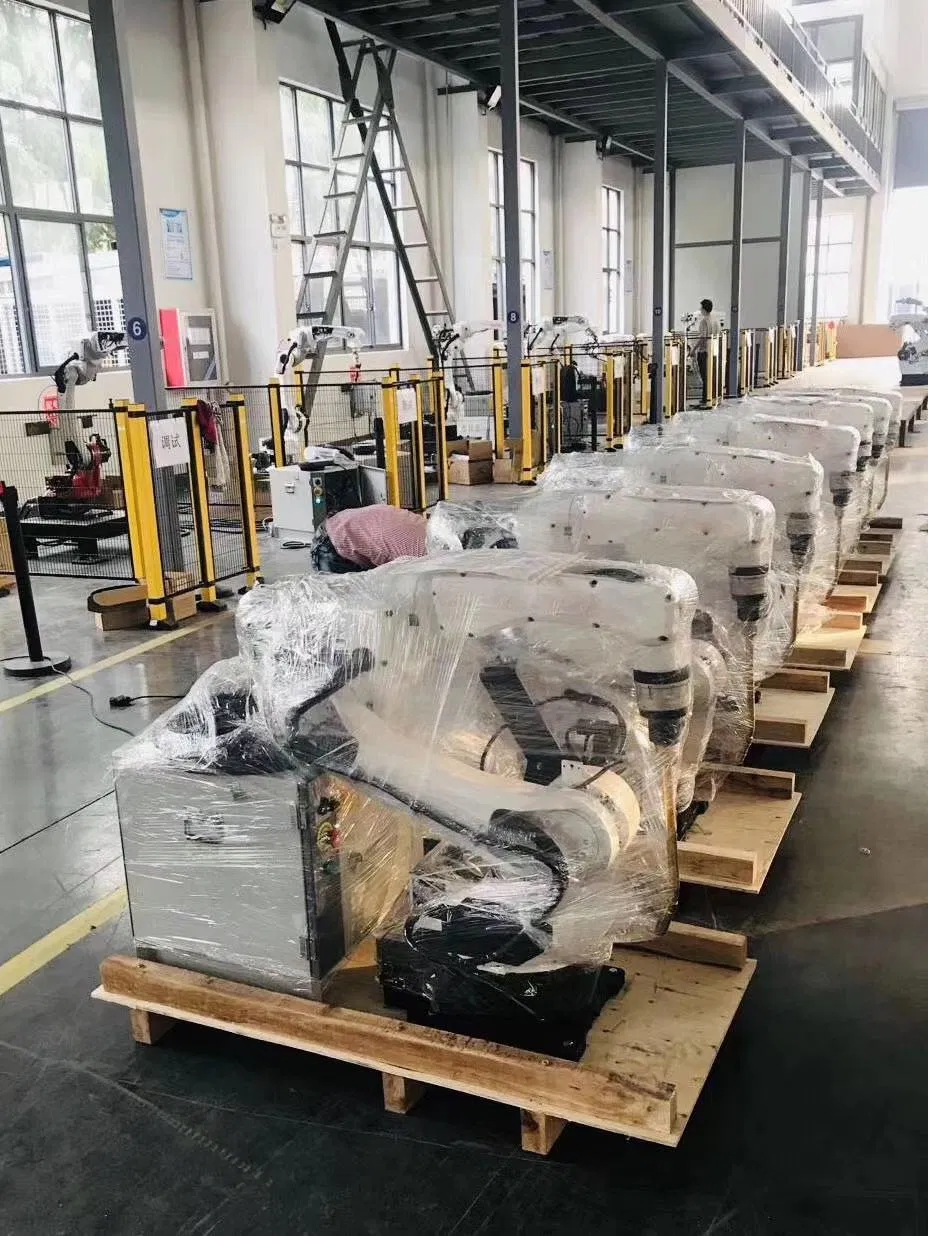

Packing
Packing

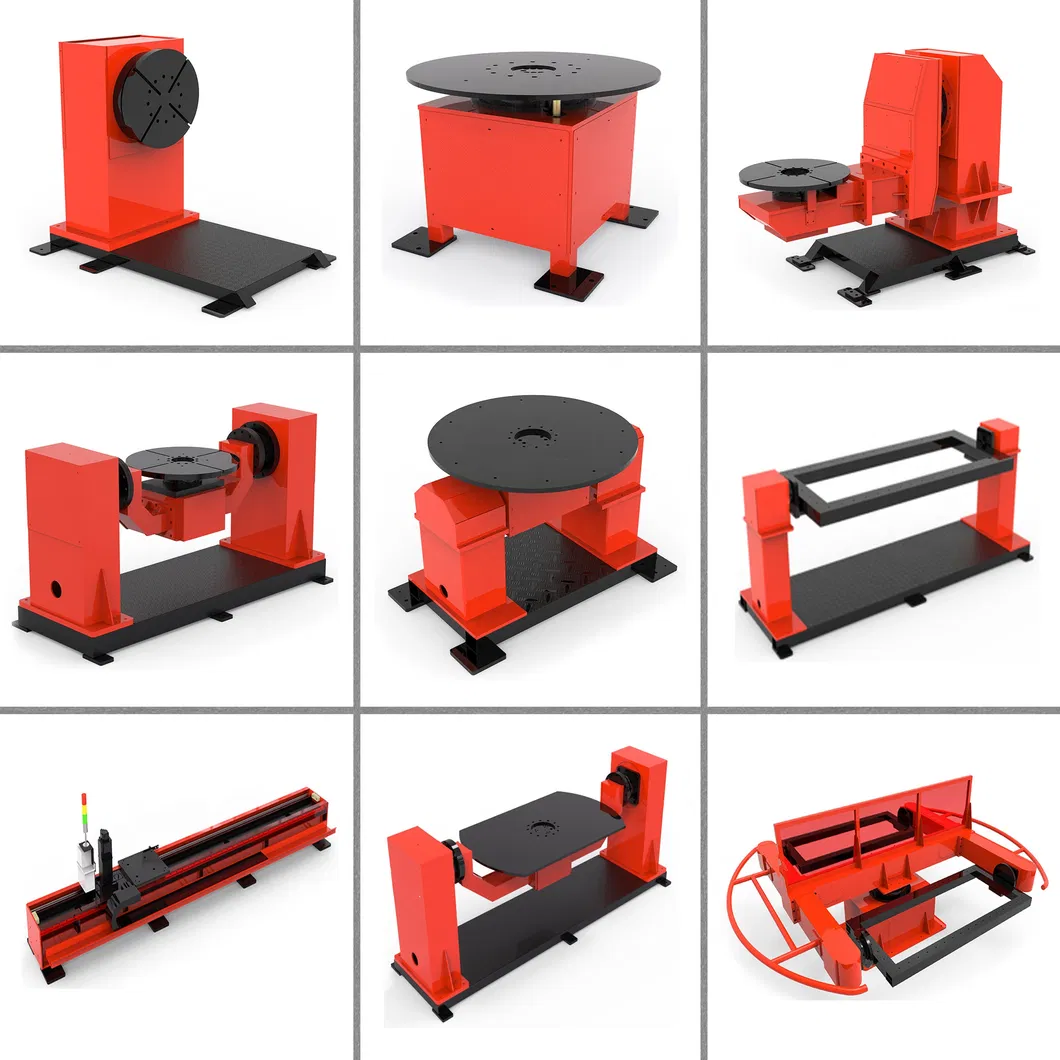

Selection

CONFIGURATION

Robot arm x1pc, Anticollision torch x1pc, Control cabinet x1pc, Teach pendant (8m) x1pc, Control box (5m) x2pcs, Power source Megmeet Ehave CM350 x1set.

WARRANTY

Limit 1 years/2400hours warranty for robot arm and control cabinet. Limit 1 years/2400hours warranty for welding machine, wire feeder and teach pendant and positioner. Wearing parts and improper use are not within the scope of warranty.

FAQ
1. What is the arm span of this robot?
The robot arm features an arm span of 1.4 meters, designed for a highly compact footprint.
2. Can the robot be installed on the ceiling?
Yes, the compact design allows for flexible installation, including ground mounting or upside-down (ceiling) mounting.
3. Does it come with a warranty?
Yes, it includes a 1-year or 2400-hour limited warranty for the robot arm, control cabinet, welding machine, wire feeder, and teach pendant.
4. Is this robot suitable for MIG/MAG welding?
Yes, the system is designed with high speed and precision, making it suitable for a wide range of welding applications.
5. Does the robot include an emergency stop safety feature?
Yes, it is equipped with an independent safety emergency stop board and a safety relay circuit with a double-circuit design for high reliability.
6. What is the payload capacity of this 6-axis robot?
The payload capacity of this model is 6kg.
