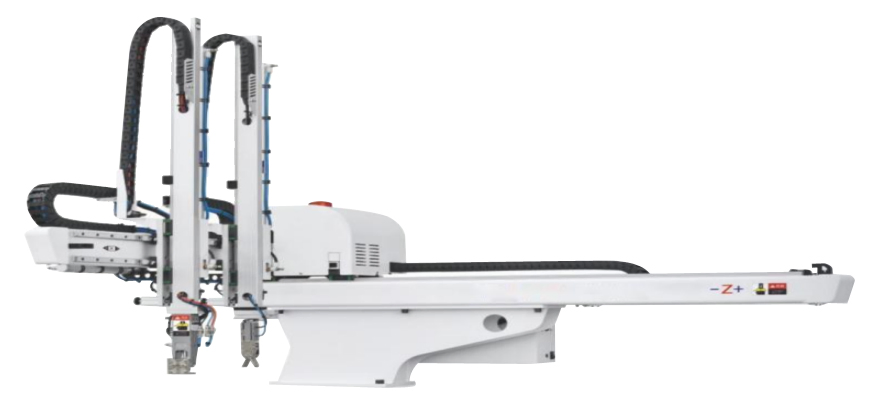

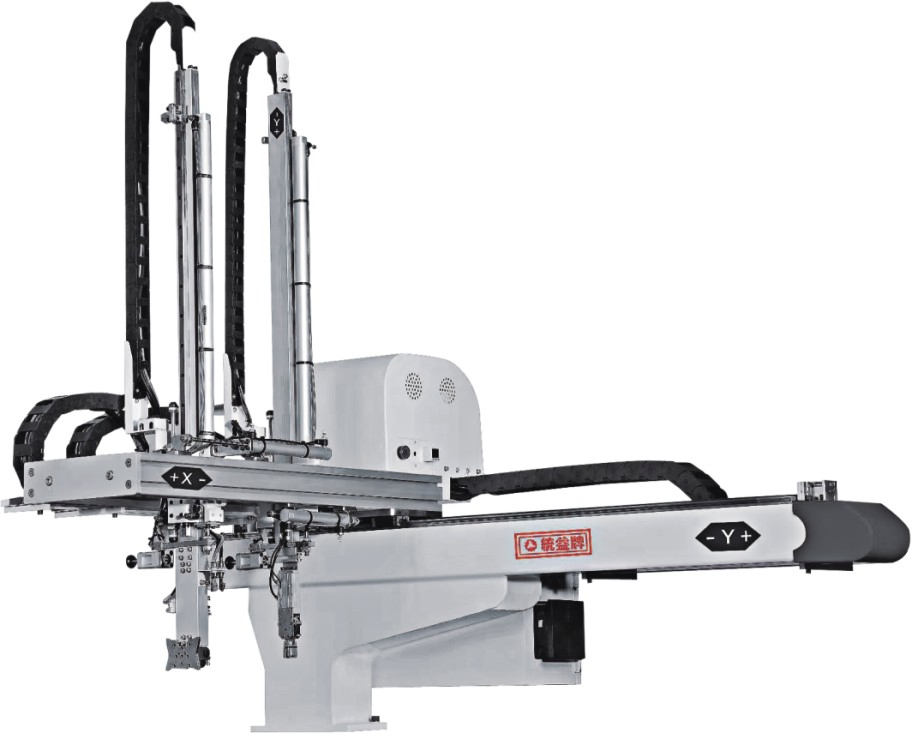

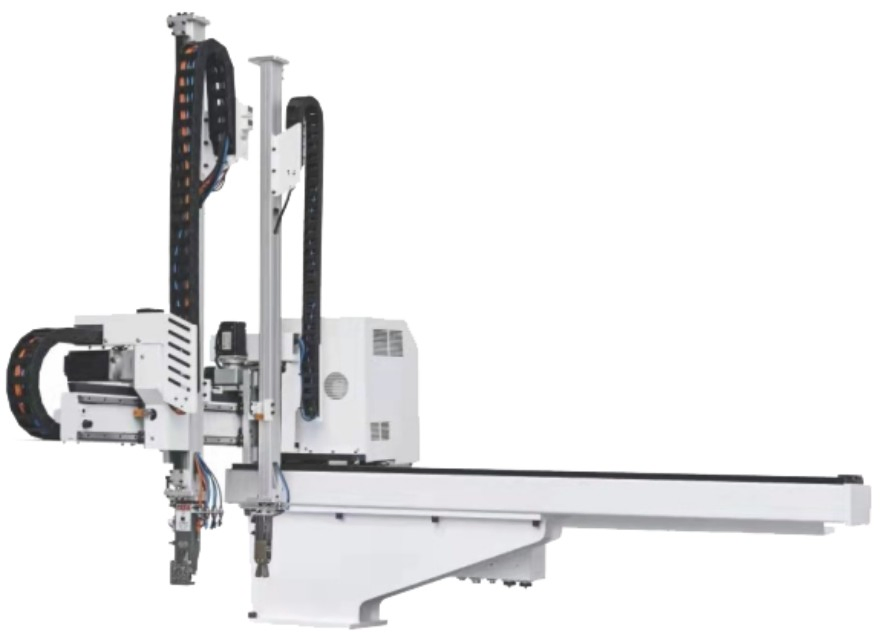

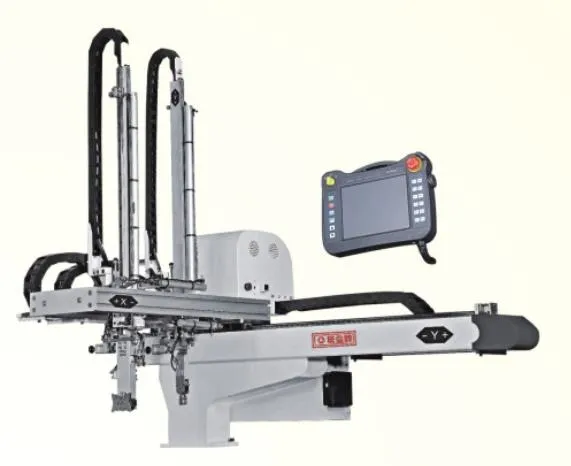

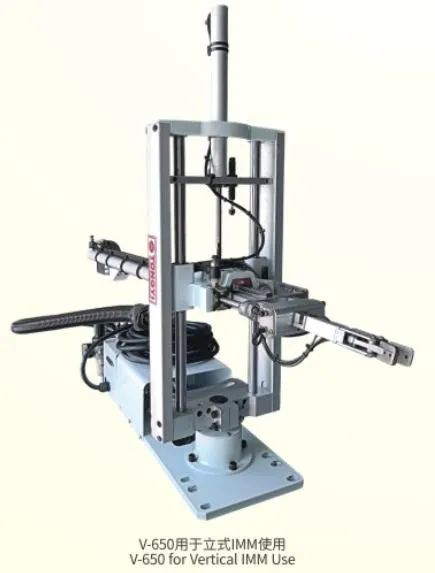

Three/ Five Axes AC Servo Driven Robots are extensively applied to horizontal plastic injection machines from 50~850T which are mainly designed for rapid and precise removal on strict demands of good appearance of finished products and sprues. There are two types of arms: single stage and telescopic. Full AC servo motors are driven on three axes (traverse/ crosswise/ main arm) and five axes (traverse/crosswise & vertical for main arm & sub arm), take-out time at 0.65-1.5 sec and dry cycle time at 5-9 sec. All linear movement are controlled by servo driven control systems to cooperate with high rigidity structure of linear guiderail for realizing high precise take-out and accurate repeatability.

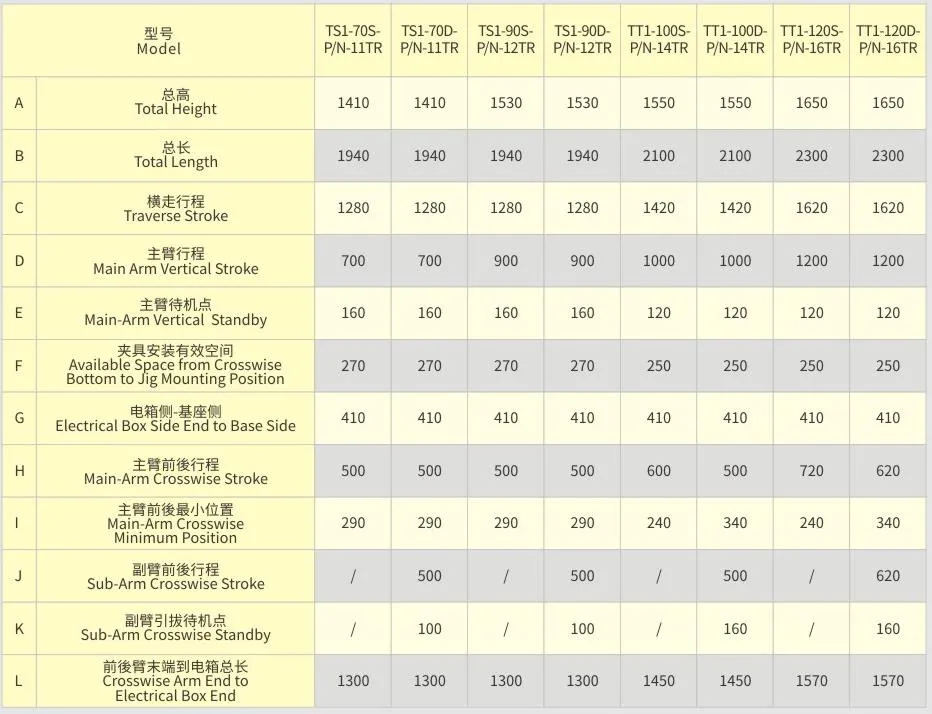

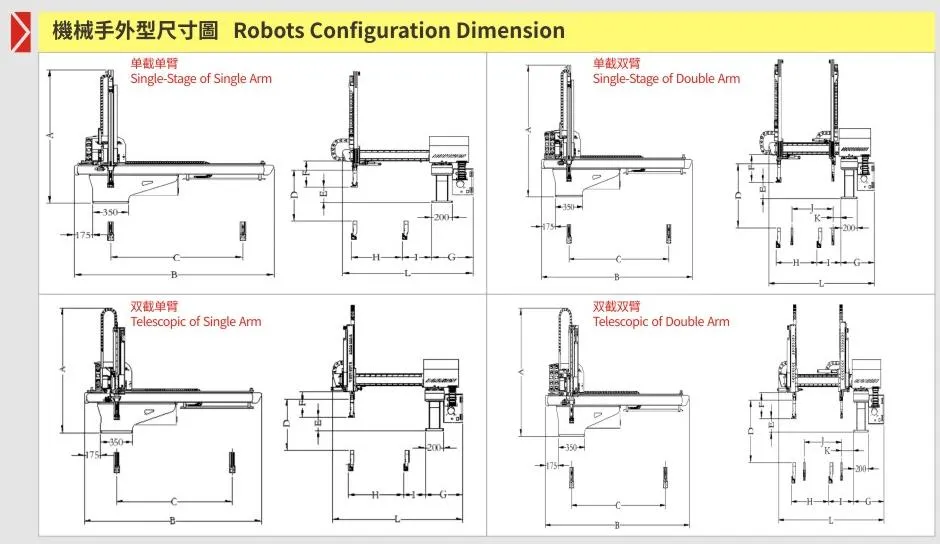

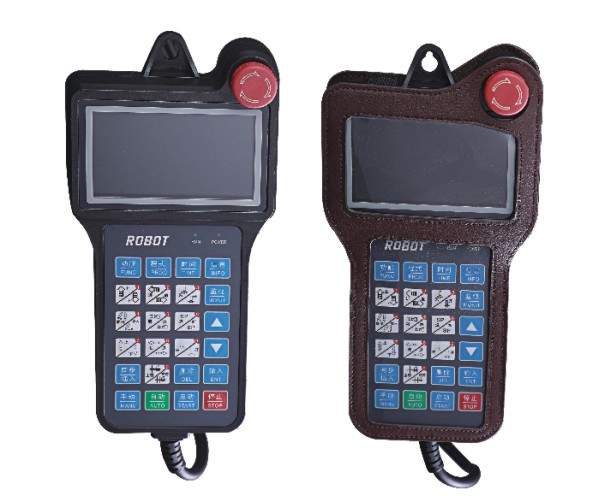

| Model | TS3-70S-P/N-13TR | TS3-90S-P/N-14TR | TT3-100S-P/N-16TR | TT3-120S-P/N-16TR | TT3-140S-P/N-17TR | |
|---|---|---|---|---|---|---|
| Arm Type | - | Single-Stage | Telescopic | |||
| IMM Range | TONS | 50-120T | 100-220T | 250-350T | 300-450T | 400-850T |
| Vertical Stroke | MM | 700 | 900 | 1000 | 1200 | 1400 |
| Main Arm Crosswise | MM | 600 | 600 | 650 | 750 | 750 |
| Traverse Stroke | MM | 1350 | 1450 | 1600 | 1600 | 1750 |
| Max. Load | KG | 5 | 6 | 8 | 10 | 15 |
| Take Out Time | S | 0.65 | 0.65 | 0.7 | 1.5 | 1.5 |
| Dry Cycle Time | S | 5 | 5 | 7 | 9 | 9 |
| Drive System | - | AC Servo Motor | ||||
| Power Supply | - | AC 220V±10%, 50/60Hz | ||||
| Function Type | Feature | Description |
|---|---|---|
| Standard | Language Exchange | Supports 8 languages and multiple fonts/symbols. |
| Standard | Jig Circuit | Standard 2 suction and 2 grasp circuits. |
| Standard | Teaching Function | Editable programs to work with auxiliary equipment. |
| Standard | Conveyor Interface | Equipped for convenient connection to conveyor systems. |
| Standard | Production Memory | Traces production quantities before power off. |
| Optional | Spray Mold Release | Adjustable spray intervals for smooth demolding. |
| Optional | Pneumatic Scissors | Can be installed for runner cutting. |
| Optional | Automatic Lubrication | Automatically lubricates parts based on cycle count. |
| Optional | Euromap Connector | Compatible with EUROMAP 12 or 67 standards. |

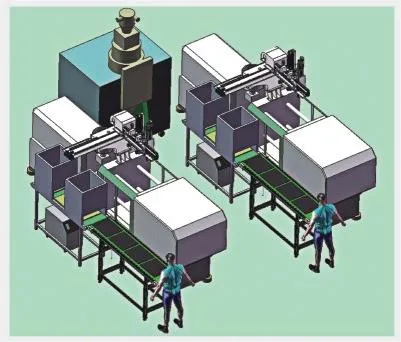

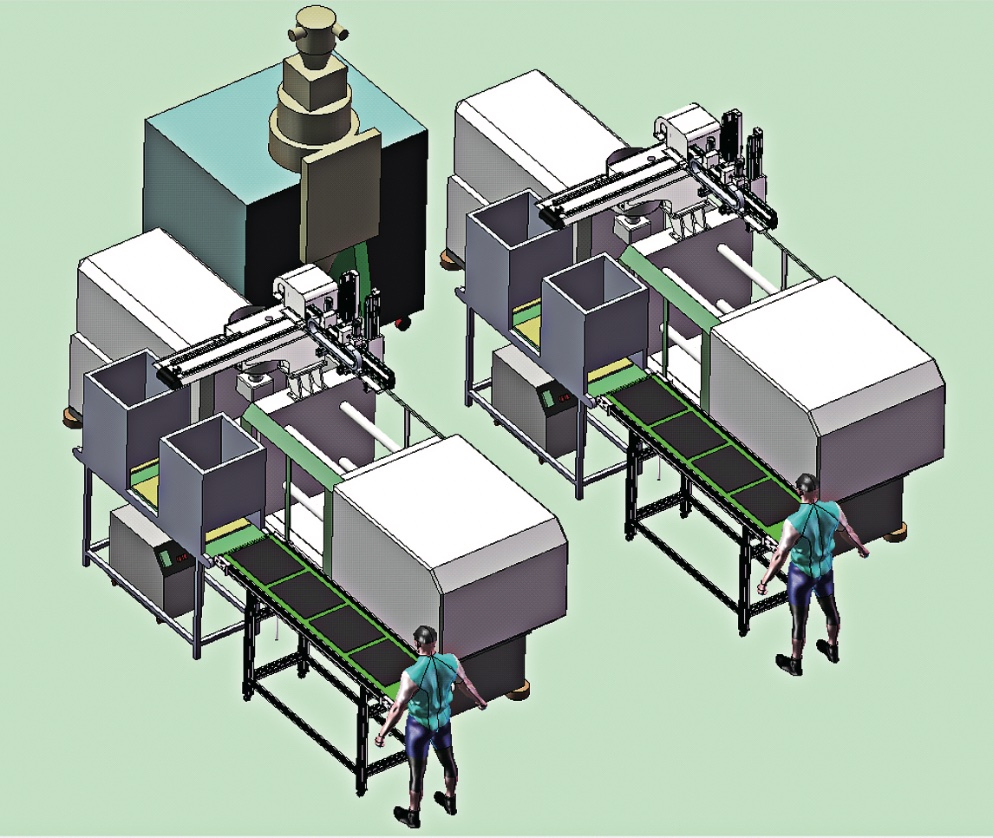

Injection molding robots are specialized equipment for automation, reducing heavy labor while improving safety and production efficiency. They stabilize product quality and enhance competitiveness. Single-axis units are primarily for product removal, while 3/5 axis models handle complex tasks like inserting, stacking, and working with conveyors. The industry is moving toward fully automated feeding, mixing, and recycling processes.
