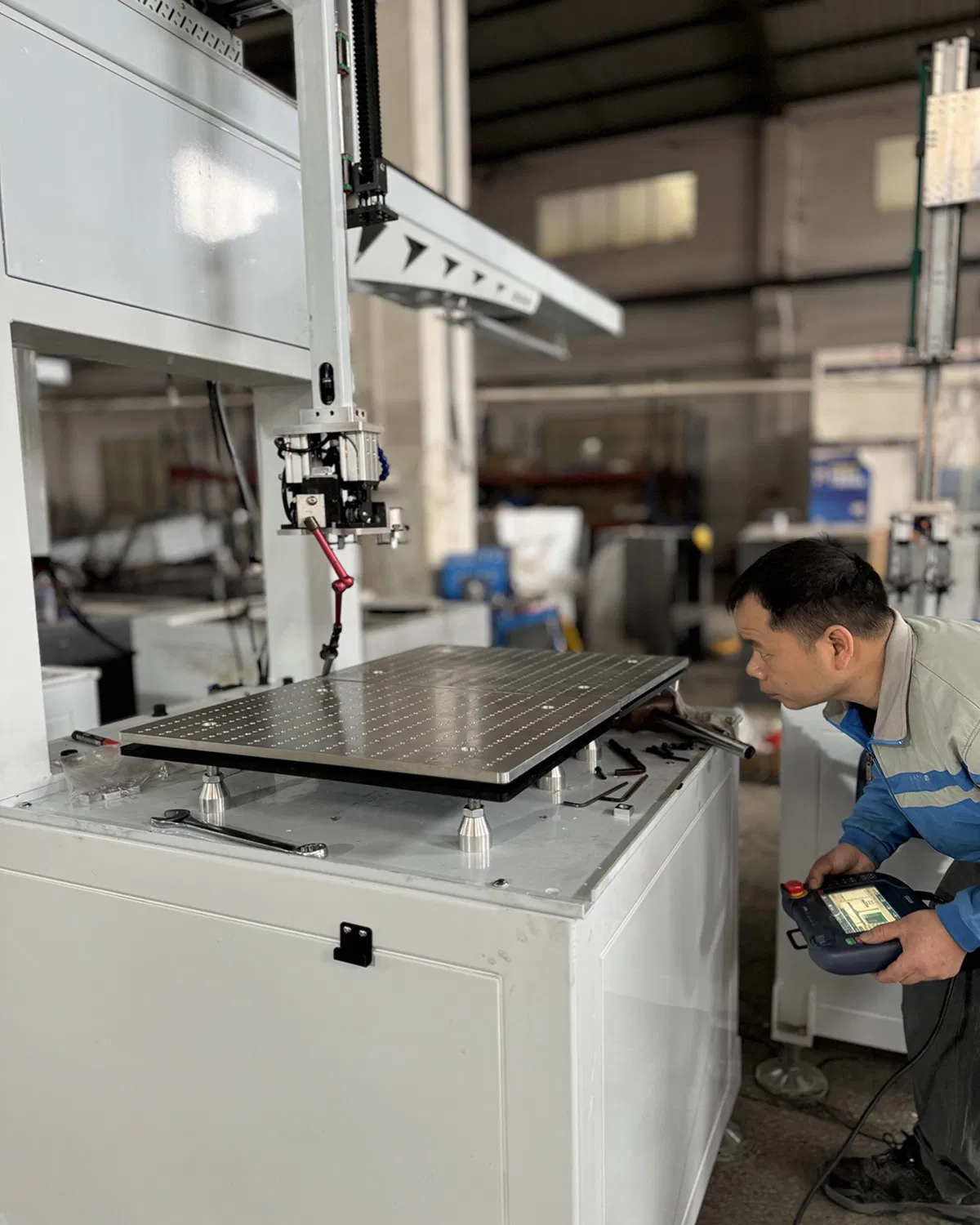

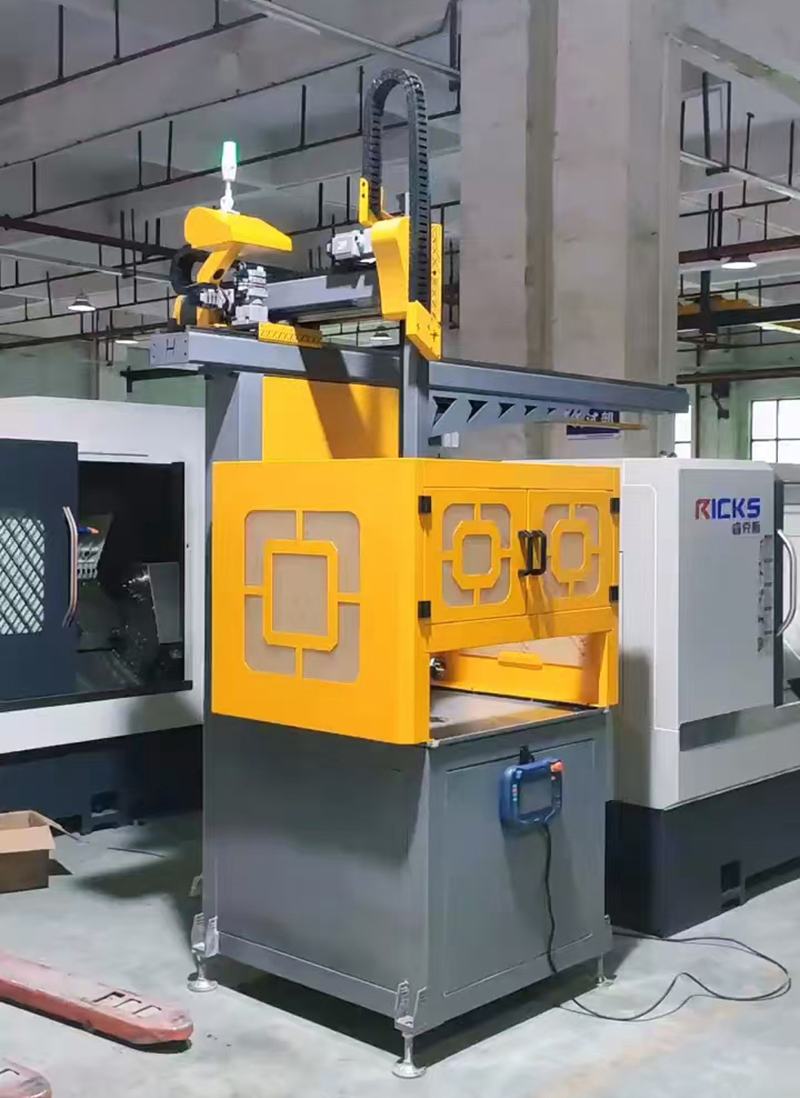

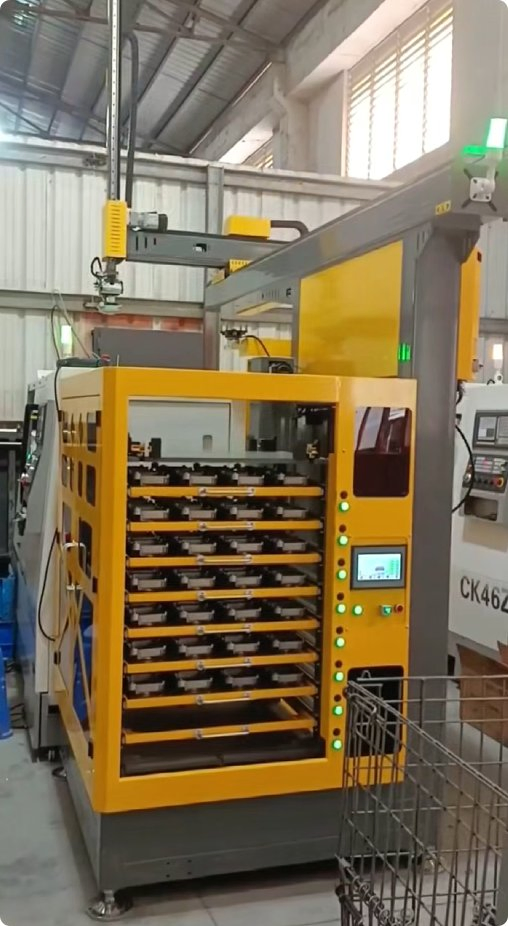

Servo Controlled Gantry Robot for CNC Lathe Automatic Loading and Unloading Operations
Servo Controlled Gantry Robot for CNC Lathe Automatic Loading and Unloading Operations
Servo Controlled Gantry Robot for CNC Lathe Automatic Loading and Unloading Operations
Servo Controlled Gantry Robot for CNC Lathe Automatic Loading and Unloading Operations
Servo Controlled Gantry Robot for CNC Lathe Automatic Loading and Unloading Operations
1 / 5
Servo Controlled Gantry Robot for CNC Lathe Automatic Loading and Unloading Operations
Servo Controlled Gantry Robot for CNC Lathe Automatic Loading and Unloading Operations
Servo Controlled Gantry Robot for CNC Lathe Automatic Loading and Unloading Operations
Servo Controlled Gantry Robot for CNC Lathe Automatic Loading and Unloading Operations
Servo Controlled Gantry Robot for CNC Lathe Automatic Loading and Unloading Operations

Servo Controlled Gantry Robot for CNC Lathe Automatic Loading and Unloading Operations

Customization: Available
Application: Assembly, Machine Tending, Packaging, Painting, Picking and Placing, Welding, Lathe Turning
Control Mode: PLC
Send Inquiry

Product Description

📊 Basic Information
Model NO.
HY001-E
Degrees of Freedom
3 Axis Gantry System
Drive Mode
Servo Drive
Payload Capacity
2kg
Functions
Auto Picking Placing for Turning Drilling Grinding
Reposition Accuracy
±0.02mm
Auto Detection
Visual Inspection/Air Leak/Gauging/Others
Input Voltage
Single Phase 220V
Tray Size
500*430mm*2
Protocol
Ethernet, Modbus-RTU/TCP, Profinet(Options)
End of Tools
Pneumatic 2~3 Jaws Gripper
Certification
CE
🤖 Product Overview
High-Efficiency Gantry System for CNC Machines

Our Gantry System is a compact solution ideally suited for high-volume, large-scale production, especially for linear machine layouts. We offer TURN-KEY CNC Machine Tending Solutions to make your production faster, more efficient, and safer.

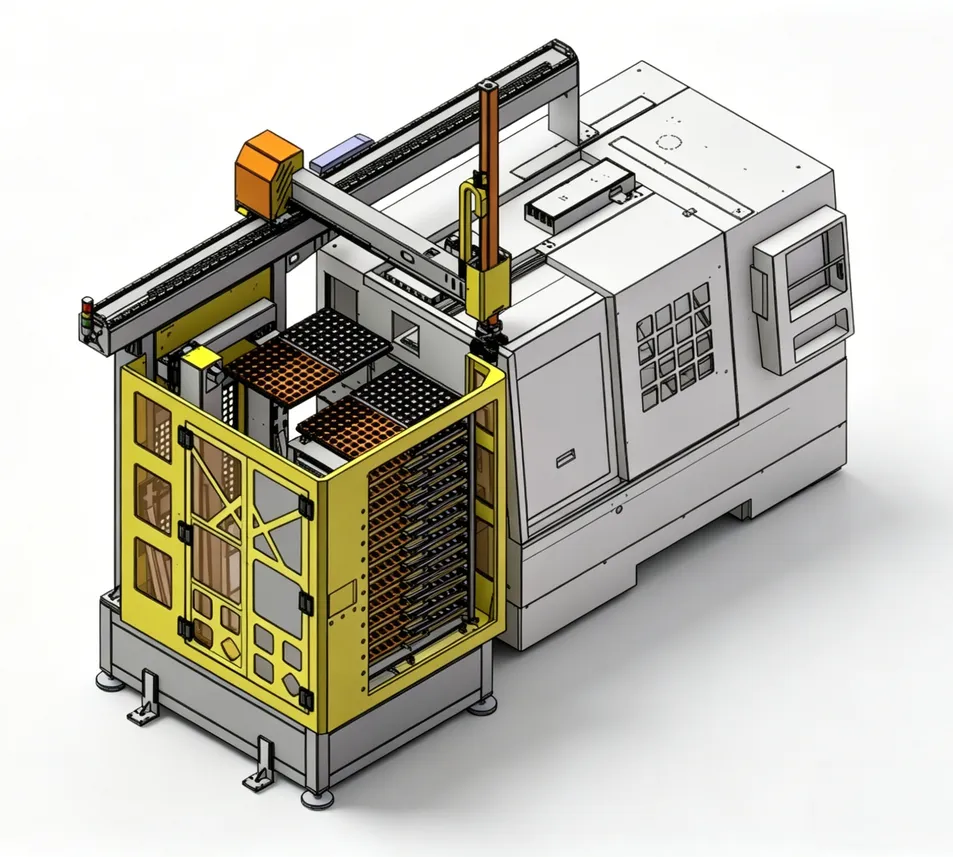

Gantry Robot for CNC Lathe
✔️ Key Advantages
√ Floor space save
√ Economical Automation than 6 Axis Robot
√ High Rigidity (Payload: 2kg to 800kg)
√ Precision Accuracy: ±0.02mm
√ High-Speed Quick Loading/Unloading
√ Easy to integrate with existing machines
⚙️ Technical Specifications
Performance & Parameters
Repeatability±0.2mm
Power consumption200watt ~ 750watt
Payload5kg, 10kg, 20kg, 40kg, 100kg, 200kg, 600kg
Number of Axis2~7 Axis
MotorServo with absolute encoder
TransmissionRack and pinion / Guide rail
X-Axis Speed1300mm/s
Y/Z-Axis Speed1000mm/s

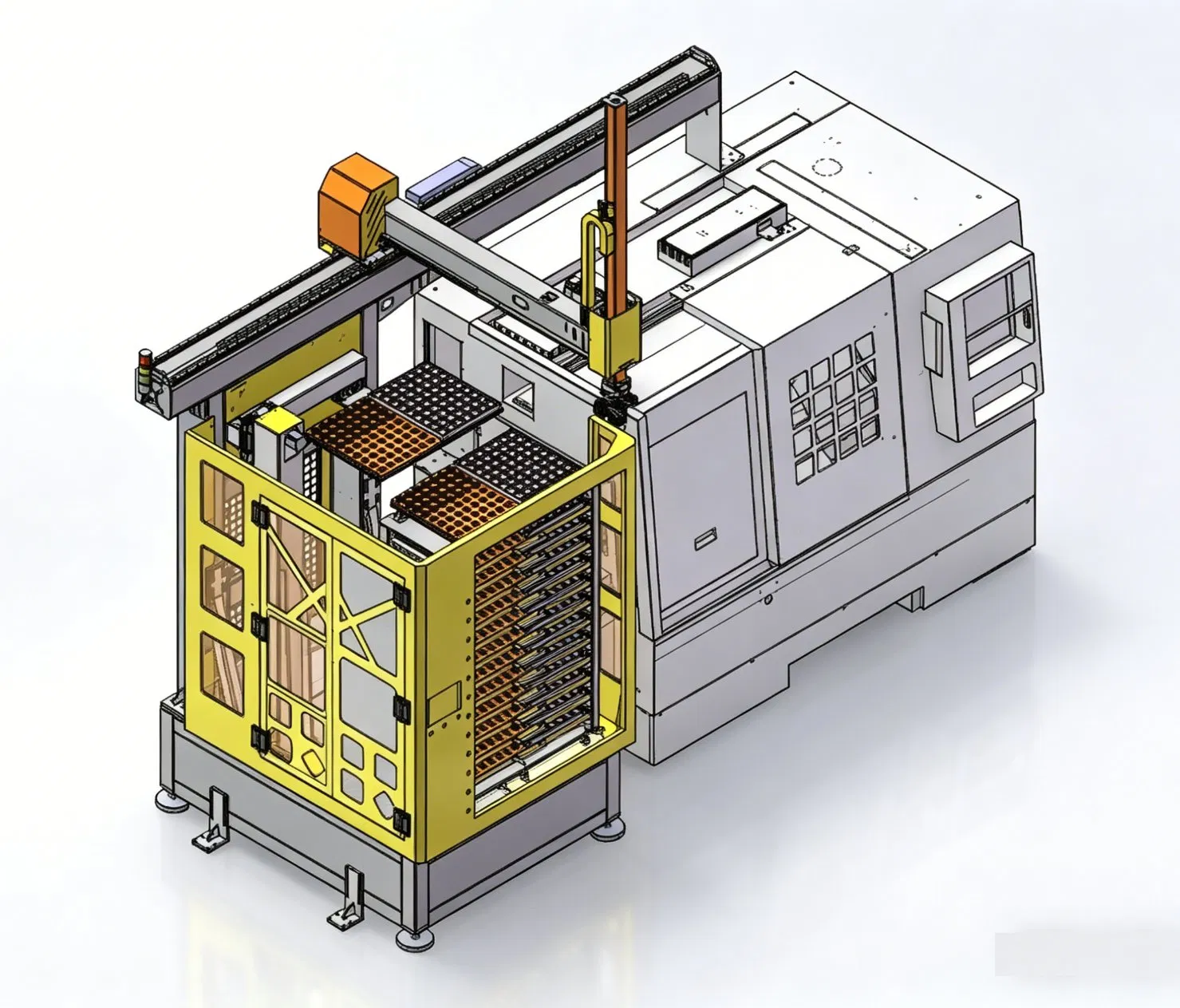

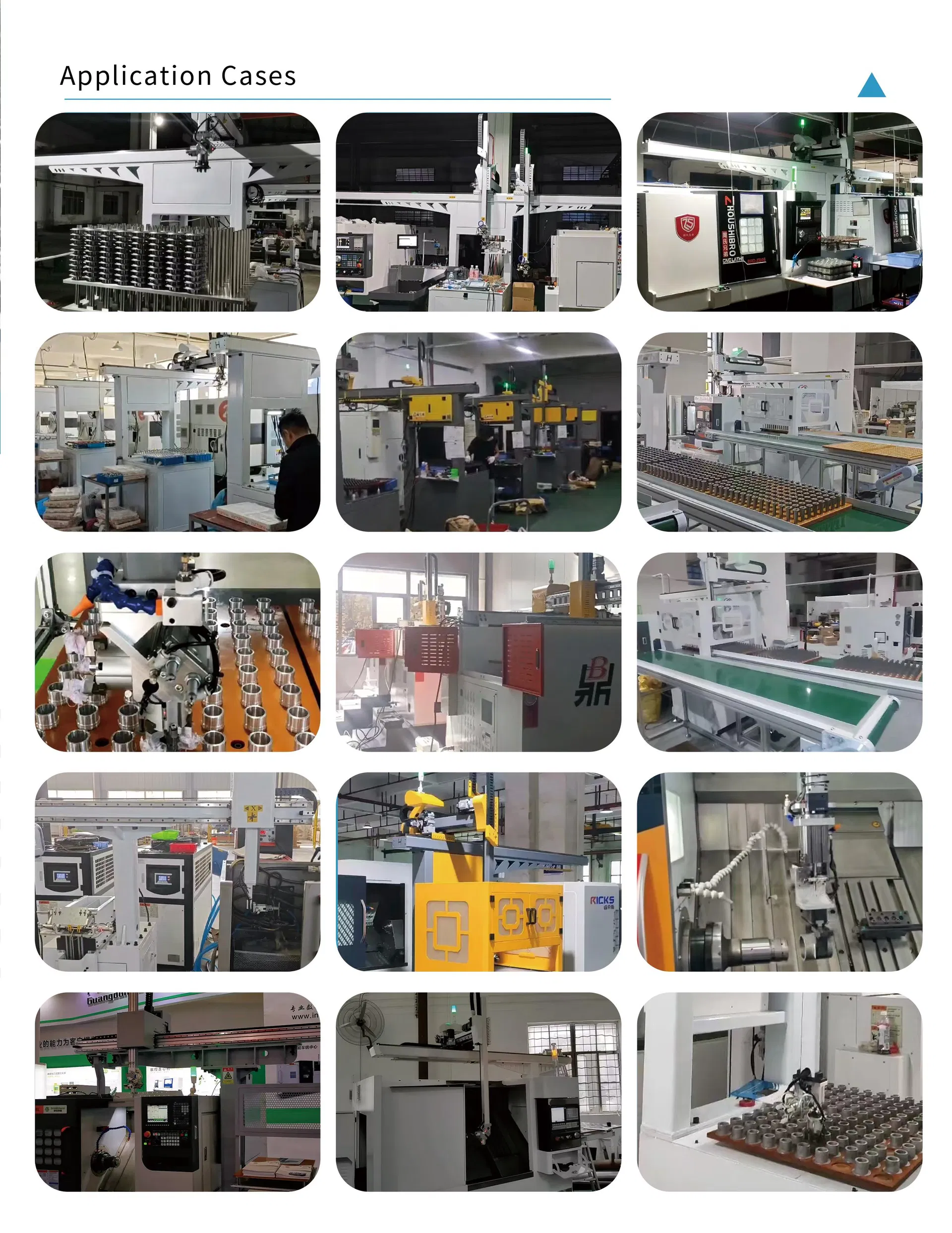

Technical Layout
🖼️ Application Showcase

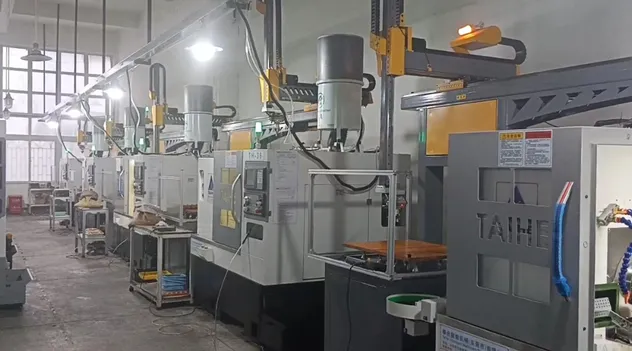

Application 1

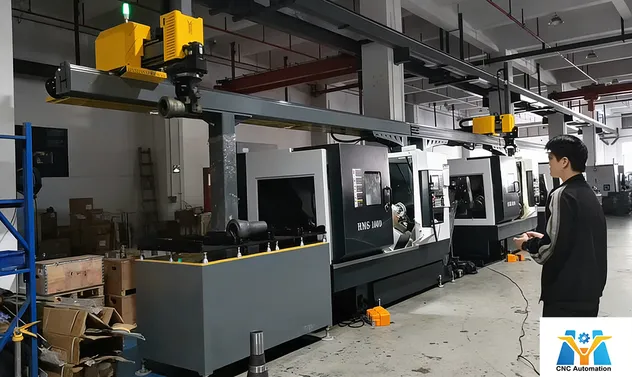

Application 2

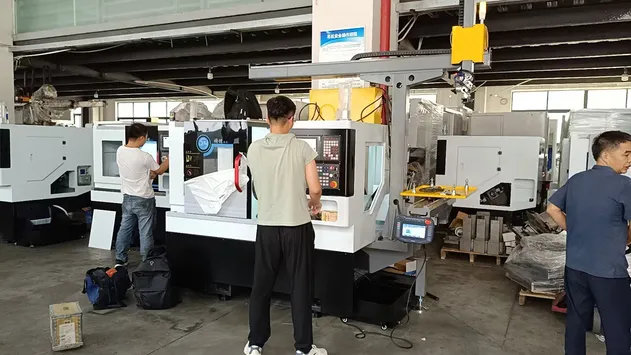

Application 3
Application 4

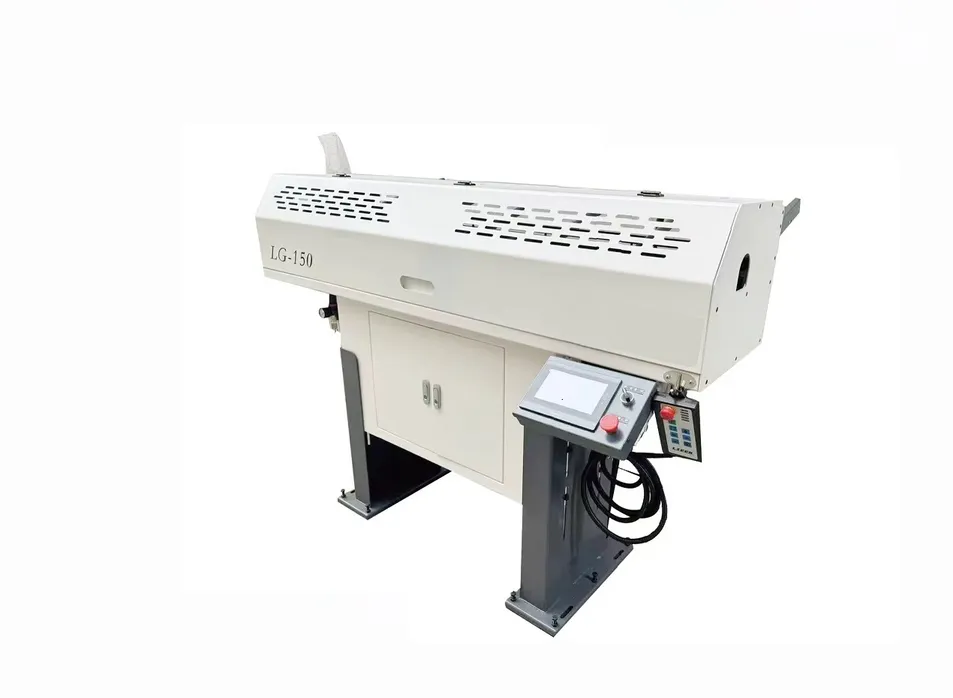

Application 5
🏢 Professional Solutions

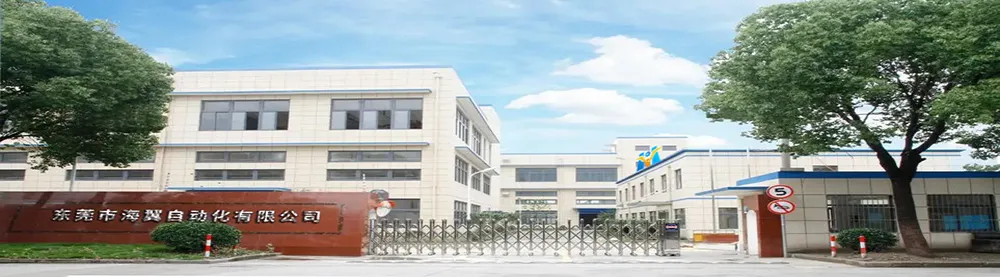

Professional Solutions

Our company is a leading industrial automation provider and CNC tending gantry robot manufacturer. Rather than simply provide robots, we provide automated systems designed to achieve stable operation and significantly improved productivity.

1. OEM/ODM capabilities
2. Safety and Trust in Production
3. Proven track record (10,000+ systems)
4. Turnkey automation solutions
❓ Frequently Asked Questions
Q: What products can I purchase for machine tool automation?
A: You can source a complete set of automated machine tool loading and unloading equipment, including Industrial Robots, 3-Axis/6-Axis Robots, Gantry Loaders, Bar Feeders, and Conveyors.
Q: What is the typical lead time for an order?
A: Standard models usually ship within 20–30 days, while customized units require 30–45 days depending on the complexity.
Q: Is professional programming knowledge required to operate the gantry system?
A: No, the equipment is designed for simple operation and start-up. Operators can manage the system without advanced PLC programming skills.
Q: What is the repositioning accuracy of the system?
A: The system provides high precision with a repositioning accuracy of ±0.02mm, ensuring consistent quality in pick-and-place operations.
Q: How do you support international customers with installation?
A: We provide free remote technical guidance for the entire life cycle. Additionally, technicians can be dispatched for on-site installation and guidance globally.
Q: What payload capacities are available?
A: We offer a wide range of payload options including 2kg, 5kg, 10kg, 20kg, 40kg, 100kg, 200kg, and up to a maximum of 800kg for heavy-duty requirements.
