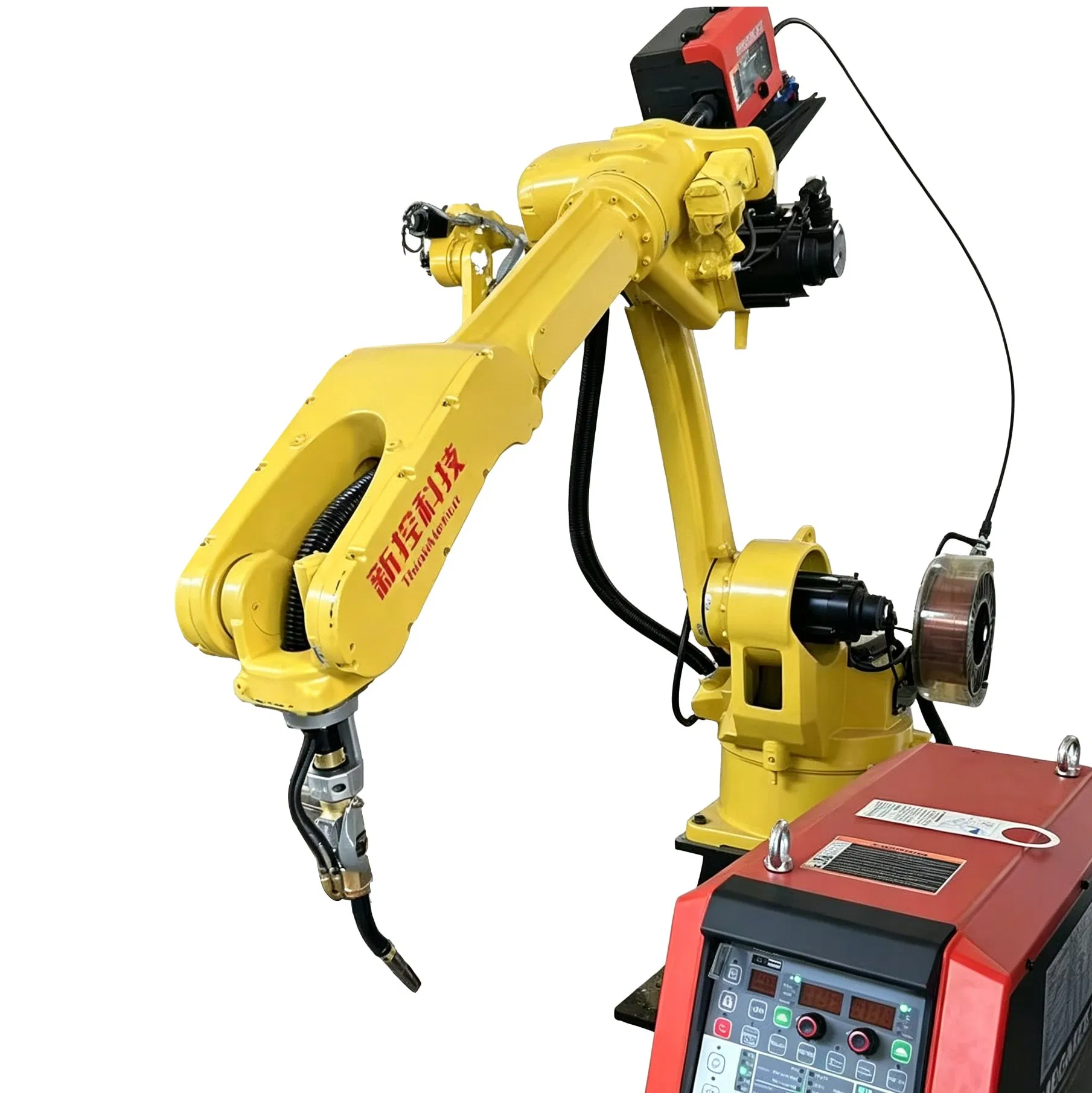

6 Axis Long Reach Automatic Robotic Arm for Industrial MIG Arc Welding

Overview & Basic Info

Model NO.

TR06-2070B

Control Mode

Continuous Path Control

Drive Mode

Electric

Type

Arc Welding Robot

Welding Speed

1 m/min

Payload

6kg

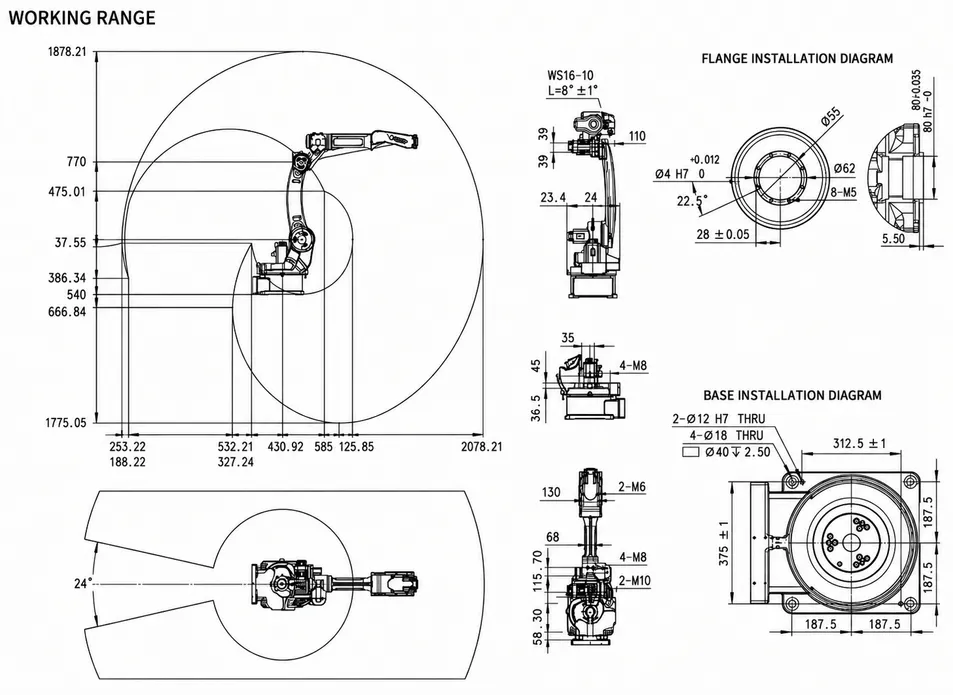

Max Working Radius

2078mm

Dof

6 Axes

Body Weight

210kg

Rated Power

4.3kw

Protective Specification

IP54

Transport Package

Wooden Board

Specification

150*100*160CM

Origin

China

HS Code

8479501000

Production Capacity

100

Packaging & Delivery Details

Package Size

150.00cm * 100.00cm * 160.00cm

Package Gross Weight

270.000kg

Product Description

TR06-2070B Industrial Robot

2078mm Ultra Long Reach

As a professional long-reach welding robot, it boasts a 2078mm maximum working radius, perfectly covering large workspaces for extended-reach MIG/MAG, TIG and laser welding tasks.

6-Axis High Flexibility

6 degrees of freedom enable complex posture adjustments, making it ideal for multi-angle and multi-directional long-reach welding and grinding operations.

6kg Payload Capacity

6kg rated payload supports welding torches, grinding tools and peripheral equipment, meeting the demands of diverse industrial welding and grinding scenarios.

±0.07mm Repeatability Accuracy

Ultra-high positioning precision ensures consistent weld quality and stable grinding results, even in the farthest reaches of the workspace, meeting the strict requirements of welding and grinding processes.

Core Welding & Grinding Applications

As a specialized welding robot, it excels in MIG/MAG, TIG welding and grinding of carbon steel, stainless steel, aluminum and other metal materials.

Industry Coverage

Serves automotive, metalworking, shipbuilding, machinery manufacturing and general manufacturing industries, providing reliable automation solutions for long-reach welding and grinding scenarios.

Flexible Mounting

Supports floor/wall/ceiling mounting, adapting to various production line layouts for long-reach welding and grinding applications.

OEM ODM Customized Robot

Supports customized specifications and functions to meet personalized industrial automation scenarios.

Factory Supply with Mechanical Test Report & Inspection Video: Provides full quality traceability via mechanical test reports and factory inspection videos, reducing buyer procurement risk.

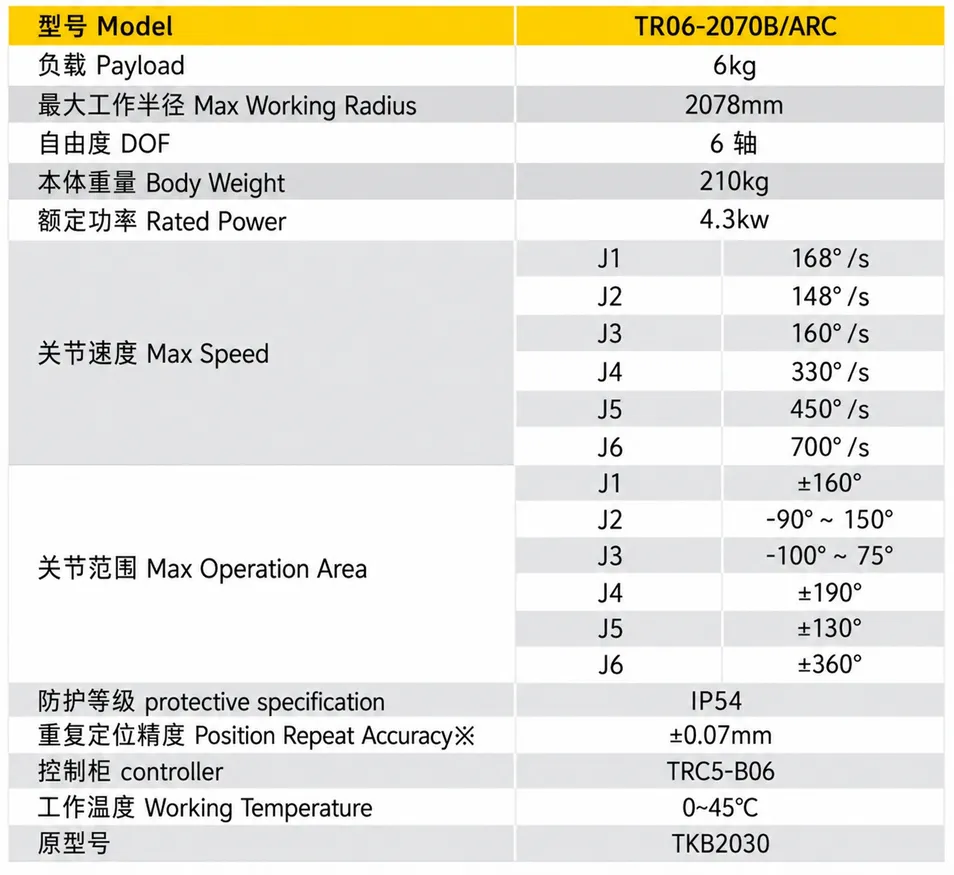

Technical Specification Table

Model	TR06-2070B	Rated Power	4.3kw
Payload	6kg	Position Repeat Accuracy	±0.07mm
Max Working Radius	2078mm	Body Weight	210kg
DOF	6 axes	protective specification	IP54

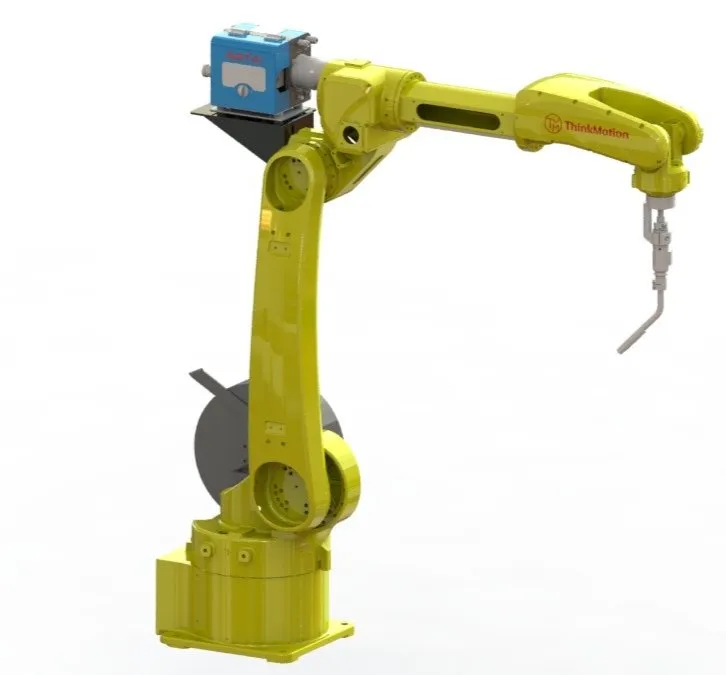

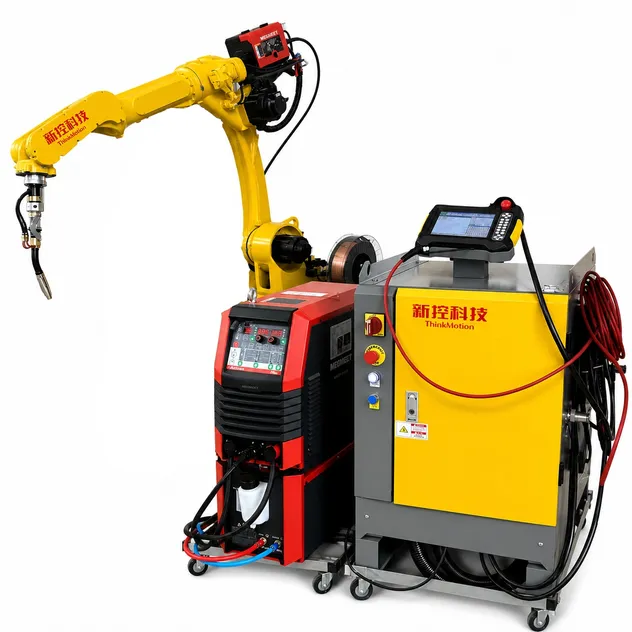

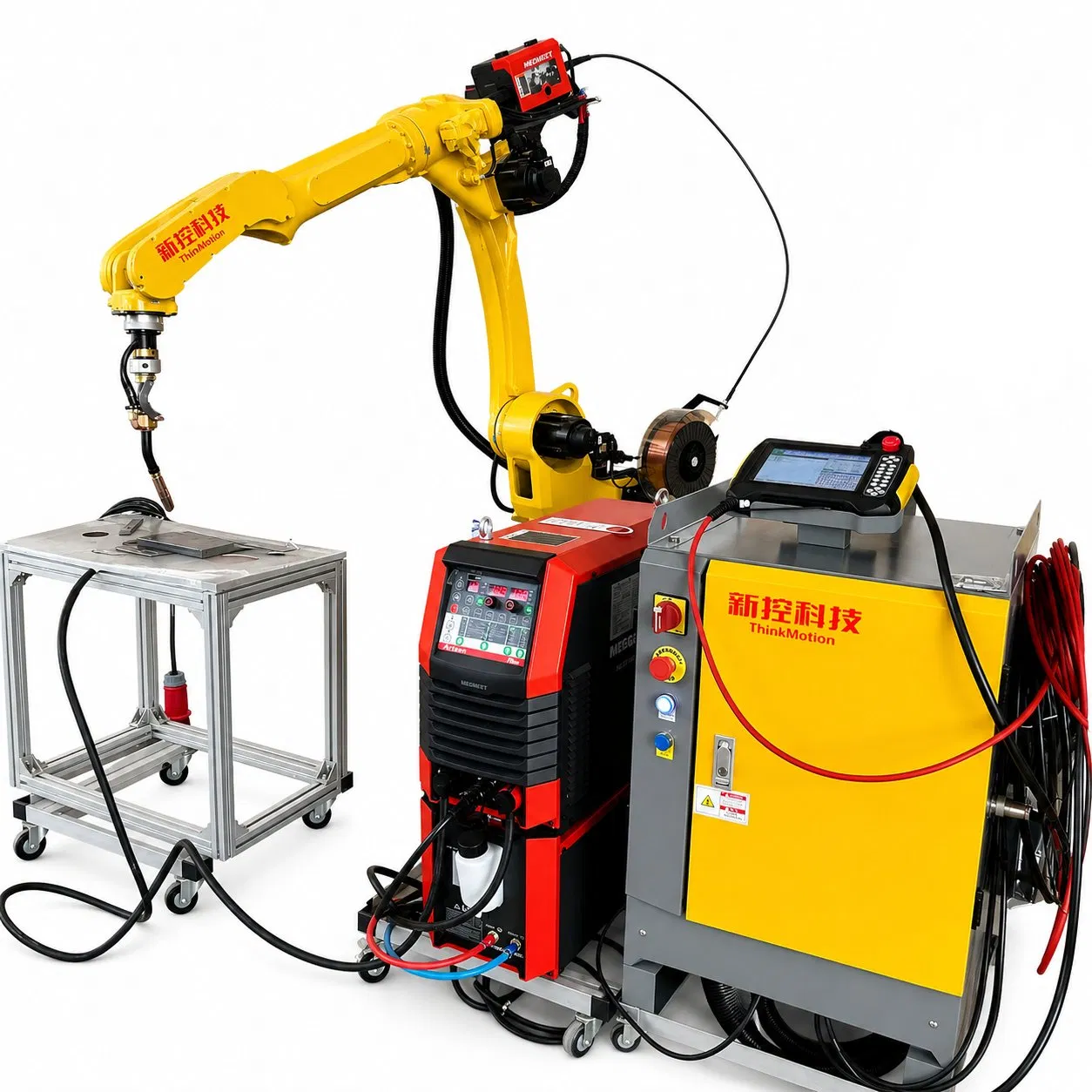

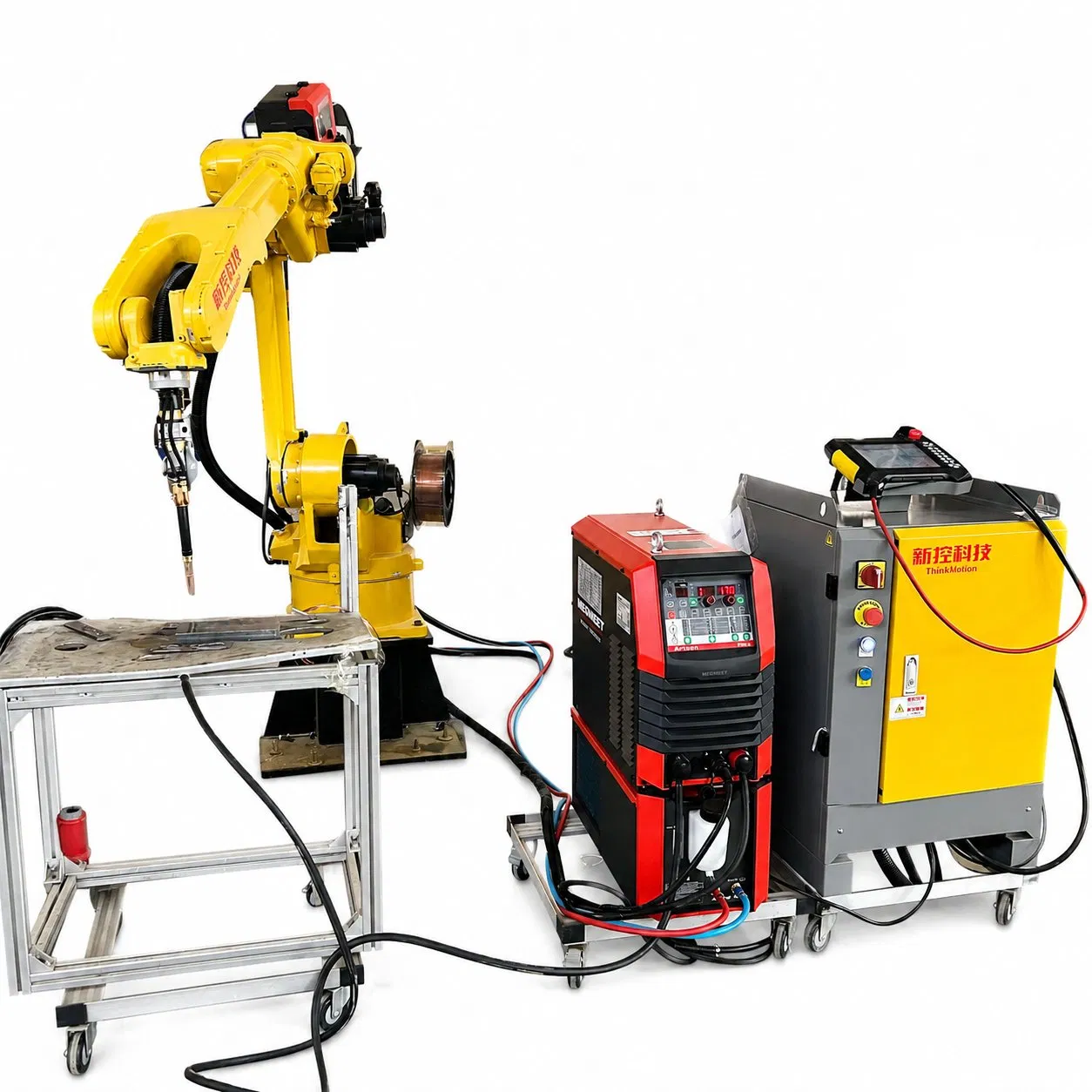

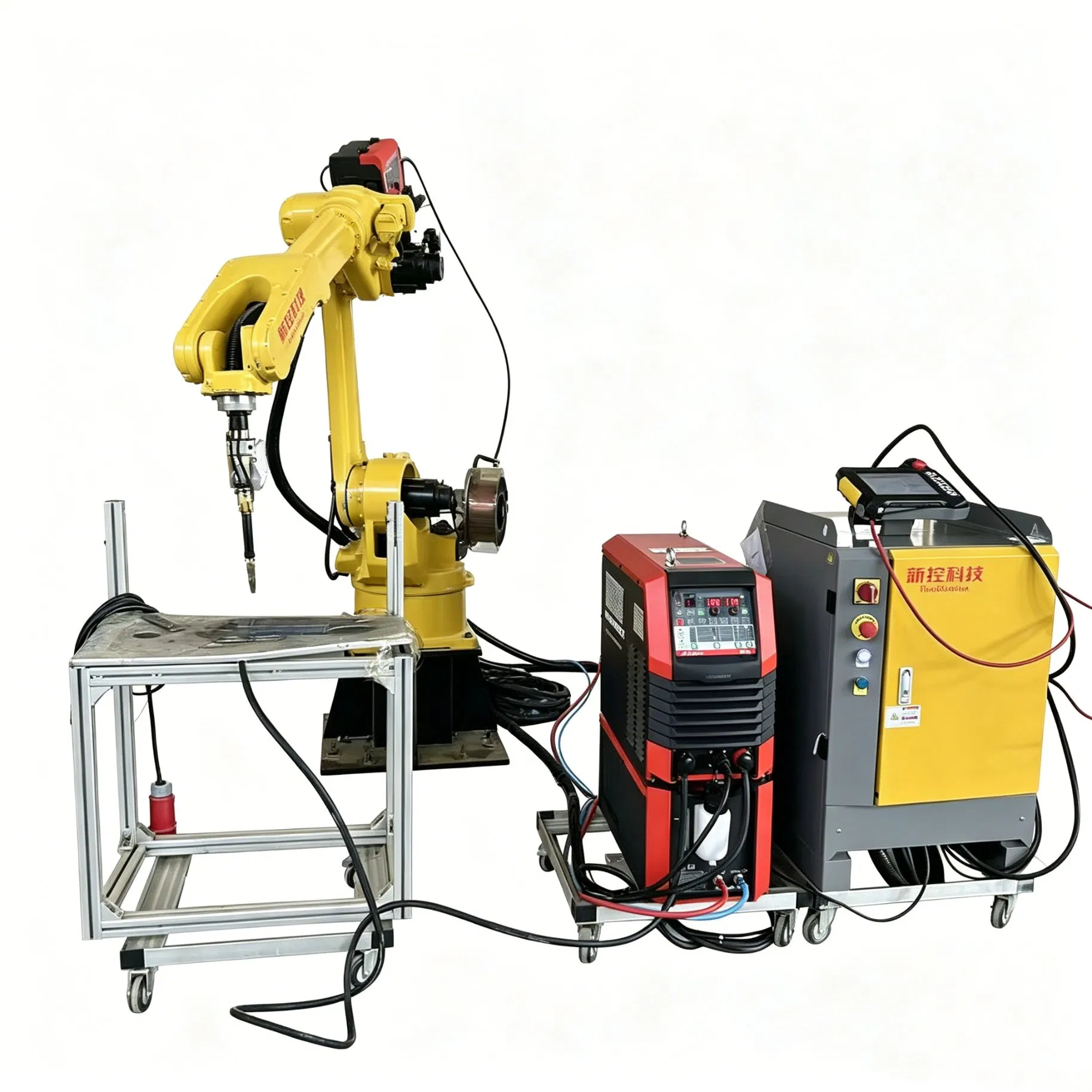

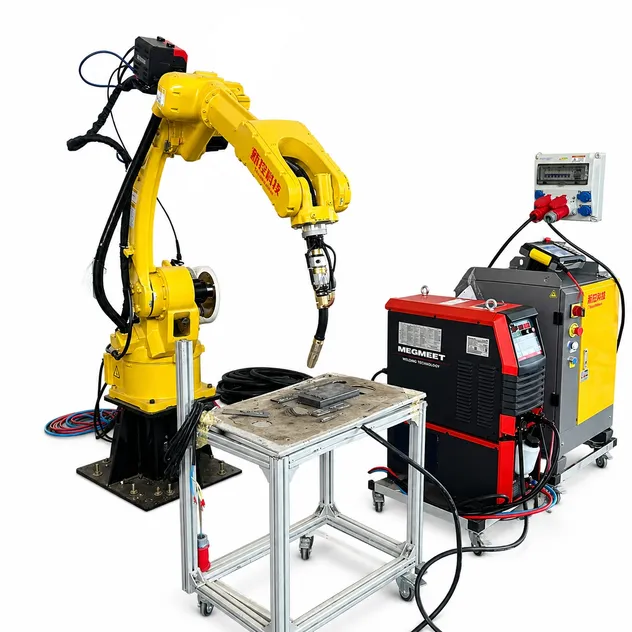

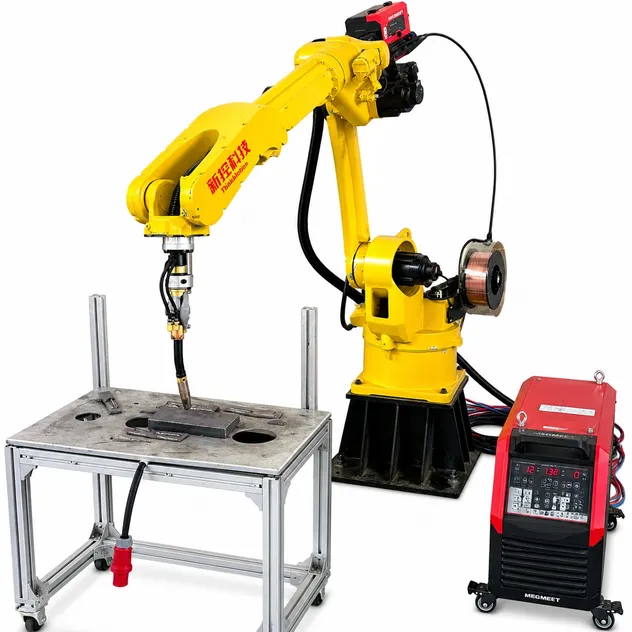

Product Showcase

6 Axis Long Reach Automatic Robotic Arm for Industrial MIG Arc Welding

Other Products & Catalog

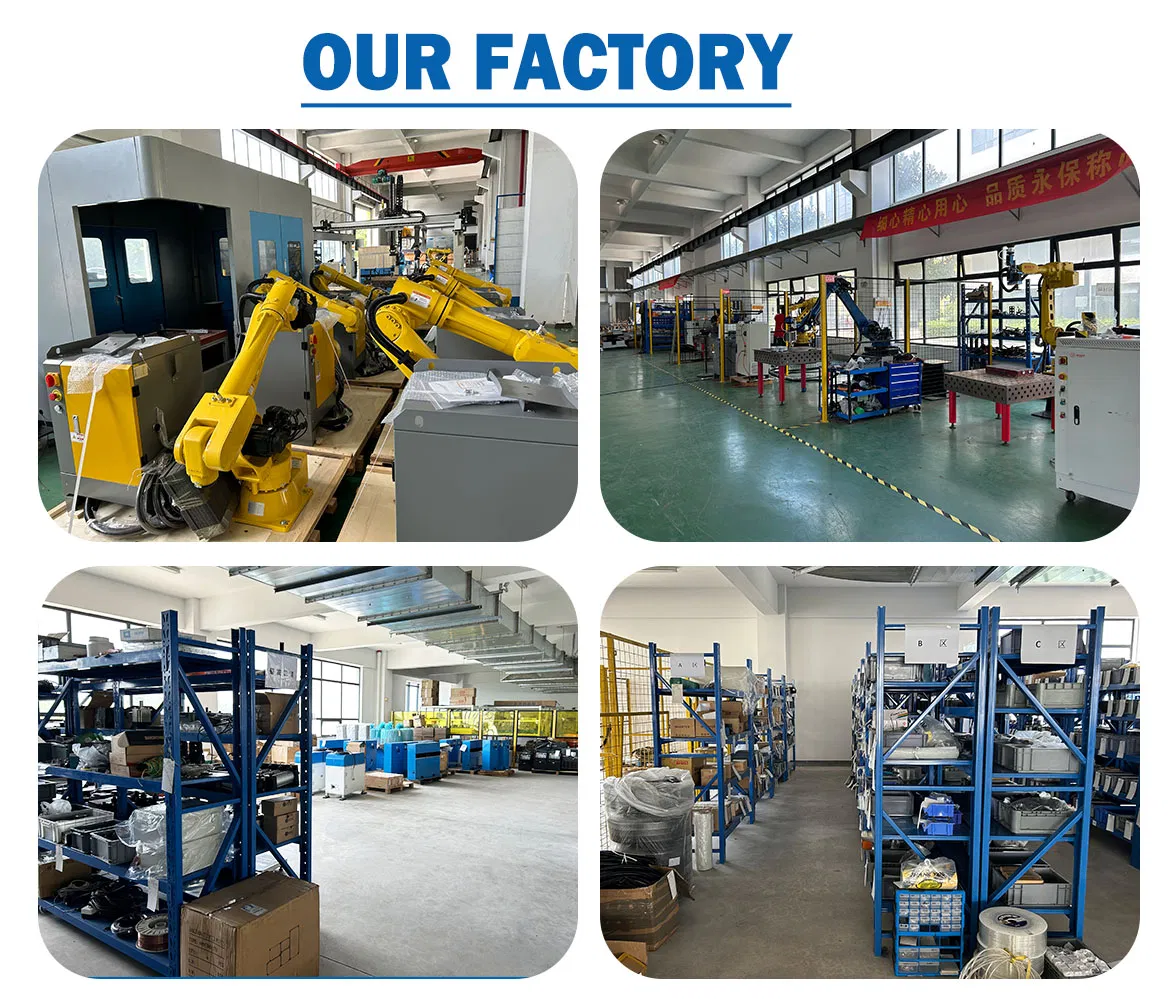

Manufacturing Profile

Professional Robotic Automation Solutions

Our factory specializes in industrial robots and customized robotic solutions. We have complete capabilities in robot R&D and manufacturing, enabling us to provide stable and reliable robots and automation workstations for industrial environments.

Our team has more than 15 years of industry experience, with core members coming from well-known robot companies and possessing 1,000+ robot project management experiences and 5,000+ units of robot production and manufacturing experience. This gives us a deeper understanding of real industrial needs and allows us to deliver long-term reliable robotic solutions.

Our core application areas include welding, material handling, and grinding & polishing, all of which require high levels of consistency, precision, and stability. Today, we provide smart robots, customized automation systems and modular robotic workstations to customers around the world, helping factories improve efficiency and reduce costs.

Packing, Delivery & Certifications

Heavy-Duty Packaging

Compliance & Certifications

Frequently Asked Questions (FAQ)

1. What is the core operating system of this robotic arm?

Our industrial intelligent machine operating system is developed based on mastery of core motion control technology and deep understanding of downstream production processes. It is designed to optimize automated scenarios, simplify complex industrial tasks, and address recruiting challenges.

2. What are the key technical advantages of this welding robot?

It features a 2078mm ultra-long reach, 6-axis flexibility, 6kg payload capacity, and ±0.07mm repeatability. This combination delivers exceptional precision, consistency, and reach for demanding industrial tasks.

3. Why should we source from your factory instead of other suppliers?

We offer comprehensive pre-sales and post-sales technical support from professional engineers, guarantee 100% quality inspection prior to shipment, and provide highly customized services to fulfill your specific industrial automation requirements.

4. What applications is this robotic arm suitable for?

It excels in MIG/MAG, TIG welding, and grinding of carbon steel, stainless steel, aluminum, and other metals. It is widely used in automotive, metalworking, shipbuilding, and general machinery manufacturing.

5. What mounting options are available for this 6-axis robot?

The robotic arm supports flexible mounting configurations, including floor, wall, and ceiling mounting, allowing it to easily adapt to various production line layouts.

6. What is the typical lead time for orders, and how is quality verified?

The standard delivery time is about one month. Each shipment includes a mechanical test report and factory inspection video to ensure full quality traceability and mitigate procurement risks.
