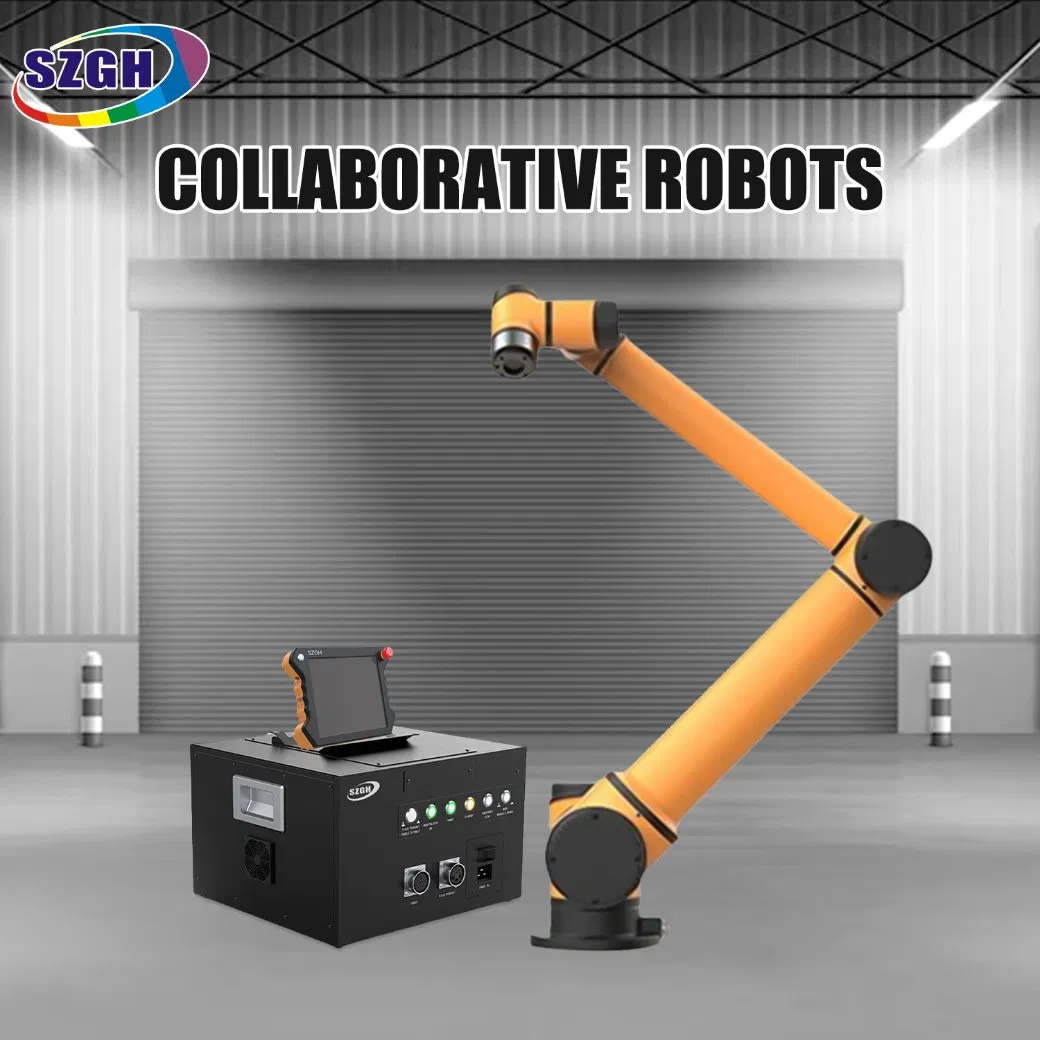

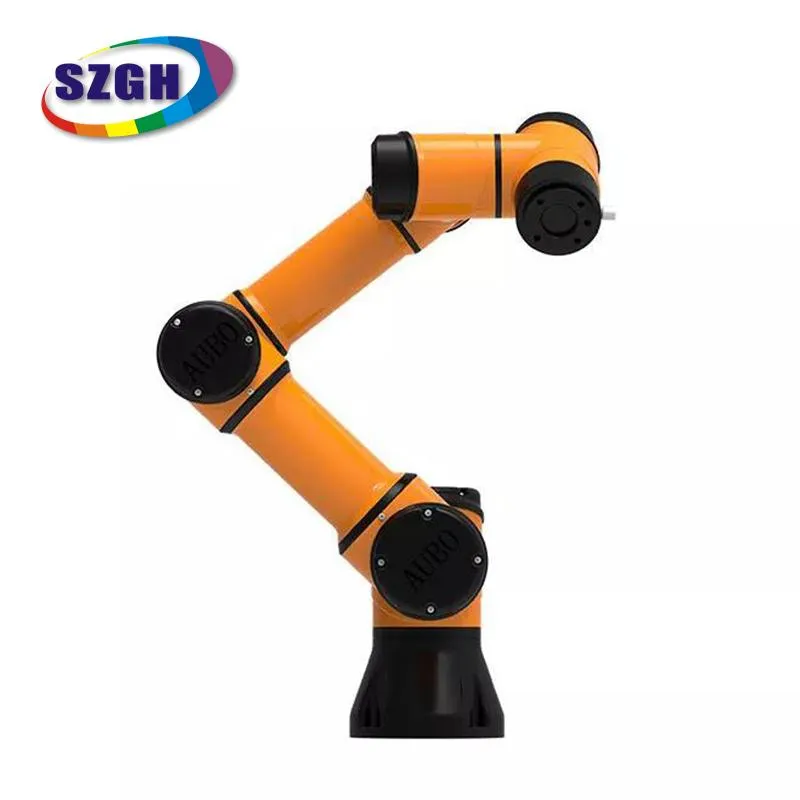

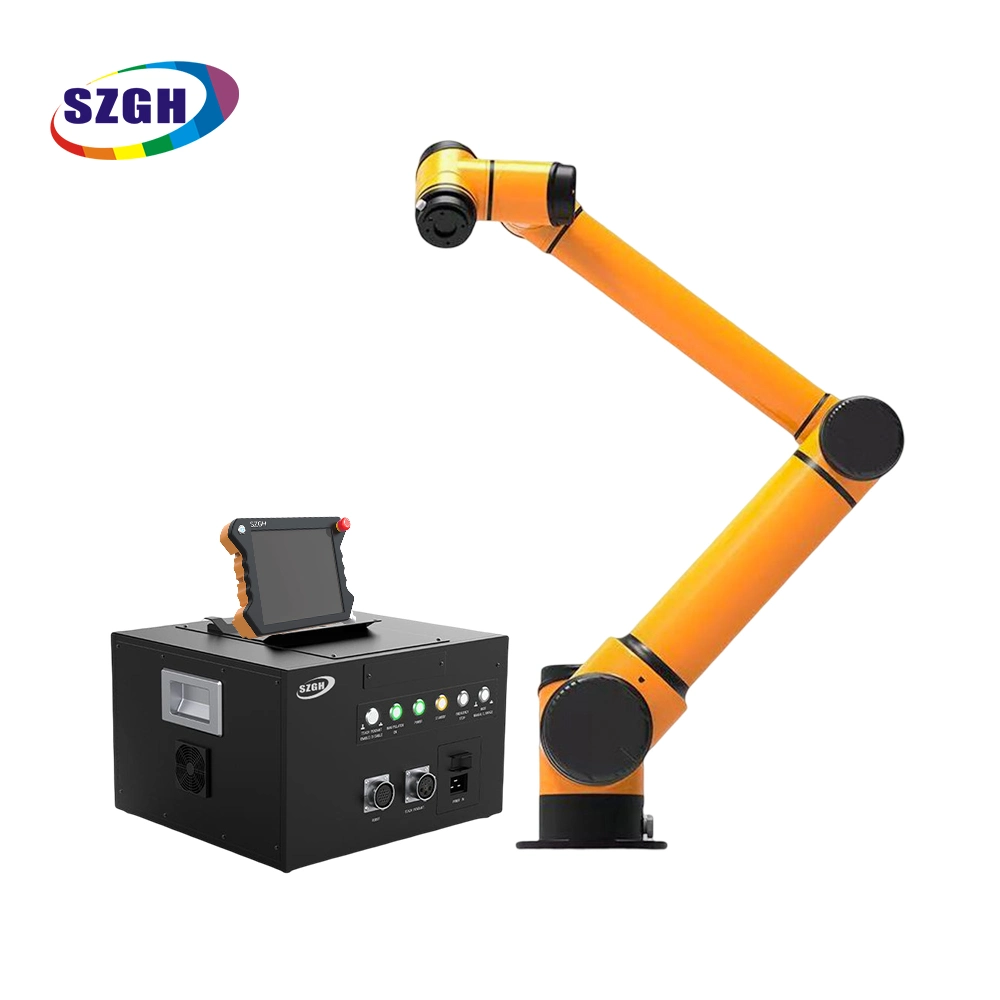

Our collaborative robot series features 6 axes of movement, designed for versatility and safety. The cobot is exceptionally easy to program and safer for human-machine collaboration compared to traditional industrial robots. We provide a one-stop solution for robotic integration across various industries.

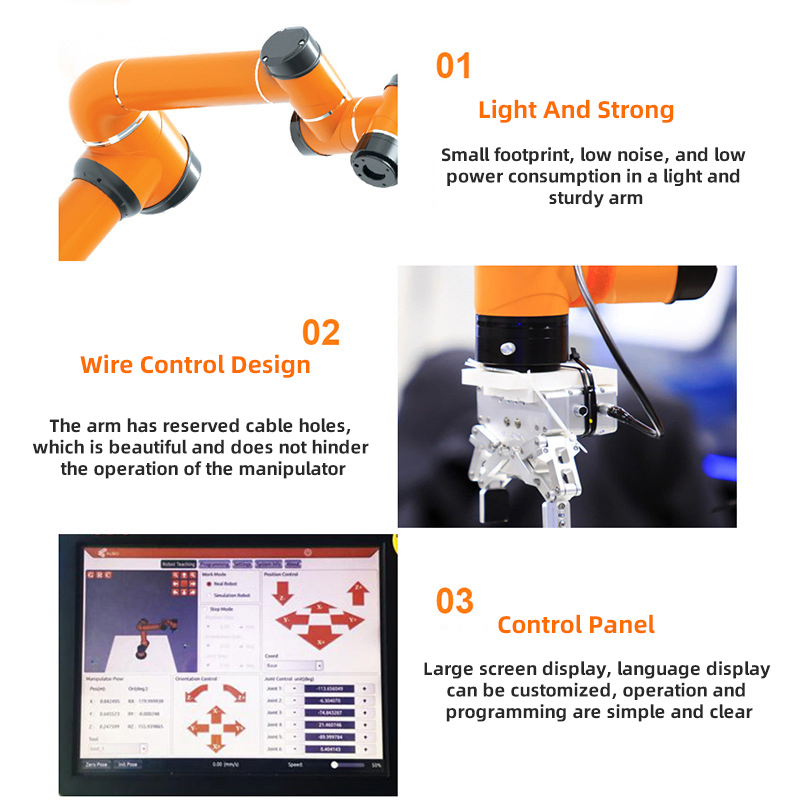

Simple drag-and-drop teaching. Operators can move the arm to desired positions or use graphical blocks in the app. No complex coding skills required.

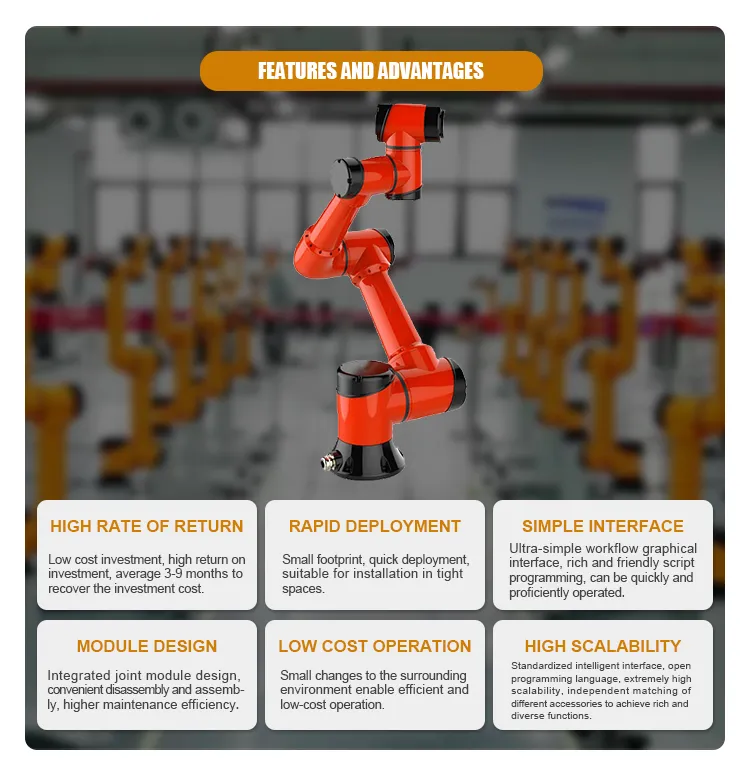

Compact and lightweight design. Integrated reducer, motor, and drive controller ensure rapid installation and redeployment.
Supports collision detection control. Can work alongside people without safety fences, ensuring a secure and efficient working environment.
| Parameter | Specification |
|---|---|
| Maximum Reach | 1350 mm |
| Payload | 10 kg |
| Degrees of Freedom | 6 Axes |
| Pose Repeatability | ± 0.03 mm |
| Power Consumption | 500W |
| Working Protocol | CAN bus / Ethernet / Modbus-RTU/TCP |
| I/O Ports | 16 In / 16 Out |
| Operating Temp | 0-45°C |
| Robot Weight | 38.5 kg |
| Model | SZGH-i3 | SZGH-i5 | SZGH-i10 | SZGH-i16 |
| Payload | 3kg | 5kg | 10kg | 16kg |
| Reach | 625mm | 886.5mm | 1350mm | 967.5mm |
| Weight | 16kg | 24kg | 38.5kg | 38kg |
Our industrial packing includes plastic bags, foam boxes, cartons, and wooden pallets to ensure safe delivery. Stock items are typically ready within 2-5 days.
