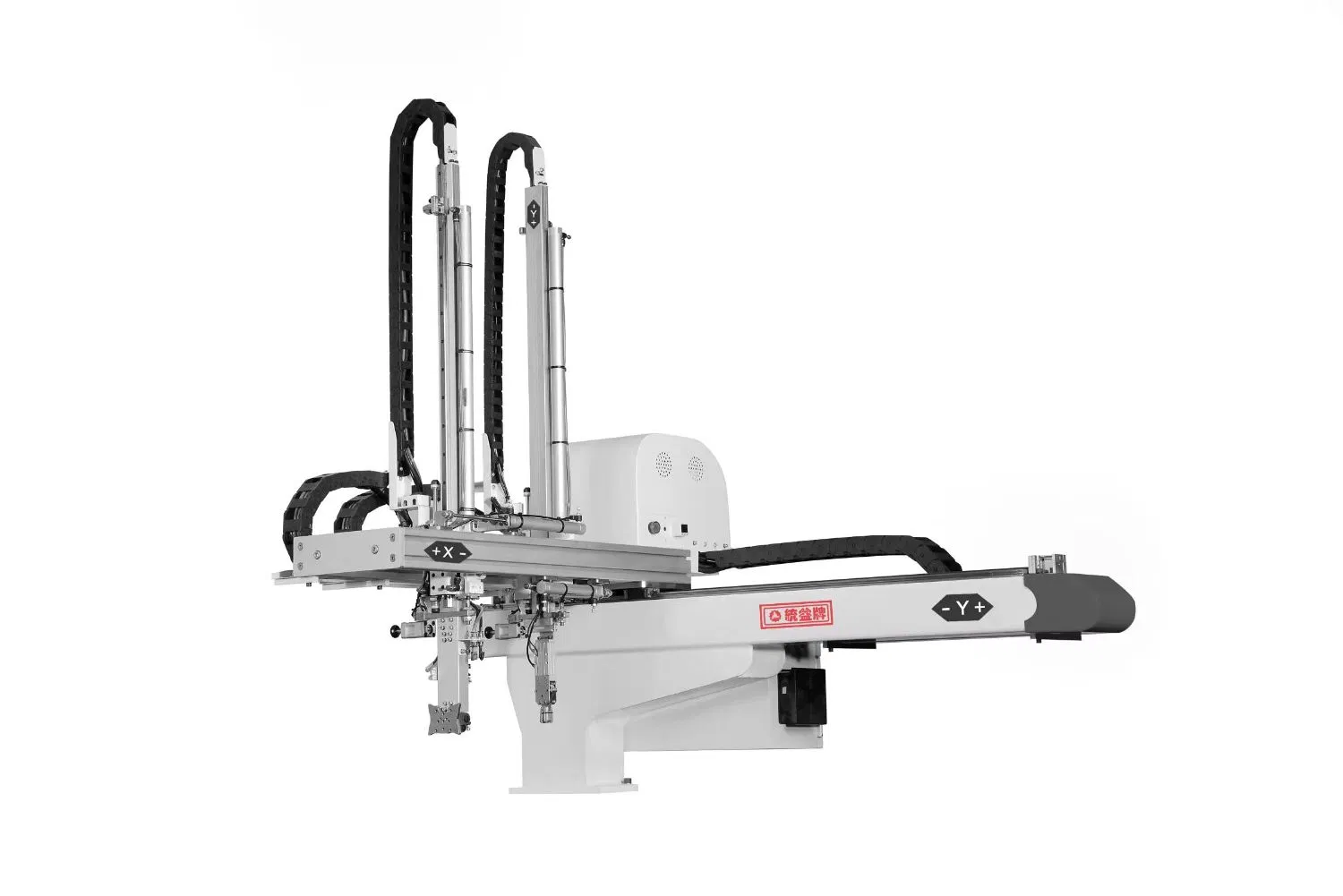

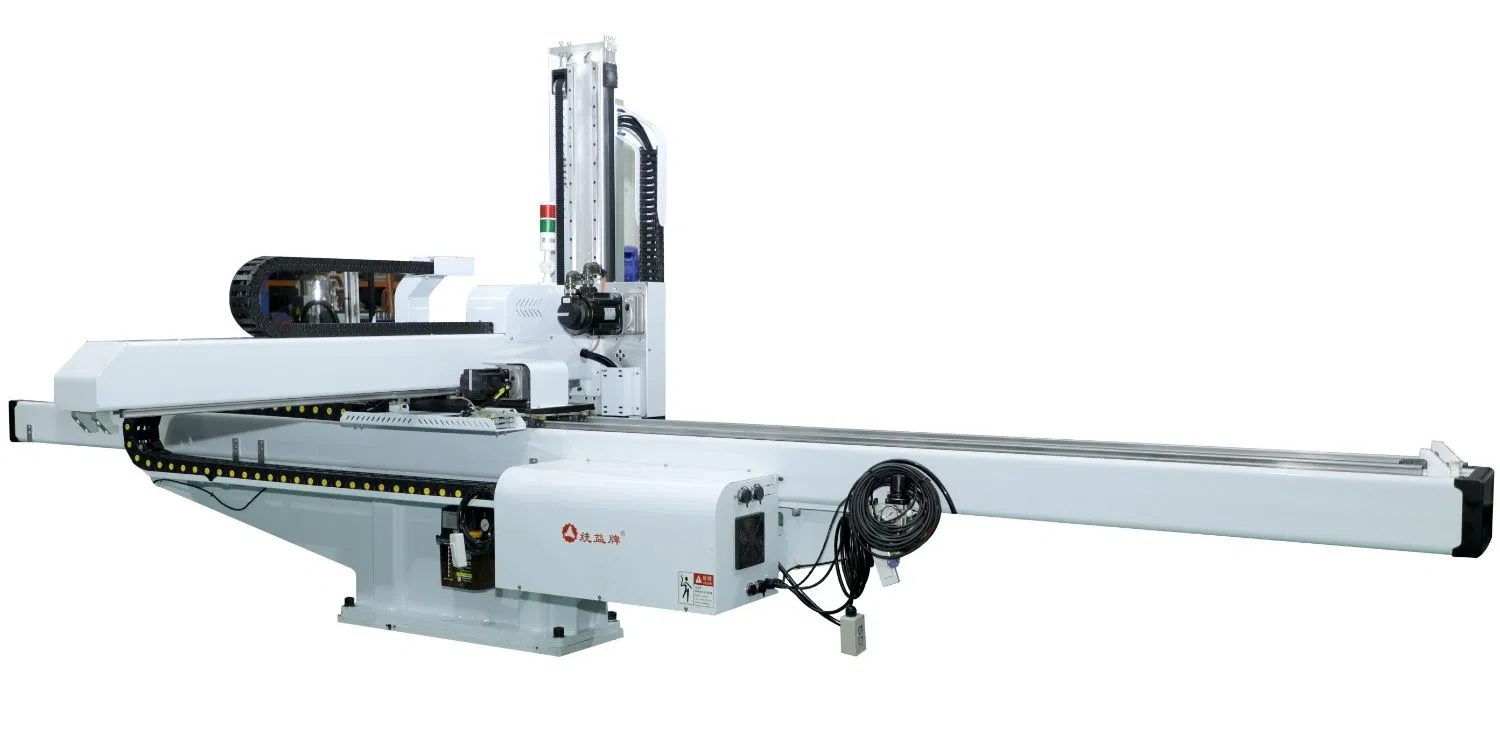

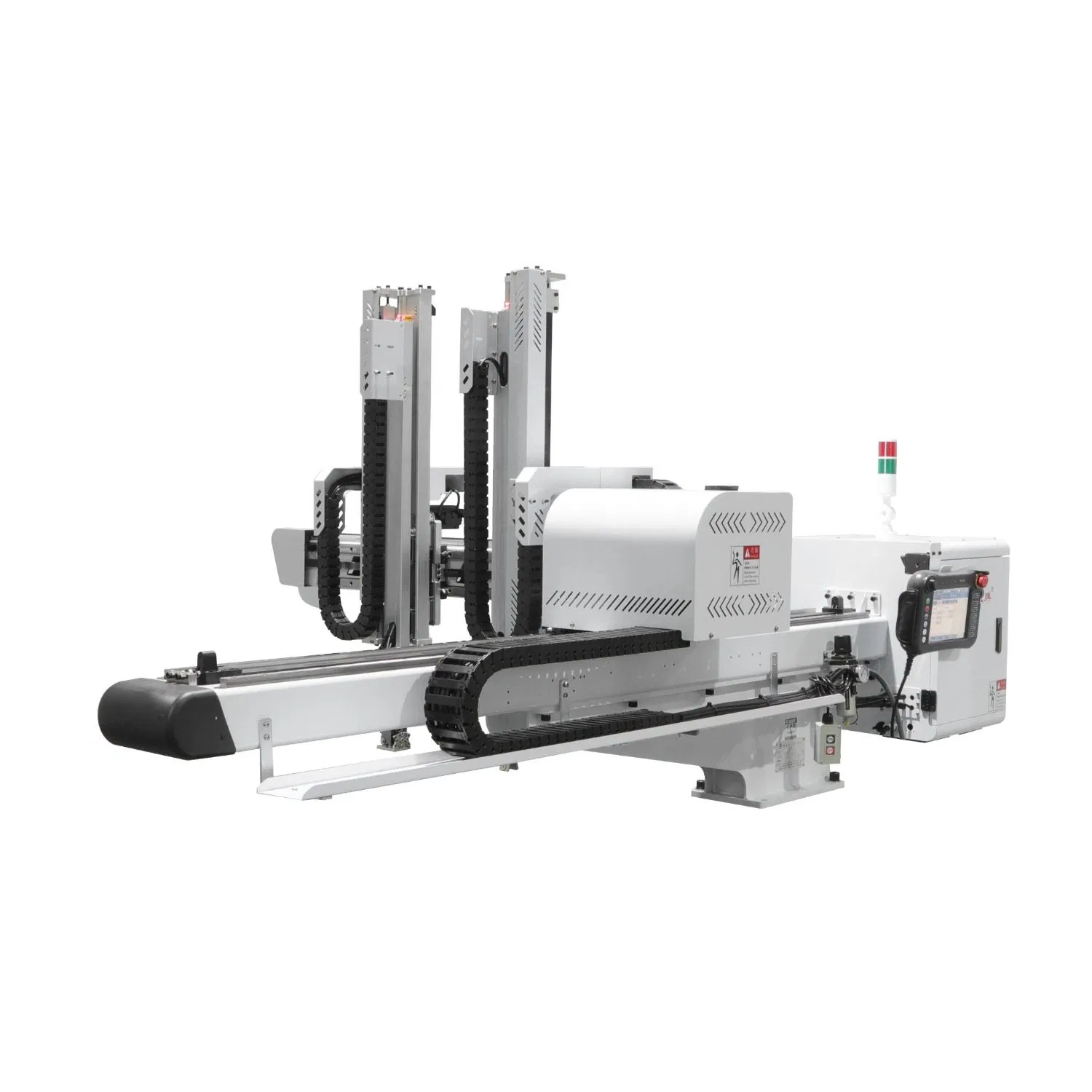

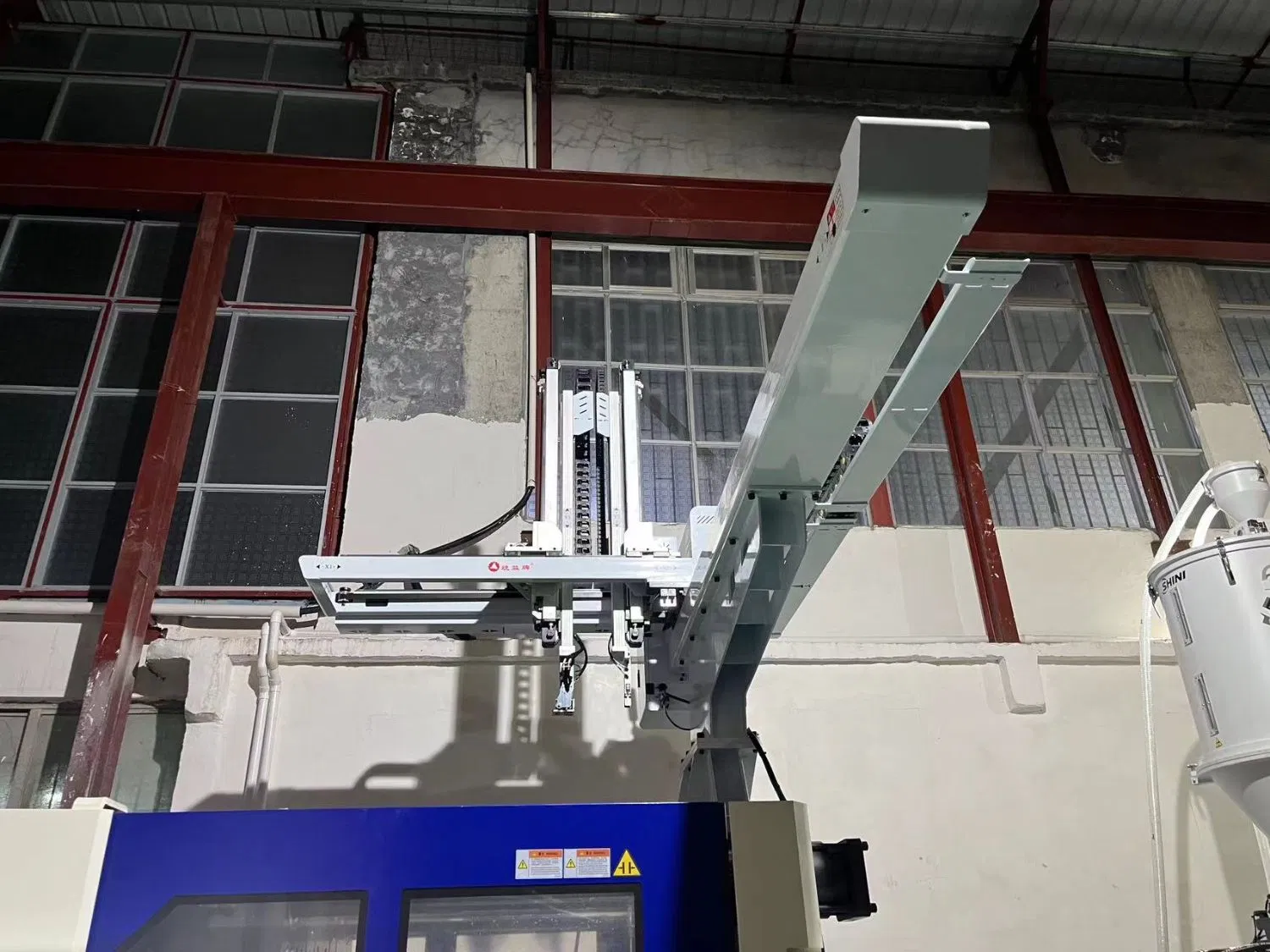

Automatic Robotic Industrial Robot Arm: These Three/Five Axes AC Servo Driven Robots are extensively applied to horizontal plastic injection machines from 50~850T. They are specifically designed for rapid and precise removal where strict demands on appearance and speed are paramount. With take-out times as low as 0.65-1.5 seconds, these robots ensure maximum efficiency in production cycles.
| Model | TS3-70S-P/N-13TR | TS3-90S-P/N-14TR | TT3-100S-P/N-16TR | TT3-120S-P/N-16TR | TT3-140S-P/N-17TR |
|---|---|---|---|---|---|
| Arm Type | Single-Stage | Single-Stage | Telescopic | Telescopic | Telescopic |
| IMM Range (Tons) | 50-120T | 100-220T | 250-350T | 300-450T | 400-850T |
| Vertical Stroke (mm) | 700 | 900 | 1000 | 1200 | 1400 |
| Traverse Stroke (mm) | 1350 | 1450 | 1600 | 1600 | 1750 |
| Max. Load (kg) | 5 | 6 | 8 | 10 | 15 |
| Take Out Time (s) | 0.65 | 0.65 | 0.7 | 1.5 | 1.5 |
| Dry Cycle Time (s) | 5 | 5 | 7 | 9 | 9 |
| Drive System | AC Servo Motor | AC Servo Motor | AC Servo Motor | AC Servo Motor | AC Servo Motor |
| Machine Weight (kg) | 200 | 220 | 250 | 270 | 300 |

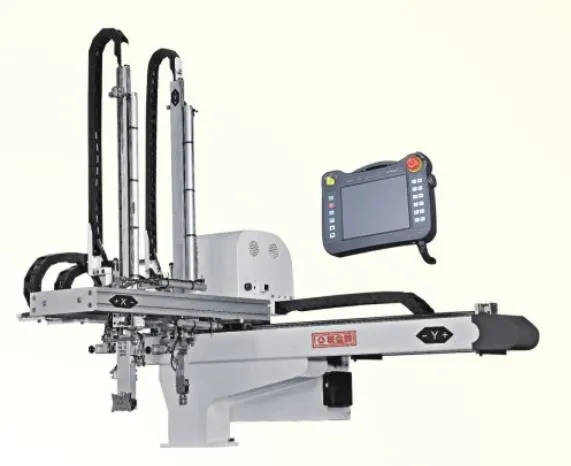

Standard Capabilities: Support for 8 languages, 100 sets of internal memory, USB port for data management, and 3-color status lamps for remote monitoring. Includes specialized circuits for vacuum suction and product placement detection.
Optional Upgrades: Spray mold release agent functionality, pneumatic scissors for runner cutting, automatic lubrication systems, and AC/BC rotation axes for multi-angle movement.

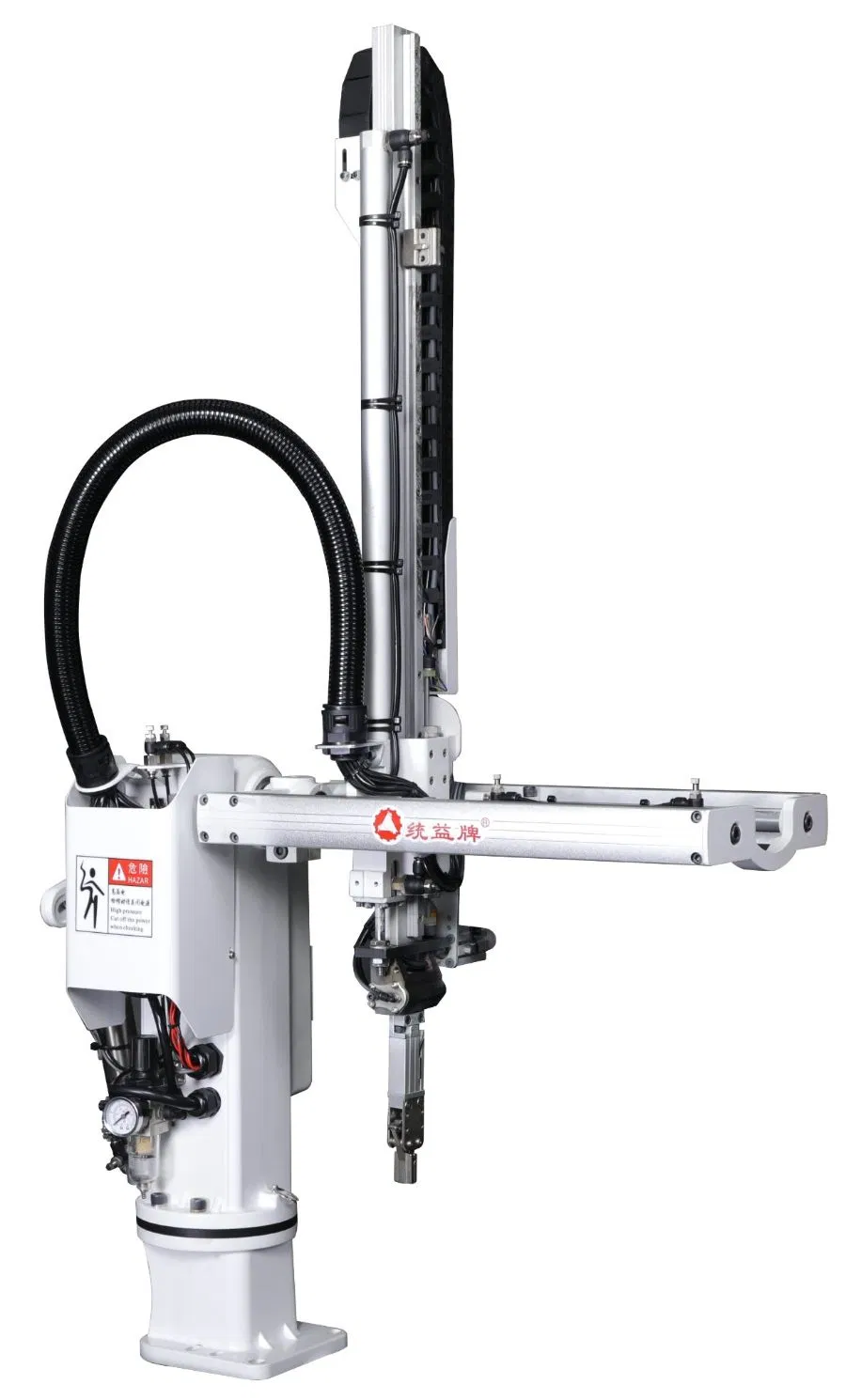

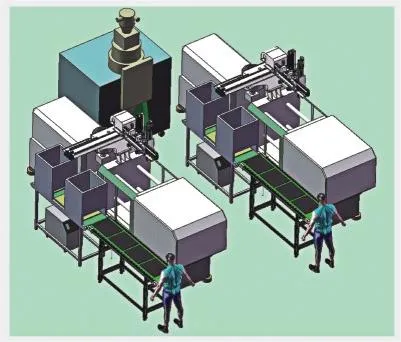

Injection molding robots are specialized for production automation. They reduce heavy labor, improve working conditions, and stabilize product quality. Single-axis units are ideal for simple take-out, while 3/5 axis models handle complex inserts, stacking, and conveyor synchronization. These robots are essential for enhancing competitiveness in modern manufacturing environments.
With decades of experience in intelligent automation equipment innovation, we are committed to providing overall solutions for intelligent factories. Our focus includes research, development, and production of high-tech manufacturing equipment across multiple production bases. We assist clients in evolving from stand-alone systems to fully automated production lines, creating significant value through immediate service and technical support.
