Product Description
Strong Structure And Good Quality Handheld Fiber Laser Welding Machine 1500W 2KW 3KW ROBOT
The hand-held laser welding machine adopts a new generation of fiber lasers and is equipped with self-developed laser welding heads. It has the advantages of simple operation, beautiful weld seam, fast welding speed and no consumables. Welding of metal materials such as plates, iron plates and galvanized plates. It is 3-10 times the speed of conventional argon arc welding plasma welding, power consumption is 10-20% less than traditional process, save 2-3 labor costs.
Key Features
🛡️
Safety: The laser beam output control only works when the welding head touches the metal surface. It meets CE and safety standards.
⚡
Performance: Optimized welding beam energy distribution ensures the best spot for all welding needs.
🔧
Material: Applicable to all kinds of complex welding, various devices, and 5mm sheet welds.
📍
Convenience: High flexibility with standard 5m or optional 8m optical fiber for extended reach.

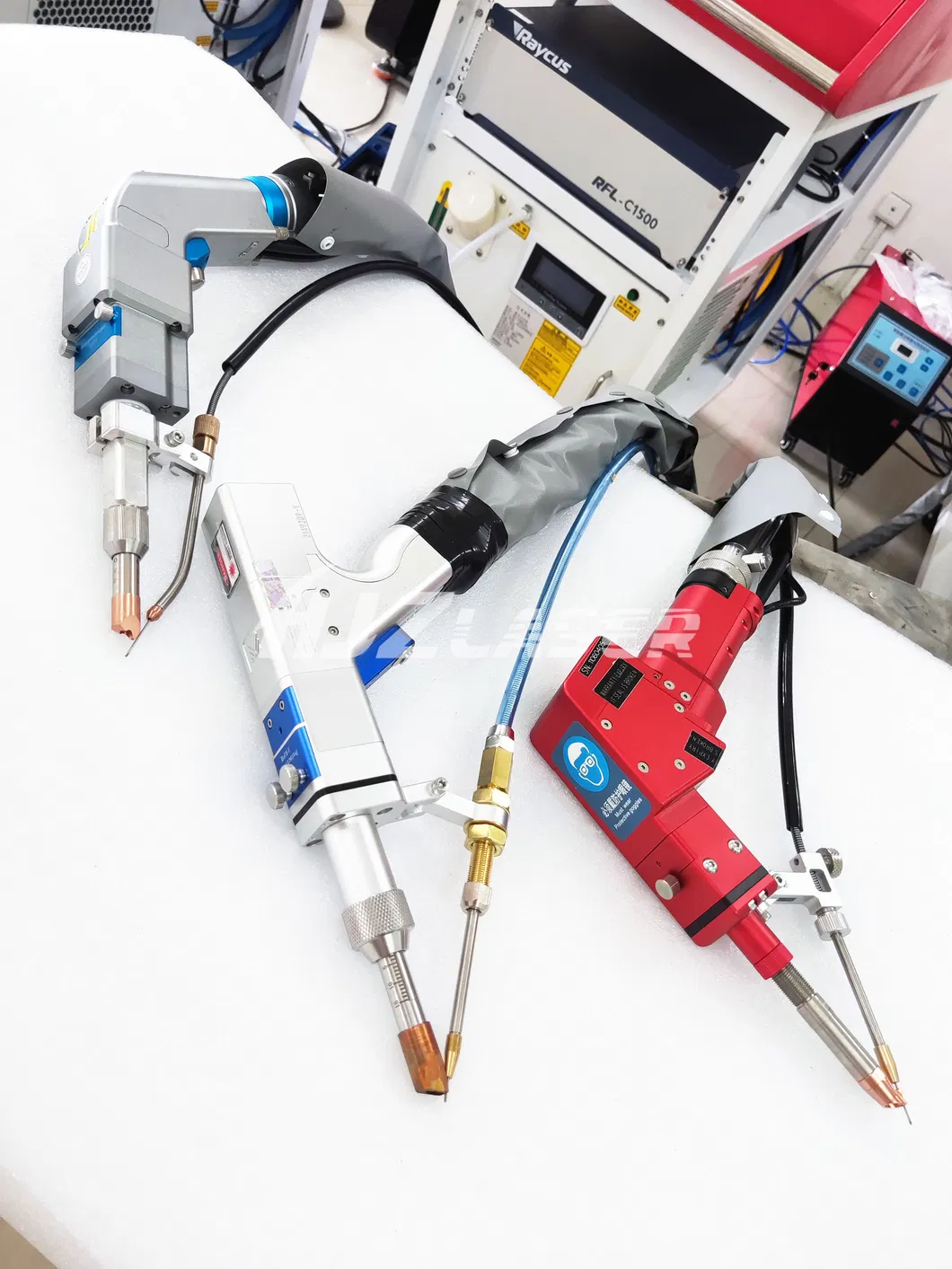

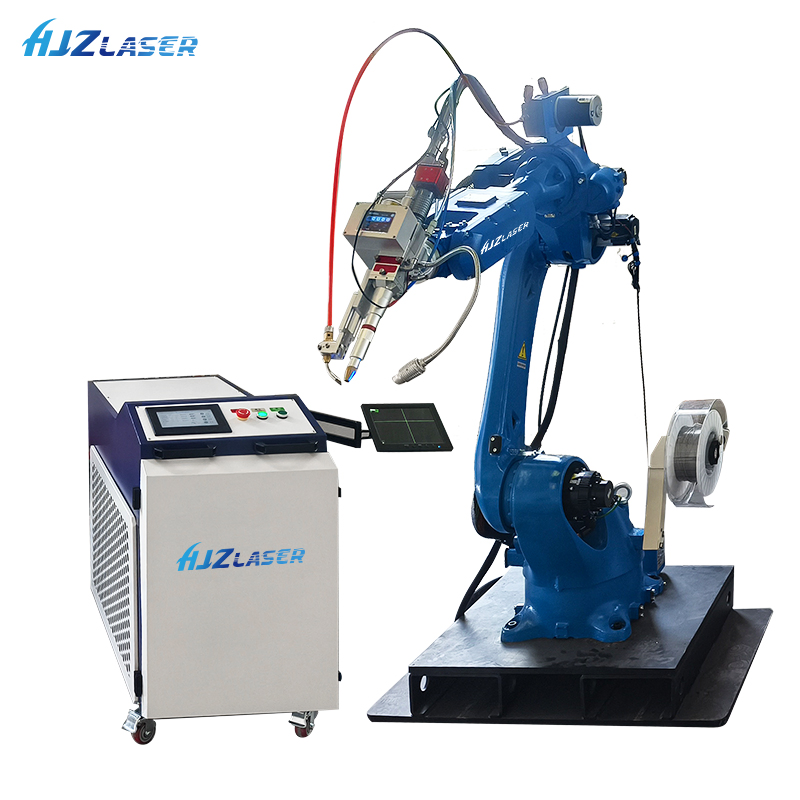

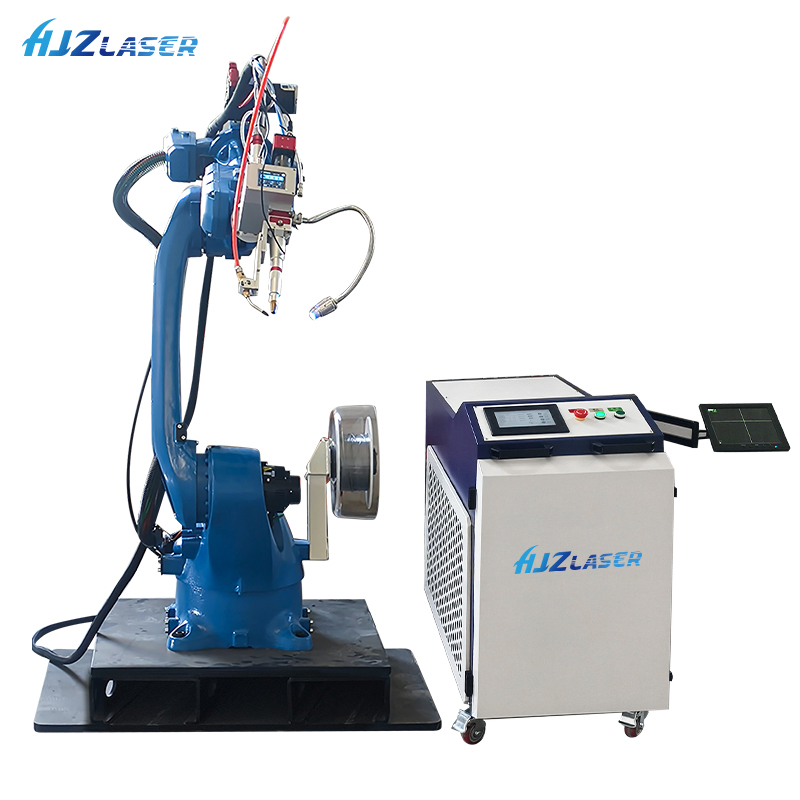

Product Pictures
Product Advantages
- Simple operation: Easy to learn and use; achieve high-quality results quickly.
- High welding efficiency: More than twice as fast as argon arc welding, saving labor costs.
- No consumables: Welding can be completed without wire filling, reducing material costs.
- Good welding effect: High energy density results in superior hot-melt welding quality.
- Energy efficiency: Photoelectric conversion efficiency up to 30%, resulting in lower power consumption.
- Convenient and flexible: No fixed workstation needed; offers a wide range of motion.
- No polishing required: Smooth, continuous weld seams without fish scales or scars.
Advantage Comparison
| Comparison Process |
Traditional Welding |
Fiber Laser Welding |
Our Advanced Laser Welding |
| Heat input to workpiece | Very High | Low | Low |
| Deformation of workpiece | Big | Small | Small |
| Bond strength | General | Good | Very Good |
| Follow-up | Polish | Rarely polish | No polish needed |
| Weld Speed | General | >2x Argon welding | >2x Argon welding |
| Consumables | High | Seldom | Seldom |
| Operation | Complex | Normal | Simple |
| Operator safety | Unsafe | Safe | Safe |
| Spot width adjustable | No | No | Yes |
| Welding quality | Worse | Normal | Very Good |
Technical Parameters
| No. |
Specification Detail |
Parameters |
| 1 | Device Name | Hand held fiber laser welding machine |
| 2 | Laser Power | 500W, 800W, 1000W, 2000W, 3000W |
| 3 | Laser Wavelength | 1070 NM |
| 4 | Fiber Length | Standard 10M (Support up to 15M) |
| 5 | Working Mode | Continuous / Modulation |
| 6 | Welding Speed Range | 0~120 mm/s |
| 7 | Water Chiller | Industrial thermostatic water tank |
| 8 | Working Temp | 15~35 ºC |
| 9 | Environment Humidity | < 70% No condensation |
| 10 | Welding Thickness | 0.5-3mm |
| 11 | Welding Gap req. | ≤0.5mm |
| 12 | Operating Voltage | AC 220V |
Industry Application
Widely used in complex and irregular welding processes for cabinets, kitchenware, stairs, elevators, shelves, ovens, stainless steel doors/windows, guardrails, electric cabinets, stainless steel furniture, and other industries.
Frequently Asked Questions
Q1: How fast is fiber laser welding compared to traditional methods?
A: Fiber laser welding is typically 3 to 10 times faster than traditional argon arc welding and plasma welding, significantly increasing production efficiency.
Q2: What materials can this machine weld?
A: It is highly effective for welding various metal materials including stainless steel plates, iron plates, galvanized plates, and carbon steel.
Q3: Is it difficult to operate the handheld laser welder?
A: No, the machine is designed for simple operation. It is easy to learn, and most operators can achieve high-quality results with very little training.
Q4: Does the machine require frequent maintenance or consumables?
A: One of the major advantages is that it requires no consumables like welding wire in most cases, and its fiber laser source has a lifespan of over 20,000 hours.
Q5: Are the weld seams smooth enough to skip polishing?
A: Yes, the laser welding process produces continuous, beautiful seams with no scars or fish scales, which eliminates or greatly reduces the need for subsequent polishing.
Q6: What safety features does the machine have?
A: The machine includes a safety control system where the laser beam only activates when the welding head is in direct contact with the metal surface.
