High-Precision Vertical Stroke Welding Manipulator for Seamless Joints

Customization: Available
Type: Welding Manipulator
Structure: Platform

Product Description

High-Precision Vertical Stroke Welding Manipulator for Seamless Joints
Basic Info.
Rotation Speed
0.04-0.4rpm
Max Eccentricity Distance
0
Tilting Angle
±180°
Voltage
220V
Welding Turning Rolls Type
Self-Adjusting
Welding Tilter Type
Flexible Combination
Condition
New
Column Rotating Angle
±180°
Trolley Speed
2m/Min
Delivery Time
Timely
Warranty
One Year
Transport Package
Wooden
Specification
HJ5060
Origin
China
HS Code
84688000
Production Capacity
20 Sets/Month
Product Introduction

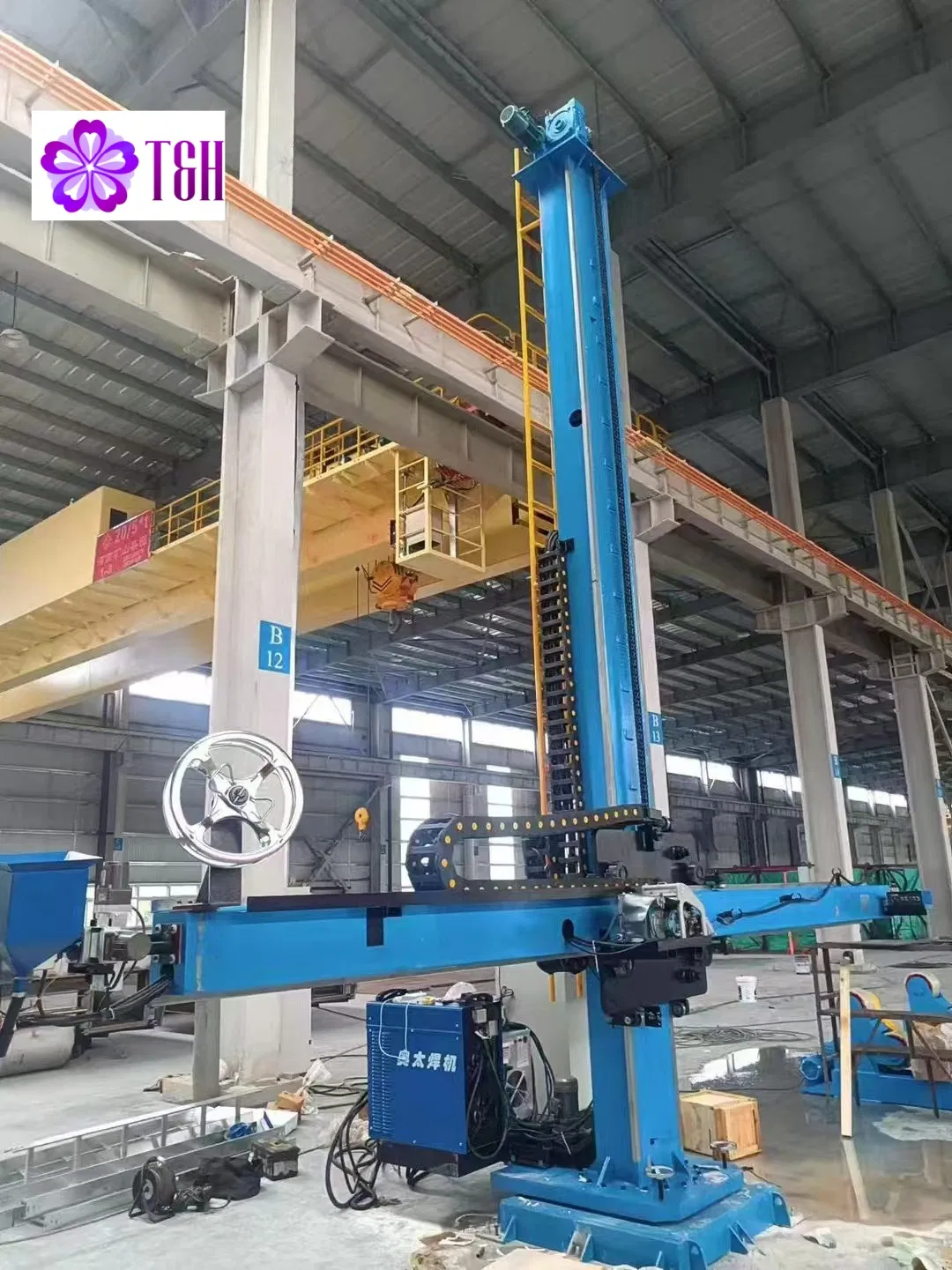

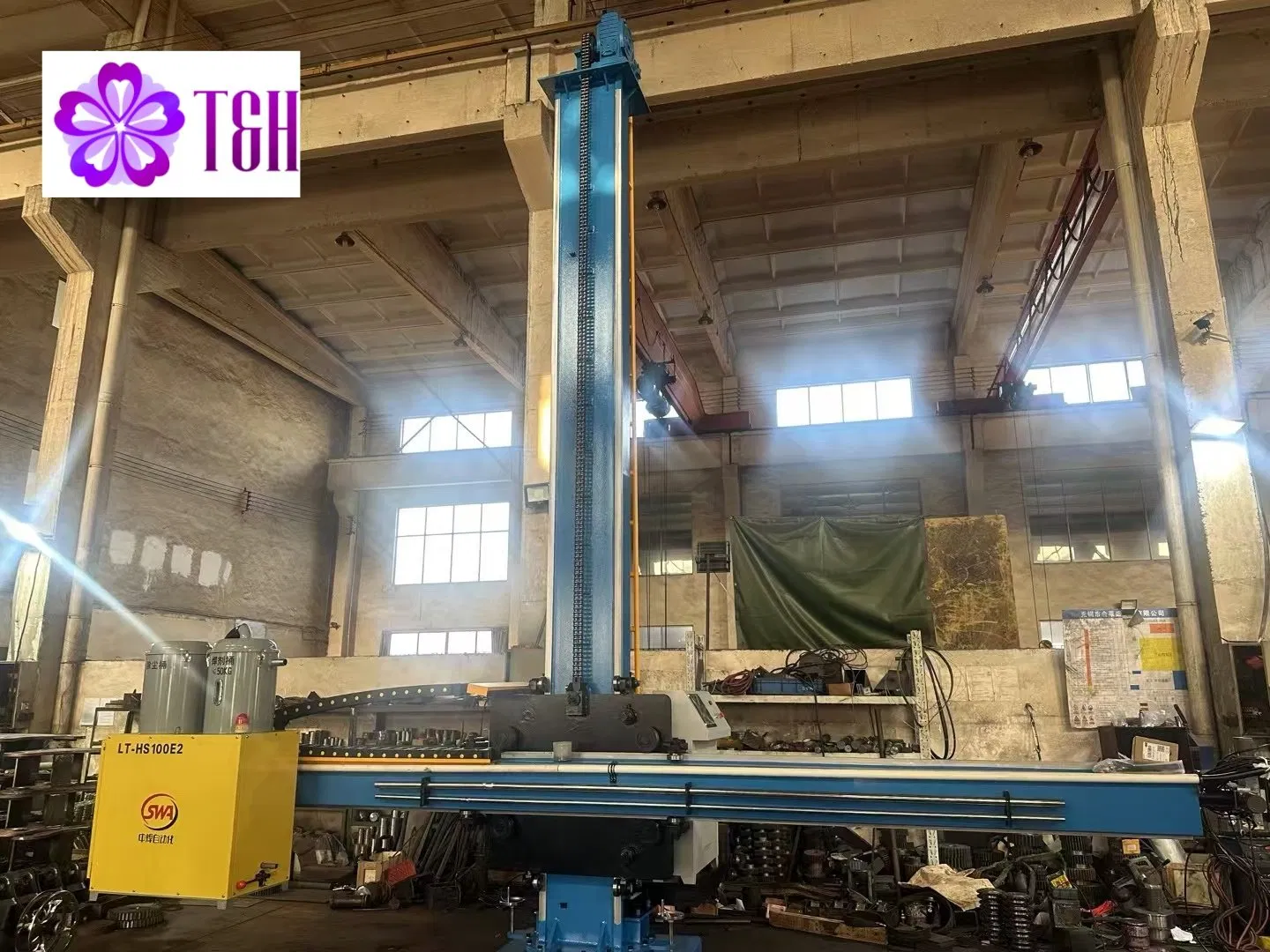

High-Precision Vertical Stroke Welding Manipulator for Seamless Joints
The Precision Welding Manipulator is a state-of-the-art automated welding auxiliary device, meticulously engineered with robust columns and beams. Powered by advanced motors and a sophisticated control system, it seamlessly adjusts the welding position, speed, and angle. This precision tool positions the welding head with remarkable accuracy, following a predefined trajectory. It finds extensive application in industries such as pressure vessels, steel structures, and numerous other sectors, significantly boosting efficiency, ensuring superior quality, and reducing labor intensity and safety risks. As an indispensable asset in welding production, it represents a pinnacle of technological innovation.
System Heavy Middle Light Small
Type HJ6070 HJ5060 HJ4050 HJ3040 HJ2030 HJ1015
Vertical Travel(mm) 6000 5000 4000 3000 2000 1000
Horizontal Travel(mm) 7000 6000 5000 4000 3000 1500
Manipulator Rotating Angle(°) ±180°
Manipulator Rotating Speed 0.03~0.3 0.03~0.3 0.3 0.3 Manual
Arm up and Down speed 1 0.3
Arm feed rate 0.12~1.2 Manual
Trolley speed 2 2.5 2.5 Manual
Rail space between of trollye 2000 1600 1450 1000 800
Load at the end of arm 250 100 100 80 20

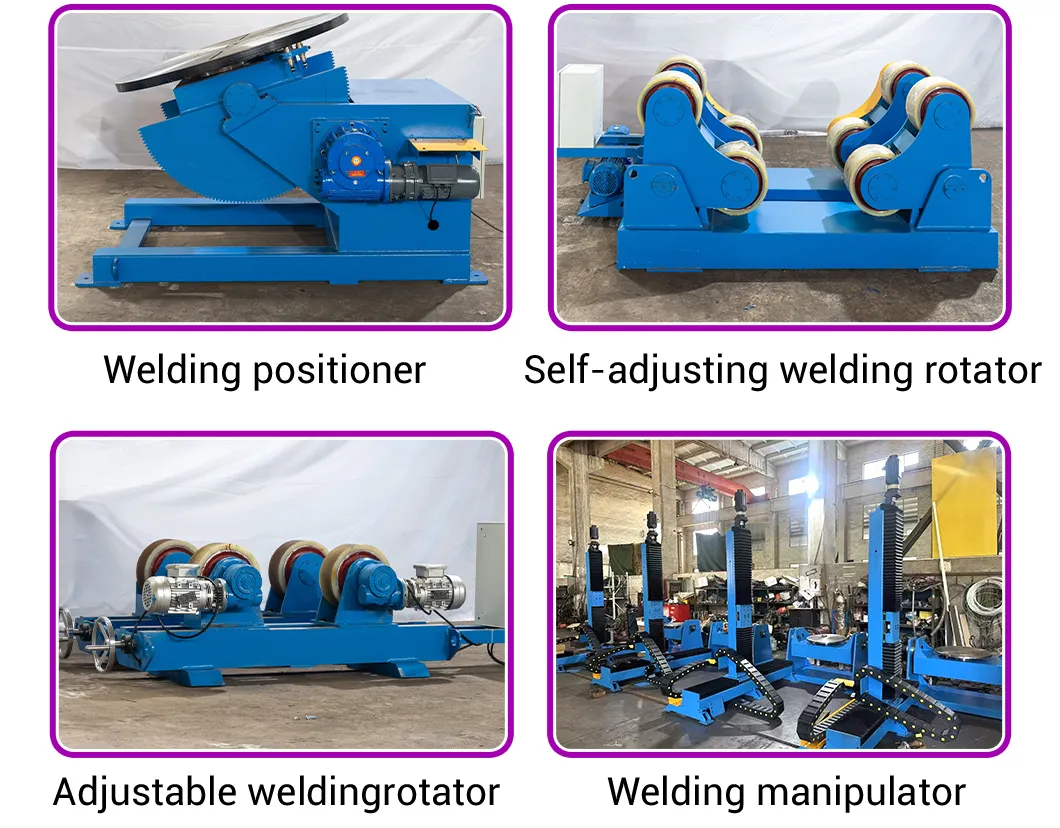

Main Products

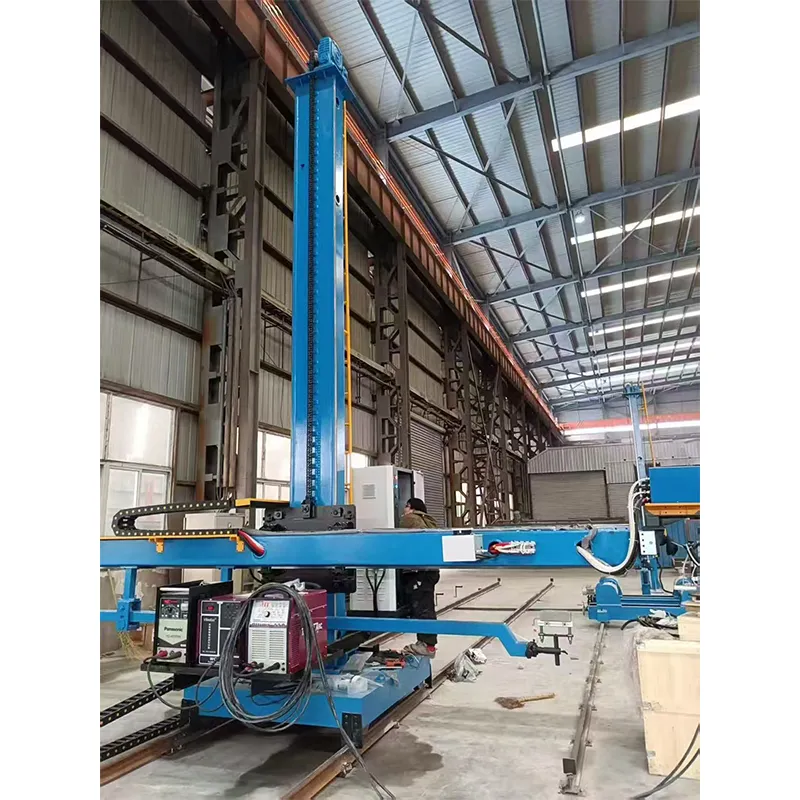

High-Precision Vertical Stroke Welding Manipulator for Seamless Joints

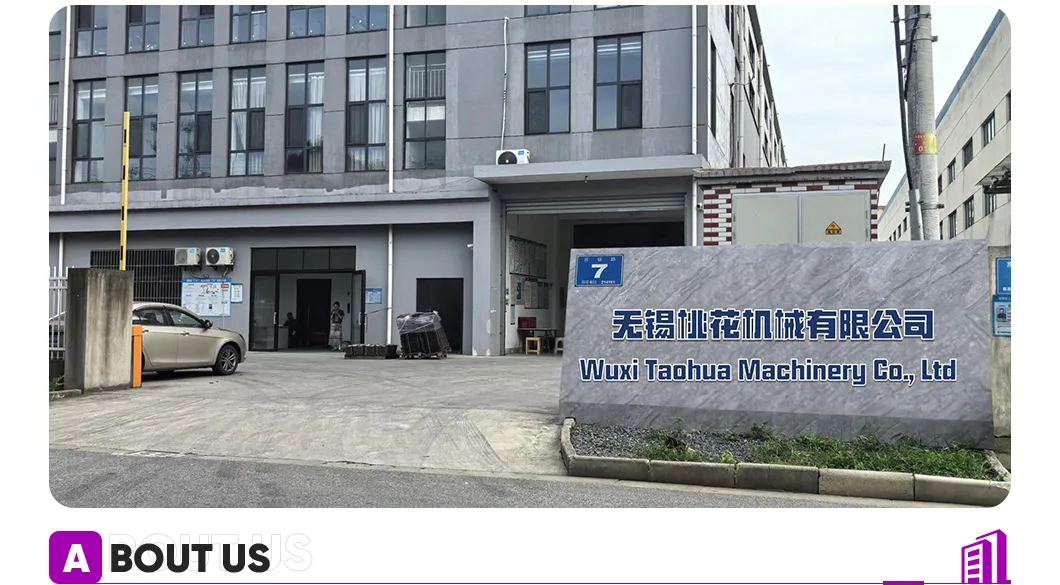

Company Profile
High-Precision Vertical Stroke Welding Manipulator for Seamless Joints
The factory specializes in the production of welding equipment. It mainly manufactures welding wheel frames, welding positioners, and welding operation machines, among other welding equipment. The factory integrates R&D, production, and sales. It is committed to meeting customers' demands for high-quality products at reasonable prices. The factory can also design products according to customer needs and customize the products that customers want. It also provides OEM services. The product warranty period is one year, allowing customers to not worry about after-sales issues and not have concerns about future worries.
High-Precision Vertical Stroke Welding Manipulator for Seamless Joints
Company Advantage
High-Precision Vertical Stroke Welding Manipulator for Seamless Joints
Our Services
High-Precision Vertical Stroke Welding Manipulator for Seamless Joints
Packaging & Shipping
High-Precision Vertical Stroke Welding Manipulator for Seamless Joints
Frequently Asked Questions (FAQ)
Q1: What are the main applications of the Precision Welding Manipulator?
A1: It is widely utilized in pressure vessels, steel structures, and various manufacturing sectors to optimize welding positioning, enhance overall efficiency, and ensure robust, high-quality seamless joints.
Q2: What customization options do you support for welding machinery?
A2: We fully integrate R&D and production capabilities, allowing us to design and tailor specific technical parameters, sizes, and operational capabilities based on individual customer demands, alongside professional OEM services.
Q3: What types of travel system capacities are available?
A3: Our equipment ranges across Heavy, Middle, Light, and Small structural systems (e.g., HJ6070 to HJ1015 series), accommodating vertical strokes from 1000mm up to 6000mm and horizontal strokes up to 7000mm.
Q4: How long is the warranty period for your welding auxiliary systems?
A4: All of our primary welding equipment solutions include a standard one-year warranty period, ensuring complete security and reliable support for your production line without future maintenance worries.
Q5: What is the typical packaging format used for international transport?
A5: To minimize any transit risks and secure the structural alignment of the equipment, products are strictly encased in protective wooden standard transport packing setups.
