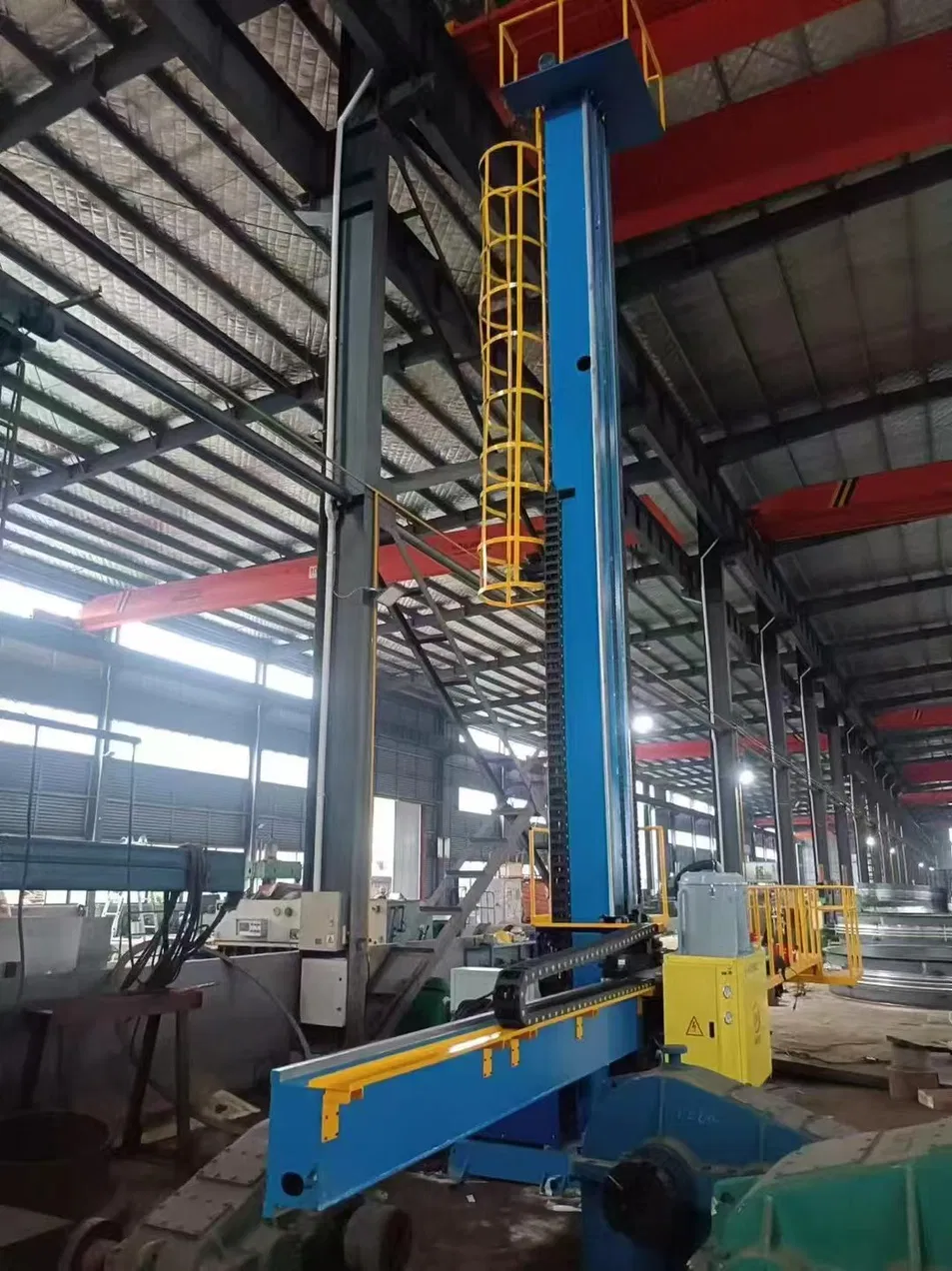

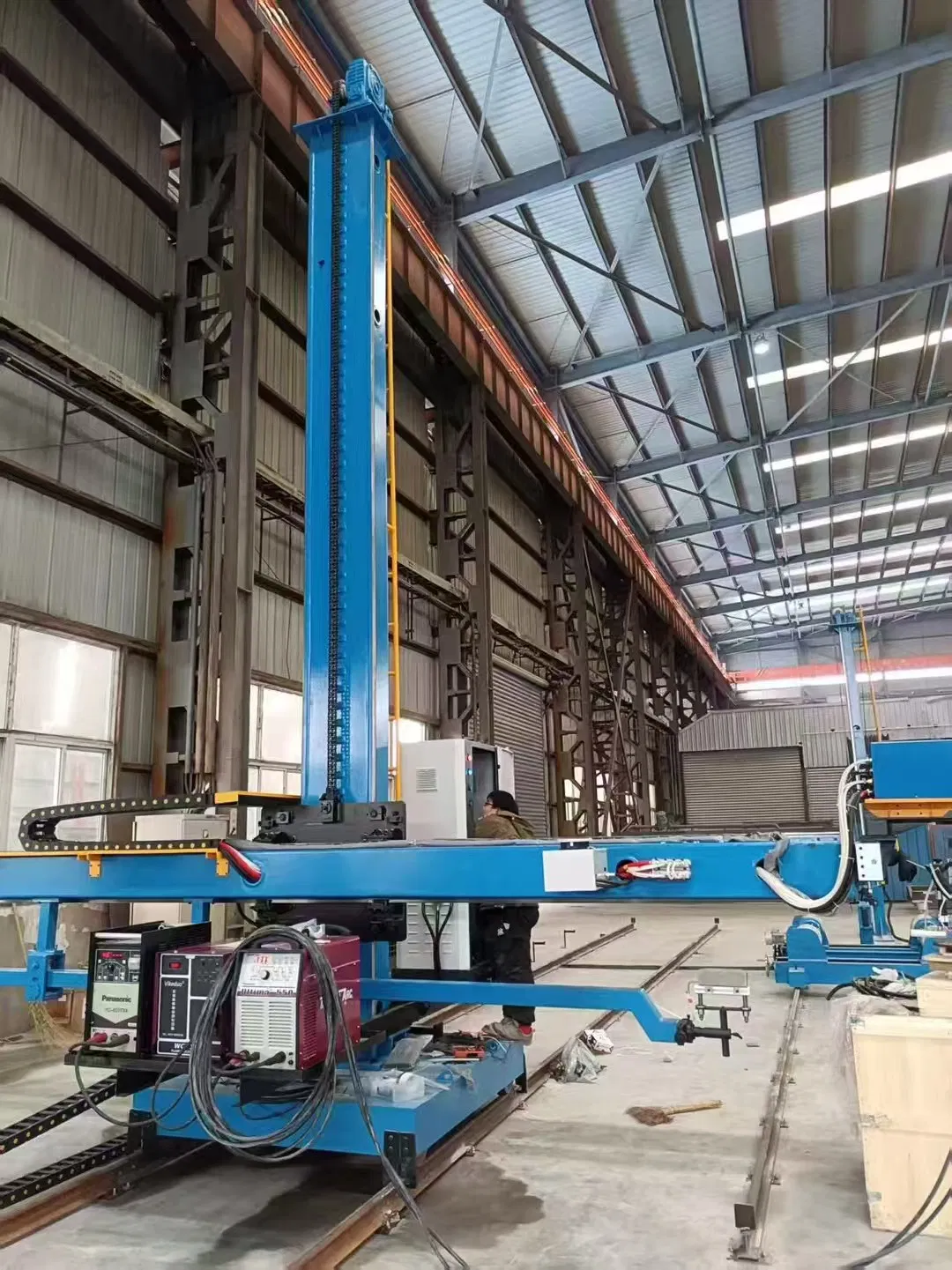

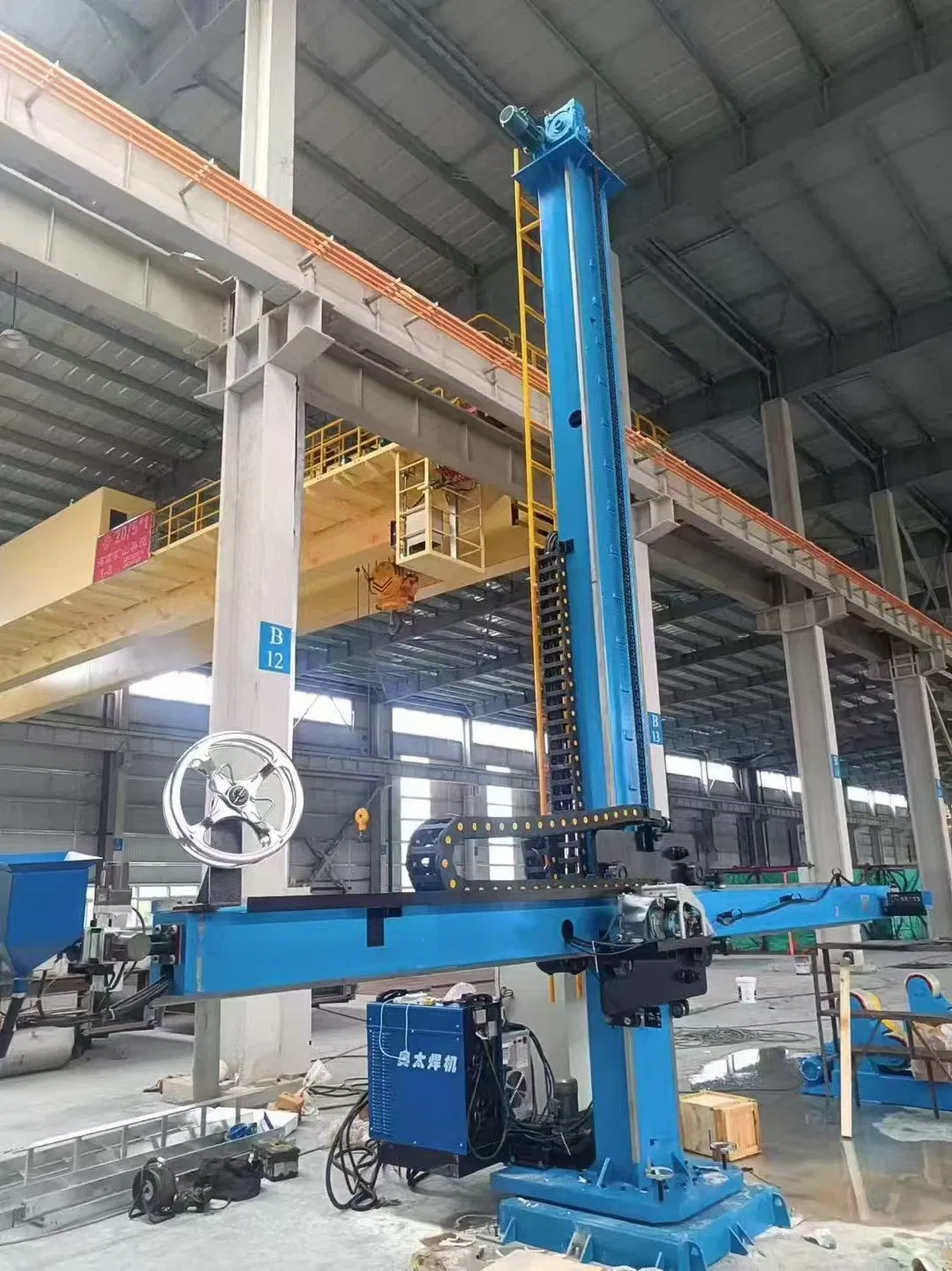

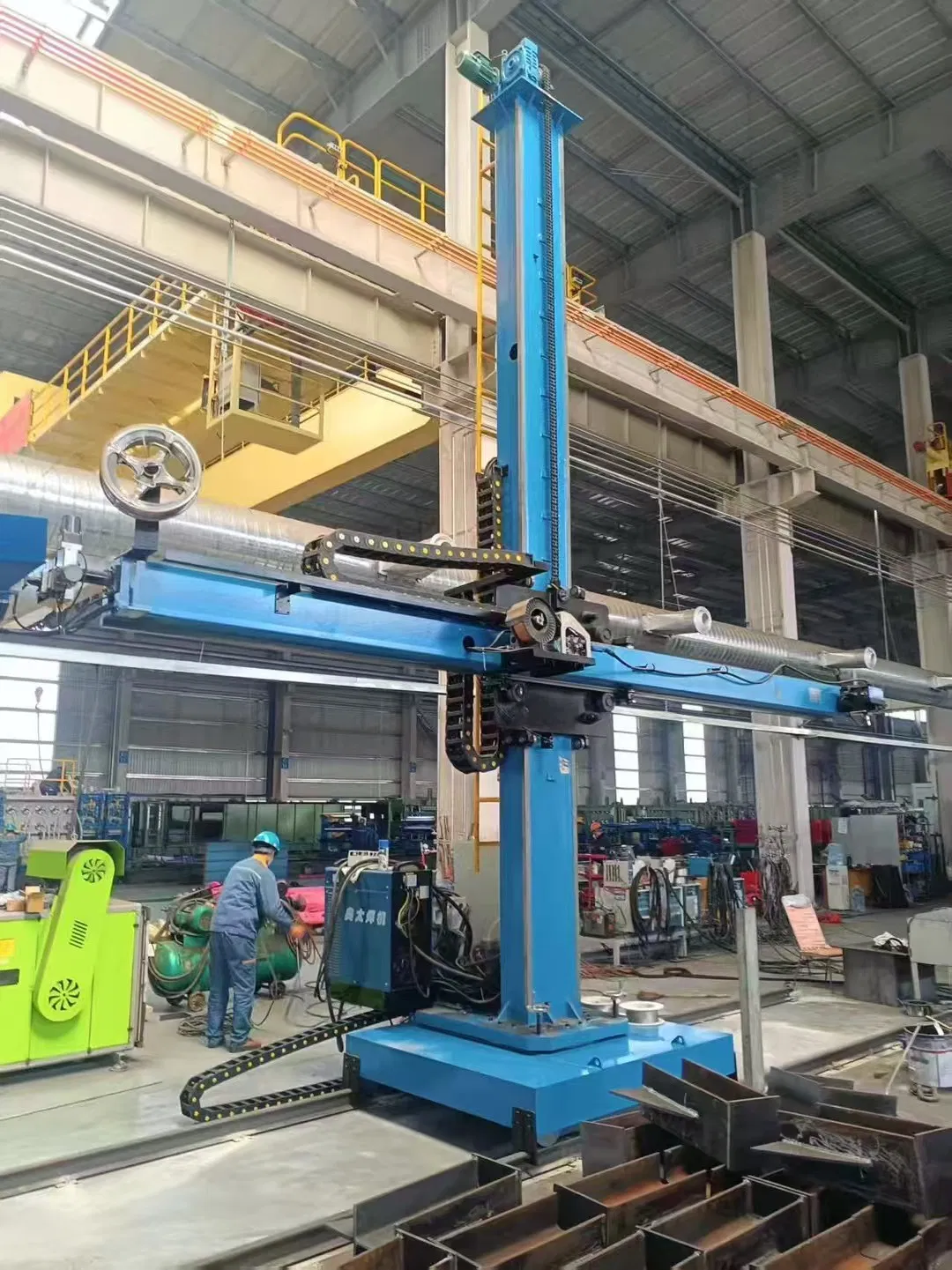

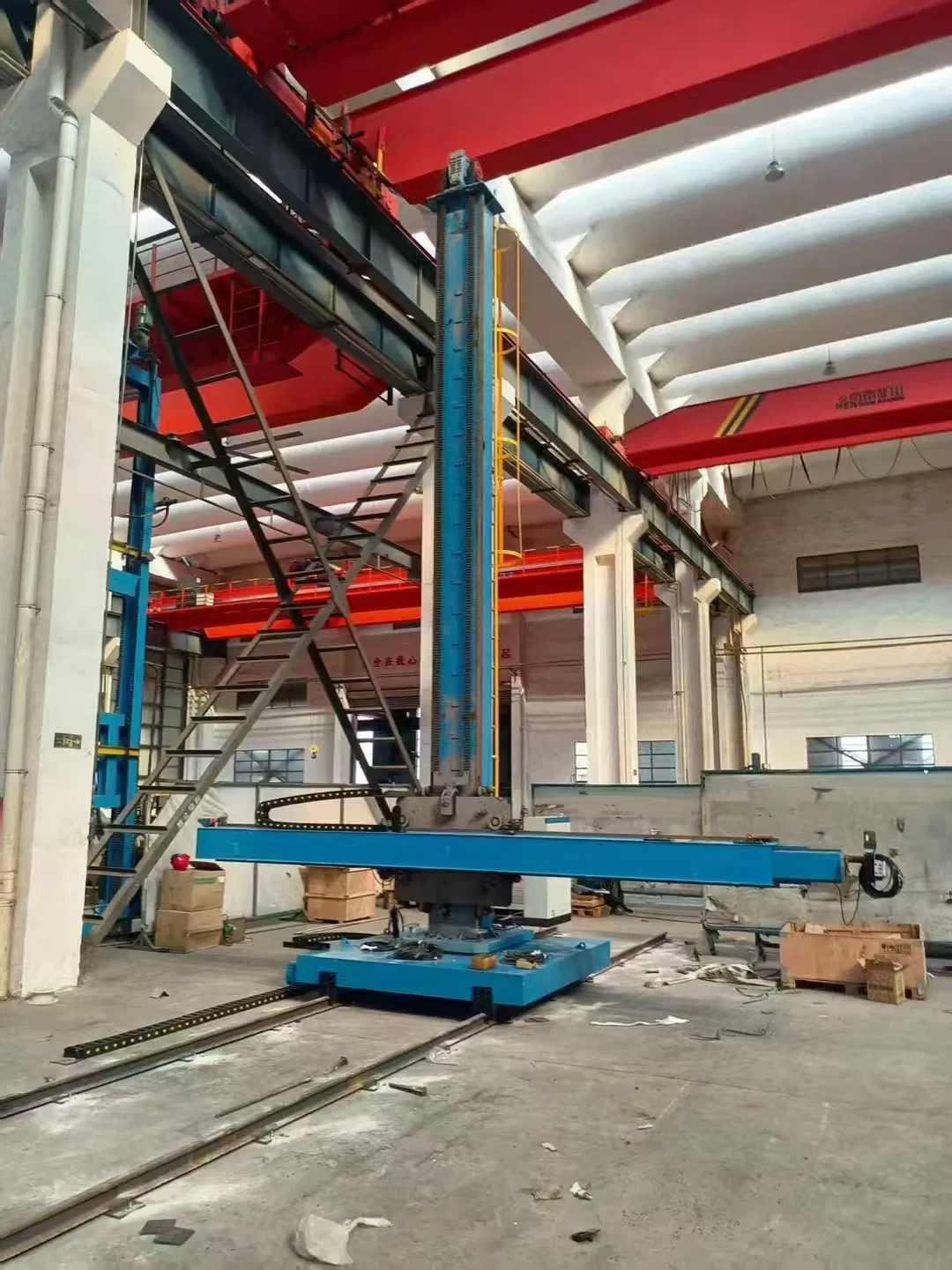

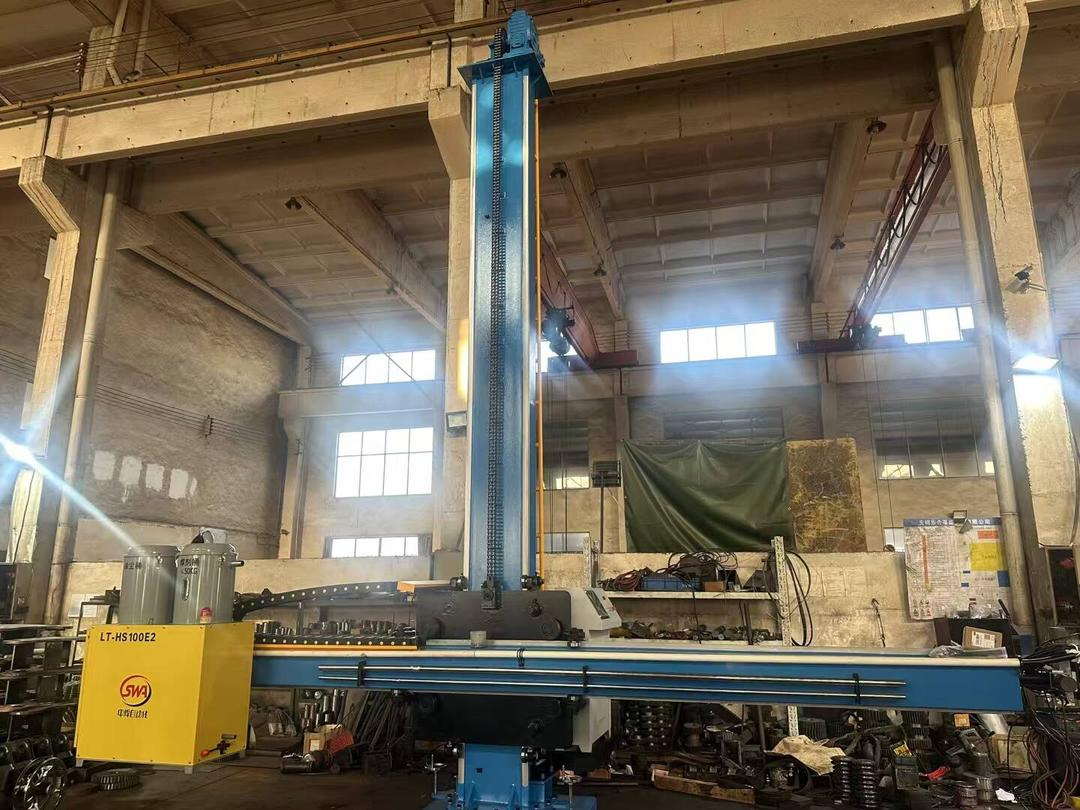

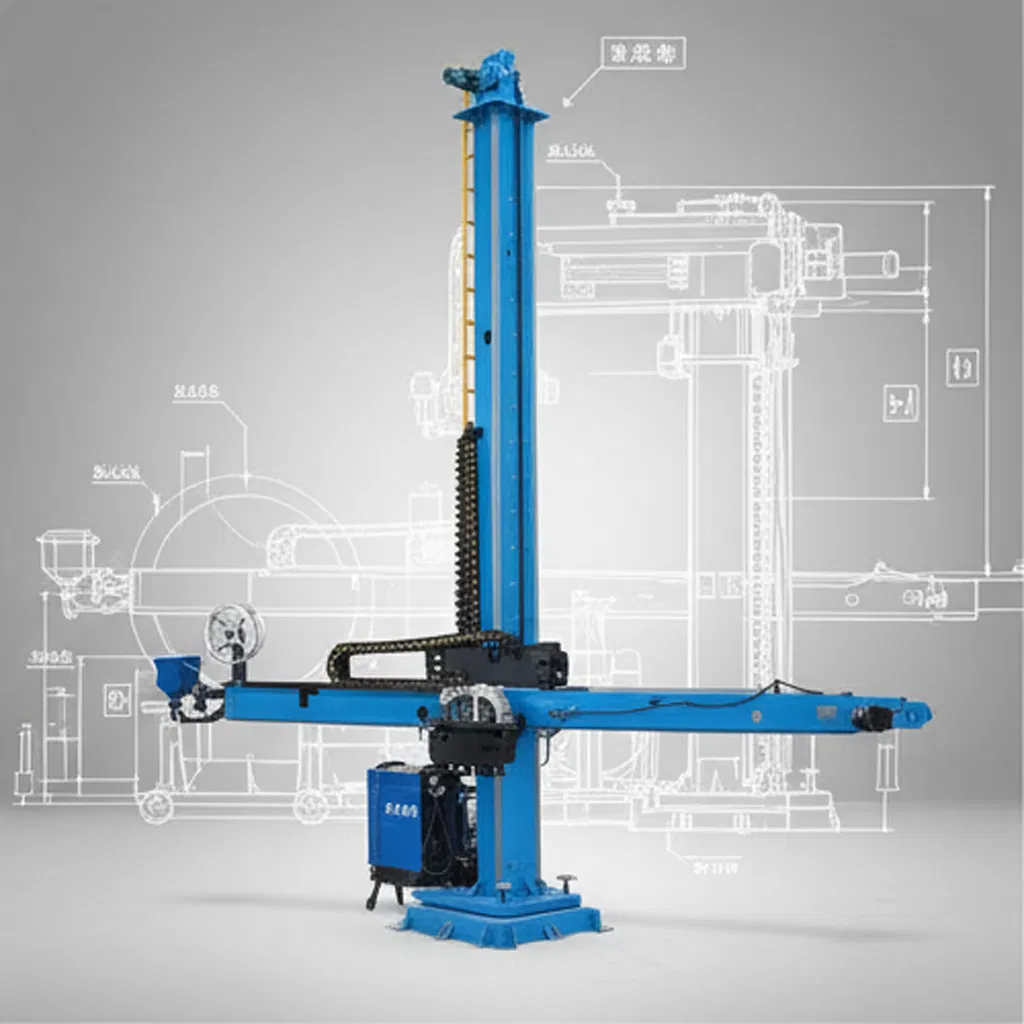

Precision Welding Manipulator
The Precision Welding Manipulator is a state-of-the-art automated welding auxiliary device, meticulously engineered with robust columns and beams. Powered by advanced motors and a sophisticated control system, it seamlessly adjusts the welding position, speed, and angle. This precision tool positions the welding head with remarkable accuracy, following a predefined trajectory.
It finds extensive application in industries such as pressure vessels, steel structures, and numerous other sectors, significantly boosting efficiency, ensuring superior quality, and reducing labor intensity and safety risks. As an indispensable asset in welding production, it represents a pinnacle of technological innovation.
| System | Heavy | Middle | Light | Small | ||
|---|---|---|---|---|---|---|
| Type | HJ6070 | HJ5060 | HJ4050 | HJ3040 | HJ2030 | HJ1015 |
| Vertical Travel (mm) | 6000 | 5000 | 4000 | 3000 | 2000 | 1000 |
| Horizontal Travel (mm) | 7000 | 6000 | 5000 | 4000 | 3000 | 1500 |
| Rotating Angle (°) | ±180° | |||||
| Arm Up/Down Speed | 1 | 0.3 | ||||
| Load at Arm End (kg) | 250 | 250 | 100 | 100 | 80 | 20 |
By integrating the welding manipulator with a welding rotary device, positioning device, and an automatic welding machine, you create a comprehensive "automatic welding machinery equipment" system. This setup is utilized for both internal and external longitudinal and ring welds in boilers, pressure vessels, petroleum, chemical, and machinery industries.
We offer customization options to accommodate any additional requirements you may have.

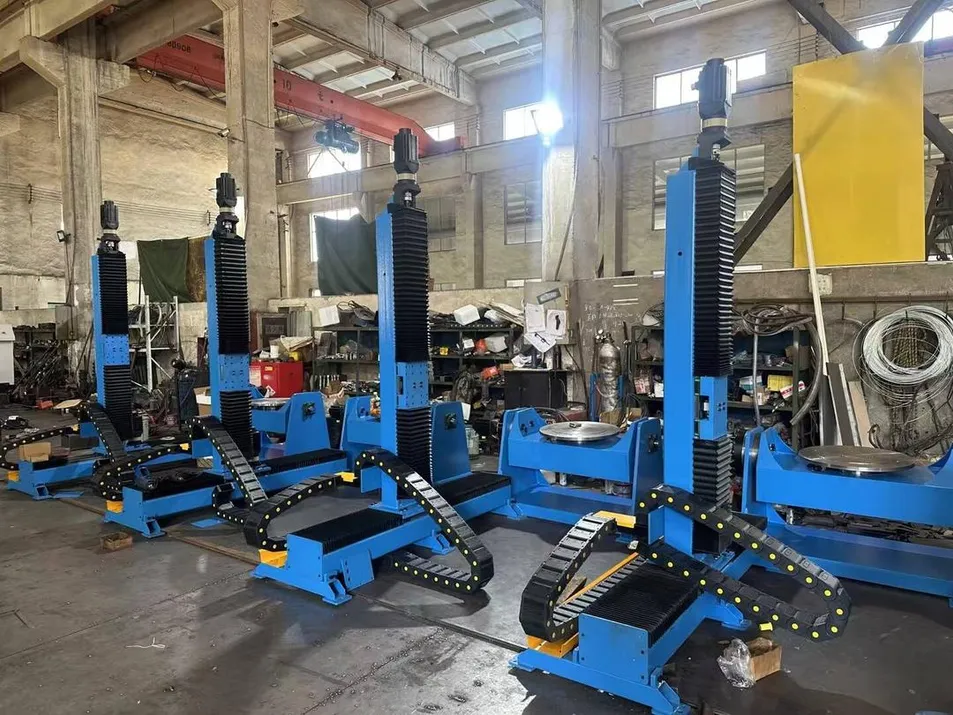

Our facility stands as a beacon of excellence in the premium welding equipment manufacturing sector. Our production line is outfitted with cutting-edge welding positioners, resilient welding roller frames, and the most advanced welding operation machines.
