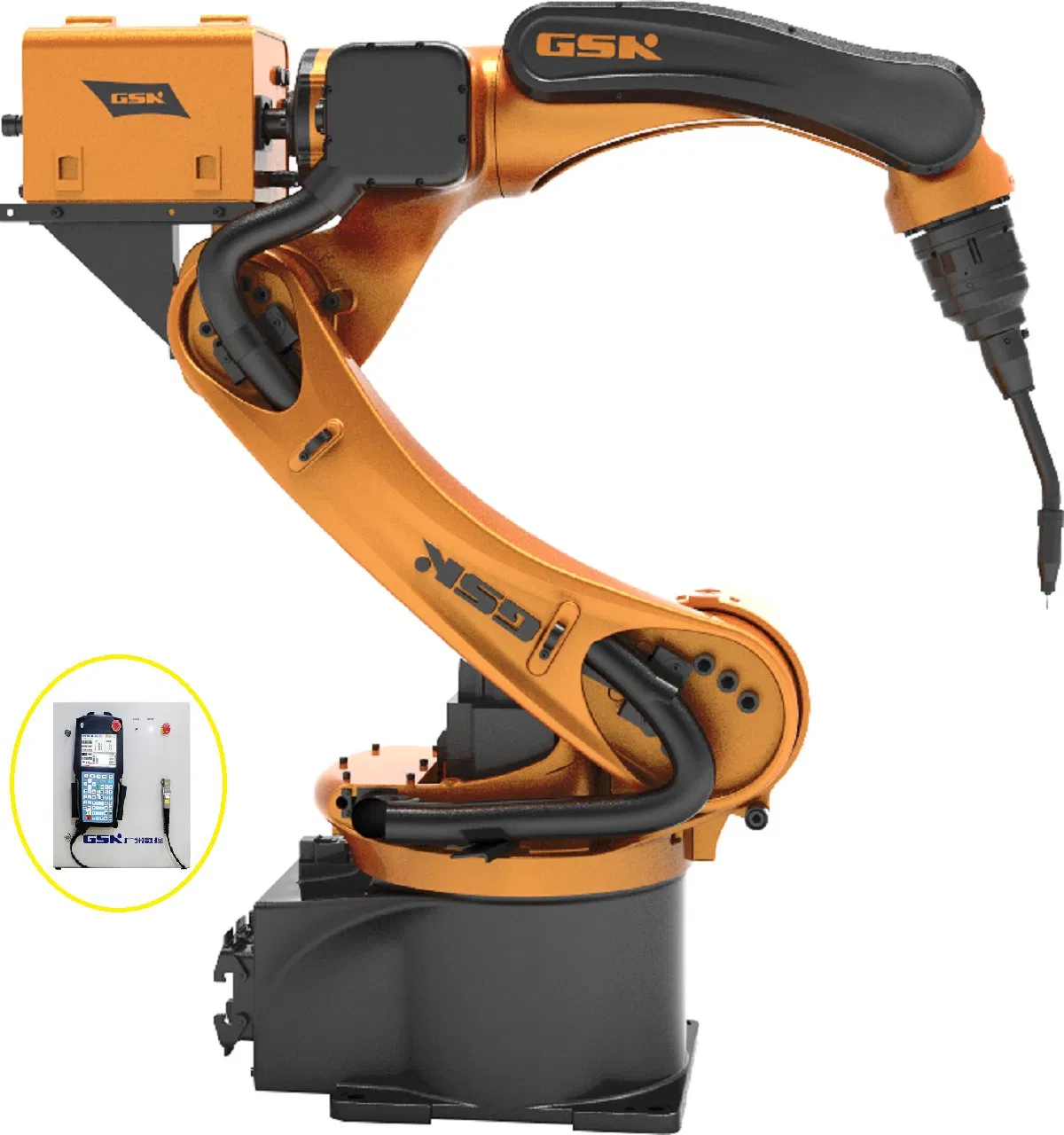

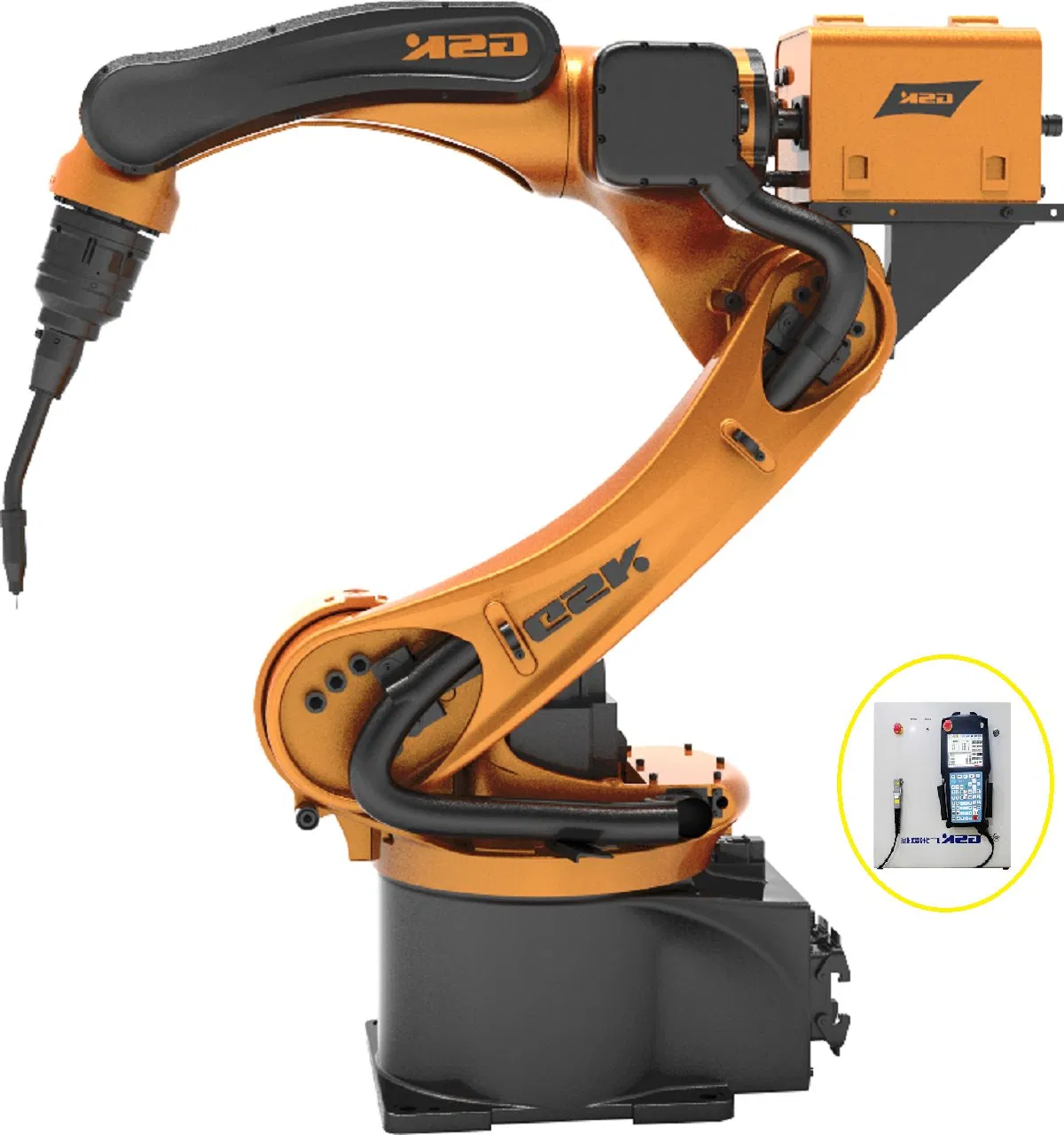

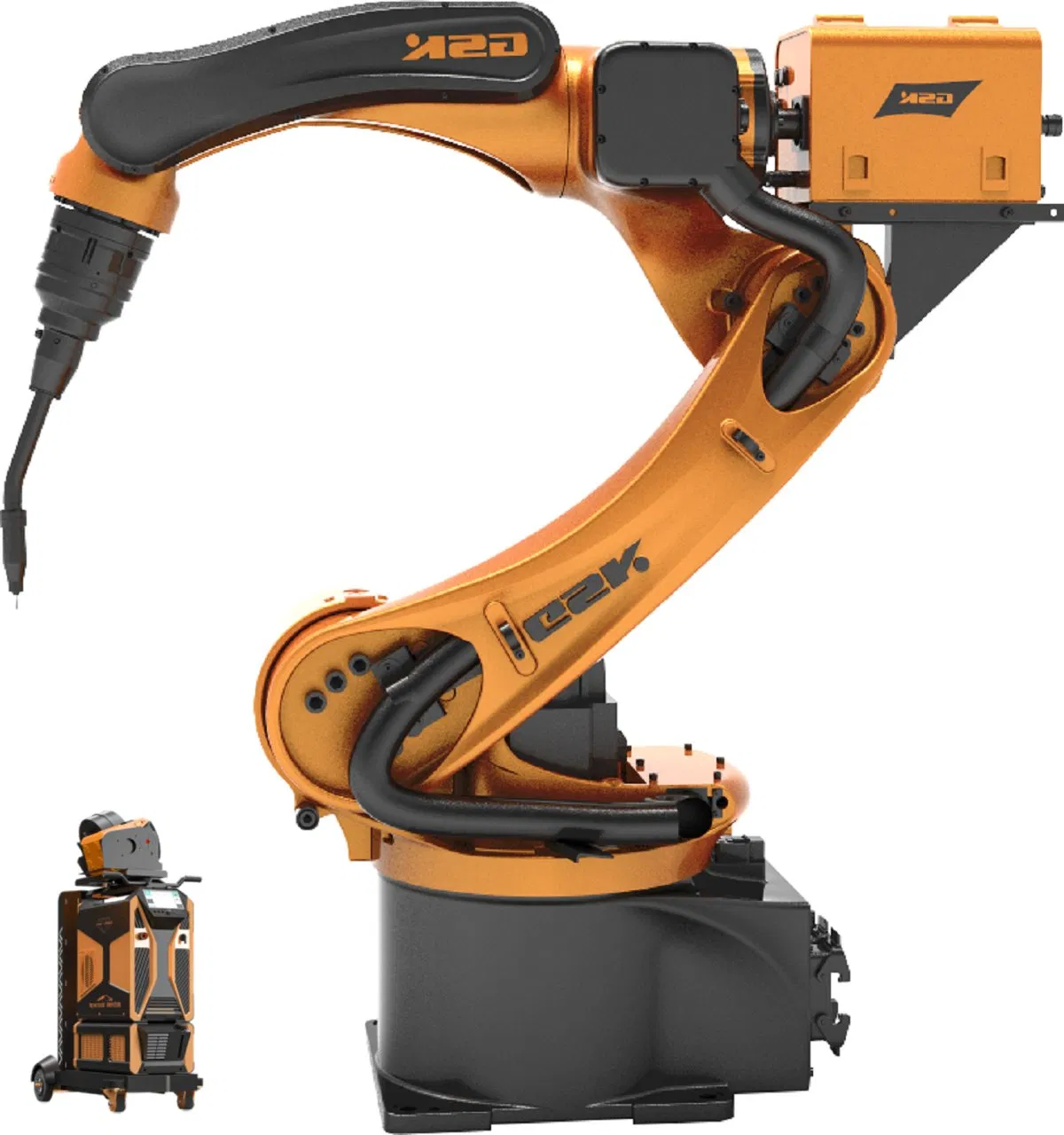

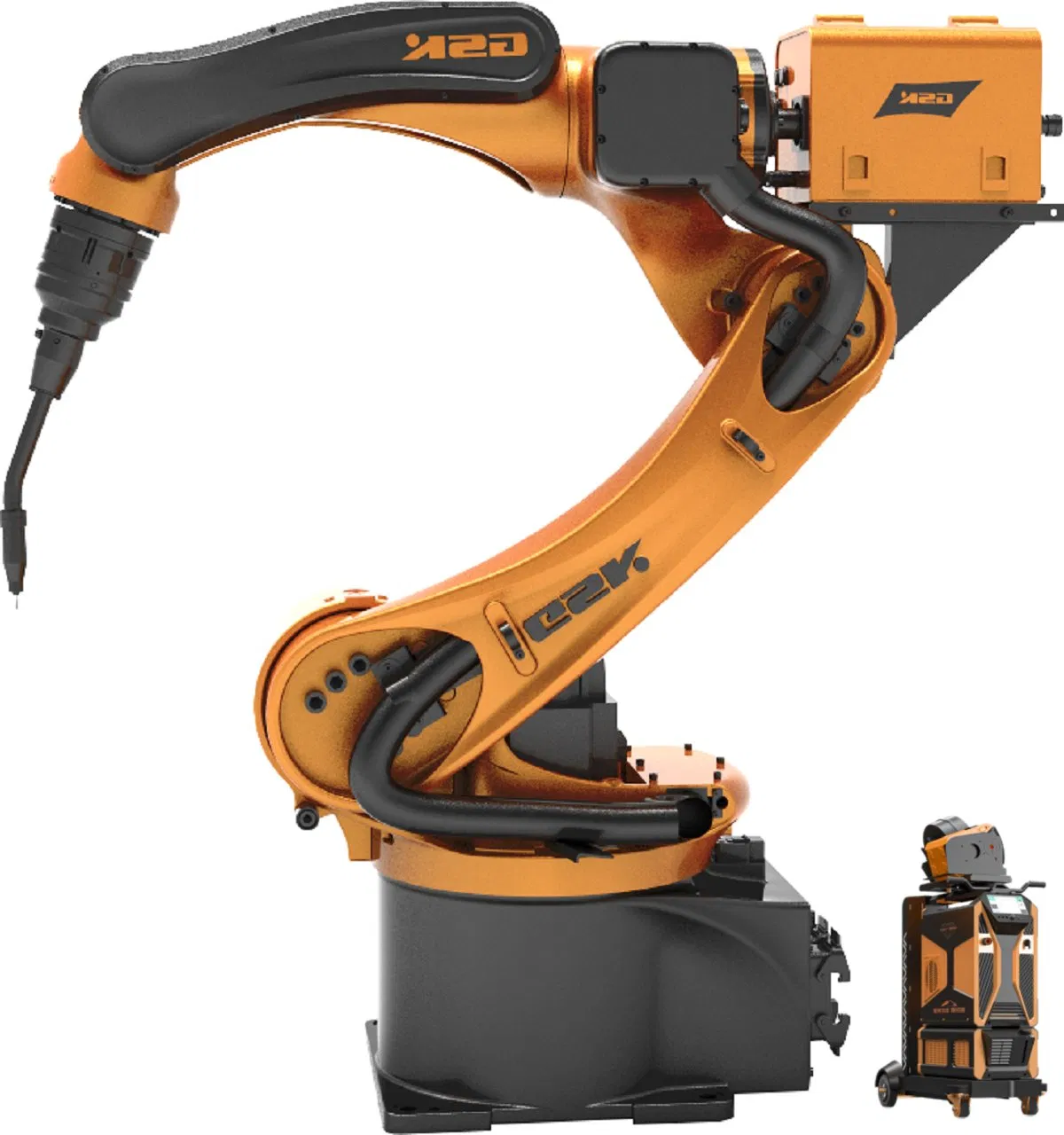

Automatic Robotic Low splash laser TIG/MIG Industrial collaborative Welding Robot arm
Application field: It is widely used in automobiles and their accessories, motorcycles, agricultural machines, engineering machines, and other hardware welding fields.
| Type | Dof | Payload (kg) | Repeat. (mm) | Motion Range (°) | Max Torque (N.m) | Radius (mm) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J1 | J2 | J3 | J4 | J5 | J6 | J4 | J5 | J6 | |||||

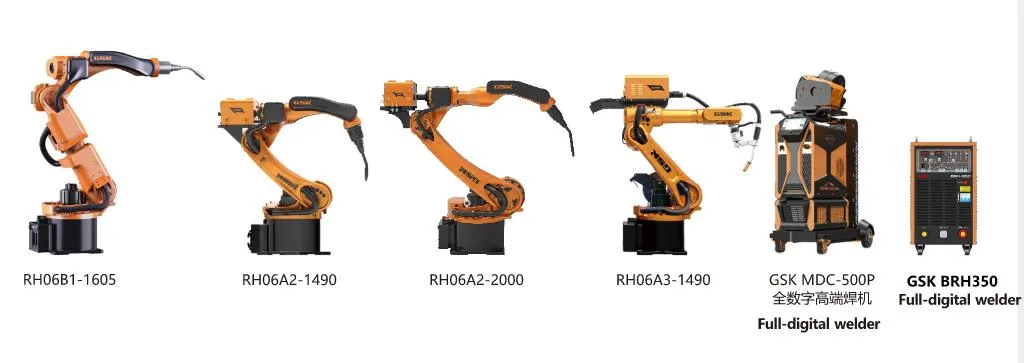

| RH06A2 | 6 | 6 | ±0.05 | ±170 | +115/-80 | +80/-150 | ±180 | ±135 | ±360 | 14 | 12 | 6 | 1490 |
| RH06A3-1490 | 6 | 6 | ±0.05 | ±170 | +120/-85 | +83/-150 | ±180 | ±135 | ±360 | 14 | 12 | 7 | 1490 |
| RH06A3-1700 | 6 | 6 | ±0.05 | ±170 | +120/-85 | +83/-150 | ±180 | ±135 | ±360 | 14 | 12 | 7 | 1700 |
| RH06A3-2060 | 6 | 6 | ±0.05 | ±170 | +145/-100 | +75/-165 | ±180 | ±135 | ±360 | 40 | 12 | 7 | 2060 |
Note: Avoid contact with flammable, explosive, or corrosive gases. Protect from water, oil, and dust splashes.

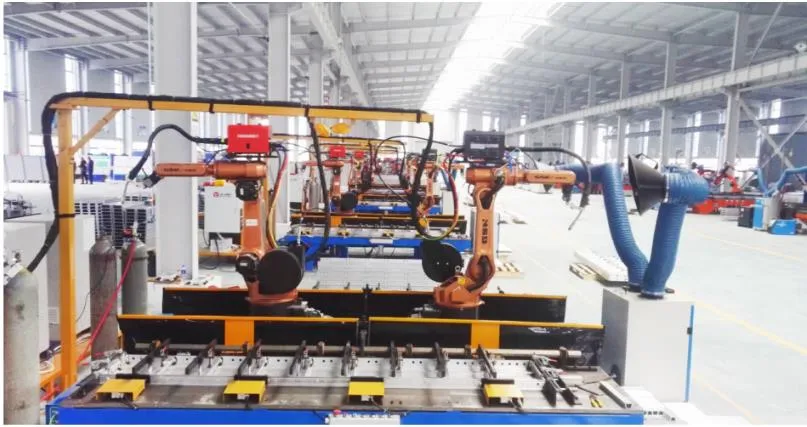

Scenario: Replacing manual labor with double-position alternative welding.
Effect: Achieved continuous production with automatic torch cutting. Robots avoid high-risk environments (smoke, arc light) and ensure stability.

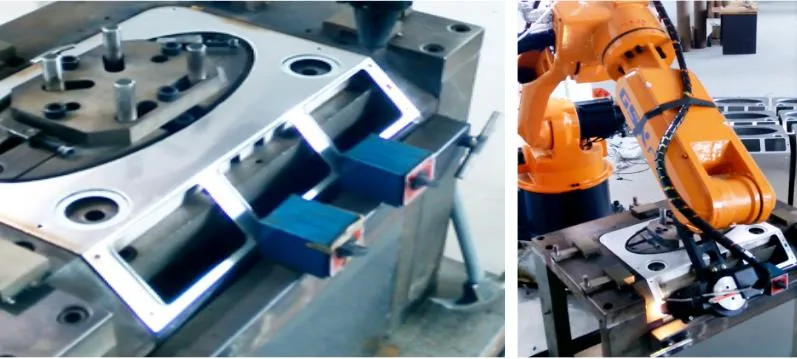

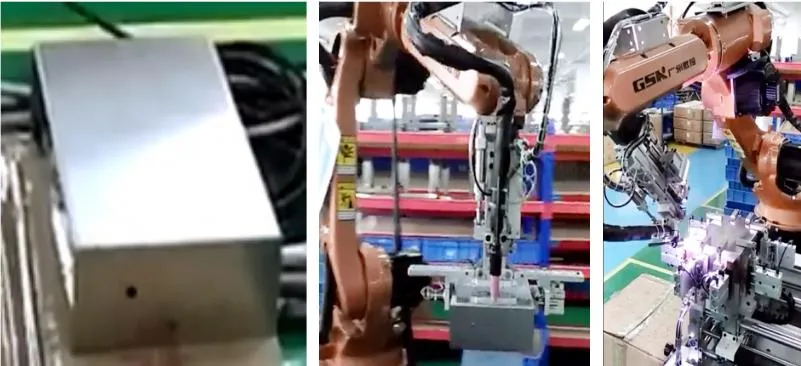

Scenario: TIG/Laser welding of stainless steel sheets (0.6mm).
Effect: No obvious deformation. Faster speed than traditional argon arc welding with better consistency in welding beads.

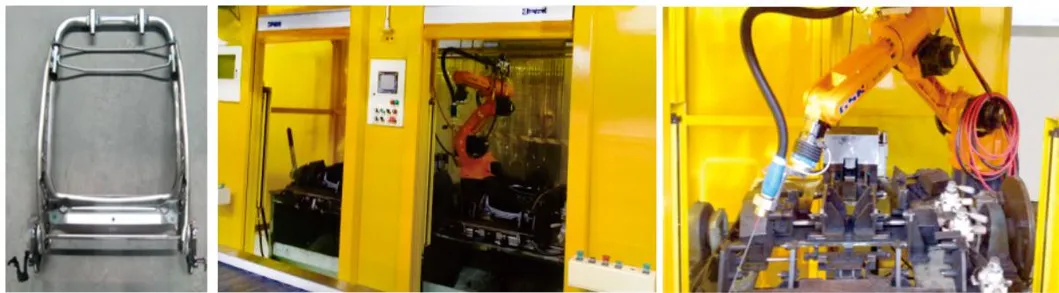

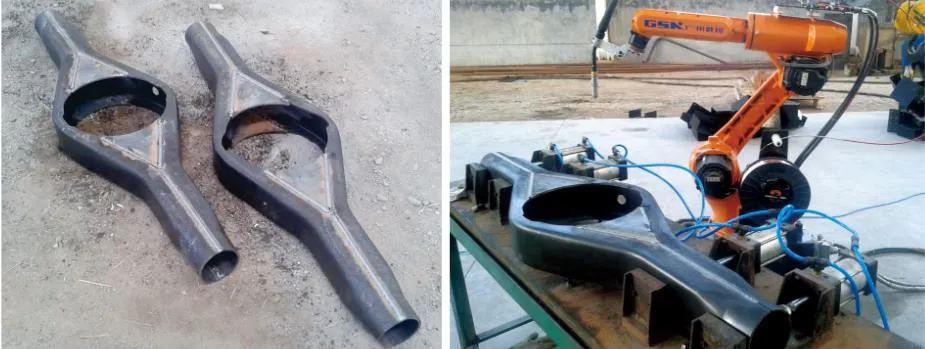

Scenario: Full-length welding for semi-products.
Effect: Prevents distortion, undercuts, and air vents. Compact workstation design with arc light protection for dual-station independent work.

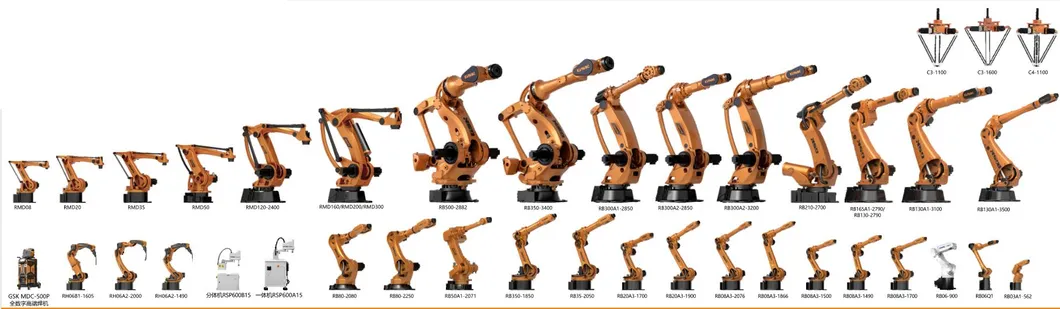

Industrial robots with independent intellectual property rights, covering transportation, welding, polishing, painting, stacking, and paralleling across 6 series and 30+ product types.
