🤖Product Description

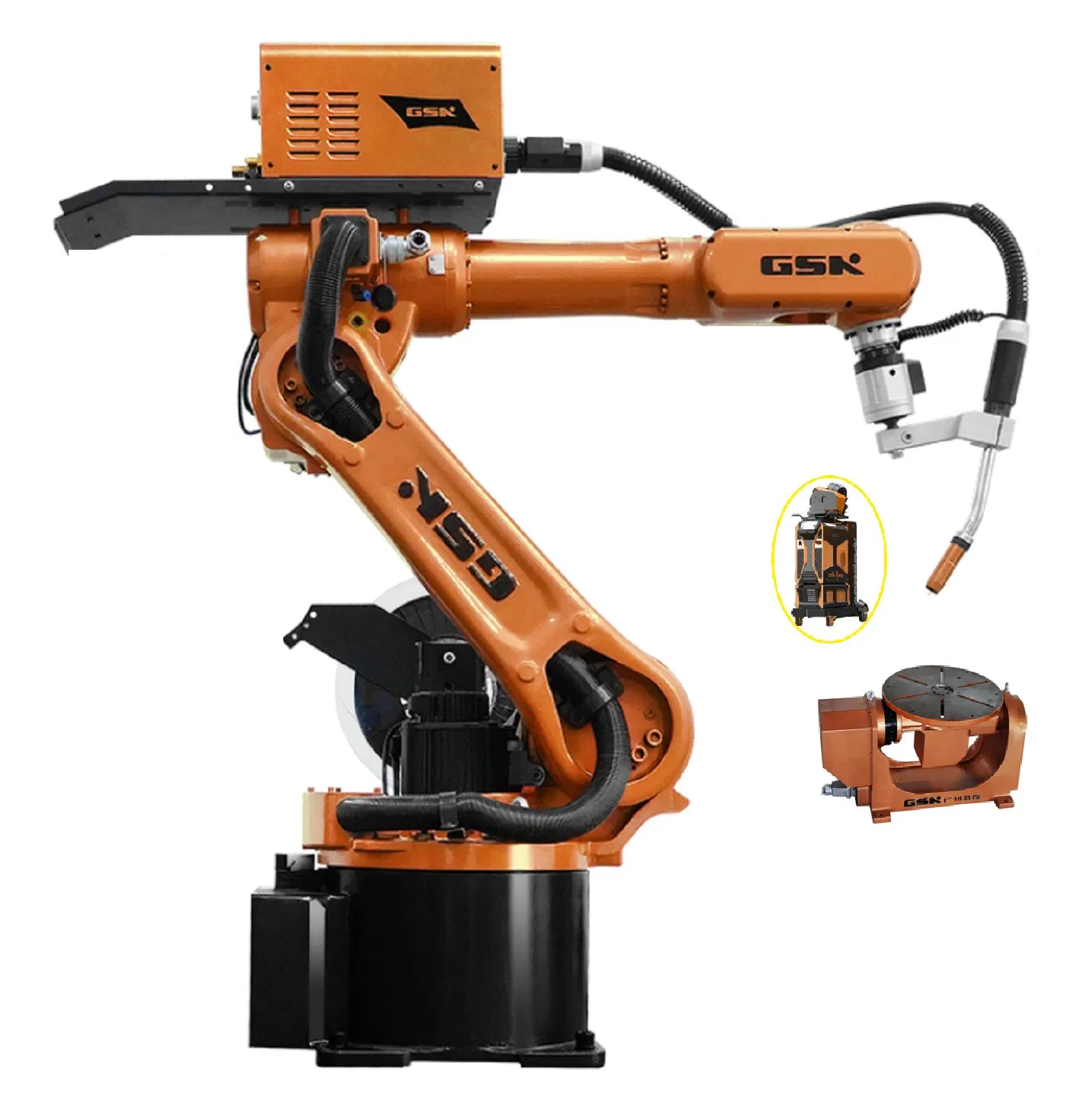

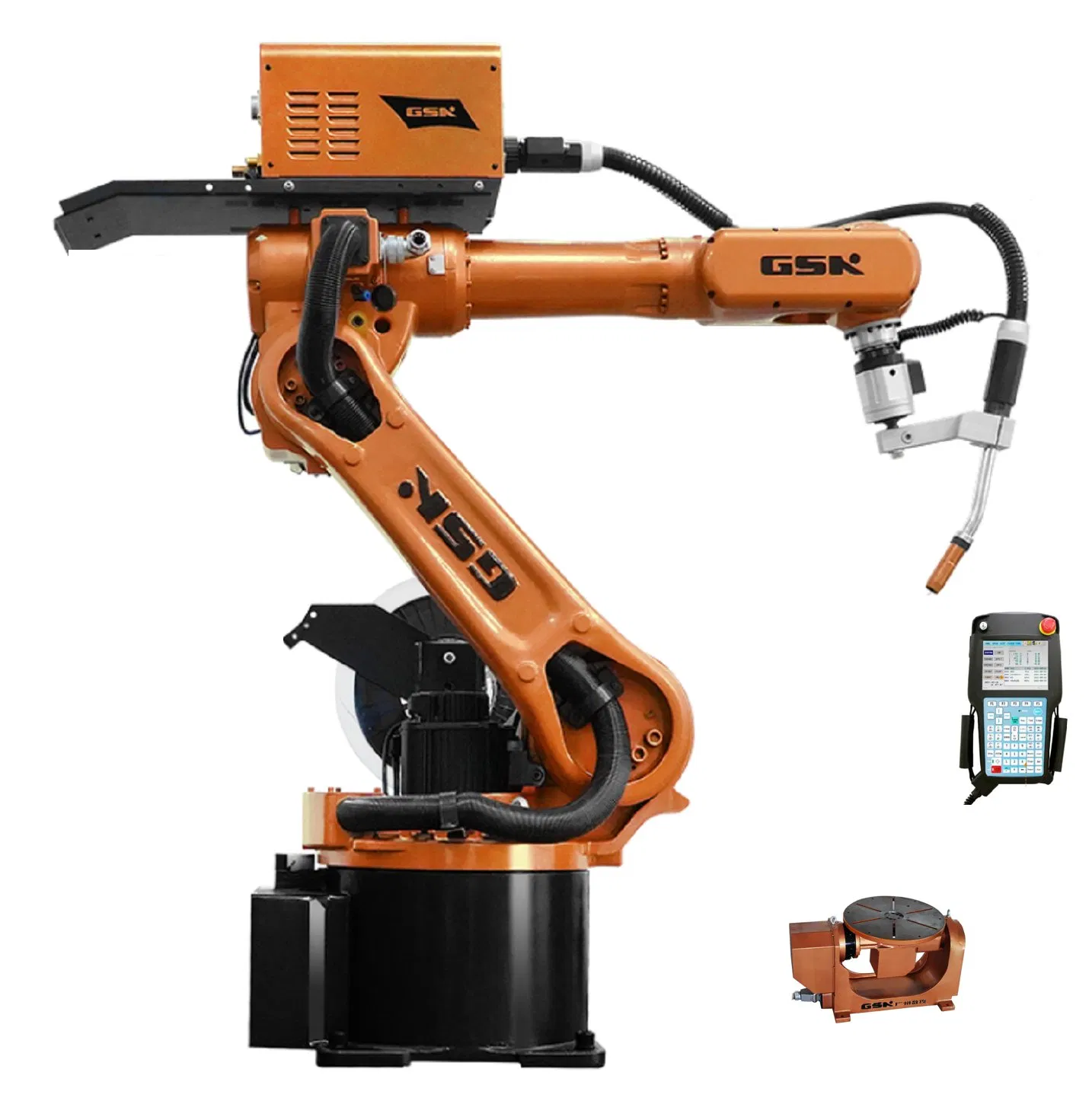

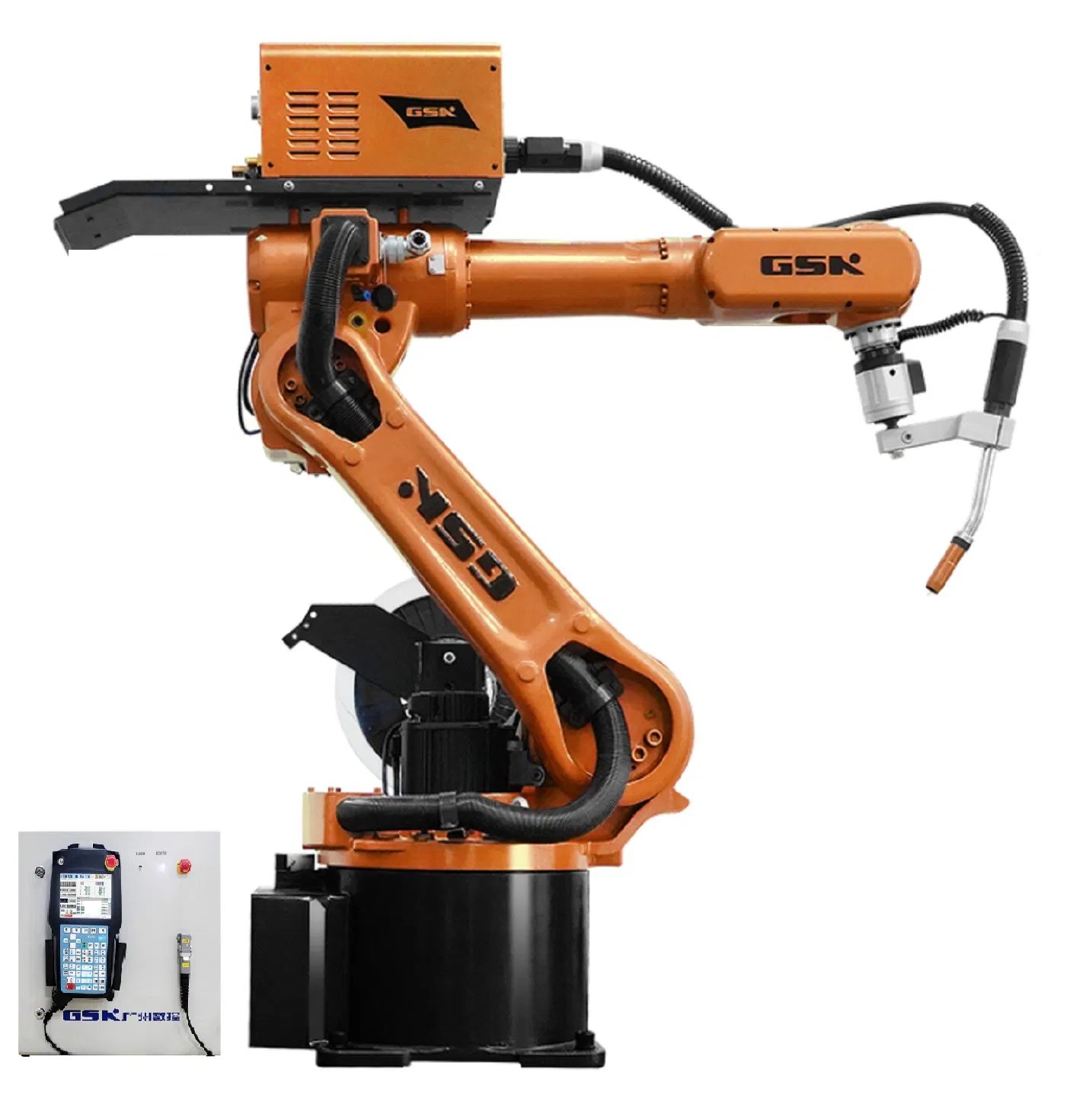

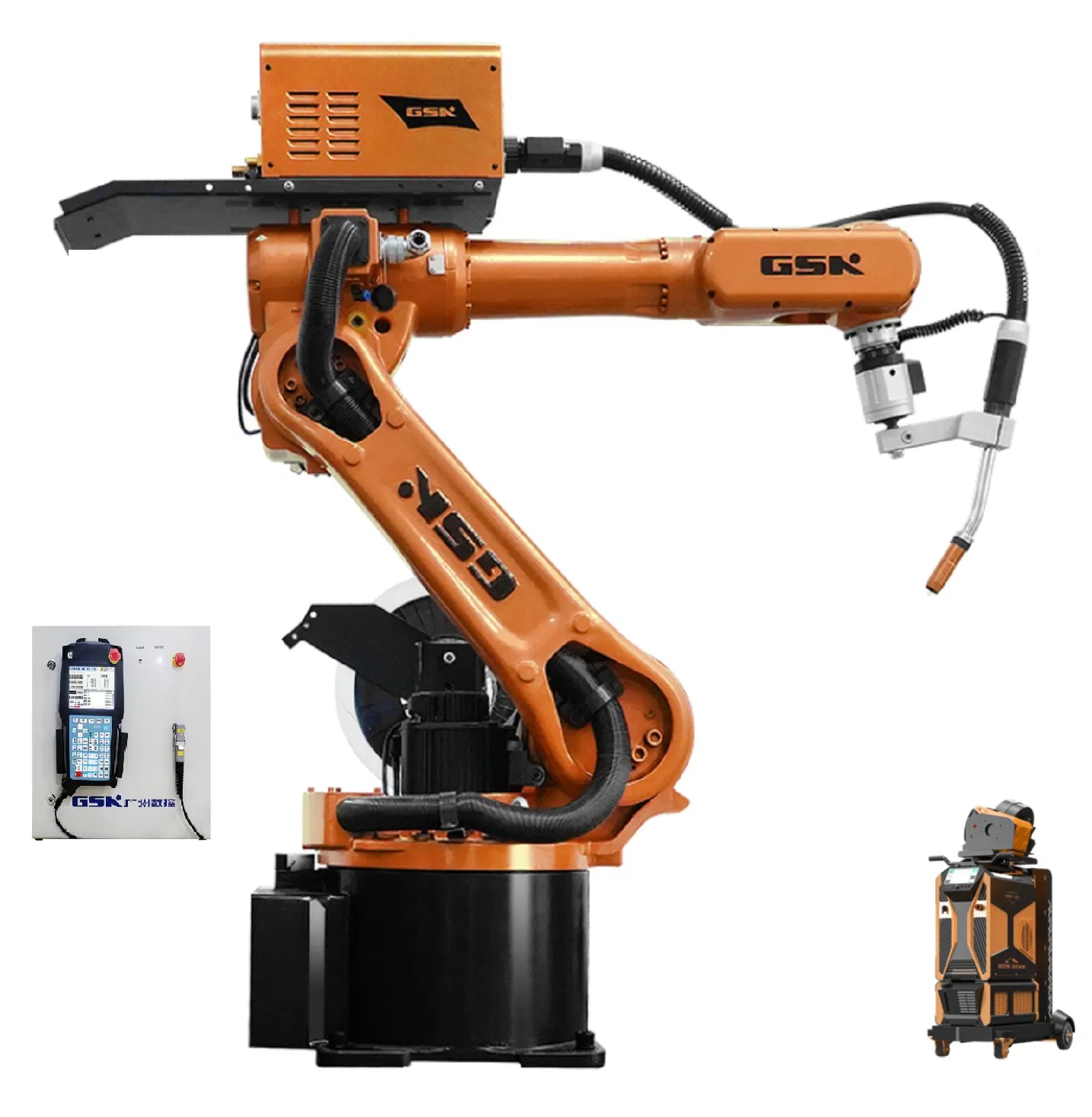

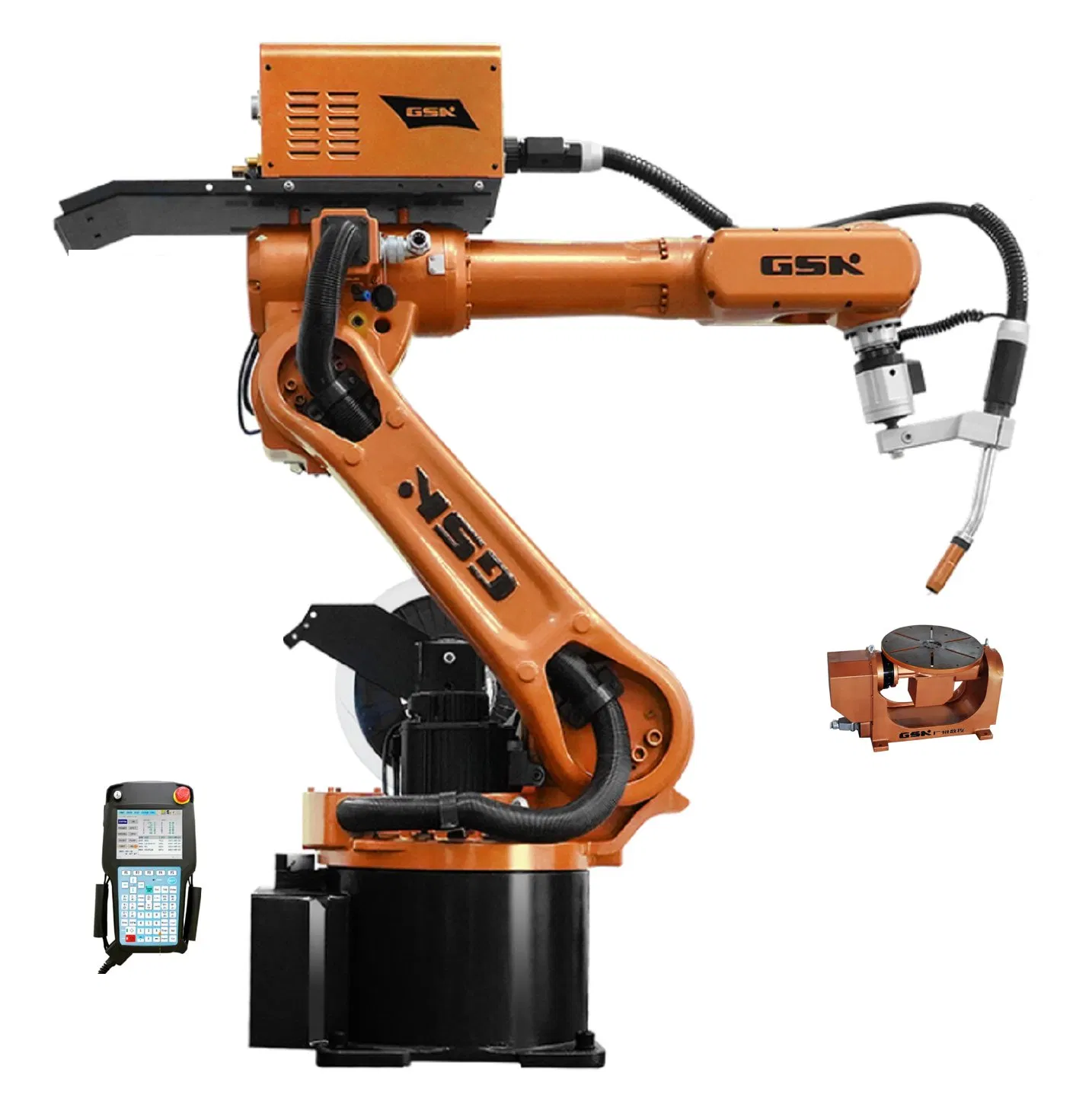

RH06A3-1490 6 Axis Cnc Industrial Automatic Welding Robot
Application field: It is widely used in automobiles and their accessories, motorcycles and their accessories, and agricultural machines, engineering machines and other hardware welding fields.

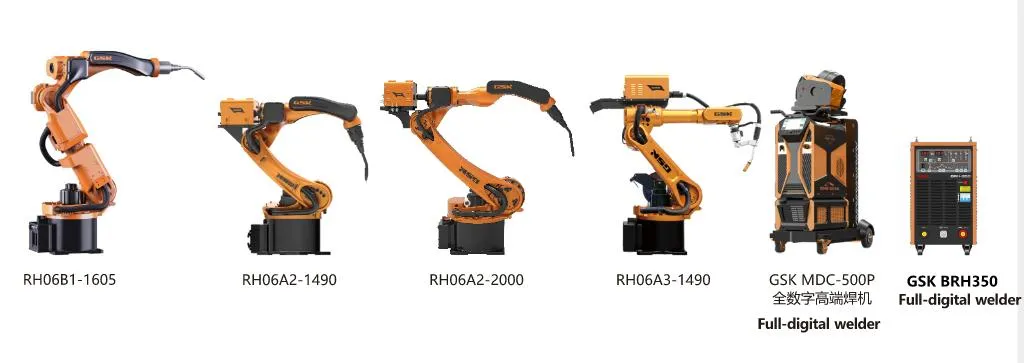

| Type |
DOF |
Drive Method |
Payload(kg) |
Repeatability(mm) |

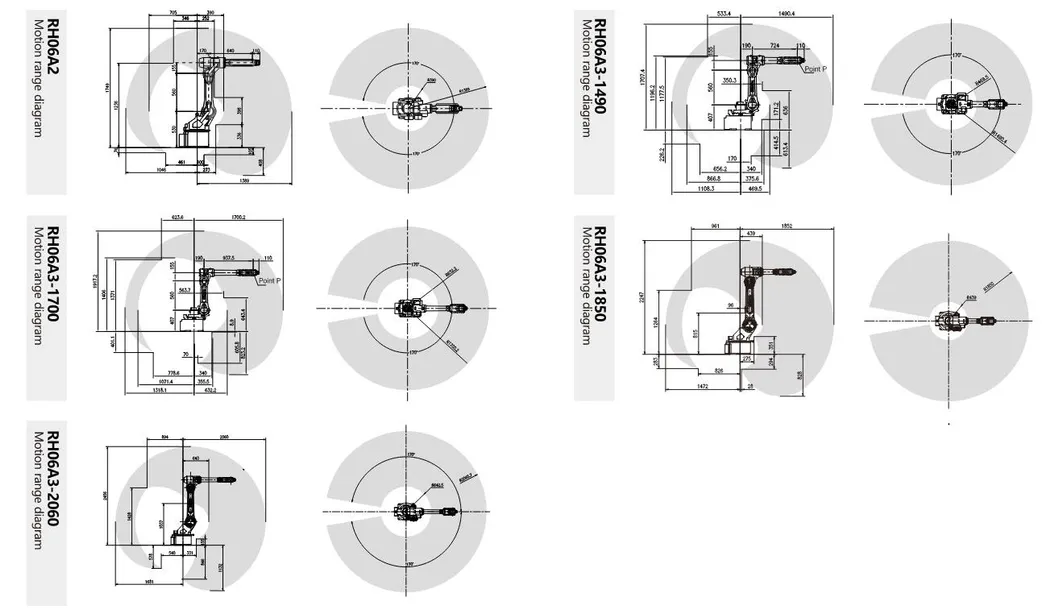

Motion Radius(mm) |
Weight(kg) |
| RH06A2-1490 |
6 |
AC Servo Drive |
6 |
±0.05 |
1490 |
190 |
| RH06A2-2000 |
6 |
AC Servo Drive |
6 |
±0.05 |
2000 |
265 |
| RH06A3-1490 |
6 |
AC Servo Drive |
6 |
±0.05 |
1490 |
185 |
| RH06B1-1605 |
7 |
AC Servo Drive |
6 |
±0.05 |
1605 |
215 |
Note: Avoid to contact with the inammable and explosive and corosive gas and licuid, do not splash the wate, oil and dust kep away from the electric applances noisy resource (plasma)
🚀Applications
1. Aluminum template industry welding application
Robot replaces manual work, and alternative welding with double-position. The robot completes welding according to a preset program, and the double-position man-machine alternating operation is performed. Equipped with automatic torch cutting mechanism to effectively guarantee the continuity of production.

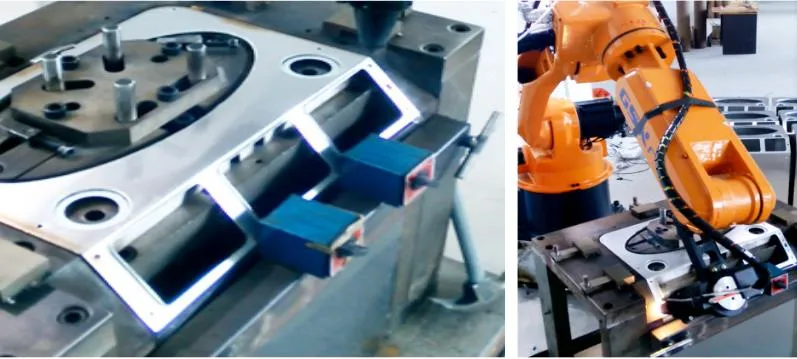

2. Laser Welding in small appliance industry
Robot replaces manual welding, stainless steel sheet (0.6mm) is welded, and there is no obvious deformation. The robot equipped with optical fiber transmission laser welding machine is capable of high-speed continuous welding.

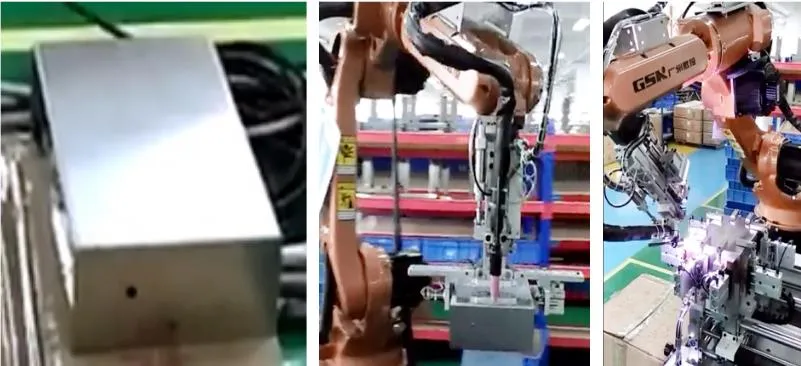

3. Stainless steel products TIG welding
Robot grips the workpiece to rotate to the orientation tool, automatically clamping and orientation workpiece. Achieves full-automatic welding and no need labor any more.

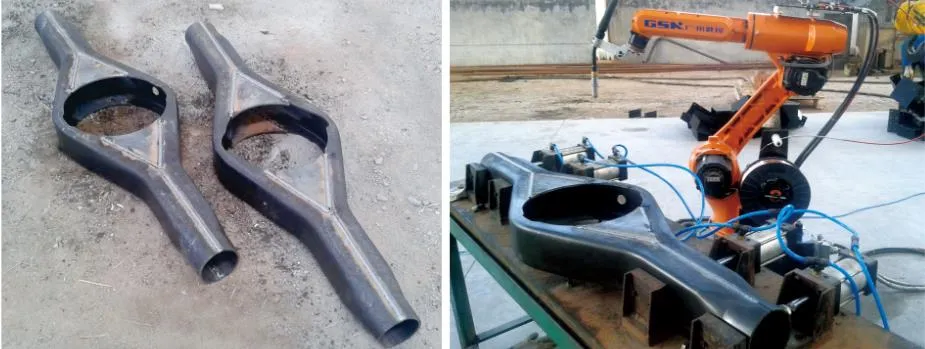

4. Axle Full-length Welding
The spot welded semi-product completes full-length welding, and the welding must not be distorted, without insufficient welding, undercut, or air vent faults.

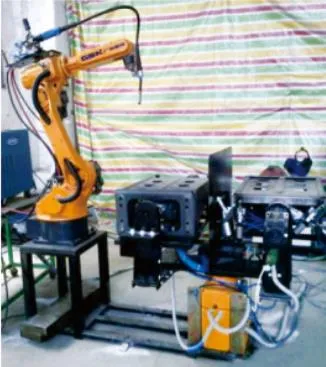

5. Multi-specification Welding Fixture
The workstation can apply products with different specifications. The workstation with compact structure has arc light guard.

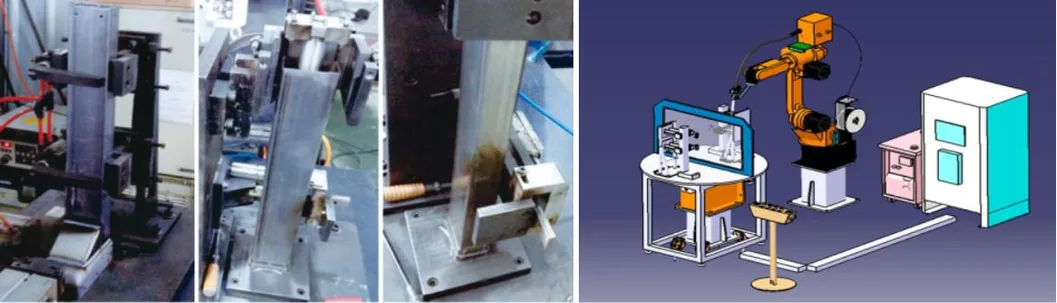

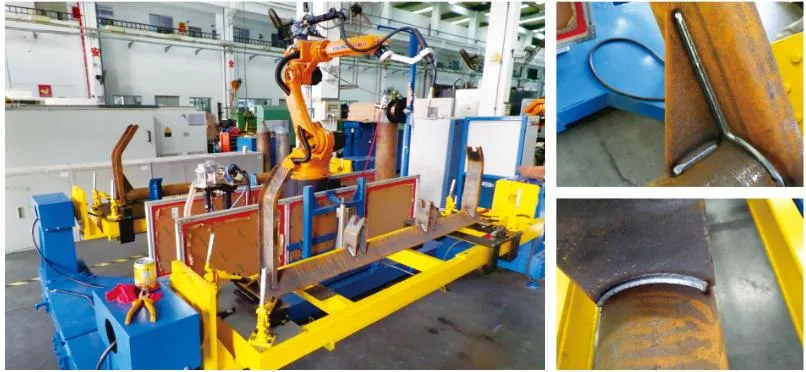

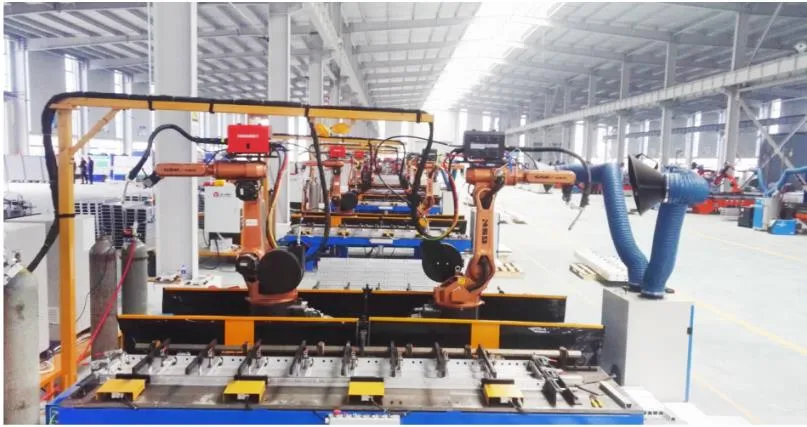

6. Linear Transmission Welding Application
Parts and components are clipped by customized fixture to perform full-length welding. Two stations independently work, without interference each other to further improve device utilization.

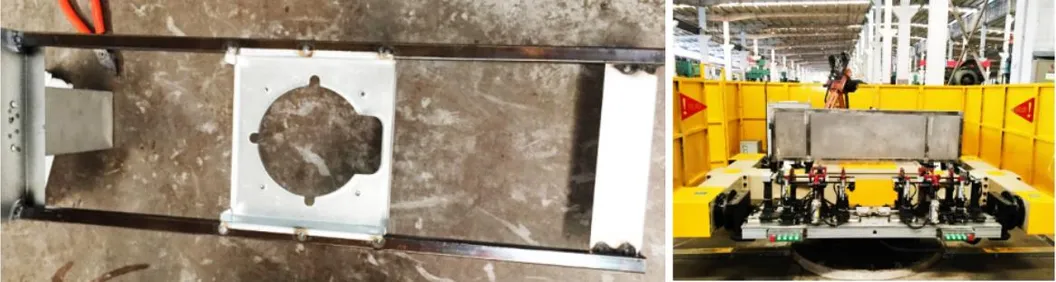

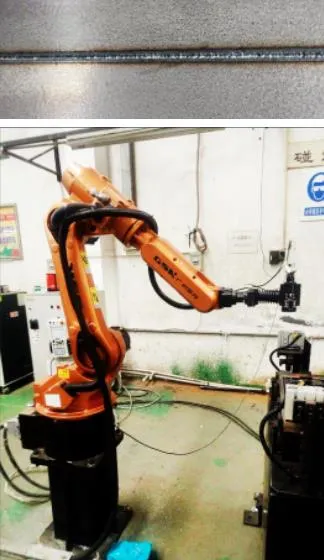

7. MAG/ CO2 Welding Efficiency
Butt welding interval < 0.5mm; Corner joint welding interval < 1mm. Welding efficiency: time < 30S/PC.
🏭Industrial Expertise

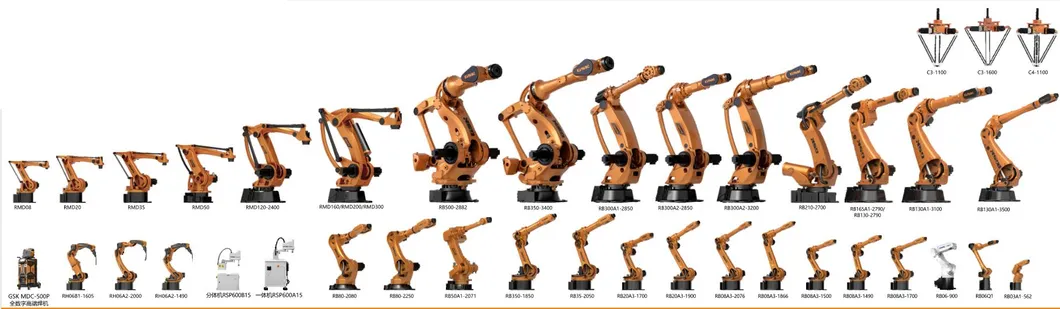

Industrial robots with independent intellectual property rights, including robot controllers, servo motors and servo drivers and other key functional components. 6 series covering transportation, welding, polishing, painting, stacking and paralleling, up to 30 kinds of product.
❓Frequently Asked Questions
What is the payload and motion radius of the RH06A3-1490 robot?
The RH06A3-1490 model features a 6kg payload capacity and a motion radius of 1490mm, making it ideal for precision industrial tasks.
How accurate is the repeatability of this welding robot?
The robot offers a high repeatability accuracy of ±0.05mm, ensuring consistent quality in repetitive welding and handling operations.
Can this robot be used for laser welding?
Yes, it is highly effective for laser welding applications, particularly in the small appliance industry for stainless steel sheets as thin as 0.6mm.
What kind of drive system does the robot use?
The robot utilizes an advanced AC Servo Drive system for all 6 axes to provide smooth and high-speed motion control.
Is the robot compatible with different mounting positions?
Yes, the structure supports multiple mounting types including ground, bracket, and ceiling installations to fit various workshop layouts.
What welding processes are supported by this robotic system?
The system is versatile and supports several welding processes, including TIG, MAG, CO2, and Laser welding.
