Advanced 6 Axis Aluminum Welding Robot Arm for Industrial Use

1 / 5

Advanced 6 Axis Aluminum Welding Robot Arm for Industrial Use

Customization:	Available
Application:	Welding, Loading, Forging, Materials Handling, Parts Transfer, Palletizing, D
Control Mode:	Point to Point Control

Send Inquiry

Product Description

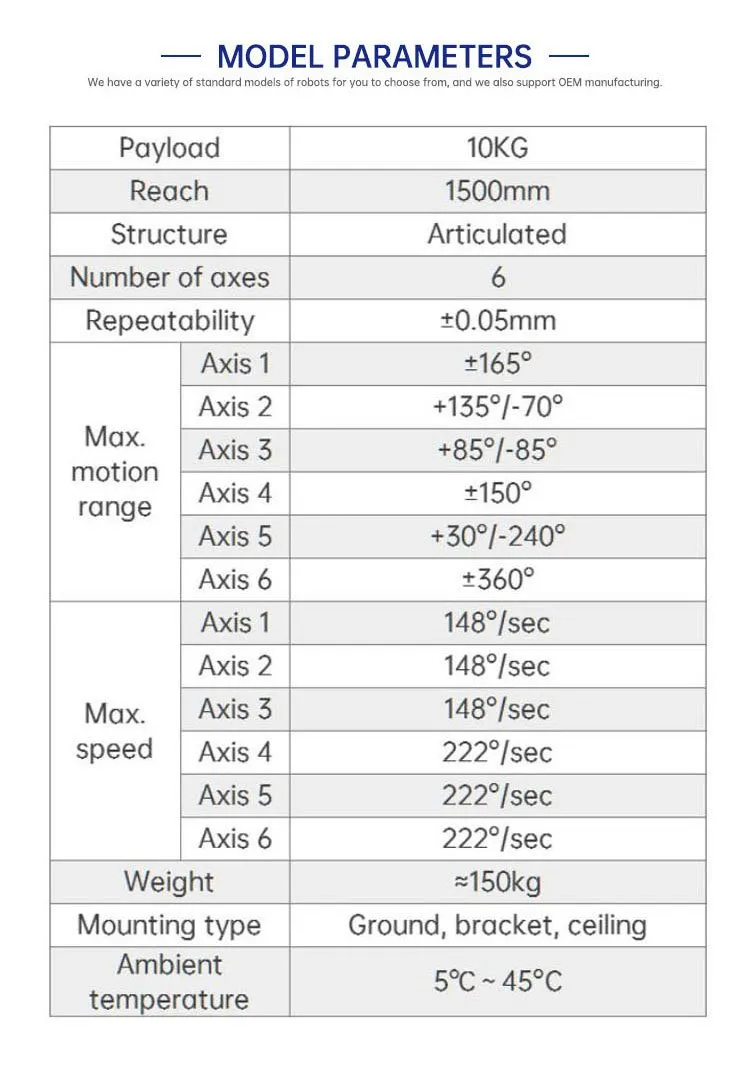

Basic Specifications

Model:SZGH-T1500-C-6

Type:6-Axis Robot Arm

Drive Mode:Electric

Reach:1500mm

Payload:10kg

Repeatability:0.05mm

Structure:Articulated

Weight:150kg

Mounting:Ground, Bracket, Ceiling

Certification:ISO, CE, RoHS

Capacity:1000 Sets /Month

Warranty:12 Months

Key Features

★

Support up to 12 axis control, realizes the control of external axes (traveling axes and positioner).

★

Structural optimization algorithm suitable for the body control of various types of structure.

★

Open structure for synchronization of international technology and extension of functions.

★

Software PLC functions facilitate logic control and easy programming.

★

Modular setting suitable for diverse applications with integrated safety modules.

★

Improved computer bus connection ensures reliability and practical absolute servo control.

Technical Parameters

Storage	2 GB

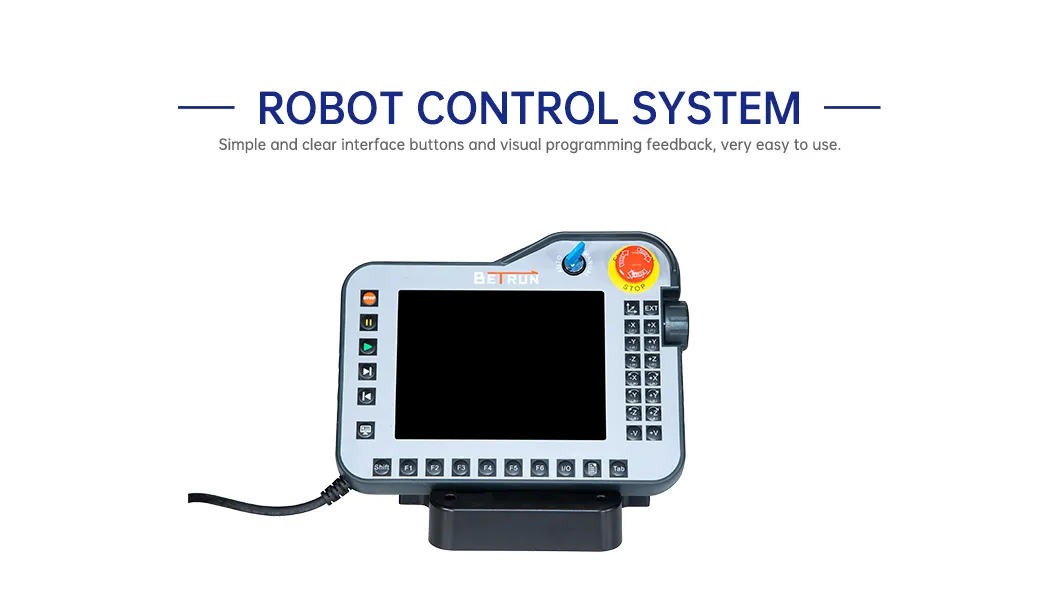

Teaching Box	Full keyboard + touch screen, mode select switch, safety switch, emergency switch
Controlled Axes	6 basic axes + 6 external axes (Total 12)
Interface	Multiple encoder interfaces, dedicated terminal, Ethernet, serial communication
Safety Module	Emergency and anomaly signal linkage for rapid stop
Operation Mode	Teaching, representation, remote control
Programming	Online teaching, process programming, teaching by dragging
Motion Function	Point-to-point, linear, circular
Command System	Motion, logic, process, computation
Anomaly Detection	Anti-collision, arcing anomaly, servo anomaly, emergency stop

Frequently Asked Questions

What types of industrial applications is this robot arm suitable for?

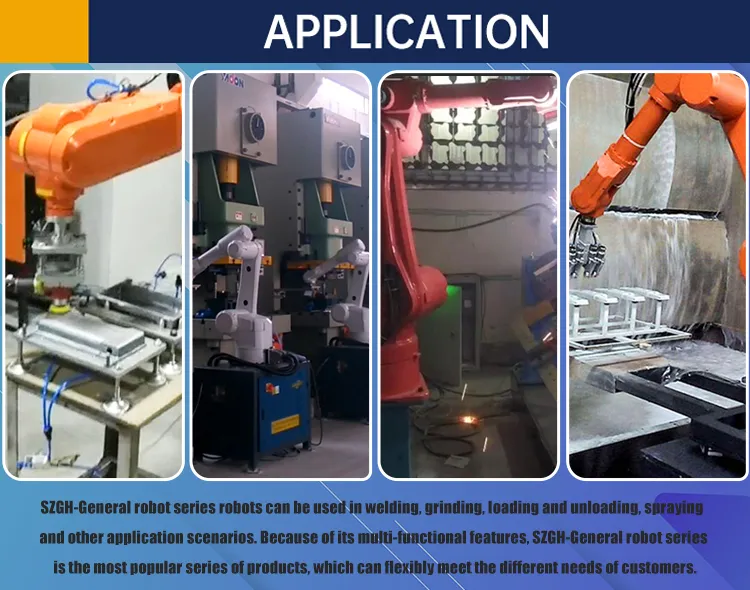

This industrial robot arm is designed for a wide range of applications including welding, painting, spraying, material handling, pick and place operations, grinding, and other customized industrial solutions.

How is the quality of the robot arm guaranteed?

Quality is ensured through a rigorous process: a full pre-testing phase conducted by professional engineers is always completed, followed by a final 100% inspection before shipment.

Can the robot control more than just its 6 basic axes?

Yes, the system supports up to 12-axis control, which allows for the simultaneous management of the 6 basic robot axes plus additional external axes such as traveling axes and positioners.

What programming methods are available for this system?

The system supports multiple programming modes including online teaching, process programming, and intuitive teaching by dragging, making it accessible for various technical skill levels.

What payment and delivery terms are accepted?

Accepted delivery terms include FOB, CFR, CIF, EXW, DDP, and more. Payments can be made in USD, EUR, or CNY via T/T, L/C, Credit Card, PayPal, or Western Union.

What safety features are integrated into the robot?

The robot features a dedicated safety module where emergency and anomaly signals (such as anti-collision or servo issues) are linked to ensure a rapid stop of the machine for safe production.
