Industrial Robot Arm for Welding Carbon Steel, Stainless Steel, Aluminum

1 / 5

Industrial Robot Arm for Welding Carbon Steel, Stainless Steel, Aluminum

Send Inquiry

Product Description

Cnc Industrial Automatic Arm Robot Welding Equipment With Robotic Arm Welding Robot

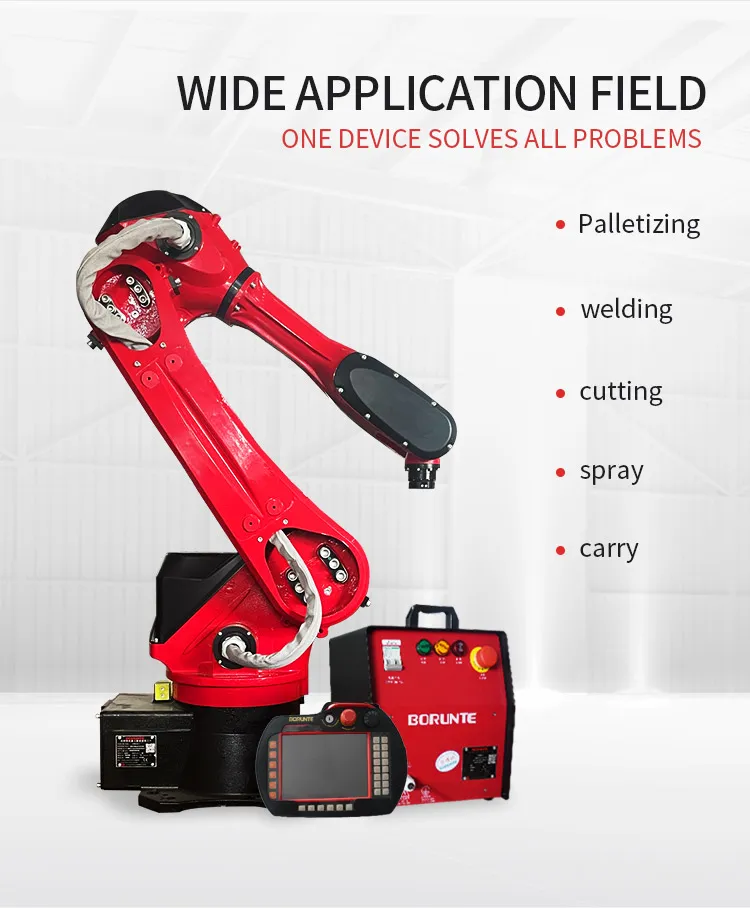

Industrial robots are multi-joint manipulators or multi-degree-of-freedom robots oriented to the industrial field. An industrial robot is a machine device that automatically performs work. It is a machine that realizes various functions by its own power and control capabilities. It can be commanded by humans, or it can run in accordance with a pre-arranged program. Typical applications of industrial robots include welding, painting, assembly, collection and placement, product inspection and testing, etc.; all tasks are completed with high efficiency, durability, speed and accuracy.

Product Parameters

Model No.	JX10-1440
Controlled axis	6-DOF
Max payload	10 kg
Max stroke	1440mm
IP Level	J1, J2-IP56; J3, J4, J5, J6-- IP67
Installation mode	Floor type, ceiling type
Robot mass	172 kg
Repeatability	±0.05 mm
Welding machines	Standard: NBC-350R (MIG/MAG/CO2) Optional: NBC-350RL (low spatter)
Welding current	350A/500A
Welding torch	Standard air-cooling torch with built-in anti-collision protection

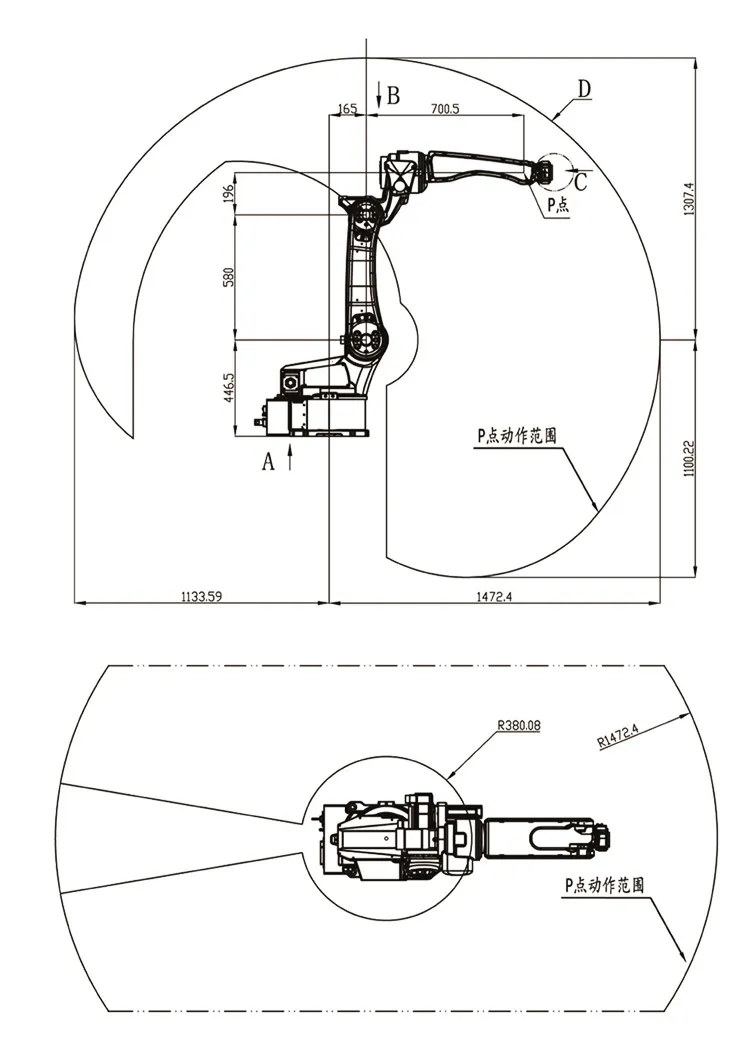

Travel range (J1-J6)	J1: ±160°, J2: +80°~-145°, J3: +145°~-75°, J4: ±190°, J5: +50°~-210°, J6: ±230°
Travel speed (J1-J6)	J1: 199.5 ˚/s, J2: 159.3 ˚/s, J3: 199.5 ˚/s, J4: 392 ˚/s, J5: 272 ˚/s, J6: 1000 ˚/s

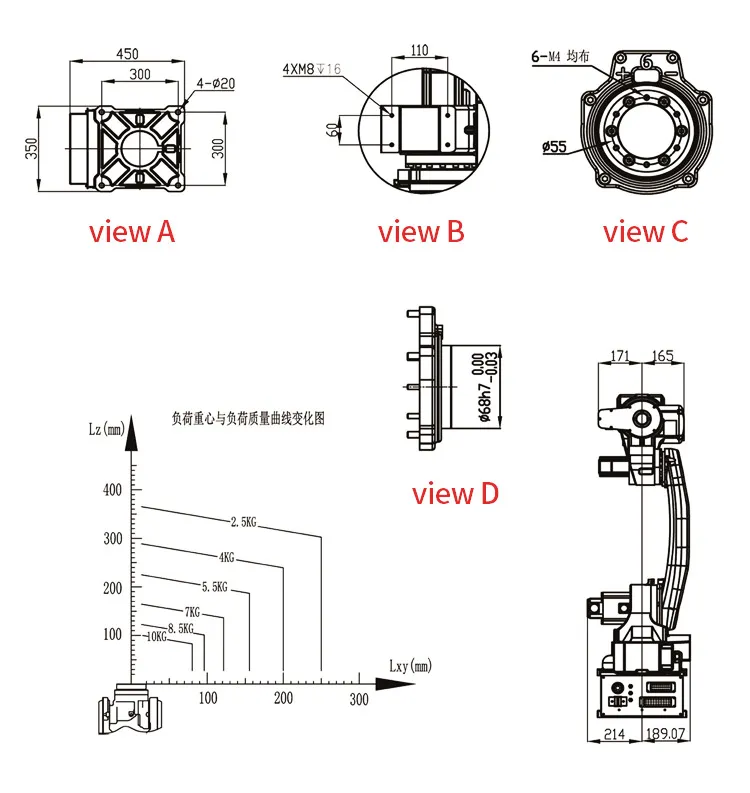

Visual Display

Frequently Asked Questions

What is the maximum payload of the JX10-1440 robot?

The JX10-1440 industrial robot arm has a maximum payload capacity of 10 kg, making it ideal for various welding and material handling tasks.

What is the precision or repeatability of this robotic arm?

This robot offers high precision with a repeatability of ±0.05 mm, ensuring consistent quality in automated industrial processes.

Which welding materials can this equipment handle?

The equipment is specifically designed for high-efficiency welding of Carbon Steel, Stainless Steel, and Aluminum.

Does it support different installation modes?

Yes, the JX10-1440 supports both floor type and ceiling type installation modes to suit different factory layouts.

What is the protection level (IP rating) of the robot?

The robot features a robust design with IP56 rating for the J1 and J2 axes, and a higher IP67 rating for the J3, J4, J5, and J6 axes, providing excellent protection against dust and liquids.

What type of welding torch is included?

The standard configuration includes an air-cooling welding torch equipped with built-in anti-collision protection for safety and durability.
