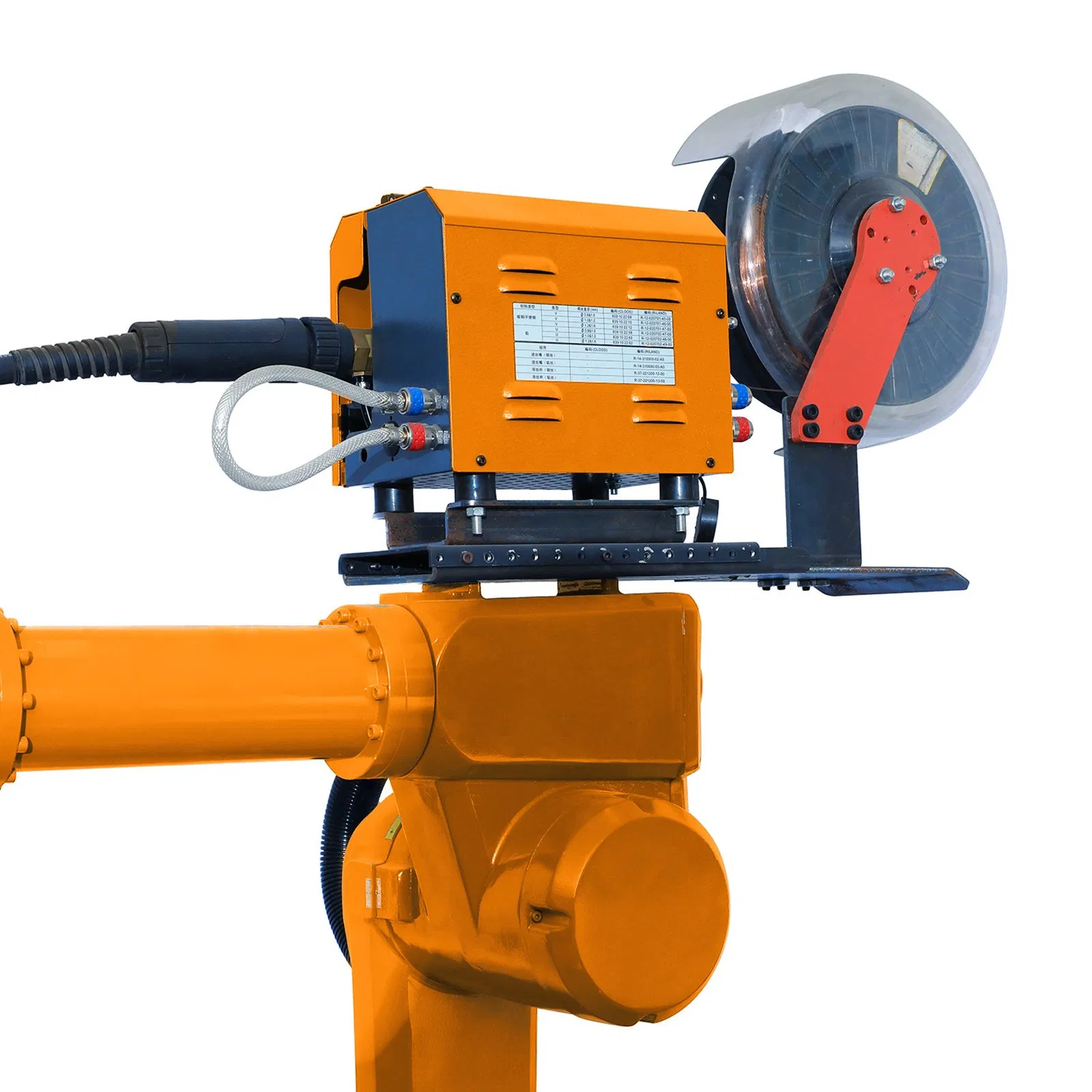

Advanced Industrial Robot Arm for TIG, MIG, MAG, and Laser Welding

1 / 5

Advanced Industrial Robot Arm for TIG, MIG, MAG, and Laser Welding

Customization:	Available
Accuracy:	0.05mm
Application:	Aerospace Industry, Automotive Industry, Construction Industry, Metal Fabrication Industry, Shipbuilding Industry, Welding

Send Inquiry

Product Description

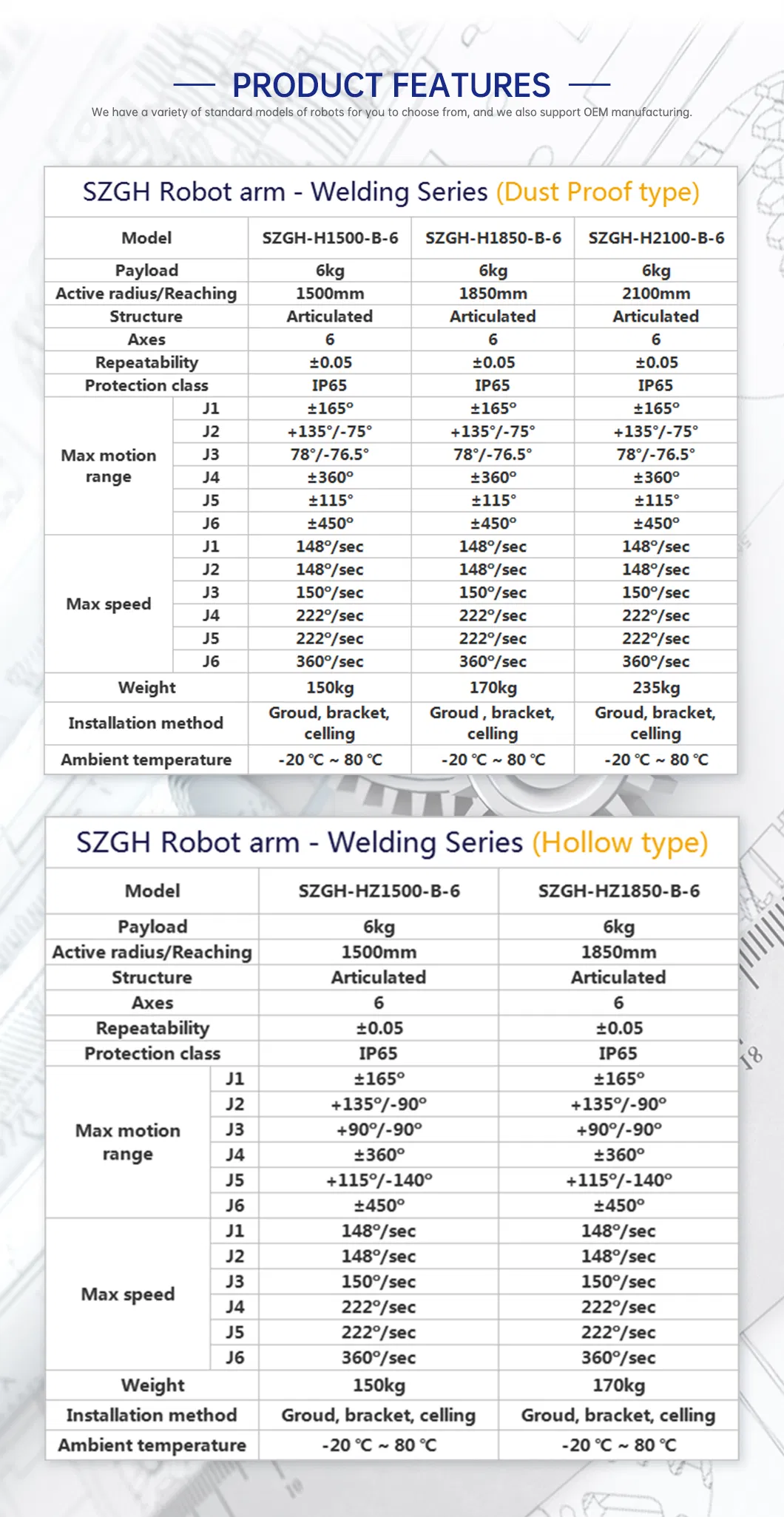

Technical Specifications Overview

Model No.H1500-B-6

TypeMIG Welding Robot

Reach1500 mm

Axes6 Axes

Payload6 kg

Repeatability0.05mm

Drive ModeServo Drive

Weight150 kg

Product Features & Capabilities

We provide a mass production line of 25 robot arm models, including general-purpose, welding, spraying, palletizing, grinding, and handling types. All models are equipped with an intelligent robot control system independently developed. The system supports 9-axis linkage robots and customized robotic solutions to meet specific industrial needs.

Model	H1850-B-6
Payload	6kg
Reach	1850mm
Axes	6-11 axes
Application	Welding
Warranty	12 Months
Support	Video/Online Technical Support

Key Highlights

★ Support up to 12 axis control, realizes the control of external axes (traveling axes and positioner).

★ Structural optimization algorithm suitable for the body control of various types of structure.

★ Open structure for synchronization of international technology and extension of functions.

★ Software PLC functions facilitate logic control and easy programming.

★ Modular setting of functions suitable for diverse applications with safety modules.

★ Improved computer bus connection ensures high reliability and practicability.

Control System Parameters

Component	Specifications
Storage	2 GB

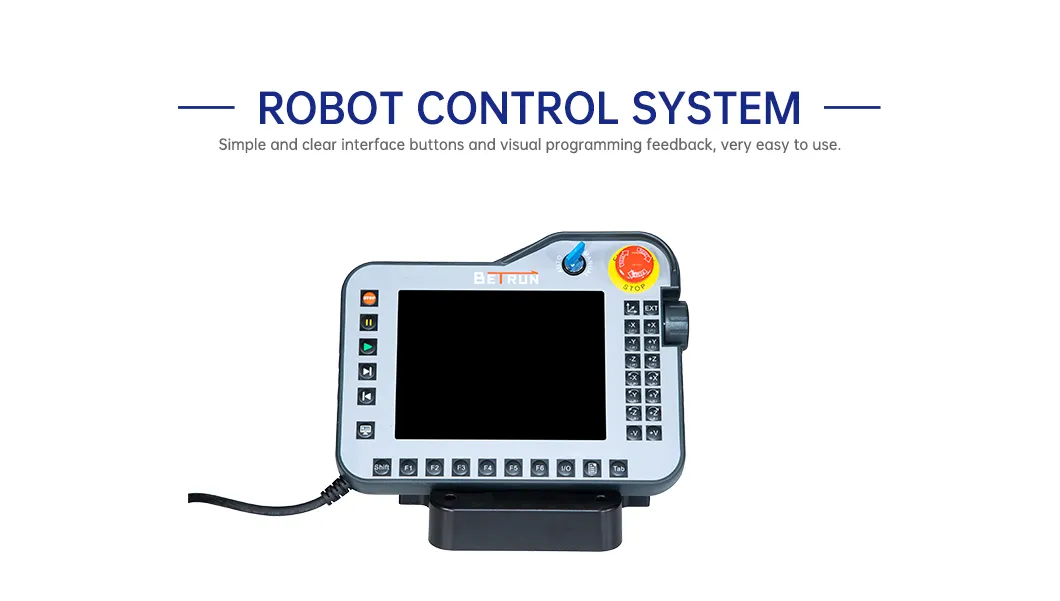

Teaching Box	Full keyboard + touch screen, mode select switch, safety switch, emergency switch
Controlled Axes	6 basic axes + 6 external axes
Interface	Multiple encoder interfaces, Ethernet, Serial communication
Safety Module	Linked emergency and anomaly signals for rapid stop
Motion Function	Point-to-point, linear, circular
Anomaly Detection	Anti-collision, arcing anomaly, tool coordinate anomaly, servo anomaly

Frequently Asked Questions

1. What are the primary applications of this robotic arm?

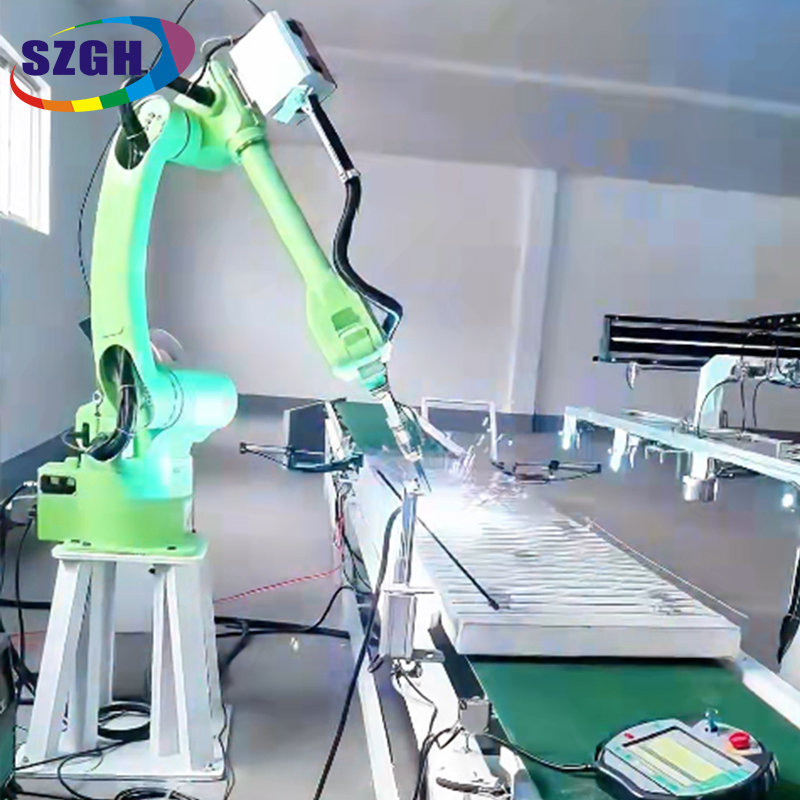

This industrial robot arm is specifically designed for high-precision metal welding (MIG, TIG, MAG, and Laser), as well as material handling, painting, spraying, and grinding tasks.

2. Can the control system handle more than 6 axes?

Yes, the intelligent control system supports up to 12 axes in total, allowing for the integration of 6 basic robot axes plus 6 external axes like traveling tracks or positioners.

3. What is the repeatability accuracy and payload capacity?

The H1500-B-6 model offers a repeatability accuracy of 0.05mm and a maximum payload capacity of 6kg, making it ideal for detailed industrial welding.

4. What kind of technical support is available after purchase?

We offer comprehensive after-sales support including 12-month warranty coverage, online video meetings for technical troubleshooting, and door-to-door service options.

5. Does the robot support international industrial standards?

Yes, our systems are manufactured following strict industrial standards and have obtained ISO, CE, and RoHS certifications to ensure global compliance and safety.

6. How is the robot programmed and operated?

The robot supports multiple programming methods: online teaching via a touch-screen teaching box, process programming for specific tasks, and intuitive teaching-by-dragging modes.
