Sandai Robot
1 / 5

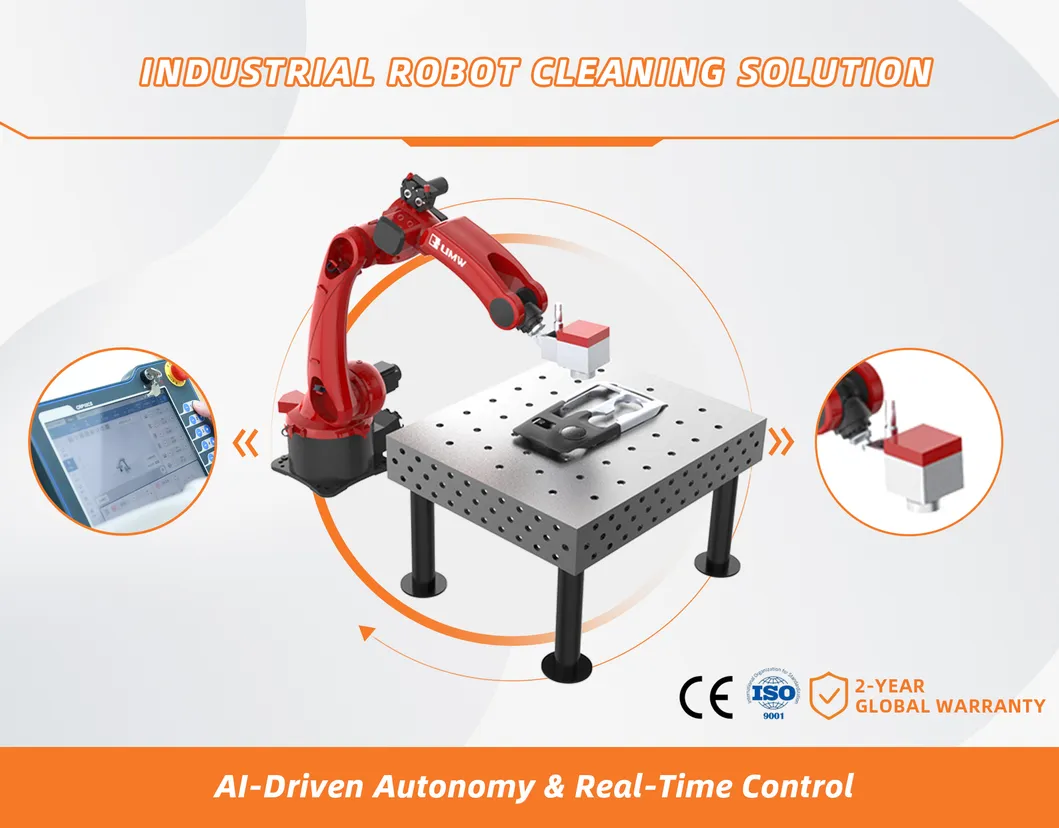

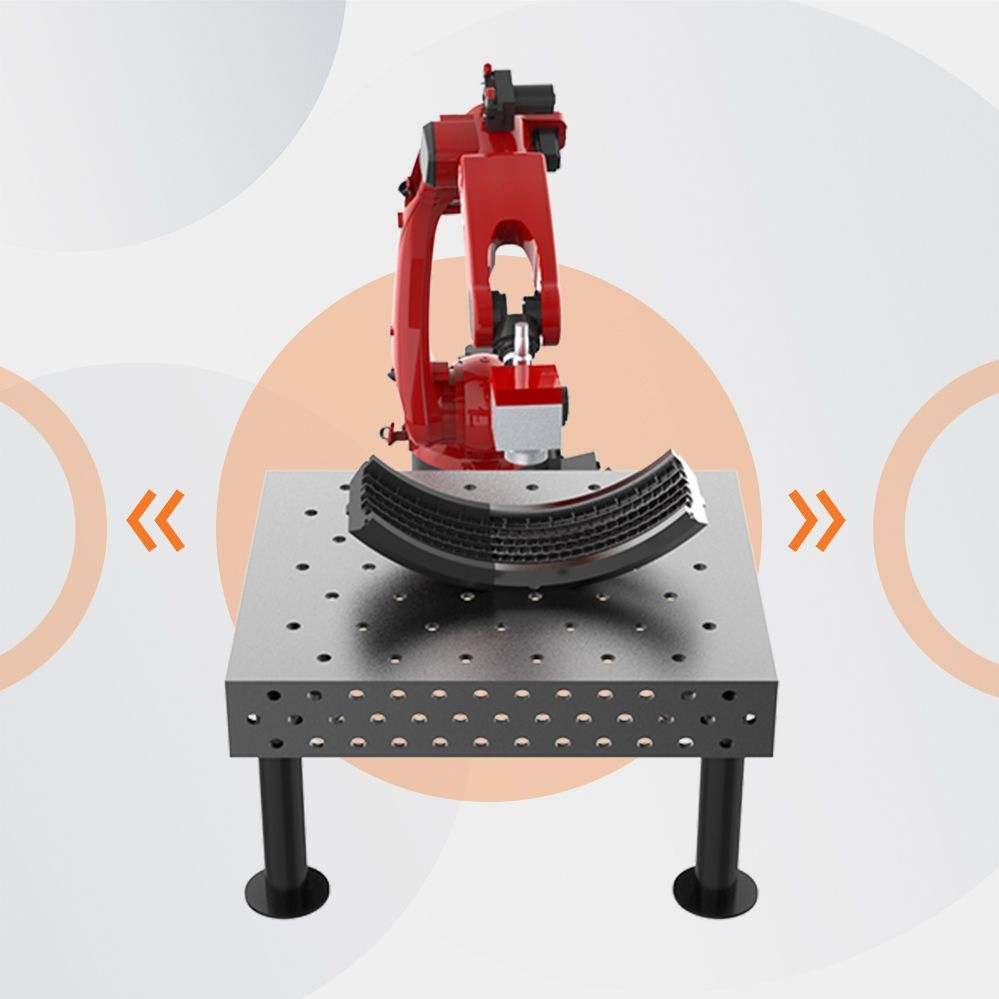

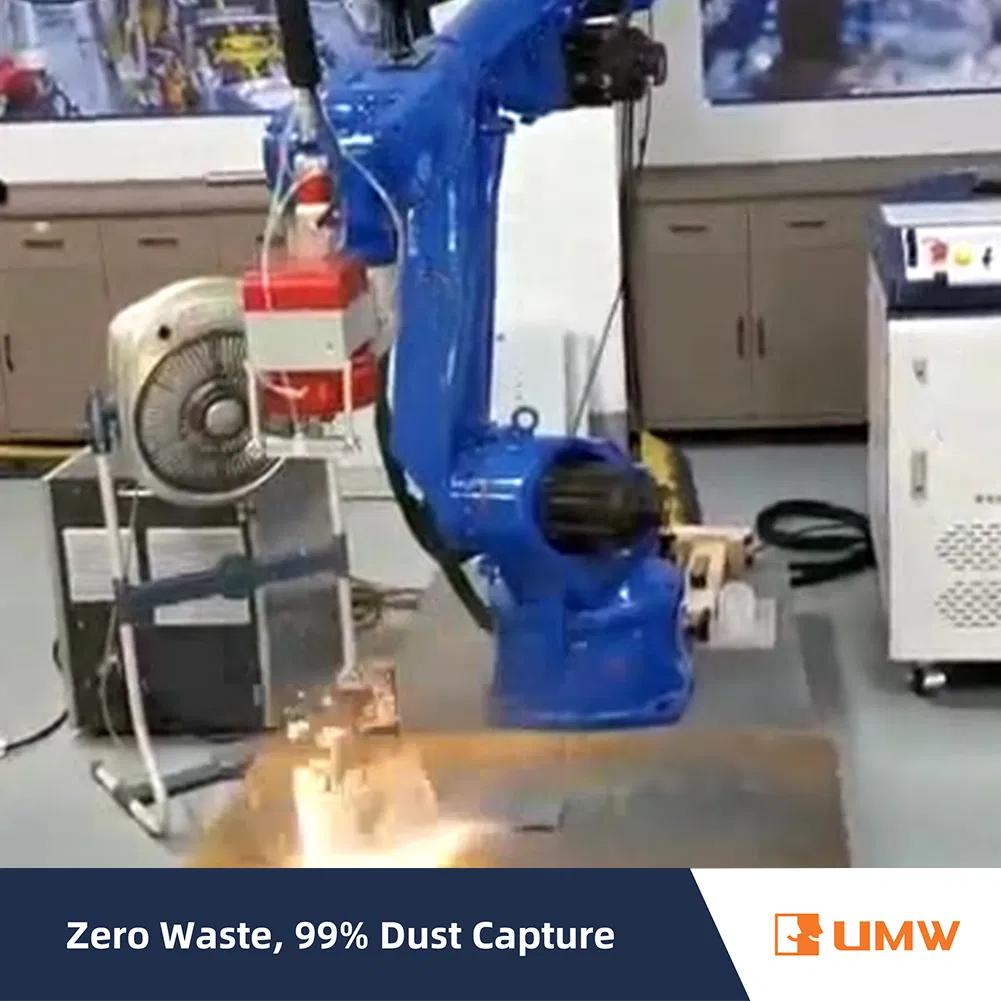

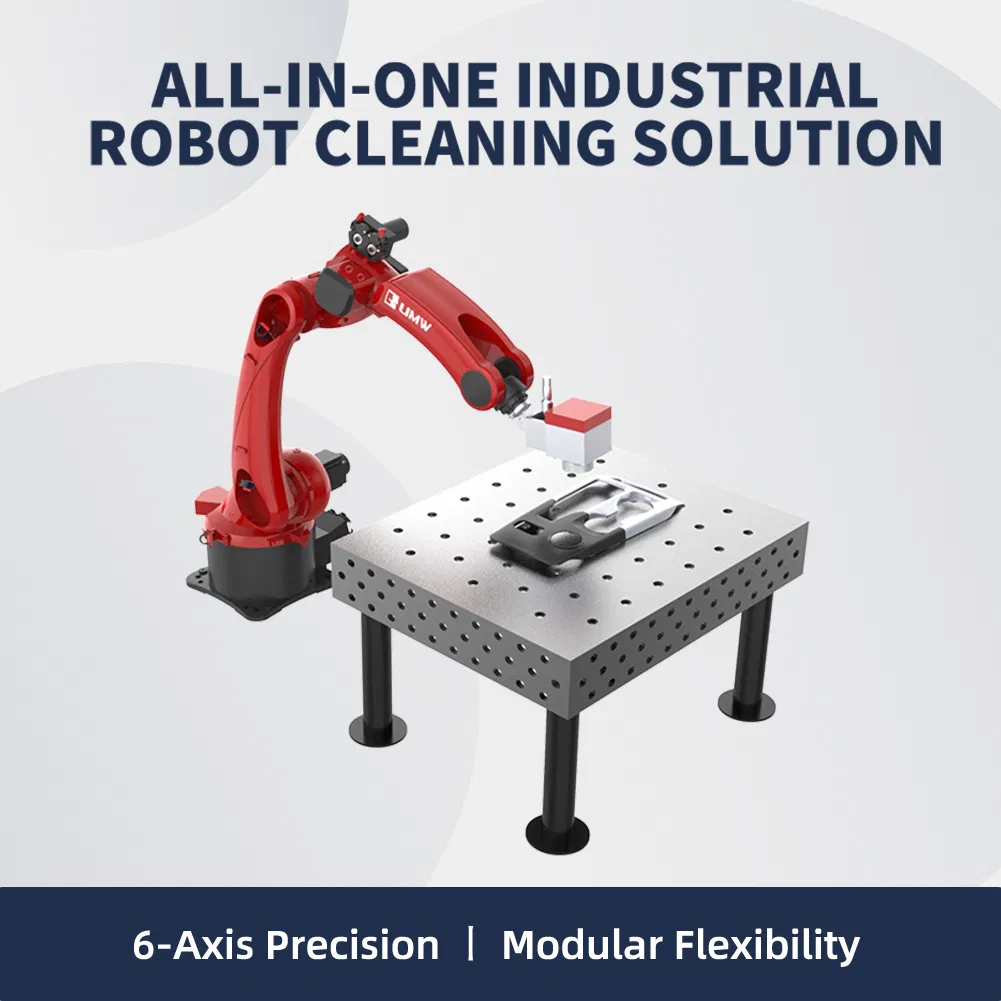

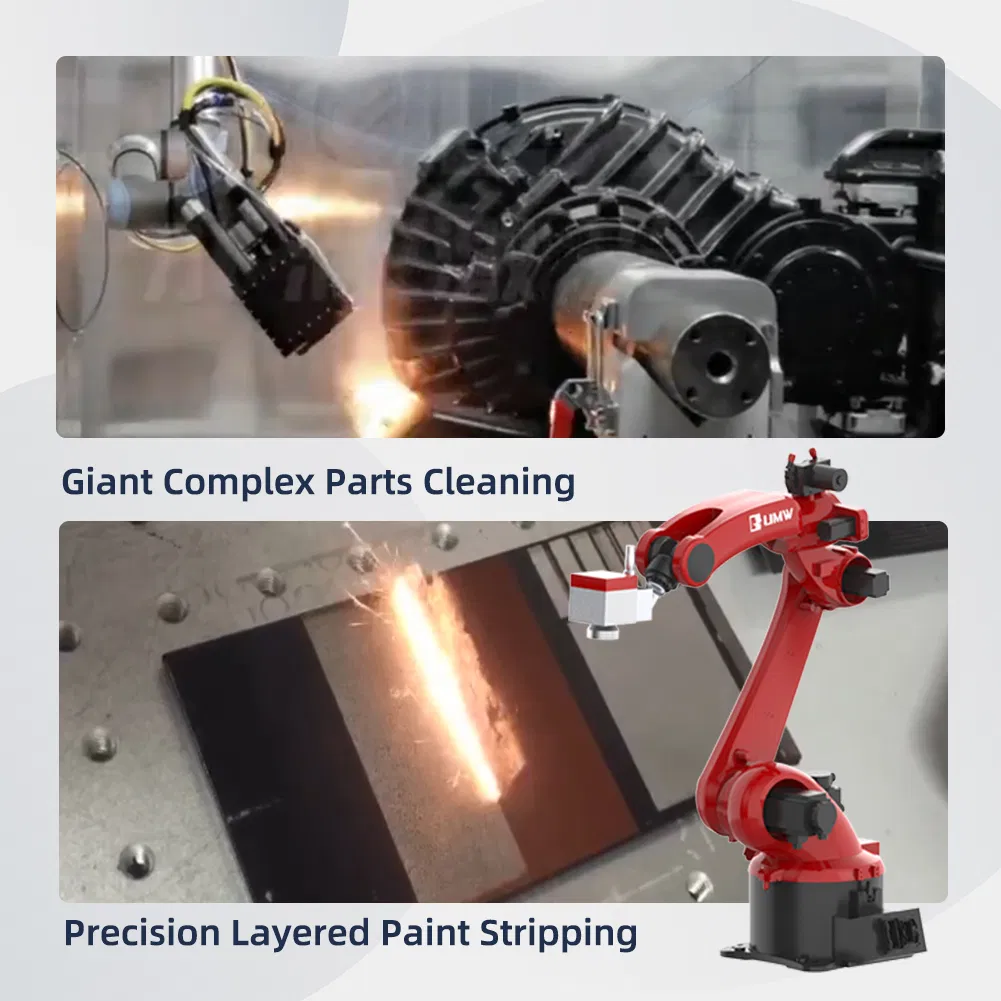

Break through traditional limitations with the Robot Laser Cleaning Workstation, a 100% customizable, automated solution designed for high-efficiency industrial cleaning. Featuring modular design, AI-powered precision, and industry-leading adaptability, this 6-axis robotic system integrates seamlessly into factory lines.
| Category | Handheld | Robotic |
|---|---|---|
| Power Range | 100W-500W | 300W-1000W |
| Precision | ±0.1mm (Manual) | ±0.02mm (Auto) |
| Mobility | Portable 3-axis | 6-axis + Rail system |
| Best For | Small parts / Field work | Mass production / Factory lines |
| Workpiece Size | <1m³ | >1m³ |
| Automation | Manual operation | CAD/PLC programming |
| Setup Cost | $5K-$20K | $20K-$300K |
| Energy Use | 1.5kW/h | 8kW/h |

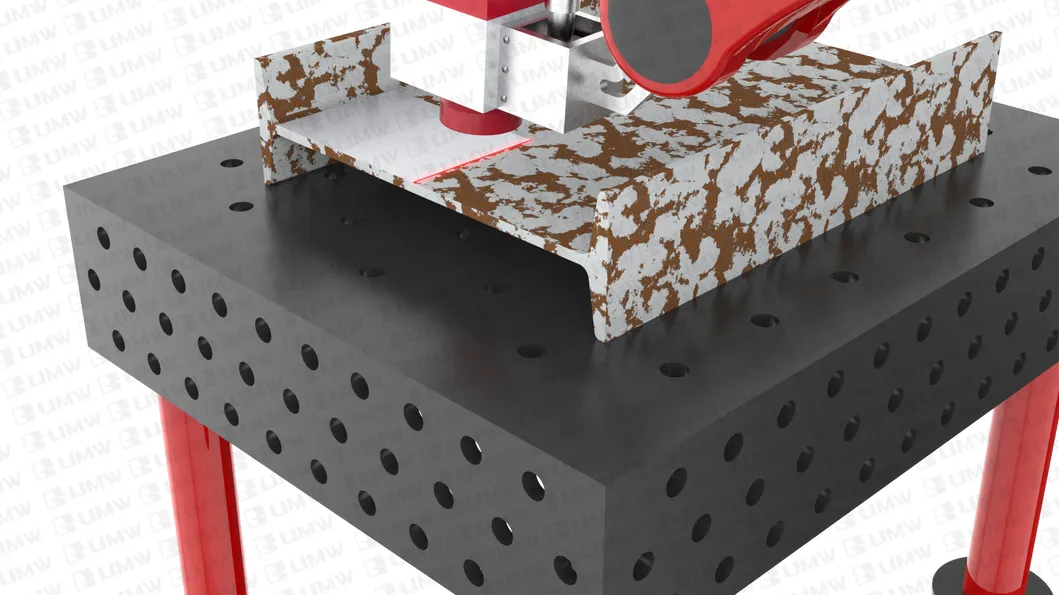

Non-Contact Cleaning: Laser energy controlled below material damage thresholds.

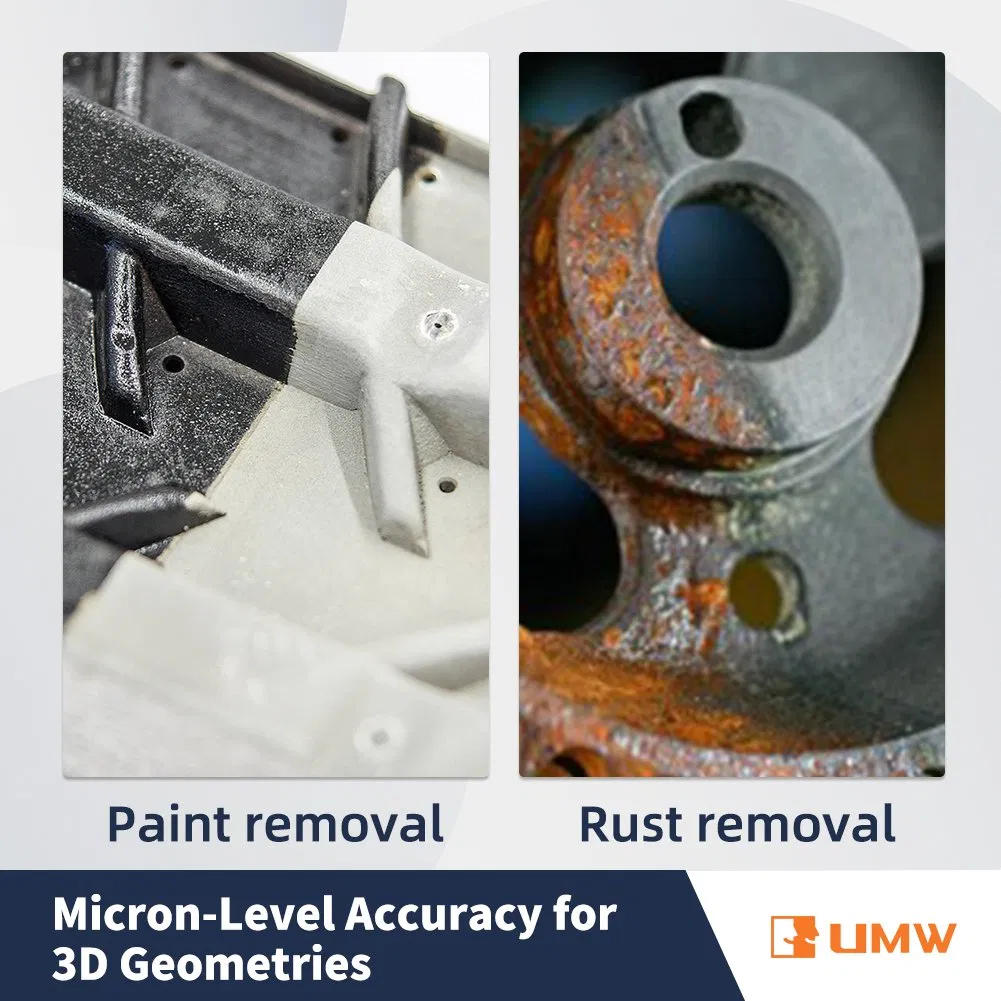

Micron-Level Accuracy: ±5μm depth control for delicate surfaces.

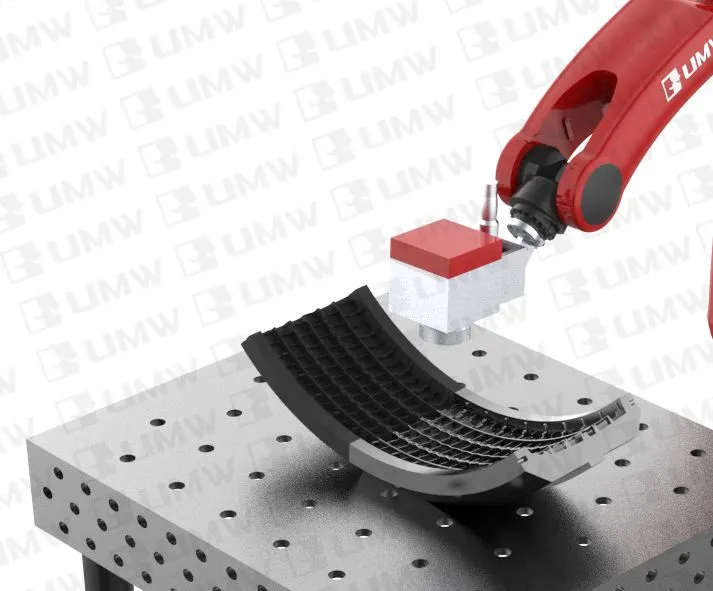

3× Faster Cleaning: Achieve 500m²/day on 2mm rust layers.
24/7 Operation: Equivalent to 20 workers' annual output.

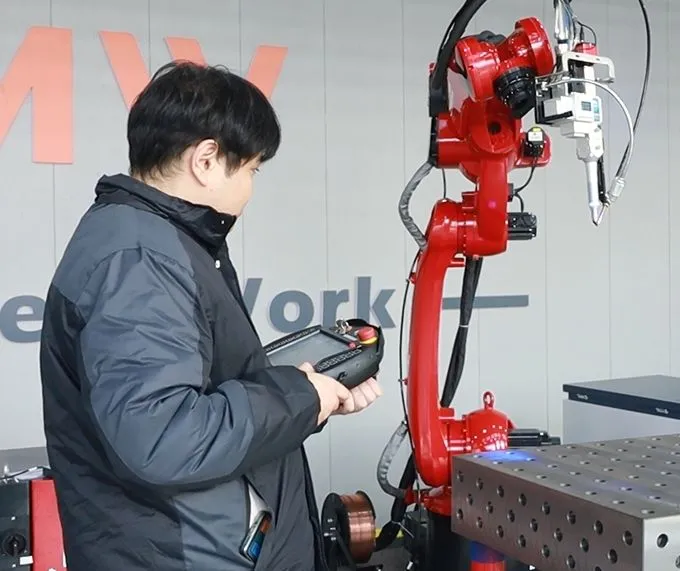

AI-Driven Optimization: Auto-detects contaminants and adjusts parameters.
Remote Monitoring: Track progress in real-time via PC/mobile devices.
| Product Name | Industrial Robotic Cleaning Automation Solution |
|---|---|
| Laser Power | 300W-1000W |
| IPS | IP65 |
| Axes | 6-axis articulated |
| Payload | 25-50kg (configurable) |
| Max Working Range | 1803-2158mm |
| Repeat Accuracy | ±0.05mm |
| Applications | Surface rust, oil, paint removal for various metals |
| Power Supply | 380V AC, 50/60Hz |
Gantry system + 6-axis robotic arm. Dual-laser tech: 2000W CW + 500W pulsed. <5mg/m³ residue.
500W pulsed + 1000W CW lasers. 0.02mm precision robotic positioning. HEPA filtration.

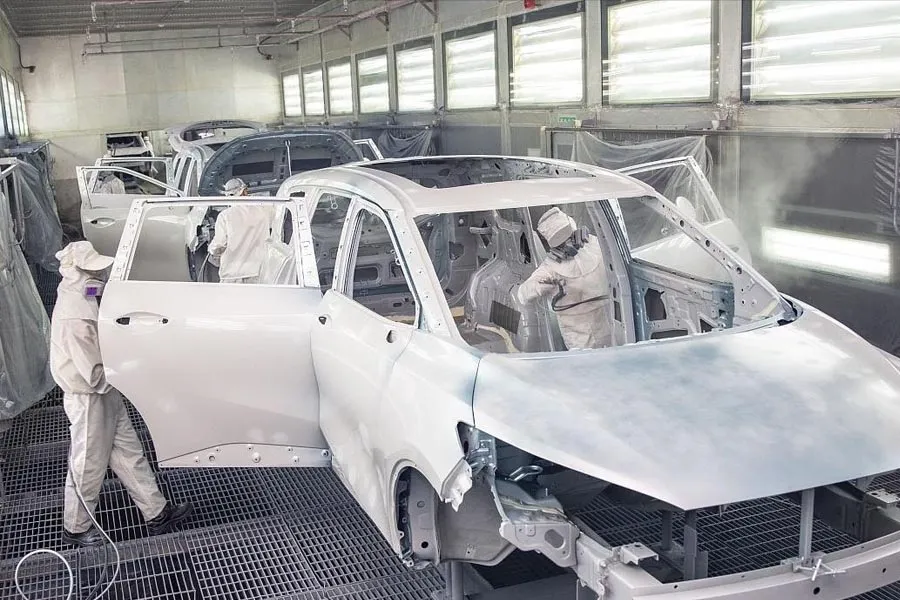

2000W fiber laser, 200mm width. AI path planning cuts process to 20mins/car. Dust control <1mg/m³.

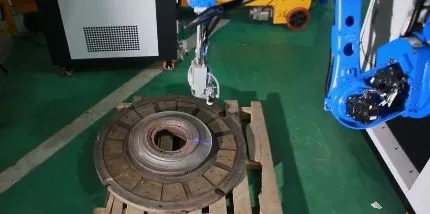

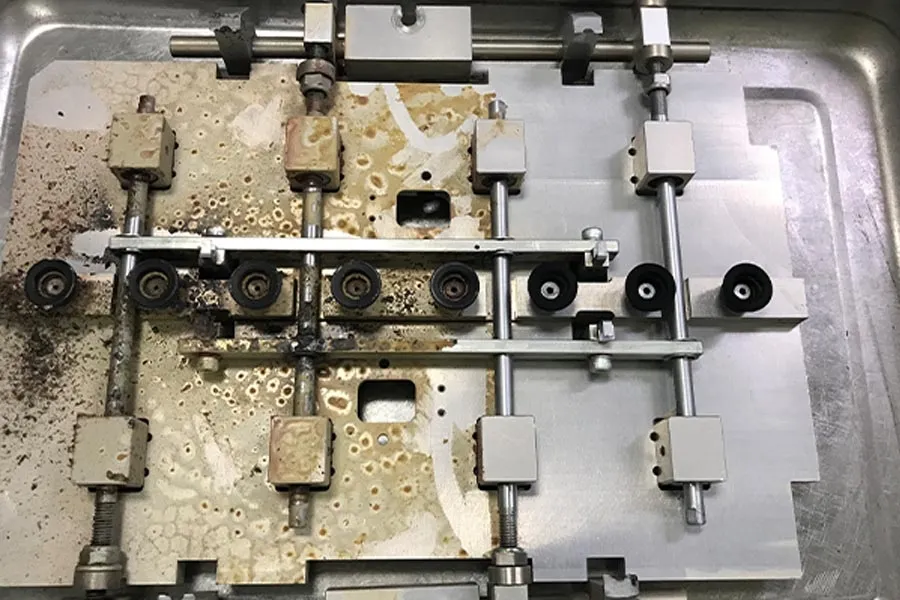

Cleans while mold is hot. AI vision system scans mold shape. Zero chemicals used.

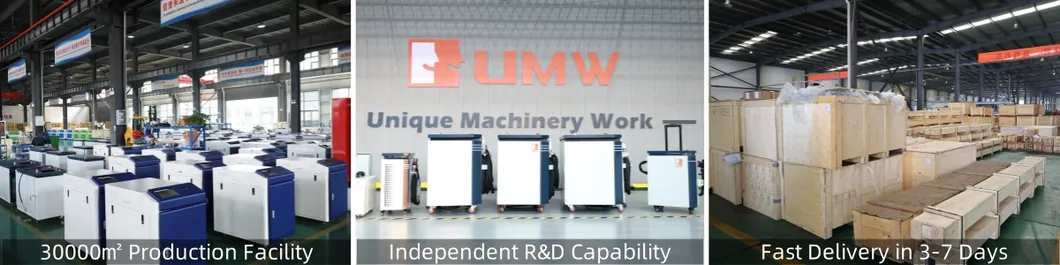

Shipment Method: Sea Freight, Land Freight, Air Freight, International Express.
Package: International Standard Wooden Case.
