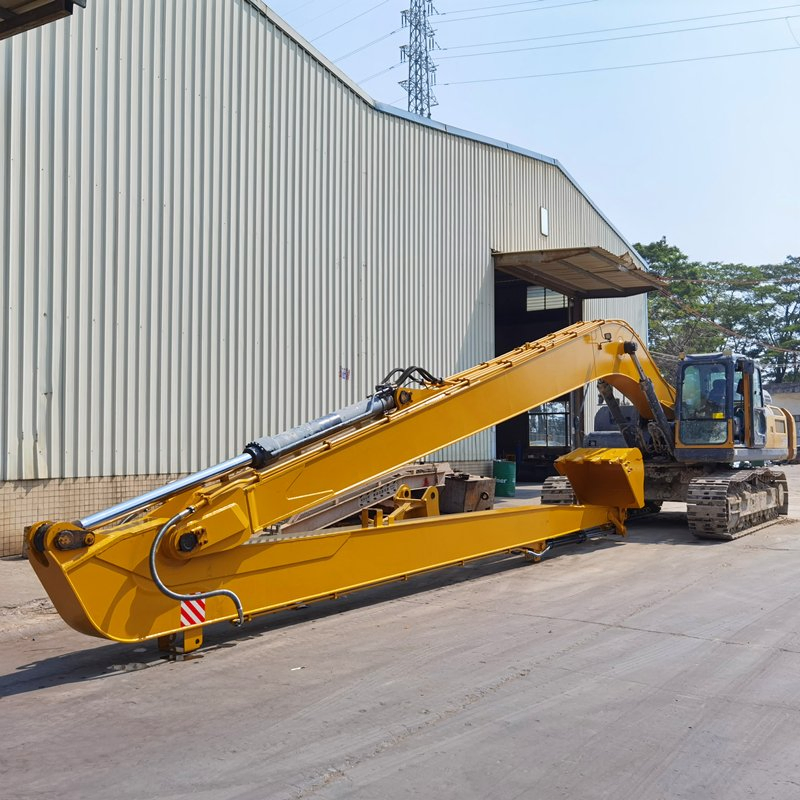

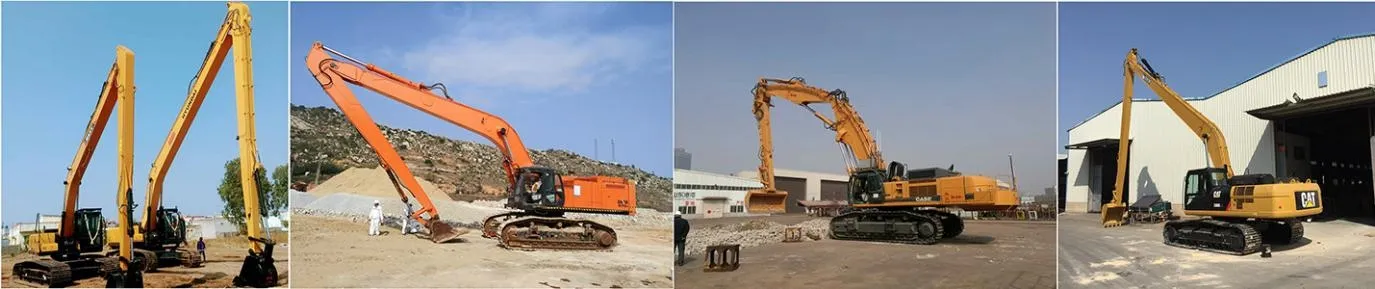

Excavator Long reach boom are widely used for dredging rivers, port construction, railway construction and ground-underwork construction, with high extensive operation scope, high efficiency and high security.
Model:XE215/XE230
Type:Excavator Attachments
Material:Q690d + Q355b Steel
Boom Length:8800mm
Arm Length:7200mm
Max Dig Depth:11900mm
Bucket Capacity:0.5m³
Suit Tonnage:20-25ton
Certification:CE, ISO9001: 2000
HS Code:843149
🎬
Working Demonstration
📏

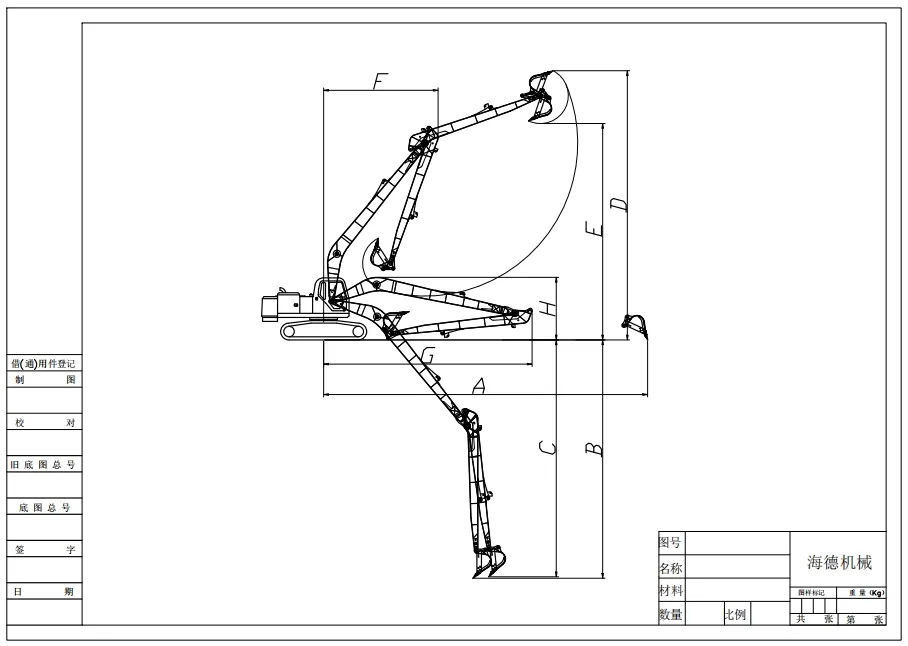

Technical Specifications
Excavator Tonnage
20-25Ton
30-36Ton
40-50Ton
Total Length (mm)
16000
18000
18000
20000
22000
20000
22000
Max Digging Radius (mm)
15600
17600
17500
19500
21500
19500
21500
Max Digging Depth (mm)
10800
12600
12100
14000
15410
14000
15410
Boom Length (mm)
8800
9900
10000
11000
12000
11000
12000
Arm/Stick Length (mm)
7200
8100
8000
9000
10000
9000
10000
Bucket Sizes (m³)
0.5
0.5
0.65-0.8
0.5-0.65
0.5-0.65
1.0
0.8
⚙️

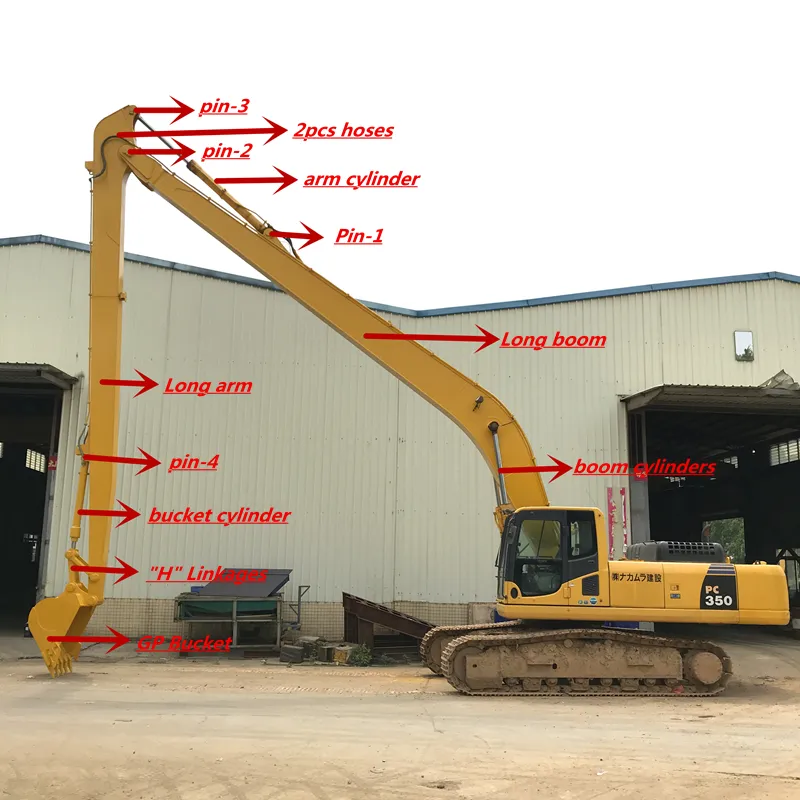

Standard Configuration

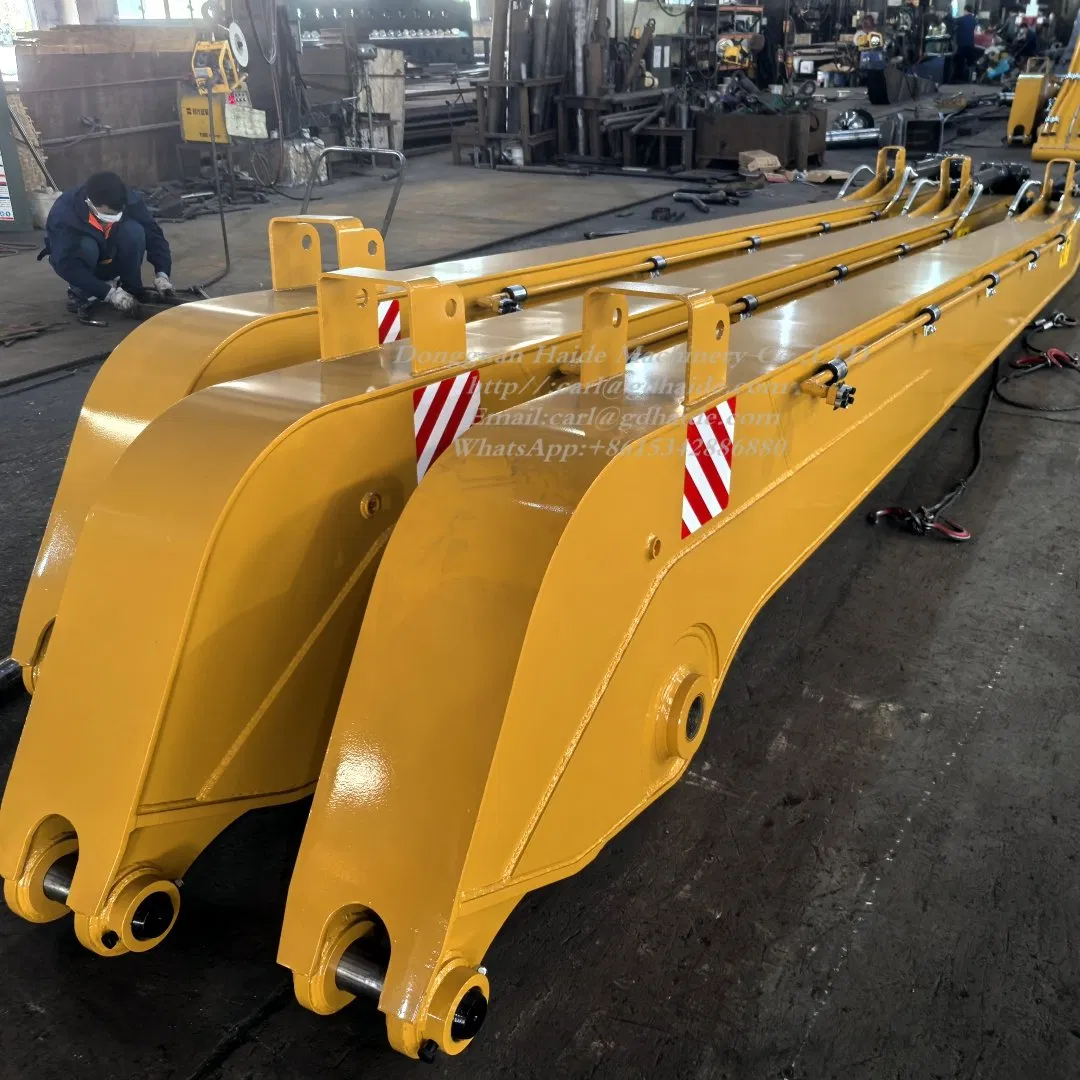

1x High-strength Long Boom & 1x Long Arm
1x Application-specific Bucket (Digging or Cleaning)
4x Metal pipes and hoses, 8x pins, 1x H-Linkages
1x Heavy-duty Bucket Cylinder
Full set of lubricating pipes for easy maintenance
Compatibility with existing original arm and boom cylinders
Optional extra counterweights for machine balancing
Extra hydraulic pipelines available for rock breakers or attachments
🏗️
Advanced Manufacturing

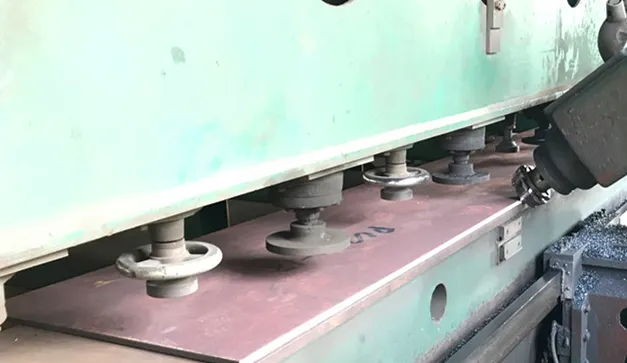

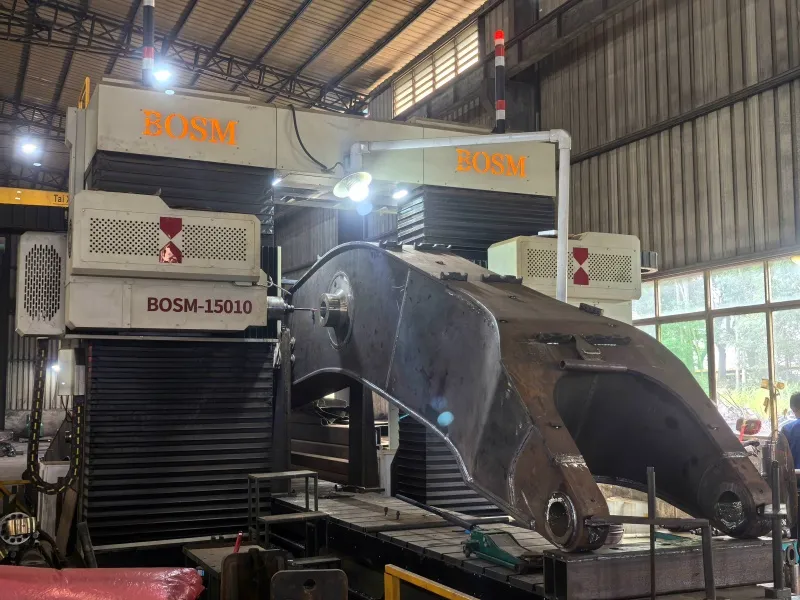

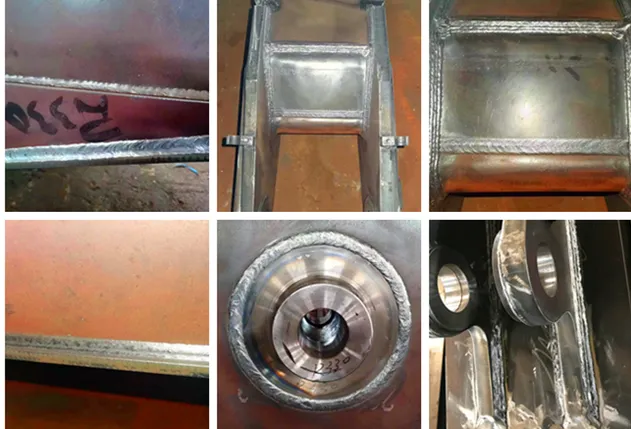

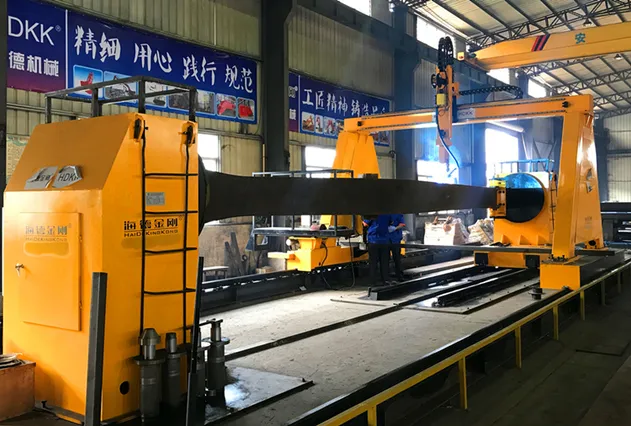

Strong Welding & Precision Boring: All steel plates are 45° beveled by machine before welding. We utilize robotic welding for consistent, durable, and solid seams. After welding, a 30m boring machine processes pin holes to ensure micrometer accuracy and perfect alignment.

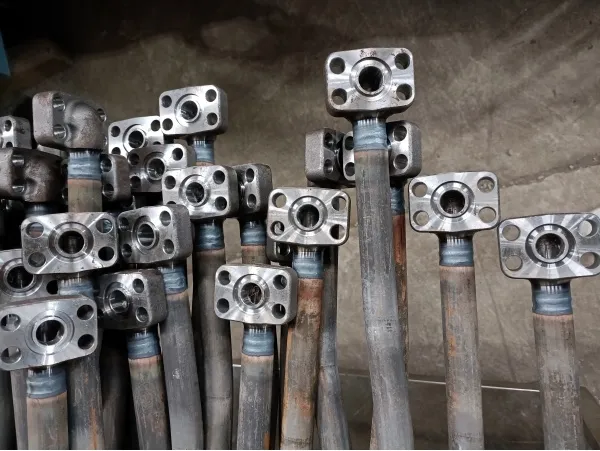

Boring & Pipe Welding: Robotic welding is also applied to metal pipes to prevent oil leakage more effectively than manual methods.
💎
Reliable Parts & Finishing

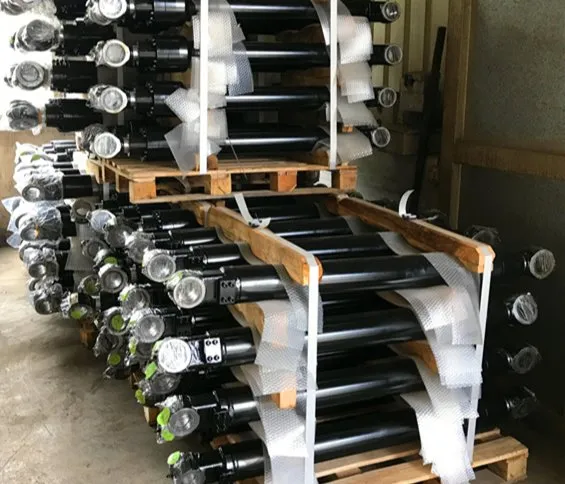

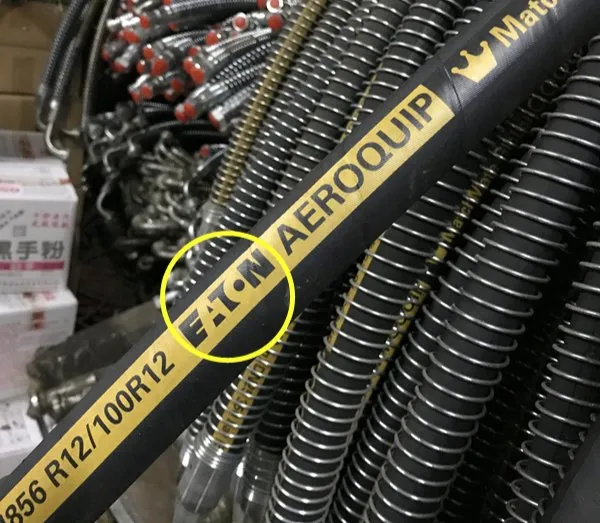

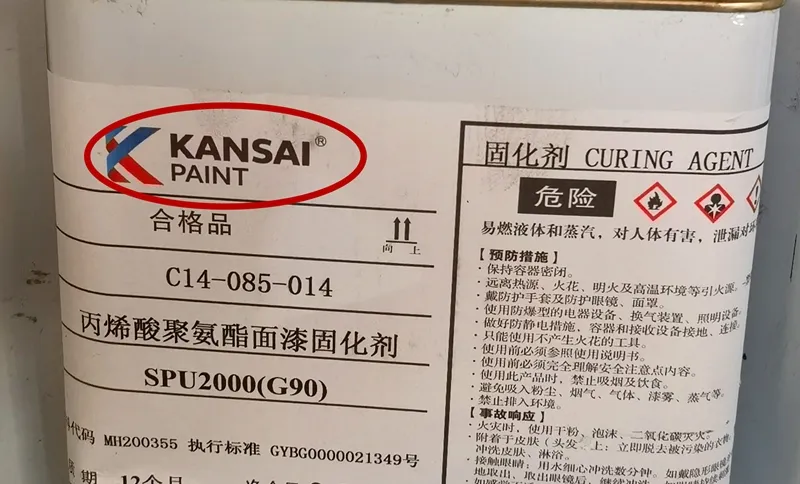

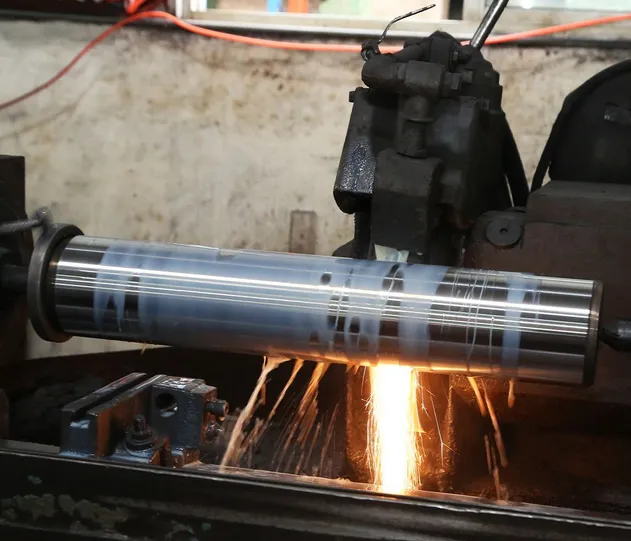

We use customized hydraulic cylinders from world-class factories. Our pins are made of 40Cr steel, hardened (55HRC+), tempered, and ground for maximum service life. High-pressure hoses are sourced from the American "EATON" brand. For the finish, we use Japanese "KANSAI" paint to ensure 100% color matching and superior corrosion resistance.
🌍
Global Presence
Successfully participated in major industry exhibitions including Shanghai Bauma 2018 and Shanghai Bauma 2024, showcasing our latest innovations in excavator attachments.
🛡️
After Sales Service
Standard Warranty: 12 months after installation.
Steel Structure: Full coverage for material or workmanship defects. Remedy expenses covered upon verification.
Accessories: Free replacement parts for cylinders, pipes, hoses, and pins if defects arise from manufacturing.
❓
Frequently Asked Questions
Q1: Which excavator models are compatible with this long reach boom?
Our long reach booms are designed for a wide range of excavators, specifically targeting the 20-50 ton range, including models like XE215 and XE230.
Q2: What materials are used in the construction?
We use high-strength Q690d and Q355b steel to ensure the boom can withstand heavy-duty operation and provide long-term durability.
Q3: Does the package include all necessary components for installation?
Yes, the standard package includes the long boom, long arm, bucket, bucket cylinder, metal pipes, hoses, pins, and H-linkages.
Q4: How do you ensure the precision of the pin holes?
We use a 30m boring machine after the welding process is complete. This ensures that all pin centers are perfectly aligned with micrometer accuracy.
Q5: Is it possible to use the original machine color?
Absolutely. We use Japanese "KANSAI" paint, which is the same supplier for major brands like HITACHI and KOBELCO, ensuring a 100% color match.
Q6: What is the warranty coverage for the attachment?
We provide a 12-month warranty covering the steel structure and key accessories like cylinders and hoses against manufacturing defects.
