$4,600 (Includes robot arm + control box + Programming teaching pendant)

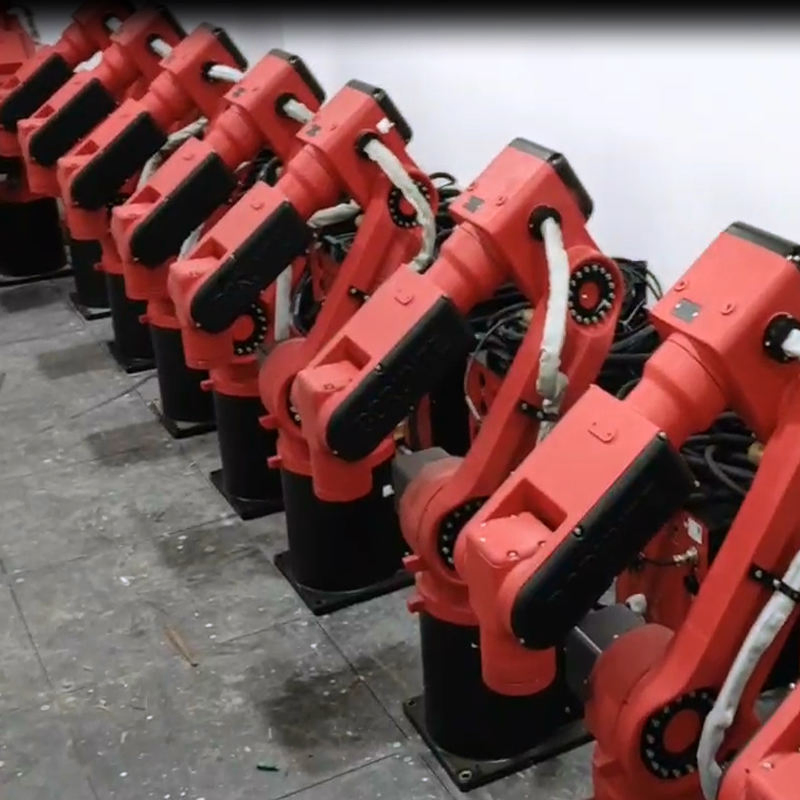

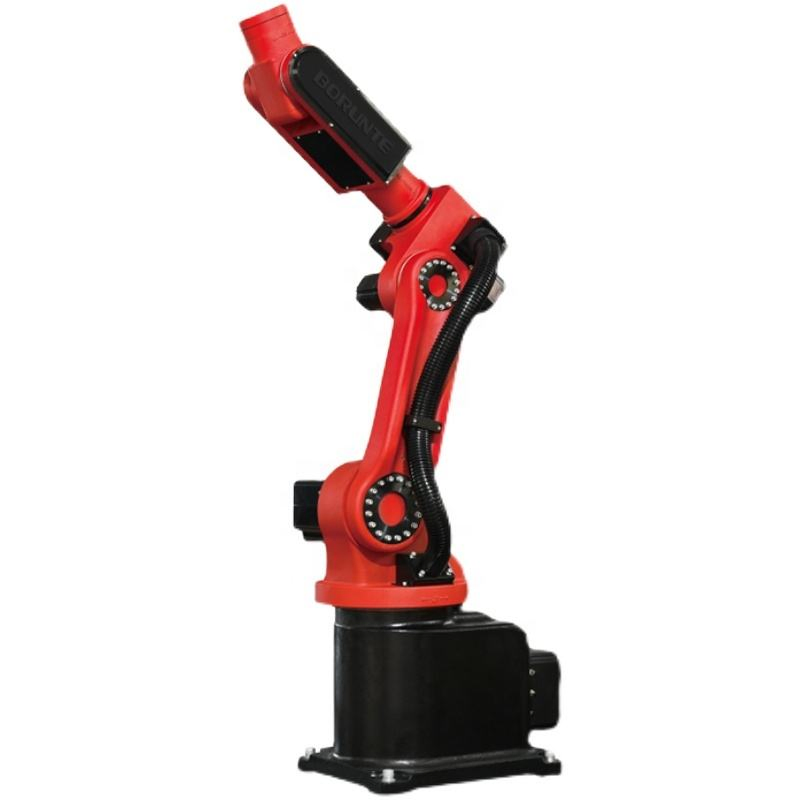

BRTIRUS0805A type robot is BORUNTE's third-generation robot. The entire operation system features a simple, compact structure, high positioning accuracy, and outstanding dynamic performance. With a payload capacity of 5kg, it is exceptionally suited for applications including molding, picking, stamping, forging, handling, loading, assembly, stacking, laser cutting, welding, and painting/spraying.
BRTIRUS0805A is a high-performance 6-axis robot. It operates reliably in complex environments, particularly suitable for injection molding processes ranging from 30T to 250T. The system features a high protection level, with IP54 rating for the wrist, ensuring robustness and durability in industrial workflows.

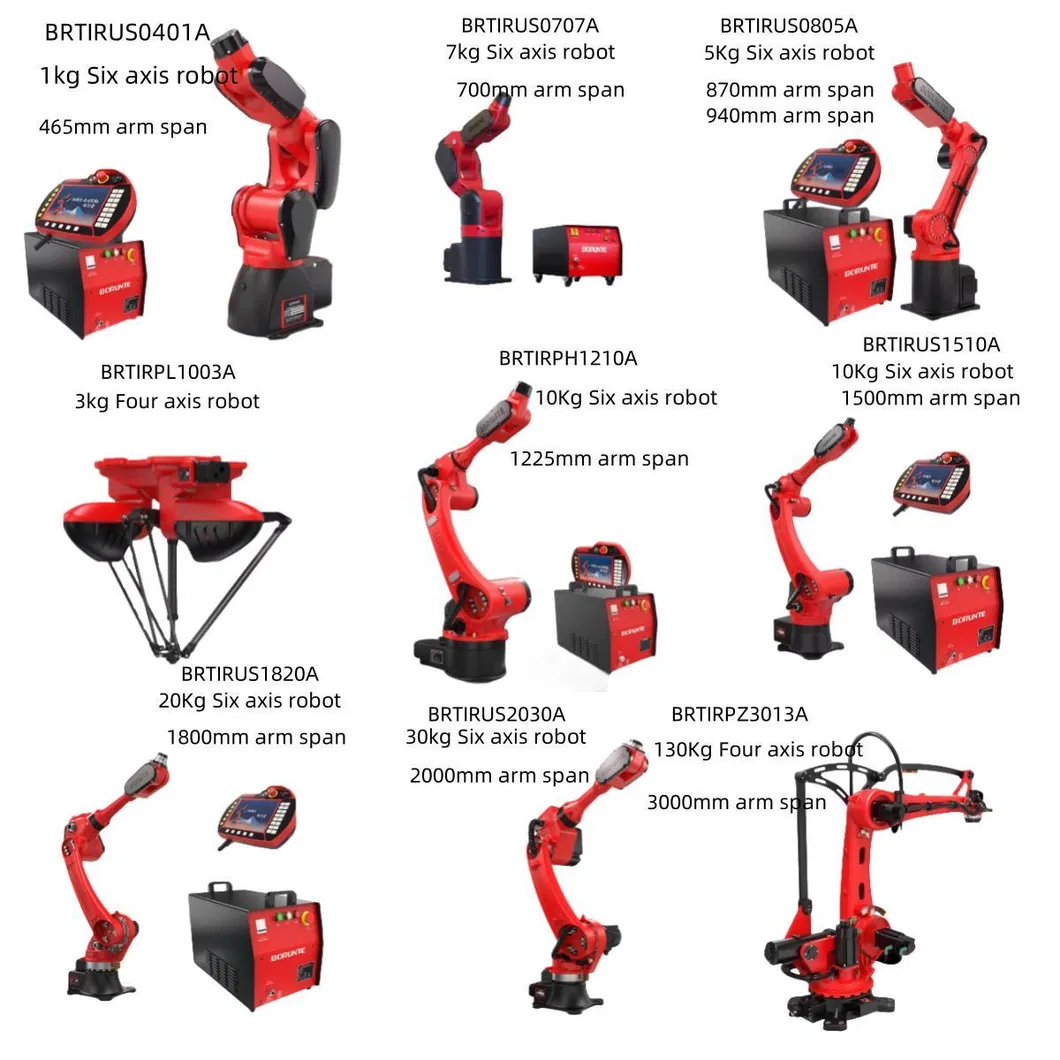

Model
Name
Max Arm Span
Weight
Loading Ability
BRTIRUS0805A
5kg Six axis robot
715MM
75KG
5KG
BRTIRXZ0805A
5kg Six axis robot
816MM
47KG
5KG
BRTIRUS1510A
10kg Six axis robot
1500MM
150KG
10KG
BRTIRUS1820A
20kg six axis robot
1800MM
230KG
20KG
BRTIRWD1506A
6kg six axis robot
1500MM
166KG
6KG
BRTIRWD2206A
6kg six axis robot
2200MM
237KG
6KG
BRTIRUS2550A
50Kg six axis robot
2500MM
725KG
50KG
BRTIRUS3511A
10Kg six axis robot
3500MM
1350KG
100KG
Frequently Asked Questions (FAQ)

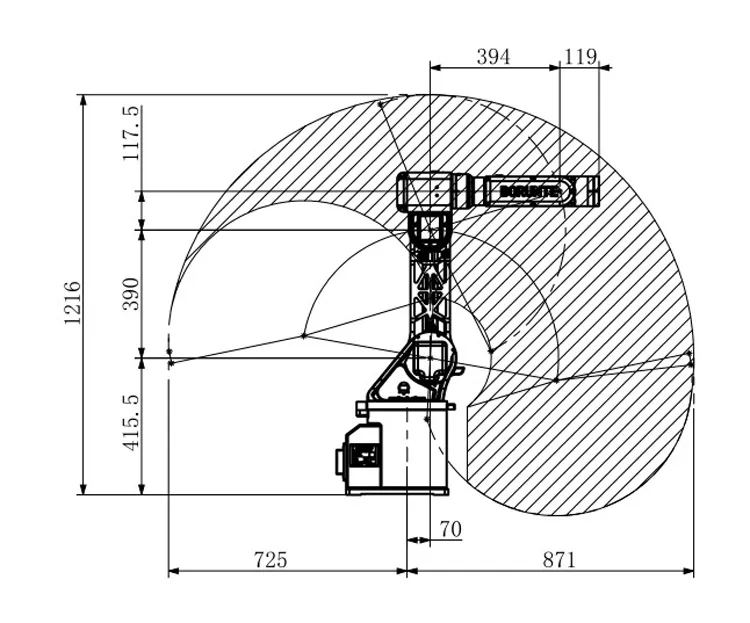

What is the payload and maximum reach of the BRTIRUS0805A robot arm?
The BRTIRUS0805A has a maximum payload capacity of 5kg and a maximum reach (motion radius) of 940mm.
What is included in the $4,600 wholesale package?

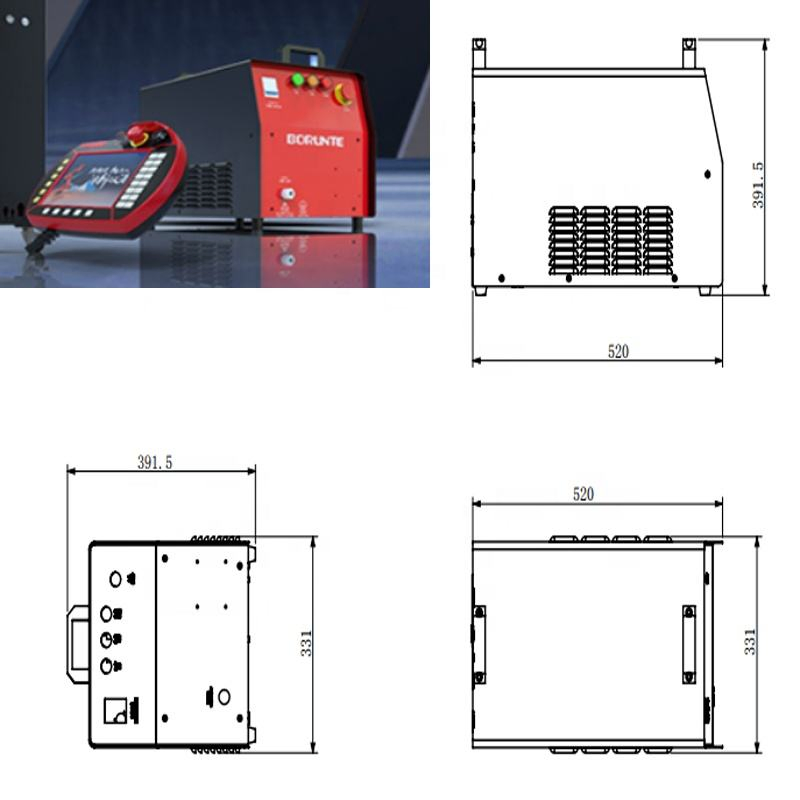

The standard package price of $4,600 includes the main robot arm, the controller box, and the programming teaching pendant.
What are the core applications of the BRTIRUS0805A?
This 6-axis robot arm is designed for industrial applications such as injection molding (suitable for 30T-250T machines), pick-and-place operation, stamping, forging, assembly, stacking, welding, and painting/spraying.

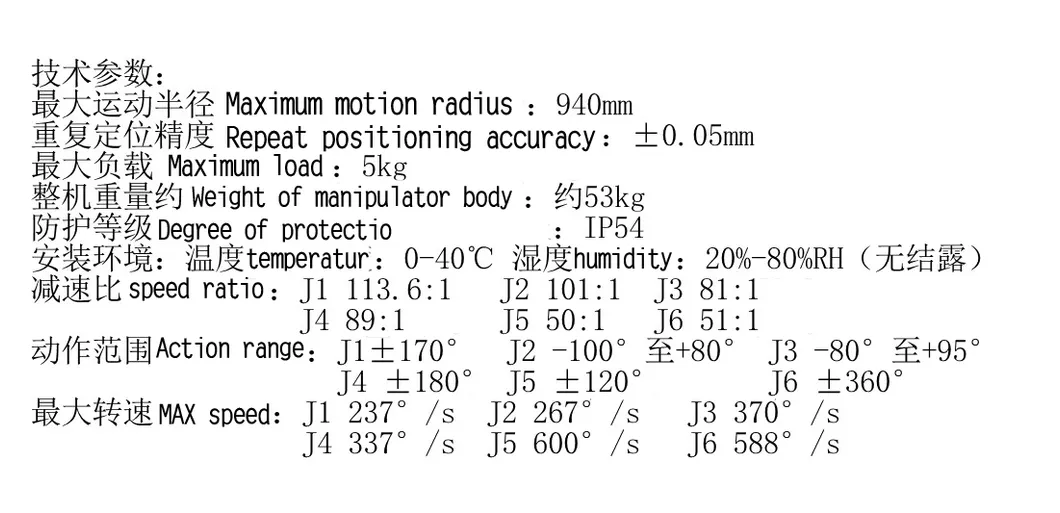

What is the repeat positioning accuracy of the robot arm?
It features highly dynamic performance and precise workflow executions with a repeat positioning accuracy of ±0.05mm.
What protection rating does the BRTIRUS0805A robot arm offer?
The robot features a robust build with high protection levels: the wrist has an IP54 rating to withstand demanding workshop environments.
