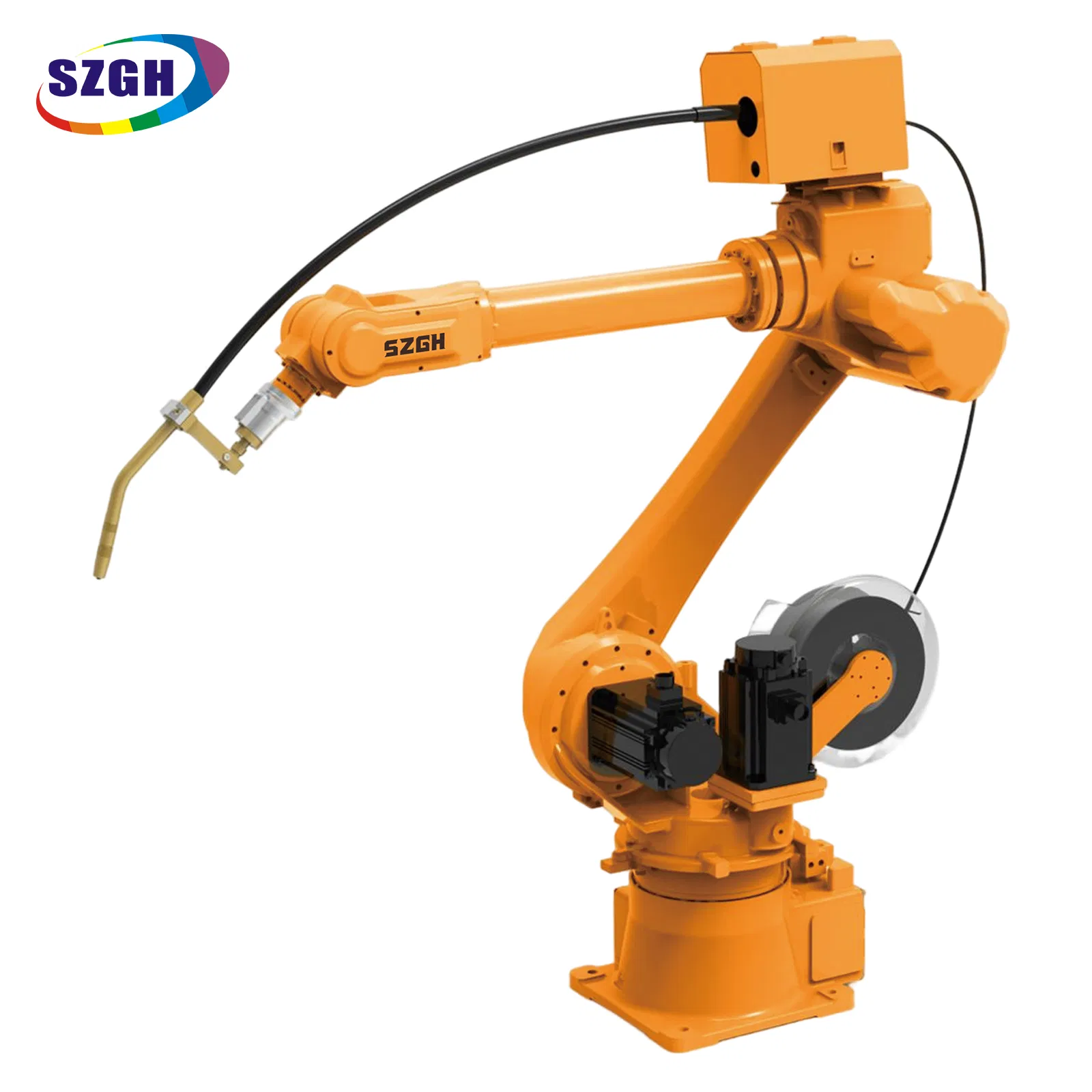

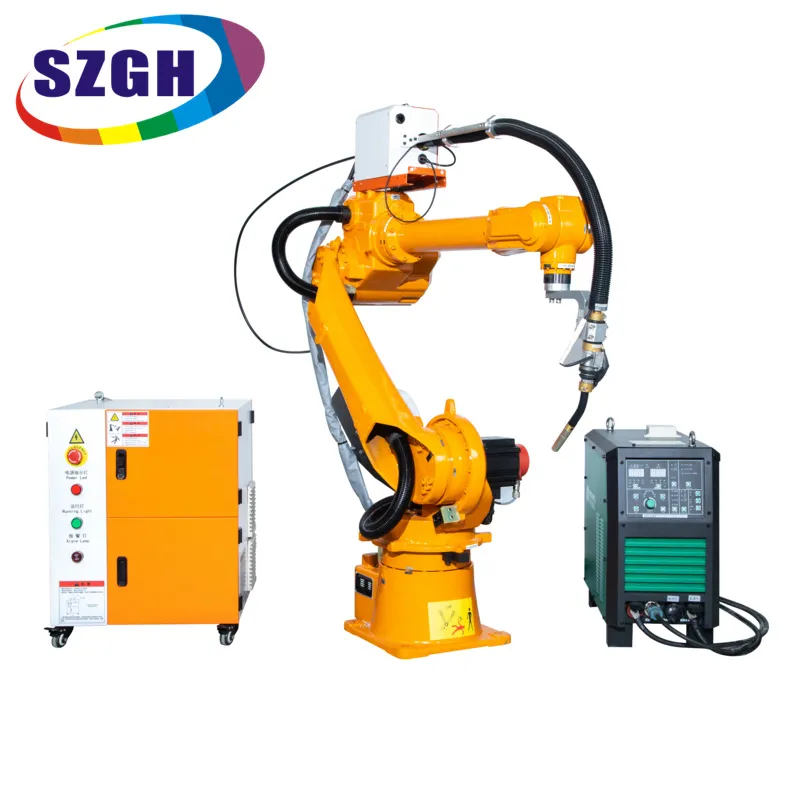

The H2100-B-6 robot is specially optimized and dedicated to high-precision welding processes. It delivers exceptional operational simplicity, high output efficiency, and advanced safety parameters on the factory floor.

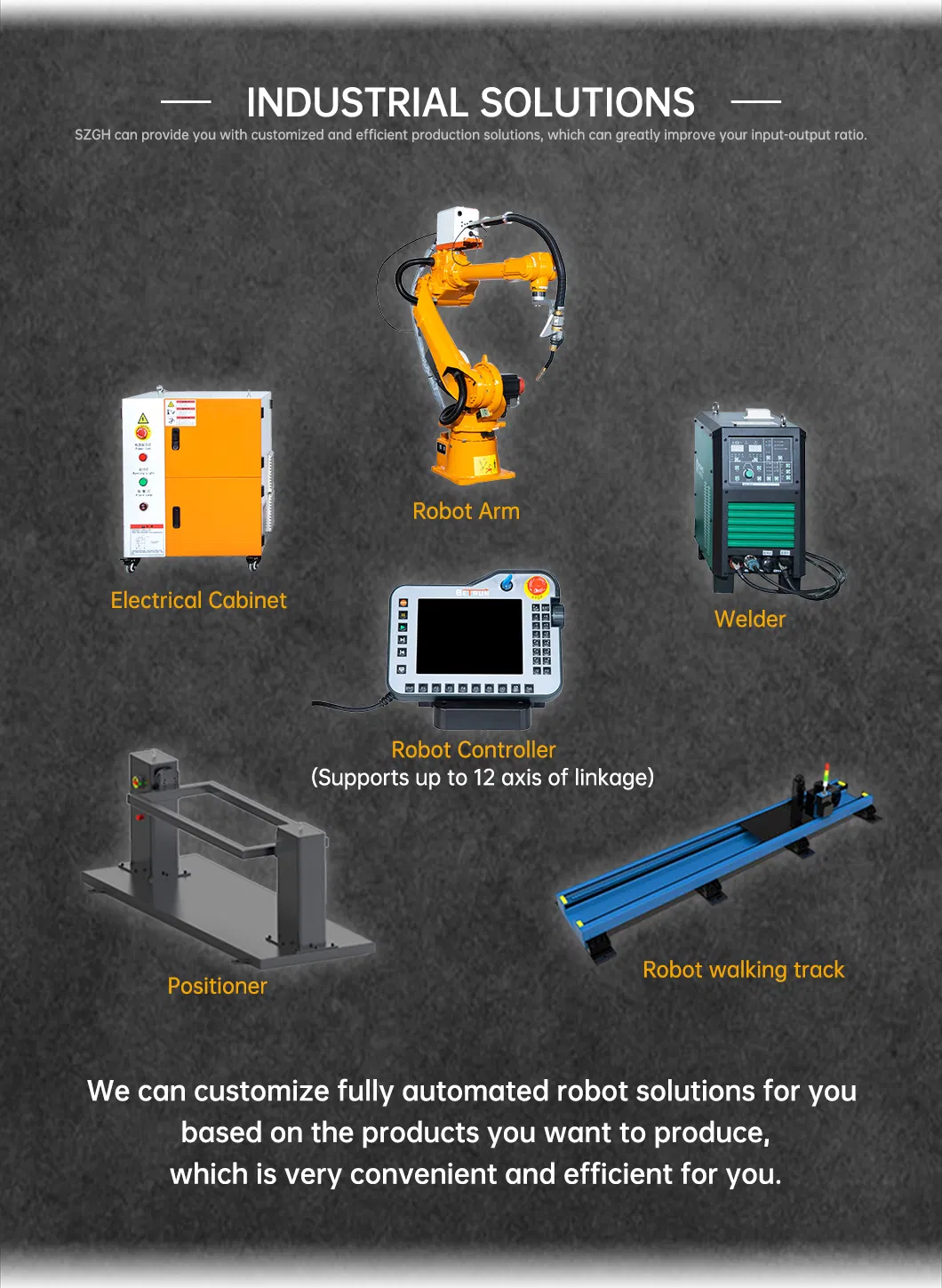

We offer 25 distinct models of robotic arms in mass production, including general-purpose, welding, spraying, palletizing, grinding, and material handling systems. All units are equipped with an advanced, highly intelligent robot control system developed internally. Additionally, we integrate customized peripheral components and execute non-standard industrial layouts precisely configured to client demands, including our mass-produced 9-axis linkage robotic solutions.

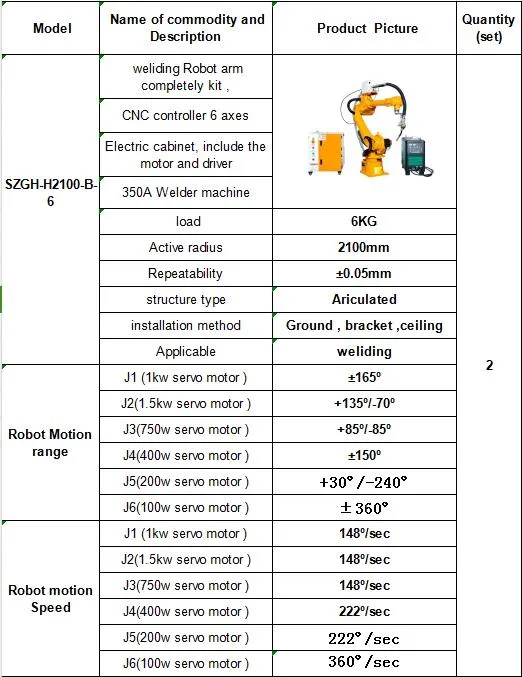

| System Specification Data Sheet | |
|---|---|
| Model | H2100-B-6 |
| Payload | 6kg |
| Reach | 2100mm |
| Axes | 6-11 axes configurable |
| Application | Welding (TIG, MIG, MAG) |
| Special Services | Custom structural colors and specific labeling customization available. |
| Warranty Period | 12 Months |
| After-Warranty Support | Video technical support, online engineer guidance. |
| Storage | 2 GB |

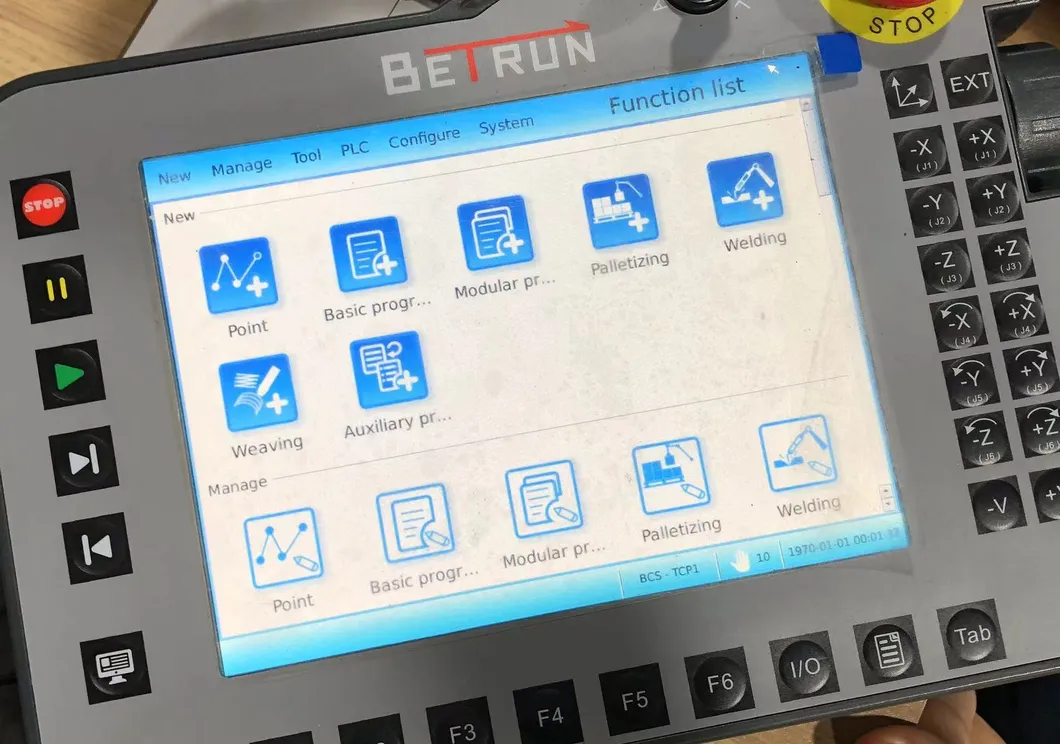

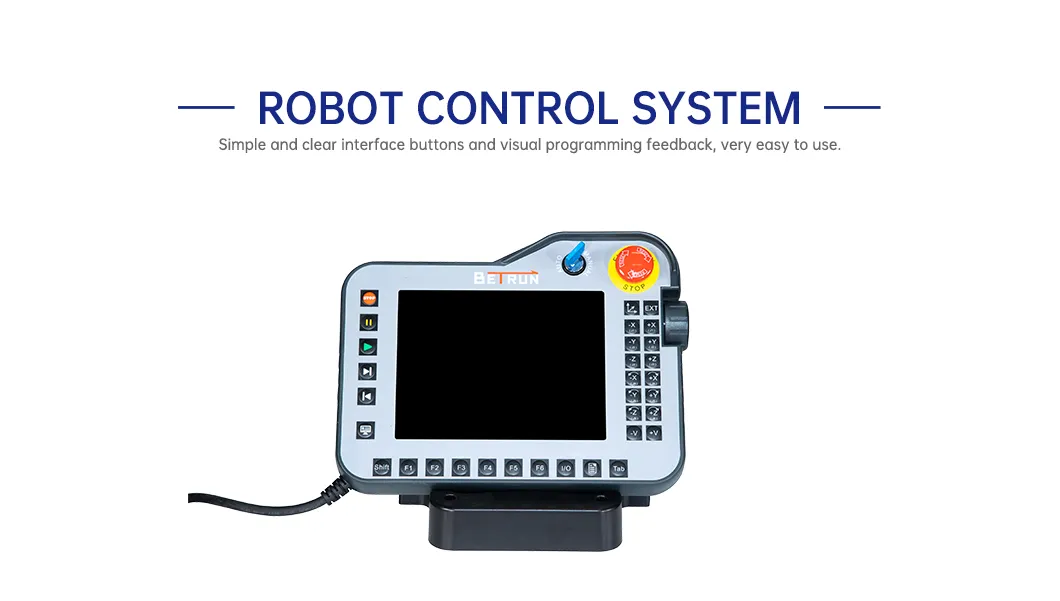

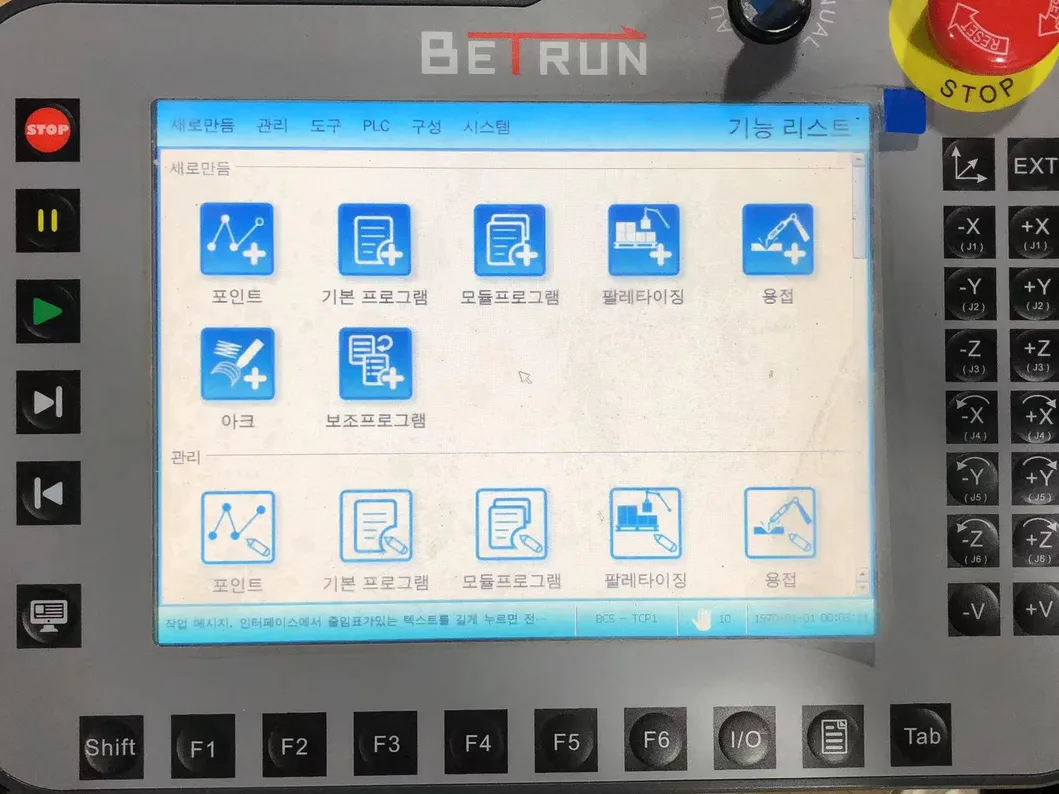

| Teaching Box | Full physical keyboard + high-sensitivity touch screen, operational mode selector, safety deadman switch, and rapid emergency stop. |
| No. of Controlled Axes | 6+6 axes (6 basic robotic axes + 6 optional external positioner/travel axes). |
| Interface | Multiple encoder signal interfaces, dedicated terminal port, Ethernet connectivity, and serial bus communications. |
| Safety Module | Interlinked safety lines mapping emergency stops and internal anomalies to ensure instant, damage-free mechanical halts. |
| Mode of Operation | Manual teaching, programmatic replay, and remote terminal control. |
| Mode of Programming | Online parameter teaching, structured process programming, and manual lead-through drag teaching. |
| Motion Function | Point-to-point (PTP), high-precision linear path, and circular interpolation. |
| Command System | Motion commands, logical parameters, automated process parameters, and advanced computational code. |
| Mode of Control | High-precision position control. |
| Anomaly Detection | Emergency stop errors, servo malfunctions, anti-collision monitoring, safety maintenance alerts, arc stability errors, user coordinate anomalies, and tool coordinate checks. |

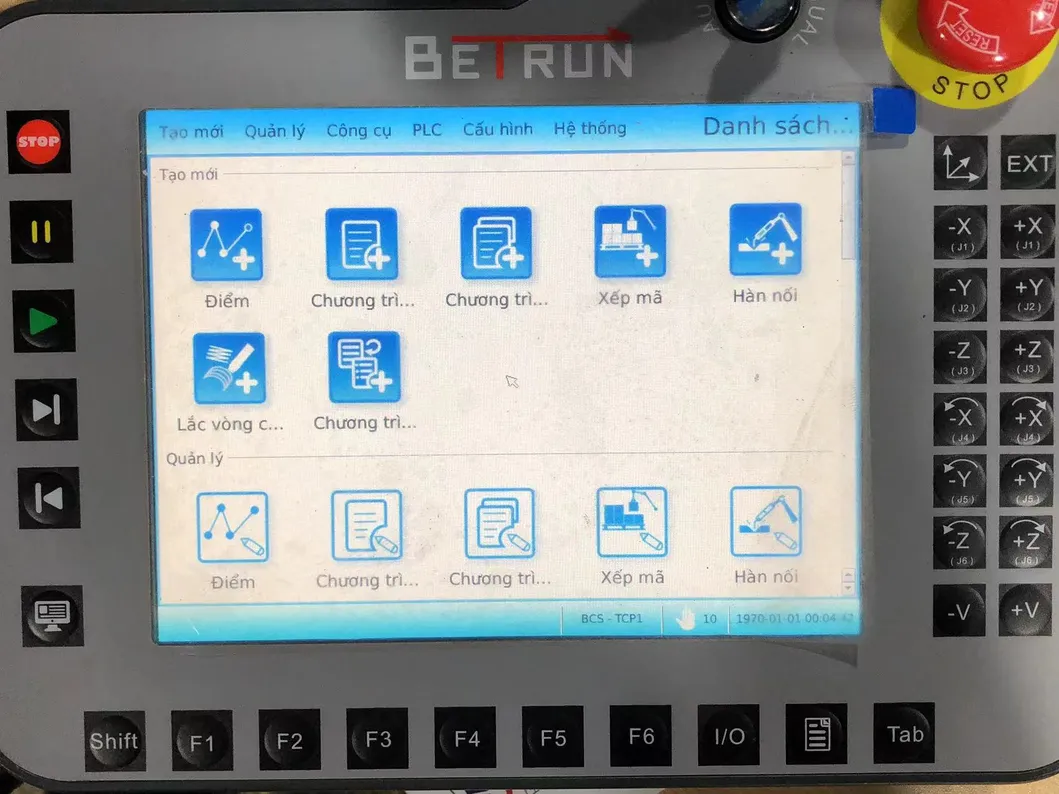

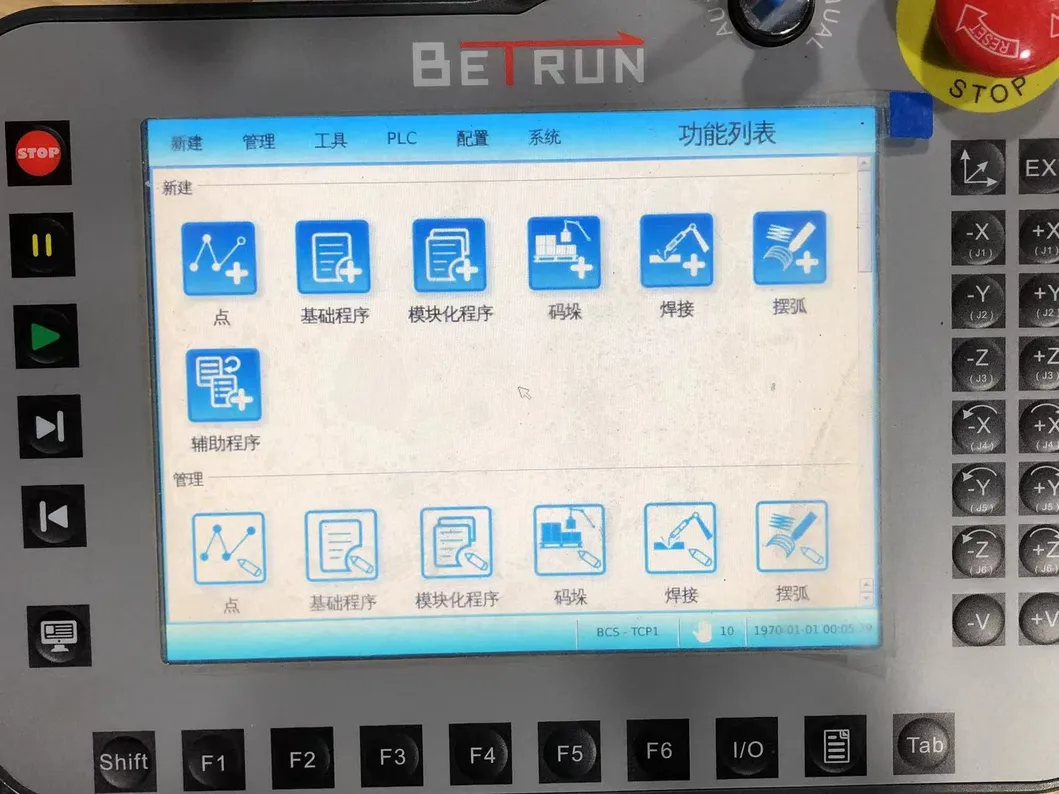

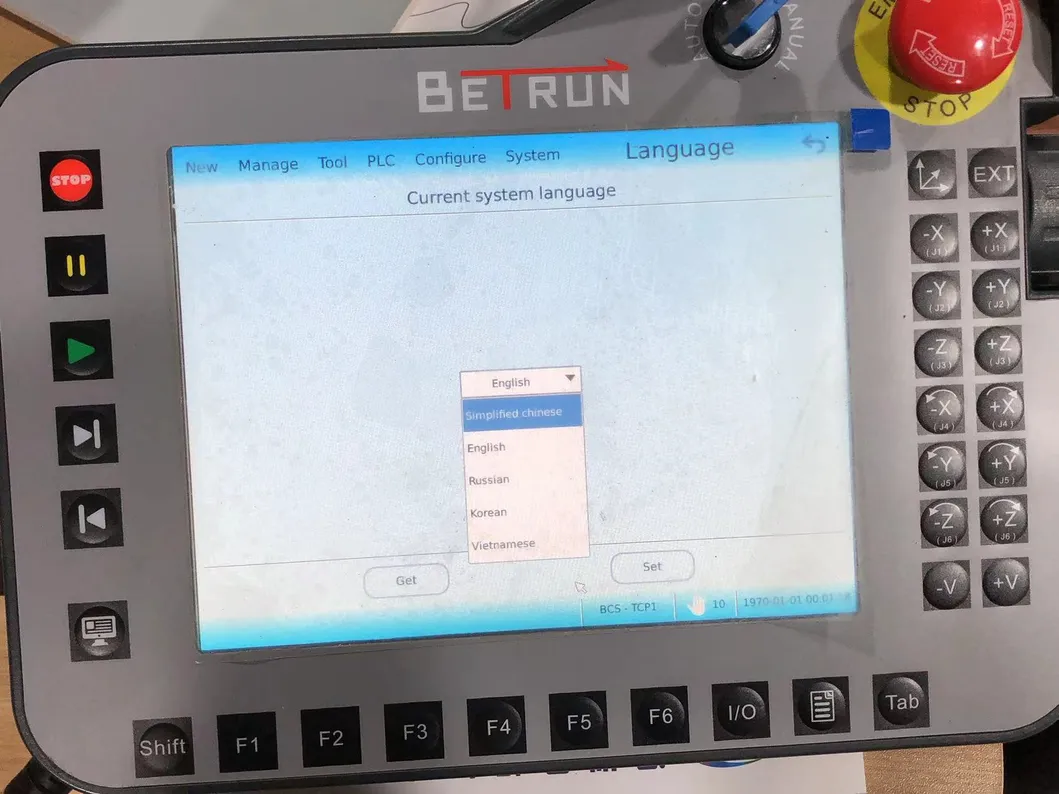

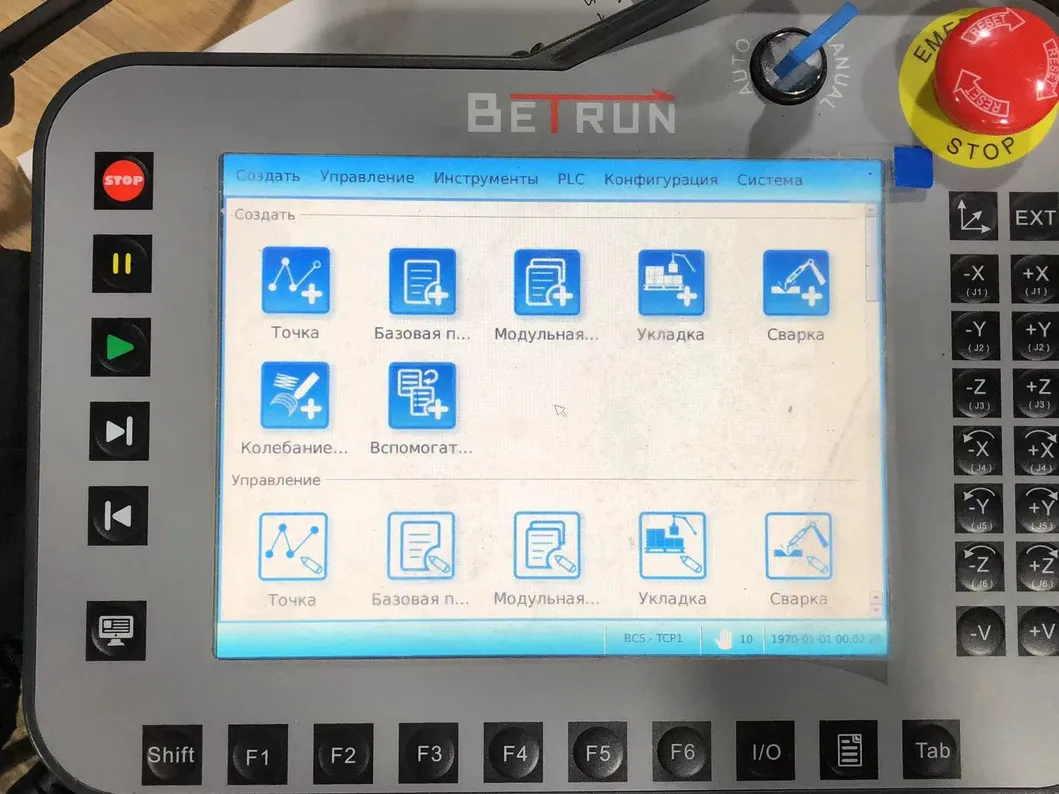

Multi-language support interface: English, Russian, Vietnamese, Korean, and Chinese.
If you require selection advice, tailored load requirements, or unique installation geometries, our design engineers are ready to build fully realized customization options and automated simulation solutions based on your specific components.

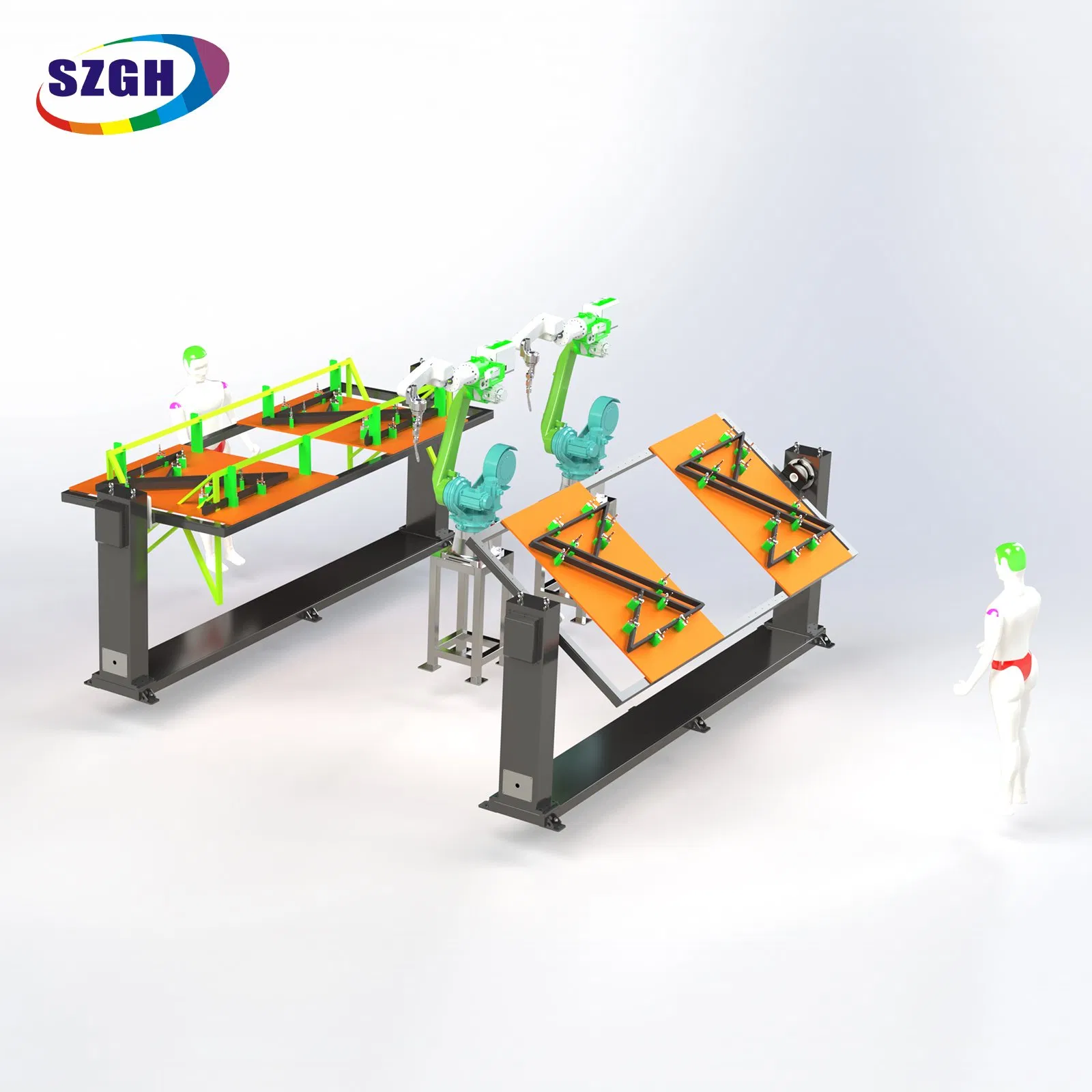

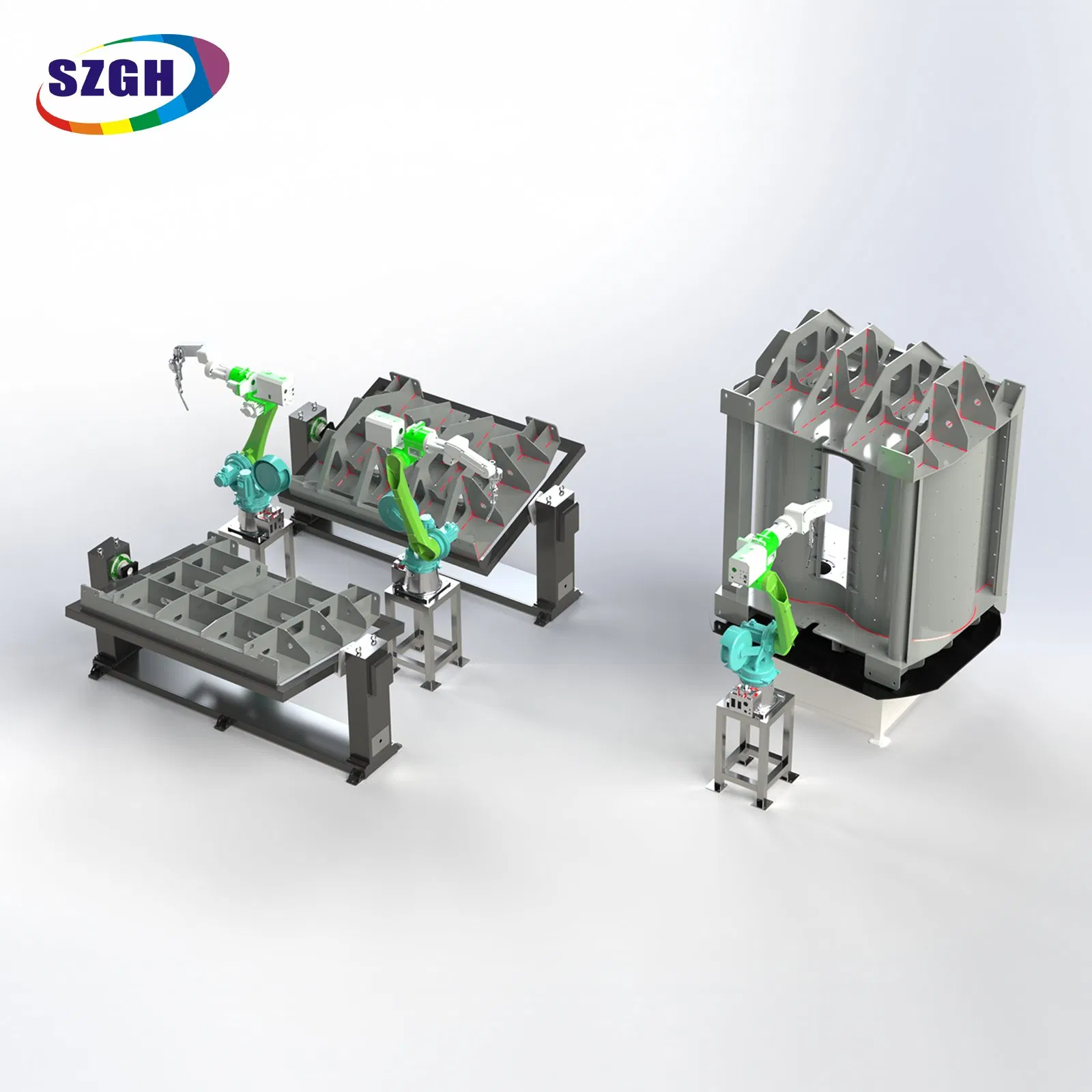

Welding Robot Arm Kit + Rotating Positioner Table
Utilizing 2 sets working in parallel achieves maximized workflow optimization and rapid manufacturing cycles.
