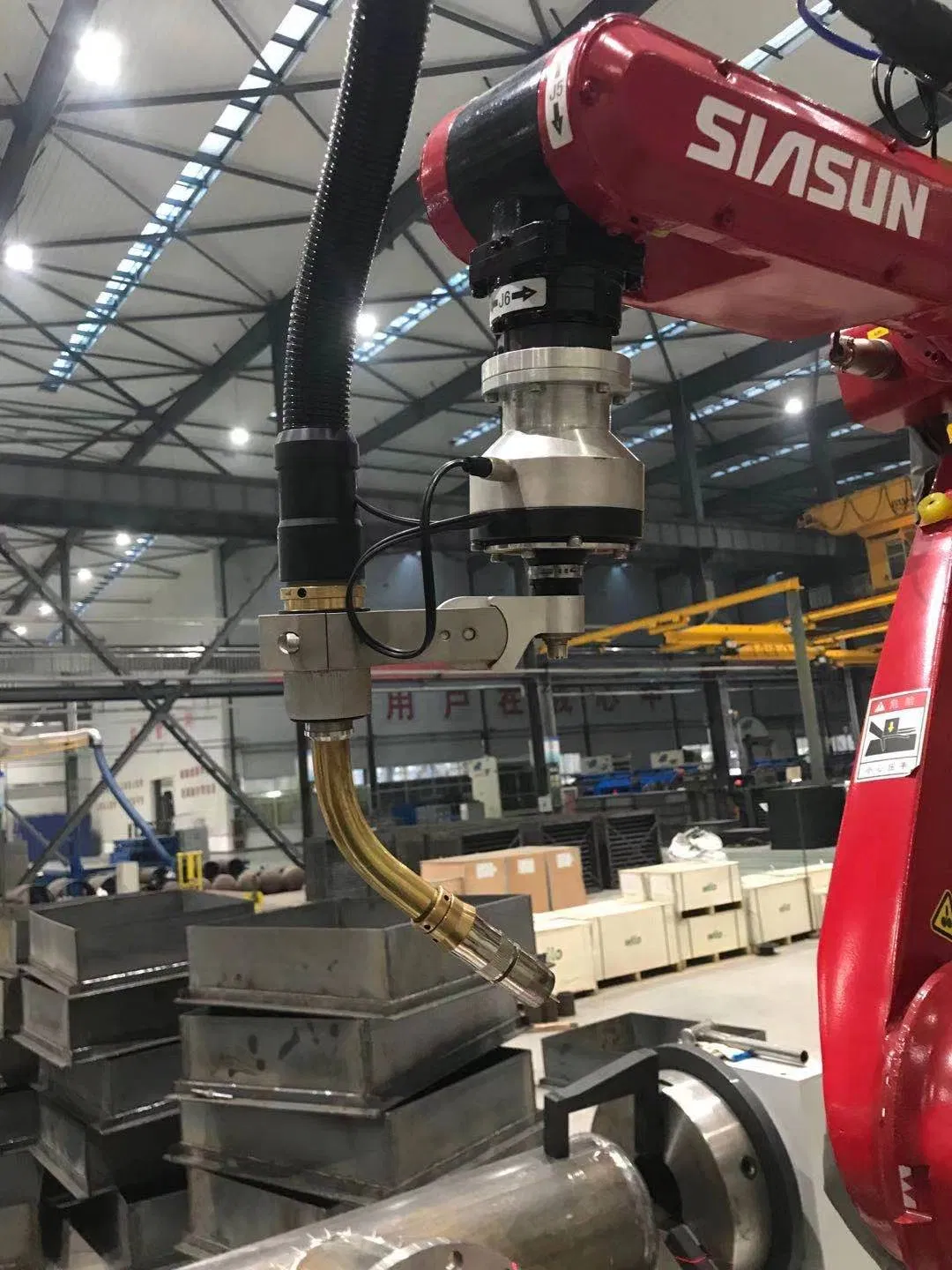

Automatic Pipe Welding Robot with Seam Tracking Function

1 / 5

Automatic Pipe Welding Robot with Seam Tracking Function

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

PWM-1

Control Mode

Upper Computer Operation

Drive Mode

Electric

Type

Arc Welding Robot

Welding Speed

5 m/min

Warranty

1 Year

Industry

Pipe

Welding Wire

1.2mm

Robot Teaching

Dispense with

Package Size

1.00cm * 1.00cm * 1.00cm

Gross Weight

50.000kg

Specification

Customizable

Product Description

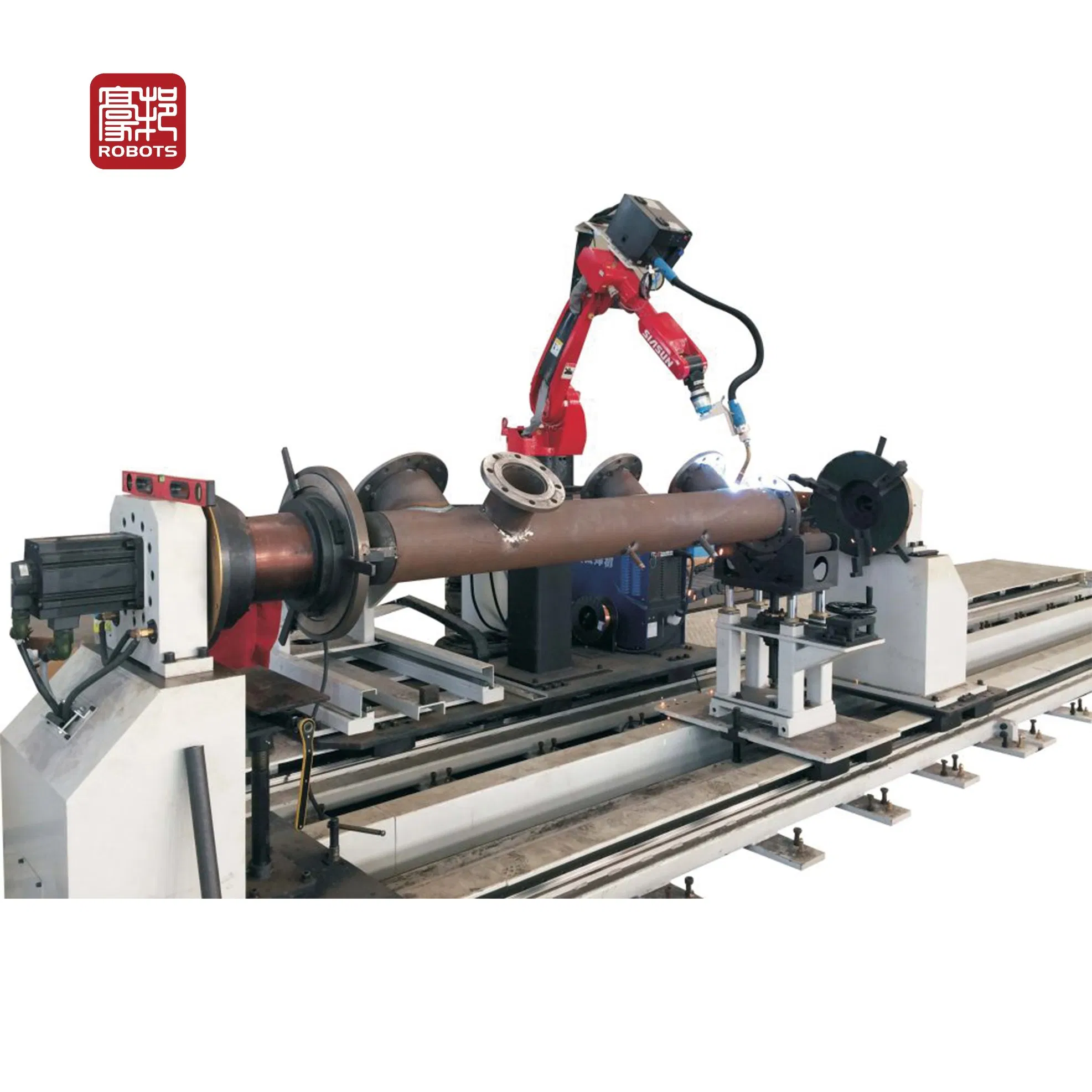

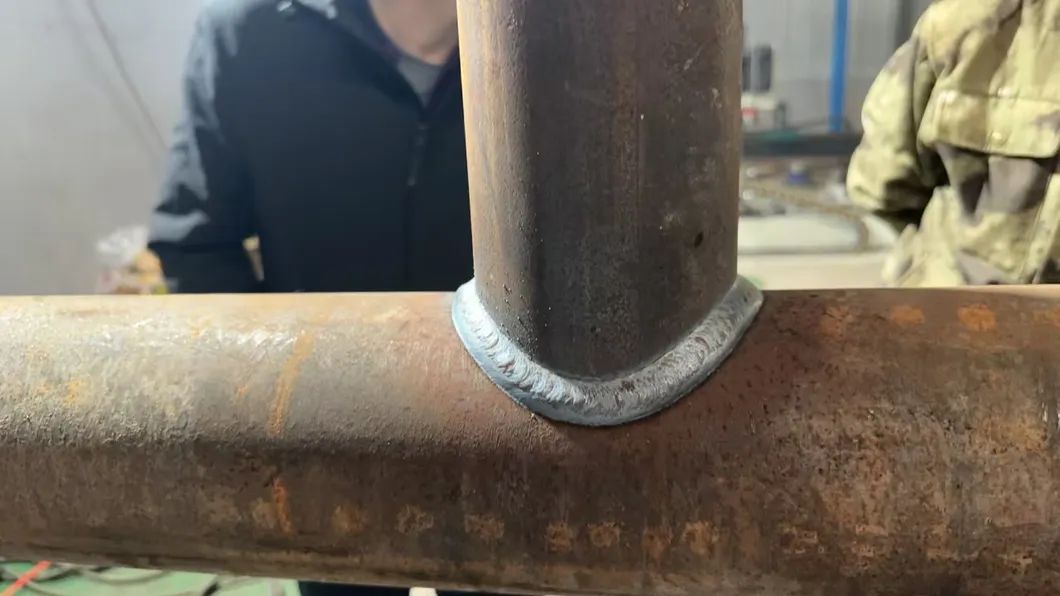

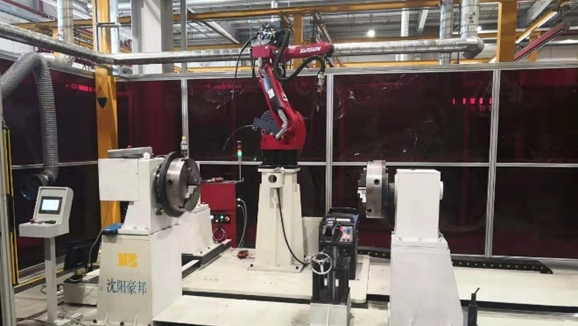

The equipment is suitable for welding a variety of pipe, adapt to a variety of weld seam (butt weld seam, angle weld seam, etc.). For angled weld pipe with a length ≤500, the positioner can be turned over 45° for welding. The equipment is easy to operate, flexible and versatile, and the weld seam is even and beautiful.

Equipment Specifications	Parameters
Length of main pipe	≤12 meters
Pipe diameter	DN80-DN400
Length of branch pipe	≤800mm
Welding with branch pipe maximum Caliber	≤ DN300
Radius of gyration	≤ 800mm

Key Features

1No manual instruction required.

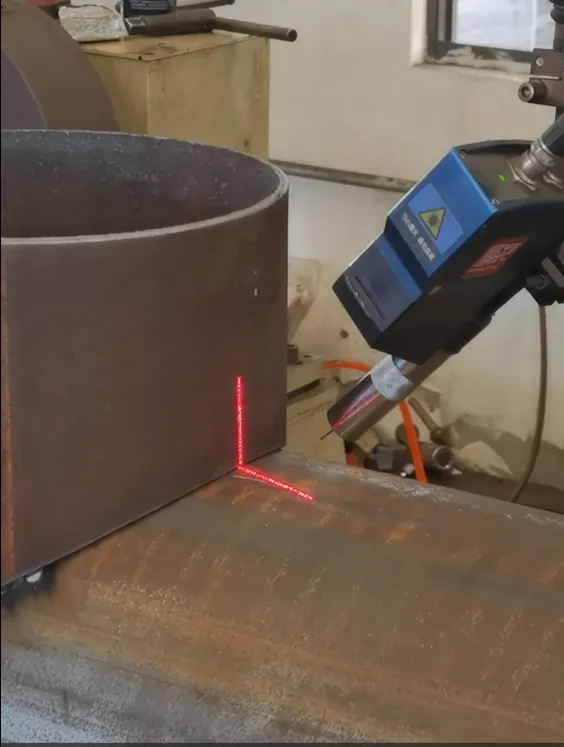

23D visual scanning system for precise scanning of welds.

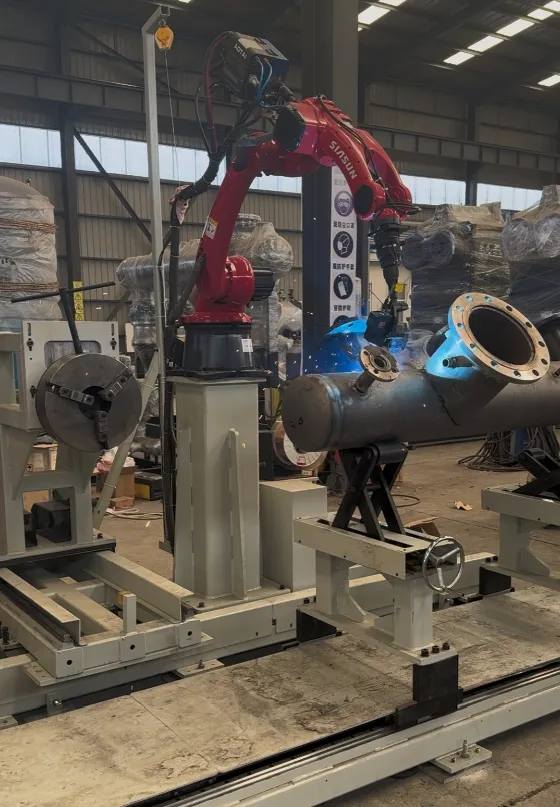

3Adjustable welding gun angle to adapt to various weld seams (butt, angle, etc.).

4Electric adjustment of welding gun position for convenience and speed.

5Welding gun swing function with controllable parameters for wide adaptability.

6Equipped with two sets of scissors fork brackets for longer pipe welding.

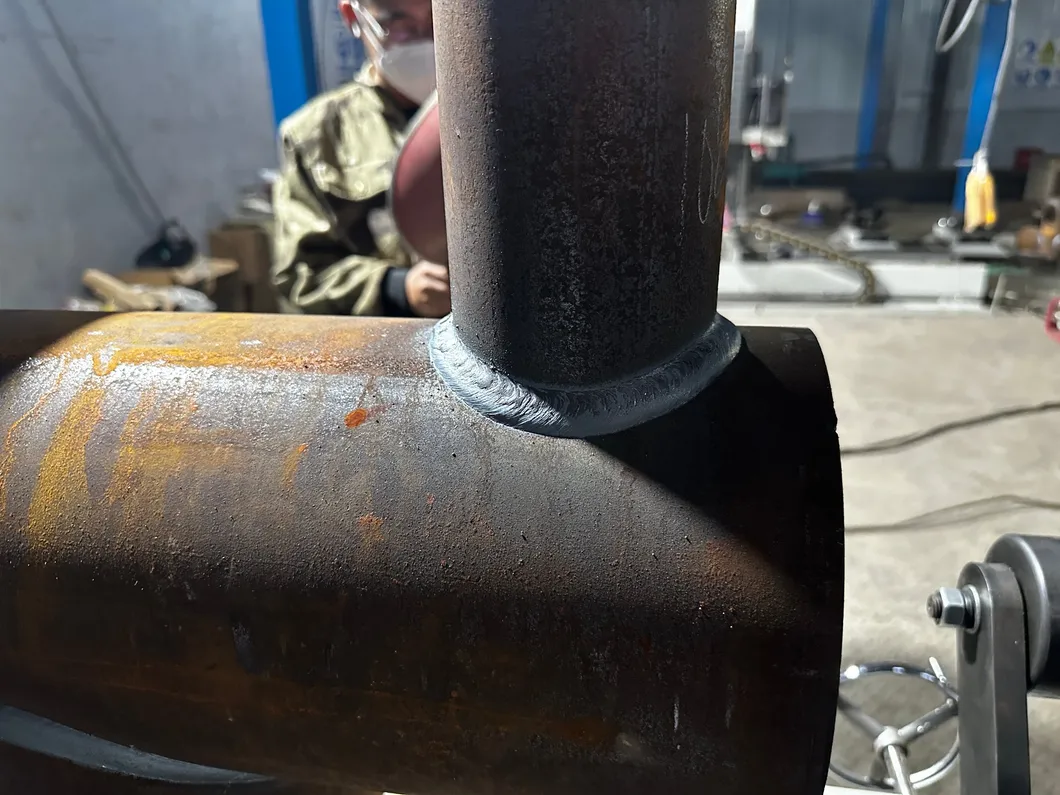

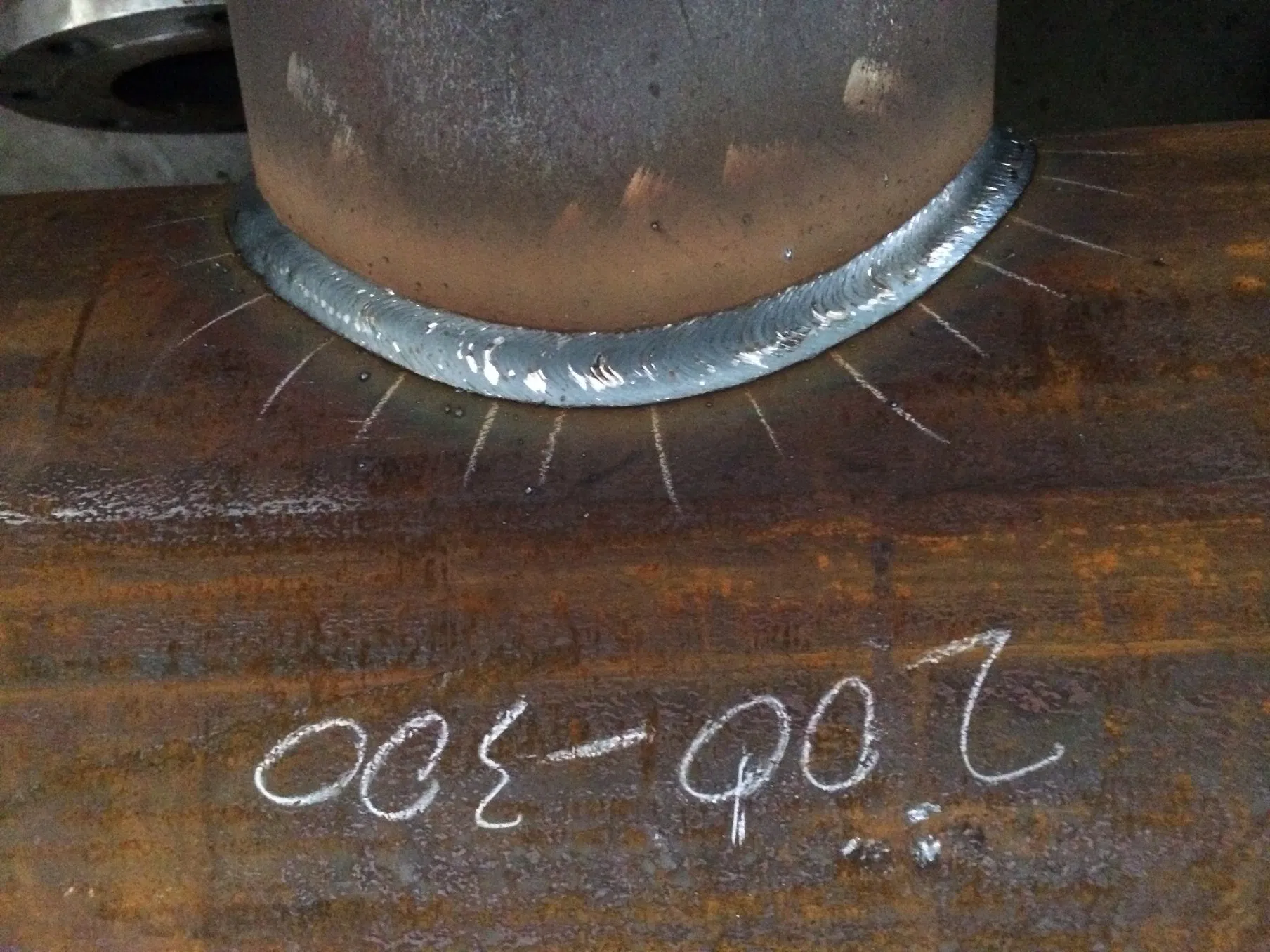

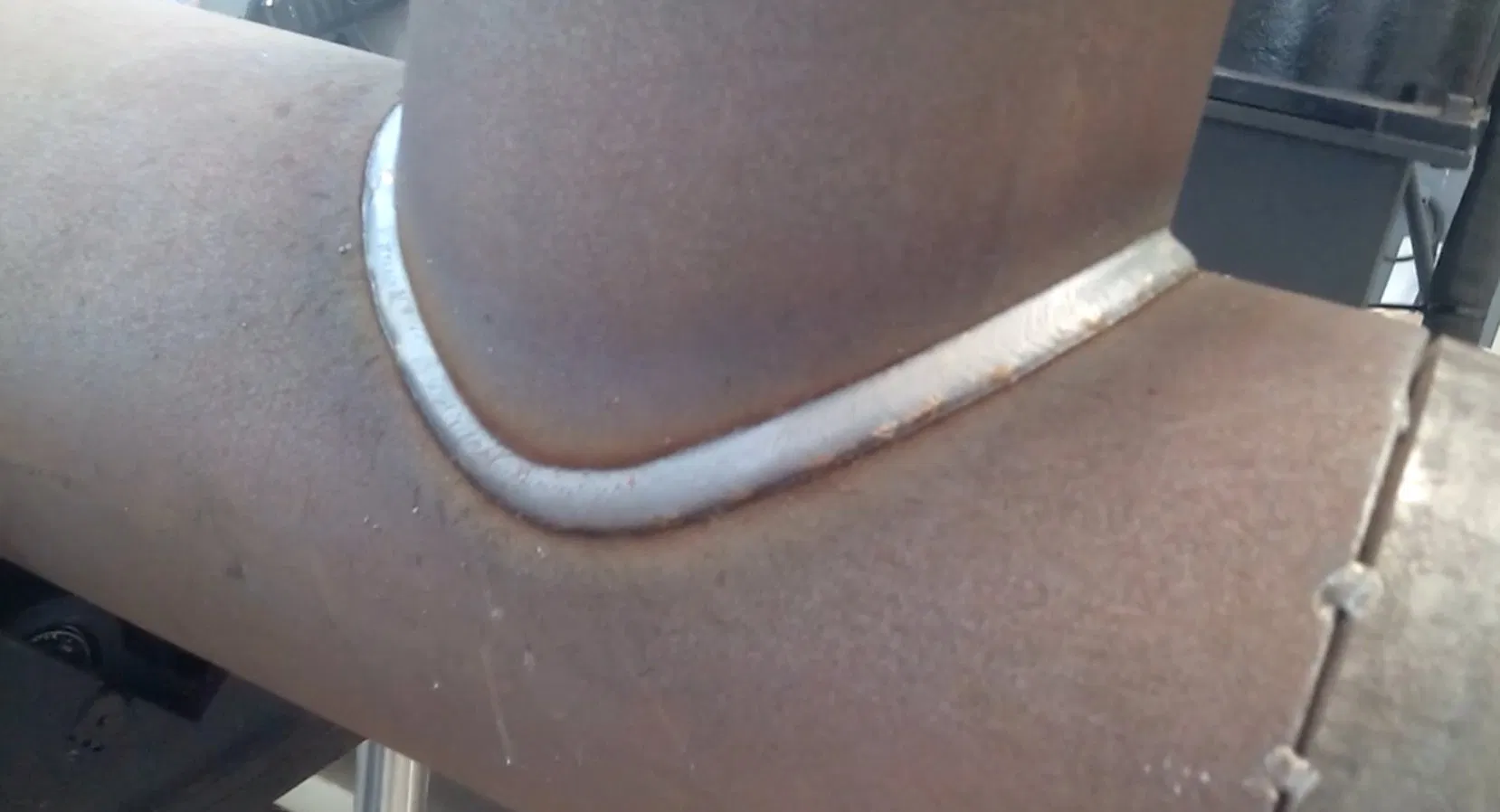

7Flexible equipment producing even and beautiful weld seams.

8Servo motor driven rotary axis for precise rotation speed control.

9Double-axis positioner to realize "ship type" welding seams.

10Gas pressure detection system with alarm to prevent welding defects.

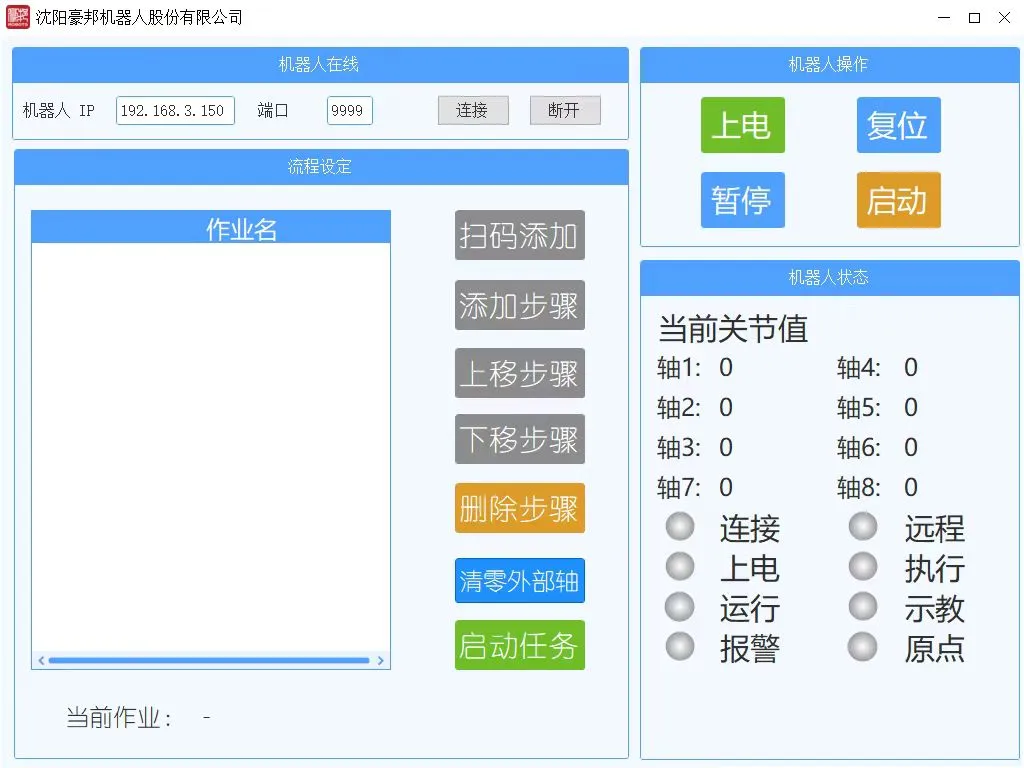

11Upper computer control with a user-friendly operation interface.

12Industrial wireless remote control for flexible operation.

13Welding parameter preset function for recurring workpiece specifications.

14Seam tracking function to handle height deviations and fluctuations.

Frequently Asked Questions

What is the welding speed of this robot?

The PWM-1 model features a welding speed of approximately 5 meters per minute.

What pipe diameters are compatible with this equipment?

The system is designed to handle pipe diameters ranging from DN80 to DN400.

Does the robot require manual teaching/instruction?

No, this advanced system dispenses with manual teaching, utilizing a 3D visual scanning system for precise weld tracking.

What is the warranty period for the equipment?

The product comes with a standard warranty of one year from the completion of mechanical debugging.

Can I save welding parameters for future use?

Yes, the system includes a welding parameter preset function, allowing you to store and directly reuse parameters for workpieces of the same specification.

How does the system handle gas pressure issues?

It is configured with a gas pressure detection system. If the pressure falls below the set value, the system will alarm and stop welding to prevent defects like gas holes.
