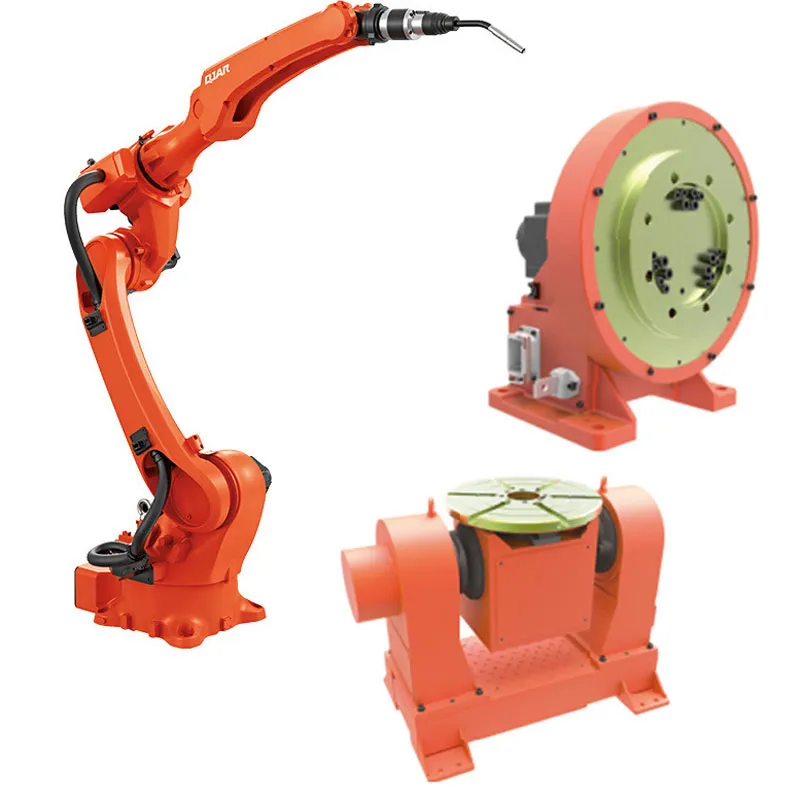

We can provide four-axis, six-axis, scara and collaborative robots with payloads ranging from 3kg to 800kg, which can be widely used in welding, handling, pick and place, sorting, loading and unloading, cutting, polishing, etc. We can also supply robot-related products like torch cleaning stations, robot tracks, welding positioners, robot clothes, etc.
We are the most proficient supplier with the most timely and professional pre-sales and after-sales technical services, we have the most detailed instruction documents and videos out of China's robot suppliers.

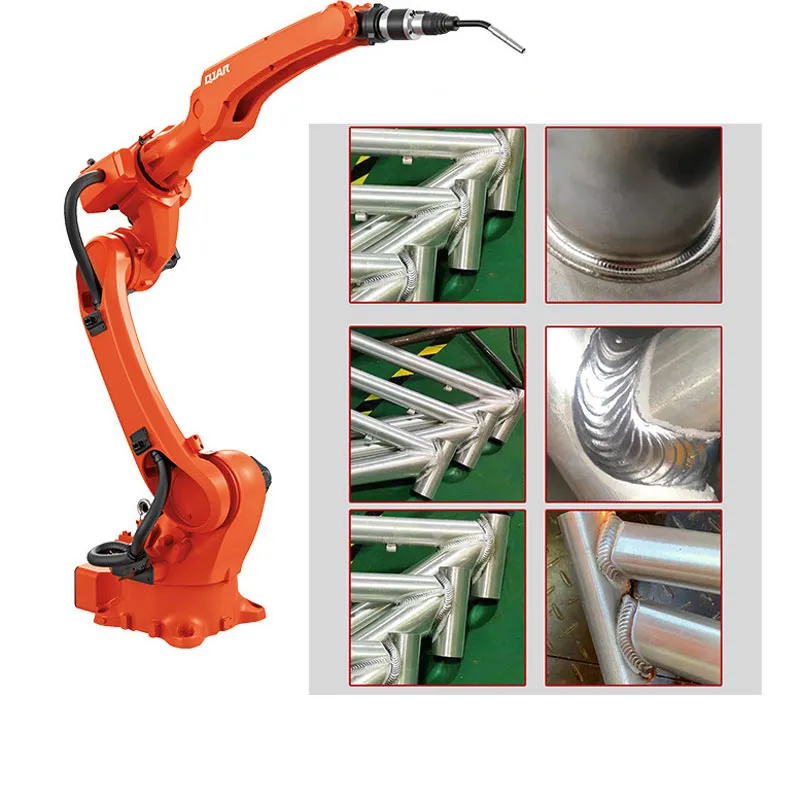

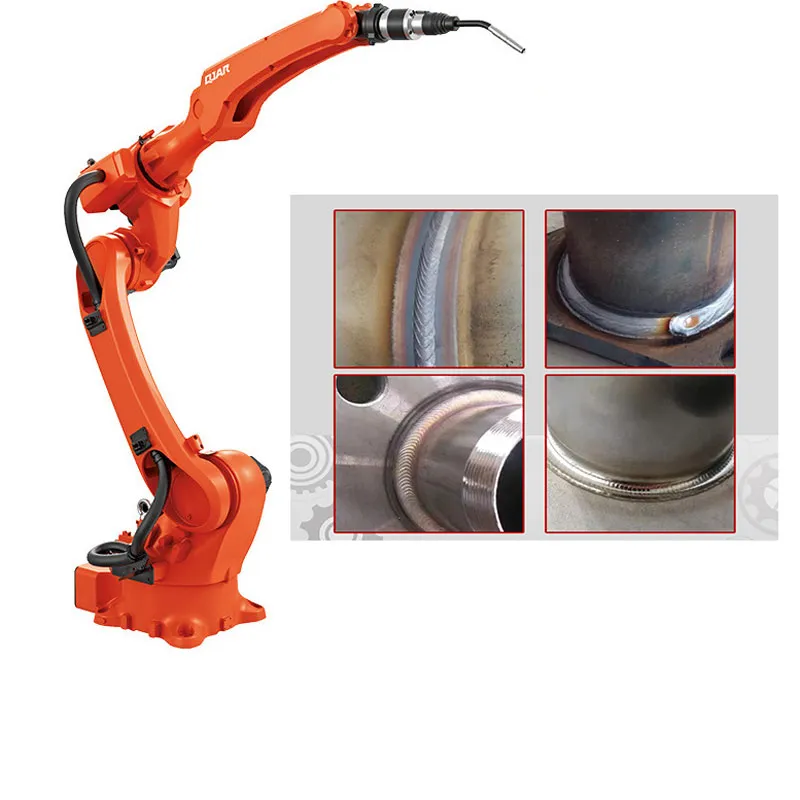

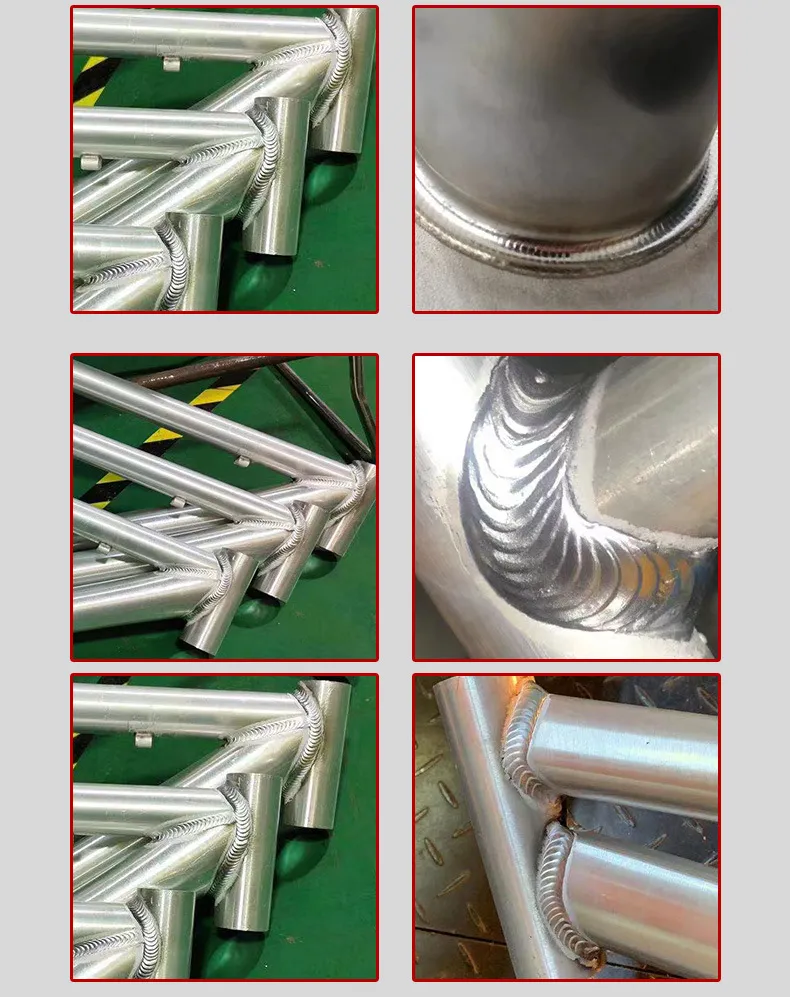

It is widely used in automobiles and their accessories, motorcycles and their accessories, and agricultural machines, engineering machines and other hardware welding fields.
| Type | Dof | Drive Method | Payload (kg) | Repeatability (mm) | Motion Range(°) | Allowed Top Torque (N.m) | Radius (mm) | Weight (kg) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J1 | J2 | J3 | J4 | J5 | J6 | J4 | J5 | J6 | |||||||
| BFRH06A2 | 6 | AC Servo | 6 | ±0.05 | ±170 | +115~-80 | +80~-150 | ±180 | ±135 | ±360 | 14 | 12 | 6 | 1490 | 185 |
| BFRH06A3-1490 | 6 | AC Servo | 6 | ±0.05 | ±170 | +120~-85 | +83~-150 | ±180 | ±135 | ±360 | 14 | 12 | 7 | 1490 | 185 |
| BFRH06A3-1700 | 6 | AC Servo | 6 | ±0.05 | ±170 | +120~-85 | +83~-150 | ±180 | ±135 | ±360 | 14 | 12 | 7 | 1700 | 187 |
| BFRH06A3-1850 | 6 | AC Servo | 6 | ±0.05 | ±170 | +145~-100 | +75~-165 | ±180 | ±135 | ±360 | 40 | 12 | 7 | 1850 | 280 |
| BFRH06A3-2060 | 6 | AC Servo | 6 | ±0.05 | ±170 | +145~-100 | +75~-165 | ±180 | ±135 | ±360 | 40 | 12 | 7 | 2060 | 285 |
